Product type	Air-to-water heat pump
Brand	Baxi
Model	Platinum BC iPlus V200
Power supply	230 V / 400 V three-phase, 50 Hz
Nominal heating power	10.0 kW (A7/W35)
COP (A7/W35)	3.5
Refrigerant	R410A
Outdoor unit dimensions (H x W x D)	900 x 800 x 300 mm
Outdoor unit weight	80 kg
Noise level (outdoor unit)	55 dB(A)
Outdoor operating range	-20 °C to +35 °C
Installation type	Split (indoor + outdoor unit)
Main functions	Heating, cooling, domestic hot water production (via optional kit)
Control	Digital control panel with installation assistant
Maintenance and cleaning	Clean the ventilation grilles with a soft cloth; have the refrigerant circuit checked annually by a professional.
Spare parts and repairability	Reversing valve, valve motor, KVT60 sensor, connectors (ref. 300012321, 300012320, 95362448, 300021727, etc.)
Safety	Safety thermostat 65°C; safety group set at 7 bar; differential valve; disconnector
Warranty	2 years (parts and labor)

Frequently Asked Questions - Platinum BC iPlus V200 Baxi

How to connect the domestic hot water sensor on version 1 of the electronic board?

Route the cable through the 0-40 V passage of the indoor unit. Fit the supplied connector on the wires and plug it into the S.ECS terminal on the board.

How to connect the reversing valve on version 1?

Route the cable through the 230-400 V passage. Fit the connector (black wire = command, brown = continuous, blue = neutral) and plug it into the X4 terminal on the board.

Which parameter to set on version 1 after installing the kit?

Set parameter P1 to 1 in the f menu. Then select the appropriate operating mode by pressing the key twice.

How to identify the version of the electronic board?

Access the indoor unit and check the visual: version 1 = reference MW-1001091-1, version 2 = MW-1001092-1.

What is the typical hydraulic connection diagram?

The outdoor unit connects to the indoor unit via refrigerant lines (1/2" - 1/4"). The heating circuit includes a differential valve, expansion vessel, automatic air vent, and disconnector. See diagram Fig.2 and reference table.

What is the spare parts list for the reversing valve + sensor kit?

Reversing valve (ref. 300012321), valve motor (300012320), KVT60 sensor length 5m (95362448), connectors according to board version.

How to configure the control on version 2?

During first power-up, use the installation assistant. Select the installation type: 02 (1 direct circuit + DHW), 04 (direct + DHW + mixed floor), or 06 (direct floor + DHW).

Can the heat pump be used without the DHW kit?

Yes, the heat pump operates in heating and cooling without the DHW kit. The kit is optional for producing domestic hot water.

What is the required electrical power?

Power supply 230 V or 400 V three-phase 50 Hz. A suitable circuit breaker is required (see installation manual).

How to bleed the hydraulic circuit?

Use the automatic air vent (item 7 on the diagram). Open the filling valves and manually bleed if necessary until air is removed.

USER MANUAL Platinum BC iPlus V200 Baxi

MW-1001126-1 X91 X92 O1 Comp B.ECS S.ECS ③ ②

X4 L N ② N L MW-1001123-1

Pure electrical circuit lines without any symbols

X25 N1+L2

② N L2 L1

MW-1001126-1 X91 X92 Q1 Comp S.ECS S.ECS ③ ②

X4 L N ② N L MW-1001123-1

Pure electrical circuit lines without any symbols

X25 N1+L2

② N L2 L1

1 Reversal valve and domestic hot water sensor ....23

1.1 Assembling the reversal valve 23
1.2 Hydraulic connection diagram .....24
1.3 Identifying the PCB used 24
1.4 Indoor module with PCB - version 1 25

1.4.1 Connecting the domestic hot water sensor 25
1.4.2 Connecting the reversal valve 26
1.4.3 Setting the control system 27

1.5 Indoor module with PCB - version 2 27

1.5.1 Connecting the domestic hot water sensor 27
1.5.2 Connecting the reversal valve 28
1.5.3 Setting the control system 29

1.6 Spare parts lists 30

1 Reversal valve and domestic hot water sensor

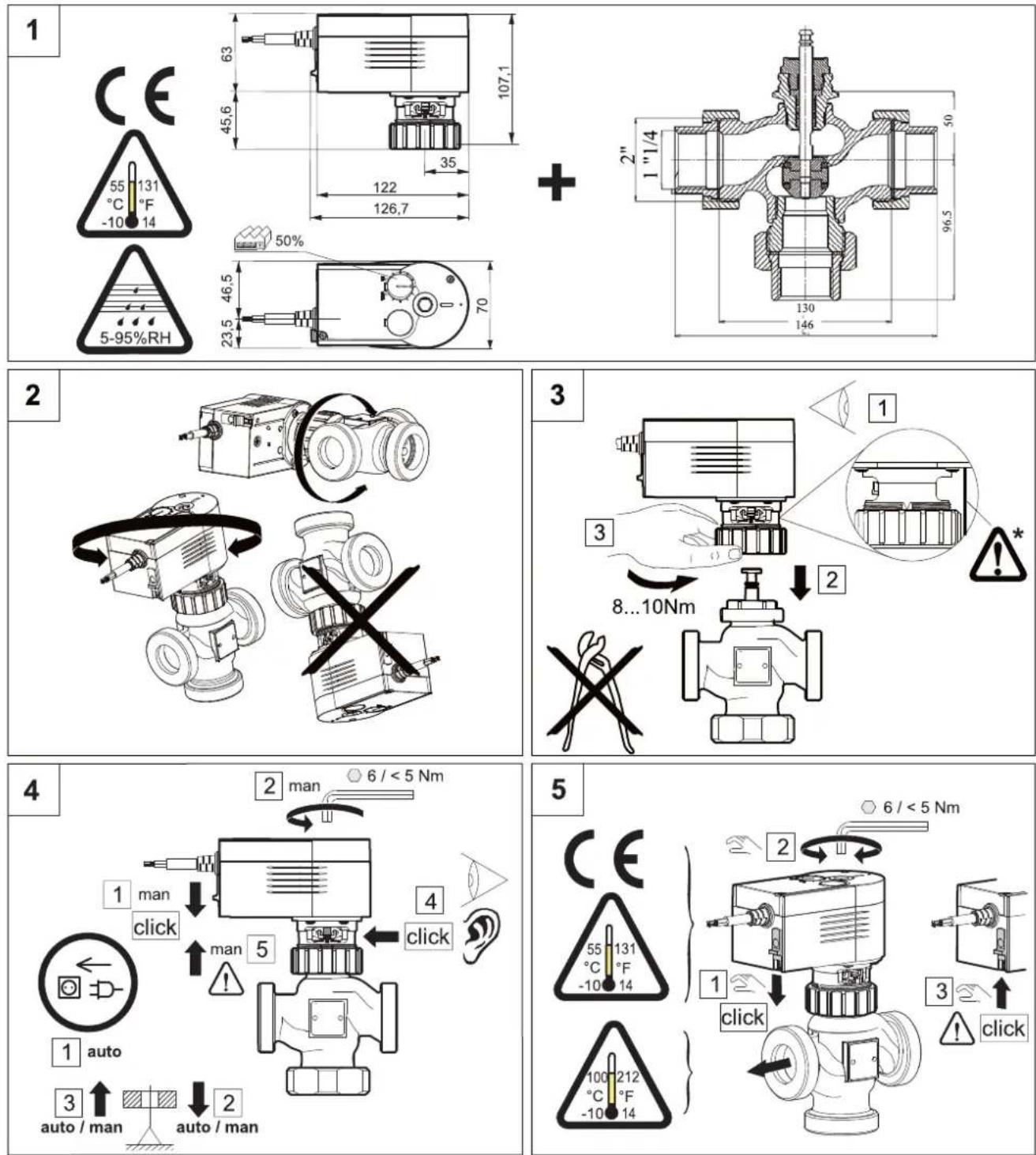

1.1 Assembling the reversal valve

Caution
* Never insulate

Fig.23

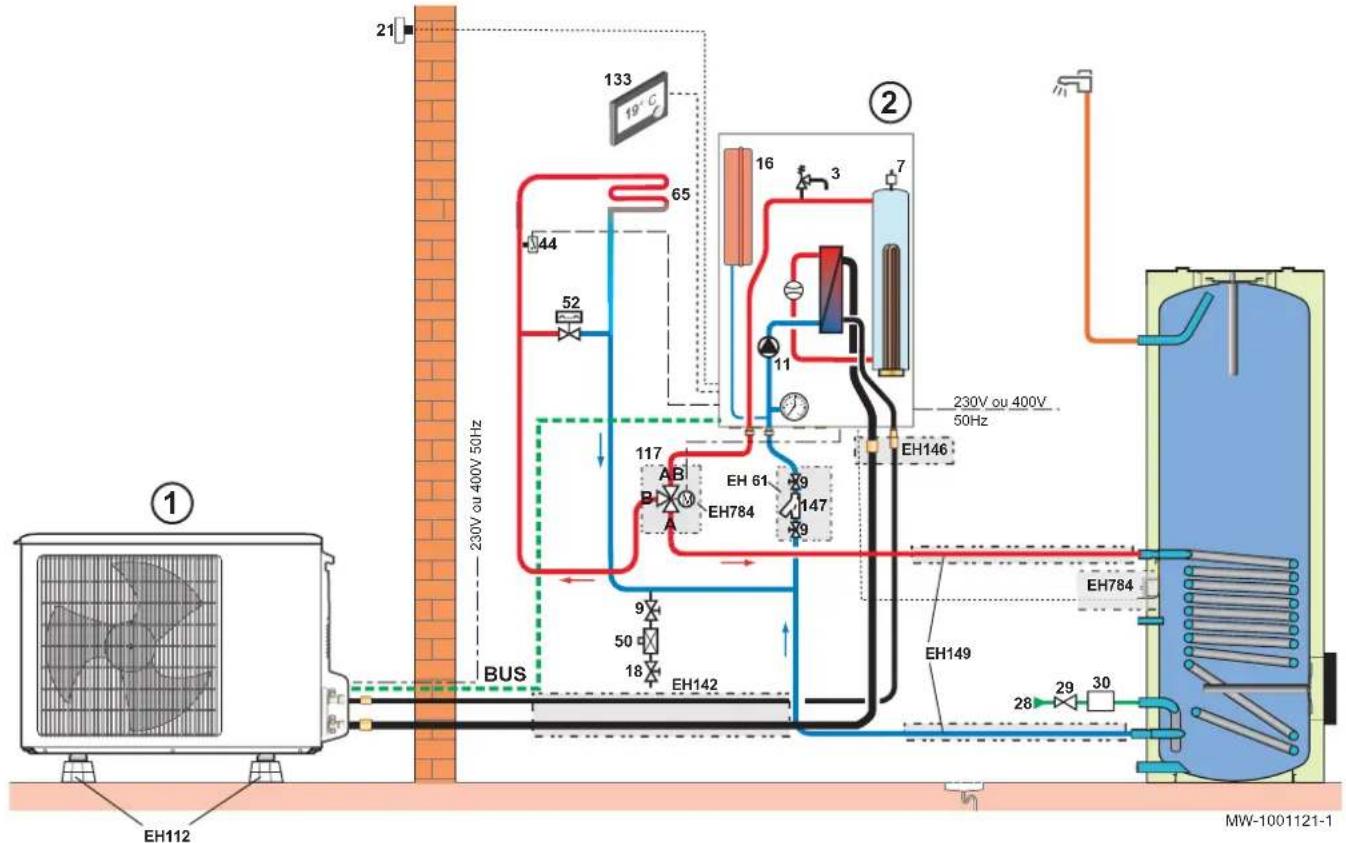

1.2 Hydraulic connection diagram

Fig.24

Tab.7

Marker	Description Marker Description
1	Outdoor module 5	§0	Disconnector
2	Indoor module 5	§2	Differential valve
3	Safety valve 6	§5	Heating circuit with mixing valve, heating circuit which may be at low temperature (underfloor heating or radiators)
7	Automatic air vent 1	117	Motorised reversal valve
9	Isolation valve 1	133	Programmable digital room thermostat
11	Heating pump 1	147	400 μm hydraulic filter (mandatory)
16	Expansion vessel E	EH61	400 μm hydraulic filter + isolation valve
18	Heating circuit filling (France: with disconnector depending on regulations)	EH112	Floor installation base
21	Outside temperature sensor E	EH142	Refrigeration connection kit 1/2"- 1/4" - length 10 m
28	Domestic cold water inlet E	EH146	Adapter fitting 1/2"- 1/4" to 5/8"- 3/8"
29	Pressure reducer E	EH149	Hydraulic connection kit for the heat pump and the domestic hot water tank
30	Safety unit calibrated to 7 bar E	EH784	Reversal valve and domestic hot water sensor
44	65 °C safety thermostat

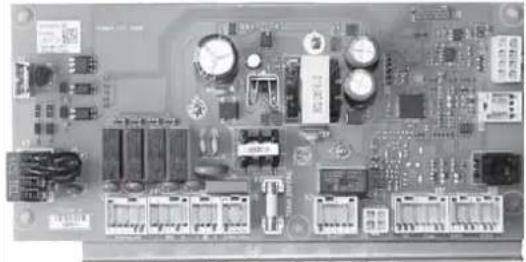

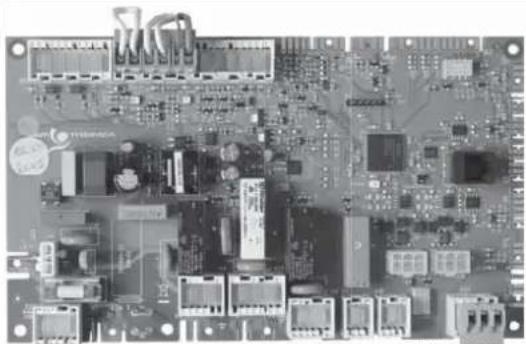

1.3 Identifying the PCB used

Depending on the PCB used, there are two ways to install this kit.

1. Access the PCB for the indoor module.
2. Identifying the PCB version used:

Version Image of the PCB See
1	MW-1001091-1	Chapter 1.4
2	MW-1001092-1	Chapter 1.5

1.4 Indoor module with PCB - version 1

Fig.25

① 0-40V 230-400V

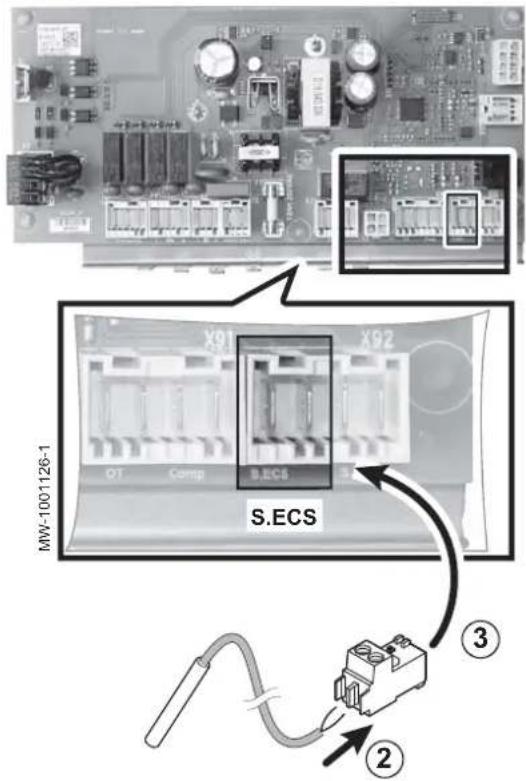

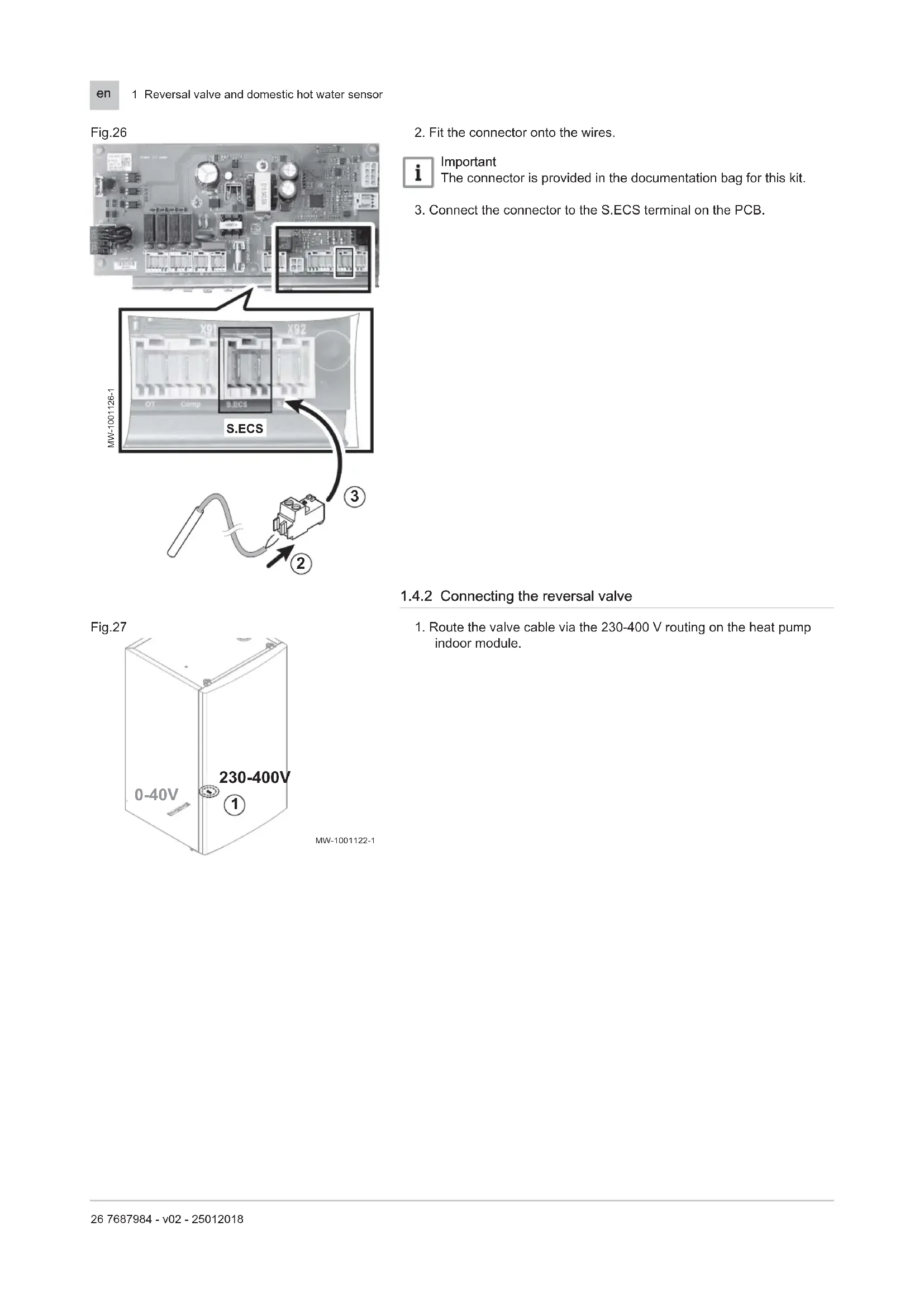

1.4.1 Connecting the domestic hot water sensor

1. Route the domestic hot water sensor cable via the 0-40 V routing on the heat pump indoor module.

Fig.26

MW-1001126-1 X91 X92 Q1 Comp S.ECS S.ECS ③ ②

1. Fit the connector onto the wires.

Important

The connector is provided in the documentation bag for this kit.

1. Connect the connector to the S.ECS terminal on the PCB.

Fig.27

0-40V 230-400V ①

MW-1001122-1

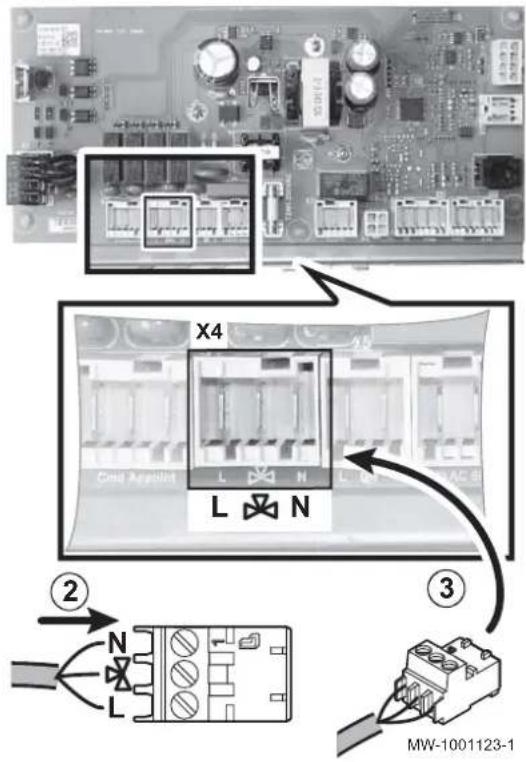

1.4.2 Connecting the reversal valve

1. Route the valve cable via the 230-400 V routing on the heat pump indoor module.

Fig.28

X4 L N ② N L MW-1001123-1

1. Fit the connector onto the wires.

L Black: control voltage

Brown: continuous voltage

N Blue: neutral

Important

The connector is provided in the documentation bag for this kit.

1. Connect the connector to the X4 terminal on the PCB.

1.4.3 Setting the control system

The information and settings in the Installer menu can only be accessed by a qualified professional.

1. Set the PP1 parameter to 1 in the fmenu.

2. Select the correct operating mode for the installation by pressing the

key twice.

See

Heat pump installation manual.

1.5 Indoor module with PCB - version 2

Fig.29

① 0-40V 230-400V

MW-1001125-1

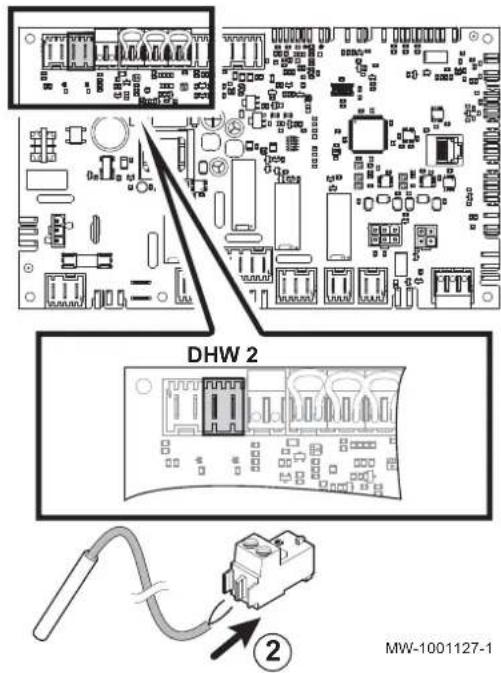

1.5.1 Connecting the domestic hot water sensor

1. Route the domestic hot water sensor cable via the 0-40 V routing on the heat pump indoor module.

Fig.30

DHW 2 MW-1001127-1

1. Fit the connector onto the wires.

Important

The connector is fitted on the PCB.

In this case, the connectors supplied in the documentation bag are not necessary.

Fig.31

0-40V 230-400V ①

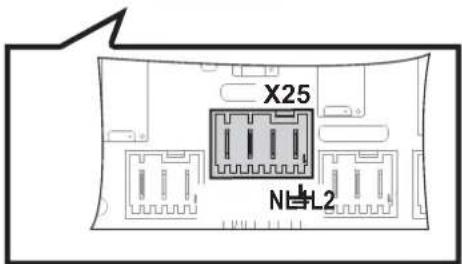

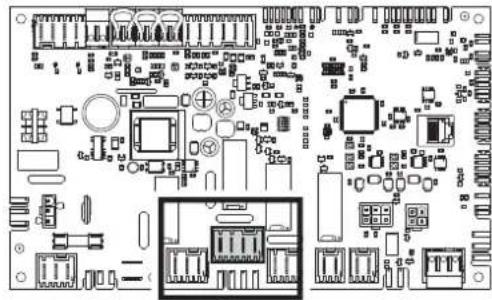

1.5.2 Connecting the reversal valve

1. Route the valve cable via the 230-400 V routing on the heat pump indoor module.

Fig.32

Pure electrical circuit lines without any symbols

X25 N1+L2

② N L2 L1

1. Fit the connector onto the wires.

L1 Black: control voltage

L2 Brown: continuous voltage

N Blue: neutral

Important

The connector is fitted on the PCB.

In this case, the connectors supplied in the documentation bag are not necessary.

1.5.3 Setting the control system

When the installation is first switched on, refer to the chapter "Using the installation assistant for the control panel" in the Installation Manual for the heat pump.

1. Select the desired installation type:

Tab.8

Installation type No.
1 direct heating circuit and 1 domestic hot water tank	02
1 direct heating circuit and 1 domestic hot water tank and 1 underfloor heating circuit with mixing valve	04
1 direct underfloor heating circuit and 1 domestic hot water tank	06

See

Heat pump installation manual.

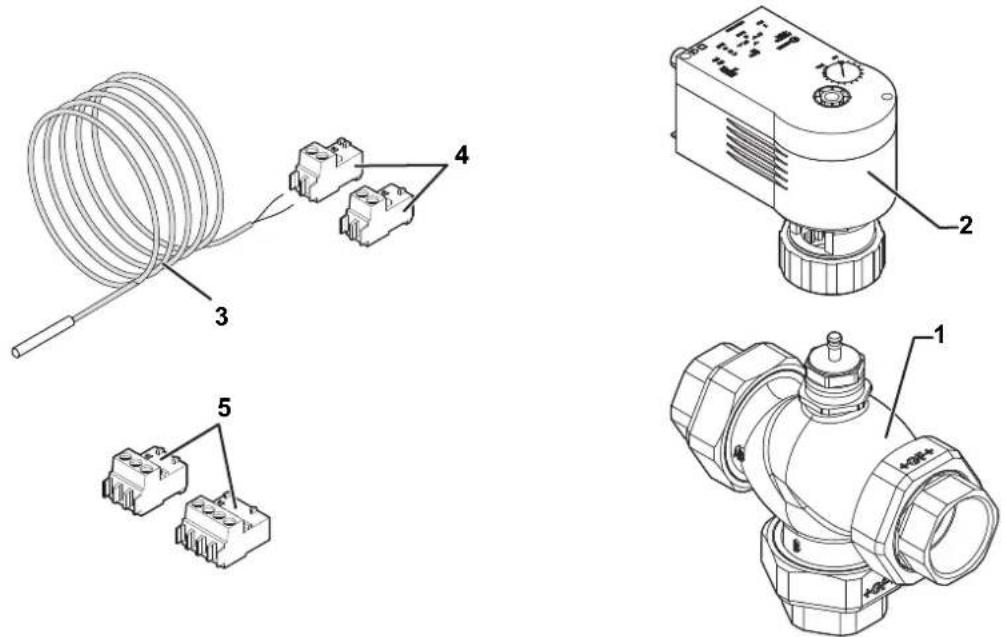

1.6 Spare parts lists

Fig.33

MW-1001128-1

Tab.9

Marker Reference Description
1 300012321 Reversal valve
2 300012320 Reversal valve motor
3 95362448 KVT60 sensor, length 5m
4 300021727 RAST 5 sensor connector - X2 - for PCB version 1
4 300008957 RAST 5 sensor connector - X2 - for PCB version 2 – EHC
5 300021723 RAST 5 connector – x4 – for three-way valve – for PCB version 1
5 7685026 RAST 5 connector – x4 – for three-way valve – for PCB version 2 – EHC
