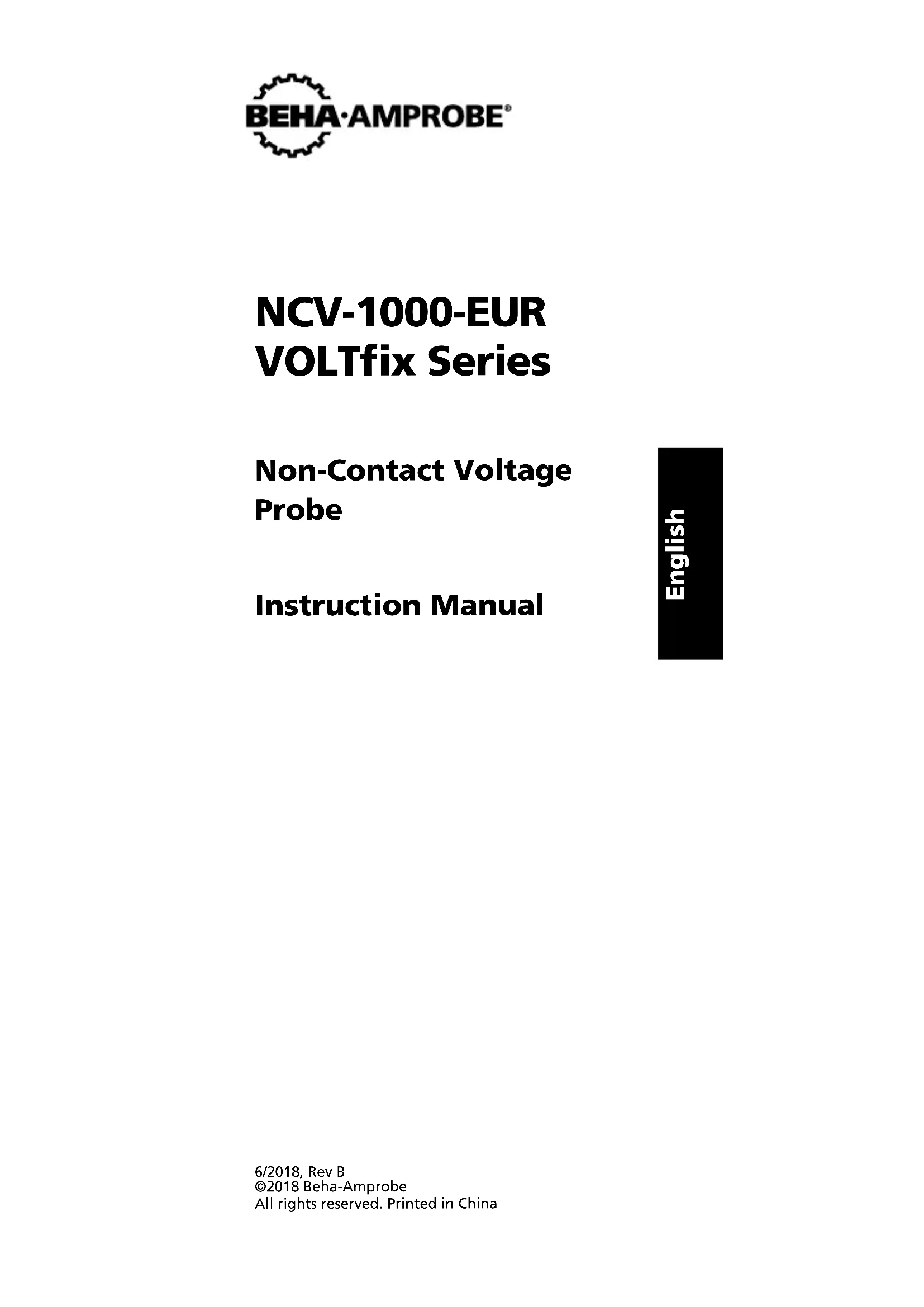

USER MANUAL NCV1020EUR Beha-Amprobe

NCV-1000-EUR VOLTfix Series

Non-Contact Voltage Probe

Instruction Manual

4s!6u3

Limited Warranty and Limitation of Liability

• Your Beha-Amprobe product will be free from defects in material and workmanship for one year from the date of purchase unless local laws require otherwise. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on the behalf of Beha-Amprobe. To obtain service during the warranty period, return the product with proof of purchase to an authorized Beha-Amprobe Service Center or to an Beha-Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTYIS - WHEHER EXPRESS, IMPLIED OR STATUTORY - INCLUDING IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All Beha-Amprobe returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company's name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Beha-Amprobe.

In-warranty Repairs and Replacement - All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty period, any defective test tool can be returned to your Beha-Amprobe distributor for an exchange for the same or like product. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you. Additionally, in the United States and Canada, in-warranty repair and replacement units can also be sent to an Amprobe Service Center (see address below).

Non-warranty Repairs and Replacement - United States and Canada

Non-warranty repairs in the United States and Canada should be sent to an Amprobe Service Center. Call Amprobe or inquire at your point of purchase for current repair and replacement rates.

USA: Canada:

Amprobe Amprobe
Everett, WA 98203 Mississauga, ON L4Z 1X9
Tel: 877-AMPROBE (267-7623) Tel: [phone]

Non-warranty Repairs and Replacement - Europe

European non-warranty units can be replaced by your Beha-Amprobe distributor for a nominal charge. Please check the "Where to Buy" section on beha-amprobe.com for a list of distributors near you.

Beha-Amprobe

Division and reg. trademark of Fluke Corp. (USA)

Germany* United Kingdom

In den Engematten 14 52 Hurricane Way

79286 Glottertal Norwich, Norfolk

Germany NR6 6JB United Kingdom

Phone: [phone] - 0 Phone: [phone]

The Netherlands -Headquarters**

Science Park Eindhoven 5110

5692 EC Son

The Netherlands

Phone: [phone]

beha-amprobe.com

*Correspondence only - no repair or replacement avail- able from this address. European customers please contact your distributor.)

**single contact address in EEA Fluke Europe BV

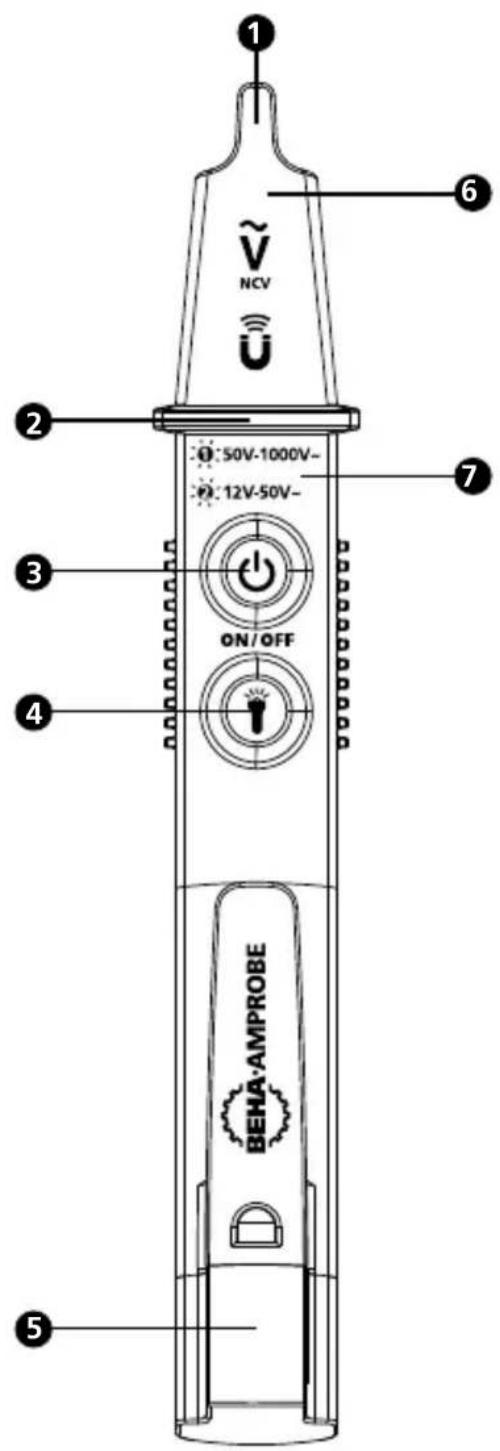

Probe tip with voltage sensor, magnetic sensor (NCV-1040-EUR MAGNO-VOLTfix only) and indication
Finger guard
3 Power ON/OFF / range selection (NCV-1030/1040-EUR (MAGNO-)VOLTfix only)
Light button (NCV-1030/1040-EUR (MAGNO-) VOLTfix only)
5 Battery cap
6 Flashlight (NCV-1030/1040-EUR (MAGNO-)VOLTfix only)
Voltage range

CONTENTS

SYMBOLS 1

SAFETY INFORMATION 2

FEATURES 3

APPLICATIONS 3

OPERATING INSTRUCTIONS 4

SPECIFICATIONS. 6

BATTERY REPLACEMENT & CARE 7

SYMBOLS

A	Caution! Risk of electric shock
A	Caution! Refer to the explanation in this instruction sheet
Double insulated
CAT IV	Equipment is for measurements performed at the source of a low voltage installation (i.e. electrical meters and measurements on primary over current protection devices and ripple control units)
+AAA-	Battery
Solid particle protection: dust tight IP6x
Liquid ingress protection: water jets IPx5
Do not dispose of this product as unsorted municipal waste-contact a qualified recycler
CE	Complies with European Directives
C US	Canadian Standards Association (NRTL/C)
Conforms to relevant Australian standards
K	Conforms to relevant South Korean EMC Standards

For Use by Competent Persons

Anyone using this instrument should be knowledgeable and trained about the risks involved with measuring voltage, especially in an industrial setting, and the importance of taking safety precautions. The instrument should be tested before and after use to ensure that it is in good working condition.

Warning

To prevent possible electrical shock, fire, or personal injury:

• If the Voltage Probe is used in a manner not specified by the manufacturer, protection provided by the Voltage Probe may be affected.
• Test on a known live source within the rated AC voltage range of the product both before and after use to ensure the Voltage Probe is in good working condition.

• When using the Voltage Probe, voltage may be present even if the tip does not glow. The Voltage Probe indicates active voltage in the presence of electrostatic fields of sufficient strength generated from the source voltage. If the field strength is low, the Voltage Probe may not provide indication of live voltage. Lack of an indication occurs if the Voltage Probe is unable to sense the presence of voltage which may be influenced by several factors including, but not limited to:

• Position of the earth conductors in the environment under test

• Shielded wire/cables
• Thickness and type of insulation
• Distance from the voltage source
• Fully-isolated users that prevent an effective ground
• Receptacles in recessed sockets / differences in socket design

• Condition of the Voltage Probe and batteries

• The Voltage probe is not the appropriate tool to check for the absence of voltage. Use a voltage tester therefore.

• Do not use the Voltage Probe if it appears damaged or is not operating properly. Closely examine the probe tip for cracks or breakage before use. If in doubt, have the Voltage Probe serviced.
• Do not apply more than the rated voltage as marked on the Voltage Probe.
• When operating the Voltage Probe, keep fingers behind the finger guard.
• Do not use the Voltage Probe if it is not flashing upon power on.
• Use caution with voltages above 30V AC as a shock hazard may exist.
• Comply with local and national safety requirements.
• Use proper protective equipment as recommended or required by local or national authorities.

FEATURES

The Beha-Amprobe NCV-1000-EUR VOLTfix series Non-Contact Voltage (NCV) Probe provides maximum safety and convenience for detecting AC voltage without interrupting electrical systems. Designed to conveniently fit in your shirt pocket, the NCV-1000-EUR VOLTfix series Voltage Probe performs in indoor and outdoor settings. Safety tested to the highest category measurement, CAT IV 1000 V, as well as IP65 water and dust resistant, the NCV-1000-EUR VOLTfix series is fit for the toughest industrial applications.

Non-contact voltage detection up to 1000 V AC

Built-in flashlight (NCV-1030/1040-EUR (MAGNO-)VOLTfix)

Water and dust resistant - IP65 rated

• Audible (buzzer) and visual (LED) voltage indication

• On/off switch

• Auto power off (NCV-1030/1040-EUR (MAGNO-)VOLTfix)

• CAT IV 1000 V safety rated

Magnetic solenoid testing (NCV-1040-EUR MAGNO-VOLTfix)

• Low battery indication (NCV-1030/1040-EUR (MAGNO-)VOLTfix)

	NCV-1020-EUR VOLTfix	NCV-1030-EUR VOLTfix	NCV-1040-EUR MAGNO-VOLTfix
NCV Default range (AC)	50 to 1000 V	50 to 1000 V	to 1000 V
NCV High Sensitivity range (AC)		12 to 50 V*	12 to 50 V*
Magnetic solenoid testing			●

• Note: High sensitivity range is optimized for 12 to 50V range with a maximum indication up to 1000V . Using the tester above 50V in high sensitivity range may affect polarity indication.

Your shipping carton includes a voltage probe, user manual and 2 1.5 V AAA batteries (installed).

APPLICATIONS

• Detects the presence of AC voltage in cables, circuit breakers, wall sockets, junction boxes, fuses, extension cords and more.
• Tests voltage through wire insulation.

• Identifies cable breaks in wires, cords and lighting systems connected in series.

• Identifies polarity (line vs. neutral) of receptacles and cables. (Depending on the internal construction and dimension of receptacles in different countries this application may be influenced.)

• Tests voltage without contact.
• Safety CAT IV 1000 V rated for a wide range of applications including industrial, commercial, and residential.
  Water-resistant IP65 rated for indoor and outdoor use.
• Magnetic solenoid detection to diagnose electromagnets and relays (NCV-1040-EUR MAGNO-VOLTfix only).

OPERATING INSTRUCTIONS

Turning the Voltage Probe ON

To turn the Voltage Probe on, momentarily press the ON/OFF button. A continual single flash visually indicates the Voltage Probe is active in default voltage range (50 to 1000 V). Press the ON/OFF button again to switch to high

sensitivity range (12 to 50V for NCV-1030/1040-EUR (MAGNO-)VOLTfix only). A continual double flash indicates the Voltage Probe's sensitivity range is at the 12 to 50V range.

Turning the Voltage Probe OFF

Press and hold the ON/OFF button for longer than two seconds to turn the Voltage Probe off. The absence of flash at the tip indicates the Voltage Probe is inactive.

Auto Power Off

To save battery life, the NCV-1030/1040-EUR (MAGNO-)VOLTfix are enabled with an automatic power off feature. The Voltage Probe will automatically power off after approximately 3 minutes of non-use.

Checking for the Presence of AC Voltage

To test for the presence of AC voltage in a receptacle, insert the tip of the Voltage Probe. To test a wire, approach the wire with the tip of the Voltage Probe. Switch between default (50 V to 1000 V AC) and high sensitivity (12 V to 50 V AC) voltage range detection by short pressing the ON/OFF button (NCV-1030/1040-EUR (MAGNO-)VOLTfix only). The LED at the tip of the Voltage Probe will illuminate and flash bright red and a buzzer will sound when AC voltage is detected.

Note: High sensitivity range is optimized for 12 to 50V range with a maximum indication up to 1000 V. Using the tester above 50V in high sensitivity range may affect polarity indication.

When operating the Voltage Probe, always keep fingers behind the finger guard.

Checking for the Magnetic Field (NCV-1040-EUR MAGNO-VOLTfix)

The NCV-1040-EUR MAGNO-VOLTfix can test for a magnetic field in addition to AC voltage detection. A solid yellow LED will illuminate when a magnetic field is detected.

Note: If AC voltage and a magnetic field are detected simultaneously, the Voltage Probe will flash both red and yellow.

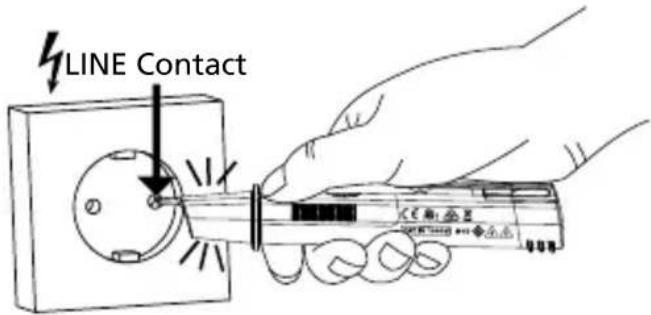

Testing receptacle:

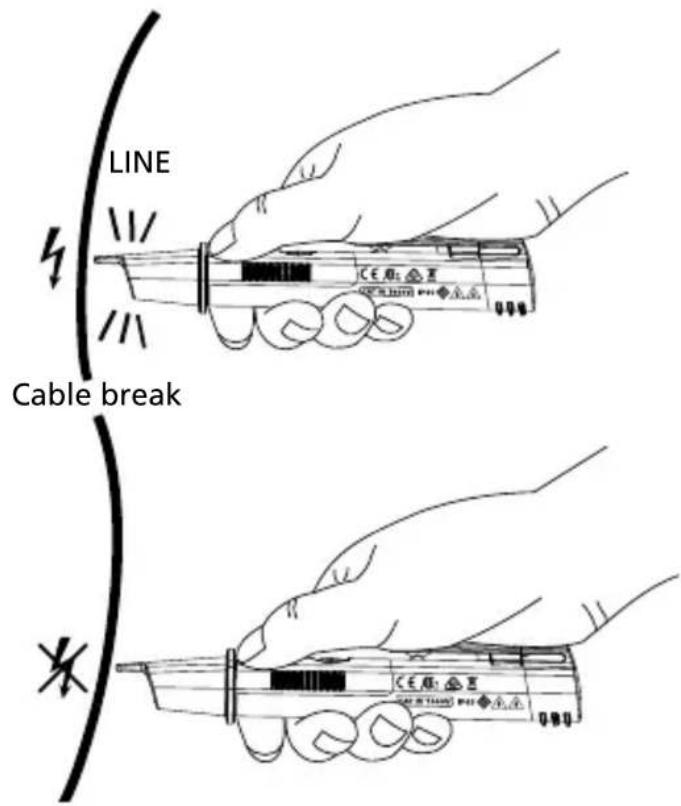

Testing wire and cable breaks:

Using the Flashlight

A flashlight is installed in the NCV-1030/1040-EUR (MAGNO-)VOLTfix. Activate the flashlight by pressing the button To switch OFF the flashlight press the button again.

SPECIFICATIONS

Operating Voltage Range	NCV-1020-EUR VOLTfix: 50-1000 Vac, 50-400 Hz NCV-1030-EUR VOLTfix: 12-50 Vac, 50-1000 Vac, 50-400 Hz NCV-1040-EUR MAGNO-VOLTfix: 12-50 Vac, 50-1000 Vac, 50-400 Hz
Voltage Detection (default range)/sensitivity	LED and buzzer indications at approximately 5 mm (0.20 in) distance from a wire carrying 230 Vac
Detection of Magnetic Field/ sensitivity	NCV-1040-EUR MAGNO-VOLTfix: approximately >2.5 mT
Measuring category	CAT IV 1000V
Ingress protection	IP65
Temperature Range	0 °C to 40 °C (32 °F to 104 °F), ≤ 80% RH
Storage Conditions	-10 °C to 40 °C (14 °F to 104 °F), ≤ 85% RH
Operating Altitude	≤ 2000 m (6561 ft)
Duty Cycle Continuous
Power Supply 2 x 1.5 V LR03 AAA batteries
Current Consumption	Approximately 80 mA
Dimensions (L x W x H)	156.2 x 23.5 x 27.5 mm (6.14 x 0.92 x 1.08 in)
Weight (with batteries installed)	NCV-1020-EUR VOLTfix: Approx. 58 g (0.12 lb) NCV-1030-EUR VOLTfix: Approx. 60 g (0.13 lb) NCV-1040-EUR MAGNO-VOLTfix: Approx. 62 g (0.136 lb)
Safety Compliance	IEC 61010-1 3rd Ed., UL 61010-1 3rd Ed., UL 61010-2-030, CAN/CSA-C22.2 No.61010-1-12, CAN/CSA-C22.2 No. 61010-2-030-12 to CAT IV 1000 V, Pollution degree 2, IP65
EMC Compliance	IEC 61326-1 Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1] [1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Certifications	CE C

BATTERY REPLACEMENT & CARE

Low Battery Indication

The NCV-1030/1040-EUR (MAGNO-)VOLTfix Voltage Probe provide a low battery indication in the form of a very slowly blinking red LED upon power on when battery level is low and the batteries should be replaced. At that point no voltage indication is possible.

The NCV-1020-EUR VOLTfix does not provide the same indication; instead, batteries will need to be replaced when no LED appears upon power on.

Battery Replacement

To remove the battery cap, use the thumb grip to pull it upwards and outwards. Remove batteries and replace with (2) AAA 1.5 V alkaline batteries, noting the battery orientation as shown on the side of the Voltage Probe. Replace the cap.

If the Voltage Probe will not be used for a long period of time, remove the batteries.

Cleaning

The Voltage Probe can be cleaned with a mild solution of soapy water. Apply sparingly with a soft cloth and allow to dry completely before using. Do not use aromatic hydrocarbons, gasoline, or chlorinated solvents for cleaning.
