Product Type	Binoculars
Brand	Leica
Model	Noctivid
Magnification	8x or 10x depending on version
Objective Lens Diameter	42 mm
Exit Pupil	5.25 mm (8x) / 4.2 mm (10x)
Light Transmission	92 %
Field of View at 1000 m	135 m (8x) / 112 m (10x)
Exit Pupil Position	19 mm
Close Focus	Approx. 1.80 m
Diopter Compensation	± 4 dpt / -5 dpt
Interpupillary Distance	56 - 74 mm
Operating Temperature	-25 °C to 55 °C
Storage Temperature	-40 °C to 85 °C
Waterproofness	Up to 5 m depth
Dimensions (L x H x D)	124 x 59 x 153 mm
Weight	Approx. 853 g (8x) / 863 g (10x)
Body Material	Magnesium, nitrogen-filled
Focusing	Internal via central wheel
Eyecups	Adjustable and removable, 4 click stops
Included Accessories	Strap, case, lens caps, cloth, manual, warranty
Maintenance	Clean with a soft cloth or rinse under running water; do not use alcohol
Safety Precautions	Never look at the sun; do not use while walking
Spare Parts	Available through Leica after-sales service

Frequently Asked Questions - Noctivid LEICA

How to adjust the eyecups for observation with glasses?

For observation with glasses, the eyecups should remain fully screwed in (retracted). Turn them clockwise until they stop.

How to adjust diopter compensation on Leica Noctivid binoculars?

Gently pull the central focusing wheel to unlock it. Focus with your left eye, then lock the wheel by pulling it toward the eyepiece. Then adjust sharpness with your right eye by turning the wheel. When you push it back toward the objective, the correction engages.

What is the waterproof depth of the Noctivid binoculars?

The Leica Noctivid binoculars are waterproof up to 5 meters depth thanks to their nitrogen-filled magnesium body.

How to clean the binocular lenses?

First remove coarse particles with a fine brush or by blowing. Wipe off smudges with a soft chamois leather or a lint-free cloth. For heavy soiling, rinse under running water. Never use alcohol or chemical solvents.

What to do if moisture appears in the graduated window?

Unlock the focusing wheel to let the moisture dry. This does not pose any risk of damage to the binoculars.

How to adjust the interpupillary distance?

Fold the binoculars at the hinge until the two visual fields merge into a single circle. The distance is correct when you see a circular image.

What accessories are included with the Noctivid binoculars?

The box contains: the binoculars, a carrying strap, a carrying case, eyepiece and objective lens protective caps, a cleaning cloth, the instruction manual, the warranty card, and an inspection certificate.

What is the recommended operating temperature?

The binoculars operate from -25 °C to +55 °C and can be stored from -40 °C to +85 °C.

Where can I find spare parts for the Noctivid binoculars?

Contact Leica after-sales service or the importer in your country. The addresses are listed on the warranty card.

What safety precautions should I follow?

Never look at the sun or a bright light source with the binoculars, as this can cause eye damage. Do not use them while walking to avoid bumping into obstacles.

USER MANUAL Noctivid LEICA

Product Support / Software Support

Am Leitz-Park 5

35578 Wetzlar

Germany

Telefon: [phone]/-108

Telefax: [phone]

[e-mail] /

[e-mail]

LEICA CUSTOMER CARE

You are a curious observer or an avid nature lover?

The long range optical products by Leica make looking at everything as exciting as never before.

We wish you a great deal of fun and success with your new Leica Noctivid binoculars.

We recommend reading these instructions carefully so that you will understand all its functions completely.

SCOPE OF DELIVERY

• Binoculars
• Carrying strap
• Carrying case
• Eyepiece cap
• 2 lens caps with adapter rings
• Cleaning cloth
• Instructions
• Guarantee Card
• Test certificate

PART DESIGNATIONS

Eyecups

Position Turned out for use

without eye glasses

Position 1 Turned in for use

with eye glasses

2 Eyelets for the carrying strap
3 Central focusing unit

TABLE OF CONTENTS

Scope of Delivery. 13
Part Designations. 13
Areas of Use 15
Attaching carrying strap and eyepiece cap 15
Mounting the lens caps. 15
Adjusting the eyecups. 16
Adjusting the interocular distance 17
Focusing/Diopter adjustment 17
Scale reading. 18
Care/cleaning 19
Accessories 20
Spare parts. 20
Troubleshooting 21
Technical Specifications. 22
Leica Service Addresses 23

Important Health Warning:

• Never look directly at the sun or other bright sources of light through your binoculars! Non-compliance may lead to serious damage to your eyes!
• Do not use your binocular while walking! You might not see obstacles in your way!

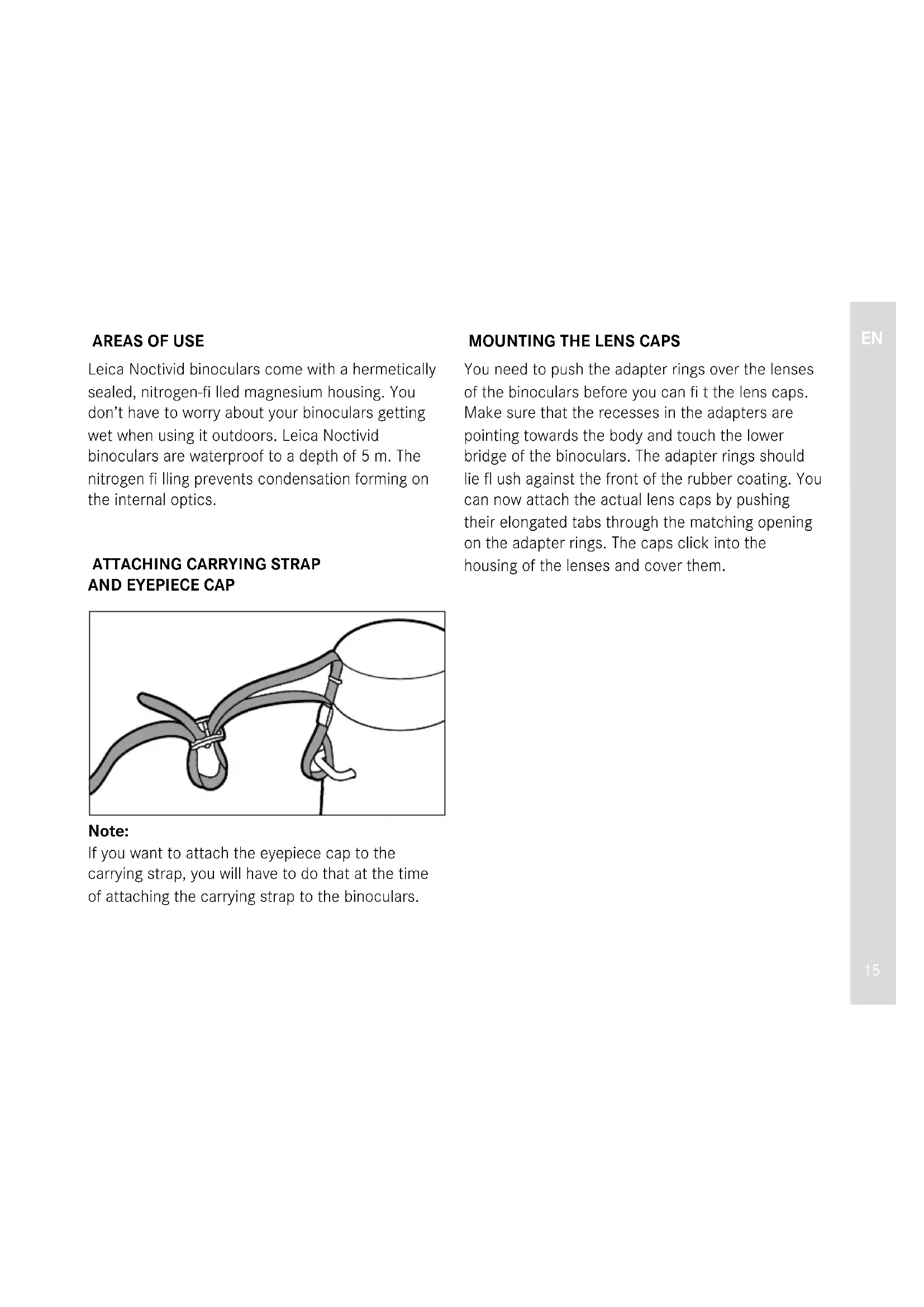

AREAS OF USE

Leica Noctivid binoculars come with a hermetically sealed, nitrogen-fi lled magnesium housing. You don't have to worry about your binoculars getting wet when using it outdoors. Leica Noctivid binoculars are waterproof to a depth of 5m . The nitrogen fi lling prevents condensation forming on the internal optics.

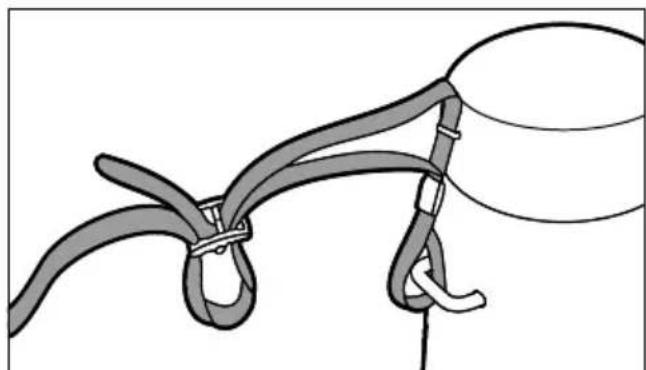

ATTACHING CARRYING STRAP AND EYEPIECE CAP

Note:

If you want to attach the eyepiece cap to the carrying strap, you will have to do that at the time of attaching the carrying strap to the binoculars.

MOUNTING THE LENS CAPS

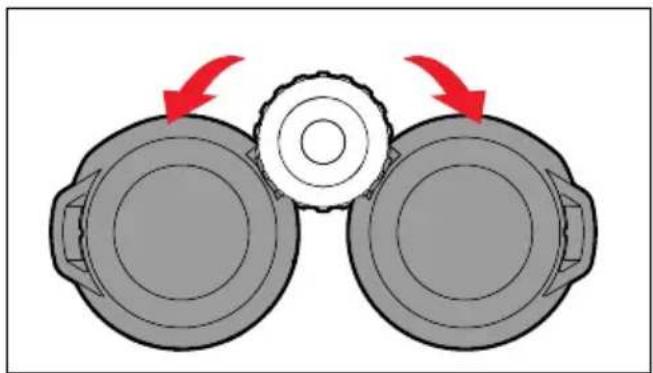

You need to push the adapter rings over the lenses of the binoculars before you can fit the lens caps. Make sure that the recesses in the adapters are pointing towards the body and touch the lower bridge of the binoculars. The adapter rings should lie flush against the front of the rubber coating. You can now attach the actual lens caps by pushing their elongated tabs through the matching opening on the adapter rings. The caps click into the housing of the lenses and cover them.

The eyecups 1 are adjusted by turning them and will lock securely in the selected position. They can be removed to thoroughly clean the eyepieces.

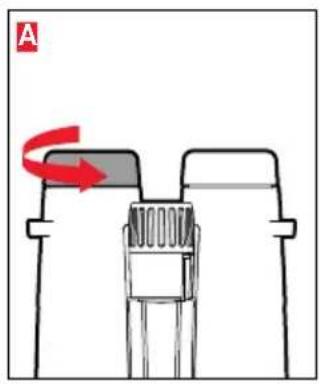

For use with eyeglasses, the eyecups should be turned in clockwise to the end position (Figure A).

Turn them counter-clockwise for viewing without eyeglasses. There are three setting options to adjust to your pupil positions (Figures B, C).

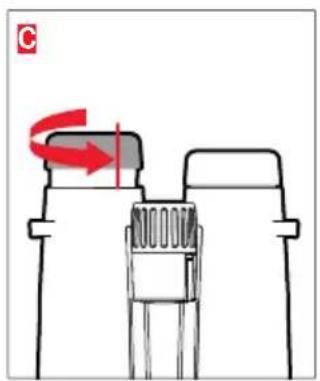

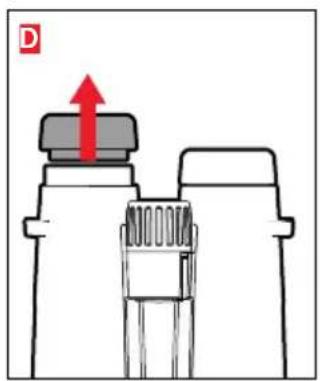

If the eyepieces are heavily soiled, we recommend removing the eyecups for cleaning (Figure D).

The eyecups have a loss protection lock. To unlock, turn them counter-clockwise a little further until they pass their fully extended position (Figure 2) and move back down a little. The eyecups can then be removed (Figure 3).

Adjust the interocular distance by moving the binoculars on the pivot axis. Ensure that the right-hand and left-hand fi elds of view merge into one circular image.

FOCUSING/DIOPTER ADJUSTMENT

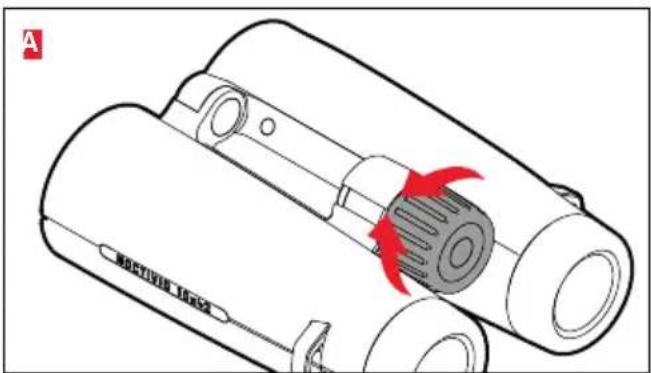

With the Leica Noctivid binoculars, focusing on objects at varying distances is done using the central focusing unit (Figure A).

The diopter setting feature to compensate differences between right and left eyesight is integrated into this unit.

In order to set the diopter, focus first on a specific object using your left eye only. Remember that object and do not change your position.

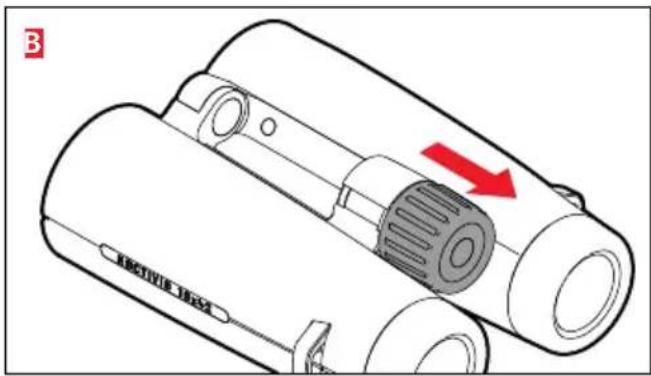

Next, pull the central focusing unit's wheel up slightly (Figure B).

Then focus on the same object using your right eye only.

Finally, push the wheel back down which locks your diopter setting. This setting is only necessary once per user.

SCALE READING

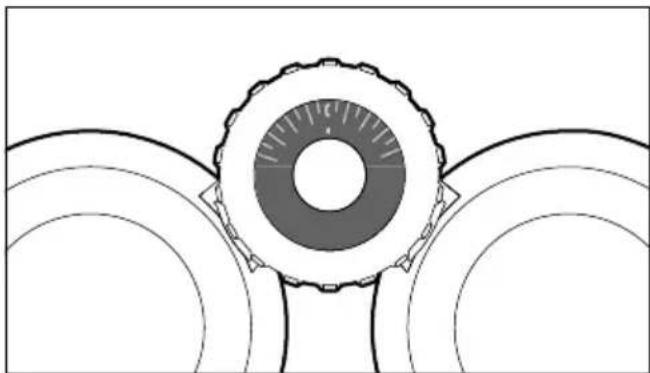

You can see your personal diopter setting in the scale window on top of the central focusing unit. The value shown on the scale, i.e. the increment between two long lines represents approximately one diopter difference between the left and right eye.

Should the binoculars be used by several persons who change the setting, readjusting a setting is simple using the initially determined scale value.

CARE/CLEANING

Your Leica Noctivid binoculars require no special care. Coarse dirt particles like sand can be removed with a soft brush or simply blown off. Fingerprints, etc. on lenses and eyepieces can be removed with a soft, clean chamos or lint-free cloth. In case of severe dirt on the device, e.g. on the eyecups, the binoculars can be rinsed under running water. Salt water should also be rinsed away. Water stains on the lenses and eyepieces are best removed with a moist cloth.

Any moisture inside the focusing unit (visible in the scale window) will dry faster with the central focusing unit's wheel 3 unlocked.

Do not use alcohol or chemical cleaning solutions on the binoculars.

Important:

Do not apply pressure when wiping heavily soiled lens surfaces. They have a highly scratch-resistant coating, but sand or salt crystals on the lens may still cause permanent damage.

ACCESSIONS

Please visit the Leica Camera AG website for information on the extensive range of accessories for Leica Noctivid binoculars:

www.leica-camera.com

SPARE PARTS

Please contact our Customer Care department or your national Leica representative if you ever need spare parts like eyecups, caps or carrying straps. The relevant addresses are listed on your Guarantee Card.

TROUBLESHOOTING

Problem Cause Remedy
The view through the binoculars is not perfectly circular.	a) The binoculars are not adjusted to your specific interocular distance.	a) Move the two binocular tubes on the pivot axis.
	b) Your pupils are not in line with the exit pupils of the binoculars.	b) Try adjusting the positions of your head and eyes in conjunction with the position of the binoculars.
	c) The position of the eyecups does not match the distance between your eyes (interocular distance).	c) Adjust the settings: Turn the eyecups in when using eyeglasses; without eyeglasses: turn the eye cups outward.
	d) The positions of the left and right eyecup differ.	d) Move both eyecups into the same position.
Moisture inside the scale window The	e focusing unit wheel was not correctly locked while rinsing the binoculars under running water.	Unlock the focusing unit wheel and allow moisture to dry out. There is no danger the device could be damaged.

TECHNICAL SPECIFICATIONS

LEICA NOCTIVID 8 X 42 LEICA NOCTIVID 10 X 42
Magnification 8x 10x
Lens diameter 42mm 42mm
Exit pupil 5.25mm 4.2mm
Twilight factor 18.33 20.5
Light transmission 92% 92%
Subjective viewing angle/ visual field at 1,000m	59.5°/135m	61°/112m
Exit pupil position 19mm 19mm
Closest focusing distance (at 0 diopter)	approx. 1.8m	approx. 1.8m
Diopter adjustment/at∞	± 4dpt./-5dpt.	± 4dpt./-5dpt.
Eyepiece for eyeglass users	yes yes
Eyecup	Adjustable and removable with 4 click-lock steps
Adjustable interocular distance	56-74mm
Focusing	Internal focusing via central wheel
Working/storage temperature	-25°-55°/-40°-85°
Waterproofing	Waterproof to 5m depth
Dimensions (W x H x D)	124 x 59 x 153mm
Weight	approx. 853g	approx. 863g

LEICA PRODUCT SUPPORT

The Product Support department at Leica Camera AG can provide you with an answer to any technical questions relating to Leica products either in writing, on the telephone or by e-mail. Alternatively, you can send us your questions using the contact form on the Leica Camera AG homepage.

Leica Camera AG

Product Support / Software Support

Am Leitz-Park 5

35578 Wetzlar

Germany

Phone:[phone] /-108

Fax: [phone]

[e-mail] /

[e-mail]

LEICA CUSTOMER CARE

Please contact the Customer Care department at Leica Camera AG or your national Leica representative for maintenance or repair requests (a list of addresses is provided on your Guarantee Card).

Leica Camera AG

Customer Care

Am Leitz-Park 5

35578 Wetzlar

Germany

Phone: [phone]

Fax: [phone]

[e-mail]
