Product Type	Facial Care Device
Brand	Braun
Model	FaceSpa Pro 910
Power Supply	Rechargeable battery via special cable (6) at very low voltage
Charging Time	1 hour for first use
Indicator Light	White flashing: charging; white continuous for 5s: full charge; yellow flashing: battery <10%; yellow rapid: motor stopped; red constant: overheating
Main Functions	Epilation (rotating epilation head), cleansing (cleansing brush), massage (revitalizing head), micro-pulsations (head with gentle/intense modes)
Included Accessories	Protective cap, epilation head, brush adapter (with ejection button), cleansing brush, revitalizing head, micro-pulsations head, special cable, cleaning brush, base, storage case
Use Under Water	Possible with cleansing brush only (cordless)
Cleaning	Epilation head: brush with 70% alcohol, do not rinse; brush/head (7a/b): rinseable with water; micro-pulsations head: damp cloth
Safety	Travel lock (press on/off button for 3s); automatic stop in case of overheating; use in bath/shower with brush only
Spare Parts and Repairability	Replacement brush ref. n°80 Face available; authorized Braun service centers; consumer service 0 800 944 802
Warranty	2 years from date of purchase
Environment	Product containing recyclable batteries/electrical waste – do not dispose of with household waste

Frequently Asked Questions - FaceSpa Pro 910 BRAUN

How to charge the FaceSpa Pro 910 device?

Before first use, charge the device for 1 hour using the special cable (6) provided. After charging, unplug and use it cordlessly.

What does the yellow flashing indicator light mean?

A yellow flash indicates that the battery charge is below 10%. A rapid flash means the motor has stopped: plug in the device.

How to use the epilation head?

Ensure the skin and head are clean. Position the tweezers against the area to be epilated, skin taut, and gently move the device in the opposite direction of hair growth. Dry use only.

Can I use the device in the shower?

Yes, but only with the cleansing brush attached, and cordless for safety reasons.

How to clean the epilation head?

Use the cleaning brush (10) dipped in 70% alcohol to gently clean the tweezers. Do not rinse under water.

What to do if the indicator light flashes red?

This indicates overheating or a motor blockage. The motor shuts off. Wait for the device to cool down and the red light to turn off before turning it on again.

How to activate the travel lock?

Press the on/off button (4) for 3 seconds. A beep confirms activation. To unlock, repeat the same action.

How often to replace the cleansing brush?

It is recommended to replace the brush/head (7a/b) every 3 months or sooner if bristles deform. Replacements are available (ref. n°80 Face).

What accessories are included with the device?

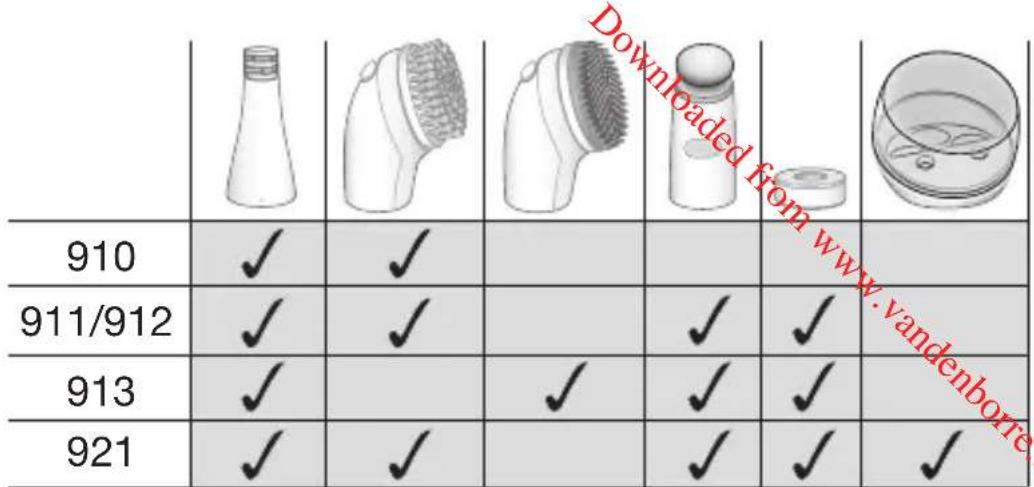

The device comes with: protective cap, epilation head, brush adapter with ejection button, cleansing brush, revitalizing head, micro-pulsations head, special cable, cleaning brush, base and storage case.

What does the Braun 2-year warranty cover?

The warranty covers manufacturing or material defects free of charge for 2 years from the date of purchase. It does not cover damages due to improper use or normal wear and tear.

USER MANUAL FaceSpa Pro 910 BRAUN

Jebsen Consumer Service

Centre

ZA 0860 112 188

(Sharecall charged at local rates)

www.service.braun.com

Deutsch

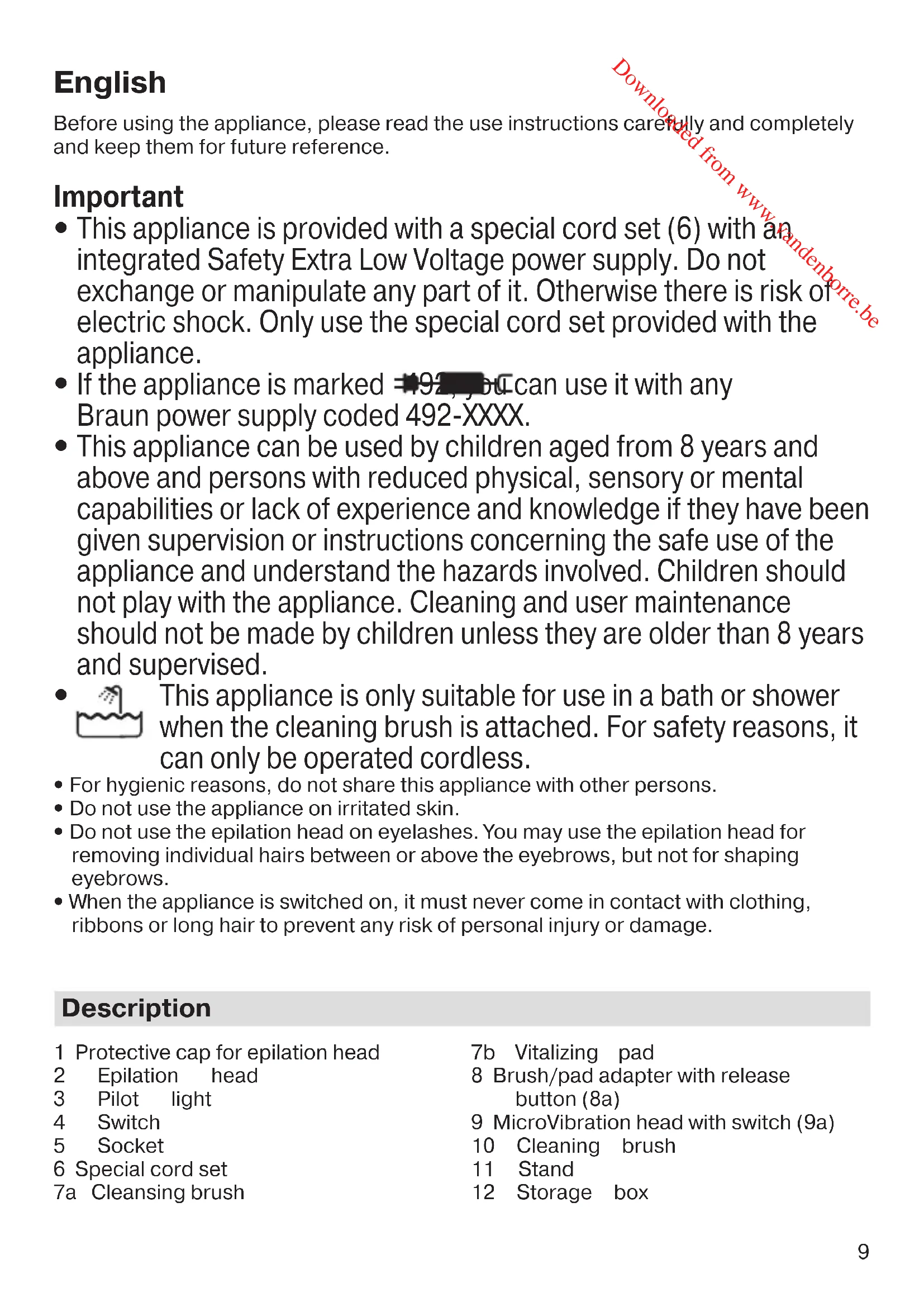

Before using the appliance, please read the use instructions carefully and completely and keep them for future reference.

Important

• This appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. Only use the special cord set provided with the appliance.
• If the appliance is marked 492, it can be used with any Braun power supply coded 492-XXXX.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

This appliance is only suitable for use in a bath or shower when the cleaning brush is attached. For safety reasons, it can only be operated cordless.

• For hygienic reasons, do not share this appliance with other persons.
• Do not use the appliance on irritated skin.
• Do not use the epilation head on eyelashes. You may use the epilation head for removing individual hairs between or above the eyebrows, but not for shaping eyebrows.
• When the appliance is switched on, it must never come in contact with clothing, ribbons or long hair to prevent any risk of personal injury or damage.

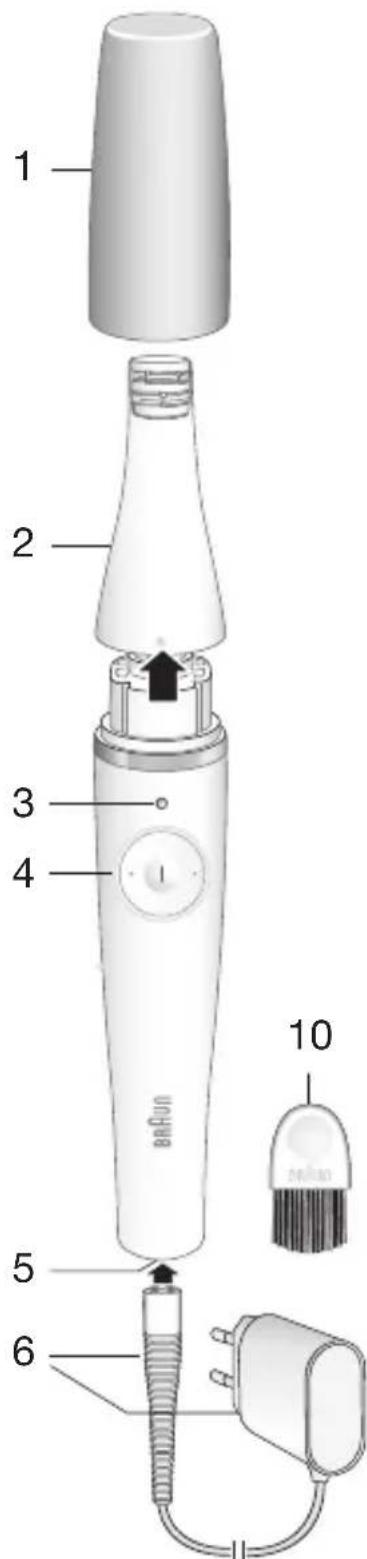

Description

1 Protective cap for epilation head 2 Epilation head 3 Pilot light 4 Switch 5 Socket 6 Special cord set 7a Cleansing brush

7b Vitalizing pad 8 Brush/pad adapter with release button (8a) 9 MicroVibration head with switch (9a) 10 Cleaning brush 11 Stand 12 Storage box

Charging

Before use, charge the appliance for 1 hour using the special cord set (6). Unplug after charging and use the appliance cordless.

Pilot light (3) Charging status
Flashing white Charging is in progress
Constant white 5 sec, then turns off Fully charged
YellowflashingCharginglevelhasdroppedbelow10%.
Yellow fast flashing Motor has stopped, please recharge.

The best environmental temperature for charging, using and storing is between 15 and 30°C. Beyond this range, charging might take longer.

In case of overheating/motor blocking, the red pilot light flashes/shines constantly and the motor turns off. Wait for the appliance to cool down and the red light to turn off before switching on again.

Switch (4)

Press the switch centre (I) to turn the appliance on and off.

Additional switch functions depend on the head attached:

	◎	◎
Epilation head (2) Left rotation	Right rotation
Brush attachment* (7,8) MicroVibration head* (9)	Speed 1 Speed 2

• Both the Brush attachment and the MicroVibration head are provided with a treatment timer. A short pause after every 20 seconds of operation indicates that it is time to move on to the next face zone (left cheek, right cheek, forehead).

Travel lock

Press the switch centre (I) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the switch for 3 seconds. 3 beeps will sound if your unlock attempt fails. Try again or simply connect the appliance to the mains.

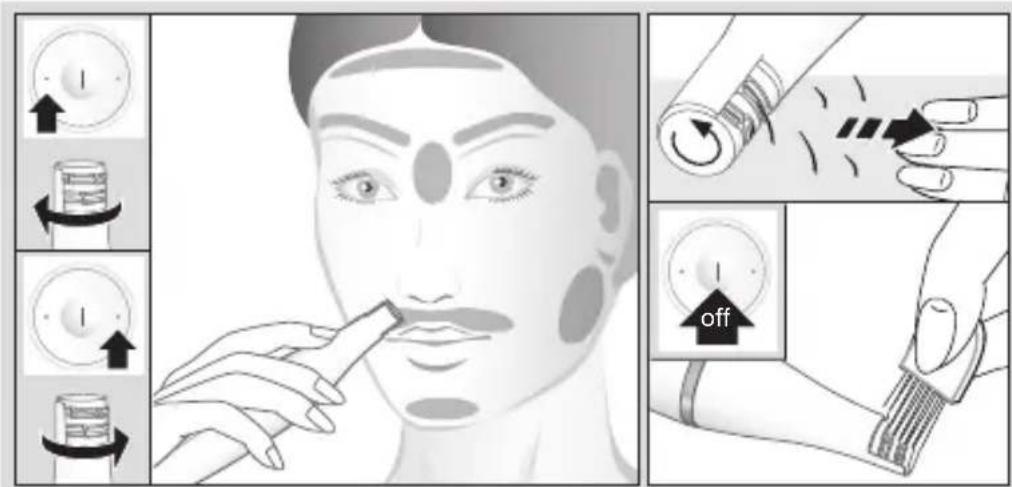

Using the epilation head (dry use only)

• Before use, make sure your skin and the epilation head are thoroughly clean.
• Hold the appliance with the tweezers against a section of skin that you keep stretched with your free hand. Carefully guide it with gentle pressure against the direction of hair growth. Do not press too hard as this may lead to skin injury. To stretch the upper lip area, use your tongue to push from below.
• To relax the skin we recommend applying a moisturizing cream after epilation. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight.

General information on epilation

All methods of hair removal from the root can lead to skin irritation (e.g. discomfort, reddening) depending on the condition of your skin and hair.

This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin.

In general, skin reactions and the sensation of pain tend to diminish considerably with repeated use. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In order to minimise the risk of infection or inflammation due to penetrating bacteria (e.g. when sliding the appliance over the skin), thoroughly clean the epilation head and the skin before using it.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, koebner phenomenon, haemophilia or immune deficiency.

When you begin taking hormones or if you change the type of hormone medication (e.g. contraceptive pill), the growth of your hairs may be influenced due to a change of your hormone level. This is caused by the change of hormonal conditions, but not by the appliance.

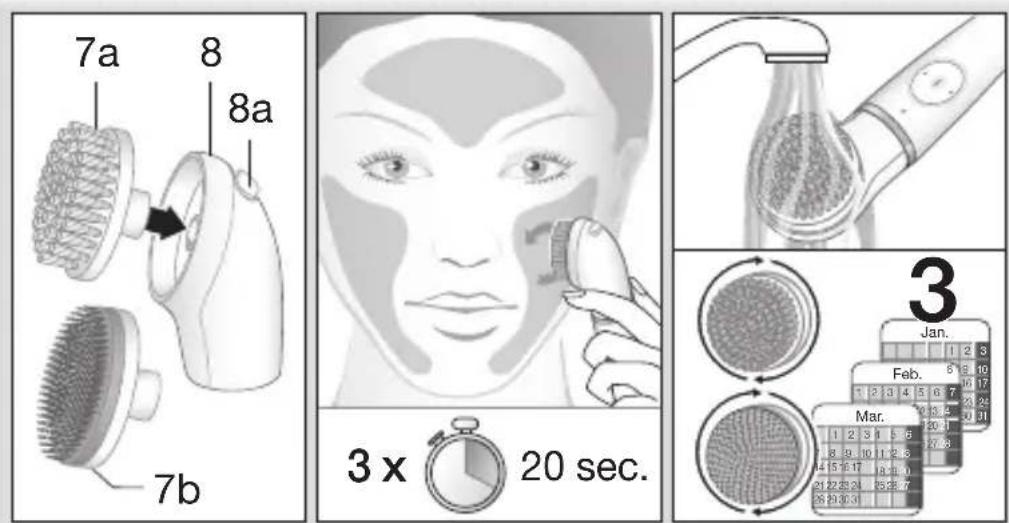

Using the cleansing brush (wet & dry use)

Pull off the epilation head, attach the brush adapter (8), and click in the cleansing brush (7a) or the vitalizing pad (7b).

Use this attachment as part of your daily cleansing routine with water, soap, cleanser, cleansing milk, gel, or peeling products.

The vitalizing pad additionally provides an intensive massage to improve your skin appearance.

Guide the brush/pad with gentle pressure and circular motions. Avoid the eye area and hairline.

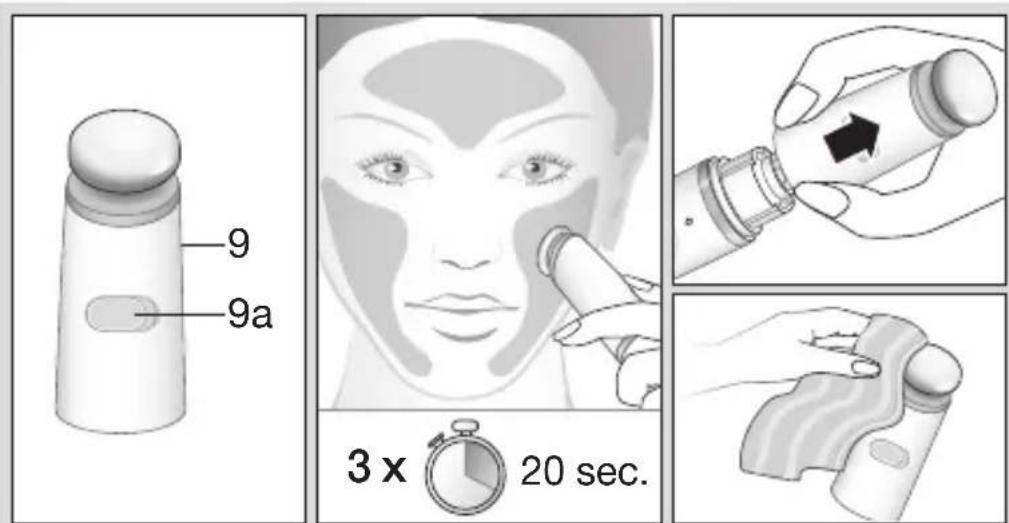

Using the MicroVibration head

Attach the MicroVibration head (9). You can choose between gentle and intense mode by sliding the switch (9a) to the left or right. Each mode can be operated with speed 1 or 2.

We recommend the MicroVibration head for applying liquid skin care products.

The delicate tapping action ensures an efficient and economic application of your skin care product. Slowly guide the MicroVibration head over the 3 face zones (20 seconds each).

Cleaning and maintenance

After use, clean the appliance as follows:

MicroVibration head (9): Use a damp cloth for cleaning. Do not clean in water.

Epilation head (2): Use the brush (10) to carefully clean the tweezers. You may want to dip the brush into ethanol (70%). Do not clean the epilation head with water.

Cleansing brush/pad (7,8): Only this attachment can be rinsed under running water. If you prefer cleaning it thoroughly with soap and warm water, you may detach the brush/pad (7a/b) by pressing the release button (8a). After cleaning, leave all parts to dry before reattaching them.

For best results, replace the brush/pad (7a/b) every 3 months or sooner if bristles become deformed due to frequent usage. A range of brush refills (ref. no. 80 Face) is available at your retailer, Braun Service Centres or via www.braun.com.

Environmental notice

Product contains batteries and/or recyclable electric waste. To protect the environment, do not dispose of them in household waste, but take them for recycling to appropriate local collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park

NSW 2113

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service

(free call): 1800641820

New Zealand Consumer Service

(free call): 0 800 108 909

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading

as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@statewideservices.

com.au

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane

Appliance Service Centre

449 Beaudesert Road

Moorooka QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

7D Echelon Place East Tamaki

Manukau City

Auckland

New Zealand

(PO Box 38569, Howick, Auckland,

New Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd

Shop 4,

9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email: [e-mail]

French

ELMIN, Durdevac 48350

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski brod 35000

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33000

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42000

Krešimira Filica 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20000

Ob. Pape I. Pavla II 17, Tel. [phone], [e-mail]

Tehno-Jelčić d.o.o., Šibenik 22000

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

MERC&DUJMOVIĆ, Split 21000

Alojzija Stepinca 6, Tel. [phone], [e-mail]

Slovenski

MALIN Cinsi: Markasi:	Modeli: Bandrol ve Seri Numarası:
SATİCI FÜRMA Unvan: Adres: Tel, Faks: e-posta: Kası ve İmza:
Fatura Tarihi ve Saymiş: Teslim Yeri ve Tarihi:
İthalatçı Firma: Procter & Gamble Sat®, ve Da®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, ò®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®,Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ö®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®,Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Ü®, Überl. Braun Servis İstasyonları listeniz internet sitemizden veya Tüketi Cihmetleri merkezimizi arayarak ulaşabilirsiniz. www.braun.com/tr

Româna (RO/MD)

Blocare la transport

Употреба на микровълновата глава

Случаи, на които гаранцията не се разпространява:

- Defects caused by improper storage conditions; - Use for professional purposes; - Violation of the requirements of the operating instructions; - Incorrect installation of the power supply network (if required); - Introduction of technical changes; - Mechanical damage; - Damage caused by animals, rodents, and insects (including cases of rodents and insects inside the devices); - For devices powered by batteries, operation with unsuitable or exhausted batteries, any damage caused by exhausted or leaking batteries (we recommend using only leak-proof batteries); - For devices with a power cord, a damaged cord.

Attention! The original warranty card is subject to withdrawal upon contact with the service center for warranty repair. After the repair, the warranty card will be a completed original of the repair completion sheet with the service center stamp and signed by the consumer upon receipt of the product from repair. Require the date of return from repair to be entered; the warranty period is extended for the time the product is in the service center.

If difficulties arise with warranty or post-warranty service, please inform the information service of your service by phone [phone] (calls from Russia are free).

Ukrainian

Operating Instructions

Before operating the device, please read the entire instruction manual carefully and keep it for future reference.

Important!

• This device is equipped with a special cord (6) with an integrated safety plug. Do not replace or modify the plug in any way. Otherwise, there is a risk of electric shock. Use only the special cord supplied with the device. If the device has marking 492, you can use any plug with a 492-XXXX code.
• This device can be used by children aged 8 years and older and persons with
• reduced physical, sensory, or mental capabilities, or
• lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children younger than 8 years old must be kept away from the device.
• unless continuously supervised.
• The device is intended for personal use only. For safety reasons, it can be used only after reading the instructions from the power source.
• For hygienic reasons, the device should not be used by multiple people. Do not use the trimmer on damaged skin. Do not use the trimmer head on the face. The trimmer head can be used to remove individual hairs between the eyebrows or on the nose, but not to shape the eyebrows. When the trimmer is on, do not allow it to come into contact with the eyes, eyelids, or other hair to avoid the risk of physical injury or damage.

Description and package contents

1 Protective cap for the trimmer head 2 Trimmer head 3 Light indicator 4 Switch 5 Socket 6 Special brush 7a Shaver head for trimming

7b Foil shaver head 8 Comb attachment for trimming/shaving with locking button (8a) 9 MicroVibration head with comb (9a) 10 Cleaning brush 11 Stand 12 Storage box

Charging

Before first use, charge the device for 1 hour using the special adapter (6). After charging, disconnect the device from the power source and use it in cordless mode.

In case of overheating/blocking, the light indicator blinks/glows red, and the device turns off. Wait until the device cools down and the red indicator turns off, then turn it on again.

Switch (4)

Press the switch in the middle (I) to turn the device on and off. The initial functions of the switch depend on the attachment head:

Date of manufacture:

The date of manufacture is indicated in the form of 3 digits on the upper part of the motor block: the first digit is the last digit of the year, the next 2 digits are the serial number of the week of the year of production. For example, the code "712" means the product was manufactured in the 12th week of 2017.

Manufacturer's warranty obligations

For all products, we provide a warranty for two years, starting from the moment of purchase of the product or from the date of its manufacture, in case of absence or improper execution of the warranty card for the product.

During the warranty period, we will free of charge repair, replace parts, or replace the entire product for any manufacturing defects caused by poor quality of materials or assembly.

In case of repair during the warranty period, the product may be replaced with a new one or an equivalent one in accordance with the Law of Ukraine "On Protection of Consumer Rights".

The warranty is valid provided that the date of purchase is confirmed by a properly filled warranty card (store stamp) or on the last page of the original instruction manual, which may also serve as a warranty document. The warranty is valid in any country where the product is supplied.

by the manufacturer's representative or authorized distributor, and their import or other legal provisions do not preclude the provision of warranty service.

The warranty for the replaced parts expires at the end of the warranty period of the product.

The warranty does not cover: damage caused by improper use, normal wear of parts (e.g., brushes or moving parts), defects that do not significantly affect the quality of the device's operation. The warranty becomes void if repairs are carried out by unauthorized persons or if non-original spare parts are used.

The service life of Braun products is equal to the warranty period of two years from the date of purchase or from the date of manufacture, whichever is later.

In case of a claim under the terms of this warranty, return the product in full compliance with the description in the original instruction manual, together with the warranty card, to any service center authorized by the manufacturer's representative.

All other claims, including claims for damages, are excluded unless liability is established by law.

Cases not covered by the warranty:

- Defects caused by force majeure; - Use for professional purposes or for profit; - Violation of the instruction manual; - Incorrect installation of the mains voltage (if required); - Unauthorized modifications; - Mechanical damage; - Damage caused by batteries - operation with unsuitable or exhausted batteries, any damage caused by exhausted or leaking batteries; - Damage caused by pets, rodents, and insects (including cases of rodents and insects inside the device); - Damage - wear or tear of the soleplate.

Attention! The warranty card is subject to withdrawal upon contacting the service center for warranty repair. After the repair, the warranty card will be considered filled out with the original repair certificate stamped by the service center and signed by the consumer upon receipt of the repaired product. The warranty period is extended by the time the product is in the service center for repair.

In case of questions regarding warranty and post-warranty service, please contact the information service of the manufacturer's representative in Ukraine.

Toll-free hotline: [phone]. Calls from landline phones in Ukraine are free. Calls from mobile phones are charged according to the tariffs of the respective operator.

For service and trial in the internet: www.service.braun.com

(70%) 1JgIyI gAolrFgSsGnJlJ .aLzBpOaLl (10) 10 2

1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 1111 11

Country of origin: China Year of manufacture:

To determine the year of manufacture, refer to the 3-digit production code located on top side of the motor part. The first digit refers to the last digit of the year of manufacture. The next two digits refer to the calendar week. Example: «712»: The product was manufactured in week 12 of 2017.

1 12 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

e jie oole loglo

g (j) j 100000000000000000000000000000000000000000000000

J 1

jglalldlpladwiybiylll l. kub oarawsl jgjgljglw 1d! 00 g (aocotllr jbrnlll jyblal yjlrjyolll 00 jyjyl: bprjaiw l 00 gk 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00 g 00

.4cIJI 1

Jg j 100000000000000000000000000000000000000000000000000000

(1)

.(7b) 1 (7a) 1 (8)

.

Cio b g n iell aobio 1e jgll pduu y .a qyra 1s c k y cblb o hll 1c dgl /olw/

jai jzjy1 rj

J (a9) 1 (9)

.2g1 4cJyAeG J5 Jx .

.1111 1111 1111 1111 1111 1111 1111

J (MicroVibration) g (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J) J (J)

Jauu Jaa

Jaiy Jaii Jia Buaa P a d 4 aaiill Gg y. jajll Jaalj g3 oJ (I) glaal j s y Ige Jg 0 3 3 3 3 3 3 3 3 3 3

(baa)
