Face 830 - Facial care device BRAUN - Free user manual and instructions

Product type	Facial care device
Brand	Braun
Model	Face 830
Main functions	Facial hair removal and facial cleansing
Power supply (main device)	1 AA 1.5V alkaline battery
Power supply (lighted mirror)	3 LR1130 button batteries
Interchangeable heads	Hair removal head and cleansing brush
Water use	Yes, can be used in the shower or bath
Integrated mirror with lighting	Yes (models 830, 831)
Warranty	2 years
Recommended age	From 8 years old
Cleaning of the hair removal head	Included brush, can be cleaned with 70% ethanol
Cleaning of the cleansing brush	Washable with warm water, detachable via ejection button
Brush replacement frequency	Every 3 months
Replacement brush reference	89 Facial Spa
Safety	Do not use on irritated skin, do not share
Hair removal precautions	Do not use on eyelashes, avoid contact with hair
Medical conditions requiring medical advice	Eczema, cuts, folliculitis, varicose veins, diabetes, pregnancy, etc.
Storage and maintenance	Keep dry, replace batteries regularly
Environmental impact	Contains recyclable batteries, do not dispose of in household waste

Frequently Asked Questions - Face 830 BRAUN

How to turn on the device?

Slide the on/off switch (2) to the left or right. The direction of rotation of the tweezers depends on the chosen direction. To turn off, return the switch to the "o" position.

How to use the hair removal head?

Make sure the face and hair removal head are clean. Turn on the device by choosing the direction of rotation opposite to hair growth. Stretch the skin and guide the device gently in the opposite direction of growth. Do not press too hard to avoid injury.

How to use the cleansing brush?

Remove the hair removal head, attach the brush adapter (6) and clip the cleansing brush (5). Dampen your face and the brush. Turn on the device and make circular motions for about 1 minute. Avoid contact with eyes and hairline.

How to clean the device?

For the hair removal head, use the included brush. You can dip it in 70% ethanol. For the cleansing brush, rinse it with warm water or wash it with soap after detaching it via the ejection button (6a). Make sure all parts are completely dry before reassembling.

How to replace the battery of the main device?

Open the battery compartment (1) by turning the end counterclockwise using a coin. Insert an AA alkaline battery (1.5 V) respecting polarity. Close by turning clockwise. Make sure your hands and the device are dry.

The lighted mirror does not work, what should I do?

Open the battery compartment of the mirror (7b) with a screwdriver. Insert 3 LR1130 button batteries with the "+" pole facing up. Close the cover. If the batteries are old, replace them.

Can I use the device in the shower?

Yes, the device can be used in the bath or shower. However, make sure the battery compartments are properly closed and the device remains waterproof. Do not immerse it completely.

How often should I replace the cleansing brush?

It is recommended to replace the cleansing brush every 3 months, or sooner if the bristles become deformed. The replacement brush is reference 89 Facial Spa, available in stores or on the Braun website.

What to do in case of skin irritation after hair removal?

Mild irritations (itching, redness) are normal and disappear quickly. If irritation persists for more than 36 hours, consult a doctor. To minimize risks, clean the hair removal head carefully before each use and apply a moisturizing cream after.

Is the device under warranty?

Yes, Braun offers a 2-year warranty from the date of purchase. It covers manufacturing and material defects. The warranty does not cover damage due to improper use or normal wear. For any claim, return the device with proof of purchase to an authorized Braun Service Center.

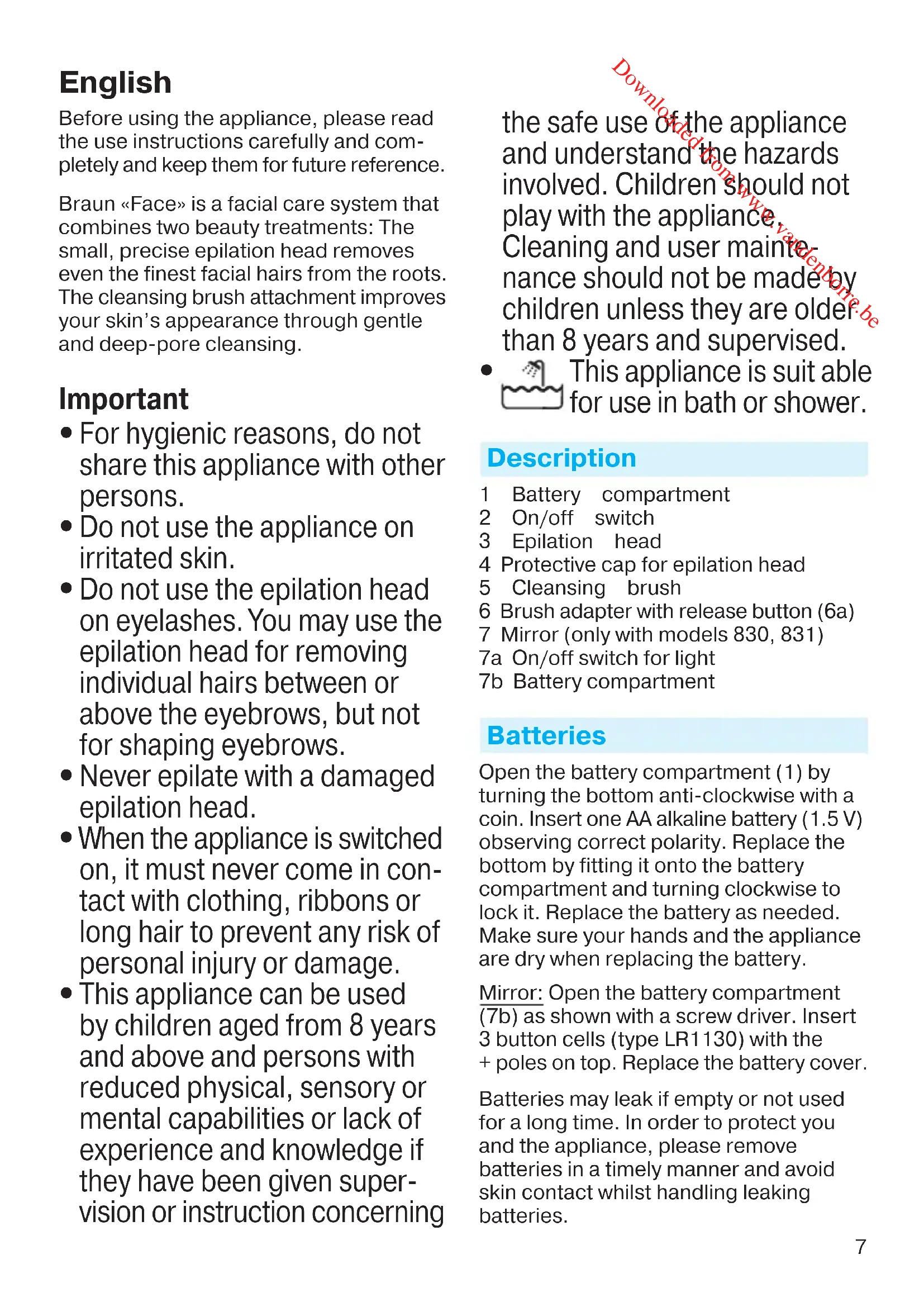

USER MANUAL Face 830 BRAUN

RSA 0860 112 188 (Sharecall charged at local rates)

German

Before using the appliance, please read the use instructions carefully and completely and keep them for future reference.

Braun «Face» is a facial care system that combines two beauty treatments: The small, precise epilation head removes even the finest facial hairs from the roots. The cleansing brush attachment improves your skin's appearance through gentle and deep-pore cleansing.

Important

• For hygienic reasons, do not share this appliance with other persons.
• Do not use the appliance on irritated skin.
• Do not use the epilation head on eyelashes. You may use the epilation head for removing individual hairs between or above the eyebrows, but not for shaping eyebrows.
• Never epilate with a damaged epilation head.
• When the appliance is switched on, it must never come in contact with clothing, ribbons or long hair to prevent any risk of personal injury or damage.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

the safe use of the appliance and understand the hazards involved. Children should not play with the appliance, Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

This appliance is suitable for use in bath or shower.

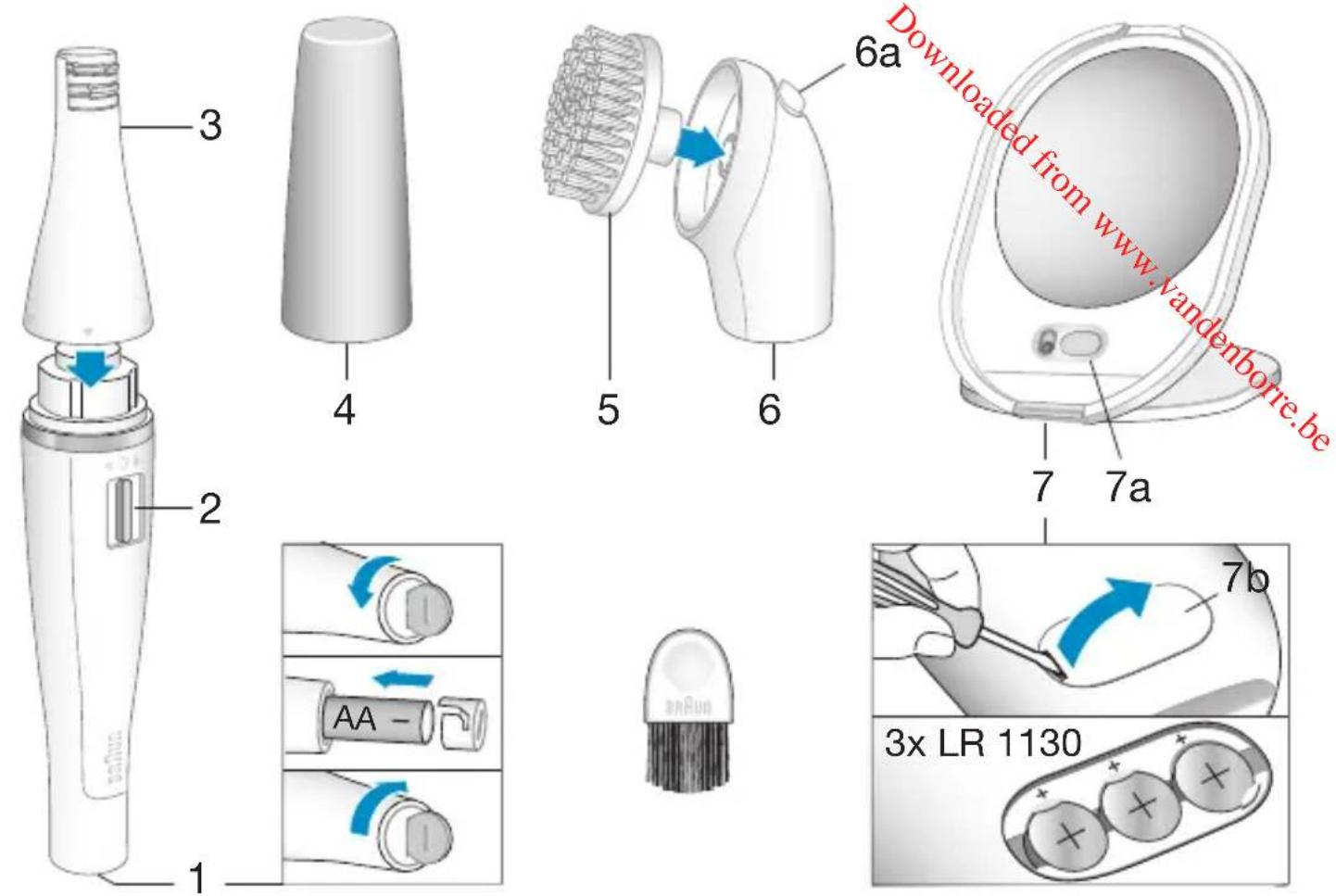

Description

1 Battery compartment 2 On/off switch 3 Epilation head 4 Protective cap for epilation head 5 Cleansing brush 6 Brush adapter with release button (6a) 7 Mirror (only with models 830, 831) 7a On/off switch for light 7b Battery compartment

Batteries

Open the battery compartment (1) by turning the bottom anti-clockwise with a coin. Insert one AA alkaline battery (1.5 V) observing correct polarity. Replace the bottom by fitting it onto the battery compartment and turning clockwise to lock it. Replace the battery as needed. Make sure your hands and the appliance are dry when replacing the battery.

Mirror: Open the battery compartment (7b) as shown with a screwdriver. Insert 3 button cells (type LR1130) with the + poles on top. Replace the battery cover.

Batteries may leak if empty or not used for a long time. In order to protect you and the appliance, please remove batteries in a timely manner and avoid skin contact whilst handling leaking batteries.

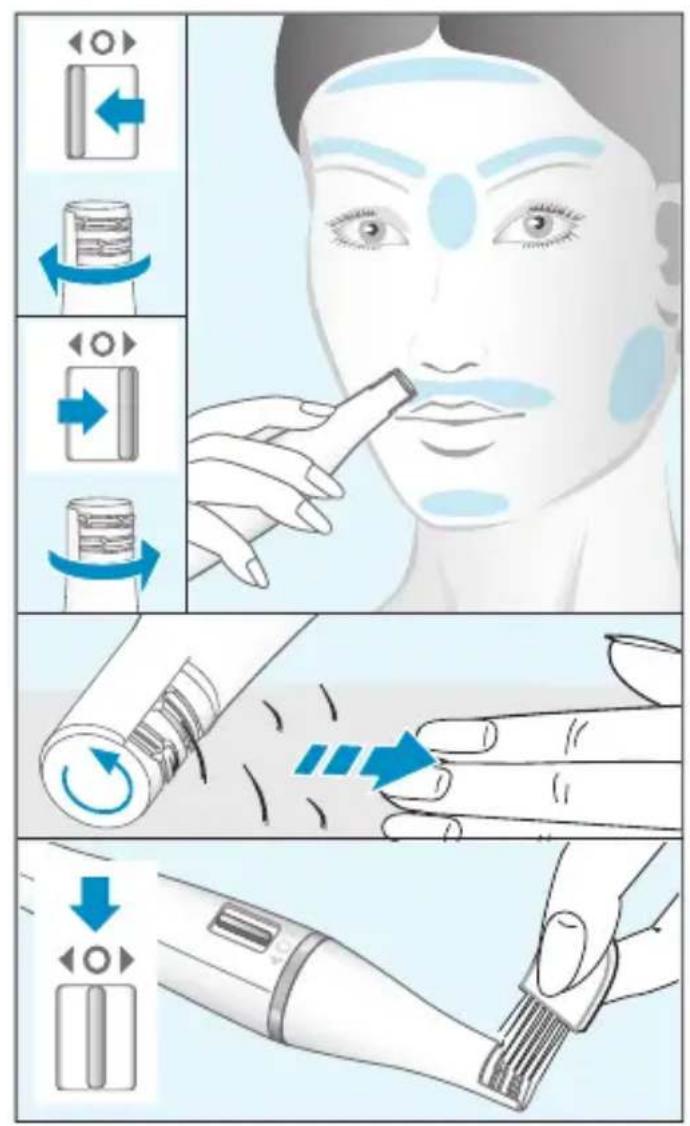

Facial epilation

• Before use, make sure your skin and the epilation head are thoroughly clean.
• Turn on the appliance by sliding the on/off switch (2) to the left or to the right. The rotating direction of the tweezers depends on the direction you move the switch when turning on. For best results, make sure that the tweezers rotate against the direction of hair growth. To become familiar with the appliance we recommend trying it first on the chin or near the outer corners of the mouth.
• Hold the appliance with the tweezers against a section of skin that you keep stretched with your free hand. Carefully guide it with gentle pressure against the direction of hair growth. Do not press too hard as this may lead to skin injury. To stretch the upper lip area, use your tongue to push from below. After use, slide the on/off switch to the ⟨0⟩ ( = off) position.
• Carefully clean the epilation head using the cleaning brush provided. You may want to dip the brush into ethanol (70%). Make sure that it is completely dry before you re-attach it and close it with the protective cap. To relax the skin we recommend applying a moisturizing cream after epilation.
• When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight.

General information on epilation

All methods of hair removal from the root can lead to irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you

have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, skin reactions and the sensation of pain tend to diminish considerably with the repeated use. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thoroughly cleaning the epilation head and your skin before each use will minimise the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, koebner phenomenon, haemophilia or immune deficiency.

When you begin taking hormones or if you change the type of hormone medication (e.g. contraceptive pill), the growth of your hairs may be influenced due to a change of your hormone level. This is caused by the change of hormonal conditions but not by the appliance.

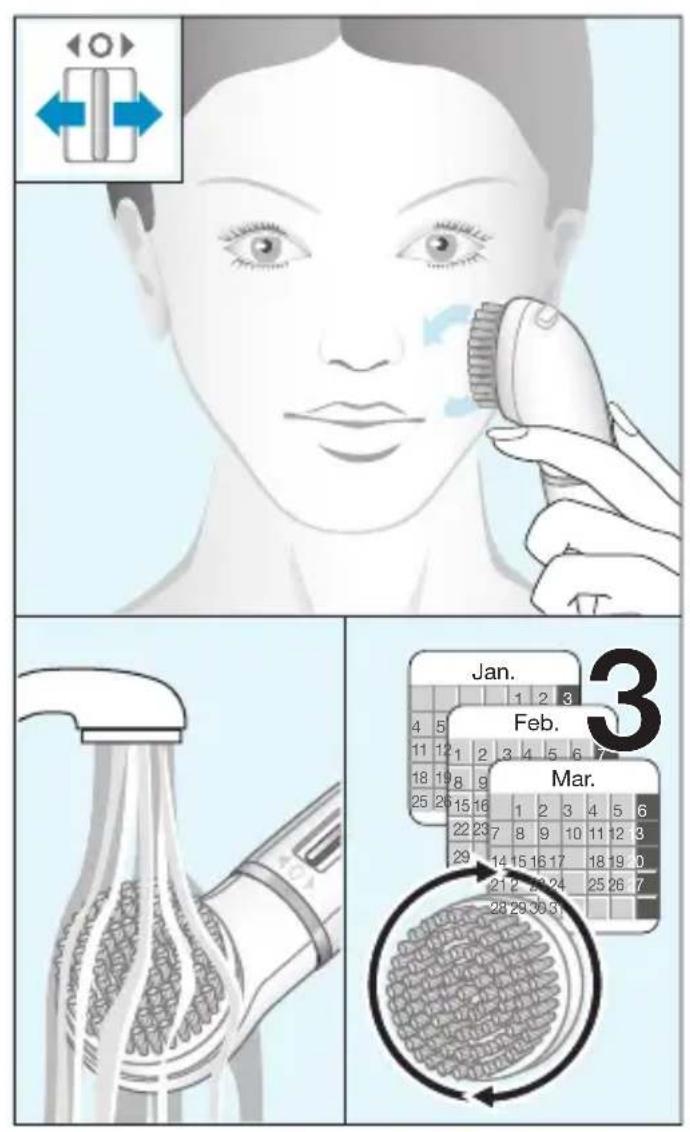

Facial cleansing

• Pull off the epilator head, attach the brush adapter (6) and click-in the cleansing brush (5).
• Moisten your skin and the brush head lightly with water. You may use the facial brush as part of your daily cleansing routine: with soap, cleanser, cleansing milk, gel or simply with water.
• Turn on the appliance by sliding the on/off switch (2) to any direction.
• Guide the brush with gentle pressure and circular motions for approximately one minute. Avoid the eye area and hairline.

After use, slide the switch back to position «O». - Rinse your face with water to remove residues of the cleaning product used. - The brush can be rinsed with warm water. If you prefer cleaning it thoroughly with soap, you may detach the brush unit (5) by pressing the release button (6a). After cleaning, leave all parts to dry completely before reattaching. - For best results, replace the brush unit (5) every 3 months or sooner if bristles become deformed due to frequent usage. Brush refills (ref. no. 89 Facial Spa) are available from your retailer, Braun Service Centres or via www.braun.com.

Disposal

This product contains batteries and/or recyclable electronic waste.

To protect the environment, do not dispose of it in the household waste, but take it to appropriate local collection points for recycling.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised

persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device, these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim, please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts, refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event, please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1800641820

New Zealand Consumer Service (free call): 0 800 108 909

N2820

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. [phone] Fax. [phone] Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. [phone] Fax. [phone] Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd Shop 4, 9 Evans Road, Rooty Hill, NSW 2766 Tel. [phone] Fax. [phone] Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre Shop B2, Parkholme Shopping Centre 319 Oaklands Road, Parkholme Adelaide, SA 5043 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW ZEALAND

Key Service Ltd 7D Echelon Place East Tamaki Manukau City Auckland New Zealand (PO Box 38569, Howick, Auckland, New Zealand) Tel. [phone] Fax. [phone] Email: [e-mail]

Français

The product does not represent the manufacturer's products. The product is intended for use in industrial applications, including in automotive engines and commercial markets.

BRAUN warranty certificates

For all our products we give a two-year warranty, starting from the moment of purchase of the product.

During the warranty period we will free of charge eliminate by repair, replacement of parts or replacement of the entire product any manufacturing defects caused by insufficient quality of materials or assembly.

In case of impossibility of repair during the warranty period, the product may be replaced with a new or similar one in accordance with the law "On Protection of Consumer Rights". The warranty is valid only if the date of purchase is confirmed by the real and signature of the seller (store) on the

last page of the original operating instructions of BRAUN, which is the warranty card.

This warranty is valid in any country where this product is supplied by BRAUN or an authorized distributor, unless any import restrictions or other legal provisions prevent the provision of warranty service.

This warranty does not cover damage caused by improper use (see also the list below) and normal wear of parts (for example, the filter of the air conditioning unit) during operation of the unit.

This warranty becomes void if repairs are carried out by unauthorized persons and if non-original BRAUN parts are used.

In case of a claim under the terms of this warranty, return the unit complete with the warranty card to any Braun Service Center.

All other claims, including claims for damages, are excluded unless liability is established by law.

Claims arising from commercial contracts with the seller are not covered by this warranty.

Cases not covered by the warranty:

• Defects caused by force majeure;
• Use for professional purposes;
• Violation of the operating instructions;
• Incorrect installation of the mains voltage (if required);

- Introduction of technical modifications; - Mechanical damage; - Damage caused by animals, rodents, and insects (including cases of rodents and insects inside the devices); - For battery-operated devices: operation with unsuitable or exhausted batteries, any damage caused by exhausted or leaking batteries (we recommend using only leak-proof batteries); - For BBPs: clogged filter.

Attention! Original warranty

The card is subject to withdrawal when contacting a service center for warranty repair. After the repair, the warranty card will be returned with a completed original repair sheet with the service center stamp and signed by the customer upon receipt of the unit from repair. Require the date of return from repair to be stamped; the warranty period is extended by the time the unit is in the service center.

Ukrainian

Before using the device, please read the operating instructions carefully and keep them.

Braun "Face" - this compact system for facial hair removal allows you to perform two types of cosmetic procedures. The small epilator head removes hair from the root even the shortest hairs on the face, and a special massage attachment improves the appearance, leaving the skin smooth and deeply cleansed.

Important

• This is a personal hygiene item. Not intended for heavy use. Do not use on skin with irritations.
• The epilator head is not intended for hair removal from the eyebrows. The epilator head is not intended for shaving and can only be used to remove individual hairs between the eyebrows and above them. Do not use the epilator head without the attachment.
• To avoid damage and harm to health, do not allow the epilator head to come into contact with fabrics or long hair.

This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This appliance is not intended for use in a bathtub or shower.

Description and contents

1 Epilator head 2 On/off switch 3 Epilator head 4 Protective cap for epilator head 5 Massage attachment 6 Battery compartment with cover (batteries not included) 7 Mirror (in some models) 8 Batteries (LR1130, 1.5V, 3 pcs. included) 7a On/off switch. Light 7b Removal of epilator head

Standard factory C-4 Export Process Zone, 20# Datong Rd. SND Suzhou, 215151, China.

Address in Ukraine: LLC "Procter & Gamble Trading Ukraine", Ukraine, 04070, Kyiv, str. Naberezhno-Khreshchatyk, 5/13, building A. Tel. [phone]. www.pg.com.ua

For the date of manufacture, see the four-digit code on the battery compartment of the product: the first digit = the last digit of the year, the next three digits = the day of the year (from 1 to 365). For example, code "3259" means the product was manufactured on the 259th day of 2013.

Service life term - 2 years. Additional information about Braun service centers in Ukraine can be obtained by phone hotline, as well as on the manufacturer's service portal on the Internet - www.service.braun.com

The device complies with the requirements of the technical regulations on restrictions on the use of certain hazardous substances in electrical and electronic equipment.

001

Manufacturer's warranty obligations

For all products, we provide a warranty for two years, starting from the moment of purchase of the product or from the date of its manufacture, in case of absence or improper execution of the warranty card for the product.

During the warranty period, we will free of charge eliminate through repair, replacement of parts or replacement of the entire product any defects caused by poor quality of materials or assembly. In case of impossibility of repair during the warranty period, the product may be replaced with a new one or an equivalent one in accordance with the law on consumer protection.

The warranty is valid only if the purchase date is confirmed by a receipt and a receipt (store) on the original Braun warranty card or on the last page of the original Braun instruction manual, which can also be a warranty card.

This warranty is valid in any country where this product is supplied by the manufacturer's representative or authorized distributor, and where import or other legal provisions do not prevent warranty service. The warranty for replaced parts expires at the end of the warranty period for this product.

The warranty does not cover defects caused by improper use (including misuse), normal wear and tear, and defects that do not significantly affect the quality of the device's operation. This warranty becomes invalid if repairs are carried out by an unauthorized person or if non-original spare parts of the manufacturer are used. Service life of Braun products

is equal to the warranty period of two years from the date of purchase or from the date of manufacture, if the date of sale cannot be established.

In case of claims under the terms of this warranty, hand over the product in full set according to the description in the original instruction manual together with the warranty card to any service center authorized by the manufacturer's representative.

All other claims, along with claims for compensation for losses, are not valid if liability is not established by law.

Cases to which the warranty does not apply:

• Defects caused by force majeure circumstances;
• Use for professional purposes or for the purpose of making a profit;
• Operating instructions
• Incorrectly installed or damaged mains cable;
• Technical modifications;
• Mechanical damage; - for use on batteries - work with non-rechargeable or defective batteries, damage caused by non-rechargeable or leaking batteries;
• Damage caused by animals, rodents, and insects (including traces of rodents and insects inside the device)
• For devices - replacement or new network.

Attention! The warranty is void if the device is not returned to the service center with a request for warranty repair. After the repair, the warranty

will be considered fulfilled if the original warranty repair certificate is signed by the service center and the user confirms receipt of the repaired device. The warranty period is extended by the time the device was in the service center for repair.

In case of difficulties with warranty and post-warranty service, please contact the information service of the manufacturer's representative in your country.

Warranty hotline: [phone]. Calls from Ukraine from landline numbers are free. Calls from mobile phones are charged according to the operator's tariffs. You can also get additional information on the manufacturer's service portal on the Internet at www.service.braun.com

Country of origin: China Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: "201" - The product was manufactured in week 01 of 2012.
