USER MANUAL FaceSpa Pro 912 BRAUN

This appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. Only use the special cord set provided with the appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

This appliance is only suitable for use in a bath or shower when the cleaning brush is attached. For safety reasons, it can only be operated cordless.

• For hygienic reasons, do not share this appliance with other persons.

• Do not use the appliance on irritated skin.

• Do not use the epilation head on eyelashes. You may use the epilation head for removing individual hairs between or above the eyebrows, but not for shaping eyebrows.

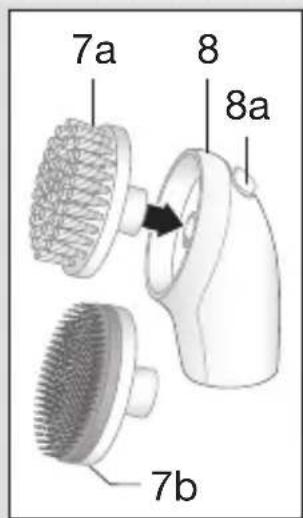

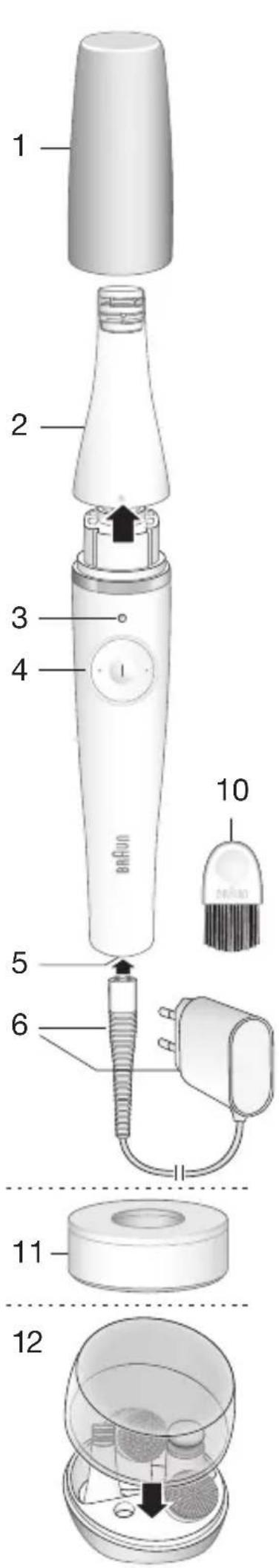

• When the appliance is switched on, it must never come in contact with clothing, ribbons or long hair to prevent any risk of personal injury or damage. Description 1 Protective cap for epilation head 2 Epilation head 3 Pilot light 4 Switch 5 Socket 6 Special cord set 7a Cleansing brush 7b Vitalizing pad 8 Brush/pad adapter with release button (8a) 9 MicroVibration head with switch (9a) 10 Cleaning brush 11 Stand 12 Storage box 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 991474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 9 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 9 of 122 Downloaded from www.vandenborre.be10 Charging Before use, charge the appliance for 1 hour using the special cord set (6). Unplug after charging and use the appliance cordless. Pilot light (3) Charging status Flashing white Charging is in progress Constant white 5 sec, then turns off Fully charged Yellow flashing Charging level has dropped below 10 %. Yellow fast flashing Motor has stopped, please recharge. The best environmental temperature for charging, using and storing is between 15 and 30 °C. Beyond this range, charging might take longer. In case of overheating/motor blocking, the red pilot light flashes/shines constantly and the motor turns off. Wait for the appliance to cool down and the red light to turn off before switching on again. Switch (4) Press the switch centre (I) to turn the appliance on and off. Additional switch functions depend on the head attached:

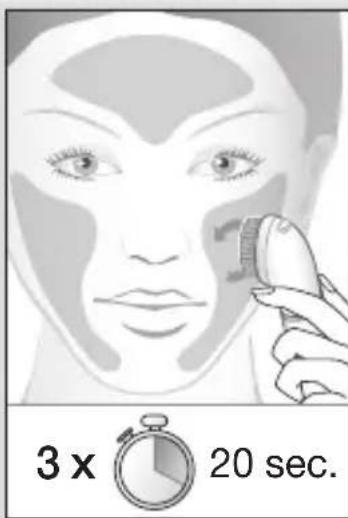

• Both the Brush attachment and the MicroVibration head are provided with a treatment timer. A short pause after every 20 seconds of operation indicates that it is time to move on to the next face zone (left cheek, right cheek, forehead). Travel lock Press the switch centre (I) 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the switch 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains. Using the epilation head (dry use only)

• Before use, make sure your skin and the epilation head are thoroughly clean.

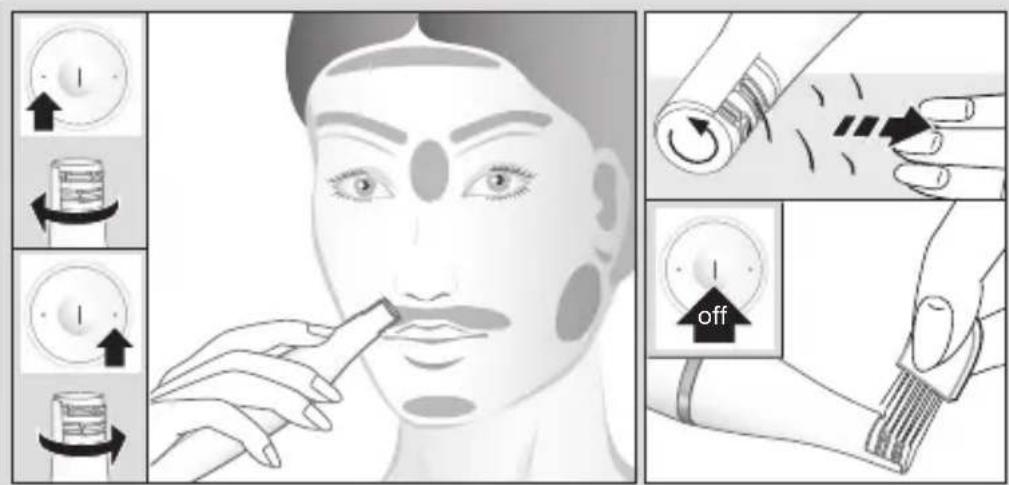

• Hold the appliance with the tweezers against a section of skin that you keep stretched with your free hand. Carefully guide it with gentle pressure against the direction of hair growth. Do not press too hard as this may lead to skin injury. To stretch the upper lip area, use your tongue to push from below. 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 1091474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 10 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 10 of 122 Downloaded from www.vandenborre.be11

• To relax the skin we recommend applying a moisturizing cream after epilation. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. General information on epilation All methods of hair removal from the root can lead to skin irritation (e.g. itching, discomfort, reddening) depending on the condition of your skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. In general, skin reactions and the sensation of pain tend to diminish considerably with the repeated use. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In order to minimise the risk of infection or inflammation due to penetrating bacteria (e.g. when sliding the appliance over the skin), thoroughly clean the epilation head and the skin before using it. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease, koebner phenomenon, haemophilia or immune deficiency. When you begin taking hormones or if you change the type of hormone medication (e.g. contraceptive pill), the growth of your hairs may be influenced due to a change of your hormone level. This is caused by the change of hormonal conditions, but not by the appliance. Using the cleansing brush (wet & dry use) Pull off the epilation head, attach the brush adapter (8) and click-in the cleansing brush (7a) or the vitalizing pad (7b). Use this attachment as part of your daily cleansing routine with water, soap, cleanser, cleansing milk, gel or peeling products. The vitalizing pad additionally provides an intensive massage to improve your skin appearance. Guide the brush/pad with gentle pressure and circular motions. Avoid the eye area and hairline. Using the MicroVibration head Attach the MicroVibration head (9). You can choose between gentle and intense mode by sliding the switch (9a) to the left or right. Each mode can be operated with speed 1 or 2. We recommend the MicroVibration head for applying liquid skin care products. The delicate tapping action ensures an efficient and economic application of your skin care product. Slowly guide the MicroVibration head over the 3 face zones (20 seconds each). 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 1191474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 11 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 11 of 122 Downloaded from www.vandenborre.be12 Cleaning and maintenance After use, clean the appliance as follows: MicroVibration head (9): Use a damp cloth for cleaning. Do not clean in water. Epilation head (2): Use the brush (10) to carefully clean the tweezers. You may want to dip the brush into ethanol (70%). Do not clean the epilation head with water. Cleansing brush/pad (7,8): Only this attachment can be rinsed under running water. If you prefer cleaning it thoroughly with soap and warm water, you may detach the brush/pad (7a/b) by pressing the release button (8a). After cleaning, leave all parts to dry before reattaching them. For best results, replace the brush/pad (7a/b) every 3 months or sooner if bristles become deformed due to frequent usage. A range of brush refills (ref. no. 80 Face) is available at your retailer, Braun Service Centres or via www.braun.com. Environmental notice Product contains batteries and/or recyclable electric waste. To protect the environment, do not dispose of them in household waste, but take them for recycling to appropriate local collection points provided in your country. Subject to change without notice. Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law. 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 1291474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 12 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 12 of 122 Downloaded from www.vandenborre.be13 For Australia & New Zealand only: Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies of the consumer law. For Claims in Australia please contact: Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: +612 8864 5000 Facsimile: +612 8864 5574 Email: gillette@au.pgconsumers.com For claims in New Zealand please contact: Procter & Gamble Distributing New Zealand Limited Unit 3, Building I, 5 Orbit Drive Rosedale, North Shore City 0632 Auckland, New Zealand Telephone: +649 477 6400 Facsimile: +649 477 6399 Email: gillette@nz.pgconsumers.com Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance. 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 1391474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 13 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 13 of 122 Downloaded from www.vandenborre.be14 Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details. Australian Consumer Service (free call): 1 800 641 820 New Zealand Consumer Service (free call): 0 800 108 909 91474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 1491474612_FaceSpa_Pro_910-911-912-913_921_EURO_S4-122.indd 14 17.08.17 15:1517.08.17 15:15 CSS APPROVED Effective Date 18Aug2017 GMT - Printed 17Oct2017 Page 14 of 122 Downloaded from www.vandenborre.be15 Australian & New Zealand Service Agents VICTORIA & TASMANIA Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@statewideservices. com.au QUEENSLAND Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. (08) 9475 0911 Fax. (08) 9475 0922 Email: mark1app@iinet.net.au

SOUTH AUSTRALIA & NT

Country of origin: China Year of manufacture: To determine the year of manufacture, refer to the 3-digit production code located on top side of the motor part. The first digit refers to the last digit of the year of manufacture. The next two digits refer to the calendar week. Example: «712»: The product was manufactured in week 12 of 2017. ﻦﻴﺼﻟا ﺄﺸﻨﻤﻟا ﺪﻠﺑ ﻊﻨﺼﻟا ﺦﻳرﺎﺗ ﻦﻣ يﻮﻠﻌﻟا ﺐﻧﺎﺠﻟا ﻰﻠﻋ دﻮﺟﻮﻤﻟاو مﺎﻗرأ 3 ﻦﻣ نﻮﻜﻤﻟا جﺎﺘﻧﻹا ﺰﻣر ﻰﻟإ عﻮﺟﺮﻟا ﻰﺟﺮﻳ ،ﻊﻴﻨﺼﺘﻟا مﺎﻋ ﻰﻠﻋ فﺮﻌﺘﻠﻟ ﻊﻴﻨﺼﺘﻟا مﺎﻋ :„712 “ :لﺎﺜﻣ .يدﻼﻴﻤﻟا عﻮﺒﺳﻷا ﻰﻟإ نﺎﻴﻟﺎﺘﻟا نﺎﻤﻗﺮﻟا ﺮﻴﺸﻳ .ﻊﻴﻨﺼﺘﻟا مﺎﻋ ﻲﻓ ﻢﻗر ﺮﺧآ ﻰﻟإ لوﻷا ﻢﻗﺮﻟا ﺮﻴﺸﻳ .كﺮﺤﻤﻟا ﺔﻌﻄﻗ .2017 مﺎﻋ ﻦﻣ 12 عﻮﺒﺳﻷا ﻲﻓ ﻊﻨ
