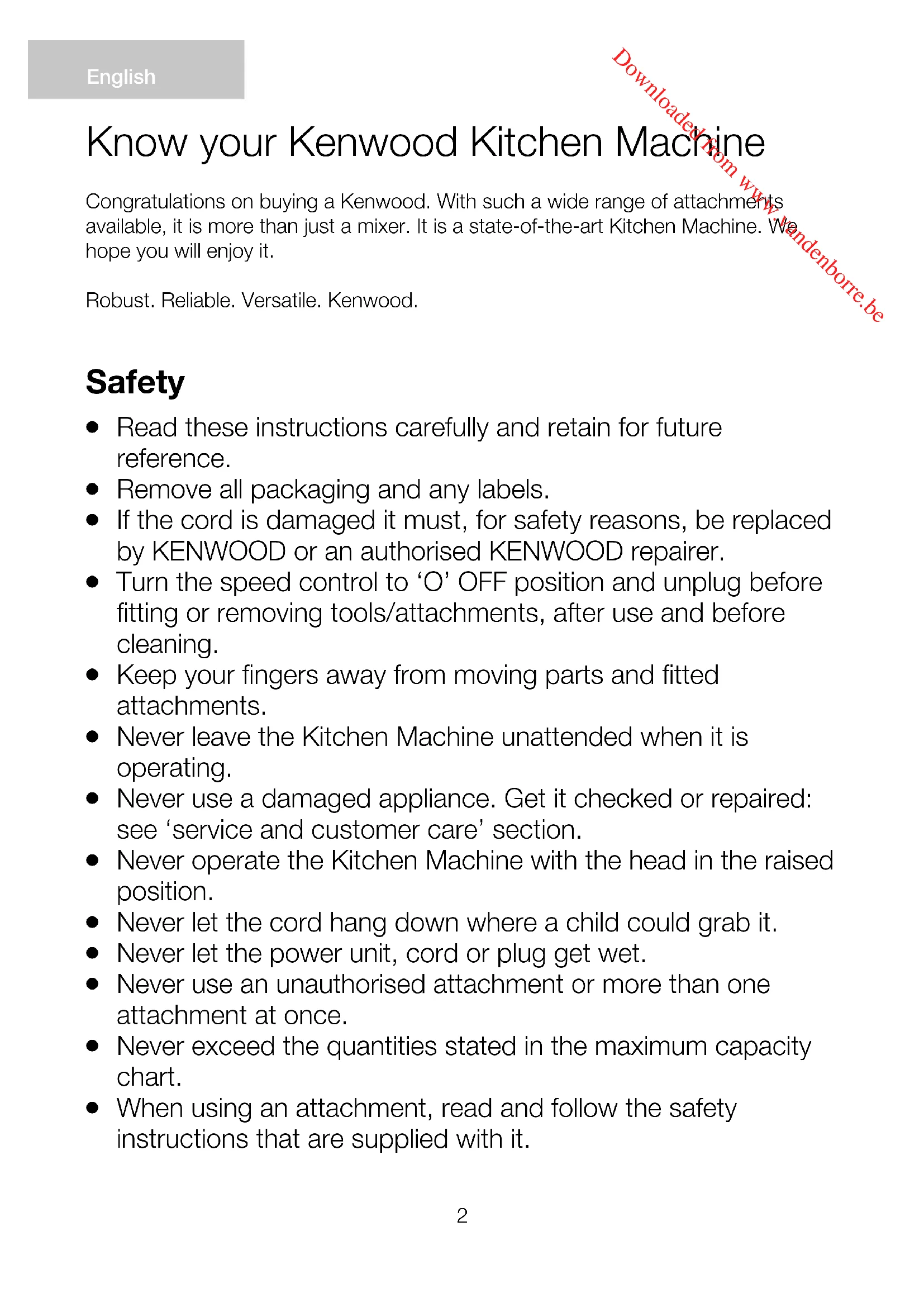

Downloaded from www.vandenborre.beKnow your Kenwood Kitchen Machine Congratulations on buying a Kenwood. With such a wide range of attachments available, it is more than just a mixer. It is a state-of-the-art Kitchen Machine. We hope you will enjoy it. Robust. Reliable. Versatile. Kenwood.

Read these instructions carefully and retain for future reference.

Remove all packaging and any labels.

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

Turn the speed control to ‘O’ OFF position and unplug before fitting or removing tools/attachments, after use and before cleaning.

Keep your fingers away from moving parts and fitted attachments.

Never leave the Kitchen Machine unattended when it is operating.

Never use a damaged appliance. Get it checked or repaired: see ‘service and customer care’ section.

Never operate the Kitchen Machine with the head in the raised position.

Never let the cord hang down where a child could grab it.

Never let the power unit, cord or plug get wet.

Never use an unauthorised attachment or more than one attachment at once.

Never exceed the quantities stated in the maximum capacity chart.

When using an attachment, read and follow the safety instructions that are supplied with it. English Downloaded from www.vandenborre.beBefore plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your machine.• This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food. Before using for the first time
• Wash the parts: see ‘care and cleaning’ section.

Take care when lifting this appliance as it is heavy. Ensure the head is correctly latched in the down position and that the bowl, tools, outlet covers and cord are secure before lifting.

Take care when removing bowl tools after extended use as they may get hot.

Ensure the cord is fully unfolded from the cord storage compartment

before using the Kitchen Machine.

Children should be supervised to ensure that they do not play with the appliance.

Do not move or raise the mixer head with an attachment fitted as the Kitchen Machine could become unstable.

Do not operate your appliance near the edge of a work surface.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Misuse of your appliance can result in injury.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

English Downloaded from www.vandenborre.beKey Attachment outlets

high speed outlet cover

speed and pulse control

slow speed outlet cover

in-bowl illumination

in-bowl illumination touch pad

cord storage compartment

shown is for illustration purposes only and is not supplied in pack. Optional attachments There are a range of optional attachments available to use with your Kitchen Machine. See the attachment leaflet included in your pack or visit www.kenwoodworld.com to see the full range and how to buy an attachment not included in your pack. Note: Slow Speed outlet attachments The slow speed outlet on your Kitchen Machine model features the Twist Connection System. It is designed to accept Twist Connection System attachments. When purchasing new attachments for the slow speed outlet you should check compatibility with your Kitchen Machine. All Twist Connection System attachments can be identified by the product code which starts with KAX and also by the Twist logo which is visible on packaging. For more information visit www.kenwoodworld.com/twist. If you own attachments featuring the Bar Connection System you will need to use the KAT002ME adaptor to connect these to the Twist Connection System on your Kitchen Machine. For more information visit www.kenwoodworld.com/twist.

Know your Kitchen Machine K-beater For making cakes, biscuits, pastry, icing, fillings, éclairs and mashed potato. Dough Hook For yeast mixtures only. Whisk For eggs, cream, batters, fatless sponges, meringues, cheesecakes, mousses, soufflés. Do not use the whisk for heavy mixtures (e.g. creaming fat and sugar) - you could damage it. The bowl tools and some of their uses Downloaded from www.vandenborre.beTo use your bowl tools Ensure the cord is fully unfolded from the cord storage compartment

before using the Kitchen Machine. 1 Plug in and the Standby Button

will light up. Note: The standby button light

will flash and the Kitchen Machine will not operate if the mixer head is in the raised position or the speed control is not in the ‘O’ position. Before operating, check that the mixer head is correctly latched down and the speed control is in the ‘O’ position. If the light continues to flash refer to the ‘troubleshooting guide’. 2 Push the head-lift lever

down and raise the mixer head until it locks

Ensure the bowl seating pad

correctly fitted with the symbol uppermost. 3 Fit the bowl on the base, press down and turn clockwise

to secure in position. 4 Place the required tool into the socket. Then push up

the tool to lock into position. Note: If the K-beater or Whisk are not picking up ingredients from the bottom of the bowl refer to the “Tool Adjustment” section. 5 Lower the mixer head by pushing the head release lever down

and lower the mixer head until it locks

6 Start the machine by turning the speed control

to the desired speed setting. Use the pulse (P) position for short bursts of maximum speed. 7 After use, return the speed control to ‘O’ OFF position and unplug your Kitchen Machine. 8 Release the tool by turning clockwise to unlock from the tool socket and then remove. Hints

• To fully incorporate the ingredients stop mixing and scrape down the bowl with the spatula frequently.

• For best results when whisking use eggs at room temperature.

• Before whisking egg whites, make sure there is no grease or egg yolk on the whisk or bowl.

• Use cold ingredients for pastry unless your recipe says otherwise. Points for bread making Important

• Never exceed the maximum capacities stated - you may overload the machine.

• If you hear the machine labouring, switch off, remove half the dough and do each half separately.

• The ingredients mix best if you put the liquid in first. Yeast

• Dried yeast (the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy.

• Fresh yeast: crumble into the flour.

• Other types of yeast: follow the manufacturer’s instructions.

• Put the dough into a greased polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size. Important Ensure that no bowl tools are fitted or stored in the bowl when using other outlets.

Downloaded from www.vandenborre.be6 Maximum capacities Chef Chef XL Shortcrust pastry Flour weight 680g/1lb 8oz 910g/2lb Bread dough Flour weight 350g/12oz – 350g/12oz – (stiff yeasted) 1.36kg/3lb 1.6kg/3lb 8oz Total weight 550g/1lb 3oz – 550g/1lb 3oz – 2.18kg/4lb 13oz 2.56kg/5lb 10oz Soft yeasted dough Flour weight 250g/9oz – 250g/9oz – (enriched with butter and eggs) 1.3kg/2lb 14oz 2.6kg/5lb 12oz Total weight 480g/1lb 1oz – 480g/1lb 1oz – 2.5kg/5lb 8oz 5kg/11lb Fruit cake mix Total weight 2.72kg/6lb 4.55kg/10lb (Creaming fat and sugar method) (9 Egg mix) (15 Egg mix) Egg whites Number 12 16 Weight (455g) (605g)

• Eggs sizes used = medium sized (Weight 53 – 63g) Tool Recipe/Process Recommended Speed K-beater Creaming butter/margarine Start on ‘Min’ and gradually and sugar increase to ‘Max’ Beating eggs into cake mixes ‘4’ to ‘Max’ Folding in flour, fruit etc ‘Fold’ to ‘1’ All In one cake mixes Start on ‘Min’ and gradually increase to ‘Max’ Pastry & Biscuits – rubbing fat ‘Min’ to ‘2’ into flour Royal Icing ‘Min’ to ‘1’ Mashed Potatoes Start on ‘Min’ and gradually increase to ‘Max’ Whisk Egg Whites Fatless sponges Gradually increase to ‘Max’ Cream Dough Hook For Yeasted dough mixes ‘Min’ speed for 45 - 60 secs. Then increase to speed ‘1’ Re-knead on speed ‘1’ Downloaded from www.vandenborre.be7 To use your in-bowl illumination
• Your Kitchen Machine is fitted with an in-bowl illumination feature located on the underside of the mixer head.• To turn on and off, lightly press the in-bowl illumination touch pad

To remove and fit outlet covers High-speed outlet cover

1 To remove the cover, use the grip on the side and lift upwards.2 To fit, place the cover over the outlet and push downwards. Slow-speed outlet cover

1 To remove the cover, use the grip on the underside and pull outwards.2 To fit, locate the catch at the top of the cover into the outlet recess and push to clip into position. To assemble The splashguard assembly consists of 2 pieces: the head shield and the splashguard

The splashguard cannot be fitted to the bowl unless the shield is fitted.1 Raise the mixer head until it locks.2 Clip the head shield upwards onto the underside of the mixer head until fully located. 3 Fit the bowl onto the base.4 Lower the mixer head.5 Rest the splashguard on the bowl rim and then slide forward until fully located

• During mixing, ingredients can be added directly to the bowl via the feed chute.6 To remove the splashguard simply slide it away from the mixer bowl.7 To remove the head shield, raise the mixer head until it locks. Remove the tool if fitted, then pull the head shield downwards from the underside of the mixer head. Note: Only fit or remove the splashguard when the mixer head is in the locked position. We recommend that the head shield is removed regularly from the mixer head for cleaning. To fit and use your Splashguard Downloaded from www.vandenborre.beK-beater & Whisk The tools are set to the correct height for the bowl supplied in the factory and should not require adjustment. However, if you wish to adjust the tool use a suitable sized spanner: TYPE KVC70 = 15mm TYPE KVL80 = 19mm Then follow the instructions below: 1 Unplug the appliance. 2 Raise the mixer head and insert the whisk or beater. 3 Lower the mixer head. If the clearance needs to be adjusted, raise the mixer head and remove the tool. Ideally the whisk and K-beater should be almost touching the bottom of the bowl

4 Using a suitable spanner loosen the nut sufficiently to allow adjustment of the shaft

. To lower the tool closer to the bottom of the bowl, turn the shaft anti- clockwise. To raise the tool away from the bottom of the bowl turn the shaft clockwise. 5 Re-tighten the nut. 6 Fit the tool to the mixer and lower the mixer head. (Check its position see points above). 7 Repeat the above steps as necessary until the tool is set correctly. Once this is achieved tighten the nut securely.

shown is for illustration purpose only. Dough Hook This tool is set at the factory and should require no adjustment.

• Always switch off and unplug before cleaning.

• A little grease may appear at the slow speed outlet

when you first use it. This is normal – just wipe it off. Power Unit And Outlet Covers

• Wipe with a damp cloth, then dry.

• Never use abrasives or immerse in water.

• Store excess cord into the cord storage compartment

at the back of the machine. Bowl

• Wash by hand, then dry thoroughly or wash in the dishwasher.

• Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale.

• Keep away from heat (cooker tops, ovens, microwaves). Tools & Splashguard

• Wash by hand, then dry thoroughly or wash in the dishwasher. recipe chilli marinade 300g cold clear runny honey (refrigerated overnight) 1 chilli (whole) 5ml (1tsp) crunchy peanut butter Seasoning 1 Place all the ingredients into the mini chopper/mill. 2 Fit the attachment to the Kitchen Machine and allow the ingredients to settle around the blade. 3 Switch to pulse for 4 seconds. 4 Use as required.

Tool Adjustment Care & Cleaning Downloaded from www.vandenborre.be9 Service and Customer Care

• If you experience any problems with the operation of your appliance, before requesting assistance refer to the “troubleshooting guide” section in the manual or visit www.kenwoodworld.com.

• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.

• Designed and engineered by Kenwood in the UK.

ELECTRONIC EQUIPMENT (WEEE) At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin. Downloaded from www.vandenborre.be10 Troubleshooting guide Problem Cause Solution The whisk or K-beater Tool at the wrong Adjust the height using a suitable knocks against the bottom height and needs spanner – see “Tool Adjustment” of the bowl or not reaching adjusting. section. the ingredients in the bottom of the bowl. Slow speed attachment Check your attachment Attachment must have the KAX cannot be fitted. is compatible for twist connection system to fit use with your model. the outlet. Twist connection If you own attachments featuring system required the Bar Connection System (Model KAX) you will need to use the KAT002ME adaptor to connect these to the Twist Connection System on your Kitchen Machine. For more information visit www.kenwoodworld.com/twist. Standby light flashing Speed control not Check and turn speed control when Kitchen Machine in the ‘O’ position. to the ‘O’ position. first plugged in. Mixer head in the raised Check Kitchen Machine head position or not locked is locked down correctly. down correctly. The Kitchen Machine Overload protection or Unplug and check for stops during operation. overheat system obstruction or overloading. Standby light flashing activated. Turn the speed control to “O” rapidly. Maximum capacity and then restart. exceeded. If the machine will not operate, remove some of the ingredients to reduce the load and restart. If this still does not resolve the problem, unplug and allow to stand for 15 minutes. Plug in and reselect the speed. If the machine does not restart following the above procedure contact “customer care” for further advice. Standby light off whilst Kitchen machine has been Press the Standby button machine plugged in. left plugged in for more once to reset. than 30 minutes without being operated and has gone into Standby mode. Downloaded from www.vandenborre.beKennismaking met de Kenwood keukenmachine U bent de gelukkige eigenaar van een Kenwood. Dankzij het grote assortiment beschikbare hulpstukken, is deze machine veel meer dan zomaar een mixer. Het is een geavanceerde keukenmachine. We hopen dat u er veel plezier van zult hebben. Robuust. Betrouwbaar. Veelzijdig. Kenwood.

PRODUIT CONFORMÉMENT

CORRECTA DO PRODUTO NOS

KASTING AV PRODUKTET I HENHOLD

Twist connection system

KAT002ME twist connection system
