USER MANUAL UB001GZ MAKITA

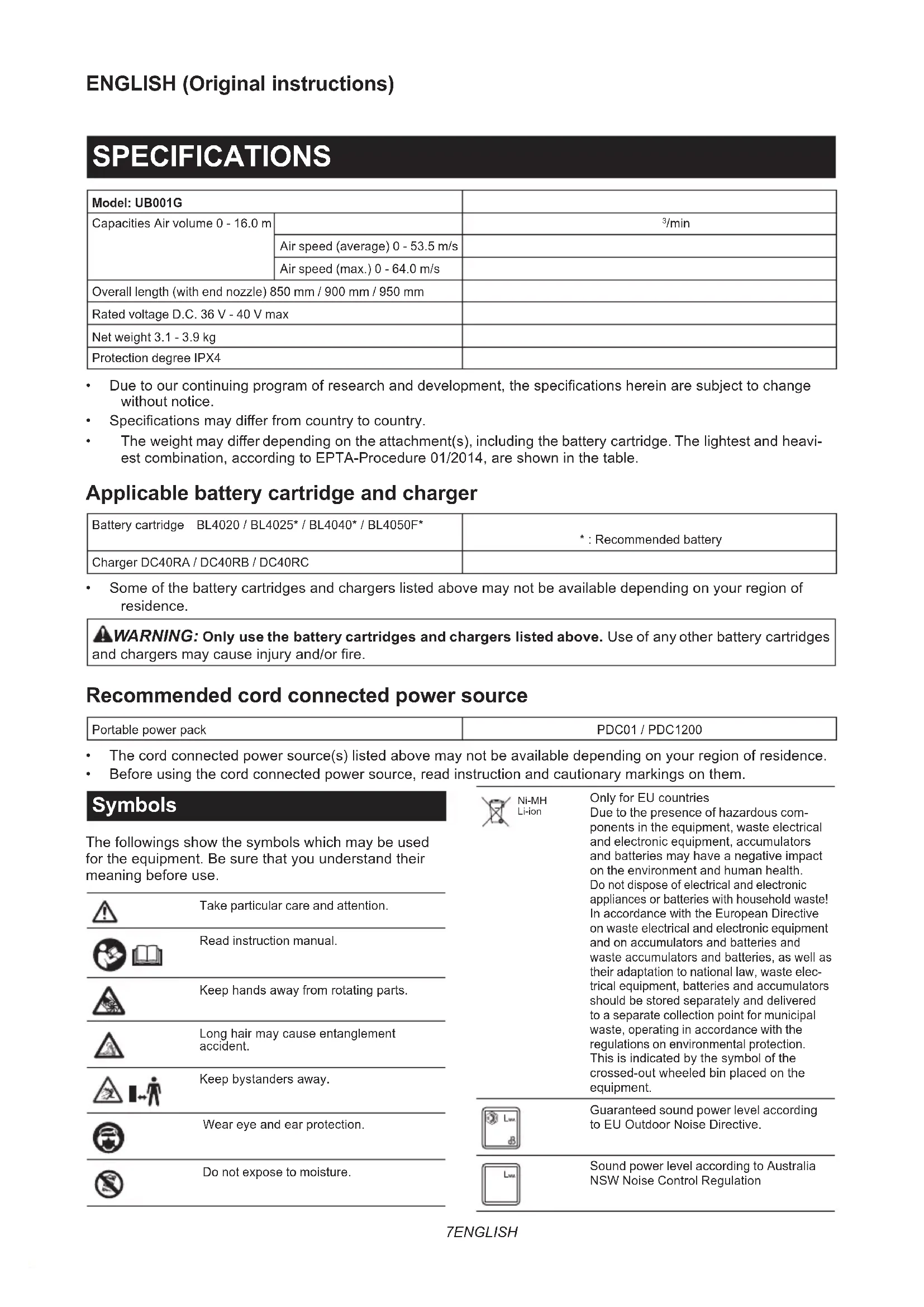

• Specicationsmaydi󰀨erfromcountrytocountry.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

• Beforeusingthecordconnectedpowersource,readinstructionandcautionarymarkingsonthem. Symbols Thefollowingsshowthesymbolswhichmaybeused fortheequipment.Besurethatyouunderstandtheir meaningbeforeuse. Take particular care and attention. Read instruction manual. Keephandsawayfromrotatingparts. Longhairmaycauseentanglement accident. Keepbystandersaway. Weareyeandearprotection. Do not expose to moisture. Ni-MH Li-ion OnlyforEUcountries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators andbatteriesmayhaveanegativeimpact on the environment and human health. Do not dispose of electrical and electronic appliancesorbatterieswithhouseholdwaste! InaccordancewiththeEuropeanDirective on waste electrical and electronic equipment andonaccumulatorsandbatteriesand wasteaccumulatorsandbatteries,aswellas their adaptation to national law, waste elec- tricalequipment,batteriesandaccumulators shouldbestoredseparatelyanddelivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. Thisisindicatedbythesymbolofthe crossed-outwheeledbinplacedonthe equipment. Guaranteed sound power level according toEUOutdoorNoiseDirective. Sound power level according to Australia NSW Noise Control Regulation8 ENGLISH Intended use Themachineisintendedforblowingdust. Noise ThetypicalA-weightednoiseleveldeterminedaccord- ingtoEN50636-2-100: Sound pressure level (L

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- minedaccordingtoEN50636-2-100: Workmode:operationwithoutload Vibrationemission(a

NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only TheECdeclarationofconformityisincludedasAnnexA to this instruction manual. SAFETY WARNINGS Cordless Blower Safety Instructions

Read all safety warnings and all instructions. Failuretofollowthewarningsandinstruc- tionsmayresultinelectricshock,reand/orseriousinjury. Save all warnings and instruc- tions for future reference. Training

Read the instructions carefully. Be familiar with the controls and the correct use of the blower.

Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the blower. Local regulations may restrict the age of the operator.

3. Never operate the blower while people, espe-

cially children, or pets are nearby.

4. Keep in mind that the operator or user is

responsible for accidents or hazards occurring to other people or their property. Preparation

1. Always wear substantial footwear and long

trousers while operating the blower.

2. Do not wear loose clothing or jewellery that

can be drawn into the air inlet. Keep long hair away from the air inlets.

Always wear protective goggles to protect your eyes from injury when using power tools.The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too. It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.9 ENGLISH

4. To prevent dust irritation the wearing of a face

mask is recommended.

While operating the machine, always wear non- slip and protective footwear. Non-skid, closed-toed safetybootsandshoeswillreducetheriskofinjury.

6. Use personal protective equipment. Always

wear eye protection. Protective equipment such asadustmask,non-skidsafetyshoes,hardhator hearing protection used for appropriate conditions willreducepersonalinjuries. Operation

1. Switch o󰀨 the blower and remove the battery

cartridge and make sure that all moving parts have come to a complete stop

• whenever you leave the blower.

• before clearing blockages.

• before checking, cleaning or working on the blower.

• if the blower starts to vibrate abnormally.

2. Operate the blower only in daylight or in good

3. Do not overreach and keep proper balance and

footing at all times.

4. Always be sure of your footing on slopes.

Never blow debris in the direction of bystanders.

8. Operate the blower in a recommended position

and on a rm surface.

9. Do not operate the blower at high places.

10. Never point the nozzle at anyone in the vicinity

• Be careful not to block suction inlet or blower outlet with dust or dirt when oper- ating in dusty area.

• Do not use nozzles other than the nozzles provided by Makita.

• Do not use the blower to inate balls, rubber boat or the similar.

Do not operate the blower near open window, etc.

13. Operating the blower only at reasonable hours

is recommended - not early in the morning or late at night when people might be disturbed.

14. Using rakes and brooms to loosen debris

before blowing is recommended.

15. If the blower strikes any foreign objects or

should start making any unusual noise or vibration, immediately switch o󰀨 the blower to stop it. Remove the battery cartridge from the blower and inspect the blower for damage before restarting and operating the blower. If the blower is damaged, ask Makita Authorized Service Centers for repair.

16. Do not insert ngers or other objects into

suction inlet or blower outlet.

17. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before inserting battery cartridge, picking up or carrying the blower. Carrying the blower with your nger on the switch or energizing the blower that has the switch on invites accidents.

18. Never blow dangerous materials, such as

nails, fragments of glass, or blades.

Do not operate the blower near ammable materials.

20. Avoid operating the blower for a long time in

low temperature environment.

21. Do not use the machine when there is a risk of

When you use the machine on muddy ground, wet slope, or slippery place, pay attention to your footing.

23. Avoid working in poor environment where

increased user fatigue is expected.

24. Do not use the machine in bad weather where

visibility is limited.Failuretodosomaycause fallorincorrectoperationduetolowvisibility.

25. Do not submerge the machine into a puddle.

26. When wet leaves or dirt adhere to the suc-

tion mouth (ventilation window) due to rain, remove them. Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure

the blower is in safe working condition.

2. If the parts are worn or damaged, replace them

with parts provided by Makita.

3. Store the blower in a dry place out of the reach

4. When you stop the blower for inspection, ser-

vicing, storage, or changing accessory, switch o󰀨 the blower and make sure that all moving parts come to a complete stop, and remove the battery cartridge. Cool down the blower before making any work on the blower. Maintain the blower with care and keep it clean.

5. Always cool down the blower before storing.

6. Do not expose the blower to rain. Store the

7. When you lift the blower, be sure to bend your

knees and be careful not to hurt your back.

8. Do not leave the machine unattended outdoors

Do not wash the machine with high pressure water.

10. When storing the machine, avoid direct sun-

light and rain, and store it in a place where it does not get hot or humid.

11. Perform inspection or maintenance in a place

where rain can be avoided.

12. After using the machine, remove the adhered

dirt and dry the machine completely before storing. Depending on the season or the area, there is a risk of malfunction due to freezing. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer.Achargerthatissuitablefor onetypeofbatterypackmaycreateariskofre whenusedwithanotherbatterypack.

2. Use power tools only with specically desig-

nated battery packs.Useofanyotherbattery packsmaycreateariskofinjuryandre.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.Shortingthebatterytermi- nalstogethermaycauseburnsorare.10 ENGLISH

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.Liquidejectedfromthebatterymaycause irritationorburns.

5. Do not use a battery pack or tool that is dam-

aged or modied.Damagedormodiedbatteries mayexhibitunpredictablebehaviourresultingin re,explosionorriskofinjury.

6. Do not expose a battery pack or tool to re or

excessive temperature.Exposuretoreortem- peratureabove130°Cmaycauseexplosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions.Chargingimproperlyorattemperatures outsidethespeciedrangemaydamagethe batteryandincreasetheriskofre. Electrical and battery safety

1. Do not dispose of the battery(ies) in a re.

Thecellmayexplode.Checkwithlocalcodesfor possiblespecialdisposalinstructions.

2. Do not open or mutilate the battery(ies).

Releasedelectrolyteiscorrosiveandmaycause damagetotheeyesorskin.Itmaybetoxicif swallowed.

3. Do not charge battery in rain, or in wet

4. Do not charge the battery outdoors.

5. Do not handle charger, including charger plug,

and charger terminals with wet hands.

6. Do not replace the battery in the rain.

7. Do not wet the terminal of battery with liquid

such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, or store the battery in a damp or wet place. If theterminalgetswetorliquidentersinsideofbat- tery,thebatterymaybeshortcircuitedandthereis ariskofoverheat,re,orexplosion.

8. After removing the battery from the machine or

charger, be sure to attach the battery cover to the battery and store it in a dry place.

9. Do not replace the battery with wet hands.

10. If the battery gets wet, drain the water inside

and then wipe it with a dry cloth. Dry the bat- tery completely in a dry place before use.

11. Avoid dangerous environment. Don't use the

machine in dump or wet locations or expose it to rain. Water entering the machine will increase the risk of electric shock. Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement parts.Thiswillensurethatthesafetyofthepower tool is maintained.

2. Never service damaged battery packs. Service

ofbatterypacksshouldonlybeperformedbythe manufacturer or authorized service providers. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge.Suchconductmayresultina re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- agingandlabelingmustbeobserved. Forpreparationoftheitembeingshipped,consult- ing an expert for hazardous material is required. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.11 ENGLISH

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita.Installingthebatteriesto non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmayresultinpoorperformanceor breakdownofthetoolorbatterycartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near a high-voltage elec- trical power lines.Itmayresultinamalfunction orbreakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Useofnon-genuineMakitabatteries,orbatteriesthat havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). ASSEMBLY CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before carrying out any work on the machine. Installing the end nozzle Align the triangle mark on the end nozzle with the trian- gle mark on the front pipe, then attach the end nozzle to the front pipe, and then turn the end nozzle to lock it into place. Install the end nozzle so that the tip of the nozzle faces downward.Dependingontheworkingenvironment,you can install the end nozzle so that the tip of the nozzle is facing up. ►Fig.1: 1. Triangle mark 2.Endnozzle3.Frontpipe To remove the end nozzle, perform the installation procedure in reverse. NOTE:Thelengthofthenozzlecanbechangedby movingthenozzleasshowninthegure. ►Fig.2: 1.Endnozzle2.Frontpipe Installing the at nozzle or extension nozzle Optional accessory

1. Align the groove on the adapter pipe with the pro-

trusion on the front pipe, then attach the adapter pipe to the front pipe, and then turn it to lock it into place. ►Fig.3: 1. Adapter pipe 2.Frontpipe

2. Alignthegrooveontheatnozzleorextension

nozzle with the protrusion on the adapter pipe, then attachtheatnozzleorextensionnozzletotheadapter pipe, and then turn it to lock it into place. ►Fig.4: 1.Flatnozzle2.Extensionnozzle3. Adapter pipe Installing the gutter nozzle set Optional accessory

1. Align the groove on the adapter pipe with the pro-

trusion on the front pipe, then attach the adapter pipe to the front pipe, and then turn it to lock it into place. Insert the adapter pipe as far as it will go so that the protrusiontsintothedeepestgrooveontheadapter pipe. ►Fig.5: 1. Screw 2. Hose clamp 3. Adapter pipe 4.Frontpipe

2. Loosen the screws on the hose clamps, and pass

the large hose clamp through the adapter pipe, and then pass the small hose clamp.

3. Connect the extension pipe to the adapter pipe.

Align the groove on the extension pipe with the protru- sion on the adapter pipe, and then slide the extension pipe along its groove so that the triangle markings face each other. ►Fig.6: 1.Extensionpipe2. Adapter pipe12 ENGLISH

4. Place the hose clamps onto the grooves as illus-

trated and tighten the screws. ►Fig.7: 1. Screw 2. Hose clamp

5. According to the working height, connect the rest

of extension pipes to the extension pipe which has alreadybeenattached. CAUTION: Do not attach the extension pipe if the total length including the blower body exceeds 4 m.

6. Turn the outlet of the end nozzle as shown in the

7. Connect the end nozzle to the extension pipe.

When connecting, align the triangle marking on the end nozzle and the extension pipe, and then push the end nozzle until it clicks. After that, rotate the end nozzle to asuitablepositionforyourwork. ►Fig.9: 1.Endnozzle2.Extensionpipe3. Triangle marking When removing the end nozzle, align the triangle mark- ings on the end nozzle and extension pipe, and then pull out the end nozzle from the extension pipe. ►Fig.10: 1.Endnozzle2.Extensionpipe3. Triangle marking Attaching the shoulder strap CAUTION: When you use the machine in com- bination of the backpack-type power supply such as portable power pack, do not use the shoulder harness included in the machine package, but use the hanging band recommended by Makita. Ifyouputontheshoulderharnessincludedinthe machine package and the shoulder harness of the backpack-typepowersupplyatthesametime, removingthemachineorbackpack-typepowersupply isdi󰀩cultincaseofanemergency,anditmaycause anaccidentorinjury.Fortherecommendedhanging band,askMakitaAuthorizedServiceCenters. CAUTION: Be sure to attach the hooks of the shoulder strap to the machine securely. If the hooksareattachedincompletely,theymaycomeo󰀨 andcauseaninjury. CAUTION: Be sure to use the shoulder strap dedicated to this machine. Using other shoulder strapmaycauseaninjury. Attach the hooks of the shoulder strap to the machine asshowninthegure. ►Fig.11: 1. Hook You can also attach the shoulder strap to the machine asshowninthegurebyattachingoneendofthe shoulderstraptothebuckleoftheshoulderstrap. ►Fig.12: 1. Buckle FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the machine. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the machine before installing or removing of the battery cartridge. CAUTION: Hold the machine and the battery cartridge rmly when installing or removing bat- tery cartridge.Failuretoholdthemachineandthe batterycartridgermlymaycausethemtoslipo󰀨 yourhandsandresultindamagetothemachineand batterycartridgeandapersonalinjury. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthemachine,causing injurytoyouorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. ►Fig.13:

WARNING: Always turn o󰀨 the main power

switch when not in use. To turn on the machine, press the main power switch. Themainpowerlamplightsupingreen.Toturno󰀨, press the main power switch again. ►Fig.15: 1. Main power switch 2. Main power lamp NOTE:Thismachineemploystheautopower-o󰀨 function. To avoid unintentional start up, the main powerswitchwillautomaticallyshutdownwhenthe switch trigger is not pulled for a certain period after the main power switch is turned on. NOTE:Ifyoupressthemainpowerswitchwhenthe controlleverisnotfullyreturnedtotheo󰀨position, orwhileyouarepullingtheswitchtrigger,themain powerlampblinksingreen.Inthiscase,fullyreturn the control lever, or release the switch trigger, and then press the main power switch. Switch action

WARNING: Before installing the battery car-

tridge into the machine, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Tostartthemachine,simplypulltheswitchtrigger.The speedincreasesbyincreasingpressureontheswitch trigger. Release the switch trigger to stop. ►Fig.16: 1. Switch trigger You can use the machine in the Boost mode. In the Boostmode,theairvolumebecomeslargerthaninthe normal mode. To use the machine in the Boost mode, pull the switch trigger until the switch trigger stops in the halfwayposition,andthenpulltheswitchtriggerfully. ►Fig.17: 1. Switch trigger NOTE:Dependingontheusageconditionsorbattery conditions, use of the Boost mode is restricted to protect the machine. If the main power lamp of the machineblinksingreenwhenyoupulltheswitch triggerfullyorwhileyouareusingthemachineinthe Boostmode,theBoostmodeisnotavailable. NOTE:TheBoostmodeisnotavailablebyturning the control lever. Cruise control function The cruise control function allows the operator to main- tain a constant speed without pulling the trigger. To increase the speed, turn the control lever forward. To decreasethespeed,turnthecontrolleverbackward. ►Fig.18: 1. Control lever Accidental re-start preventive function Evenifyouinstallthebatterycartridgewhilepullingthe switch trigger, the machine does not start. To start the machine,rstreleasetheswitchtriggerandreturnthe controlleverfully,andthenpulltheswitchtrigger. OPERATION Blower operation CAUTION: Do not place the machine on the ground while it is switched on.Sandordustmay enter from suction inlet and cause a malfunction or personalinjury. Holdthemachinermlywithahandandperformthe blowingoperationbymovingitaroundslowly.When blowingaroundbuilding,bigstoneorvehicle,directthe nozzleawayfromthem.Whenperforminganoperation in a corner, start from the corner and then move to wide area. ►Fig.1914 ENGLISH Using the gutter nozzle set CAUTION: When using the gutter nozzle set, do not use the machine in the Boost mode. You maylosebalanceanditmaycauseanaccidentsince theairvolumebecomeslargerintheBoostmode. CAUTION: When using the gutter nozzle set, do not hold the blower with single hand but with both hands. ►Fig.20 CAUTION: Do not use the gutter nozzle set near electric wires. ►Fig.21 CAUTION: Do not use the gutter nozzle set on windy day. ►Fig.22 CAUTION: When using the gutter nozzle set, keep other people or animal more than 15 m away from the blower. ►Fig.23 Holdthebloweruprightbygrabbingthehandleofthe blower.Placetheoutletofthebloweronthegutterand thenturnontheblower. ►Fig.24 MAINTENANCE CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. TomaintainproductSAFETYandRELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Cleaning the machine Cleanthemachinebywipingo󰀨dustwithadryclothor onedippedinsoapywaterandwrungout. ►Fig.25 NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Remove dust or dirt from the suction inlet at the rear of the machine. ►Fig.26: 1. Suction inlet Storage Beforestoringthemachine,removethebatterycar- tridge from the machine, and perform full maintenance. Store the machine in a place out of the reach of children and not exposed to moisture, rain, or direct sunlight. Thehookholeonthebottomofthemachineisconvenient for hanging the machine from a nail or screw on the wall. ►Fig.27: 1. Hole TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedintheman- ual,donotattempttodismantlethemachine.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakita replacement parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Batterycartridgeisnotinstalled. Installthebatterycartridge. Batteryproblem(undervoltage) Rechargethebattery.Ifrechargingisnote󰀨ective, replacebattery. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Motor stops running after a little use. Battery'schargelevelislow. Rechargethebattery.Ifrechargingisnote󰀨ective, replacebattery. Overheating. Stop using the machine to allow it to cool down. The machine does not reach the maximum speed. Batteryisinstalledimproperly. Installthebatterycartridgeasdescribedinthis manual. Batterypowerisdropping. Rechargethebattery.Ifrechargingisnote󰀨ective, replacebattery. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Abnormalvibration: stopthemachineimmediately! Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Motorcannotstop: Removethebatteryimmediately! Electricorelectronicmalfunction. Removethebatteryandaskyourlocalauthorized service center for repair.15 ENGLISH OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita prod- uct specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.
