USER MANUAL LYCOS E500 T Wolf Garten

(Original operating instructions)

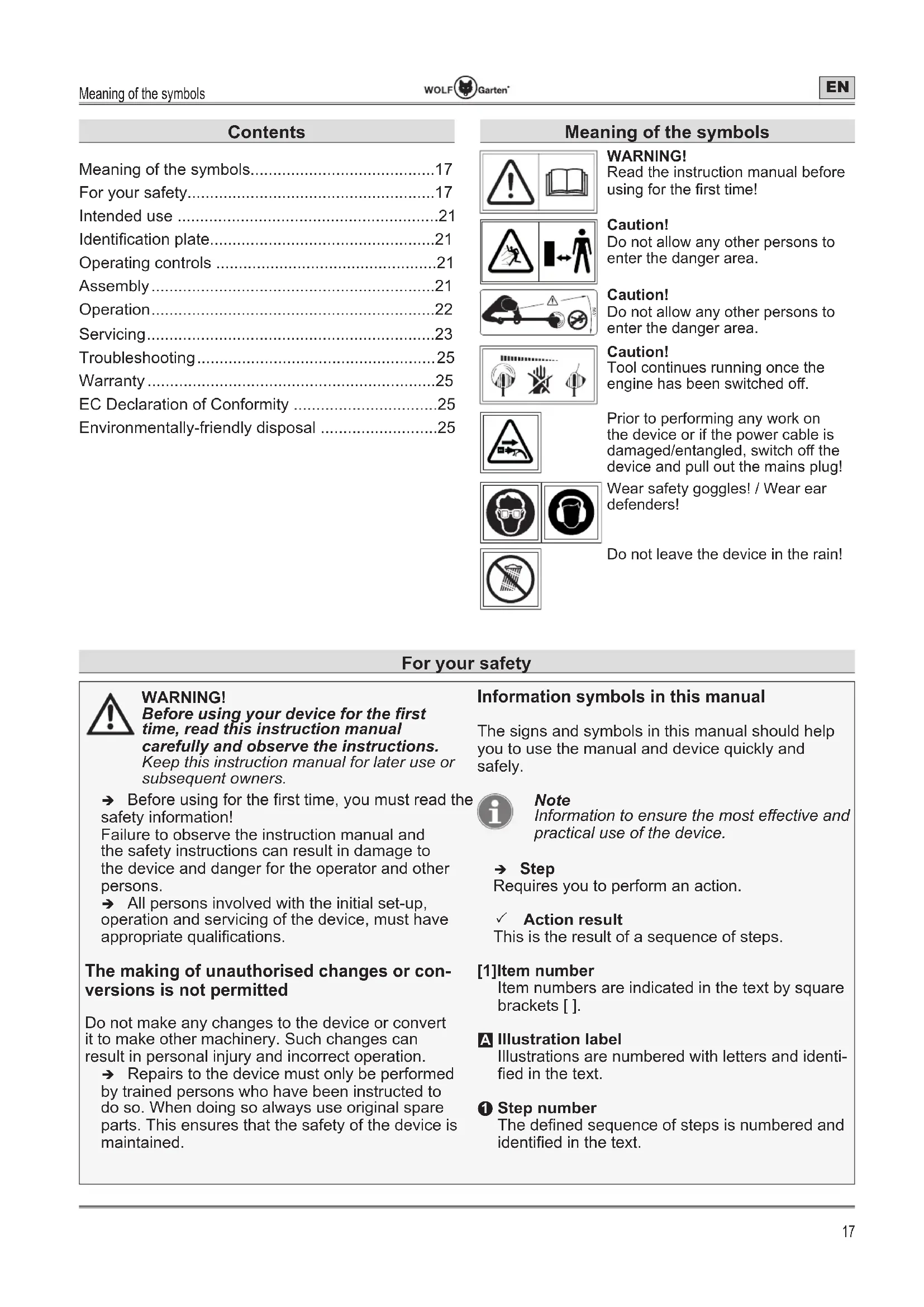

FR Francais 26

Meaning of the symbols. 17

For your safety. 17

Intended use 21

Identification plate. 21

Operating controls 21

Assembly 21

Operation 22

Servicing 23

Troubleshooting 25

Warranty 25

EC Declaration of Conformity 25

Environmentally-friendly disposal 25

Meaning of the symbols

WARNING!

Read the instruction manual before using for the first time!

Caution!

Do not allow any other persons to enter the danger area.

Caution!

Do not allow any other persons to enter the danger area.

Caution!

Tool continues running once the engine has been switched off.

Prior to performing any work on the device or if the power cable is damaged/entangled, switch off the device and pull out the mains plug!

Wear safety goggles! / Wear ear defenders!

Do not leave the device in the rain!

For your safety

WARNING!

Before using your device for the first time, read this instruction manual carefully and observe the instructions.

Keep this instruction manual for later use or subsequent owners.

Before using for the first time, you must read the safety information!

Failure to observe the instruction manual and the safety instructions can result in damage to the device and danger for the operator and other persons.

All persons involved with the initial set-up, operation and servicing of the device, must have appropriate qualifications.

The making of unauthorised changes or conversions is not permitted

Do not make any changes to the device or convert it to make other machinery. Such changes can result in personal injury and incorrect operation.

Repairs to the device must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the device is maintained.

Information symbols in this manual

The signs and symbols in this manual should help you to use the manual and device quickly and safely.

Note

Information to ensure the most effective and practical use of the device.

Step

Requires you to perform an action.

√ Action result

This is the result of a sequence of steps.

[1]Item number

Item numbers are indicated in the text by square brackets [ ].

A Illustration label

Illustrations are numbered with letters and identified in the text.

Step number

The defined sequence of steps is numbered and identified in the text.

For your safety

Danger levels of warning information

The following danger levels are used in this instruction manual to indicate potentially dangerous situations:

DANGER!

A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death.

WARNING!

A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death.

CAUTION!

A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries.

Attention!

A possibly harmful situation may occur which if not avoided will result in property damage.

Safety information content

DANGER！

Type and source of the danger!

Consequences of non-observation
Measure for preventing the danger

Safety information

Protection of yourself and others

This device must not be used by children under 16 years of age or persons with reduced physical, sensory or mental capabilities or with inadequate experience or insufficient knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specified by local or national legislation.
For safety reasons, children under 16 years of age or persons who are not familiar with the B usage instructions must not use the trimmer. The minimum age of users may be defined by local or national legislation.
Do not operate the trimmer when there are people (especially children) or animals in the immediate vicinity. Ensure children do not play with the trimmer.

Stop using the device if persons (especially children) or animals are nearby.
Only switch the motor on if your feet and hands are at a safe distance from the cutting element.

Always disconnect the device from the power supply if you are leaving it unattended or removing a blockage.
Always wear sturdy shoes and long trousers as well as other appropriate personal protective equipment (safety glasses, ear defenders, safety gloves etc.) when working with the trimmer. The wearing of personal protective equipment minimises the risk of injury. Do not wear loose clothing, etc., which could be caught by the cutting tool.

Before use

Before use, make sure you are familiar with the trimmer, its functions and controls.

Never fit metallic cutting elements.
Do not use any trimmer whose switch is defective and which can no longer be switched on or off. It must be repaired by a qualified expert or workshop.

Safety information

Do not connect to the power supply using a damaged cable. Do not touch any damaged cable before it has been disconnected from the power supply. If cables are damaged it may be possible to touch live parts.
Never use a device with damaged or missing guards or covers. They must be repaired or replaced by a qualified expert or workshop.
Before use, make sure that the lawn is free from branches, stones, wire etc. and look out for such objects the whole time when trimming.
Before making adjustments to the device, cleaning it or checking the power cables, switch it off and pull out the mains plug.
Before starting the machine and after any impact check the power cable for signs of wear or damage. Have necessary repairs performed by a qualified electrician or workshop.
Prior to each instance of use, check if the device cable with mains plug or the connection cable is damaged, fragile/old or entangled.

Have damaged cables replaced immediately in a workshop prior to further use.

Cable

Only use extension cable with a minimum cross-section of 3 × 1.5 mm^2 and a maximum length of 25 m :

• if using rubber-sheathed flexible cables, then as a minimum of type HO7RN-F
• if using PVC cables, then as a minimum of type HO5 VV-F (cables of this type are not suitable for permanent outdoor use, e.g. for routing underground for connection of a garden socket, connection of a pond pump or storage outdoors)

  Plug and portable socket-outlet must be splash-proof.
  Use a residual current device (RCD) with a tripping current of no more than 30~mA .

Secure the connection cable to the strain relief. Do not allow to rub on edges, points or sharp objects. Do not squeeze cables between door cracks or window gaps.
Switching devices must not be removed or bypassed (e.g. taping of the safety lever to the handle).
Only use connection cables which are in flawless condition.

Tips for use

Do not use the device in potentially explosive atmospheres containing flammable liquids, gases or dusts. The trimmer may create sparks, which could ignite the dust or vapours.
Never leave the trimmer unattended during breaks and store it in a secure location.
Hold the trimmer parallel to the lawn when switching on, otherwise there is a risk of injury.
Also when working maintain a safe distance relative to the rotating line.
Do not reach into the area of the rotating line.
Take care to avoid injury when using the cutting device for shortening the line length. After pulling out new line, always hold the device in its normal working position before switching it on.
Wear suitable safety goggles and ear defenders!
Adopt a normal posture. Ensure you are standing securely and that you maintain your balance at all times. Do not run, rather walk forwards at a steady pace. This will ensure that you can maintain better control of the device if unexpected situations occur.
Take extra care if you are walking backwards. Risk of tripping!
Switch the motor off when carrying the device to or from separate working positions.
Keep connection cables away from cutting tools to prevent damage to cables which could lead to the contacting of active parts.

Safety information

If the mains cable of this device is damaged, General safety information
it must be replaced by the manufacturer, its customer service or a qualified person in order to avoid hazards.

Never bypass or remove safety devices installed on the device (e.g. by taping the push-button to the handle).
Do not push the line box into the ground or hit it against wall edges. If the line box suddenly receives a heavy blow, be prepared for increased vibration at the handle. If this does occur, the device must be checked and, if necessary, repaired by a qualified expert or workshop.
Under the following circumstances, switch the device off and remove the mains plug from the power supply. Make sure that all moving parts have come to a complete standstill:

• Before you leave the device;
• Before you release a block;
• Before you conduct cleaning, maintenance and tuning tasks;
• Before you check the device for damage; e.g. after a foreign object has been encountered;
• If the device is vibrating excessively heavily.

After use

Switch the device off, pull out the mains plug and check the device for damage. Attention, danger! Cutting tool still running!
If you need to clean or service the device, switch it off and pull out the mains plug.
Always wait until the cutting tool comes to a standstill.
Removal of guards or replacement of the line spool must only be performed if the motor is stopped and the cutting tool switched off and then only if the mains plug has been pulled out. Use only an original line spool and observe the fitting instructions!
Ensure that ventilation slots are free from dirt.
Do not clean the device with water.
Store the device in a secure location.
Store the device out of reach of children.
Do not repair the device yourself; it must be repaired by a qualified expert or workshop.
Allow the motor to cool before putting the device away.

Spare parts must meet the requirements of the manufacturer. Therefore, use only original spare parts or those spare parts authorised by the manufacturer. When replacing spare parts, always observe the supplied fitting instructions, always pull out the mains plug first.
Repairs must only be performed by a qualified technician or service centre. Specialist workshop addresses can be found on our website.
This trimmer is intended for the care of lawn edges and smaller grass and lawn areas in private households. The device must not be used for purposes other than those intended because of the risk of bodily injury to the user or other persons.
Only use the trimmer in daylight or under bright artificial light. Keep your work area clean and well lit.
Only use the trimmer in dry weather conditions. Keep it away from rain or damp. The ingress of water into the trimmer increases the risk of an electric shock.
Do not use the device if it is raining or there is a risk of storms.
Even if all safety and operating instructions are heeded, there is always a residual risk of injury and property damage. Always bear this in mind.
Replace all worn or damaged information signs on the device.

Intended use

This trimmer is intended solely for the care of lawn edges and smaller grass and lawn areas in private households.

Any other use is classed as an unintended use.

The user is liable for any damages arising from unintended use.

Incorrect/abnormal use

This trimmer should not be used in public facilities, parks, sports grounds, roads etc. nor in agriculture or forestry.

Due to the risk of bodily injury to the user, the trimmer must not be used:

• to trim bushes, hedges and shrubs;
• to cut flowers;
• for shredding for the purpose of composting.

Identification plate

Position

The identification plate is located on the bottom handle end of the trimmer.

Note

The label has the status of a certificate. It must never be altered or obliterated.

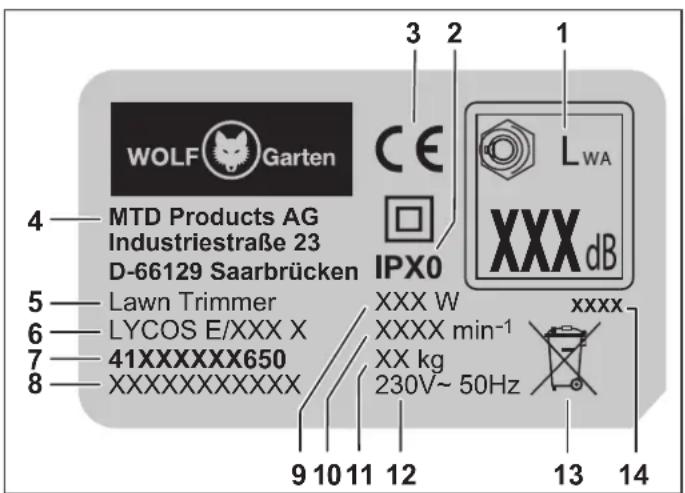

Layout

1 Guaranteed sound level
2 Protection class/IP code
3 CE mark
4 Manufacturer
5 Device group
6 Model name
7 Model number
8 Serial number
9 Power
10 Engine speed in rpm
11 Weight
12 Rated voltage, current type, frequency

13 Disposal instruction
14 Year of manufacture

Operating controls

Operating controls

1 Handle
2 Lock-on switch
3 Middle handle
4 Quick-release fastener for telescopic arm adjustment
5 Locating button edge cutting function
6 Protective cover
7 Line knife
8 Line box
9 On/off switch

10 Cable strain-relief device
11 Locating button, working angle
12 Plant protection bow
13 Support wheel for edge-cutting function *
14 Press knob for line adjustment
15 Storage box for spare line spool (depending on the model, with spare line spool in the scope of delivery)
16 Telescopic arm

• model and version-dependent

Assembly

Attaching the protective cover A

Position the protective cover on the grass trimmer 1.
Fix the protective cover with the fastening screws ②.

Note

Only attach the screws so they are fingertight.

Note

Before starting the device remove the cut protector on the line cutter.

Note

The grass trimmer can be used for cutting small areas of grass D E and edge cutting F.

Attaching the middle handle (Typ 2)

Place the middle handle on the grass trimr
Fasten the middle handle with the hexagon screwto 4 different horizontal working angles for easier and the star screw to the grass trimmer ② working. This allows you to easily reach problematic
The trimmer head of the lawn trimmer can be set

Note

Make sure the head of the hexagon screw fits correctly in the recess of the middle handle.

Attaching the plant protection bow (Typ 2)

The plant protection bow protects shrubs, trees and bedding plants during trimming.

Pull the plant protection bow apart slightly so that it can be attached to the trimmer 1.
Insert the plant protection bow into the mounting on the trimmer until it latches in ②.

Note

During edge cutting the plant protection bow must be turned to the rear by 180^

Settings for operation

WARNING!

Risk of injuries posed by the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.
Do not reach into the area of the rotating line.
Pull the mains plug before any work on the device!

Setting the telescopic arm

The telescopic arm can be set to the user's height.

Open the quick-release fasteler
Pull the telescopic arms apart or push them together until the ideal height is obtained 2.
Close the quick-release faster

Setting the middle handle H (Typ 2)

The middle handle can be set for easier work at various incline positions.

Release the star screw on the middle handle
Set the desired incl2e
Retighten the star screw on the middle hane

Setting the working angle of the trimmer head

to 4 different horizontal working angles for easier working. This allows you to easily reach problematic and difficult-to-access positions in the garden.

Press and hold the locating button.
Set the operating ane
Release the locating button.
The head of the lawn trimmer engages audibly.

Setting the edge-cutting function F J

The edge cutting function enables precise trimming along the lawn edge F.

Turn the plant protection bow to the rear by 180^ until it latches in J 1 - only required for Typ 2.
Press the locating but J 2 while simultaneously turning the trimmer head by 90^ to the left J 3.
Release the locating button.
The trimmer head audibly engages.

Note

For normal trimming/cutting, the plant protection bow (Typ 2) should be turned by 180^ back to the front to protect the plants against the trimming line.

Operation

WARNING!

Risk of injuries posed by the cutting tool.

Switch the motor off, wait until the cutting tool comes to a standstill, and pull out the mains plug before you perform adjustments or other work to the device.

Operating times

Observe the times stipulated in local byelaws.
Check with your local authorities to determine if there are any operating time limitations.

Guiding the cable through the strain relief K

The strain relief in the control handle prevents accidental disconnection of the extension cable.

Fasten the extension cable in the strain relief as shown.

Mains socket connection (230 V, 50 Hz)

WARNING!

Risk of injuries or material damage.

Observe the mains voltage.
The power source voltage must match the information on the device identification plate.
Only connect to a socket, that is protected by a 10-16 A slow-blow fuse (or an MCB).

Note

The protective devices protect you against severe injury in the event of your coming into contact with damaged/bare wires, if an insulation defect exists and, under certain circumstances, if damage to live wires occurs.

We recommend that you only connect the device to power outlets that are protected by a residual current device (RCD) with a tripping current of no more than 30mA .
- For older wiring installations, upgrade kits are available. Consult a qualified electrician.

Switching the device on/off L

WARNING!

Risk of injuries due to the rotating line.

Tool continues running!

Always wait until the cutting tool comes to a standstill.

Hold the trimmer parallel to the lawn before switching on.

Switching the device on

Press the lock-on switch on the handle
Simultaneously press the on-off switch on the handle 2.
Release the lock-on switch again.
The device operates.

Switching the device off

Release the on/off switch to switch the device off ③.
The device is switched off.

Note

The cutting tool continues to run for a brief period after being switched off.

Adjusting the line

Typ 1 M

Press the running device briefly onto firm ground; e.g. a paving stone using the press knob (pressing down force about 3kg ). About 1.5cm of cutting line is automatically fed out.

Typ 2

With each switching off and on the line is adjusted automatically out of the line box.

Note

Frequently switching on and off without reason results in increased line wear.

Note

If the cutting line becomes too short during operation due to wear, switch the device off and then back on again to extend the working length of the cutting line automatically.

Servicing

WARNING!

Risk of injuries or material damage.

Only clean or service the device if the motor is stationary and also the cutting tool.

Pull out the mains plug before any work on the device!
Repair and service work as well as the replacement of safety elements must be performed by a qualified expert or workshop.

Cleaning the trimmer

Switch the trimmer off and wait until the cutting tool comes to a standstill.
Clean the device with a hand brush after every use.
Clean the ventilation slots and underside of the device at regular intervals to remove grass residues.

Attention!

Do not clean the device with water.

Replacing the line spool N O P

WARNING!

Risk of injuries due to the cutting tool.

Only adjust the device with the motor switched off and the cutting tool at a standstill.
Do not reach into the area of the rotating line.

Pull out the mains plug before any work on the device!

Pull strongly on the two line ends to release them out of the retaining slots of the line spool.
Position the spool cap on the line spool holder so that the two retaining lugs perceptibly engage ⑥.

WARNING!

Risk of injuries due to the rotating line.

Upon switching on, the line is cut to the working length.
Only switch the device on when it is in an operating position.

Typ 1

Press the retaining lugs on the spool cap togetherTransport and storage
N ① and pull it off with the line spool N ②.
Remove the line sp1.
If necessary, remove any dirt.
Insert a new line spool in the spool
Thread the line ends through the eyes of the spool cap 0 3.

WARNING!

Risk of injuries due to the cutting tool.

Before transport or storage, switch off the device and wait until the cutting tool comes to a standstill.
Pull out the mains plug!

Note

To prevent unintentional uncoiling, do not take the line of the new line spool out of the retaining slots before inserting 0 a.

Storage

After threading in and assembling the line spool in the spool cap, pull strongly on the two line ends to release them out of the retaining slots.
Place the spool cap, together with the line spool, on the line spool holder so that the two retaining lugs of the spool cap perceptibly engage 0 4.

Thoroughly clean your device after every season.
Store the trimmer in a clean and dry room.
Protect the trimmer against rust/oxidation during long storage periods.

Typ 2 P

Simultaneously strongly press the spool cap together at both of the retaining lugs 1 and pull it off 2.
Remove the line sp@
If necessary, remove any dirt.
Insert a new line spool in the housg
Thread the line ends through the eyes of the line box ⑤.

Note

To prevent unintentional uncoiling, do not take the line of the new line spool out of the retaining slots before inserting 3.

Troubleshooting

WARNING!

Risk of injuries or material damage

In case of doubt always consult a specialist workshop.

Before any inspection or any work on the device, switch the motor off and pull out the plug.

Problem Possible cause Remedy

Line adjustment does not work.	Trimmer line spool is empty. Replace the line spool.
	Cutting line has torn off and is pulled into the line box.	Take off the line spool, if necessary wind up the line again by gently pulling and insert the spool.
	Cutting line has become caught in the spool.
	Cutting line is welded onto the spool.	Remove the welded on line section, if necessary wind up the line again by gently pulling and insert the spool.
Motor does not run.	No mains supply.
	Cable damage:Attention! Electric shock due to cable damage.A fuse/circuit breaker will not always blow/trip if the cable is cut through or damaged.	Check the power supply and if necessary contact an electrician to arrange repair.
	→ Do not touch the cable before the mains plug has been pulled out of the socket.
The trimmer starts to vibrate excessively.	The drive is blocked or the bearing is defective.	Contact a specialist repair shop to arrange inspection and, if necessary, repair of the grass trimmer.
The line breaks off too frequently.	The line comes into contact too frequently with fixed objects; e.g. fences, trees, etc.	Depending on the design, use the plant protection bow.

Warranty

The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your device free of charge, insofar as material or manufacturing defects are the cause. To make a claim under warranty please contact your seller or your nearest branch.

Environmentally-friendly disposal

Power tools, accessories and packaging must be routed to an environmentally sound recycling chain.

Do not throw your old power tool away with the domestic waste. Take it to a disposal facility.

EC Declaration of Conformity

Further details about the device are contained on the separately enclosed EC Declaration of Conformity, which forms part of this instruction manual.

Table des matieres

Dra endast at skruvarna for hand.

Information

Skru skruene bare fast for hand.

Merk!

Puroian aeitoupyiaq kottnackpwv F J

ToTtntnKaalwdiou otny aov aov

Uklanjanesmetnji 169

Jamstvo 169

EZ izjava o sukladnosti 169

Ekološko zbrinjavanje 169

Značenje symbola

UPOZORENJE!

He donyckaite nonaHa Ha yctpoiCTBO DOxKDeBOB ODbI!

ДяВаш经6e3oanacnoctn

NPEyPEXKDEHNE!

Ipeod nepebIM uCNoB3ObaHuem ycmpoucmea EHumameIbHO npooymume Hacmoaee pykoobcmeo no 3Kcnnyamauu u deucmeyume coombem-cmeuu c Hum. Coxpanme hacmoaee Pykoobocmeo no 3Kcnnyamaauu dna nocne dyouezo uCnoB30aHua unu dna nocne dyouezo eIadelba.

→Перед первьIM ВВОДМ ВЗКПУаТAUЮ оБЯЗАТЕЛБИО ПОНТИТЕ уka3aHAнЯ NO ТEXНIKE 6e3ONACHOCTN!

B cnyuae Hec6nOeHn pyKOBOcTBA nO 3Kc- nIyatauHn yKa3aHn NO TexHnke 6e3OnacHOCTn BO3MOxH NOBpeXdHHe YcTPOiCTBa, TAKKe MOrTy BO3HNKHyTb ONaCHOCTn DnI NOpJb3OBaTeJI n dpyrNx IIOJe.

Bce Nua, BbINOHNHIOUne BBOD B 3KcNpya 06cnykINBaHnE INTexHnueCKOE 06cnykINBaHnE yCtPOICTBa, DOnKHBIO7aTb COOTBeTCTByIOSe KBAIIΦnKaun.

3anpeT ha cAmOBoJIbHbIe N3MeHeHn I nepe- o6OpyDoBaHne

3anpeuaeTcBHOCTbN3MeHeHnB KOHCTpyKUIO yCTPOINCTBa NIN N3ROTabNBaTB N3 Hero DOnONHHTeNbHbIe yCTPOINCTBa. TaKne N3MeHeHnMOyT npInBeCTN K TpaBMam N HeNCnPabBOCTM.

→ PemOHnPOBaTb yCTPONCBO MOrY TOnbKO HMeOUsNE COOTBETCTBYUUsNE NOJHOMOuN I O6yueHHbIe Nua. Pn 3Tom Bcerda NcNoJIb3yTe OPINHaJIbHbIe 3aNaChbIe YactN. 3TO No3BOJNT COxpaHHTb 6e30NaChOCTb yCTPONCBA.

HOpMaOnOHbIe CmBOJI B HAcToaem pyKOBoDCTBe

3HaKn n CnMBOJb B HAcToIeM pyKOBoDCTBe OoJIHb Bam nomOy 6bICTpo N 6e3OnaCHO nCNoIb- 3OBaTb pyKOBoDCTBO n yCTpOInCTBO.

Yka3aHue

HOpmaua O Hauboee 3pkeMubHom U npakmuHOM uCnoB3oBaHuu ycmpoucmea.

→ War deicTBnA

PpeDnncbIbAet DeIcTbIe.

ДяВаш经6e3onachocntu

Pe3yIbTaT DeiCTBna

3dec yka3bIbaeTcpe3yIbTaT nocJeIOBaTeJIbHOCTn 1aROB DeIcTBn.

[1]Homep no3nui

Homepa no3nui 0603haeHb IB TEKCTe KbaDpaTHbIMN cok6kamn []

A O6o3haeHne HJIIOCTpaun

HIOCTpaun Cha6xehb6yKBHeHHbIMn NdeHTNΦKATopamn Oo03Hauehbl TEKTe.

Homep wara deNCTBna

OnpeIeHnHa nocJeIOBaTeIbHOCTb IaROB DeIcTBnI pOHyMePOBaHa N O603HaueHa B TEKCTe.

I P E D U N P E X D E H N E!

Bo3MOxHa onacha cnTyau, KOToPA,B cnyae Heco6IIODeHn COOTBeTCTByIOuNX MEP, npBVeTeK TAgKeJIbIM TpaBMam NIN daXe K CMePTN.

OCTOPOXHO!

MoKeT HAcTyNtB OnaChA CnTyaCnry, KOtopa npuBeTeK JIeKIM IIN He3HaHTeJIbHbIM TpaBMam B Cnyae Heco6JIHODeHn COOTBeTCTByUxMep.

BhumaHue!

Moxet Hactynitb notehunbHO onachar cnTyauia, KOTOPa npBedeT K MaTePnAbHomy uep6y, ecn He npedotBpaTntb ee.

CTpykTypa yka3aHn no TexHnke 6e3oNaCHOCTN

ONACHO!

BnN nCTOuHnK onaCHOCTn!

日 NocleDCTBnI rHHopuObaHn
Mepa no npeDoTbpaueHnO npachoctn

Yka3aHnno TcXnKe 6e3onacHOCTn

HnBnyaIbHa 3aunTa

3To yctpoiCTBO He doJXHO

3KcnnyaTnpoBaTbCn DeTbMn B Bo3pacte do 16 JeN JInuamn C OrpaHueHHbIMn fN3NuYeCKmN, CeHCOPHBIMn HnYmCTBeHHbIMn CNOCO6HOCTaMn, a TaXke - NHeIOCTaTOUHOM ONbITE n 3HaHnJx. TaXke 3TyCtpoIcTBo He DOJXHO 3KcnNyatnpoBaTbCn JInuamn, He O3HaKOMNBUnmncs C HAcToaN PyKOBoDcTBom No 3KcnNyatauN.

MeTbIe npEanncAHn MOryT yCTaHabNtBaTb OrpaHueHn BO3pacta NOb3OBaTeJe.

No coo6paxeHnma 6e3onacHOCTn DeTAM do 16 let nnn nnuam, He 03HaKOMMBWIMCc c pykoBOdCTBOM NO 3KcnnyaTaun, nCNOJb3OBaTb TpMMep 3anpeueHo.

MnHmMaIbHbI B03pact NOb3OBaTeJIa MOxET ONpeJELTbcr MeCTHbIMN HOpMaTINBaMn.

He 3anyckaIte TpmmMep, ecnB HENOCpeIcTBeHHoN 6JIN3OCTn HaxoJATCJIHOu (B OCO6eHHOCTn DeTn) IIN JXNBOTHbIe.

Cneinte 3a Tem, YTo6bI JeTn He Irgpann C Tpmmepom.

BbIKIOHTe MaunHy, ecn praHm HaxoTcraIHOu (B OOC6eHHOCTN - Detn) nJn DomaHHeXMBOTHie.
Bknuayte BnraTeIb TOnbKO B TOM cnyuae,ecn Baun HOrn n pyKn haxoJrTa Ha 6e3onachom pacctOarHn OT pexyuzero yCTpOInCTBa.
Ecnn Bbl co6npaTeCb ocTaBnTb MaunHy 6e3 npncmOTpa Hnn ydaNtB 3a6NBwnncB Hee MaTePnaI, Bcerda OTKJIuOaNeMaunHy OT 3JeKtpoNTaHn.
Bo BpeMa pa6oTbI c TpHMMepom nI IN Bo3Ne Hero Bcerda Hocnte npOHyO obyBb I dnnHHbIe 7tAHbI, a TaKKe NcNoJIb3yIte NOxOJaune CpeCTBa HnDnBnDaJbHOH 3aunTbI (3aunTHbIe OChN, IpOTNbOswMhbIe HayuHKn, pa6oNe nepaTKn n T. d.). IcnoJIb3OBAHne CpeCTB INDnBnDaJbHOI 3aunTbI CHINKaET OnaCHOCTb TpaBM. He Hocnte CBO6oNDHyO ODeKdy n T. n., KOTOPaR MoXet 6bITb 3axBaueHa peKyuIm IHCTpyMeHTOM.

Yka3aHnno TExHnke 6e3onachOCTn

IpeepnpimmeHHeHem

Перед нааном pa6oТы O3HaKombTeCb C TpIMMepom,eroФункцЯMu N 3IeMeHTamu ynpaBJIeHn.
He yctaHaBnBaIe MeTaJIInueckne peKyuIe 3JeMeHTbl.
He nCnoJb3yIte TpMMep, ecn erO BblKIOUaTeIb HEncnpaBeH n nepeCTaB KIIIOuATbcra NIN BblKIOUaTbcra. NopyuIte erOpemOH KBaJIINΦIuPObAHHomy CneIuaNtCy IINI CNEIuaJIIN3uPObAHHO MaCTepCKoI.
He nodknloaHTe K 3neKtpnuceckoCetn NOBpeKdEHHbIe Ka6en. He npkacaTecb K NOBpeKdEHHomy Ka6JIH, He OTKnIOuHB erO OT 3neKtpnucecko Cetn. NOBpeXdHeNe Ka6eNe MoKET npON30HTn Pn INx npNKOCHOBeHN C pa6OUM YacTAM.
He 3KcnpnyaHpyuTe yCTpoNCTBO c NOBpeXdEHHbIMn INI OTCyTCTByIOUIMN 3aUNTHbIMN yCTpoNCTBaMn INI KpbIUKAMN.

NopyaIte nx pemOH nIN 3aMeHy KBaINnΦnCnPOBaHHomy CneUaJIInCTy ININ CNEuNAJIN3nPOBaHHoM MacTePcKoN.

Ipeed ctpnKoR ra3OHa y6eIntecb, YTO C Hero y6paHbI cybR, KAMHN, npOBONa N T. D., N NOCTOHHO yuHTbIBaHTe 3TO BO Bpemra pa6OTbIC TpMMepom.
IpepeBbINOJHHeHem HAcTpoE yCTpoIcTba,ero OYNCTKN ININ NPOBepKn KaBeJeN NOkJIIOUeHn BbIKIOUHTe yCTpOInCTBO IN3BJIeKNTe CeTeByIO BNJKy IN3 PO3ETKN.
Перед Науалом pa6obtbl MaunHbI NOcNe KaJdOrO ee cToJKNHOBeHnC NocTOPOHHMn PpeMetamnpOBepaTe Ka6eJIb NOKJIHOueHn Ha PpeMet n3HOca NNIOBpeXdeHn. IopyaHTe peMOHT KBaJIuΦNupOBaHHOMy 3JIeKTpNKU yIN CNEUaJIIN3NpOBaHHo MAcTePCKoJ.
Npeed KaKdbim NcNoIb3OBAHnem npOBepaTe Ka6eNb yCTpoiCTBa C cTeBOB BNkoN I COeHNHTeNBhIE Ka6eJN Ha OTCyTCTBne IOBpeXdEHH, JOMKOCTn/npu3HaKOB CTapeHn IIN 3anyTbIBAHn.

IobpeKdHbIe Ka6eJI npeep DaJIbHeiMm IcNoJIb3OBAHnEM yCTpoJCTBa Heo6xoDIMO 3aMeHHTB CNEuJaIN3nPOBaHHoM MaCTepCKoN.

Ka6eJn

NcnoJIb3yIte NCKJIIOUHTeJIbHO ydJIINHITeJIbHbIe Ka6eJIc CeyeHHeM npoBOJHKOB He MeHee 3 x 1,5 MM² nДИHOn He 6OJIee 25 M:
- npn nCNoJIb3OBAHm npoBOIOB B pe3nHOBoI o6oJouKe - He Hxke cneuФkaun Tuna HO7RN-F

• npn nCNoB3OBaHn npoBOO B o6ONoUKe n3 PBX - He Hxke CneuΦnKaun Tnna HO5 VV-F (npoBoa 3Toro Tnna He rOaTcA dJa NOCToAHNOr npmHeHH BHe NOMEueHH, HApnpMep, DnI NOd3eMHOro pOKNaDbI-BaHnK CaOBoN po3eTke, NOdkluOeHH npyDoBOrO Haocca Hn XpaHeHH NoD OTKpbITbIM He6OM)
  Pa3beMbI IN COeINHHTeNbHbIe 3JIeMeHTbl DOJXHbI 6bITb B 6pbI3ro3aUuueHHOM NCIOJHHeHN.

  NcnoJb3yIte yCTPOiCTBO 3aunTHoro OTKIOUeHnR (RCD) c TOKOM yTeuKN He 6OJee 30 mA.
  3akpenntb ka6enb noKDIOueHnHa npncnoc6JeHHn dIra 3aunTbI OT HaTaeHn. He donyckatb TpeHnO6 yIbI, ocTPOKHeHbIe nnocptbIe npeMeTbI. He 3aueMnTb Ka6enb B DBePbIX N OKOHbIX uEJnx. He DEMoHTnpOBaTb I He nepeMbikTaB ycTpoNCTBa BKIOUeHn N BbIKIOUeHn (HaNPmEp, He npNB3bIBaTb npeDOxpaHNTbHyIO dyry K HanpaBnIOuepyKOrtke)
  NcnoJb3yIte coeHNHTeJIbHbIe Ka6eIIN ToJIbKO B 6e3ynpeHOM COCTOHHN.

BoBpeMa npImMeHHeNHa

He nCnoIb3yIte yCTpOncTBO BO B3pbIBoONaCHOcpeDe, rDe npNCyTcTByIOr TropOuHne XnDKoCTN, ra3bl NJI Nbl. TpIMMep MOXET CO3DaBaTb NCKpbI, KOTOpbl EMOYT BOCPnAmeHHTb Nbl NJI napbl.
Bo BpemnpepebIBOB pa6oTe HN B KOem cnlyae He octaBnIe Tpmmep 6e3 npncMoTpa n xpaHnTe erO B HaJeXHom MeCTe.
Bo BpemBkIoueHn Tpmmepa depKnte ero napaJIenbHO ra3OHy, B npOTNBOM cIyuae BO3HnKaet OnaCHOCTb TpaBM.
Bo Bpempa6oTbI BbIepxNBaTe 6e3onachoe pacctOraHHe K Bpaauoueenca necke.
He nbitaTecb CXBaNTb Bpaaioouyoc necky.

Pa60Tajc yCTPOJCTBOM JIJI OTpe3aHnJIeCKN Heo6XODHMOn dINHbI, 6yDbTe OCTOpOXHbI -OHO MOxET npuHHITb TpaBMbl. Iocne BbITARBAHNHOBOJNECKN DO BKJIIOUeHnY cTPOJCTBa Bcerda DePKeHTe erO B HOpMaNBHom pa6Oyem NOJOKeHn.
NcnoJb3yIte NOxOJaUne 3aunTHbIe Ockn I npOTnBOuMhIbe HayuHKn!N36eraIte Heyo6hIx nOIOKeHn TeHa. CneInte 3a XopoWeY cTouNBOCTbIO N Bcerda NOpDepKNaIte paBHOBeCne. Hn B KOem cnUyae He 6eraIte, DBURAITcB BnpePeI CNOKOHbIM WArOM. 3TO No3BOJNT Bam lyUwe KOHTPOINPOBaTb YcTPOJCTBO B HeOJNDAHHbIX CNTyaUNX.

Yka3aHnno TExHnke 6e3onachOCTn

BydbTe oO6eHNO octopoxHbI, DBnraCb Ha3aI. OnacHOCTb cNOTKHyTbcI
BoBpeMraTpaHcnpTnpoBKNyCTpOncTBAH npn nepexode MExdy OTdeJIbHbIM MeCTaMn pa60TbI Bcerda BblIOuayTe DBrAteIb.
He npnbnxkaTe pexyunn HNcTpymeHT Ka6eJAM, YTO6bI n36eXkataB NOBpeXdEHN, KOtOpbIE BO3MOxHbI npN KacaHnn aKTNBbIX DeTaNen.
B cnyuae nobpexeHncaTeBOrnpoBoa 3TOrO yctpoicTBa, npOn3BOAnTeJIb, erO cepBnchA r cyk6a nnn CneuaNcT, oNaIauu KBaIINpKkaUeH, DOJXHbI 3aMeHHTb erO BO n36exKaHne onacHOCTn.
He nepembikaTe n He cHMaJTe yCTaHOBJIeHHbIe Ha yCTpoiCTBe yCTpoiCTBa BKJIIOUeHn I BbIKIOUeHn (HaNPmep, NyTem npMaTbIBaHn KhONKn Ha pyKoRTke).
He ydaprTb KOHTeHepom dIJIa JeCKn O 3emIIO uN o Kpa CTen. Iocne ydapa KOHTeHepa dIJI JeCKn npOBepbTe HaIINue NOBbIWeHHoB Bn6paun HA pyKoTKe. Ppi HAIuNN IOBbIWeHHoB Bn6paUN HeO6XODIMO NOpyHTb peMOHT UcTPOJCTBa KBaIINpUInPOBaHHOMy CneuaNtCy IINI cNeuaN3IPOBaHHoM MaCTepCKoN.
PnCneDyUOxN yCNOBnx BbIKIOHNTe yCTPOINCTBO N3BNEKNTe CeTeByIO BNJKy. Y6eINTEcB, YTO BCE DNVKyuNecr DeTaN INONHOCTbIO OCTaHOBNLNCb:

• npexdyeemOCTaBtbyyctpoNCTBO;
• npexdyeymyctpaHrTB6JOKnpoBky;
• npexke yem BbINOJHrTa pa60tbo IIO OYnCTKe, Texo6cnykBaHHIO HnHaCTpOKe;
  -праздуемповерять усточь HoHa HanuNe NOBpeKdEHH, HAnpIMep, nocne nonaДANHЯ NOCTOPOHHERO npedMeta;
• npn Upe3MepHo Bn6paun yctpoicTba.

PocJI npIMeHnA

BbIKIOUHTe yCTPOINCTBO, n3BNEKInTe CeTEByIO BnIKy n3 PO3ETKN IN PNOBEPbTe yCTPOINCTBO Ha npEaMeT NOBpeXdHn. BHMaHne, onaChocTb! Pexuynn HNCTpymEn TBpaaaetcno nHepuyn!
Ecnn Bam Heo6xOJHMo BbIIOJHHTb pa60TbI NO TEXHNueCKOMy 06cJyXnBaHHU OChCTKe yCTpOJCTBa, BbIKJIOUHTe eRO N3BJIeKNTe CeTeByIO BnIKy N3 pO3eTKN.
Bcerda doxndaTecb octaHOBKn peKyuero HnHCTpyMeHTa.
CHIMATb 3aunTHbIe yctpoiCTBa nIN BbINOJIHrTb 3aMeHy KaTyuKn C JeCKoM OXXHO TOJIbKO pN OCTaHOBJIeHHOM DBNrAteNe I BbIKJIOUeHHOM peKyuIe M NHTpyMeHTe, IN TOJIbKO POCJIe N3BJeEHnCeTeBOI BNJKN H3 PO3ETKn.

IcnoB3yIe TOnbKO opuHnHaNbHbIe KaTuSiKc n Jecko n Co6JIOdaIe NHCtpyKunn no yCTaHOBKe!

CneDnTe 3a Tem, yTo6bI BeHTnJIaHNoHHbIe He 6bln 3arPra3HeHbl.

He ouhiaTe yctpoiCTBO BOIOI.
XpaHnTe yCTPOINCTBO B HAneKHom MecTe.
He Čepxīnte yctpɔiCTBO B MecTax, DóctynhIx DeTm.
He pemOHtnpuIte yctpoicCTBO camocToTaeNbHO, npuyaIte ero peMOHT TOnbKO KBaINΦnCupOBaHHOMy CneunAIncTy INN cneuaHn3npOBaHHo MaCTepckOi.
ПрждчЕМпОТаВИтьУСТРОДТВОHaMecTo, dAnTe DBHrataJIIO OCTbITb.

06zne yka3aHnno TeXnke 6e3onacHOCTn

3anactndoJXhcooTBeCTBOBaTb Tpe6oBaHnM,yCTaHOBHeHHbIM npOn3BOdnteMe.MIO3tOMyNCIOJIb3yIteTOJIbKO oprInHaJIbHbIe 3anactnIIN OIO6peHHbIe npOn3BOdnteMe 3anactn.Ipn 3aMeHe BcERda co6IIOaTe pnpIraemble INHCTpyKUnn IO yCTaHOBKe,peDvapITeJIbHO N3BNeKaIte CeTeByIO BNkY n3PO3eTKN.

Iopyuayte npoBeHne peMOHTa NCKIIOHTeIbHO KBaINΦnIpuOBaHHOMy CneuaJIncTy NN CneuaJIIn3npOBaHHoM MaTepcKo. Adpeca cneuaJIIn3npOBaHHbIX MaCTepcKnx yka3aHbI Ha HaWe Be6-CTpaHnue.
3TOT TpIMMep npeHa3NaueH dJIyXoJa 3a KpaAMn Ra3OHOB N He6OJbUHMN TpaBraHbIMN JIyXaIKaMMN rA3OHAMN B DOMaSHem XO3YCTBe. H3-3a ONaCHOCTn TpaBMIpOBAHn IOJIb3OBaTeJI NII pRTH NIODeI TpIMMep HeJIb3r IcNOb3OBaTB B HecBOIcTBeHHbIX EMy cJIeJIx.
NcnoJIb3yIte TpIMMep TOJbKO DHeM Hn npHaJIuHmXopoWero NCKycCTBeHHoro OCBeueHn. MecTo pa6oTbI DOJxHO 6bITb YNCTbIM n XopoWo OCBeueHHbIM.
McnoJIb3yIte TpIMMep TOJbKO B cyxuO norOy. BepeHrTe erO OTdoKJn nn CbipocTn. NonaJaHne BOblB TpIMMep NOBbIaet ONaCHOCb NopaxKeHHa 3JIeKTPnueCKm TOKOM.
He 3KcnpnyatnpyTe yctpoNCTBO BO BpeMa DOxkndnnrpo3bl.
Дахе пи сбл endeHn Bex yka3aHn no TeXnke 6e3oNaChocT n ynpaBneHIO cyseCTByET OCTaToHbI PNCK TpaBM mATEpnaJIbHorO yuepe6a.Bcerda nomHnte o6 3TOM.
YcTaHaBnBaIte Ha ycTpoNCTBO HOBbie yKa3aTeJIbHbIe Ta6JIuKN BMeCTO n3HOWeHHbIX NII NOBpeJDeHHbIX.

PpimMeHHeNoHa3HaueHnIO

Tpmmep npedHa3HaueH NCKIIOHTeJIbHO IJy yXoJa 3a KpaAMn Ra3OHOB H6OJIbShIMN TpaBArHbIMN Nykaikamn nga3OHAmn B DomaUHem Xo3rCTBe.

IIO6oe BbIXoJUe 3a 3TN paMKn NcNOb3OBaHne CHTaETcN pIMHeHem He NO Ha3HaueHIO. 3a yuep6, npOn3OweDUnB cnUyae npIMHeHnE He no Ha3HaueHIO, OTBeuaT NOb3OBaTeJIb.

✓ TOnOBka TpIMMepa cHKcnpyeTcra CO CJIbIiHMbIM UeJIyKOM.

PerynpoBka yHKunn o6pa6oTKn Kpa ra30Ha F J

ФункцяообрабOTК Края ra3OHa NO3BOJЯET TOHOKoCITb NO KpaHOra3OHa F.

→Повернiteзшудяпрастейн ha 180° hazaddo ФикcaиnJ -ТрбуETcTOnbko Tnna 2.
→HaxMnte Ha KONkyΦHKCaJ 2 N IOBepHNTe npn 3TOM rOIOBky TpumMepa Ha 90° BneBO J 3.

OTnyCTnTe KhoNkY QnkCaunn.

✓ TOnOBka TpIMMepa qNKcnpyeTcra CO CJIbIIMMbIM 3ByKOM.

YKa3aHue

Для npodonkeHua paobmb 8 obbyHOM pexkme Heo6xodumo Choea noeepHymb 3auumhyo dyay dny pacmHu (Typ 2) Ha 180^ ymo6bI 3auumumb pacmHu om pekyue Jneku.

3Kcnnyatauia

I PENEyPEXKDEHNE!

OnachocTb TpaBMnpoBaHnpeKyuMm HNCTpyMeHTOM.

Перед ВьINОнHeHnEM HAcTpoeK yCTpoiCTBaИpyrIMN pa6OtaMn C Hm BbIKIOUHTe DBIraTeIb,doXdNTecb,IOKa peKyuIN INHCTpymEHT OCTaHOBNTcR, IN 3BNeKeITe CeTEByIO BNJky n3 pO3ETKn.

Yacbl pa6oTbl

Co6nOdaTe pernoHaJIbHbIe npednicaHnA.
→ Y3haTe o pa3peWeHHbIX yacax pa60tbl B MeCTHOM opraHe 6BecTBeHHoro npabONopraKa.

3aBeDeHnKa6eB B npncnocObeHne dJn 3aunTbI OT HaTJeHnK

Pnncnoc6JeHne dJa 3aunTbI OT HaTjKeHHn npedOTBpaaaet HnpeHaMepeHHoe OTCoEINHeHne yDInHHTbHOrO Ka6JIa.

→3akpennte ydnnHnTeIbHbI Ka6eJIb B npncnocO6JeHHn dIaIHTbI OT HaTJKeHn, KaK NOKa3aHO Ha pncyHKe.

IopKnIOueHne Kpo3eTke (230 B, 50 Tc)

I PENEYPPEKDEHNE!

OnachoctbnonyueneHn TpaBM mMaTePnaIbHoro yuepe6a.

YuHTbIbAaTe HnpaJKeHne cETn.
HanpexHeNIE NCTOCHNka 3JNEKTPnueCKOR TOKa DOJIxHO COOTBeTCTBOBaTb DaHHbIM, yKa3aHHbIM Ha nacnOpTHoT Ta6JIuYKe T yCtpoIcTBA.
Подклюаь устpoиCTBO TOnьК pO3eTKaM,Зашишенин IM ИерцИОHHbIM npedoxpaHITeIeM,pacCHHTaHHbIM Ha cnIy ToKa 10-16 A (nIIN nIHeNbIM 3aUHTbIM BbIKNoUaTeIeM TnIaB).

Yka3aHue

3mu 3auumhble ycmpoucmea 3auuuaamom mkaeIbIX mpaB M cnyae npukochoehnK noepexkdeHHbIM npoBodam, e cnyae dedekmo8 uOJauu, a 6 onpeDeHbIX cnuayax makke u npu noepexkdeHu npoBodo, haxoJxxCn oD HanpJxHeuem.

• PekomeHnyetcnoKNIouaTb yCTpoIcTBO TOJIbKO K PO3eTKaM, 3aUuJeuHHbIM yCTpoIcTBOM 3aUNTHoro OTKnIOueHnR (RCD) c TOKOM yTeKn He 6oJee 30 mA.
  -Дястаролдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдgнлк -Дястаролдгдгдгдгдгдгдгдgнлк -Дястаролдгдgнлк -Дястаролдgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дястаролdgнлк -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -ДЯ-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta - -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя-sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta -Дя/sta

BkIIOueHne N BbIKJIIOueHne yCTpoIcTBA

PNEyPExKdEHNrE!

OnachocTb TpaBmnpoBaHn BpaaioueinCe necko.

HCTpymEnT DnHexeTcR NO HepuN!

BcerdaIOxNJaTecbOCTaHOBKnpejyUeroHnCTpyMeHTa.

PpeD BkIIOueHHeM TpIMMepa DepXHTe ero npapannelbHO 3emne.

Bknouehne yctpoctBa

HaxMnTe KhoNkY 6JIOKInpOBKn BKNIOUChEHN Ha pyKe1.

HOBPemeHHO C 3TUM HAXMNTe BbIKIOuAteJIb HApyKe 2.

Tnyctnte KHONky 6LOKINPOBKN BKNIUOyeHnA.

YcTpoIcTBo pa6OtaeT.

BbIKIOueHne ycTpoNCTBa

→ДЯ BBIKJIHOueHЯ yCTPOINCTBa OTNyCTNTe BBIKJIHOaTeIb ③.

√ UcTpoIcTBbIKJIoueHO.

yKa3aHue

Iocne bblknoeHua pexyuu uHcmpymHe ue Hekomopoe EpeMa deuxkemc no Uhepuu.

IopaHa Jneckn

Typ 1 M

→Прихмite pa6oTaIOоe ycTpoIcTBO haXIMHOH KhoNkoK TBepDoN IOBepxHOCTN,HaNPmEp,K TpoTyapHOI pINTke (ycnne npxMma - np6JI. 3K).PpOn3oJdET aBTOMaTHuecka noDaVa np6I.1,5cmpekUeJneKn.

Typ 2

Pn KaKdOM BKNIOUeHNN N BbIKNIOUeHNN N3 KAcCETbI C JeCKoABTomATNuCeCKN NOaETcH HOBBI OTpe3OK JeCKN.

YKa3aHue

Yacmoe 8KIOUeHue u 8bIKIOUeHue 6e3 Heo6xOduMocmu eedem K No6biWeHHOMy pacxody necku.

Yka3aHue

Ecnu 60 bpema paobmJI necka cmahem cnuukom KopomKou u3-3a u3Hoca, bIKIOyume uCHOEA EKnIOUme ycmpoucmeo, dnuha pekyue Jnecku u3MeHumca aemamuuyecku.

TexHnueckoe 06cJyKbHaHne

I P E D U N P E X D E H N E!

Onachoctb noyuHn TpaBM m MaTePnaIbHoro yUepe6a.

Pa60TbI NO TexHnueckomy
OBcnyKuBaHnIO N OChCTKe MOxHO
BbINOJIHrTb TOJIbKO C BbIKJIIOUeHHbIM
DBnRaTeIeM N OCTaHOBJeHHbIM
peXyUIM NHCTpyMeHTOM.
Перед ВьINОнHeHEm Лбix pa60Т ha yCTPOIcTBe N3BJIeYb CeTeByIO BUNKy I3 pO3eTKI!
IopyaIte npoBeHne peMOHTa, Texnueckoro 06cnykuaHna, a TaKke 3aMeHbI npeOxpaHnteNbHbIX 3JeMeHTOB KBaNΦuNpObaHHOMy CneuaJIncTy UIN CneuaJIuN3InpObaHHoM MacTepeCKoJ.

OuNcTkA TpIMMepa

→BbIKIOHTe TpMMeep n NOOxIINTe, noka peKyUHCTpyMeHT OCTaHOBTcR.
→PocneKaKdOroNcNoJb3OBaHnOuHuaTe yCTPOINCTBOUeTKoNcpyKoN.
→PeryIpaHNo OuNuaaTe OT OCTaTKOB TpaBb BEHTINJIaCIOHHbIE UeJI N HIXHIIO CTOPOHy yCTPOI-CTBa.

BhumaHue!

He ouuetae yctpoiCTBO BOoI.

3aMeHa 7nynbKn c neckoN O P

I P E D U N P E X D E H N E!

Onachoctb TpaBMnpoBaHnpeKyuIM HhCTpyMeHToM.

BbINHnIe HactpoiKy yCTpoiCTBa TOJIbKO npN BbIKIOueHHOM DBIRaTeJe N HeNoDBNXHOM pexKysem NHCTpyMeHTe.

He xbaTaNTEcb 3a BpaauoUyIOc neck
Перед ВьINОЛнEHnEM JIO6bIX pa6OT Ha yCTpoIcTBe N3BNeYb CeTeByO BnIKy N3 po3ETKn!

Typ 1

→ CoXMMTe ΦNCKCnpyUOuIe Ra3bUcKN Ha KpbUkKe WnyJbKn N 1 N BbITaHInTe ee BmecTe CO WnyJbKoN N 2.

→ 3BneKeTe WnyIbky Ina Jne
→Пинанлчпзаррзehиудалnte nx.
BnOxNTe HOByo 1yNbky c neckoB Kpb

→PpoJeHbTe KOHcbl NeCKN B OTBepCTnKpbIuKN ①

Yka3aHue

Ipy npedomepaueHn HnpedbudeHHo20 pa3MaMbIeAHn neCKu He bHUMmb necky HOou wnybku u3 qukcypouux npope3eu do ee ycmahO6ku e Kopnyc 0 a.

→ Nocne yctaHOBKn 1nnyIbKn B KpbIuKy CNJbHo NOTAHNTe 3a Oba KOHcA JeCKN, YTO6bl BBITAHyTbe e n3 qKcnpyUoix npope3e.
→ YctaHOBnTE KpbIuKy BMeCTe CO UINyIbKOJ C JeCKoB RHe3IO TaK, TTo6bI ObaФHKcnpyUOxN X 3bYka 3aueJIKNHvNIcB 04.

Typ 2 P

CoXMMTe 3bIyKN KpbIuKN uNpyIbKn C JeCKoN C o6eNX CTopoH 1 N CHMMTe ee 2.
→ 3BneKeTe Wnybky nna neM
→Пинанлчпзаррзehиудалnte nx.
BCTaBbTe B KOpnyc HOByIO uynyIbky IneH
→ПодьTe KOHcbl JIeCKN B OTBepCTnKoHTeHepaДЯJIeCKN ⑤.

yKa3aHue

Ipy npedomepaueHn HnpedBudehno 3pa3MmmbiaHn neCKu He bHummb ncky HOou wnybku u3 quKcUpouux npope3eU do ee ycmahOBku E Kopnyc a.

→ CnIbHo NOTaHInTe 3a o6a KOHua JeCKN, YTO6bl BbITaHyTb ee n3 φNKcnpyUoix npope3eB WnyIbke.

YctaHOBnTe KpbIuKy UnyIbKn C JneKo Ha Kopnyc UnyIbKn TaKIM O6pa3OM, YTO6bl 06a Ra3bUka 3aueJIKNHyNtcb ⑥.

I PENEyPExKDeHne!

OnachocTb TpaBmnpoBaHn BpaaIoueIncJneckOJ.

Прв BKIOUeHn Iecka OTepe3aETcdo pa6oey dnnHbI.
BknHouaTb yCTPOINCTBO TOnbKO Bpa6ooyem noJoxeHN.

TpaHcnpOpOBka n xpaHeHne

I PENEyPEXKDEHNE!

Onachoctb TpaBMnpoBaHnapeKyuIm HhCTpyMeHToM.

Kaxdbi pa3 neped TpaHcnpTnpOBkO INOMeueHem yCTpoIcTba Ha xpaHeHne BbIKHuaTe ero ndoXnDaITecb OCTaHOKn peKyuIero IHCTpyMeHTa.

N3BneKeNTe ceTeByIO BuJIky.

XpaHeHne

Nocne kaxdoTo ce3oHa TuaTeIbHo OuHuaTe yCTPOINCTBO.
XpaHInTe TpMMep B YnCTOM N CyXOM NOMEueHIN.
B cnyuae dntteIbHoro xpaHHeNn npMnTe Mepbl no 3aunTE TpMMepa OT Kopp03nn/OKncJeHH.

YcTpaHeHHe HEnCnPaBHOCTe

I PENEYPPEXDEHNE!

Onachoctb noJyehn TpaBM n NOBpeKdeHn mUyecTba

При BO3нКНовен ComHeHn BceIa ObaaTecb B CneuaJIIN3IpoBaHHyO MaCTepckyI.
Перед Каддю npOBepKои nnnpeed Haanom pa6OT cyCTpoiCTBOM BbIKIOaIte DBnraTeNb n3BJIeKaIte CeTeByO BuJky n3 po3ETKn.
