USER MANUAL LBI147 SMEG
MANUEL D'INSTRUCTIONS FR
Diagram illustrating washing machine operation with labeled dimensions and warning indicatorsnatural_image
Simple line drawing of a faucet with a valve and handle, mounted on a vertical pipe (no text or symbols)natural_image
Line drawing of a mechanical device with a handle and rope (no text or symbols)text_image
Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or flow.natural_image
Mechanical component with a downward arrow indicating a specific part (no text or symbols visible)5. NETTOYAGE ET ENTRETIEN
Diagram showing a container with a curved arrow indicating direction, alongside a magnified view of a cutting tool tip.text_image
Technical diagram showing labeled components A, B, C, D, E with directional arrows indicating motion or movementnatural_image
Technical line drawing of a mechanical component with labeled parts (A), showing internal structure without any text or symbols.5.6 NETTOYAGE DU FILTRE D'ARRIVÉE D'EAU


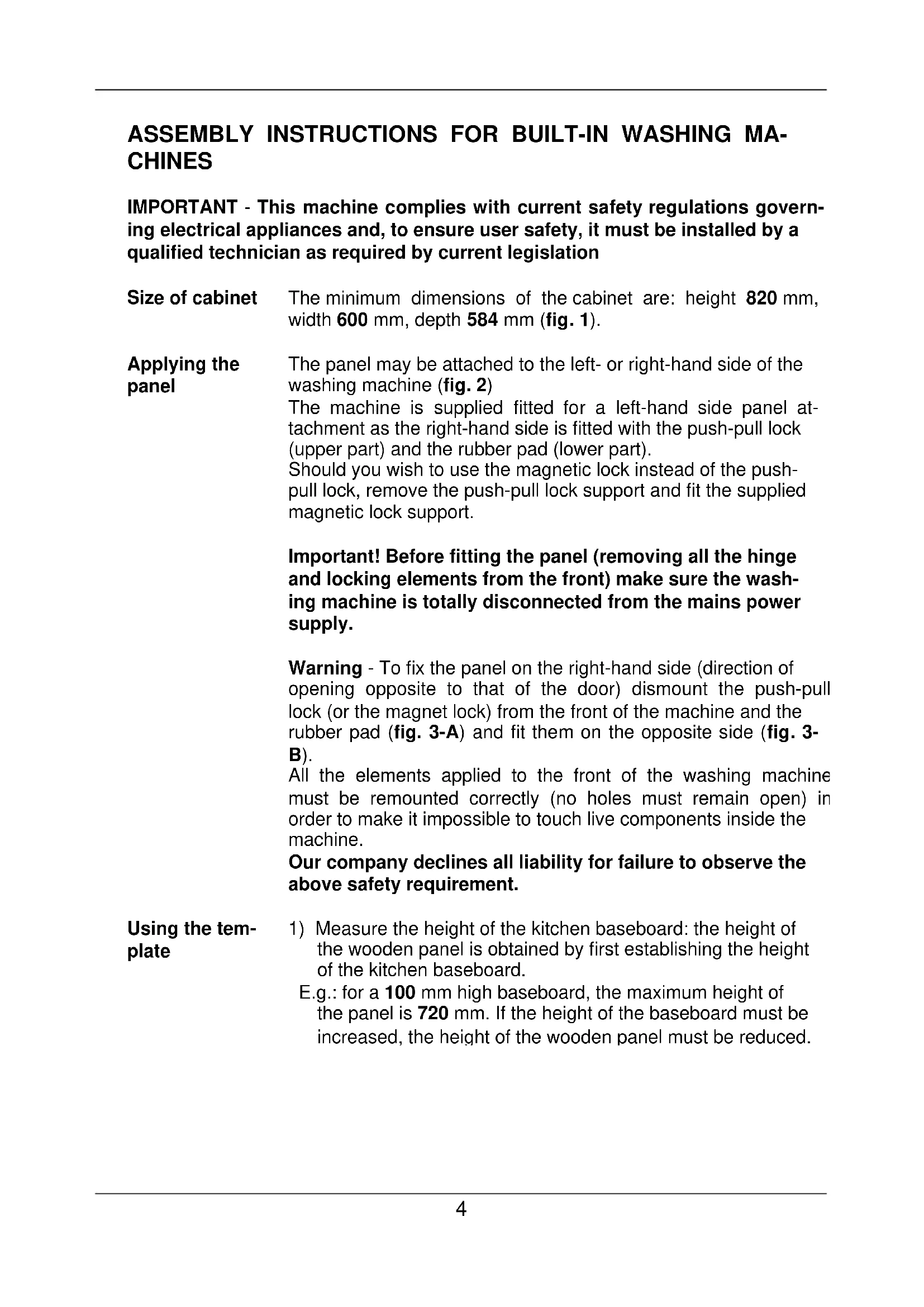

ASSEMBLY INSTRUCTIONS FOR BUILT-IN WASHING MA- CHINES
IMPORTANT - This machine complies with current safety regulations governing electrical appliances and, to ensure user safety, it must be installed by a qualified technician as required by current legislation
Size of cabinet
The minimum dimensions of the cabinet are: height 820 mm, width 600 mm, depth 584 mm (fig. 1).
Applying the panel
The panel may be attached to the left- or right-hand side of the washing machine (fig. 2)
The machine is supplied fitted for a left-hand side panel attachment as the right-hand side is fitted with the push-pull lock (upper part) and the rubber pad (lower part).
Should you wish to use the magnetic lock instead of the push-pull lock, remove the push-pull lock support and fit the supplied magnetic lock support.
Important! Before fitting the panel (removing all the hinge and locking elements from the front) make sure the washing machine is totally disconnected from the mains power supply.
Warning - To fix the panel on the right-hand side (direction of opening opposite to that of the door) dismount the push-pull lock (or the magnet lock) from the front of the machine and the rubber pad (fig. 3-A) and fit them on the opposite side (fig. 3-B).
All the elements applied to the front of the washing machine must be remounted correctly (no holes must remain open) in order to make it impossible to touch live components inside the machine.
Our company declines all liability for failure to observe the above safety requirement.
Using the tem- plate
1) Measure the height of the kitchen baseboard: the height of the wooden panel is obtained by first establishing the height of the kitchen baseboard.
E.g.: for a 100 mm high baseboard, the maximum height of the panel is 720 mm. If the height of the baseboard must be increased, the height of the wooden panel must be reduced.
| Place the template of the inner side of the panel and match the height of the baseboard with the lower edge of the panel (fig. 4) using the graduated scale. Make sure the template is horizontally centred with reference to the vertical lines marked at the ends.After placing the template in the correct position, trace the positions of the following holes, pushing in with the tip of your pencil:holes for the hinges and hinge screws (fig. 4)holes for fixing the metal plate (if the magnetic lock is used), or the hook for the push-pull lock (fig. 4, A - B) | |
| Applying the panel elements and fixing the panel | 1) Drill the holes for the hinges (fig. 5), the hook for the push-pull lock (fig. 5), or the metal plate if you decide to use the magnetic lock (fig. 6), and the holes for fixing the hinges (fig. 6).2) The 13 mm depth of the 2 mm holes, for fixing the hinges and a metal plate for the magnet lock, only applies to the solid wood panel. For the chipboard panel, simply drill the upper coating – fig. 6.3) Screw the two hinges to the panel (fig. 7)4) Mount the hook for the push-pull lock or the metal plate for the magnet lock on the side opposite the hinges (fig. 7).5) Fix the panel to the washing machine following the instructions shown in fig. 8. |
| Adjusting the hinges | If, after applying the panel to the washing machine, it is slightly inclined or off-centre with respect to the front of the machine, correct its position by adjusting the mobile part of the hinges (fig. 9). |
| Positioning the washing machine in the cabinet | Position the washing machine in the cabinet and, if necessary, adjust the feet to level it and lock them with the relative locknut. On appliances with adjustable rear feet, refer to the operator's manual.To prevent the vibrations generated by the washing machine from being transmitted to the cabinet, make sure the sides and top do not touch the cabinet.There must be a gap of at least 2 mm. The back of the machine must also remain detached from the rear panel.If the cabinet is 870 mm high, the washing machine heightening kit on sale from the Spare Parts Service, must be used.To comply with safety legislation, any gaps between the floor and the bottom of the baseplate and between the floor and the sides of the machine when it is positioned at the end of a line of furniture must be completely closed.The cover must be installed in such a way as to make it |
impossible to touch live components and a tool must be required to remove it.
Our company declines all liability for failure to observe the above safety requirement.
Applying the baseboard
It must be possible to remove the continuous kitchen baseboard to allow the drain pump to be cleaned if necessary.
In some cases, the baseboard is not continuous but limited to the width of the washing machine. In this case, the kitchen baseboard can be fixed to the washing machine baseboard with 4 screws, respecting the 4 reference marks (see fig. 9-10-11).
When applying the kitchen baseboard, the washing machine baseboard may not be removed or adapted as, for reasons of safety, it must remain as it is, in one piece and fixed to the washing machine.
| Programs | Temp. (°C) | Max. Spin (rpm) | Max. washing load (kg) | Detergent drawer compartments | Options | Wash program description | |||||||||
| Prewash | Wash | Softner | Prewash | Intensive | Easy iron | Extra rinse | Flexi time | ||||||||
| Lg | |||||||||||||||
| Cotton and colours | Delicate colours with light dirt | /20" | Max | 7 | √ | √ | √ | √ | √ | √ | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Delicate colours with normal dirt | 30°/40" | Max | 7 | √√√√ | - | √ | √ | √ | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | |||||
| Tough colours with normal dirt | 60° | Max | 7 | √√√√ | - | √ | √ | √ | √ | Wash at 60°C, rinses and final spin at the selected speed | |||||
| Tough colours with heavy dirt | 90° | Max | 7 | √ | √ | √ | √ | √ | √ | √ | √ | √ | Wash at 90°C, rinses and final spin at the selected speed | ||
| Eco 40-60 | Normally soiled cotton laundry declared washable at 60°C or 40°C together | - | Max 7 | √√√√ | - | √ | √ | √ | √ | Wash, rinses and final spin at the selected speed | |||||
| Synthetics | Items for refreshing | /20" | 1000 | 3.5 | √√√√ | √ | √ | - | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |||
| Items with light dirt | 30°/40" | 1000 | 3.5 | √√√√ | √ | √ | - | √ | √ | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | ||||
| Items with normal dirt | 60° | 1000 | 3.5 | √√√√ | √ | √ | - | √ | √ | √ | Wash at 60°C, rinses and final spin at the selected speed | ||||
| Delicate/Silk | Items for refreshing | /20" | 600 | 2 | - | √ | √ | - | √ | - | √ | - | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Items with light dirt | 30°/40" | 600 | 2 | - | √ | √ | - | √ | - | √ | - | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | ||
| Wool | Items for refreshing | /20" | 800 | 2 | - | √ | √ | - | - | - | - | - | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Items with light dirt | 30°/40" | 800 | 2 | - | √ | √ | - | - | - | - | - | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | ||
| Rinse and spin | - | Max | 7 | - | - | √ | - | - | √ | - | √ | √ | Rinse and pump-out only, or pump-out and final spin at the selected speed | ||
| Pump-out and spin | - | Max | 7 | - | - | - | - | - | √ | - | √ | √ | Pump-out only, or pump-out and final spin at the selected speed | ||
| Rapid | Light cotton or delicate fabrics for refreshing | /20°/30° | 800 | 2 | - | √ | √ | - | - | - | - | - | √ | Cold wash or 20°C/30°C, rinses and final spin at the selected speed | |
| Night Wash | Very delicates items with light dirt | /20" | 1000 | 3 | √√√√ | √ | √ | - | √ | √ | Sient cold wash or 20°C (buzzer off), rinses and final spin at the selected speed | ||||
| Items with light dirt | 30°/40" | 1000 | 3 | √√√√ | √ | √ | - | √ | √ | Sient wash at 30°C/40°C (buzzer off), rinses and final spin at the selected speed | |||||
| Items with normal dirt | 60° | 1000 | 3 | √√√√ | √ | √ | - | √ | √ | Sient wash at 60°C (buzzer off), rinses and final spin at the selected speed | |||||
| Softner | - | 1000 | 3.5 | - | - | √ | - | - | √ | - | - | √ | Rinse and pump-out only, or pump-out and final spin at the selected speed | ||
| Hand wash | Items for refreshing | 800 | 2 | - | √ | √ | - | - | - | - | - | √ | Cold wash, rinses and final spin at the selected speed | ||
| Shirt/Work | Items for refreshing | /20" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Items with light dirt | 30°/40" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | ||
| Jeans | Items for refreshing | /20" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Items with light dirt | 30°/40" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Wash at 35° or 40°C, rinses and final spin at the selected speed | ||
| Sport | Items for refreshing | /20" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Items with light dirt | 30°/40" | 800 | 2 | - | √ | √ | - | √ | - | √ | √ | √ | Wash at 3° or 40°C, rinses and final spin at the selected speed | ||
| Mixed | Cotton and synthetics for refreshing | /20" | Max | 3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | Cold wash or 20°C, rinses and final spin at the selected speed | |
| Cotton and synthetics with light dirt | 30°/40" | Max | 3 | √ | √ | √ | √ | √ | √ | √ | √ | √ | Wash at 30° or 40°C, rinses and final spin at the selected speed | ||
√ Option available
