USER MANUAL WMNM15EB SAMSUNG

Cautions when installing

설치시 주의사항

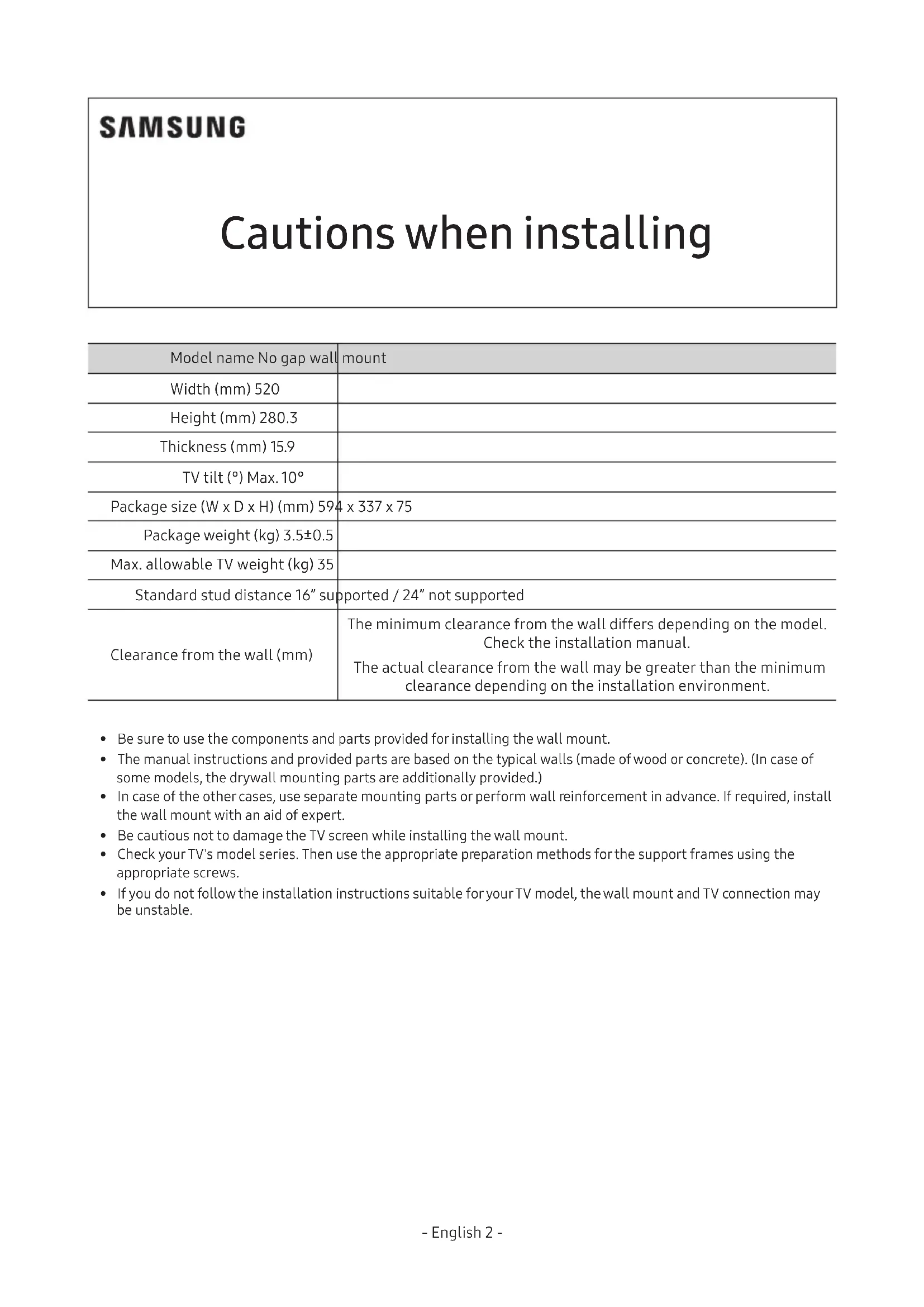

Cautions when installing

Model name No gap wall	mount
Width (mm) 520
Height (mm) 280.3
Thickness (mm) 15.9
TV tilt (°) Max. 10°
Package size (W x D x H) (mm) 594 x 337 x 75
Package weight (kg) 3.5±0.5
Max. allowable TV weight (kg) 35
Standard stud distance 16" supported / 24" not supported
Clearance from the wall (mm)	The minimum clearance from the wall differs depending on the model.Check the installation manual.The actual clearance from the wall may be greater than the minimum clearance depending on the installation environment.

• Be sure to use the components and parts provided for installing the wall mount.
• The manual instructions and provided parts are based on the typical walls (made of wood or concrete). (In case of some models, the drywall mounting parts are additionally provided.)
• In case of the other cases, use separate mounting parts or perform wall reinforcement in advance. If required, install the wall mount with an aid of expert.
• Be cautious not to damage the TV screen while installing the wall mount.
• Check your TV's model series. Then use the appropriate preparation methods for the support frames using the appropriate screws.

• If you do not follow the installation instructions suitable for your TV model, the wall mount and TV connection may be unstable.

• When installing or uninstalling the wall mount support frame, make sure 2 people work on it, and the TV is off.

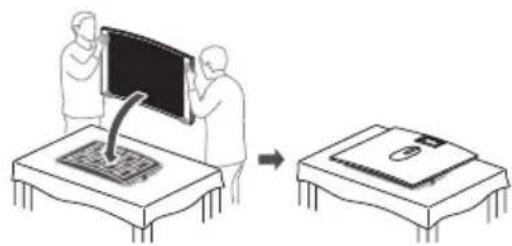

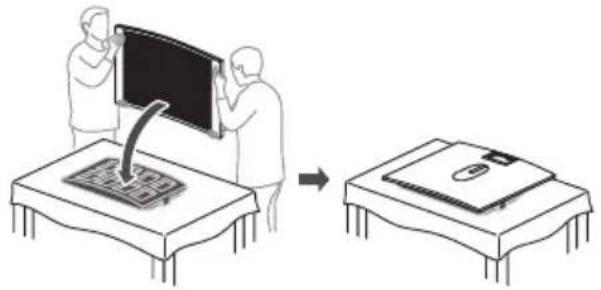

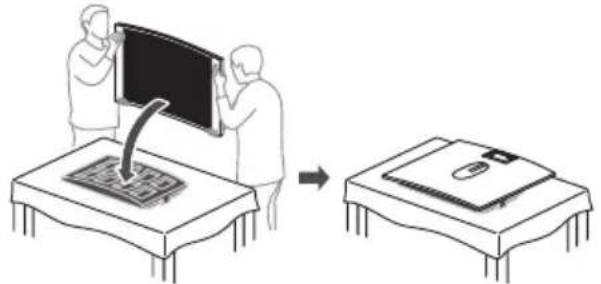

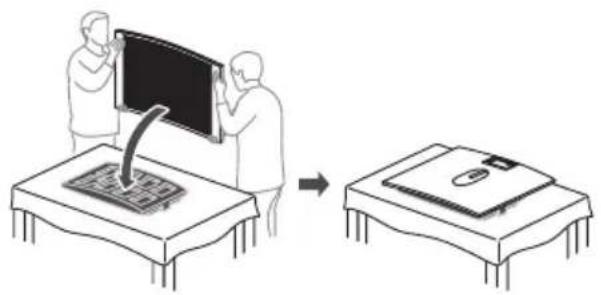

• Use a flat table when installing the wall mount. Use the TV packing material (cushion) for curved TVs.

Illustration showing two people installing a blackboard on a table, with an arrow indicating rotation (no text or symbols present)

Flat TV Curved TV

Illustration showing two people installing a monitor on a table, before and after a device (no text or symbols present)

- Install the wall mount only on the wall that is larger than the TV and is not tilted. After installation, the cover or attachment at the bottom of the TV must touch the wall. Otherwise, the wall mount must not be installed.

Wall that is larger than TV (Installable)

Tilted wall (Not installable)

Wall that is not larger than the wall mount (Not installable)

• Before mounting the TV to a wall, connect the power cable and One Connect cable to the TV.
• When installing / uninstalling the wall mount, be careful not to damage the optical cable. Especially, be careful not to step on the optical cable.
• Use a screwdriver to assemble the TV to the support frame. Using an electric screwdriver may cause screw threads to wear out.
• The minimum distance between the TV and wall may be 2-3 mm or more depending on the wall surface or installation conditions.
• The distance between the wall and the left or right side of the TV may differ depending on the wall and installation conditions.
• When installing the wall mount, if the TV is too close to a wall, scratches may occur on the back of the TV or on a wall.
• A lot of force is required to open the bracket before installing the wall mount. Be careful not to hurt yourself when opening the bracket. (Brackets with tilt options are difficult to open because they need to withstand the weight of the TV.)

Technical line drawing of a mechanical component with no visible text or symbols

- In cases with tight installation conditions, friction between the TV/accessories and the wall may damage the wall or the back of the TV. Use a scratch protector L as in the picture in such cases. However, distance from the wall may increase.

Simple line drawing of a capsule-shaped object above a rectangular base with a circular symbol at the bottom (no text or labels)

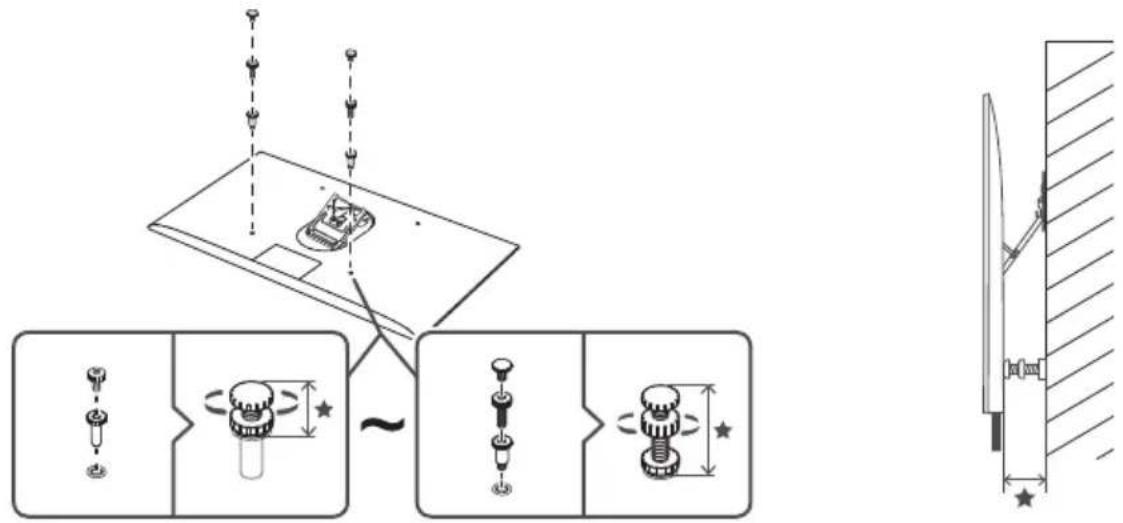

- You must use L parts as in the picture to attach Q9 series TVs. This restricts movement between the TV and wall due to distance from the wall and prevents the TV from leaning forward.

If the TV leans forward, use 2 overlapping parts. This may additionally improve the inclination. However, distance from the wall may increase.

Pure electrical circuit lines without any symbols

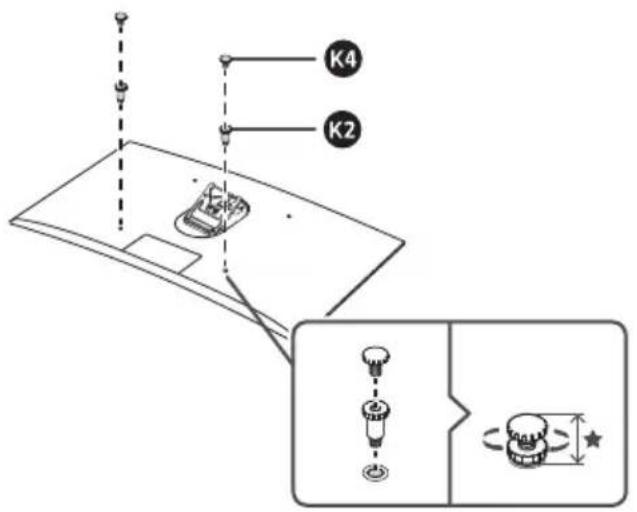

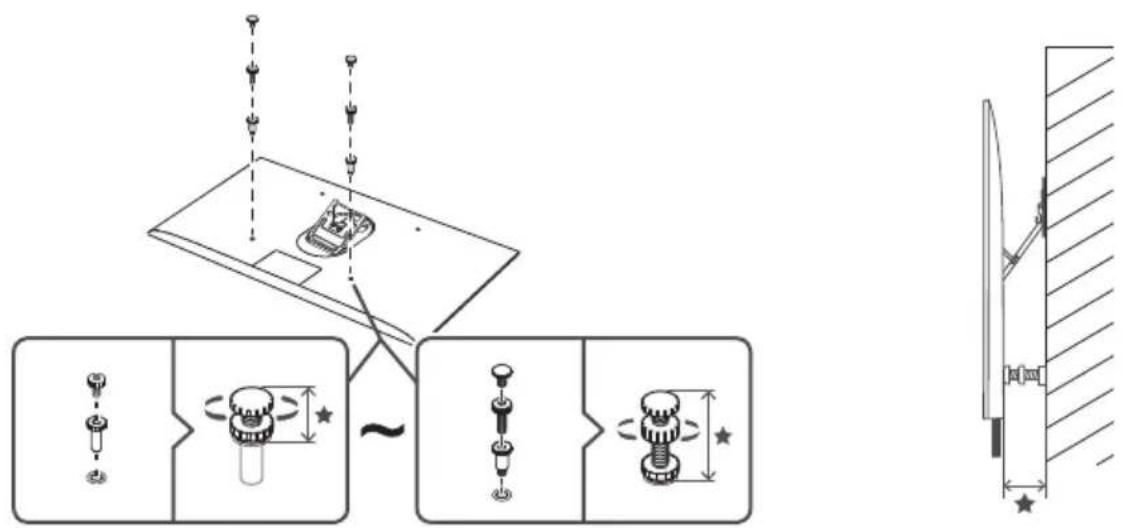

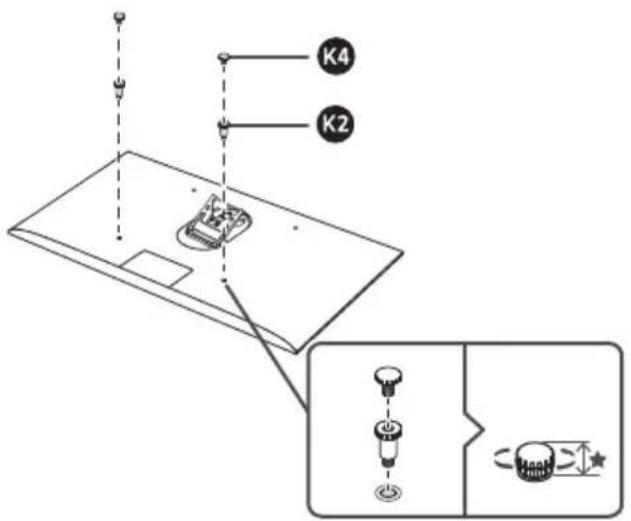

- A curved TV may move left and right after being installed to the wall mount. You can suppress the TV from moving left and right by using accessories K2 \~ K4gether. (Adjust the horizontal length of the part to be the same.) You can also suppress a Flat TV from moving left and right by using accessories K2 However, distance from the wall may increase.

K4 K2

Flat TV Curved TV

K4 K2

- If there is a protruding part on the wall where you want to install the wall mount, you may use accessories K2\~K7 to secure enough distance between the TV and a wall. (Adjust the horizontal length of the part to be the same.) However, the distance to the wall will become larger.

- If you secure distances using those accessories, you may not be able to use the tilt option. If you want to use the tilt option, the secured distance is limited.

Two diagrams showing a tool interacting with a wall, no text or symbols present

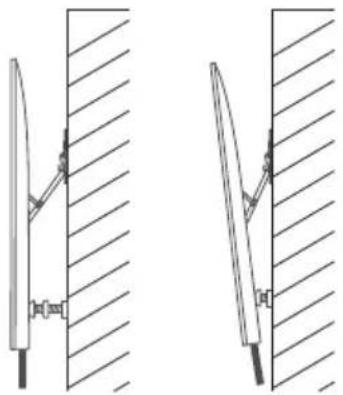

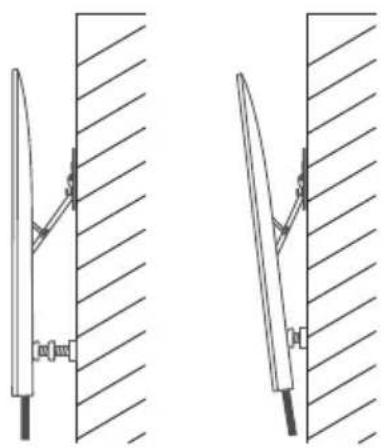

• The maximum tilt angle differs depending on the TV model. The tilt angle may not be maintained on the wall with vibration.
• After wall mount installation, movement may occur on some TV models depending on the rear shape of the TV. In this case, use the separation holder (K).

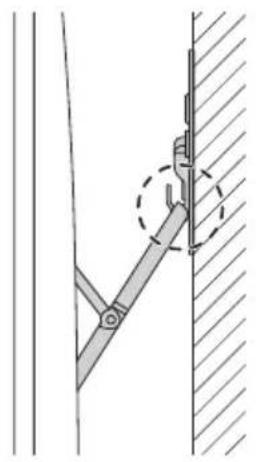

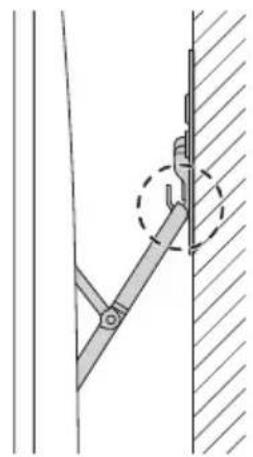

Triangular support allows more stable wall mount installation. However, distance from the wall may increase.

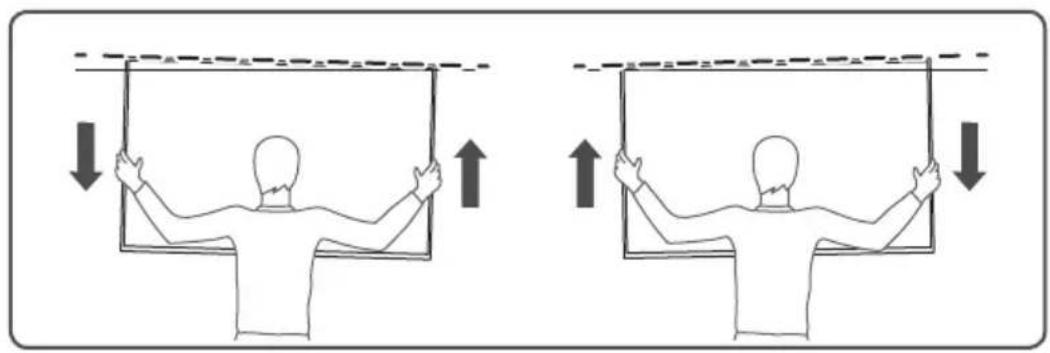

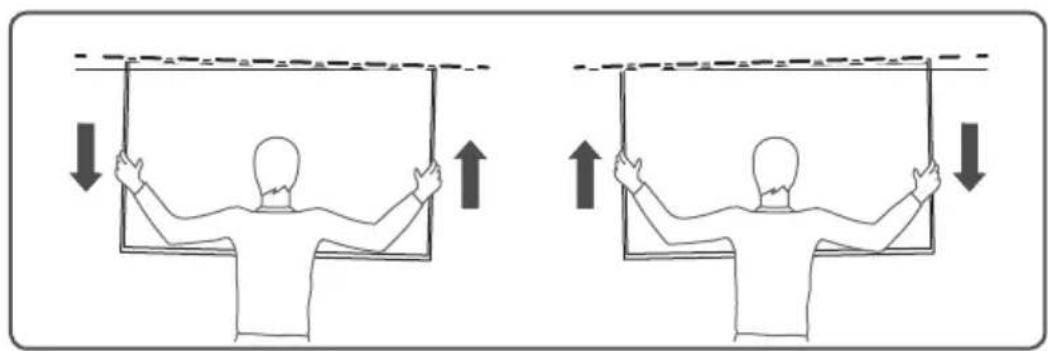

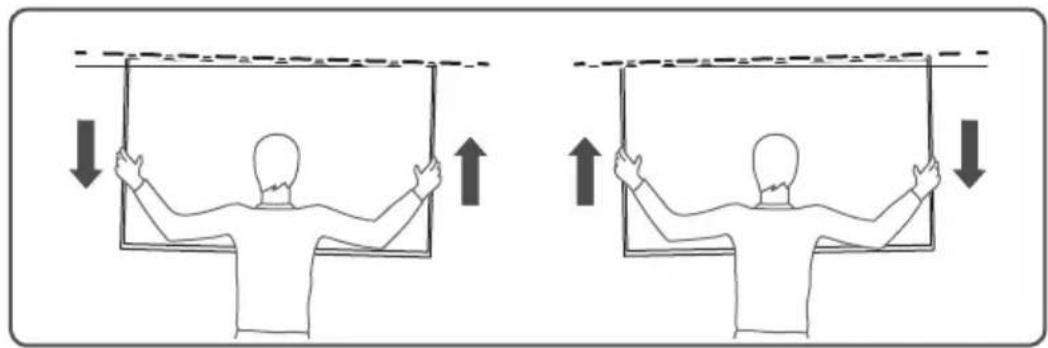

- If you cannot adjust the horizontal level by using the horizontal adjustment function, check if the installation was done properly.

If you cannot use the horizontal adjustment function, the fixers on the wall mount's support frame are not properly fixed. Make sure to install them properly.

- The horizontal level that can be adjusted is just 1 to 2 degrees. To adjust the horizontal level at more angles than this range, reinstall the wall mount.

Two identical line drawings of a person holding a window frame, with arrows indicating upward and downward motion (no text or symbols)

- If the wall mount's fixers are not fixed to the end as shown in the figure, subtle impacts may move the TV. In this case, make sure to install the fixers properly so that they are fixed to the TV all the way to the end.

Technical diagram showing a mechanical linkage or bracket assembly with no visible text or symbols

- To prevent cable damage when dismounting the TV from the wall, disconnect the power cable and the optical cable before removing the wall mount.

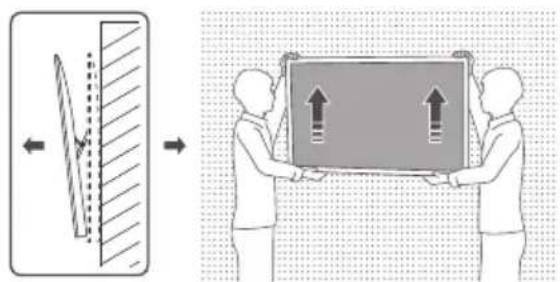

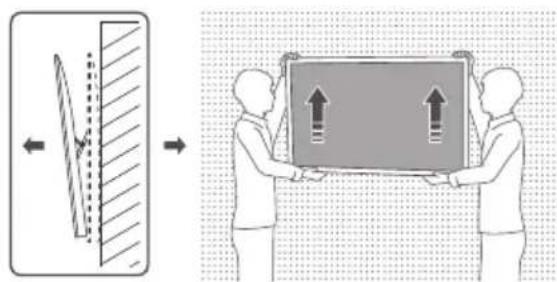

- When detaching the TV from the wall, first pull it forward, and then be sure that two people pull it upward simultaneously. Do not apply direct force on the display.

Diagram illustrating a mechanical or structural change before and after, showing a left-side view of a vertical component and a right-side arrangement of two figures holding a rectangular object with upward arrows.

- When you grab the TV to install, remove, adjust the horizontal level, or tilt the wall mount, do not apply direct force on the display.

- When you handle the TV to install, remove, adjust the horizontal level, or tilt the wall mount, be careful not to damage any cables.

- Be sure that the TV and wall mount stand are not hit with excessive force after installing the wall mount. The wall mount or TV may be damaged or the TV connection with the wall mount device may become unstable. In this case, reinstall the wall mount or consult an expert for assistance.

Illustration of three scenes: a person writing on a blackboard, another showing a ball with a starburst effect, and a third showing a person looking up at the blank board (no text or symbols present)

- Check the product model as well as the enclosed user manual for each product and check that the wall allows mounting.

- Be sure the wall is stable. If the wall is weak, reinforce it before installation.

- If the wall is not cement, check with a specialist to determine whether the TV may be installed on it.

- Consult an expert installer if you do not have any background knowledge about the wall you want to install the product on.

• To maintain product performance and prevent malfunctions, do not install in the following locations.

- Places where there is a risk of vibration or shock: The product may fall and be damaged.

- Next to a sprinkler sensor: The sensor may detect the heat from the TV and sprinklers may start.

- Near high-pressure cables: The TV may get interfered by high-pressure cable and the screen may not display correctly.

—Near heaters: The TV may become overheated and malfunction.

-Do not install anywhere other than a vertical wall.

-Install it out of the reach of children.

-Do not penetrate the wall to install inside.

-Be sure to check the type and condition of the wall you will install on.

—Materials to be used may differ depending on wall type. Choose materials based on the specifications below.

-You do not need to use all the supplied screws. However, you must use at least 4 screws.

-You must use screws in the two locations marked as A.

- Choose at least 2 of the parts marked B to assemble depending on surroundings.

-To hide the cables inside the wall, contact an expert installer.
