KB 3713 - Refrigerator CLATRONIC - Free user manual and instructions

Product type	Electric cooler (portable refrigerator)
Brand	Clatronic
Model	KB 3713
Net capacity	25 liters
Net weight	Approximately 3.4 kg
Mains power	220-240 V~, 50/60 Hz
Car power	12 V= (via cigarette lighter)
Power in Normal mode	55 W (mains) / 45 W (12 V)
Power in ECO mode	8 W (mains only)
Energy efficiency class	A++
Annual energy consumption	76 kWh/year
Climate class	ST (16°C to 38°C)
Noise emission	52 dB(A)
Cable material	Permanent DC, removable AC
Removable lid	Yes
Operating modes	Normal and ECO
Intended use	Domestic, camping, motor vehicle
Cleaning	Do not immerse, clean with a damp cloth
Safety	Do not store explosive substances, ventilation required
Repairability	Do not repair yourself, contact an authorized technician

Frequently Asked Questions - KB 3713 CLATRONIC

How to connect the cooler to mains power?

Use the 220-240 V mains cable. Plug it into the AC socket of the device, then into a wall outlet. Set the switch to NORMAL or ECO.

Can I use the device in a car?

Yes, with the supplied 12 V cable. The vehicle engine must be running to save the battery. Plug into the cigarette lighter and set to NORMAL.

What does ECO mode mean?

ECO mode reduces energy consumption but cools less. It is intended for mains use (220-240 V) and for light loads.

How to open the cooler?

The lid is locked when the handle is lowered. To open, push the handle downward to unlock it.

Does the device cool continuously?

No, it operates as long as it is plugged in. It has no automatic shut-off. Unplug it to turn it off.

How to clean the cooler?

First unplug. Never immerse the device. Remove the lid (pull upward) and clean the interior/exterior with a damp cloth and a little dish soap. Dry thoroughly.

Why does the device not work on 12 V?

Check the fuse of the 12 V plug (replace if necessary) and the vehicle's cigarette lighter. Consult a specialist if the problem persists.

Where to store the device when not in use?

Clean it, dry it completely, store the cable and keep it in its original packaging in a dry, ventilated place out of reach of children.

What foods can I store?

This device is designed to keep already refrigerated food and drinks cool. It is not intended for freezing.

What to do in case of a breakdown?

First check the power supply (outlet, fuses). If nothing works, contact customer service or an authorized technician. Do not repair yourself.

USER MANUAL KB 3713 CLATRONIC

Koelbox · Glacier · Nevera portatil

ATTENTION: Risque de surchauffe!

Thank you for choosing our product. We hope you will enjoy using the appliance.

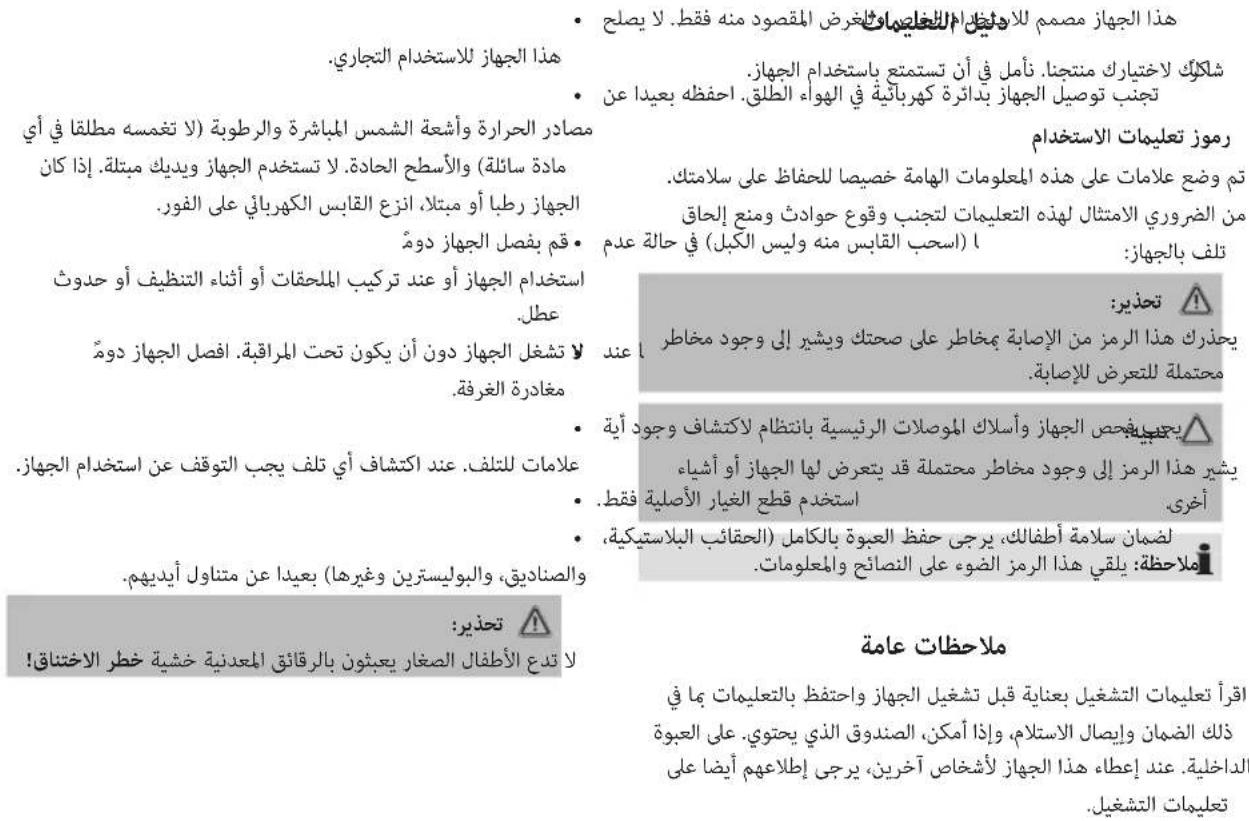

Symbols in this Instruction Manual

Important safety information is explicitly marked. Please follow these instructions exactly in order to avoid injuries and damages to the appliance:

WARNING:

Warts against health hazards and indicates possible risks of injury.

CAUTION:

Indicates possible damage to the appliance or to other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not connect the appliance to an electrical circuit outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always unplug the appliance (pull the plug itself, not the cable) when you do not use the appliance, or when you attach accessories, during cleaning, or in case of malfunction.
• Do not operate the machine without supervision. Always unplug the appliance when leaving the room.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance may not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

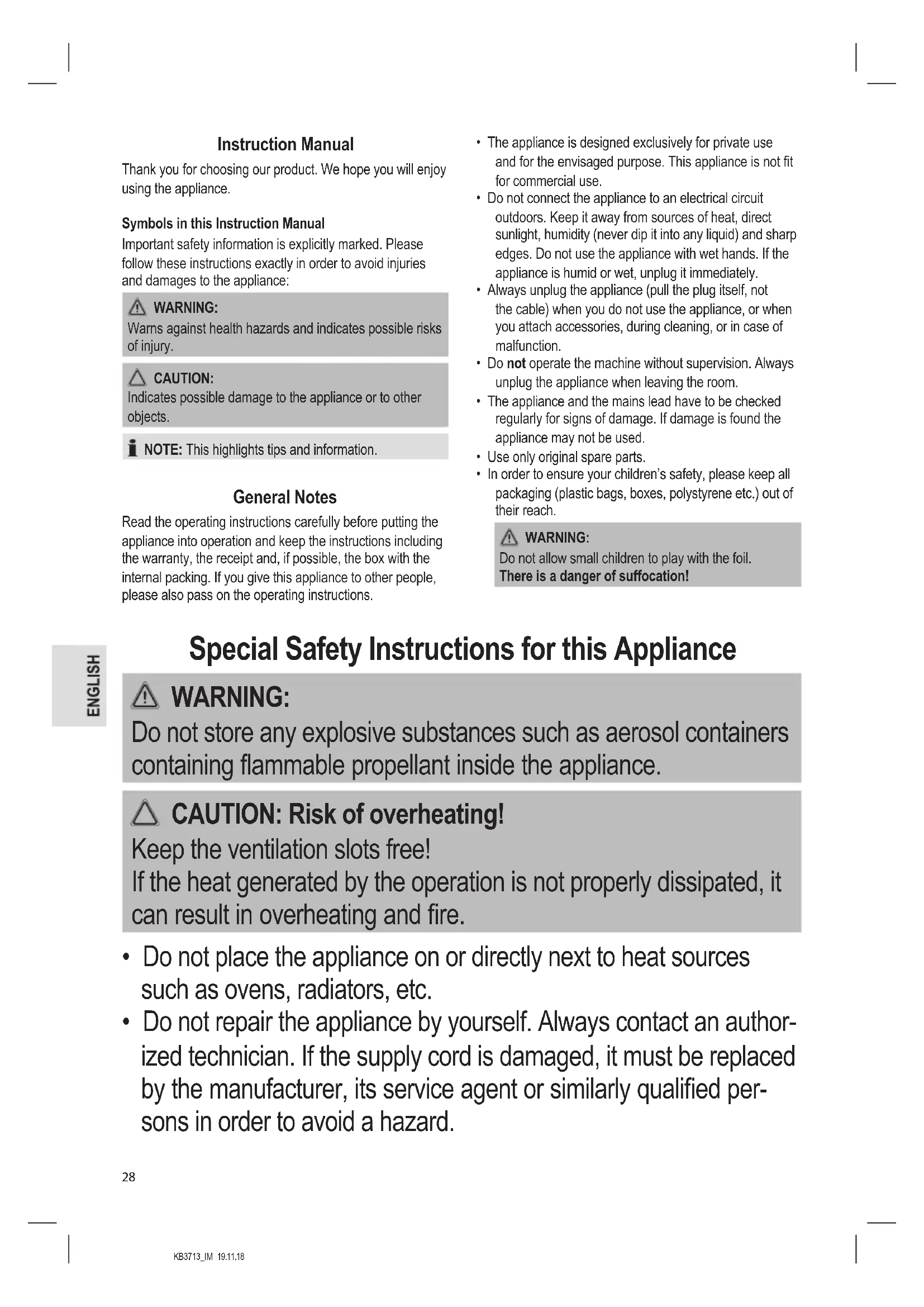

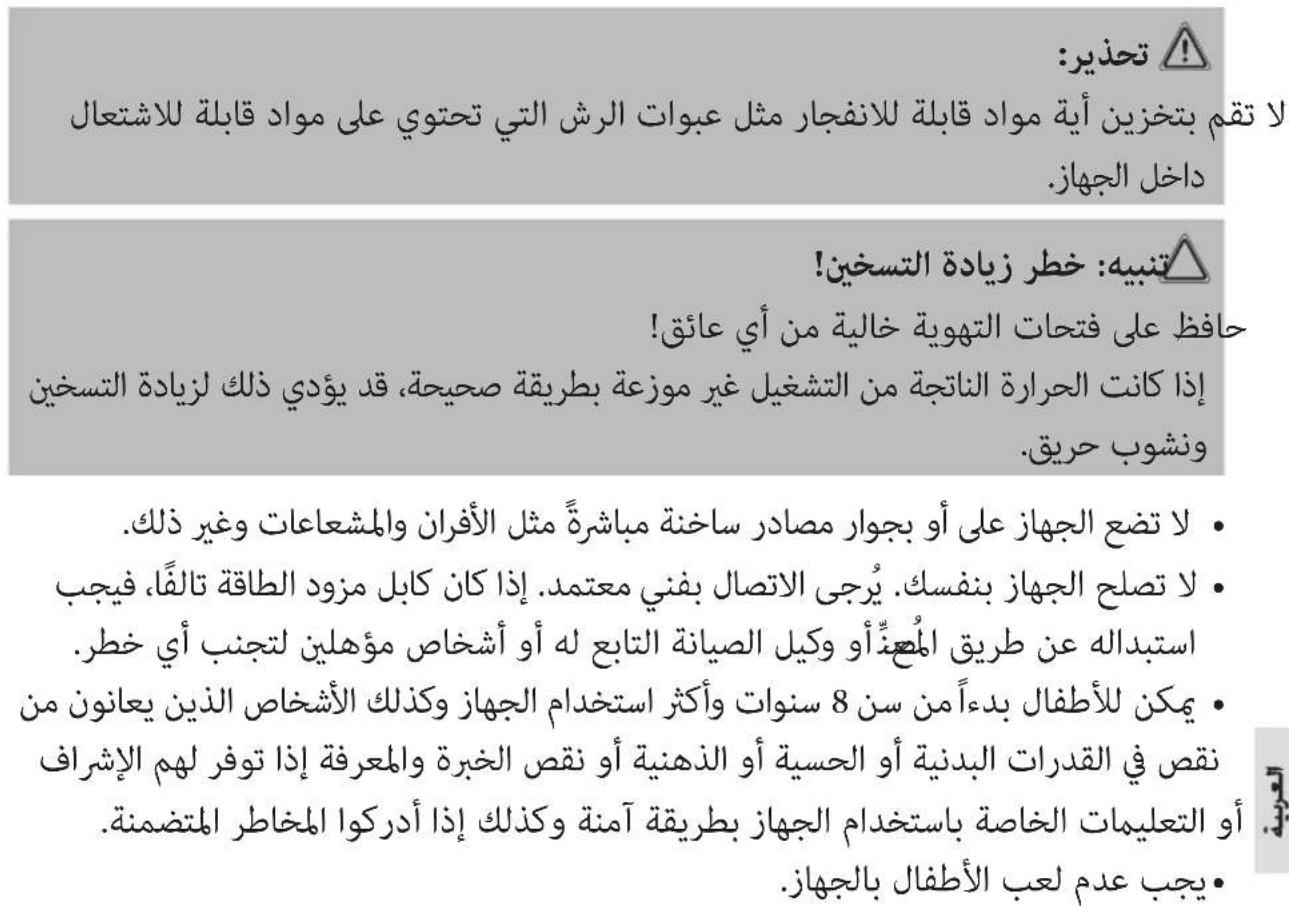

Special Safety Instructions for this Appliance

WARNING:

Do not store any explosive substances such as aerosol containers containing flammable propellant inside the appliance.

CAUTION: Risk of overheating!

Keep the ventilation slots free!

If the heat generated by the operation is not properly dissipated, it can result in overheating and fire.

• Do not place the appliance on or directly next to heat sources such as ovens, radiators, etc.

• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

CAUTION:

This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on "Cleaning".

Intended Use

The appliance is suitable for cooling pre-chilled food and drinks.

It is intended for use in the household and in similar applications, such as:

• In personal kitchen areas in shops, offices and other work areas;
• By guests in hotels, motels and other accommodation;
  In bed and breakfast accommodation;
  To use for camping;
• In motor vehicles.

It is not intended for the following use:

In agriculture;
In catering and similar wholesale use.

This appliance may not be exposed to the rain.

Unpacking the Appliance

1. Remove the appliance from the package.
2. Remove all packaging material such as films, filler, cable holders and cardboard.
3. Check the delivery contents for completeness.
4. Should the package contents be incomplete or damages be found, do not take the appliance into operation. Take it immediately back to the dealer.

NOTE:

Dust or production residues can be located on the appliance. We recommend to clean the appliance as described under "Cleaning".

Scope of Delivery

1Cooler box
1 Power cord for alternating current (AC) 220 - 240 Volt
1 Car power cord for direct current (DC) 12 Volt

Notes for Use

General Notes

• Never place the appliance next to naked flames or other heat sources.
• For best results, only store already cooled food / beverages in the cooler. Select a place of use that is protected from direct sunlight.
• The lid is locked when the handle is pushed back and when carrying.
• To open the cooler box, pull the handle forward.
• Do not open the lid more often than required. Do not leave the lid open more often than it is necessary. This affects the cooling performance.
• The cooling duration depends on the ambient temperature.
• The appliance is not suitable for permanent operation.

• The appliance can be connected to two different energy sources.

• Alternating current: 220 - 240V or

• Direct current: 12 V =

• Use the switch to select an operating mode.

NORMAL or ECO?

In order to operate the appliance in energy-efficient mode, use the setting ECO.

NOTE:

• You may only use the appliance with the function ECO when connecting it to alternating current 220 - 240V .
• The output is reduced in the operating mode ECO. Use this operating mode when there are smaller loads in the cooler box, for example.

Using the Appliance

The switch for the operating mode, the AC connection socket and the DC cable can be found at the backside of the appliance.

Connection to the Alternating Current

1. Check to make sure that the mains voltage that you want to use is 220 - 240V
2. Plug the power cord for alternating current into the AC socket on the appliance.
3. Connect the appliance to a properly installed earthed socket.
4. Set the switch to NORMAL or ECO.

Connection to the Direct Current

1. Remove the power cord for the alternating current, if necessary.
2. Turn on the engine of the motor vehicle.
3. Remove the DC cable from the cable storage compartment at the backside of the appliance.

CAUTION:

The cable is firmly connected to the appliance. You won't be able to remove it.

1. Connect the appliance to the cigarette lighter in the motor vehicle.
2. Set the switch to NORMAL.

NOTE:

Protect the battery of your motor vehicle. Only run the appliance in the motor vehicle while the engine is running.

Terminating Operation

There is no automatic shut-off. The appliance runs permanently as long as it is connected to a power source.

1. Unplug the power cord from the socket or the cigarette lighter.
2. If you have operated the appliance with alternating current, unplug the connection cable from the appliance.

Cleaning

WARNING:

• Always disconnect the appliance from the mains power supply before cleaning.
• Do not immerse the appliance in water! It could result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• The lid is removable. Pull the lid upwards out of the holder. Pay attention to the guidings.

• Use a moist towel to clean the inside and the outside. You may add a dishwashing liquid to the towel.
• Dry it with a cloth afterwards.
• Fasten the lid back into the holder.

Storage

• Clean the appliance as described and allow it to dry.
• If necessary, store the DC cable in the cable storage compartment.
  We recommend to keep the appliance in the original packaging if it will not be used for long periods.
  Always store the appliance out of the reach of children in a dry, well ventilated place.

Troubleshooting

Problem Possible cause Solution
The appliance is not working.	No power supply.	Check the connection to the energy source.
		Check the domestic power socket with a different appliance.
		Check the fusebox.
		Does the cigarette lighter of your motor vehicle work without a problem?
	The appliance is defect.	Consult our service department or an expert.

Problem Possible cause Solution
Appliance does not work with direct current.	The fuse in the plug of the 12 V power cord is faulty.	Replace the fuse. You can obtain one from a specialized dealer.
	The cigarette lighter of your motor vehicle is faulty.	Contact a specialist for motor vehicles.

Technical Data

Model: KB 3713

Protection class: II

Net weight: approx. 3.4kg

Capacity: max. 25 Litre

Alternating current

Power supply: 220-240V\~,50/60Hz
Power consumption cooling: .55W ECO: .8W

Direct current

Power supply: 12V
Power consumption cooling: 45W

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Technical data for household refrigerators and freezers Delegated Regulation (EU) No.1060 / 2010

Brand Clatronic
Model KB 3713
Category1)		10
Energy efficiency class2)		A++
Consumption data
Annual energy consumption3)	kWh 76
Net capacity cooling compartment total	\( \ell 25\ max. \)
Net capacity freezing compartment total	\( \ell 0 \)
Star rating4)		-
Frost-free4)		-
Storage time in the event of a malfunction	h	-
Freezing capacity kg/24 h-
Climate class5)		ST
Airborne acoustical noise	dB(A) re1pW	52
Design Mobile

5) Climate class SN: This appliance is intended for use at ambient temperatures between +10^ and +32^ .
Climate class N: This appliance is intended for use at ambient temperatures between +16^ and +32^ .
Climate class ST: This appliance is intended for use at ambient temperatures between +16^ and +38^ .
Climate class T: This appliance is intended for use at ambient temperatures between +16^ and +43^ .

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

1) Household refrigerators - categories:
1 = Refrigerator with one or more fresh food storage compartments; 2 = refrigerator-cellar with cellar compartment cooling appliance and wine cabinet; 3 = refrigerator with cold storage zone and refrigerator with a zero star compartment; 4 = refrigerator with a one-star compartment; 5 = refrigerator with a two-star compartment; 6 = refrigerator with a three-star compartment; 7 = refrigerator-freezer; 8 = upright freezer; 9 = chest freezer; 10 = multi-purpose refrigerators and other cooling appliances.
2) A + + + (highest efficiency) to G (lowest efficiency).
3) Annual energy consumption "XYZ" kWh per year based on standard test results for 24 h. The actual consumption depends on the usage and location of the appliance.
4) = a freezer compartment with a temperature not warmer than -6^

^ = a freezer compartment with a temperature not warmer than -12^ .
= a freezer compartment with a temperature not warmer than -18 °C.
^(***) = a freezer compartment with a temperature not warmer than -18^ and a minimum freezing capacity within 24 hours.

Instrukcja obslugi

He 3aKpbBaIte cNoTbI BeHTnJIaUN!

Iotpe6IeMaMoOHeBxNaeHnE:55BaTT

ECO: 8 BaTT

TocToHHbI TOK

3JIeKtponItaHHe: 12B

Iotppe6JrrmaMoouHocb oxJaXdHeNe: 45 BaTT

CoxpaHeNo npabo Ha TexHnueckne I KOHCTpyKuOnHHbIe N3MeHeHn B pAMkax npoDoJIkaIOUeIcR pa3pa60TK npOdykTA.

3To n3dneI npoHIO BCE Heo6xOaMbIe I aKtYaNbHbIe npOBepKn, npEINcAHbIe DnpeKTINBOI CE, K npM. Ha 3JIeKTPOMaHTHyIO COBmCTNMOCTb I COOTBeTCTBNE Tpe6oBAHnIM K H3KOBOJTHOH TEXHKe, OHO bIIO TAKKE COKHCTpyIpOBAHO INOCPToeHO C yYeTOM NocJeDHX Tpe6oBAHnI NO TEXHKe Be30NaCHOCTN.

TexHueckne XapaKTepeNCTKN 6bITOBbIX XOJIOJIbHNKOB MOpO3NJbHNKOB

Приимен�аHopma(EC)HOM.1060/2010

Yttnn3aun yCTapeBwei TexHnKn HncnpabHBx 3neKtpoPnpbOpOB npOn3BODNTcB Tropodcknx pInEMhix NyHkTax.

He donyckaTe HnnpabunbHOn yTnIn3aunm OTXoOB. 3TO HaHocNT Bpe OkpykaUoSe CpeDe N OKa3bIbAeT HeRaTINBHOe BO3dEiCTBne Ha 3DopOBBe IIOei.

Oka3bBaIte cogeCTBne nporpamme yTnIIN3aunn n dpyrnm fopmam nepepa60TK nEKeTpoHHoN nEKeTpueckoTeXHKn.

HΦopMaζIOnO ΜyHKTx yTmIImaζIи 6bITOBoTexHKnMOXHO NOJTyUHTb B MecTHbIX OpraHax BnactN.

$$ \left. \left(\text {s o l i s} \text {s g i m e} \text {j i}\right) \text {G} \text {j i} \left(\text {s o l i s} \text {s g i m e} \text {j i}\right) + + + A \right. (2 $$

3

pluio 15 ylaill Ngyiuy laixg slu 24 16a aaiy

$$ , 4 2 5 3 g o g j (g o) $$

$$ \begin{array}{l} \Delta_ {a b c} \Delta_ {c d} - 6 \Delta_ {c d} \Delta_ {b d} \Delta_ {c d} \Delta_ {d j} \Delta_ {j d} \Delta_ {c a} \Delta_ {c a} \Delta_ {c a} = ^ {} (4 \ . d _ {2} \sin \alpha \cos \beta - 1 2 (d _ {2} \sin \beta) ^ {2} \cos \alpha \cos \beta \sin \gamma \sin \alpha \sin \beta \cos \gamma = * * \ a _ {i j k} a _ {j k} - 1 8 \left[ \begin{array}{l l l l l l l l} \lambda_ {i} & \lambda_ {j} & \lambda_ {k} & \lambda_ {i} ^ {\prime} & \lambda_ {j} ^ {\prime} & \lambda_ {k} ^ {\prime} & \lambda_ {i} ^ {\prime} & \lambda_ {j} ^ {\prime} & \lambda_ {k} ^ {\prime} \end{array} \right] = * * \ a _ {i j k} a _ {j k} - 1 8 \left{d _ {i j} d _ {k j} \right} a _ {i j} a _ {j k} y _ {i j} a _ {k j} o _ {j k} ^ {} \ \Delta c l w 2 4 \mathrm {g} _ {2} \dot {\mathrm {g}} \dot {\mathrm {g}} \dot {\mathrm {g}} \frac {1}{3} L i s \mathrm {L} _ {2} \mathrm {L} _ {2} \mathrm {L} _ {2} \mathrm {d} z \omega g \ \end{array} $$

aJgluUo jgluO lus:（aolc）tli (5

$$ \begin{array}{l} . \Delta g = 0, \Delta g = 3 2 g + 1 0, \Delta a = 0 \ a j \text {j o l l} c l o s y \text {i} \text {p l u s t w i l l} j \text {j o l l} \text {l i n e} _ {\text {p o}}: (\text {a j}) \text {c l i b} \text {a d} \ \therefore \Delta g = \Delta g + 3 2 g + 1 6 \Delta a = 1 6 \ \end{array} $$

alalalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal alalal

J 100000000000000000000000000000000000000000000000000

jaoalil j5g jslly aaleblc llogb1 de Jgssll Ss. albi ablall 10o jy

aaii l oglabl

KB 3713

II.

3.4 1

aai 25

Zabu11 yz

60/50～1g240-220

b955

8:ECO

J

12.

1g45

jzubjgbsu 3a aaaasag aaii jy1 gdy

Cg jao aal C 15 aull CE aoaagjao lao jao

aJbbl Uoobg OoStuU a

2010/1060 8j（y）y

aIol 156. gJUJU JUJU JUJU JUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

. aaii iiaai 1o joo o Jw

.aaabaaa aas jglal

Jololl 3g5g5g0

#

aayy yiyg ysi bgi gai jygi kbi

JSSU 1000

aagb cial dol aowl pue ic daii jao gog

aaggl aeg 1jka jllgll gaae e aagl qo

3

·s + 9^2

4

J 1

"

pUwU

.0sJlll bgsbgl aobly dyl lqjll

:Joo aolol ylooswIg Jlilb1 pduuwo g

·：Sj1
g. golal yjul y 1y
·y
·
.

:dll l 1

·
.

JU JU

a 1

julal jusuall ggs jss yaa 1y

Jauill iag waiu jai baii ic aai

yall gdo zal plllgol

oujoo joi jolgao oalil y, gao gao jolalaiy

dol do 1do

ababobjolallaojdoaulldoa

aJ 1

Jalilao fllb gus jgill liu jgs

g1-204-220:ss

12:

Juaaill 8og yauai eliaib pauiu

?ECO eNORMAL

.ECO slacyy yocuol yolol yog o g jolol

:ab

333 100000000000000000000000000000000000000000

240-220

ie liu jiu wu gao yu wu ECO Juaui uo gao jia

JJJI JJJJ 50 501 50 JI3 JIO

gjU 10

.8gall jgojglal 1

JSLJolgog ClllgljgrrjL 08y yal slg 2

.5gab6 3g21 j0 aGcGab6 1g21g

Ugdi dds 09 g jwaiu uuaa Ugyoo Jgaa .3

y y 15

zulj 1 jolooj.

4ab = y_0

jglll aaii yogil jglll d caiy lalao g jle y

"abilll pss 3 gshgall

paalw jIb

1

240-220 5u jL a1b L

12 1

#

yolol yolao joloxg 1uull jzgljzgl gaiy

jgljll jg aolgl 0xlll

GARANTIEKARTE

warranty card · garantiekaart · carte de garantie · scheda di garanzia · tarjetá de garantía · cartao de garantía · garantikort · karta gwarancyjna · zárucín list · karta jamstva · carte de garantie · fapahuonHNA KapTa · zárucýn list · garancijski list · garanciajegy · rapaHTiHmΦOpMynp · fapaHTiHbI TaNoH

jia 281

KB 3713

24 Monate Garantie gemäß Garantieerklung 24 months warranty according to warranty declaration 24 maanden garantie volgens garantieverklung 24 mois de garantie selon la déclaration de garantie 24 messi di garanzia seconde la dichiarazione di garanzia 24 meses de garantia de acuero con la déclaracion de garantia 24 maneds garantiati h enhold til garantibetingensene 24 misesc gwarancj na podstawie odwiadczenia gwarancjnego - zaruka 24 meseicu podle prohlasei o zarue 24 mesece no jamstvo u skladu s jamsvenom deklacijom 24 luni garantie conform declaratie de garanjie 24 mecaa rapaunna a cbotertcne c rapanunnHata deknapaun 24-mesa nza zaruka podfa vhyasieno o zaruke 24-mesecnna garancija, skladno z garancjsko ijavo 24 honap garancia a garanciafeletetekebken leirtak szerint - rapanrHa Ma 24 micui bIDNOIBHO BAI npo rapaHTIO - rapaHTN 24 mecaa cornaco 3aBBNEHHBAM rapaHTNHmnpaRnAm

Kaufdatum, Handelstermtpelt, Unterschied - date of purchase, dealer stamp, signature - aankoopdatum, dealstermtpelt, handfleckening - date d'chat, tampon du concessionaire, signature - data de acquistio, timbo del riveridotto, firma - fecha de compra, sello del distribuidor, firma - data de compria, carimbo do distribuidor, assinatura - kgsdata, forhandstermtpelt, signatur - data zakupu, piecje (spradewacy), podisdat zumakoupiel, ratakkio prodejece, podisdat datum kupovine, big trovica, potosdat de achilie, stampilla fumizoruliu, semnatura - Data na nikkayika, Pielau na Piodanaya, Ptoznc - datum nikkau, pecliatka obchodnica/ predajcu, podisdat datum nukupa, big trovoca, potasip - vlasiar dasutama, kereskedod beleyegjce, alalra - datapnabekhen, nevata npnbauan, napiac - Data npnbopebeten, Ilamam npnda, Ptoznc-

CATRONIC INTERNATIONAL GMBH

www.clatronic-germany.de
