USER MANUAL PW 235R HUSQVARNA

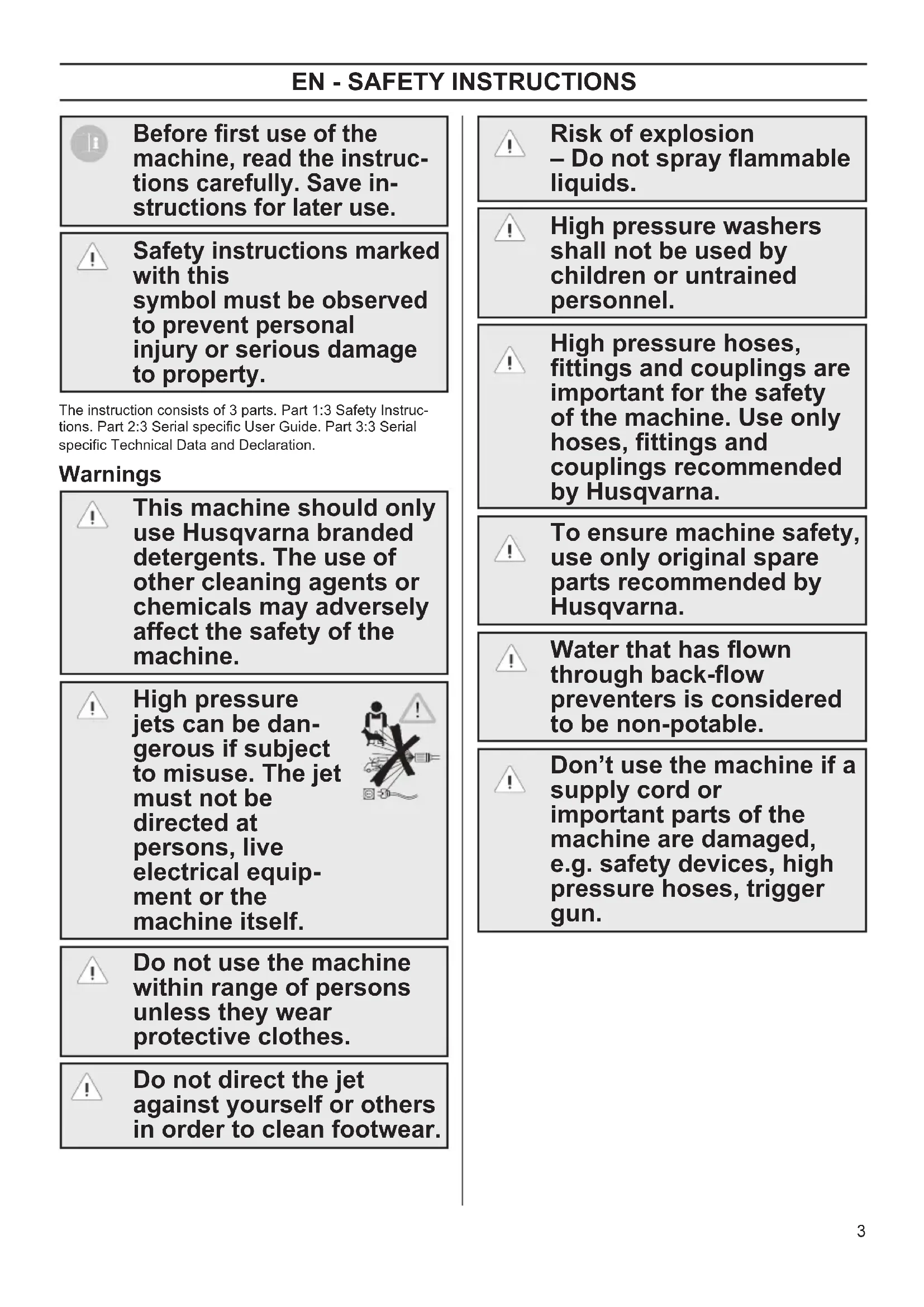

Before rst use of the machine, read the instruc- tions carefully. Save in- structions for later use. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. The instruction consists of 3 parts. Part 1:3 Safety Instruc- tions. Part 2:3 Serial specic User Guide. Part 3:3 Serial specic Technical Data and Declaration. Warnings This machine should only use Husqvarna branded detergents. The use of other cleaning agents or chemicals may adversely affect the safety of the machine. High pressure jets can be dan- gerous if subject to misuse. The jet must not be directed at persons, live electrical equip- ment or the machine itself. Do not use the machine within range of persons unless they wear protective clothes. Do not direct the jet against yourself or others in order to clean footwear. Risk of explosion – Do not spray ammable liquids. High pressure washers shall not be used by children or untrained personnel. High pressure hoses, ttings and couplings are important for the safety of the machine. Use only hoses, ttings and couplings recommended by Husqvarna. To ensure machine safety, use only original spare parts recommended by Husqvarna. Water that has own through back-ow preventers is considered to be non-potable. Don’t use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun. OM 1-3 Safety FINAL rev 1 draft.indd 3 2017-06-14 13:59:254

EN - SAFETY INSTRUCTIONS

Inadequate extension cords can be dange rous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by a cord reel which keeps the socket at least 60 mm above the ground. Switch off and unplug the machine when leav- ing it unattended, when nished using it or when converting it to another function, when doing repair and maintenance. During use of high pressure washers, aero- sols may be formed. Inhalation of aerosols can be hazardous to health, for the protection against aerosols a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment. Intended use and terms of liability The 100, 200, 300 and 400 series have been developed for domestic cleaning pur poses only and for use in an upright position. Any other use is considered as improper use. A high pressure washer operates with different levels of pressure and cleaning detergents for various cleaning tasks and results. Always follow instructions on detergents for use, emergency and disposal. Do not operate the machine at temperatures below 0°C. Never start a frozen machine, never use it indoor and never cover it during use. This is considered improper and wrongful use. Use of wrongful pressure, detergent and/or applica- tions may cause damage to machine, surfaces, material and devices. All of the above is considered improper and wrongful use. Husqvarna accepts no liability for any damage resulting from any improper or wrongful use. Please refer to our website at www.husqvarna.com for further instructions and information on use, emergency and disposal. Safety devices and their functioning The machine automa tically stops when releasing the trigger. The machine will start again when reactivating the trigger. The spray handle features a locking device. When activated, the spray handle cannot be operated. The machine has an automatic self-resetting thermal protector. If the machine is overheated, the thermal protector will cut the power supply. In this case, wait for the machine to cool down. An integrated hydraulic safety valve protects the system from excessive pressure. Precautions The electric supply connection shall be made by a qualied electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove earth circuit. Use motor start/delayed fuses with characteristic D accord- ing to IEC 947-2 or corresponding standards outside IEC. If the supply cord is damaged, it must be replaced by an authorized Husqvarna distributor or similar qualied person in order to avoid a hazard. No actions needed for adjusting machines marked with dual voltage and frequency. Supervise children not to play with the machine. The operator and any one in the immediate vicinity of the site for cleaning should take action to protect oneself from being struck by debris dislodged during operation. Always wear safety boots, respiratory mask, ear protection, goggles and protective clothing during operation. The high pressure generated by the machine is a particu- lar source of danger. Hold the spray lance rmly with both hands. The spray lance is affected by a kickback force and a sudden torque during operation. See PART 3:3 for the actual size of the kickback force. During transportation: Position the machine horizontally on the backside and secure with straps. Valid for model PW 235R Batteries may not be discarded together with household waste, but must be collected separately in accordance with local laws and regulations. CENELEC countries (AT, BE, BG, HR,CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, ML, MT, NL, NO, PL, PT, RO, ES, SK, SI, SE, CH, TR, GB) This appliance can be used by children aged from 8 years up and persons with reduced physi- OM 1-3 Safety FINAL rev 1 draft.indd 4 2017-06-14 13:59:265

EN - SAFETY INSTRUCTIONS

cal, sensory or mental capabilities or lack of experience, if they are supervised or instructed how to use the appliance in a safe way, and if they understand the hazards involved. Children shall be supervised to make sure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children with- out supervision. Outside CENELEC countries

• Appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa- bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

Part 2:3 provides a general overview of the machine and

operation elements along with illustrated sections on preparation, operation, water connection, storage, and user maintenance. A Unpacking and preparing for use Follow illustrations in A. B Connection to potable water mains High pressure washers are not suitable for connection to the potable water mains. Always check national regula- tions before connecting the machine to potable water mains and use a back-ow preventer if required. Use ½" garden hose, 10-25 m. Follow illustrations in B. C Connection to other water sources You can connect the machine to e.g. rain water vessels, rivers, lakes and cisterns etc. and operate it in suction mode. Follow illustrations in C. D Pairing of spray handle and machine R-models only. After battery insert, D1, you have 2 min. to pair spray handle and machine. The light will ash orange when searching for the machine. When paired, the light will turn off. Follow illustrations D2. If pairing aborts, do pairing according to illustrations D3. Power regulation is indicated by green light, see illustration D5. E Leaving the machine unattended > 5 min. See listed warnings. Follow the illustrations in E. F After use and storage After use always:

• Turn off the machine.

• Empty machine and accessories of water to avoid frost damage.

• Remove the plug from socket.

• Disconnect water inlet hose.

• Wind up electrical cable and high pressure hose to avoid damage of cable, high pressure hose and ttings. Storage of machine shall be frost free. Follow illustrations in F. G Maintenance, inspection and repair Maintenance of the machine should always be done when starting up after long time of storage. Before use, always in- spect the machine and equipment for damages. In case of damages, act according to listed warnings. Do not attempt any maintenance not described in the instruc- tions. If the machine refuses to start, stops, pulsates, pres- sure uctuates, motor buzzes, fuse blows or no water comes out, check the trouble shooting diagram at our website www.husqvarna.com. Any repair should always be made in Husqvarna authorized workshop with original Husqvarna spare parts. User maintenance according to illustrations in G. OM 1-3 Safety FINAL rev 1 draft.indd 5 2017-06-14 13:59:266
