USER MANUAL KAX981ME KENWOOD

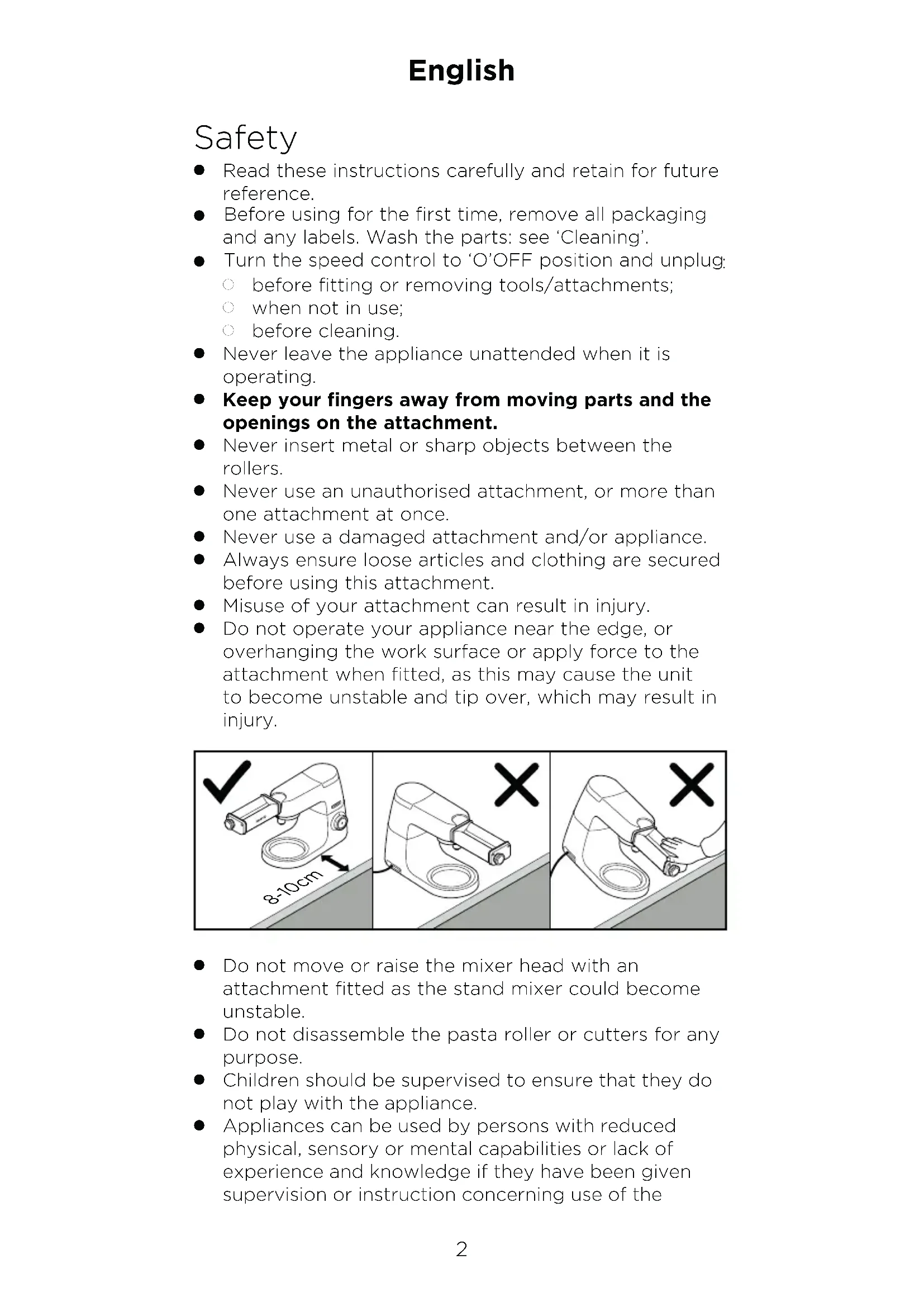

Read these instructions carefully and retain for future reference. O Before using for the first time, remove all packaging and any labels. Wash the parts: see ‘Cleaning’. O Turn the speed control to ‘O’OFF position and unplug

before fitting or removing tools/attachments;

Never leave the appliance unattended when it is operating.

Keep your fingers away from moving parts and the openings on the attachment.

Never insert metal or sharp objects between the rollers.

Never use an unauthorised attachment, or more than one attachment at once.

Never use a damaged attachment and/or appliance.

Always ensure loose articles and clothing are secured before using this attachment.

Misuse of your attachment can result in injury.

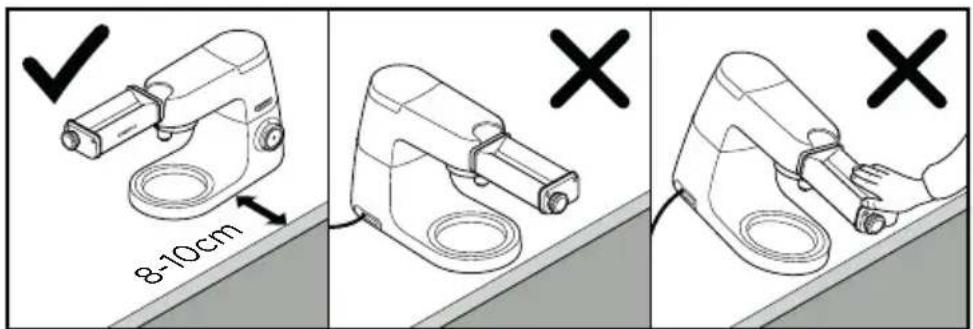

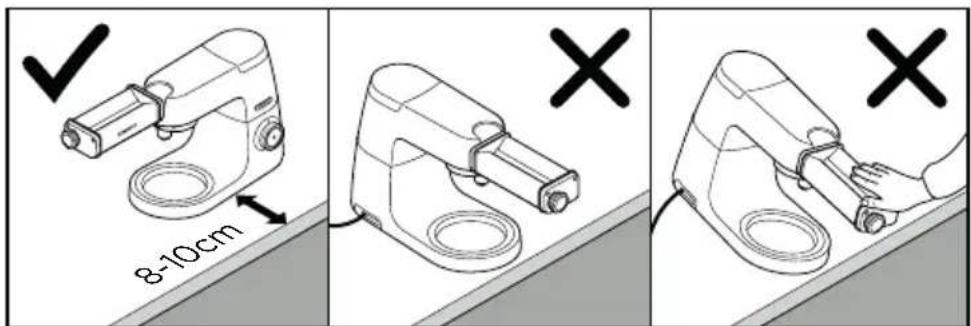

Do not operate your appliance near the edge, or overhanging the work surface or apply force to the attachment when fitted, as this may cause the unit to become unstable and tip over, which may result in injury. 8-10cm

Do not move or raise the mixer head with an attachment fitted as the stand mixer could become unstable.

Do not disassemble the pasta roller or cutters for any purpose.

Children should be supervised to ensure that they do not play with the appliance.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the English3 This attachment features the Twist Connection System and is designed to fit directly on the latest generation Kenwood Chef models (identified as TYPE KVC, KVL and KCC). This attachment can also fit KMix stand mixers featuring a slow speed attachment outlet (TYPE KMX). To check that this attachment is compatible with your stand mixer you will need to ensure both components feature the Twist Connection System If your stand mixer features the Bar Connection System you will also need an adaptor before operation is possible. The reference code for the adaptor is KAT001ME. For more information and how to order the adaptor visit www.kenwoodworld.com.Before using for the first time Wipe clean with a damp cloth. Do not immerse in water.Cleaning Brush This brush is not suitable for use directly on food. Please use this brush to clean dried dough from the attachment. Key

Flat pasta attachment Adjustable thickness knob Cleaning brush To Assemble 1 Lift off the slow speed outlet cover

2 With the attachment in the position shown, locate to the slow speed outlet and rotate to lock in place

To Use your Pasta Maker Refer to Illustrations

1 Make your pasta dough. Follow one of the dough recipes supplied.2 Set the adjustable knob on the side of the pasta attachment to number 0 by pulling the knob out and turning.3 Flatten a piece of dough to approximately 1 cm thick and sprinkle some flour between the rollers.4 Turn the stand mixer to speed 1 (you will see the rollers turning). appliance in a safe way and if they understand the hazards involved.

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions. Cleaning

Do not immerse in water.

Do not wash any part in the dishwasher.

Remove the attachment from the slow speed outlet and air dry for 1 hour.

Remove any dried dough using the cleaning brush (brush supplied with KAX980ME)

Wipe the attachment clean with a damp cloth.

Refer to your main stand mixer instruction book for additional safety warnings.4 5 Pass the piece of dough through the rollers repeating until you get a smooth surface. (Folding the dough in half across its width or length between rollings will help to achieve this). 6 Adjust the knob progressively from 0 to 9, each time re-feeding the dough through the attachment to achieve the desired thickness (refer to pasta sheet thickness chart, illustration

). Pasta thickness using settings 5 to 7 is recommended. 7 Cut the rolled pasta into desired/manageable pieces. Use as required. Using an Additional Attachment Refer to Illustration

fettuccini (KAX981ME), tagliolini (KAX982ME), trenette (KAX983ME), and spaghetti (KAX984ME) 1 To use these attachments you must have rolled out pasta using the flat pasta attachment (KAX980ME) first. 2 To fit any of the additional attachments available, follow the “to assemble” instructions. 3 Feed the rolled out pasta through the pasta attachment, the cutters will slice the pasta to the desired shape. KAX981ME = Fettuccini KAX982ME = Tagliolini KAX983ME = Trenette KAX984ME = Spaghetti 4 Pasta can be left for up to 4 hours before cooking. To Cook Pasta 1 Bring a pan three quarters full of water to the boil. Add salt to taste. 2 It is optional to add a small amount of olive oil to the water, this may help prevent the pasta from sticking. 3 Add the pasta and gently boil for approximately 2 to 4 minutes to taste. Cleaning Refer to Illustration

Do not immerse in water. Do not wash any part in the dishwasher.

Remove the attachment from the slow speed outlet and air dry for 1 hour.

Remove any dried dough using a cleaning brush (brush supplied with KAX980ME).

Wipe the attachment clean with a damp cloth. Service and Customer Care UK only If you need help with:

using your attachment

servicing or repairs (in or out of guarantee) call Kenwood customer care on 0345 222 0458. Have your model number ready (e.g. KAX980ME, KAX981ME, KAX982ME, KAX983ME or KAX984ME) and date code (e.g. 23B08) ready. They are on the attachment outer carton.

spares and attachments call 0844 557 3653. other countries

If you experience any problems with the operation of your attachment, before requesting assistance visit www.kenwoodworld.com.5 Recipes Basic Pasta Dough 500g (1lb 2oz) flour 00 grade or plain flour 4 eggs 2.5ml (

⁄2tsp) oil water if necessary Method Put the flour, salt, oil and beaten eggs (eggs should be mixed with tomato puree if applicable) into the mixing bowl. Mix with the dough hook on speed 1-2 for approximately 2-3 minutes, adding water if the mix is too dry. Switch off the machine and gather the ingredients together and knead by hand until you obtain a smooth dough. For best results, wrap the dough then let it rest for approximately 15 minutes before rolling out with the pasta attachment. Fit the flat pasta making attachment and follow the previous instructions.

Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.

If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
