Product type	Accessory for food mixer, pasta cutter (spaghetti)
Brand	Kenwood
Model	KAX984ME
Use	Cutting fresh pasta into spaghetti
Compatibility	Kenwood Chef (type KVC, KVL, KCC) and KMix (type KMX) food mixers with low-speed outlet and Twist system
Required adapter	KAT001ME adapter for mixers with Bar system
Recommended speed	Speed 1
Thickness adjustment	Via the KAX980ME pasta roller (not supplied), from 0 to 9, recommended 5 to 7 for pasta
Material	Metal and food-safe plastic
Care and cleaning	Do not immerse, do not wash in dishwasher. Leave to air-dry for 1 hour, brush then wipe with a damp cloth
Safety	Do not insert metal or sharp objects between rollers; do not disassemble blades; keep fingers away from moving parts
Spare parts included	None (cleaning brush supplied with KAX980ME)
Origin	Made in Italy
Warranty	Legal warranty, repair by Kenwood authorized centers
After-sales service	www.kenwoodworld.com

Frequently Asked Questions - KAX984ME KENWOOD

How to install the KAX984ME accessory on my Kenwood mixer?

Lift the low-speed outlet cover, then turn the accessory to lock it in place. Ensure your mixer is compatible (Twist system).

Which speed to use for making spaghetti?

Use speed 1 on your food mixer.

How to adjust the dough thickness?

Use the KAX980ME pasta roller (sold separately) with the adjustment knob from 0 to 9. For pasta, set between 5 and 7.

Can I clean the accessory in the dishwasher?

No, never put parts in the dishwasher. Leave to air-dry for 1 hour, brush off dried dough residues, then wipe with a damp cloth.

My mixer has a Bar system, can I use this accessory?

Yes, but you need the KAT001ME adapter (sold separately). Check the Kenwood website to order.

Does the KAX984ME accessory work alone?

No, it first requires rolling the dough with the KAX980ME pasta roller. Then attach the cutter and feed the sheet through.

What types of pasta can I make with this accessory?

This accessory cuts only spaghetti. Other models (KAX981ME, KAX982ME, KAX983ME) allow making fettuccine, tagliolini, and trenette.

How to clean dried dough on the blades?

Use the cleaning brush supplied with the KAX980ME pasta roller. Never use metal objects that could damage the blades.

What simple pasta recipe do you recommend?

Mix 500 g flour, 4 eggs, 1/2 tsp salt, and 1/2 tsp oil. Add water if needed. Let rest 15 minutes before rolling.

How long should I cook fresh spaghetti?

Boil salted water, add pasta and cook 2 to 4 minutes over moderate heat according to your taste.

USER MANUAL KAX984ME KENWOOD

KAX981MEFettuccini (6.5mm)	KAX982METaglionini (1.5mm)	KAX983METrenette (3.5mm)	KAX984MESpaghetti (2mm)
0 ~4.8mm
1 ~3.8mm
2 ~3.3mm
3 ~2.5mm
4 ~1.9mm
5 ~1.5mm
6 ~1.2mm
7 ~1.0mm
8 ~0.8mm
9 ~0.6mm

0 ~4.8mm
1 ~3.8mm
2 ~3.3mm
3 ~2.5mm
4 ~1.9mm
5 ~1.5mm
6 ~1.2mm
7 ~1.0mm
8 ~0.8mm
9 ~0.6mm

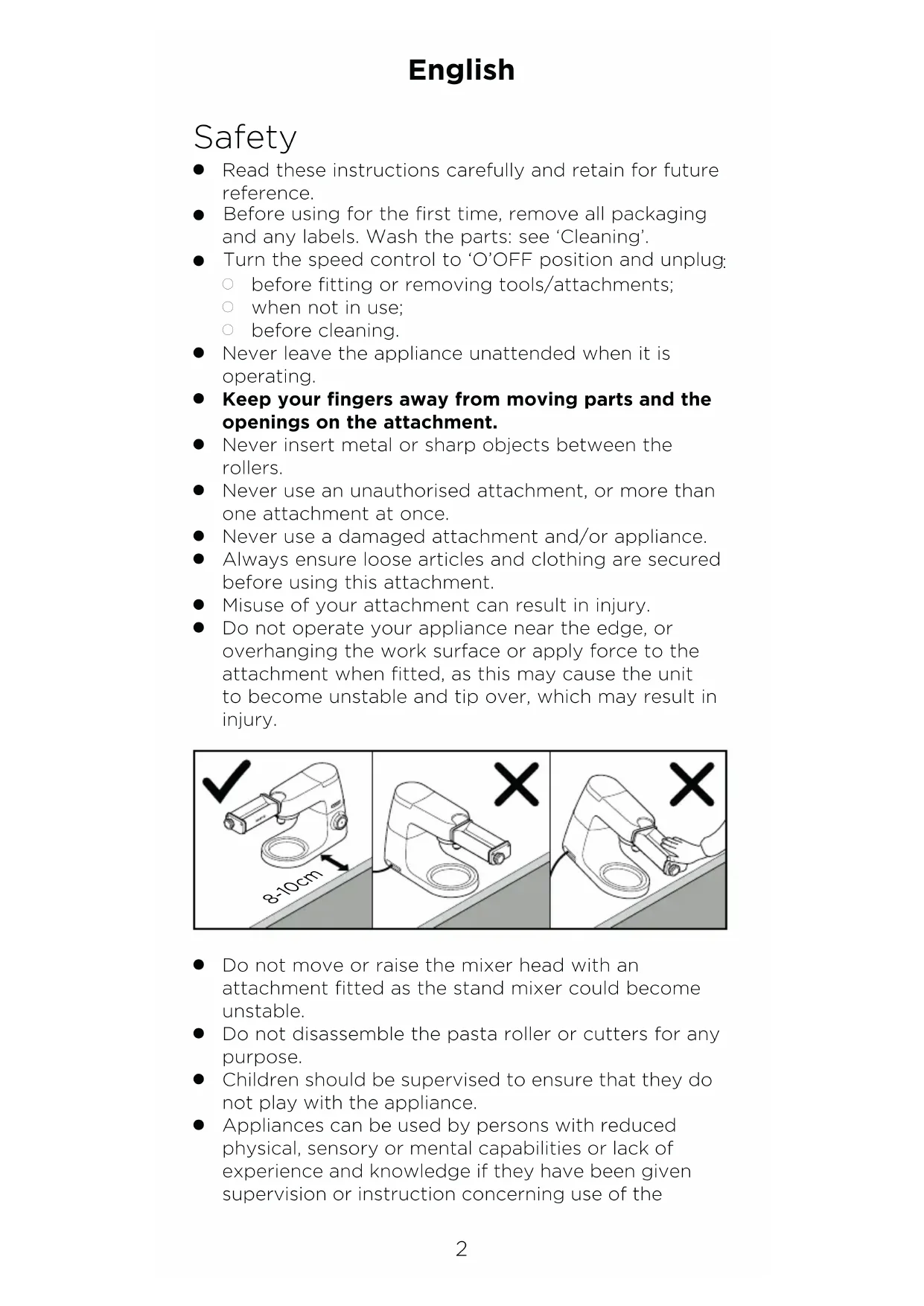

English

Safety

- Read these instructions carefully and retain for future reference.

- Before using for the first time, remove all packaging and any labels. Wash the parts: see 'Cleaning'.

- Turn the speed control to 'O'OFF position and unplug:

before fitting or removing tools/attachments;

- when not in use;

before cleaning.

- Never leave the appliance unattended when it is operating.

- Keep your fingers away from moving parts and the openings on the attachment.

● Never insert metal or sharp objects between the rollers.

- Never use an unauthorised attachment, or more than one attachment at once.

- Never use a damaged attachment and/or appliance.

● Always ensure loose articles and clothing are secured before using this attachment.

- Misuse of your attachment can result in injury.

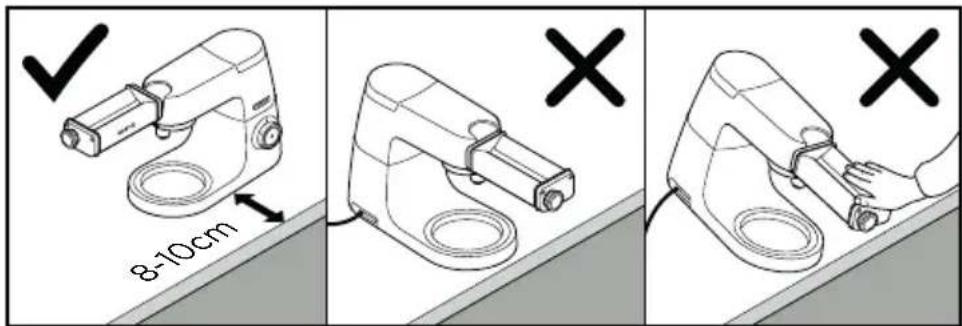

- Do not operate your appliance near the edge, or overhanging the work surface or apply force to the attachment when fitted, as this may cause the unit to become unstable and tip over, which may result in injury.

- Do not move or raise the mixer head with an attachment fitted as the stand mixer could become unstable.

- Do not disassemble the pasta roller or cutters for any purpose.

● Children should be supervised to ensure that they do not play with the appliance.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and if they understand the hazards involved.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Cleaning

• Do not immerse in water.
• Do not wash any part in the dishwasher.
• Remove the attachment from the slow speed outlet and air dry for 1 hour.
• Remove any dried dough using the cleaning brush (brush supplied with KAX980ME)
• Wipe the attachment clean with a damp cloth.

Refer to your main stand mixer instruction book for additional safety warnings.

This attachment features the Twist Connection System and is designed to fit directly on the latest generation Kenwood Chef models (identified as TYPE KVC, KVL and KCC).

This attachment can also fit KMix stand mixers featuring a slow speed attachment outlet (TYPE KMX).

To check that this attachment is compatible with your stand mixer you will need to ensure both components feature the Twist Connection System 📂

If your stand mixer features the Bar Connection System 📄 you will also need an adaptor before operation is possible. The reference code for the adaptor is KAT001ME. For more information and how to order the adaptor visit www.kenwoodworld.com.

Before using for the first time

- Wipe clean with a damp cloth. Do not immerse in water.

Cleaning Brush

- This brush is not suitable for use directly on food. Please use this brush to clean dried dough from the attachment.

Key

① Flat pasta attachment
② Adjustable thickness knob
③ Cleaning brush

To Assemble

1 Lift off the slow speed outlet cover ①.
2 With the attachment in the position shown, locate to the slow speed outlet and rotate to lock in place ②.

To Use your Pasta Maker

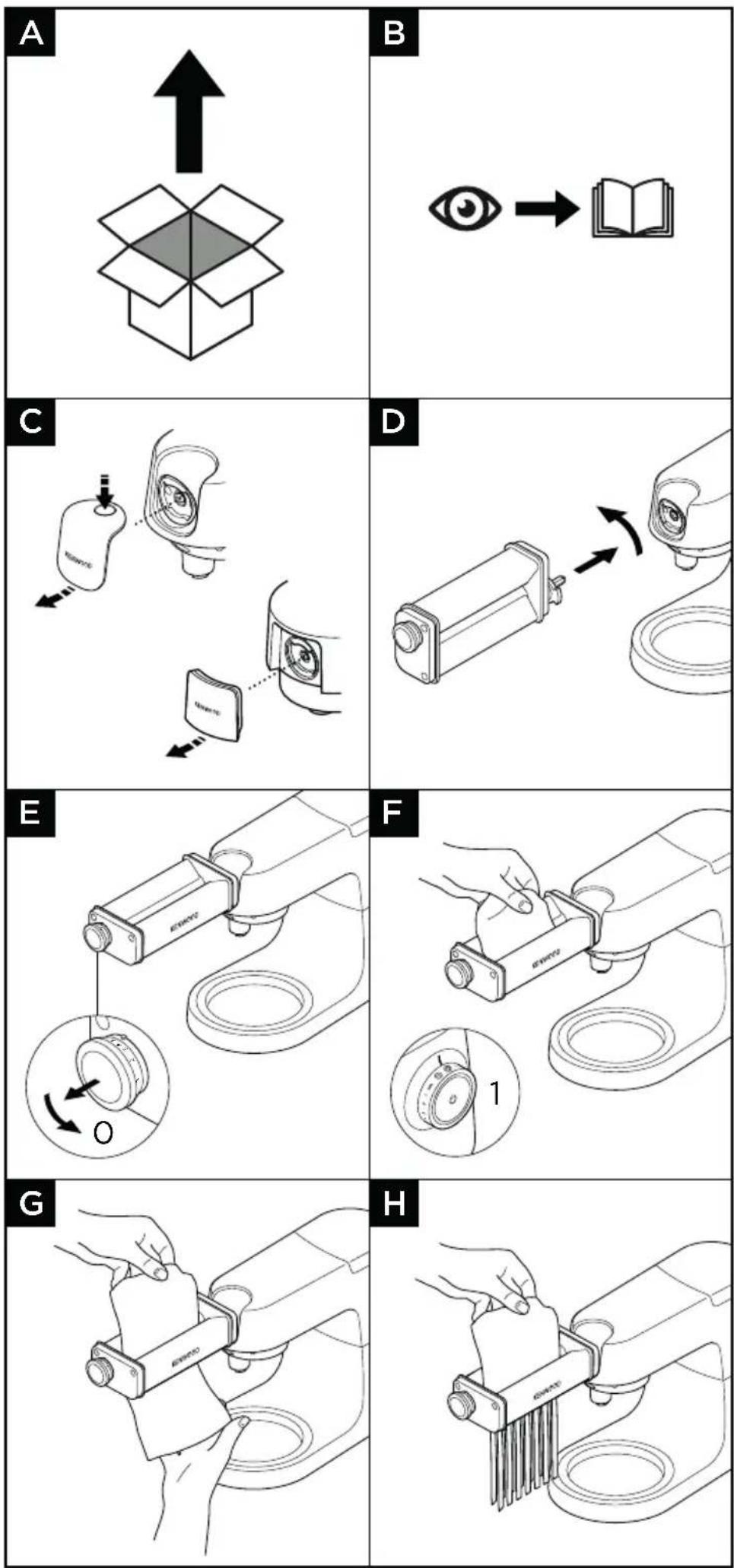

Refer to Illustrations A - G

1 Make your pasta dough. Follow one of the dough recipes supplied.
2 Set the adjustable knob on the side of the pasta attachment to number 0 by pulling the knob out and turning.
3 Flatten a piece of dough to approximately 1 cm thick and sprinkle some flour between the rollers.
4 Turn the stand mixer to speed 1 (you will see the rollers turning).

5 Pass the piece of dough through the rollers repeating until you get a smooth surface. (Folding the dough in half across its width or length between rollings will help to achieve this).
6 Adjust the knob progressively from 0 to 9, each time re-feeding the dough through the attachment to achieve the desired thickness (refer to pasta sheet thickness chart, illustration 1). Pasta thickness using settings 5 to 7 is recommended.
7 Cut the rolled pasta into desired/manageable pieces. Use as required.

Using an Additional Attachment

Refer to Illustration H

fettuccini (KAX981ME), tagliolini (KAX982ME), trenette (KAX983ME), and spaghetti (KAX984ME)

1 To use these attachments you must have rolled out pasta using the flat pasta attachment (KAX980ME) first.
2 To fit any of the additional attachments available, follow the "to assemble" instructions.

3 Feed the rolled out pasta through the pasta attachment, the cutters will slice the pasta to the desired shape.

KAX981ME = Fettuccini

KAX982ME = Tagliolini

KAX983ME = Trenette

KAX984ME = Spaghetti

4 Pasta can be left for up to 4 hours before cooking.

To Cook Pasta

1 Bring a pan three quarters full of water to the boil. Add salt to taste.
2 It is optional to add a small amount of olive oil to the water, this may help prevent the pasta from sticking.
3 Add the pasta and gently boil for approximately 2 to 4 minutes to taste.

Cleaning

Refer to Illustration J

Do not immerse in water. Do not wash any part in the dishwasher.

• Remove the attachment from the slow speed outlet and air dry for 1 hour.
• Remove any dried dough using a cleaning brush (brush supplied with KAX980ME).
• Wipe the attachment clean with a damp cloth.

Service and Customer Care

UK only

If you need help with:

• using your attachment
● servicing or repairs (in or out of guarantee)
call Kenwood customer care on 0345 222 0458. Have your model number ready (e.g. KAX980ME, KAX981ME, KAX982ME, KAX983ME or KAX984ME) and date code (e.g. 23B08) ready.
They are on the attachment outer carton.

- spares and attachments

call 0844 557 3653.

other countries

- If you experience any problems with the operation of your attachment, before requesting assistance visit www.kenwoodworld.com.

• Please note that your product is covered by a warranty, which complies with all legal provisions concerning any existing warranty and consumer rights in the country where the product was purchased.
• If your Kenwood product malfunctions or you find any defects, please send it or bring it to an authorised KENWOOD Service Centre. To find up to date details of your nearest authorised KENWOOD Service centre visit www.kenwoodworld.com or the website specific to your Country.
• Made in Italy.

Recipes

Basic Pasta Dough

500g (1lb 2oz) flour 00 grade or plain flour

4 eggs

2.5ml (2tsp) salt

2.5ml (2tsp) oil

water if necessary

Wholemeal Pasta

500g (1lb 2oz) wholemeal flour 4 eggs

2.5ml (2tsp) salt

2.5ml (2tsp) oil

water if necessary

Pasta Rossa

500g (1lb 2oz) flour 00 grade or plain flour

3 eggs

75 g (3oz) pureed tomato

2.5ml (2tsp) salt

2.5ml (2tsp) oil

water if necessary

Method

Put the flour, salt, oil and beaten eggs (eggs should be mixed with tomato puree if applicable) into the mixing bowl.

Mix with the dough hook on speed

1-2 for approximately 2-3 minutes, adding water if the mix is too dry. Switch off the machine and gather the ingredients together and knead by hand until you obtain a smooth dough. For best results, wrap the dough then let it rest for approximately 15 minutes before rolling out with the pasta attachment.

Fit the flat pasta making attachment and follow the previous instructions.

Nederlands

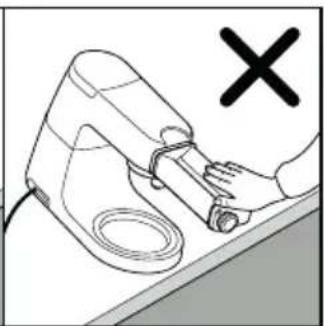

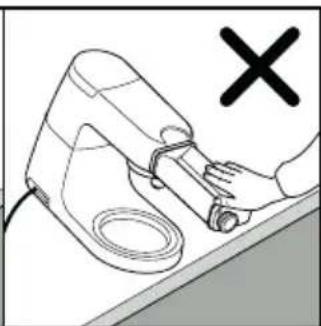

Veiligheid
