USER MANUAL PD7010 Planar

Line drawing of a portable electronic device with a circular vent and mechanical components (no text or symbols)

User's Guide

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright October, 2006

About this User's Guide

This User's Guide is intended for end users and describes how to quickly install and operate the DLP projector. For detailed information, refer to the User's Guide on the CD or on the manufacturer's website.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

All other product names used in this guide are the properties of their respective owners and are acknowledged.

Important Recycle Instructions

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.

For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG.

For lamp specifi c disposal information check WWW.LAMPRECYCLE.ORG.

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs).

This symbol found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the "Regulatory Compliance" section on page 45 of the User's Manual.

Register Your Planar Product Today

Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website: http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector, LCD monitor, touchscreen, or other Planar products, visit our online store: http://www.PlanarOnlone.com or find other stores that stock Planar products at http://www.planar.com/howtobuy.

PACKING CHECKLIST

Carefully unpack the projector and check that the following items are included.

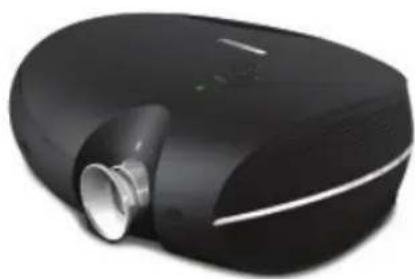

Close-up of a black, oval-shaped object with a metallic cylindrical port and white reflective surface (no text or symbols visible)

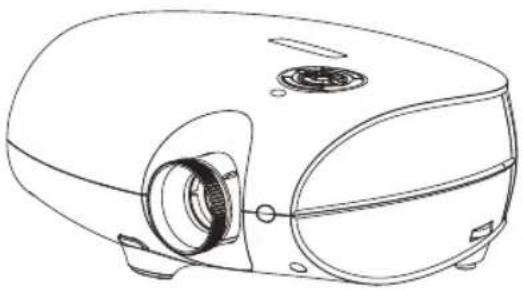

DLP Projector

Black remote control with two cylindrical batteries (no text or symbols visible)

Remote Control (with two AAA batteries)

DVI to HDMI Adaptor (PD4010 only)

Line drawing of a coiled cable or connector with a terminal connector (no text or symbols)

Power Cord (By country)

Pure electrical circuit lines without any symbols

Component Video Cable

SPECIALTY HOME-THEATER DISPLAYS Von Manul PLANAR 2006/12/2014

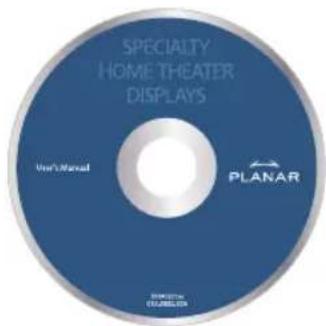

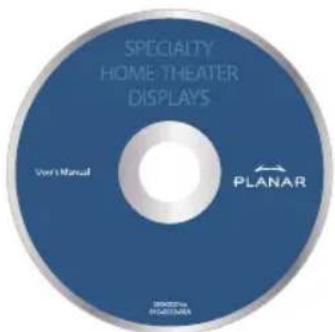

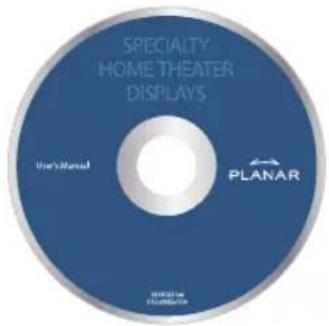

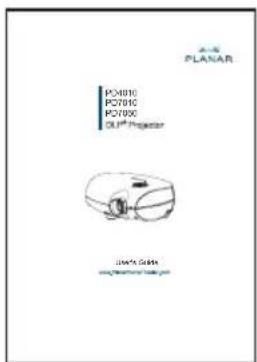

CD-ROM (This User's Manual)

PLANAR PC0810 PC0780 PC0780 CLIP Preceptor User's Guide

User's Guide

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

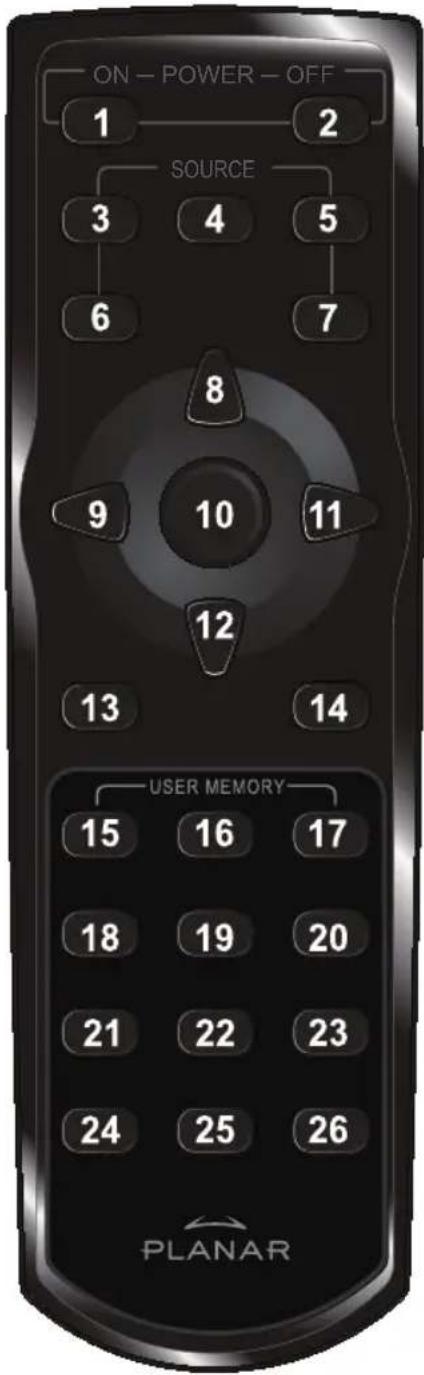

REMOTE CONTROL FUNCTIONS

ITEM LABEL DESCRIPTION

1 Power On Turns projector power on
2 Power Off Turns projector power off
3 Source 1 User confi gurable (Default: HDMI)
4 Source 2 User confi gurable (Default: Component)
5 Source 3 User confi gurable (Default: DVI-D)
6 Source 4 User confi gurable (Default: PC)
7 Source 5 User confi gurable (Default: Video)
8 Up cursor Navigates and changes settings in the OSD
9 Left cursor
10 Enter Changes settings in the OSD
11 Right cur-sor Navigates and changes settings in the OSD
12 Down cur-sor
13 Exit Exits OSD menus or menu selection fi elds
14 Menu Opens the OSD
15 Hot Key 1 User memory setting 1
16 Hot Key 2 User memory setting 2
17 Hot Key 3 User memory setting 3
18 Contrast Adjusts screen contrast
19 Brightness Adjusts screen brightness
20 Aspect ratio Toggles aspect ratio: 16:9 → Letterbox → 4:3 → Native
21 Gamma Toggles gamma: Film → Video → Cinema → PC → Photo
22 Overscan Toggles overscan: Off → Crop → Zoom
23 Keystone Adjusts keystone
24 Auto Automatically synchronizes display settings in RGB mode
25 Blank Makes the screen blank
26 LED Turns back LED light on and off

ON - POWER - OFF 1 2 SOURCE 3 4 5 6 7 8 9 10 11 12 13 14 USER MEMORY 15 16 17 18 19 20 21 22 23 24 25 26 PLANAR

INSERTING THE REMOTE CONTROL BATTERIES

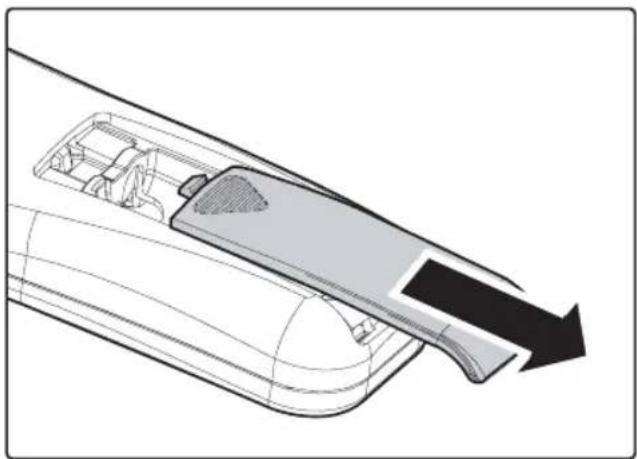

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Technical diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

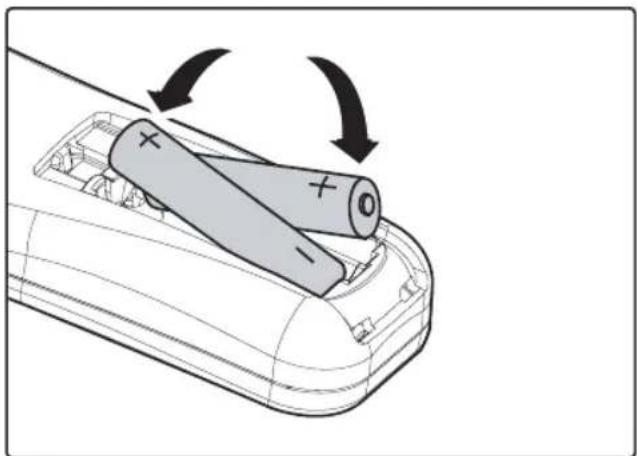

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a car's battery casing with two cylindrical batteries and one open, showing internal components and rotation arrows (no text or symbols)

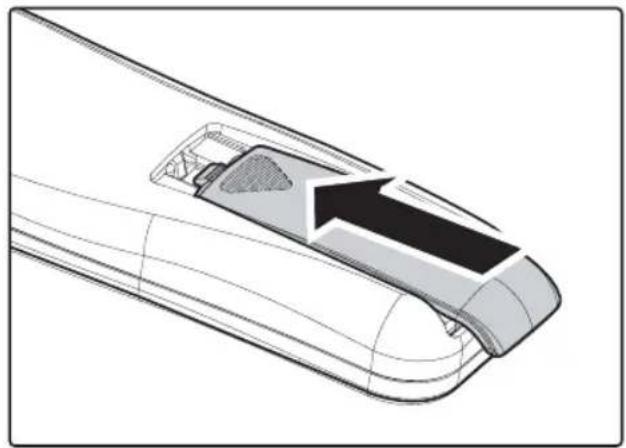

1. Replace the cover.

Technical diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1. Only use AAA alkaline batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

CONNECTING INPUT DEVICES

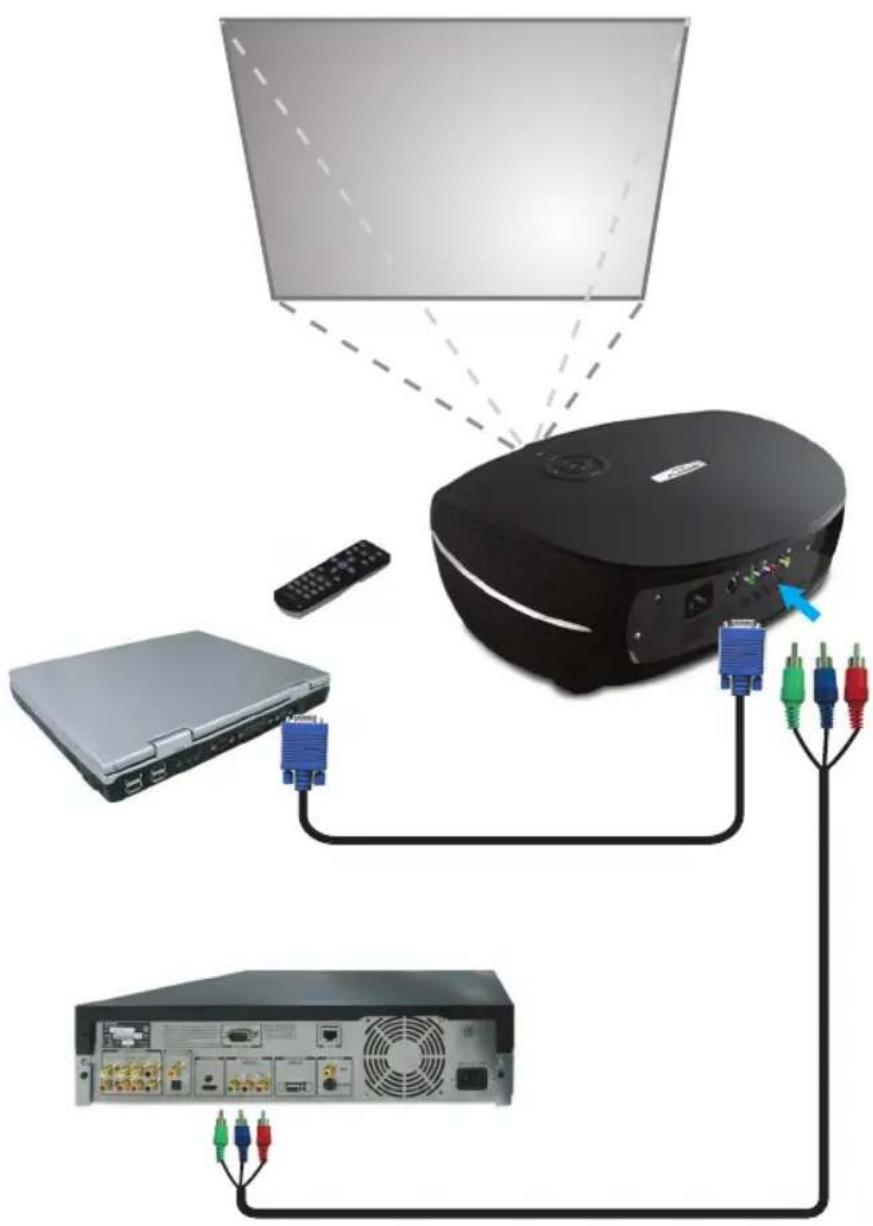

A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders, digital still cameras and high definition sources. Check the User's Manual of the connecting device to confirm it has the appropriate output connector.

Diagram showing connections between a computer monitor, remote control, and server rack (no text or symbols present)

STARTING AND SHUTTING DOWN THE PROJECTOR

1. Remove the lens cover.

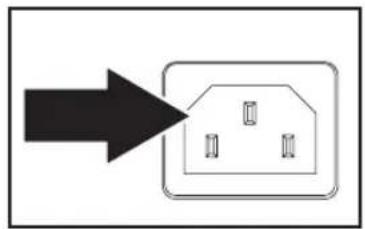

2. Connect the power cord to the projector. Connect the other end to a wall outlet.
3. Press the Power button. The Power LED on the projector turns on. Turn on the connected devices.

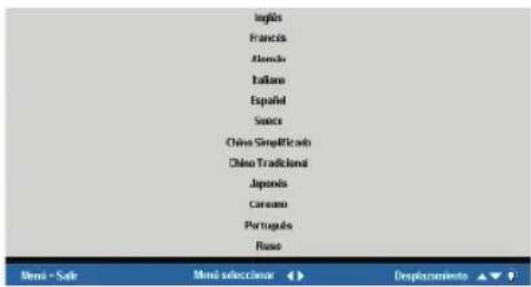

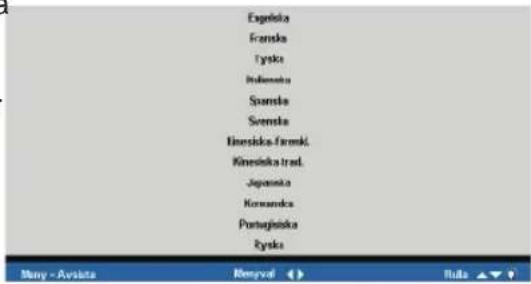

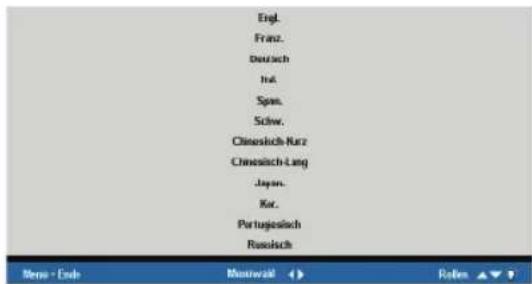

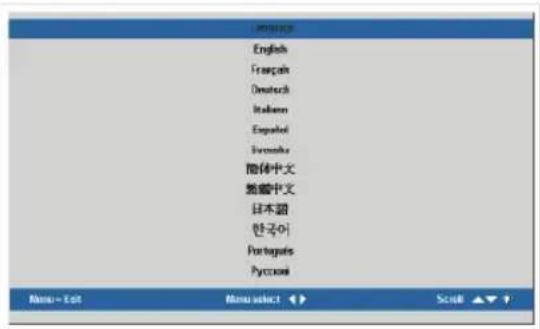

4. The language selection screen appears (Initial setup only). Select the desired language.

5. Press the cursor ▲▼button until Language is highlighted.

6. Press the cursor ◀▶ or Menu button to confirm the language, and close the OSD.

7. If more than one input device is connected, press the source bottom to search.

English Français Omaroch Italien Español Fernishu 楷体中文 整體中文 日本語 한국어 Portugues Pyrousi Menu - Edit Menu select Scroll ▲▼ ?

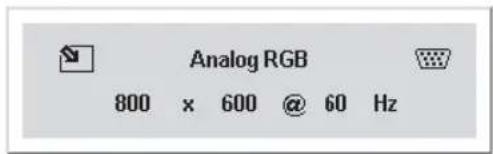

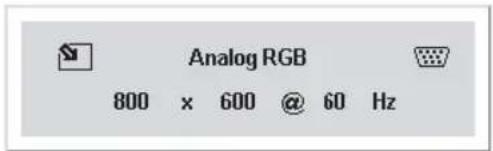

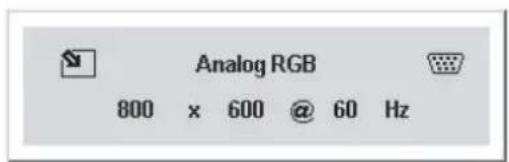

Analog RGB 800 x 600 @ 60 Hz

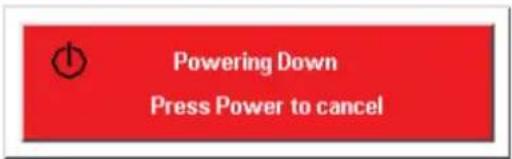

1. Press the Power button to turn off the projector. The Powering Down screen appears.

Note: Pressing the Power button again within fi ve (5) seconds cancels powering down the projector.

1. When the Power LED stops flashing, the projector goes on standby mode.

Powering Down Press Power to cancel

Green circular button with white power symbol (no text or numbers)

! WARNING

Do not unplug the power cord until the Ready LED stops fl ashing, indicating the projector has cooled down.

ADJUSTING THE FOCUS AND ZOOM

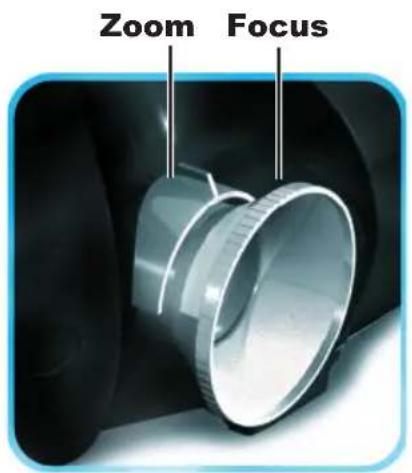

1. Locate the image zoom and focus adjustment rings on the projector.

Zoom Focus

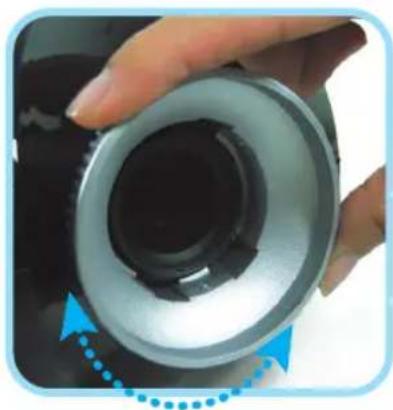

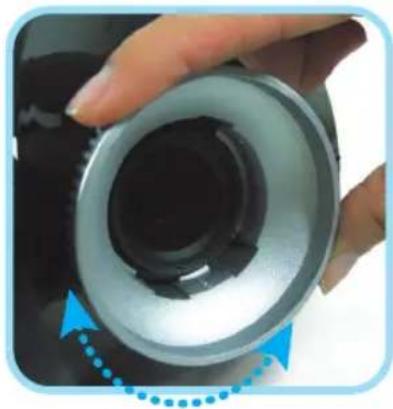

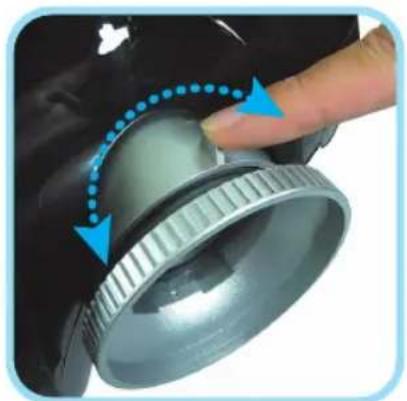

1. Use the image zoom control to resize the projected image and screen size.

Close-up of a hand pressing a metallic cylindrical component with blue arrows indicating motion (no text or symbols)

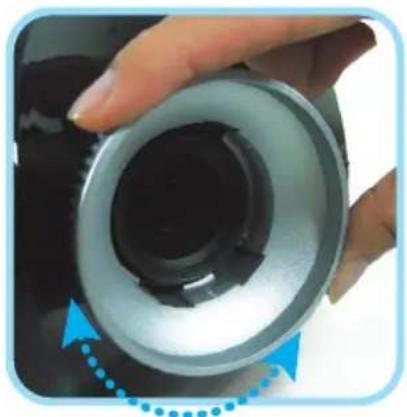

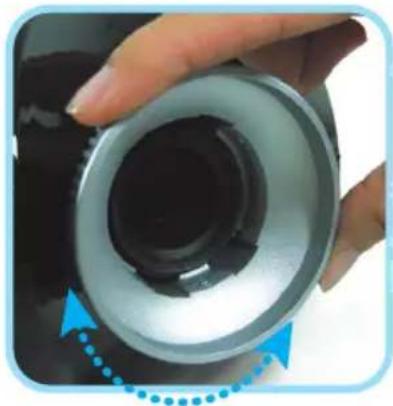

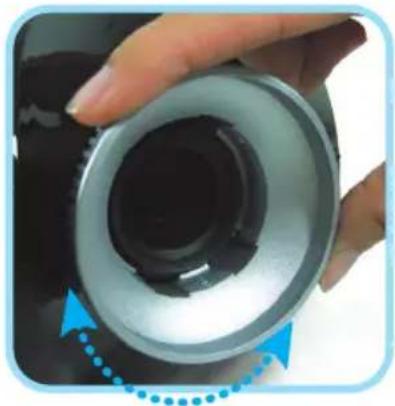

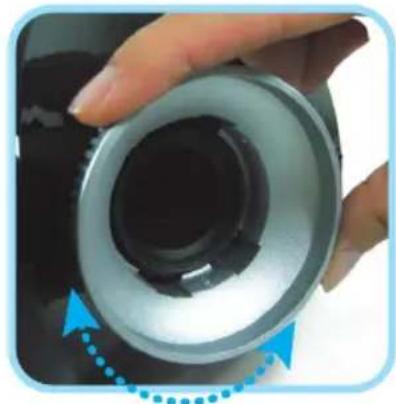

1. Rotate the image focus control to sharpen the projected image.

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

TROUBLESHOOTING

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
  • Ensure all connections are securely attached.
  • Ensure the attached device is turned on.
• Ensure a connected PC is not in suspend mode.
• Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Common Problems and Solutions

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is fl at with no contrast

Adjust the Contrast setting on the Image menu of the OSD.

Problem: The color of the projected image does not match the source image.

Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Ready LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.

REGULATORY COMPLIANCE

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment.

Canada

This class B digital apparatus complies with Canadian ICES-003.

Safety Certifications

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN 55022 Warning

This is a Class B product. In a domestic environment, it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room, or auditorium.

PLANAR

PD4010

PD7010

PD7060

DLP® Projecteur

Line drawing of a portable electronic device with a circular vent and side-mounted ports (no text or symbols)

Guide d'Utilisation

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Close-up of a black and silver automotive air purifier with a metallic nozzle (no visible text or symbols)

DLP Projecteur

Black remote control with circular buttons (no text or symbols visible)

Line drawing of a coiled cable or wire with connectors (no text or symbols)

Technical illustration of a mechanical component with a curved arrow indicating direction (no text or symbols present)

Diagram of a battery holder with two cylindrical cells, showing internal components and rotation arrows (no text or symbols)

1. Replacez le couvercle.

Technical diagram of a mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Simple diagram showing a black arrow pointing to a rectangular box with three small cutouts inside (no text or symbols)

Green circular button with white power symbol (no text or numbers)

ATTENTION

Close-up of a metallic cylindrical mechanical component with flanges, shown in 3D rendering (no text or symbols visible)

Close-up of a hand pressing a metallic component with blue dotted arrows indicating rotation (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

RESOLUTION DE PROBLEMES

Line drawing of a projector with visible internal components and mounting holes (no text or symbols)

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

© Copyright October, 2006

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

DLP Projektor

Black remote control with two cylindrical batteries beside it (no text or symbols visible)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

Simple line drawing of a cable with three connectors (no text or symbols)

Teilvideokabel

SPECIALTY HOME THEATER DISPLAYS User's Manual PLANAR SECURITY SECURITY.COM

Technical illustration of a mechanical component with a downward arrow indicating direction (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a monitor, remote control, and audio equipment (no text or symbols present)

WARNUNG

Simple diagram showing a black arrow pointing to a rectangular box with three internal compartments (no text or symbols)

Engl. Franz. Deutsch Ind. Span. Screw. Chinesisch-Narz Chinesisch-Lang Japan. Ker. Portugueslich Russich Menu - Code Mestwall Rolm

Analog RGB 800 x 600 @ 60 Hz

Green circular button with white power symbol (no text or numbers)

WARNUNG

Close-up of a hand pressing a metallic component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

FEHLERBESEITIGUNG

Safety Certifications

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN 55022 Warning

Line drawing of a projector with visible internal components and mounting holes (no text or symbols)

Guida per l'utente www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs).

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

Proiettore DLP

Black remote control with two cylindrical batteries beside it (no text or symbols visible)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

Simple line drawing of a cable with three connectors (no text or symbols)

Cavi video coassiale

SPECIALTY HOME THEATER DISPLAYS Unit Card PLANAR 0018221.m C:\Program\com C:\Program\com

FLANAR P50000 P50000 P50000 DLF Pockbox Dialysis: 12.0000 and the manufacturer's brand name

Guida per l'utente

Technical illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a monitor, remote control, and network equipment (no text or symbols present)

AVVERTIMENTO

Green circular button with white power symbol, no text or numbers present

! AVVERTIMENTO

Close-up of a hand pressing a button on a metallic mechanical component (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component with a blue dotted arrow indicating rotation (no text or symbols visible)

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN 55022 Avvertenze

Line drawing of a portable projector with visible internal components and mounting feet (no text or symbols)

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and silver automotive electronic device with a cylindrical port (no visible text or symbols)

Proyector DLP

Black remote control with three cylindrical batteries (no text or symbols visible)

Control Remoto (Con dos pilas AAA)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

Simple line drawing of a cable with three connectors and wires (no text or symbols)

SPECIALTY HOME THEATER DISPLAYS User's Manual PLANAR 2018/07/16 EDUATION

Technical illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a monitor, remote control, and computer hardware with colored connectors to the device.

ADVERTENCIA

Simple diagram showing a house inside a box with three windows, pointing to the right (no text or symbols)

Inglés Francia Almeida Italiano Español Suisse Chise Simplificado Chise Tradicional Japenda Caracama Portugues Ruse Mens - Sale Mend seleccionar Displacement

Green circular button with white power symbol (no text or numbers)

ADVERTENCIA

Close-up of a hand pressing a metallic mechanical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

Aviso EN 55022

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Teléfono:

EEUU: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Biblioteca Técnica Online: http://www.planar.com/support

Horas: M-F, 8am - 8pm ET, 12pm - 12am GMT

PD4010

PD7010

PD7060

DLP® Projektor

Line drawing of a projector with visible internal components and mounting holes (no text or symbols)

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

ЯЯЯ

яяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяя

美國總公司

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

ААААААААА

яяяяя 1-866-PLANARI [phone]

яяяя [phone]

電子郵件信箱：[e-mail]

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern electronic device with a metallic port and lens (no visible text or symbols)

DLP Projektor

Black remote control with two cylindrical batteries on the right (no text or symbols visible)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

Nätsladd (Per land)

Simple line drawing of a cable with three connectors and wires (no text or symbols)

Technical illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

1. Skjut tillbaka locket.

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a computer monitor, remote control, and server rack with colored cables connecting to the device.

WARNING

Simple diagram showing a house inside a box with three windows, pointing to an arrow (no text or symbols)

Engelska Franska Tyska Indoneska Spanska Svenska Einesikka formski. Kinesikka trad. Japoniska Korwanda Portuginska Yerska Mony - Avsista Memyvof Rula

Analog RGB 800 x 600 @ 60 Hz

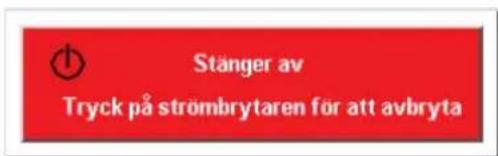

Green circular button with white power symbol (no text or numbers)

WARNING

Close-up of a hand pressing a metallic cylindrical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

PROBLEMLÖSNING

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN 55022 Varning

Line drawing of a portable electronic device with ventilation slots and a central button (no text or symbols)

用指南

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

DLP 投影机

Black remote control with two cylindrical batteries beside it (no text or symbols visible)

遥控器
(附二颗 AAA 电池)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

电源线
(依国家而定)

Simple line drawing of a cable with multiple connectors (no text or symbols)

模拟色差影像 连接线

SPECIALTY HOME THEATER DISPLAYS Van's Manual PLANAR EMERGENCY CULIBELON

光盘
(本用户手册)

PLANAR PC0100 PC0200 PC0300 国产业务机 用电器 [e-mail]

用户指南

Technical diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

1. 将盖子放回。

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a computer monitor, remote control, and server rack (no text or symbols present)

警告

Green circular button with white power symbol (no text or numbers)

警告

Close-up of a hand pressing a metallic cylindrical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a black inner ring and blue arrow indicator (no text or symbols)

故障排除

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN55022 警告

Line drawing of a portable electronic device with ventilation slots and a central button (no text or symbols)

使用指南

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Oppet: Man-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

DLP 投影機

Black remote control with two cylindrical batteries on the right (no text or symbols visible)

遙控器
(附二顆 AAA 電池)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

電源線
(依國家而定)

Simple line drawing of a cable with three connectors and wires (no text or symbols)

類比色差影像 連接線

SPECIALTY HOME THEATER DISPLAYS Use's Manual PLANAR

光碟
(內含本使用手冊)

PLANAM PC4010 PC4010 PC4066 OLE® NR35 新功能 www.danaman.com

使用指南

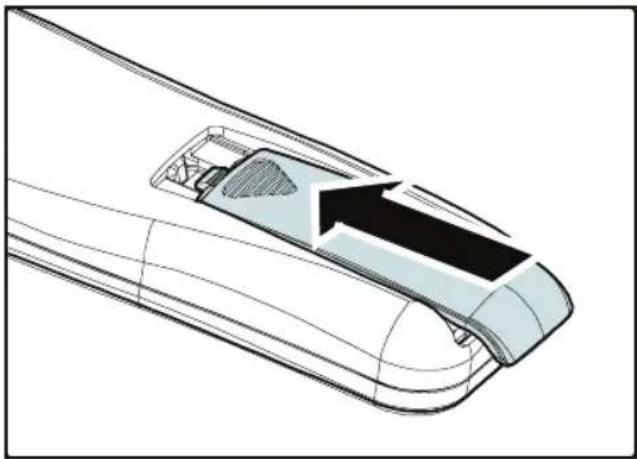

Technical diagram of a car interior showing airflow or exhaust flow direction (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

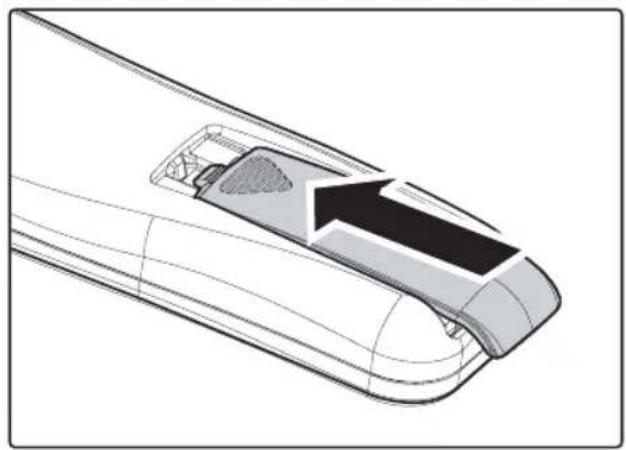

1. 將蓋子放回

Technical illustration of a mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Diagram showing connections between a computer monitor, remote control, and server equipment with colored connectors

警告

Green circular button with white power symbol (no text or numbers)

警告

Close-up of a hand pressing a metallic mechanical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue dotted arrow indicating rotation (no text or symbols visible)

疑難排解

Line drawing of a portable projector with front and back views (no text or symbols)

イガズド ユーザード

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

DLPプロジェクト

Black remote control with two cylindrical batteries beside it (no visible text or symbols)

Line drawing of a coiled cable or connector with connectors (no text or symbols)

電源コード (国によって)

Pure electrical circuit lines without any symbols

コンポーネント ビデオケーブル

SPECIALTY HOME THEATER DISPLAYS User's Manual PLANAR CLOVRATION

CD-ROM (ユーザーズマニュアル)

Technical diagram of a car interior showing airflow or airflow direction (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

1. カバーを元に戻します。

Technical illustration of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a CD-ROM device, a laptop, remote control, and a server rack (no text or symbols present)

警告

Green circular button with white power symbol (no text or numbers)

警告

Close-up of a hand pressing a metallic cylindrical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue arrow indicating rotation (no text or symbols visible)

トラブル ルシューティング

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN55022警告

Line drawing of a portable projector with front and back views (no text or symbols)

사용자 안내서

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern, curved electronic device with a metallic port and a small screen (no visible text or symbols)

DLP 프로젝터

Black remote control with two cylindrical batteries (no text or symbols visible)

리모콘 (AAA 건전지 2개)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

전원 코드 (나라 마다 다름)

Pure electrical circuit lines without any symbols

콤포넌트 비디오 케이블

SPECIALTY HOME THEATER DISPLAYS User's Manual PLANAR 2018/02/16 C:\LAB\PLANAR

CD-ROM (사용자 매뉴얼 포함)

Technical diagram of a car interior showing airflow or exhaust flow direction (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

1. 커버를 다시 넓는다.

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a monitor, remote control, and connected devices with colored cables to a central device.

경고

Green circular button with white power symbol (no text or numbers)

경고

Close-up of a hand pressing down on a metallic mechanical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a black inner ring and blue arrow indicator (no text or symbols)

문제해결

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

EN 55022 경고

Line drawing of a portable projector with visible internal components and mounting holes (no text or symbols)

Guia do usuário

www.PlanarHomeTheater.com

English

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

Projetor DLP

Black remote control with two cylindrical batteries beside it (no text or symbols visible)

Line drawing of a coiled cable or plug with connectors (no text or symbols)

Corda (Pelo país)

Simple line drawing of a cable with three connectors and wires (no text or symbols)

Cabo Video Componente

SPECIALTY HOME THEATER DISPLAYS Unit Card PLANAR 2018/02/16 ISSN: 1954-037-123

CD-ROM (Este manual do consumidor)

FLANAR FDS10 FDS10 FDS10 Projector SLR# SUNO 12: 96.0700 www.flanar.com

Guia do Usuário

Technical illustration of a mechanical component with a downward arrow indicating direction (no text or symbols)

Diagram of a remote control casing with two batteries, showing battery polarity and rotation arrows (no text or symbols)

1. Repor a tampa.

Technical diagram of a mechanical component with internal structure and highlighted section (no text or symbols)

Diagram showing connections between a monitor, remote control, and audio equipment with colored cables connecting to a device.

CUIDADO

Green circular button with white power symbol (no text or numbers)

CUIDADO

Close-up of a hand pressing a button on a metallic mechanical component (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component with a blue dotted arrow indicating rotation (no text or symbols visible)

FCC Class B, UL, c-UL, CE, TUV-GS, CCC, PCT, MIC/EK

Line drawing of a projector with visible internal components and mounting holes (no text or symbols)

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone: US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

Deutsch

Planar Systems, Inc.

Planar Systems, Inc.

Sede corporativo

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Apoyo de cliente

Planar Systems, Inc.

Cooperar Quartel-general

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Maison mère

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Support technique Planar

Telephone: en Anglais: 1-866-PLANAR1 [phone]

Planar Systems, Inc.

Sede

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Systems, Inc.

Huvudkontor

1195 NW Compton Drive

Beaverton, OR 97006-1992, USA

Planar Kundsupport

Telefon: US: 1-866-PLANAR1 [phone]

Internationellt: [phone]

E-post: [e-mail]

On-line tekniska bibliotek: http://www.planar.com/support

Öppet: Mån-fre 8.00-20.00 ET, 12.00-24.00 GMT

繁體中文

Planar Systems, Inc.

Корпоративный Штаб

1195 NW Compton Drive, USA

Beaverton, OR 97006-1992

Carefully unpack the projector and check that the following items are included.

Black and white photo of a modern, curved electronic device with a metallic port (no visible text or symbols)

DLP Проектор

Black remote control with circular buttons (no text or symbols visible)

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

Diagram of a battery inside a remote control casing with arrows indicating rotation (no text or symbols)

1. Закройте крышку.

Technical diagram of a mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Diagram showing connections between a monitor, remote control, a CD-ROM device, and a server rack with colored cables (no text or symbols present)

ПРЕДУПРЕЖДЕНИЕ

Simple diagram showing a house inside a box with three windows, pointing to the right (no text or symbols)

Green circular button with white power symbol (no text or numbers)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a hand pressing down on a metallic cylindrical component with blue arrows indicating motion (no text or symbols)

Close-up of a hand holding a cylindrical mechanical component with a blue dotted arrow indicating rotation (no text or symbols visible)

Planar Systems, Inc.

Corporate Headquarters

1195 NW Compton Drive

Beaverton, OR 97006-1992

Planar Customer Support

Telephone:

US: 1-866-PLANAR1 [phone]

Outside US: [phone]

E-mail: [e-mail]

Online Technical Library: http://www.planar.com/support

Hours: M-F, 8am - 8pm ET, 12pm - 12am GMT

©2006 Planar Systems, Inc. Planar is a registered trademark of Planar System, Inc.

Other brands and names are the property of their respective owners.

Technical Information in this document is subject to change without notice.
