USER MANUAL MET1416 Meister Craft

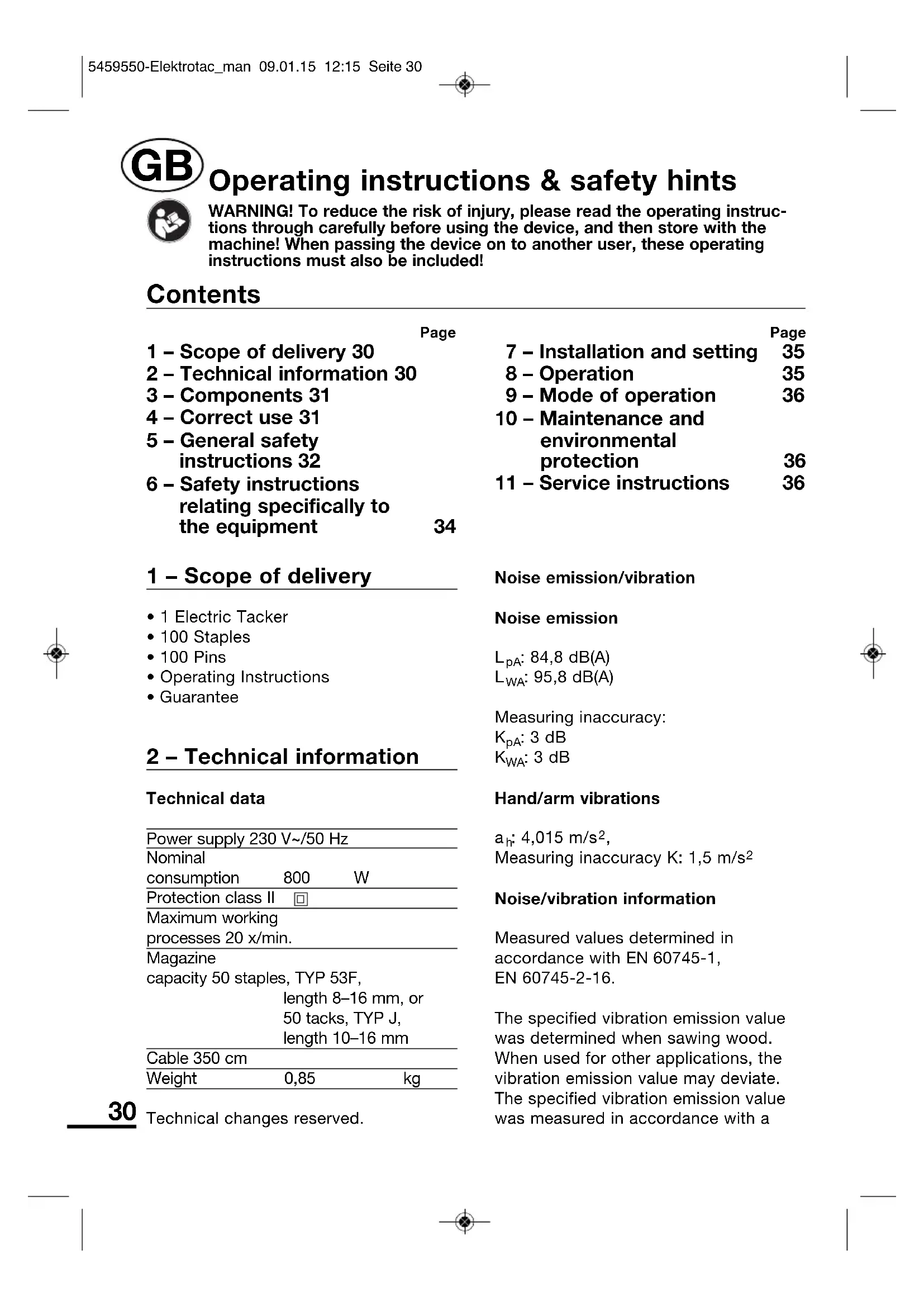

Measuring inaccuracy K: 1,5 m/s Noise/vibration informationMeasured values determined inaccordance with EN 60745-1,EN 60745-2-16.The specified vibration emission valuewas determined when sawing wood.When used for other applications, thevibration emission value may deviate.The specified vibration emission valuewas measured in accordance with a Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

Page 1 – Scope of delivery 30 2 – Technical information 30 3 – Components 31 4 – Correct use 31 5 – General safety instructions 32 6 – Safety instructions relating specifically to the equipment 34 Page 7 – Installation and setting 35 8 – Operation 35 9 – Mode of operation 36 10 – Maintenance and environmental protection 36 11 – Service instructions 36 Contents 5459550-Elektrotac_man 09.01.15 12:15 Seite 3031 normed test procedure and can be used in order to compare one electrical tool with another. The specified vibration emission value can also be used for an introductory evaluation of the influence. CAUTION! The vibration emission value may fluctuate from the specified value during use of the power tool. These fluctuations will depend on the way in which the power tool is used. Try to keep the vibration loads as low as possible. Examples of measures that may be taken to reduce the vibration load include wearing gloves when using the tool and limiting the length of the working period. All parts of the operating cycle must be taken into account for this purpose (for example, also including times in which the power tool is switched off and times in which it is switched on, but is running without load). CAUTION! A certain amount of noise is unavoidable when using this device. Ensure you carry out noise-intensive work during permitted times. Maintain the quiet periods and limit your work to the absolute minimum. CAUTION! The effects of noise may cause damage to the hearing. Only ever work with suitable ear defenders. Anybody else in the vicinity should thus also wear ear defenders. 3 – Components 1 Trigger 2Handle 3 Connection cable 4 On/Off switch 5 Magazine lock mechanism 6 Magazine 7 Staple/nail ejection 8 Trigger protection mechanism 4 – Correct use This electric tacker is suitable for tacking wood strips, wire mesh, films, cardboard, shaped sealing materials, decorative and covering materials, etc. to wood and other suitable materials with the specified staples and tacks. All other applications are expressly excluded. This device is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those without experience and/or knowledge. Children should be supervised to ensure that they do not play with the device. The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool. Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use. The permitted stroke rate of the tool insert must be at least as high as the highest value specified on the electrical 5459550-Elektrotac_man 09.01.15 12:15 Seite 3132 tool. Accessories that turn faster than is permitted may break and fly away. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. WARNING! During operation, this power tool generates an electro - magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 5459550-Elektrotac_man 09.01.15 12:15 Seite 3233 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations. 5459550-Elektrotac_man 09.01.15 12:15 Seite 3334 h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b If the mains connection cable of this device is damaged, it must be replaced with a special connection cable that can be obtained from the manufacturer or their customer service. 6 – Safety instructions relating specifically to the equipment

• Always assume that the tool contains staples. Careless handling of the stapler can lead to staples being fired off unintentionally and causes injuries.

• Never turn the tool on yourself or on other people. Unexpected triggering with discharge the staples and cause injuries.

• Only activate the tool when it is pressed up firmly against the item you are working on. If the tool is not in contact with the work piece, the staples may miss their target. 5459550-Elektrotac_man 09.01.15 12:15 Seite 3435

• Unplug the tool from the power supply if a staple is trapped in the tool. When removing the trapped staple, the stapler may be triggered accidentally if it is still connected to the power.

• Be careful when removing a trapped staple. The mechanism may be under tension and the stapled may suddenly shoot out when you attempt to release it.

• Never use the stapler to secure electrical cables. It is not designed for securing electrical cables and is capable of damaging the insulation of the cables and thus causing electrical shock or a fire.

• Pull out plug before loading staples.

• Switch the appliance off before inserting plug into socket.

• Ensure that the power cable is well away from the appliance.

• Do not touch touch-sensitive switch.

• Never point appliance at people or animals! Staples or nails fired at close range may cause serious injury.

• Use only appropriate staples.

• Check the magazine lock before using.

• During breaks in work push the lock switch (1) to „O/Off“.

• Wear ear protectors and protective gloves.

• Do not use the appliance to fasten down electric cables or leads. Safety symbols The symbols on the housing have the following meanings: Do not dispose of with domestic waste! Important! Observe operating instructions! „Tested Safety“ voluntary quality mark CE Mark (conformity to European safety standards) Housing is double insulated 7 – Installation and setting Inserting staples/nails Unplug from the power source! Open the magazine lock (5) and pull the slider out (Figure 2). Insert the stable/nail strips into the magazine (Figures 3 and 4). Push the slider back into place and lock (Figure 5). 8 – Operation It is normal for the unit to warm up during operation, this is not a fault. The device is triple secured against accidental triggering: Switching on Set the switch (4) to the I setting. 5459550-Elektrotac_man 09.01.15 12:15 Seite 3536 Switching off Set the device to 0. Trigger The trigger (1) releases a single shot when activated and then deactivates automatically. For each additional shot, the trigger must be activated again. CAUTION! Set back, risk of injury. Trigger lock The trigger protection mechanism (8) ensures that the stapler can only be triggered when in contact with the material. To do this press the trigger protection mechanism up against the work piece, use both hands if necessary. 9 – Mode of operation Single trigger Position the trigger protection mechanism (8). Press the unit up against the material, briefly press the trigger (1) and release. Before carrying out any work, test the materials to be joined for suitability and performance and select the appropriate staple size in accordance with Figure 6. Eliminating jams, twisted staples and nails Depending on how hard the workpiece is, individual staples may become jammed in the device. When this happens, interrupt the process by unplugging the tool and remove the staples from the magazine using a pair of pliers (6). Soft materials Slides, textiles, foam, paper: Stretch the material as required, and position it exactly before activating the stapler. Once you have applied the staples or nails, they are usually very difficult to remove. 10 – Maintenance and environmental protection

• Clean the machine housing with a damp cloth only – do not use solvents! Then dry well. Never submerge electrical machinery in water.

• Always ensure that the ventilation slots of the machine are kept clean. CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the house - hold waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environ mentally-friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. 11 – Service instructions

• Store the machine, operating instructions and where necessary the

5459550-Elektrotac_man 09.01.15 12:15 Seite 3637 accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim. IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price. 5459550-Elektrotac_man 09.01.15 12:15 Seite 3738 1 – Omvang van de levering
