Product Type	Extractor hood
Brand	Franke
Model	FSM 601 WHGL
Width	60 cm
Power supply	220-240 V, 50 Hz
Electrical class	Class I (grounding mandatory)
Number of speeds	3 (low, medium, high)
Lighting	Integrated lamp (L switch)
Grease filter	Dishwasher safe, clean every 2 months
Charcoal filter	Not washable, replace every 4 months (intensive use)
Extraction diameter	Minimum 120 mm
Minimum distance to hob	650 mm (check hob instructions if gas)
Installation	External extraction or recirculation
Use	Domestic, removal of cooking odors
Surface maintenance	Damp cloth and mild liquid detergent
Safety	Do not flambé under the hood, monitor fryers
Cord replacement	By the manufacturer or an authorized technician
Warranty	See manufacturer's conditions
Repairability	Contact after-sales service for spare parts

Frequently Asked Questions - FSM 601 WHGL FRANKE

What is the minimum distance to be observed between the hood and the hob?

The minimum safety distance is 650 mm. For gas cookers, strictly follow the manufacturer's instructions if they specify a greater distance.

How to clean the grease filters?

The grease filters are dishwasher safe (dishwasher). Clean them every 2 months to avoid fire risk.

When should the charcoal filter be replaced?

The charcoal filter is not washable and must be replaced every 4 months, or more often with intensive use (indicated as W in the manual).

How to adjust the motor speed?

Use the V button to select among 3 speeds: 1 (low, quiet), 2 (medium, normal use), 3 (high, strong vapors).

Can I use the hood in recirculation mode without external extraction?

Yes, you need to install an active charcoal filter to recirculate the air. The filtered air is then returned to the room.

What to do if the lighting stops working?

Contact the authorized after-sales service for lamp replacement. Do not attempt to change it yourself unless specified in the manual.

The hood is noisy, is this normal?

Some noise is normal, especially at maximum speed. If the noise becomes abnormal, check that the filters are not clogged or that nothing is obstructing the exhaust duct.

What is the procedure for a safe installation?

Installation must be carried out by a qualified technician. Make sure the plug is accessible and that grounding is compliant (Class I appliance).

Can I flambé food under the hood?

No, it is forbidden to flambé under the hood, as this could cause a fire. Keep flames away from the appliance.

How can I get spare parts or a repair?

Contact the authorized Franke after-sales service. Use only original parts to ensure safety and operation.

USER MANUAL FSM 601 WHGL FRANKE

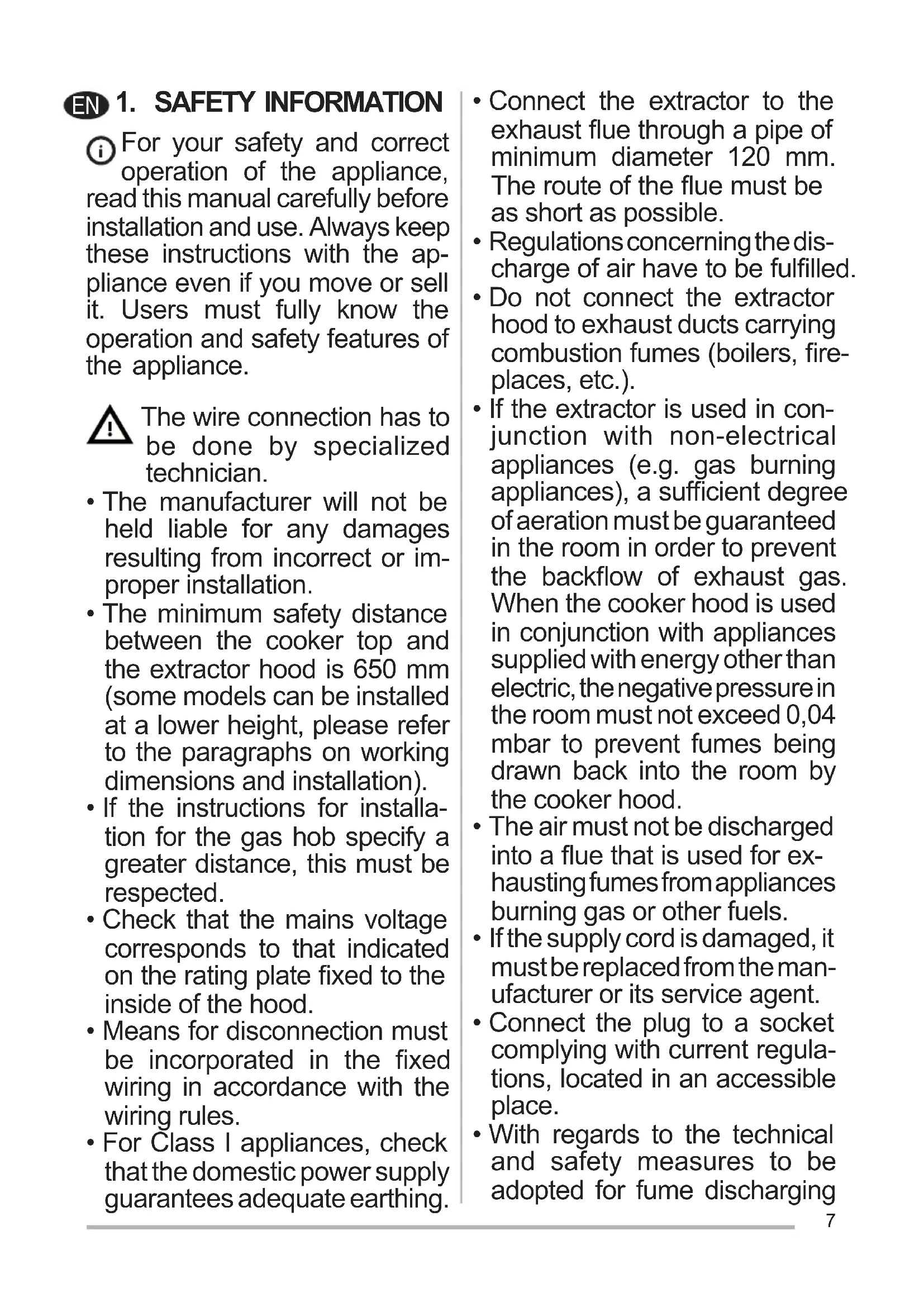

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by a specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging,

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films. - Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. - Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambé under the range hood; risk of fire. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

! Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

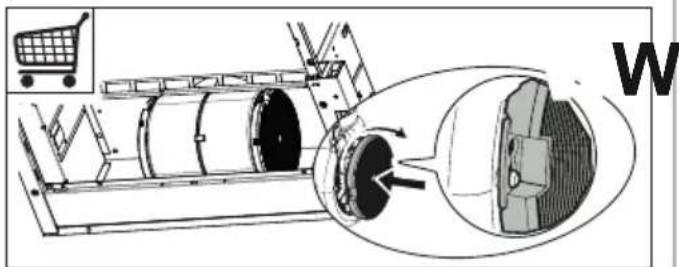

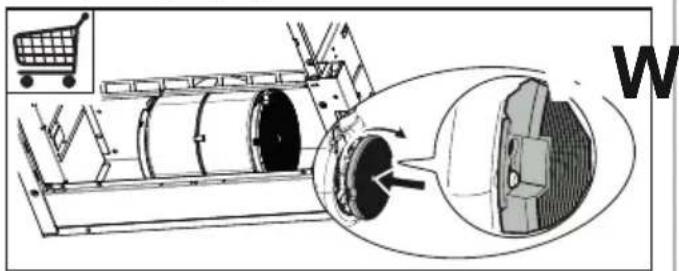

• The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

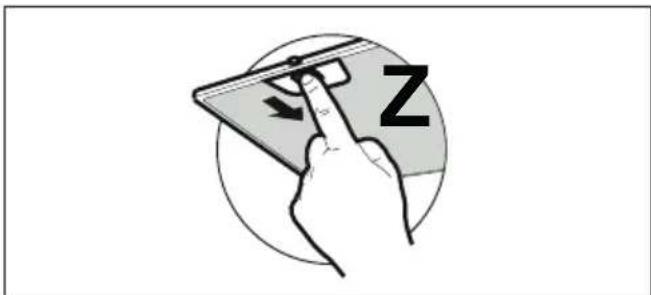

• The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

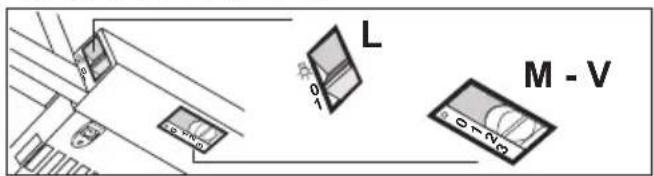

L	Light	Switches the lighting system on and off.
M	Motor	Switches the extractor motor on and off.
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

L	Light	Switches the lighting system on and off.
M	Motor	Switches the extractor motor on and off.
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

3. CLEANING AND MAINTENANCE

• Use only the screws and metal parts supplied for installing the extractor hood.

WARNING: Use of screws or clamping devices not in accordance with the instructions in this manual may result in dangerous situations and electric shock.

It is not recommended to look directly at the lamp through optical devices (binoculars, magnifying glass, etc.). Do not flambé food under the hood: fire hazard. - The appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised. - Do not use the appliance by persons (including

children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge; otherwise they must be properly supervised and instructed.

Accessible parts of the appliance may become hot during cooking.

Clean or replace the filters after the specified period of time (fire hazard). See the section on care and cleaning of the appliance. Adequate ventilation must be provided in the room when the hood is used simultaneously with appliances burning gas or other fuels (this rule does not apply to appliances that discharge air only into the room). The symbol on the product or on its packaging indicates that the appliance cannot be disposed of as normal household waste. The appliance, at the end of its life, must be taken to a separate collection point for recycling of electrical and

Waste electrical and electronic equipment. Users who correctly dispose of the device for recycling help prevent potential negative consequences for the environment and for human health, which could arise from improper disposal. For more detailed information on the recycling of this product, please contact your local city office, your local waste disposal service, or the store where the product was purchased.

2. OPERATION

The extractor hood is intended solely for use in the kitchen to remove cooking odors. - Never use the hood for purposes other than those for which it is intended. - Never leave the hood operating at high flame settings. - Adjust the flame so that it stays under the bottom of the cookware and does not extend beyond its edges. - When cooking in a frying pan, always watch it: overheated oil may catch fire.

3. CLEANING AND MAINTENANCE

The activated carbon filter cannot be washed or restored; it should be replaced approximately every 4 months of use, or more often in case of very intensive use of the appliance (W).
