INNEHÅLL SVCONTENT GB SAFETY INSTRUCTIONS1. General warnings2. Protection of the environment3. Installation4. Electrical connection5. Hob cookware advice6. Use7. Cleaning and maintenance8. Problem solvingAftercare9.

INNEHÅLL SVWe recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service.

WARNING: the appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: use only hob guards designed by the

Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat

or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on

the cooking surfaces.

WARNING: if the surface is cracked, do not touch

the glass and switch off the appliance to avoid the possibility of electric shock. This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously. It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns. This appliance is not intended to be operated by means of an external timer or separate remote control system. If present do not to stare into halogen lamp hob elements. Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a SAFETY INSTRUCTIONS suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F. Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones. After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation. Never use a steam or high pressure spray to clean the appliance. Do not touch the heat zones during operation or for a while after use. Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.Always place the pan in the center of the unit that you are cooking on. Do not place anything on control panel. Do not use the hob as a working surface. Do not use the surface as a cutting board. Do not store heavy items above the hob. If they drop onto the hob, they may cause damage. Do not use the hob for storage of any items. Do not slide cookware across the hob. No additional operation/setting is required in order to operate the appliance at the rated frequencies. 03 GBLeave a distance of at least 55 mm between the hob and the back wall and of at least 150 mm between the hob and the vertical furniture or walls in the lateral side. If a furniture is installed above the hob, the minimum distance required is 700 mm. When installing a hood above the hob, please consult the installation requirements specified for the hood but, in any case, the distance between the hob and the hood must not be lower than 700 mm.

Identification Plate (located under the hob's bottom casing)

By placing the mark on this appliance we are assuring compliance to all European Safety, Health and Environment requirements which are applicable for this product category.

2. PROTECTION OF THE ENVIRONMENT

This appliance is marked according to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components which can be reused.It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants and recover and recycle all materials. Individuals can play an important role in ensuring that the WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE shall not be threatened as household waste.

• WEEE shall be handled over to the relevant collection points managed by the municipality or by registered companies. In many Countries, for large WEEE, home collection could be present.

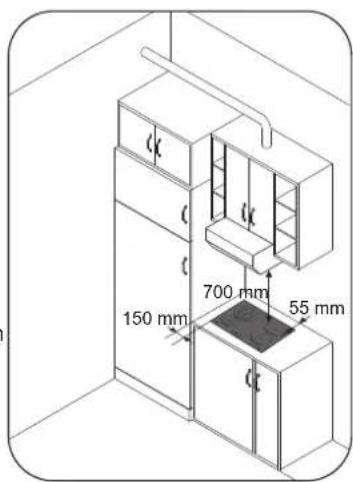

• In many Countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the appliance is of equivalent typology and has the same functions as the supplied one. 3 INSTALLATION. Installing a domestic appliance it is a complicated operation which, if not carried out correctly, can seriously have impact on safety of goods, properties or people. For this reason, it should be carried out by a professionally qualified person in accordance with technical regulations. In the event that this advice it is ignored and installation is carried out by an unqualified person, the Manufacturer declines all responsibility for any technical failure of the appliance whether or not it results in damage of goods or properties or in injury of people or animals. After having removed the packaging please be sure that the appliance it is not damaged, otherwise contact the Retailer or ManufacturerAfter Sales Service. Make sure that the furniture in which the appliance will be fitted and all other furniture in the nearby are made with materi ls which can withstand high temperatures (min 100 °C). In addition, all decorative laminates should be fixed with high-resistance glue. Appliance can be installed in a Built-in furniture in “Standard” or “Flush” mode. 700 mm55 mm150 mm 490 mm + 2

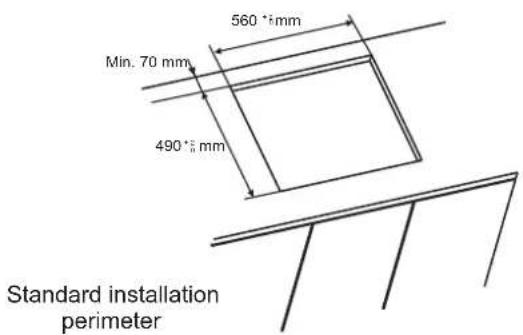

Min. 70 mm Standard installation perimeter Note: Inner perimeter dimensions are same with standard installation 703 mm (70 cm hob)

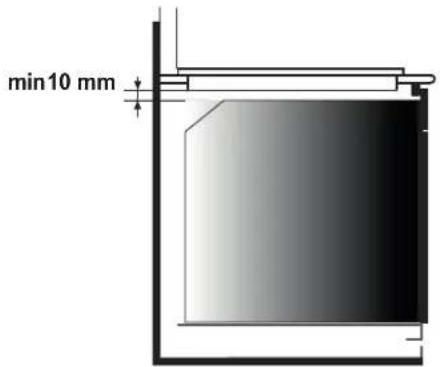

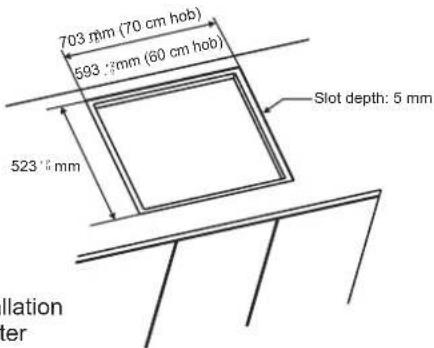

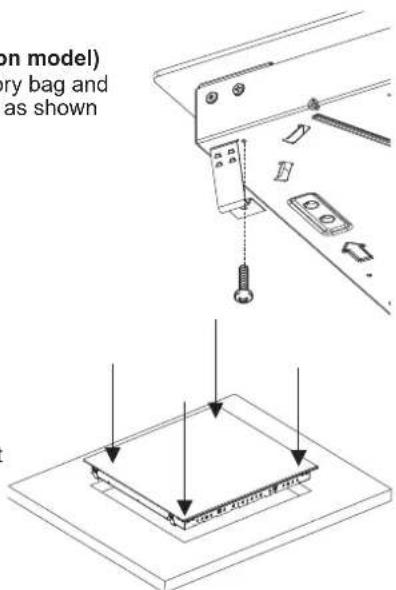

Slot depth: 5 mm Flush installation perimeter Worktop thickness should be between 25 and 45 mm. If the bottom part of the hob is adjacent to an area normally accessible for handling or cleaning operations, a separator it must be put 0 mm2 below the bottom part of the hob. min 20 mm When installing an oven under the hob, separator must not be put and the minimum distance between the bottom part of the hob and the oven must not be lower than 10 mm. Do not install not cooled oven under this hob and install the oven following its own installation requirements. 10 mm min 04 GBFLUSH INSTALLATIONAfter checking that the position ofthe hob is correct fill the gapbetween the worktop and the hobwith silicone adhesive. Flatten thesilicone layer with a scraper orwith wet finger damped with waterand soap before it forms.Do not use the hob until thesilicone layer it is completely dry.A watertight seal gasket issupplied with the hob. Fitthe seal gasket around thebottom hob as describedand make sure that it isproperly fitted to avoid anyleakage into the supportingfurniture. Bottom Normal Fixing:- Get the fixing clips from accessory bag and screw them into the position shown on bottom box. (Do not tighten the screws to block clips, they should move freely)- Insert the hob in centerposition of cut out.- Turn the clips and tightenthem fully.Quick Fixing: (Depending on model)Get four springs form accesory bag andscrew them onto bottom box as shownin figure.Center and insert the hob.Press the sides of hob until itis supported around itsentire perimeter. 05 GB

LAYOUT According to model

5.Additional cooking zone led

6. Cooking zone programming indicator

4"Installation must conform to the standards & directives."Manufacturer declines all responsibility for any damage that mightbe caused by unsuitable or unreasonable use.

WARNING: Manufacturer cannot be held responsible for any incident or

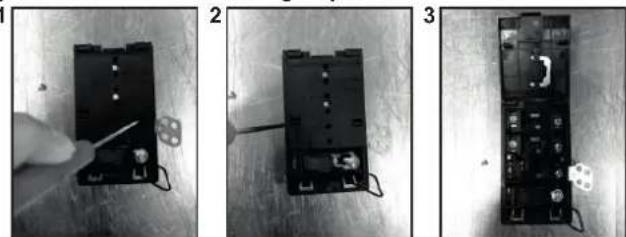

its consequences that may arise during the use of an appliance not linkedto the earth, or linked to an earth whose continuity is defective. Before anyelectrical operation, please check the supply tension shown on theelectricity meter, the adjustment of the circuit- breaker, the continuity of theconnection to earth to the installation and that the fuse is suitable. The electrical connection to the installation should be made according to the rated power of the Appliance; this should be made via an Omni pole cut-out switch. If the appliance has a socket outlet, it must be installed so that the socket outlet is accessible.The yellow/green wire of the power supply cable must be connected to theearth of both power supply and appliance terminals.For any questions regarding power supply cord refer to After SalesService or a qualified technician. If the hob is fitted with power supply cord, this shall be connected only to a power supply of 220-240 V between phase and neutral.It is however possible to connect the hob to:Three Phase 220-240 V3Three Phase 380-415 V2NTo proceed to the new connection, please follow below instructions:Before making the connection, make sure that the installation is protectedby a suitable fuse, and that it is fitted with wires of a large enough section tosupply the appliance normally.Turn over the hob, glass side against the working top, taking care to protectthe glass.Open the cover in the following sequence:- unscrew the cable clamp "1";- find the two tabs located on the sides;- put the blade of a flat screw-driver in front of each tab "2" e"3", push in and press;- remove the cover.To release the power supply cord: - Remove the screws retaining the terminal block which contains the shunt bars and the conductors of the supply cord; - Pull out the supply cord. Operations to be carried out to make a new connection: - Choose the power supply cable in accordance with the recommendations in the table;- Pass the power supply cable into the clamp; - Strip the end of each conductor of the supply cord on a 10 mm length, by taking in account the requested length of the cord for the connection to theterminal block; - According to the installation and with the help of shunt bars which you should have recovered in the first operation, fix the conductor as shown on the chart; - Fix the cover;- Screw the cable clamp. Note: make sure the terminal board screws are tight. Operations to be carried out to make a new connection: - Choose the power supply cable in accordance with the recommendations in the table;- Pass the power supply cable into the clamp; - Strip the end of each conductor of the supply cord on a 10 mm length, by taking in account the requested length of the cord for the connection to the terminal block;- According to the installation and with the help of shunt bars which you should have recovered in the first operation, fix the conductor as shown on thechart;- Fix the cover;- Screw the cable clamp. Connection to the terminals on the terminal block ATTENTION:If it should be necessary to replace the power supply cord, connect thewire in accordance with following colors/codes:LAY OUT"1-3"LAY OUT"2-4"MONOPHASE or TWO PHASES 220-240 V CableHO5V2V2FCableHO5V2V2FCableHO5V2V2F3x2,5 mm 3x4 mm 4x1,5 mm 4x1,5 mm 4x1,5 mm 4x1,5 mm THREE PHASES 220-240 V3~THREE PHASES 380-415 V2N~ 06 GB

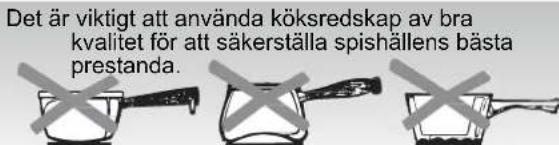

Using good quality cookware is critical for setting the best performance from your hob.

• Always use good quality cookware with perfectly flat and thick bases : using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide an evendistribution of heat.
• when fillingEnsure that the base of the pot or pan is dry : pans with liquid or using one that has been stored in the refrigerator,ensure that the base of the pan is completely dry before placing it onthe hob. This will help to avoid staining the hob.
• Use pans whose diameter is wide enough to completely cover the surface unit : the size of the pan should be no s m a l l e rthan the heating area. If it is slightly wider the energy will be used at itsmaximum efficiency. THE CHOICE OF COOKWARE - The following information will help you to choose cookware which will give good performance. Stainless Steel : highly recommended. Especially good with a sandwich clad base. The sandwich base combines the benefits ofstainless steel (appearance, durability and stability) with theadvantages of aluminium or copper (heat conduction, even heatdistribution). Aluminium : heavy weight recommended. Good conductivity. Aluminium residues sometimes appear as scratches on the hob, butcan be removed if cleaned immediately.Because of its low melting point, thin aluminium should not be used. Cast Iron : usable, but not recommended. Poor performance. May scratch the surface.231SHUNT

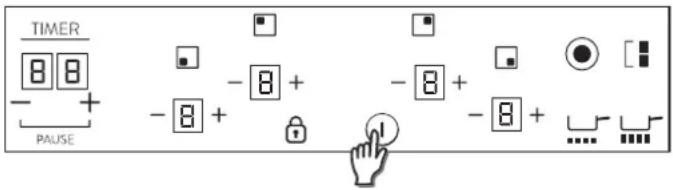

PE6. USE Switch ON/OFF a heater zoneTo switch ON a heater Touch power key during 400 msec. Long beep will be heard and "0" value will appear in target zone digit, indicating power level.1) If any cooking stage is in position 0, this display will switch OFFautomatically after 10 seconds and the zone OFF sequence willsound.2) If there is residual heat indication in the display which is ON but in 0power, "0" will appear changing over.3) If lock function is active you cannot switch ON a zone.To switch OFF a heater Touch power key during 1,2 sec. 3 Shortbeeps will be heard and nothing or "H" value will appear in target zonedigit if residual heat exists. Zone will be OFF.1) If any cooking stage is in position 0, this display will switch OFFautomatically after 10 seconds and the zone OFF sequence willsound.

2) If there is residual heat indication in the display which is OFF, "H"

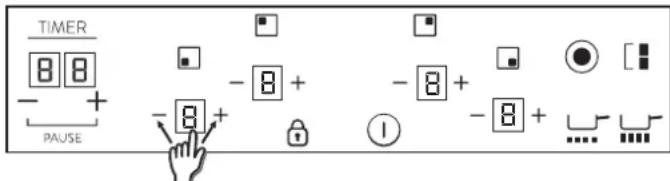

will be displayed.3) Even lock function is active you can switch OFF a zone.4) If only one heater is active and this one is switched off, 4 Short beepwill be heard indicating all cook top is Off.Increase / Decrease power levelWith a short press on ‘+’ or ‘-‘ keys, Increase or decrease power in theselected zones digit: 0-1-2-3...9-P

1. For Long Presses in + or - keys, power level increases /decreases

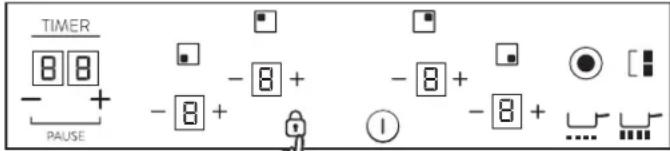

continuously. With a fast increase, power stops at level 9, and for ahigher power another short press is needed on the + key. No beepsound is heard with fast increase / decrease.2. Once arrived to P power level, pressing + key again does not change power level to 0.Once arrived to 0 power level, pressing - key again does not change power level to P.3. With a zone ON at 0 power level, if the zone is hot, 0 will blinkalternatively. After 10 seconds, 0 will disappear an ‘H’ letter will appearfixed on display.4. When a heater is selected and ‘+’ & ‘-‘keys are touched at the same time, power level will go to ‘0’ but heater will maintain selected during 10 seconds. If heater was temporized, timer will go to Off. This action can only be developed in several cases depending touch controlconfiguration.The following examples are for information only. Personal experience should then let you adapt these settings to your taste and habits.Child LockThe action will be done when lock key is touchedThen, any time when a key will be touched, displays will show "L"during 2sec. heating remains at the same state. To deactivate Child Lock, follow the same process explained before. Then Short beep will be heard and displays will show "n" letter. Hob willremain unlocked.Note: An automatic child lock will produce in 15 minutes after totalSwitch OFF of the hob.07 GB To switch ON double extension ring, associated main zone must be already ON and Indicating power level must be higher than 0.8.1- Double zone ON 1st Short Press on extension key Switches ON extension ring. LED over extension key turns ON if Extension ring is ON.2nd Short Press on extension key Switches OFF extension ring.Short beep each press on extension key.8.2- Triple zone ON 1st Short Press on extension key Switches ON 1st extension ring. 1 LED over extension key turns ON if 1st extension ring is ON (left LEDin case of triple zone, middle and only LED in case of double zone) 2ndShort Press on extension key Switches ON 2nd extension ring. 2 LEDs over extension key turn ON if 1st and 2nd extension rings are

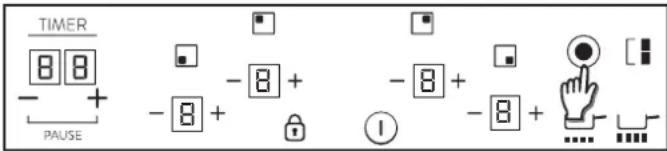

3rd Short Press on extension key. Switches OFF 1st and 2ndextension rings.Short beep each press on extension key.Double / Triple zones

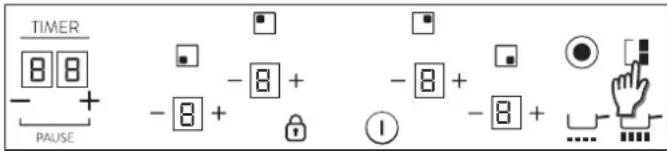

Copper Bottom / stoneware: heavy weight recommended. Goodperformance, but copper may leave residues which can appear asscratches. The residues can be removed, as long as the hob iscleaned immediately. However, do not let these pots boildry. Overheated metal can bond to glass hobs. An overheated copperpot will leave a residue that will permanently stain the hob. Porcelain/enamel : Good perfomance only with a thiny smooth, flat base. Glass-ceramic : not recommended. Poor performance. May scratch the surface.Bridge functionThe bridge can be enabled only when both heaters are off. One heaterof the bridge has been selected, to activate bridge function touchbridge key.Abeep sounds and the zone LED is switched on if the zone is enabled.Both bridge heaters will be selected at the same time.Once the heaters selected, if the power level is not the desired powerlevel, by the + - keys.Both bridge heater displays will show same power level.The function will finish:- If the bridge key is touched in setting mode- If user selects power level “0”Melting functionAfter a heater has been selected, to activate melting function:- Select melting keyAtone sounds and heater display shows “U”The heater will work at power level “2”Being the heater selected, Melting function will finish- If switched off- If it is selected to other power level.

8Overflow security Something (an object or a liquid) is pressing any key during more than 5s. 2 Short Beep + 1 Long beep every 30s while the key is pressed. Cook-top will turn Off. This symbol will maintain blinking while thematter persist. Timer To activate timer, heater must be selected and its power level mustbe greater than “0”; Select the zone to be timed. Power level of the zone greater than 0. Static is displayed in the zone being timed . "0 0" in the digitsreserved for the timer.

1) With "+" or "-" keys, timer time can be chosen. No Beeps at time

change.2) Pressing simultaneously timer "+/-" keys the timer is cancelled(goes to 00).3) If timer "+" or "-" keys is maintained pressed during TBD time, thereis quick setting.4) When setting timer time, it is possible to go from "00" to "99" with "-"key, and from"99" to "00" with "+" key.5) Maximum time 99 minutes.6) When the time is elapsed and the hob is beeping, press any key andthe alarm and digit sequence will end. Residual Heat Indicator (In radiant heaters-> calculated) The same indicators can be used for “residual heat” indication as well.Atime table must be defined on this purpose: Rest Heat time=f (powerlevel, working time).While a temperature on the cook top glass surface is above65 Cb(theory value), this condition will be shown in the associated display, by means of an “H”.To generate a temperature above 65 C a heating element has to be in operation for certain time, this time depends on the power level. Once this time has expired, the residual heat warning will be shown when the heating element is switched off. Automatic Safety Off If the power level is not changed during a preset time, thecorresponding heater turns off automatically.The maximum time a heater can stay on, depends on the selectedcooking level.Power levelMax. time on (hours)

NOTE: while an overheating situation should occur during theoperation of the highest power levels, the Hob control will automatically adjust the power level in order to protect the hob from overheating.

7. CLEANING AND MAINTENANCE

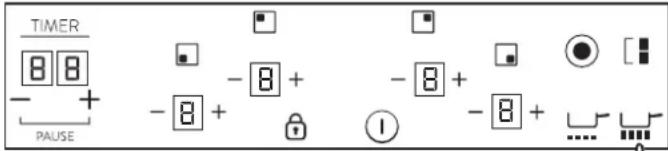

. Before carrying out any maintenance work on the hob, allow it tocool down. . Only products, (creams and scrapers) specifically designed for aglass ceramic surfaces should be used. They are obtainable from hardware stores. . Avoid spillages, as anything which falls on to the hob surface will quickly burn and will make cleaning more difficult. . It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products..MAINTENANCE:- Place a few drops of the specialised cleaning product on the hobsurface. - Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.- Wipe with a soft cloth or dry kitchen paper until the surface is clean.If there are still some stubborn stains:- Place a few more drops of specialised cleaning fluid on the surface. - Scrape with a scraper, holding it at an angle of 30° to the hob, until the stains disappear.- Wipe with a soft cloth or dry kitchen paper until the surface is clean.- Repeat the operation if necessary. 08 GB Boiling Function: After a heater has been selected, to activate Boiling function:- Select Boiling keyAtone sounds and heater display shows “P”The heater will work at maximum power level for 10 minutes.After these 10 minutes a tone sounds heater will return to level “9”7) It is possible to adjust the timer time while the timer is previouslyrunning.8) Power of timed zone can be modified without consequences on thetimer programming.9) Last minute will be displayed by seconds (For Variants only visible ifwe enter the timer programming while the last minute of thecountdown)10) Pressing the Timer key without any selected zone and when nozone is being timed, does nothing.11) Pressing the Timer key without any selected zone and when manyzones are being timed, the time shown in time digits changes in a rotatory way, and shows the time whose power display has the decimal point ON.

12) Alternatively Power (5s) and (0,5s) is displayed in the zone being

timed.Remaining time is displayed in the digits reserved for the timer. Ifmultiple zones are timed, the smallest remaining time is displayed,and the decimal point is displayed in the corresponding zone.

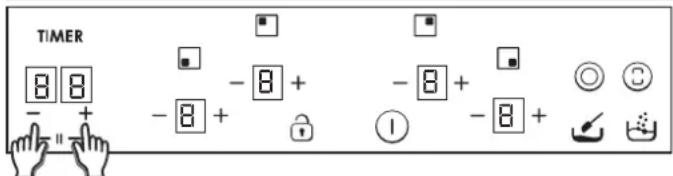

Puause f nction The Pause function allows temporary pausing of the cooking process, allowing the users to answer the door or the telephone without worrying that the water is boiling over. This function is also useful to clean the user interface surface without changing the cooking set up.To select this functio , the user should touch “timer +/- keys” together.If the “timer +/- keys” are touched for ½ seconds :Abeep sounds and the cooktop is stopped, The heaters actual power setting is stored and all the active heaters power is set to power level 0,The heaters auto-swich off time is paused,All the timers running count downs are paused,All keys are locked except “timer +/- keys” and “on/off key” (Timer keys can only be active if they are used together to deactivate pause function),Timer displays nothing, and all the heaters displays are getting on and puting out “0”, switching on segment by segment in left direction, and after that switching off segment by segment in right direction,continously.The stop function will finish:if the “timer +/- keys” (together) are touched for more than ½ second abeep sounds and the heaters actual power setting and timercountdowns are restored, or if the cooktop is stopped for more than 10minutes the cooktop is switched off automatically.

830° Maxi Any change in the colour of the glass-ceramic surface does not affect its operation or the stability of the surface. Such discolorations are mostly a result of burnt food residues or use of cookware made of materials such as aluminium or copper; these stains are difficult to remove.

The cooking zones do not simmer or only fry gently Only use flat-bottomed pans. If light is visible between the pan and the hob, the zone is not transmitting heat correctly. The pan bottom should fully cover the diameter of the selected zone. The cooking is too slow Unsuitable pans are being used. Only use flatbottomed utensils, that are heavy and have a diameter at least the same as the cooking zone. Small scratches or abrasions on the hob's glass surface Incorrect cleaning or rough-bottomed pans are used; particles like grains of sand or salt get between the hob and the bottom of the pan. Refer to the "CLEANING" section; make sure that pan bottoms are clean before use and only use smooth bottomed pans. Scratches can be lessened only the cleaning is done correctly. AFEW HINTS: Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again. To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialised cleaning fluid. The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another. NB: Do not use a sponge which is too wet. Never use a knife or a screwdriver. A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30°. Never leave a scraper with a razor blade within the reach of children. Never use abrasive products or scouring powders. . The metal surround : to safely clean the metal surround wash with soap and water, rinse, then dry with a soft cloth. Heater display Fault Action

FU / FJ FC / Fd If error has occurred disconnected and connect again the cooktop to the power supply. If error persist,call after-sales service. If error appears suddenly in a normal operation, call after-sales service.Touch control software error.Wait until temperature goes down, Cook-top will be recoverd when temperature reaches a normalvalue. When the message disappears, thehob may be used again.Touch control zone is too hotand has turned off all theheaters. Wait until temperature goes down. If message persist when temperature reaches an environment value, call after-sales service.Touch control temperaturesensor can be damaged. Wait until temperature goes down. If message persist when temperature reaches an environment value, call after-sales service.Touch control temperaturesensor can be damaged.See if cook-top is mounted correctly. Be sure that keys touch correctly the glass surface.Excessive sensitivityon any key. This error is a keyboard auto-check. It disappears when autocheck return to secure value. If error persist, call after-sale service.Security keyboard error This error is a software auto-check. It disappears when auto-check return to secure value. If error persist, call after-sale service.Security software error This error is a software auto-check. It disappears when auto-check return to secure value. If error persist, call after-sale service.Security software error Any relay driver can have any problemn. Remove cook-top from the power supply, wait a minute and switch on again. If error persist, call after-sale service.Relays security error

1800 W 1200 W 1200 W

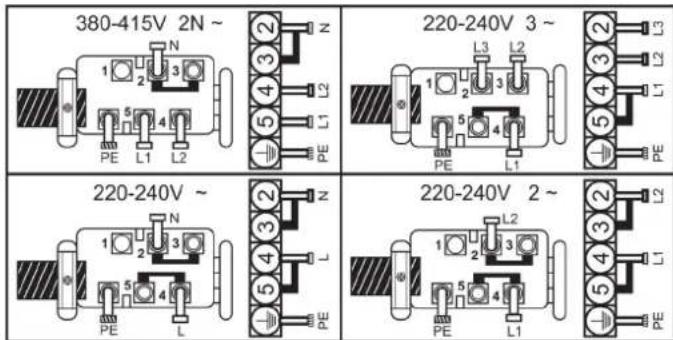

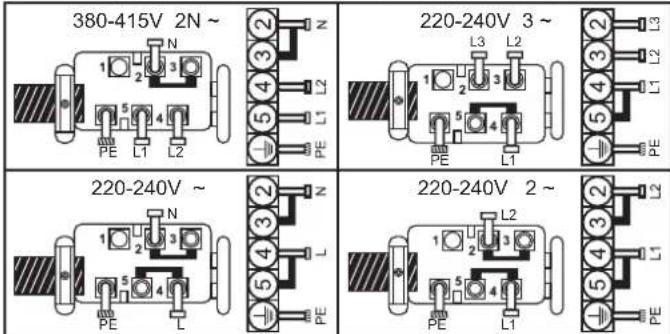

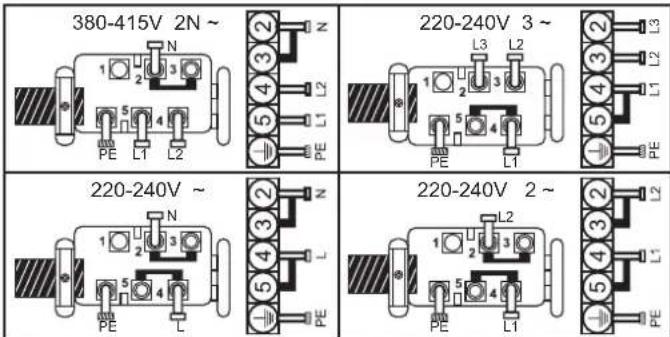

L1 / L2 / L3 = Fase N = Neutral PE = Jord

1800 W 1200 W 1200 W

1800 W 1200 W 1200 W

1800 W 1200 W 1200 W

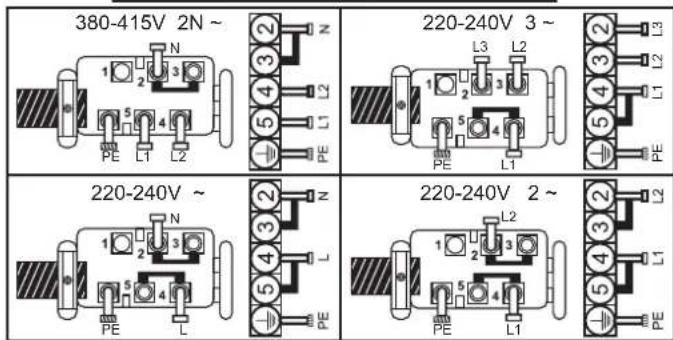

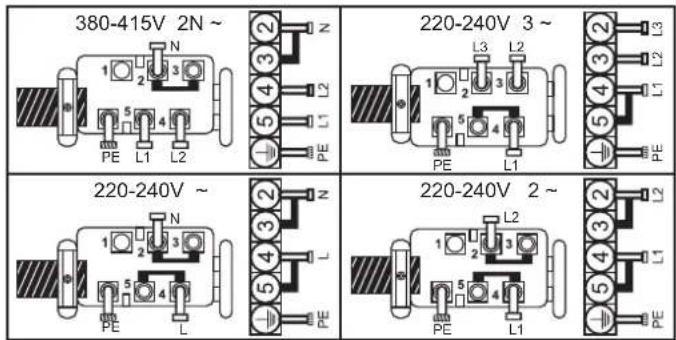

L1 / L2 / L3 = Fas N = Neutral PE = Jord
