USER MANUAL KT 200 DT ECG

This product is only suitable for well-insulated rooms or temporary use.

HR/BIH

KERAMICKA GRIJALICA

UPUTEZAUPORABU

Ova proizvod je prikladan samo za dobro izolirane prostore i kratkotrajnu uporabu.

SI

KERAMICNO OGREVANJE

NAVODILA

1. Control panel
2. Metal grille
3. Stand
4. ECO button
5. Display
6. Mechanical switch I/O
7. Remote control compartment

Remote controller

The button functions match the buttons on the device.

1. Switch button
2. Rotation button
3. Button (+)
4. Button (-)
5. Power button
6. Setup button
7. ECO mode button

HR/BIH

Uredaj

1. Upravljacka ploča
2. Metalna mrežica
3. Stalak
4. Tipka ECO
5. Zaslon
6. Mehanički prekidač I/O
7. Pretinac za daljinski upravljac

Daljinski upravljač

Funkcije tipki identiene su funkcjija tipkina uredaju

1. Tipka prekidača
2. Tipka za okretanje
3. Tipka (+)
4. Tipka (-)
5. Tipka za izbor snage
6. Podešavanje
7. Tipka za način rada ECO

SI

Aparat

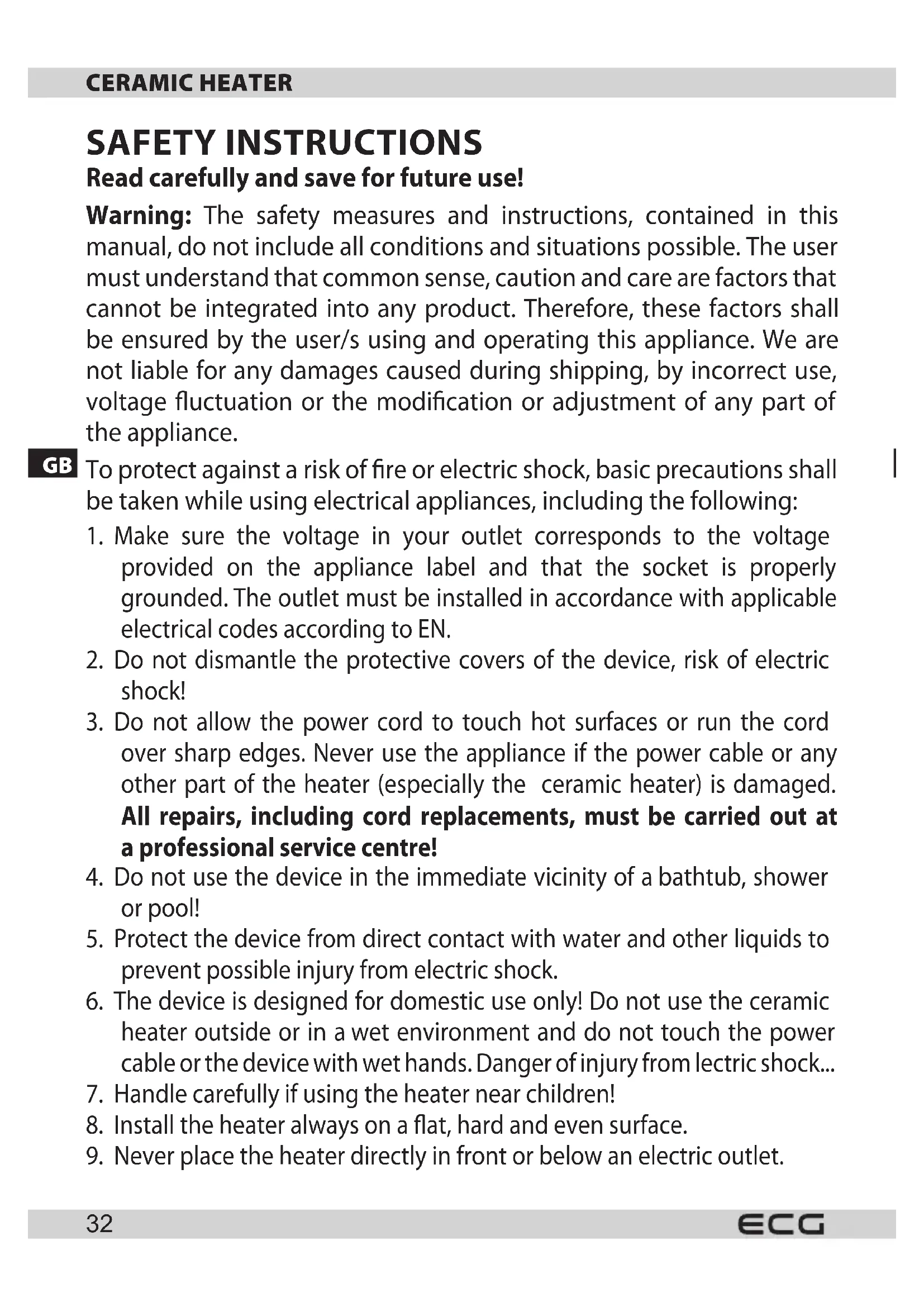

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

GB

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not dismantle the protective covers of the device, risk of electric shock!
3. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges. Never use the appliance if the power cable or any other part of the heater (especially the ceramic heater) is damaged. All repairs, including cord replacements, must be carried out at a professional service centre!
4. Do not use the device in the immediate vicinity of a bathtub, shower or pool!
5. Protect the device from direct contact with water and other liquids to prevent possible injury from electric shock.
6. The device is designed for domestic use only! Do not use the ceramic heater outside or in a wet environment and do not touch the power cable or the device with wet hands. Danger of injury from lectric shock...
7. Handle carefully if using the heater near children!
8. Install the heater always on a flat, hard and even surface.

9. Never place the heater directly in front or below an electric outlet.

10. The front grill is VERY HOT during operation! Never cover the heater and make sure that there is at least 30~cm of free space behind the appliance, in order to ensure air access to the heater.

11. Never place the heater on a soft surface, like a bed or a couch, etc.
12. Make sure that there are no objects within two meters in front of the heater when it is switched on.
13. Do not use the heater near curtains and other combustible materials. The device must not be close or in contact with any flammable liquids, gases or explosive materials.
14. NEVER move the heater around when it is switched on.
15. The heater must not be connected to the network through a timer or remotely connected to a switch of power supply circuit, since in the case of remote switching of the covered or inappropriately placed heater there is danger of fire.
16. If the device emits an unusual odor or smoke, switch it off at once and bring it to the service center.
17. Do not switch the device on or off by inserting or pulling out the power cable plug. Always switch the heater off using the main switch, then you can unplug the heater.
18. We recommend that you do not leave the plugged in heater without supervision. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
19. Do not insert fingers or other objects in the openings of the device.
20. Use the heater only in accordance with the instructions in this manual. The manufacturer is not liable for any damage caused by the improper use of this appliance.
21. Children younger than 3 years old should be prevented from access to the appliance unless they are constantly under supervision. Children aged 3 to 8 years old should switch on/off the appliance only if it was placed or installed in its intended normal operating position, and if they are supervised or instructed on the safe use of the product and understand the potential dangers. Children aged 3 to 8 years old may

not insert the plug into the outlet, regulate and clean the appliance or perform user's maintenance. Children must not play with the appliance. WARNING – Some parts of this product can become very hot and cause burns. Pay special attention when children or handicapped persons are present.

Do not immerse in water!

OPERATING INSTRUCTIONS

When you first turn the ceramic heater on, you may detect a slight odour. This is not a malfunction. This is common with most heaters, it is harmless and it disappears in a little while, after dust or grease residue, which settled there after a longer period of inactivity or during the manufacturing process, burns off.

GB

The properties of the appliance

• Ceramic heater, automatic regulation of power according to the ambient temperature.
• Two power levels and the ECO function to save energy
• Timer 1-24 hours
  Automatic dimming of the display brightness
• Option of automatic rotation for even distribution of heat.
• Setting of ambient temperature function (15^ 35^)
• Safety switch in case of overturning, double protection against overheating (thermistor, thermal fuse)
• Infrared light control

Preparing the appliance

Put the body of the appliance in the base.

With regard to the above safety instructions plug the appliance into an appropriate electrical outlet.

Inserting battery in the remote control:

1. Remove the cover of the battery compartment on the back of the remote control.
2. Insert in the holder in the cover the battery CR 2032 (included), observe correct battery polarity.
3. Insert the cover with the battery back in the remote control.

Appliance control

1. After plugging the appliance in the outlet, switch on first the I/O switch on the back in the position I. The appliance switches into stanby mode. When you hear a beep the indicator lights up. The display is off and all the functions except for the power button are inactive.
2. Press button to switch the appliance on. Press again to switch the appliance off.

Attention: When it is off the appliance cools for another 10 seconds until it is entirely off. These 10 seconds are counted down on the display. Before you turn off the heater using switch 0/1, always allow this process to finish.

Initial state of the appliance after switching it on:

• Power: Low heater power, the indicator of low power () is on.
• Rotating: Rotating is off, the rotation indicator is off.
• Timer: 0h (no time is set), the indicator is off.
• Temperature: Initial temperature is displayed. Indicator is on.
  Fan: On.

• Setting temperature: Automatic default to 25^ .

• You can switch between the low and high power level during operation using the button

• Low power level: Indicator is on, indicators and are off.

High power level: Indicators and are on.

1. You can switch on the power saving mode during operation by pressing the button ECO. The indicator turns on.

2. ECO mode: The default temperature is 22^ , when the temperature drops under 18^ the high power level turns on, when the temperature increases over 18^ , the appliance switches to low power level. When the temperature reaches 22^ , the heater turns off.

3. Press to turn on or off the rotation of the appliance. During rotation the indicator is on. When the rotation is turned off the indicator is off.

4. Press to set timer or temperature.

Setting the timer

Using button switch between temperature setting and timer setting.
- Press to enter the timer setting mode. The indicator flashes on the display and you can now set the timer using buttons (+) and (-) in the range 0-24h. Each time you press (+) / (-) you move the time by 1h. Press and hold (+) / (-) to change the values faster.
If the displayed value is different from 0, the countdown of the timer starts and once it reaches 0 the appliance switches to standby mode.
If you do not press any button or if you press any other button than (+) /(-) within 5 seconds, the timer setting stops and the display shows the room temperature.
- When you finish the timer setting, press to go to the temperature setting.

Temperature settings

• Using button switch between temperature setting and timer setting.
• Press to enter the temperature setting mode so that the indicator turns on. You can change the temperature using the buttons (+) and (-) in the range 15^ 35^ C . You change the temperature with each pressing of (+) / (-) by 1^ C . Press and hold (+) / (-) to change the value faster.
  Press to exit the temperature setting mode, the appliance will hold the temperature you have set.
  If you do not press any button or if you press any other button than (+) /(-) within 5 seconds, the timer setting stops and the display shows the room temperature
• The forst 10 seconds after you switch on the appliance, the temperature check is not performed. If the ambient temperature is higher than the set temperature within 10 seconds from switching the appliance on, the heater switches off, the indicator of high and low power mode turns off and the fan stops in 10 seconds. If the rotation function was active, the rotation stops as well. Other indicators and functions do not change. Once the ambient temperature drops by 2 degrees under the set temperature, the heater starts again, as well as the fan and rotation (if the roration function was active before).

Note:

If the timer and the temperature are set in the same time, the display will alternate every 30 seconds between showing the temperature and the timer value. If the timer is not set, the display will show only the temperature.

Attention:

If you want to turn off the heater, always turn it off using both switches (on the control panel and the switch 0/1).

Overheating and rollover safety switch

• The device will be switched off by internal thermal fuse in case of overheating.
  Overheating could be caused by covering the ventilation openings on the rear of the appliance or by covering the grill in front. When that happens, unplug the appliance from the outlet and let it cool for 30 minutes. Remove all obstacles and switch the appliance on again.
  If the device stops working, the likeliest cause is a blown fuse. Please, contact an authorized service center.
• The ceramic heater is equipped with a safety switch that in the event of overturning of the heater switches it off automatically.

CLEANING AND MAINTENANCE

• There are no parts inside the appliance that require your attention or maintenance. Do not attempt to open the exterior covers of the appliance. This could damage the motor and the heater and void the warranty. Have all service operations carried out by a qualified repair shop.
• Before cleaning unplug the appliance from the outlet and let it cool thoroughly.
• NEVER use water for cleaning the device and protect it from contact with water under all circumstances.
  The outer cover can be cleaned using slightly damp cloth (if necessary use weak solution of mild detergent).
  You can use regular vacuum cleaner to remove dust from behind the front grill or from the rear ventilation openings.
• Always make sure that the device is completely dry before using it.
  If you will not use the device for a longer period of time, it is best to clean it and when completely dry, store it in a plastic bag in a cool and dry place.

TECHNICAL SPECIFICATIONS

Nominal voltage: 220 - 240V 50Hz

Nominal input power: 2000 W

Remote control: 1 × 3V batteries CR2032 (included)

Noise level: ≤ 50 dB

2 degrees of power settings: 1300/2000 W

WARRANTY:

The following situations void the warranty: Incorrect or inappropriate handling of the device, failure to observe safety measures applicable to the device, the use of force, alterations or repairs made by a party other than an authorized service centre.

Components subject to normal wear and tear are not covered under the warranty.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
