TV 30 - Pan ECG - Free user manual and instructions

Product type	Warm air fan (heater)
Power supply	220-230 V ~ 50 Hz
Maximum power	2000 W
Power levels	3 (fan only, 1000 W, 2000 W)
Thermostat	Continuously adjustable
Thermal safety	Automatic shut-off in case of overheating
Power indicator light	Yes (red)
Carrying handle	Integrated
Cold air function	Yes (fan only)
Warm air function	Yes (1000 W and 2000 W)
Recommended safety distance	Minimum 90 cm from objects
Cleaning	Damp cloth, no abrasive products
Usage	Indoor, well-insulated spaces, temporary use
Compliance	European EMC and electrical safety directives
Repairability	Entrust to a qualified professional
Water protection	Do not immerse, do not use outdoors

Frequently Asked Questions - TV 30 ECG

How to turn on the warm air fan?

Turn the function switch to the desired position: I for 1000 W, II for 2000 W, or fan-only position (fan symbol). The red indicator light turns on.

How to adjust the temperature?

Turn the thermostat knob clockwise to increase temperature. Once the desired temperature is reached, turn slowly counterclockwise until you hear a click: the thermostat then maintains that temperature.

What to do in case of overheating?

The device shuts off automatically. Unplug it, let it cool for at least 10 minutes, then plug it back in and restart using the function switch.

Can I use the device in a bathroom?

No, do not use near bathtub, shower, or swimming pool. Risk of electrocution.

How to clean the device?

Always unplug the device and let it cool down. Clean the exterior with a damp cloth. Do not use sharp objects or abrasive products.

Can I cover the device?

No, never cover the fan. This would cause overheating and a fire hazard.

What distance should be maintained around the device?

Maintain a distance of at least 90 cm between the device and surrounding objects (curtains, furniture, etc.).

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by a qualified professional service. Never remove the protective covers.

Can the device be used with a programmable socket?

No, do not use with a timer, programmable controller, or remote control system. Risk of fire if the device is covered or misplaced.

How to store the device?

After use, turn off the device, unplug it, and let it cool down completely. Store it in a dry and safe place.

USER MANUAL TV 30 ECG

HOT AIR VENTILATOR INSTRUCTION MANUAL

This product is only suitable for well-insulated rooms or temporary use.

HR/BIH

ELEKTRICNA GRIJALICA UPUTE ZA UPORABU

Ova proizvod je prikladan samo za dobro izolirane prostore i katkotrajnu uporabu.

SI

VENTILATOR NA TOPEL ZRAK NAVODILA

1. Function switch
2. Temperature control
3. Air vent cover
4. Power On

Before any manipulation with the device, always turn the thermostat control to minimum, switch the device off using the function switch and unplug it. You will limit risk of injury by electric shock.

HR/BIH

1. Odabir funkcije
2. Kontrola temperature
3. Pokrov ventiladora
4. Indikator rada

Do not immerse in water! – Neponořovat do vody!

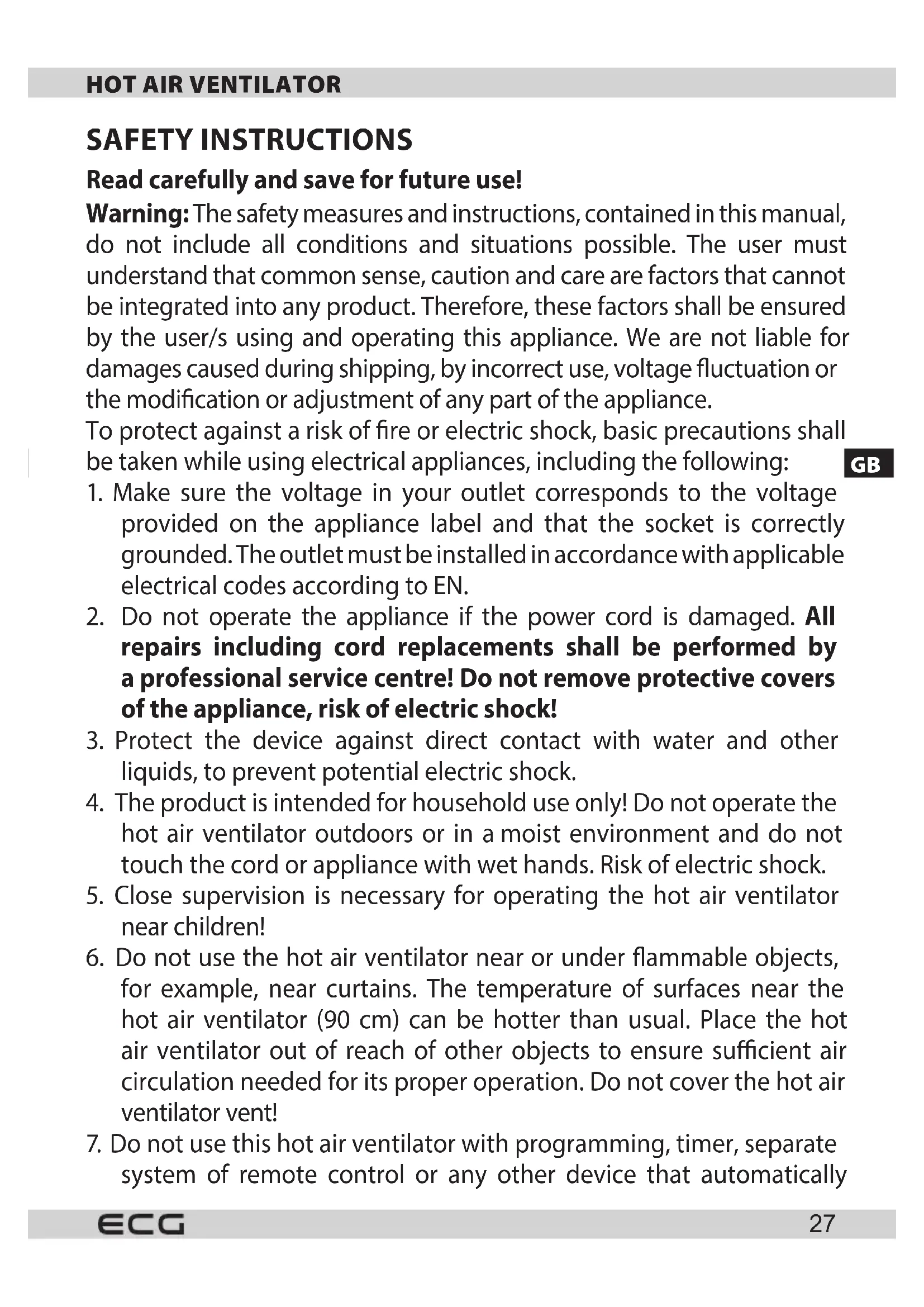

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the appliance if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
3. Protect the device against direct contact with water and other liquids, to prevent potential electric shock.
4. The product is intended for household use only! Do not operate the hot air ventilator outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.
5. Close supervision is necessary for operating the hot air ventilator near children!
6. Do not use the hot air ventilator near or under flammable objects, for example, near curtains. The temperature of surfaces near the hot air ventilator (90 cm) can be hotter than usual. Place the hot air ventilator out of reach of other objects to ensure sufficient air circulation needed for its proper operation. Do not cover the hot air ventilator vent!
7. Do not use this hot air ventilator with programming, timer, separate system of remote control or any other device that automatically

switches the fan on, because there is a risk of fire if the fan is covered or located in a wrong place.

1. Do not use the fan close to a bathtub, shower or a pool!
2. Do not place the hot air ventilator on soft surfaces, such as a bed, sofa etc.
3. If an unusual smell or smoke begins to come from the device, disconnect the device immediately and visit a service centre.
4. Do not turn the device on or off by plugging or unplugging the power cord. Always turn the hot air ventilator off using the main switch; afterwards you may unplug the cord from the outlet!

GB

1. Leaving the hot air ventilator cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
2. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.
3. Do not put your fingers or other objects into the openings of the hot air ventilator.
4. Use the hot air ventilator only in accordance with the instructions given in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.
5. Children younger than 3 years old should be prevented from access to the appliance unless they are constantly under supervision. Children aged 3 to 8 years old should switch on/off the appliance only if it was placed or installed in its intended normal operating position, and if they are supervised or instructed on the safe use of the product and understand the potential dangers. Children aged 3 to 8 years old may not insert the plug into the outlet, regulate and clean the appliance or perform user's maintenance.

WARNING: To prevent overheating, do not cover the heater. The heater must not be placed directly under an outlet.

Do not immerse in water!

WARNING: This heater is not equipped with a device for measuring the room temperature. Do not use the heater in small rooms occupied by individuals that are not capable of leaving the room without assistance, unless proper supervision is available.

CAUTION: Some parts of this product can become very hot and cause burns. Special attention has to be paid in the presence of children and handicapped people.

DO NOT COVER!

WARNING: To prevent overheating, do not cover the heater.

GB

Requirements on installation

Place the hot air ventilator on a flat surface with a sufficient amount of space around the appliance to ensure the proper function of exhaust vents. Between the device and surrounding objects must be a distance of at least 90~cm .

USING THE APPLIANCE

This hot air ventilator uses hot air technology with temperature regulation. You can set the required output level by turning the function switch:

=off

= fan only

I = low 1000 W

II = higher output 2000 W

The red indicator light indicates the hot air ventilator has been turned on.

1. Turn the thermostat control clockwise to maximum.
2. When the required temperature in the room is reached, turn the thermostat control counterclockwise until you hear light click indicating that the thermostat is off. The hot air ventilator and indicator light is turned off.
3. The device now maintains the set room temperature. As soon as the room temperature drops, the hot air ventilator will automatically switch on and after reaching the desired room temperature, will again automatically switch off.

Safety thermal fuse

1. The device is also equipped with a safety thermal fuse, which automatically switches the device off if it experiences overheating.
2. In the event of overheating, switch the fan off using the function switch, unplug it and let cool at least 10 minutes. Afterwards, you may connect the device and turn it on again.

CLEANING AND MAINTENANCE

Unplug the device and let it cool down before cleaning. Clean the outer surface of the hot air ventilator with a damp cloth. Do not use sharp or abrasive agents to clean the device, otherwise the surface can become damaged.

The hot air ventilator can be put away only after it has been properly turned off, disconnected from the outlet and cooled down.

TECHNICAL SPECIFICATIONS

Max. input power 2000 W

3 heat settings

Function cool / warm/ hot air (1000 / 2000 W)

Continuous thermostat regulation

Safety cut out switch

Power on indicator

Integrated handle for easy portability

Nominal voltage: 220 - 230V 50Hz

Nominal input power: 2000 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved.
