USER MANUAL Café Crema One 1881 CASO

Exterior view of a Coso Design coffee machine (no visible text or symbols on the device body)

CE

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

You can find the latest version of the instruction manual on our website:

10 Operating Manual....36

10.1 General 36

10.2 Information on this manual....36

10.3 Warning notices....36

10.4 Limitation of liability....37

10.5 Copyright protection 37

11 Safety 37

11.1 Intended use....37

11.2 General Safety information....38

11.3 Sources of danger 40

11.3.1 Danger of injury 40

11.3.2 Risk of burning and scalding....41

11.3.3 Dangers due to electrical power 42

12 Commissioning 42

12.1 Safety information 43

12.2 Delivery scope and transport inspection....43

12.3 Unpacking 43

12.4 Disposal of the packaging 43

12.5 Setup location requirements: 43

12.6 Electrical connection....44

12.7 Rating plate 44

13 Operation and Handing....44

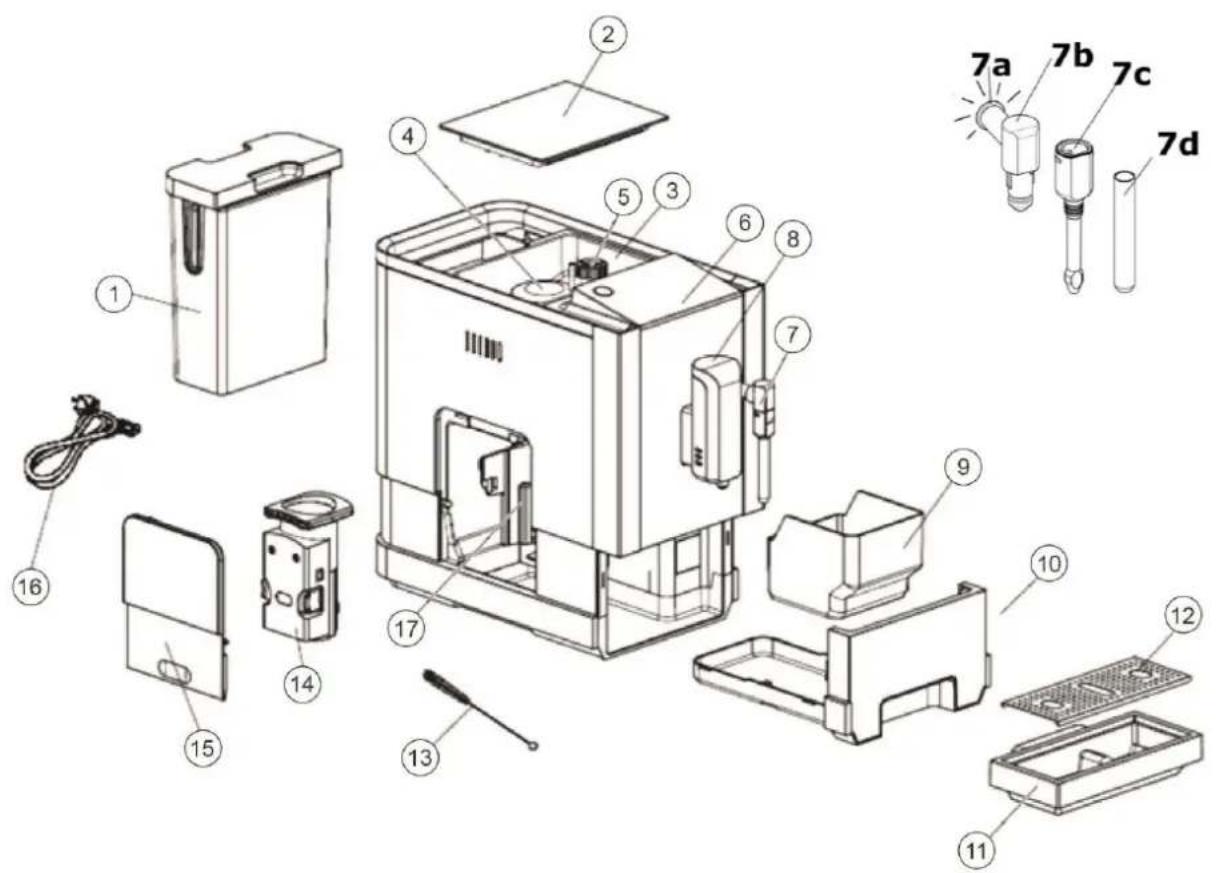

13.1 Overview....45

13.2 Assembly....46

13.3 Control panel....46

13.4 Before first use 47

13.5 Espressos & coffee function 48

13.6 Save the coffee quantity....48

13.7 Set the grinding degree....49

13.8 Milk foam function....49

13.9 Latte Macchiato function....49

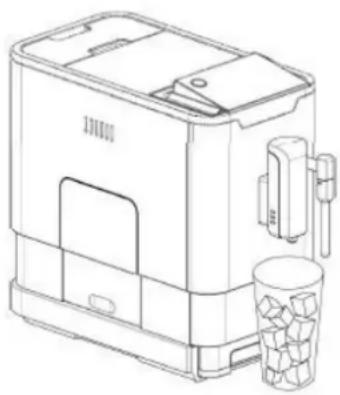

13.10 Iced Coffee function 50

13.11 Hot water function 50

13.12 Save the hot water quantity 50

13.13 Change the mode....50

14 Cleaning and Maintenance....51

14.1 Safety information ....51

14.2 Cleaning....51

14.3 Rinsing programme for the outlet 52

14.4 Internal drip tray 52

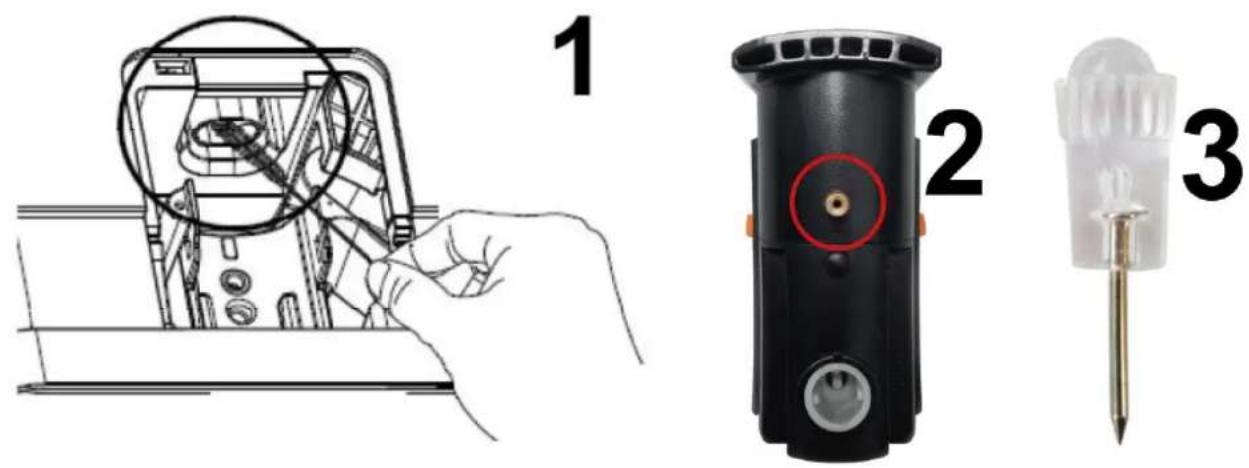

14.5 Cleaning of the coffee chamber / brewing unit 52

14.6 Descaling & the cleaning programme....53

14.7 Emptying the appliance....54

15 Troubleshooting....54

15.1 Causes and rectification of faults ....55

16 Disposal of the Old Device....56

17 Guarantee ....56

18 Technical Data....56

21.3 Déballage....66

21.4 Elimination des emballages....66

Technical diagram showing a mechanical assembly with numbered components, likely illustrating a device or assembly process.

4.2 Zusammenbau

Warning sign showing incorrect safety symbols for a device, with hand pointing to warning

Simple line drawing of a cylindrical mechanical component with a downward arrow indicating force or direction (no text or symbols)

Close-up of a dark circular mechanical knob surrounded by scattered coffee beans (no text or symbols visible)

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

Line drawing of a modern kitchen appliance with a glass cup beside it (no text or symbols)

Diagram showing three-step installation of a device: hand tool, close-up view, and disassembled LED with labeled parts.

Fully automatic coffee machine

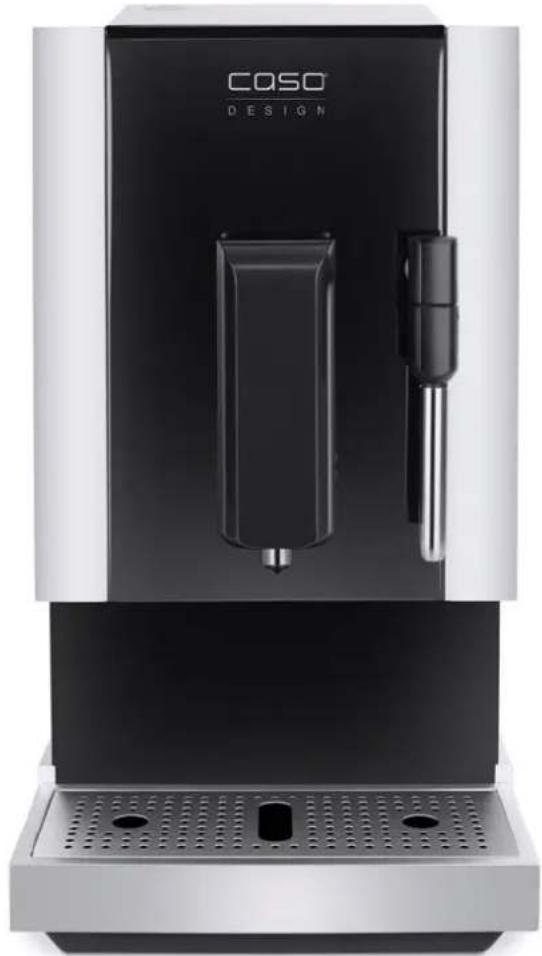

Café Crema One (1881)

Exterior view of a CASO Design coffee machine (no visible text or symbols on the device body)

CE

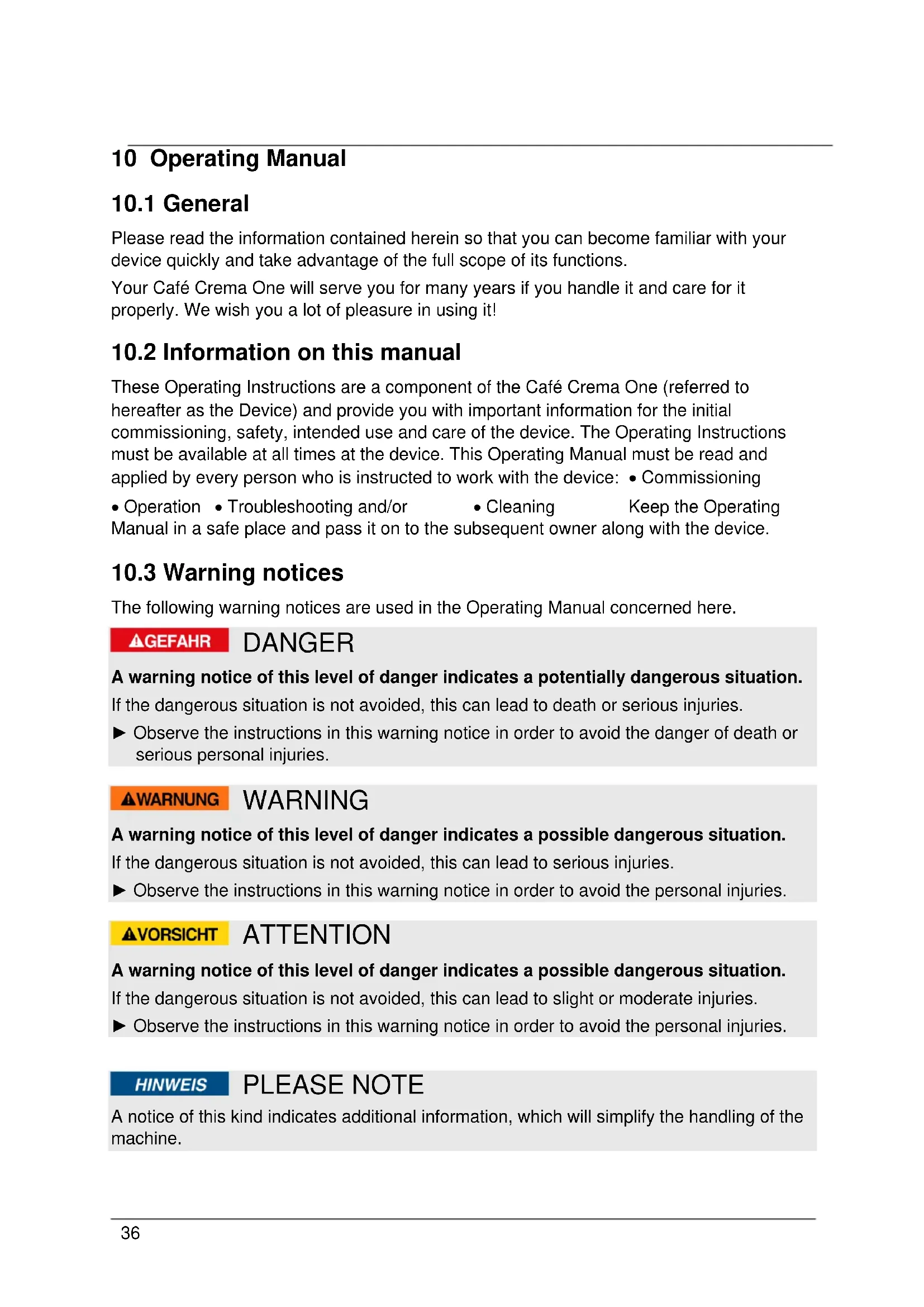

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Café Crema One will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Café Crema One (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning

- Operation

- Troubleshooting and/or

- Cleaning

Keep the Operating

Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠️GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual

• Uses for non-intended purposes
• Use of unauthorized spare parts
• Improper repairs
• Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for

• Preparation of coffee and espressos
• Milling of coffee beans
• Pouring of hot water
• Preparation of milk foam

This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas;
  • in agricultural estates; • in B&Bs.
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

Do not chop very hard ingredients such as ice.

⚠️WARNUNG

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.

Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all these instructions before using the appliance.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device. The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not leave the device unsupervised when it is in operation.
▶ Do not operate the device if it is empty. This could damage the device.

HINWEIS Please note

▶ Never fill the water tank beyond max-marking. Do ot use the device in case of overflowing.
▶ Unplug your device as soon as you stop using it or before cleaning it.
▶ All operations other than cleaning and usual maintenance must be performed by an approved service centre.
▶ Use the device exclusively for the preparation of coffee and grinding of roasted coffee beans, and also for pouring out hot water and producing milk foam. Do not put any other liquids (other than cold water) into the water tank or other foods (other than coffee beans) into the device.
▶ Do not leave the power cord hanging within children's reach.
▶ Do not disconnect the plug from the socket by pulling on the cord. The power cord must never be near or in contact with the hot parts of the machine, near a source of heat or over a sharp edge.
▶ Do not add water in the device if it is still hot.
▶ Always keep the lid closed when the device is operating.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ No coffee powder may be filled into the bean container.
▶ For your own safety, only use manufacturer accessories and spare parts suited to your device.
▶ Device is not intended to be operated by means of an external timer or separate remote-control system.

HINWEIS Please note

▶ The device is not intended for grinding liquid or hot ingredients.
▶ Switch off the device before pulling the plug.
▶ Make sure that the ambient temperature is above 0^ C, otherwise the device does not function properly.
▶ Always descale the device regularly to ensure optimum performance and prevent malfunction.
▶ Make sure to cool down the device before cleaning or storing it.
The device may give off some smoke and smell when you use fort he first times because of oil on some parts, this will disappear soon and is normal.
▶ Always remove the plug from outlet in case of any malfunction, before filling and after use, or before cleaning.
▶ Use the grinder to grind roasted coffee beans only. Grinding other food, such as nuts, spices or unroasted beans may dull the blades and cause poor grinding or injury.
▶ Do not use any caramelised or sugar-glazed coffee beans. Do not use green coffee (green or unroasted coffee beans) or blends with green coffee. This could damage the appliance.

11.3 Sources of danger

11.3.1 Danger of injury

▲WARNUNG Warning

By careless use of the device risk of injury exist because of sharp edges. Note the following warnings to avoid injury.

▶ Avoid contacting moving parts.
▶ Do not touch the inside of the grinder - risk of injury!
▶ Be careful during cleaning.

11.3.2 Risk of burning and scalding

⚠️WARNUNG

Warning

The water heated in this appliance, the coffee and the frothy milk can get very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

▶ Do not keep any body parts under the spout / steam nozzle while the device is in operation. A dirty spout / steam nozzle may spatter hot liquid or steam. Always keep the device clean, spout / steam nozzle clean.
▶ During operation, the outlet, steam nozzle, brewing unit, coffee grounds container and drip trays can get very hot!
▶ Never touch the hot parts of the device!
▶ Please always try the temperature of the coffee, before drinking. Temperature of the coffee is high. Handle the container (cup) carefully to avoid scalding.
▶ Keep the lid of the bean container and the brewing unit cap closed while the device is working. The brewing unit must not be removed during operation, and also shortly after the device has been operated.
▶ Caution: If you refill the water tank during the brewing process, the brewing process automatically resumes after the water tank has been replaced.
▶ Empty the drip trays carefully as the water contained therein can get very hot. Empty the coffee grounds container carefully as the coffee grounds contained therein can get very hot.
▶ Beware of the escaping steam and escaping water so that you do not burn yourself. Don’t cover the outlet, steam nozzle and the steam outlet.
▶ The device may only be used if the drip tray with the drip grid and the inner drip tray with coffee grounds container are correctly inserted.

11.3.3 Dangers due to electrical power

⚠️GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not put the device, power cord or plug in water or any other liquid. Never clean the device in the dishwasher.
Even when the device is switched off, voltage is present inside the device as long as the mains plug is plugged into the socket. The device is only disconnected from the power supply when the mains plug is unplugged.
▶ Pull the mains plug before you remove or insert the water tank. Pull the plug out of the mains socket after using the appliance.
▶ Unplug the device from the mains socket before cleaning, maintaining, dismantling or assembling the appliance.
▶ Never unscrew the device and do not make any technical changes to it.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

⚠️WARNUNG Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Café Crema One is delivered with the following components:

• Café Crema One
• Drip tray with drip grid
• Microfiber cloth
  • Coffee grounds container
• Internal drip tay
• Cleaning brush
• Lid of the bean container
• Brewing unit
  • Cover cap of the brewing unit
  • 3 bags with descaler
• operating instructions
• Push pin

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.

Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, proceed as follows:

Remove the device out of the carton and remove the packaging material.

Before first use: Remove the protective foil from the display.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Only use this device on a flat, stable, heat-resistant surface away from water splashes and any heat sources. Never use the device outdoors and always place in a dry environment.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.

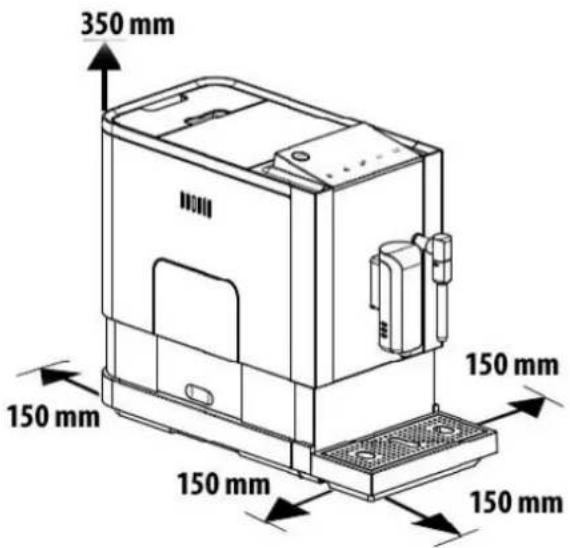

• Allow 150 mm clearance around the device and 350 mm above, so that you can remove the water tank.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

350 mm 150 mm 150 mm 150 mm 150 mm 150 mm

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

12.7 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the unit.

13 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

13.1 Overview

Exploded view diagram of a device with numbered parts and labeled components

1 Water tank

2 Lid of the bean container

3 Bean container

4 Cover of the grinder

5 Controller for the adjustment of the degree of grinding

6 Control panel

7 Steam nozzle 7a Indicator ring

7b Nozzle 7c Protective cover

7d Extension tube

8 Adjustable outlet for coffee

9 Coffee grounds container

10 Internal drip tray

11 Drip tray 12 Drip grid

13 Cleaning brush

14 Brewing unit

15 Cover cap of the brewing unit

16 Power cable 17 coffee chamber

⚠️WARNUNG

Warning

▶ Do not touch the inside of the grinder - risk of injury!

⚠️WARNUNG

Warning: Warning symbol: hot steam.

▶ Caution hot steam can escape at device. Risk of burns.
▶ Be careful so that water will not run into the plug.

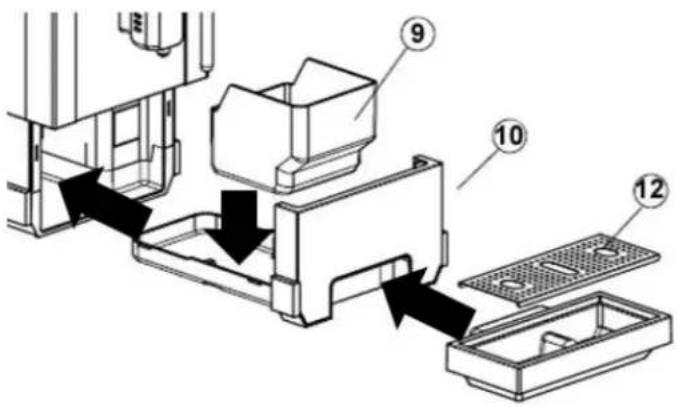

Technical diagram showing assembly steps of a device with numbered components and directional arrows indicating process flow.

13.2 Assembly

Place the coffee grounds container on to the inner drip tray and push it into the appliance. Then insert the drip tray with the drip grid.

Adjust the adjustable coffee outlet according to the selected cups / cup size. Fill the water tank with water and insert it.

⚠️WARNUNG

Warning: Crushing hazard!

Warning sign with yellow warning symbols and a hand holding a device, indicating hazard or hazard.

▶ Do not touch the area behind and above or behind and beneath the adjustable coffee outlet. Exclusively adjust the coffee outlet as shown in the photo.

HINWEIS Please note

▶ Empty the internal drip tray regularly as water is also collected in it.

Check that everything has been assembled correctly.

13.3 Control panel

Buttons: On/off switch Latte macchiato function

milk foam function

hot water function

espresso function

coffee function

LED displays

Flashing: Water needs refilling or the water tank is not positioned correctly.

Flashing: Bean container is empty. Beans have to be refilled.

Constantly illuminated: Coffee grounds container is full, empty the container

Flashing: Coffee ground container and the drip tray are not placed correctly. Please place correctly.

Warning symbol, constantly illuminated: Brewing unit is not correctly inserted. Place the brewing unit correctly.

Flashing: Cover cap of the brewing unit is not correctly closed. Please close correctly.

Constantly illuminated: The device must be descaled

Flashing: Descaling process is running

Constantly illuminated: The device is emptied and then switches off.

13.4 Before first use

1. Remove the water tank, coffee grounds container, the inner and outer drip tray and clean it under running water. Thoroughly dry all the components.

1. Turn the protective cap of the steam nozzle.
2. Push the protective cap down to remove the protective cap.
3. Move the extension tube down and remove it. Clean the protective cap and extension under running and thoroughly dry them afterwards.
4. Insert the extension tube with the protective cap upwards again, until it latches.

1. Turn the protective cap . Assemble the device again.
2. Fill fresh water into the water tank. Remove the water tank to this end.

HINWEIS

Please note

▶ Don't fill the water tank if it still in the appliance.

Place a vessel under the coffee outlet and the steam nozzle. Plug in the mains plug. Press

to turn on the device. The device rinses and water is dispensed from the coffee outlet.

Press the key and hot water is dispensed from the steam nozzle.

Press and at the same time for 5 seconds (until the device will beep 2 times)

and the outlet for coffee is rinsed. Press the key.

3 ↓

When you want to stop this process then press 2 times. To switch off the device, press the key. Remove the vessel and pour the water away.

13.5 Espressos & coffee function

⚠️WARNUNG Warning symbol: hot steam

▶ Caution hot steam can escape at device. Risk of burns.

Fill fresh water into the water tank. Remove the water tank to this end.

HINWEIS NOTICE

▶ Do not use any unroasted, caramelised or sugar-glazed coffee beans. Do not use any raw coffee or raw coffee blend.

Place a vessel under the coffee outlet. Fill coffee beans into the bean container and

replace the lid correctly. Press to turn on the device. The device rinses and water is dispensed from the coffee outlet. Then pour the rinse water away. Clean your vessel and place it under the coffee outlet once more.

Press the espresso or coffee switch and espresso or coffee are dispensed.

HINWEIS Please note

▶ Use only cold water.
▶ Tip: Do not use a cold cup, if you want to enjoy your coffee at as hot a temperature as possible.
▶ Do not exceed the maximum amount of water indicated on the scale of water tank.
▶ Please ensure that the espresso / coffee or water do not overflow. You can stop the flow by pressing the button once more.

13.6 Save the coffee quantity

Press the espresso or coffee button once, press again and leave your finger on the button until the desired amount of espresso / coffee has been brewed. The amount of water is stored.

13.7 Set the grinding degree

HINWEIS

Please note

▶ Only adjust the grinding degree if the device is grinding coffee beans, otherwise the grinder may be damaged
▶ A finer degree of grinding is recommended for a lighter roast. A coarser degree of grinding is recommended for a darker roast.

Close-up of a dark circular object with small dots, surrounded by scattered brown coffee beans (no text or symbols visible)

Place a vessel under the coffee outlet.

Open the bean container lid. Proceed as described in "Espressos & coffee function". Wait until the device grinds the beans. Set the grinder knob to the desired level.

For coarse grinding degree turn the knob clockwise (+).

For fine grinding degree turn the knob counterclockwise (-).

Reattach the lid of the bean container.

13.8 Milk foam function

Place an empty vessel under the nozzle and press the flashes and the steam nozzle is flushed through.

button. The indicator ring The indicator ring shines permanently following the completion of the rinsing process. Wait until the device beeps. Pour the rinse water away and clean your vessel. Place a vessel with milk under the steam nozzles ensuring that the extension tube is immersed 5 cm into

the milk. Press once more to obtain hot steam to generate the milk foam. Stop obtaining steam with once milk foam has reached the desired consistency.

⚠️WARNUNG

Warning

▶ Warning: The water will become very hot and is released from the nozzle with high pressure.

Place an empty vessel under the coffee outlet and adjust the

outlet according to the size of your glass.. Press to turn on the appliance. The device rinses and water is dispensed from the coffee outlet. Then pour the rinse water away. Then proceed as described in "Milk foam function". Following this place the vessel

with the milk foam under the coffee outlet. Press the button and a double portion of strong brewed coffee is dispensed. You can enjoy the Latte Macchiato following this.

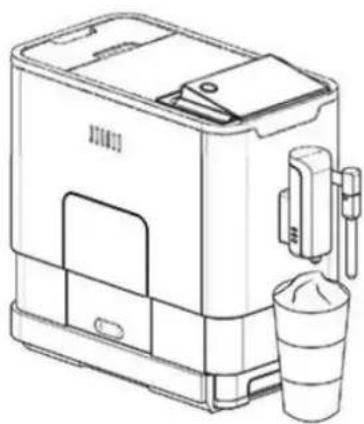

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

13.10 Iced Coffee function

Place an empty vessel under the coffee outlet. Press to turn on the appliance. The device rinses and water is dispensed from the coffee outlet. Then pour the rinse water away. Place a vessel with the desired quantity of ice cubes under the coffee outlet.

Press the button and a double portion of strong brewed coffee is dispensed. You can enjoy the Iced Coffee following this.

Line drawing of a modern kitchen appliance with a glass cup beside it (no text or symbols)

13.11 Hot water function

Place an empty vessel under the coffee outlet. Press to turn on the appliance. The device rinses and water is dispensed from the coffee outlet. Then pour the rinse water

away. Place an empty vessel under the steam nozzle. Press and hot water will be dispensed. You can now for example prepare tea with it.

HINWEIS

Please note

▶ Please ensure that the water does not overflow. You can stop the flow by pressing the button once more.

13.12 Save the hot water quantity

Press the once, press again and leave your finger on the button until the desired amount of water is dispensed. Release the button. The quantity is saved.

13.13 Change the mode

You can set the device to different mode. The different mode are as follows:

Function/mode	ECO (energy-saving mode)	Fast	Standard
Selected mode can be recognized as follows	Button Icontinuously and the others are flashing	Espresso button lightscontinuously and the others are flashing	Coffee button lights continuously and the others are flashing
Illumination	-	+	+
Prebrewing*	+	-	+
Saving of filling level	+	+	+
Automatic switching off	After 10 minutes	After 30 minutes	After 20 minutes

* Pre-brewing: With less water pressure, the ground coffee is moistened and pre-brewed. Then the device brews with normal water pressure and prepares the coffee.

Press button for 5 seconds then the will flash. Press the respective button for the switch to the selected mode. For Example when switching to the Eco mode press the

button. Two signal tones sound. If the mode should be retained then press wait 5 seconds.

14 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

14.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ The device must be cleaned at regular intervals and limescale should be removed.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
▶ During operation the outlet, steam nozzle, brewing unit, coffee grounds container and drip trays can get hot! Wait until the device has cooled down.
▶ A device that is not kept in a clean state can have a negative impact upon the service life of the device and can lead to a dangerous condition of the device as well as fungal and bacterial contamination.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
For the descaling, use only the enclosed descaling agent or commercially available decalcifiers for fully automatically coffee machines. Using the wrong descaling agent could damage the device and cause you to lose your warranty claims.
▶ Clean the device and empty it completely if you are not going to use it for a long time.
▶ Change the water every day so that no germs can form.

14.2 Cleaning

Empty the drip tray, drip grid, inner drip tray, coffee grounds container, the water tank and brewing unit every day and clean them under running water. Thoroughly dry them after this. Then place all parts correctly into the device again. Push the coffee grounds container until it fits.

▲WARNUNG Warning

▶ Do not clean the device when it is hot.
▶ Never put the device (besides above mentioned parts) into water or under running water.

⚠️WARNUNG

Warning

▶ Be sure to unplug the device before cleaning. To protect against electrical shock do not immerse cord, plug or unit in water or liquid.

14.3 Rinsing programme for the outlet

Perform the rinsing programme for the coffee outlet every day. Place a vessel under the outlet. Press and at the same time for 5 seconds and the outlet is rinsed. Empty and clean the vessel.

14.4 Internal drip tray

HINWEIS

Please note

▶ Empty the internal drip tray regularly as water is collected in it.

14.5 Cleaning of the coffee chamber / brewing unit

Diagram showing three-step installation of a device: wire repair, close-up view, and final screwdriver.

Clean the coffee chamber /brewing unit at least once a month, more often if you use it very frequently. Coffee powder can accumulate and settle in the coffee chamber. Then the coffee powder will no longer enter the brewing unit correctly.

Cleaning of brewing unit

1. Unplug the mains plug.
2. Remove cover cap of brewing unit.
3. Press the unlocking buttons (orange) of the brewing unit and remove the brewing unit.
4. Rinse brewing unit under running water and dry it thoroughly.
5. Wipe the interior behind the cover with a damp cloth and then dry it.
6. Clean the coffee chamber and hole in the brewing unit with the supplied cleaning brush.
7. Clean the hole in the brewing unit (pic. 2) with supplied push pin (pic. 3).
8. Place brewing unit again correctly. Put the cover cap back again.

14.6 Descaling & the cleaning programme

The device has to be descaled regularly, otherwise the coffee taste will be affected and the

scale deposits can damage the device. Is constantly illuminated in the display. This means that the device needs to be descaled. The frequency of descaling depends on the water hardness and how often the device is used.

The device counts the number of coffee cups that have been dispensed and, depending on this, displays the message "Descaling" in the display. You may want to descale the device more frequently depending on the water hardness.

• With soft water, descale at least every 3 month
• With hard water, descale every month

If you do not know your water hardness please contact your water company.

The fact that descaling is required becomes most noticeable, for instance, by the following signs:

• The noise level increases when making coffee.
  • The brewing process takes longer.
• The device switches itself off before the water container is empty.

HINWEIS Please note

▶ Solely use commercially available decalcifiers for fully automatic coffee machines. Never use vinegar or descaling agent for kettles / normal coffee machines. This could damage the appliance.

Fill the water tank up to the Max mark. Enter descaling agent into the water tank. Insert the water tank into the appliance. Plug in the mains plug. Place a large collecting vessel in such a way that it is positioned under the coffee outlet and under the steam nozzle as water escapes from both openings. (If necessary remove the drip tray if the vessel would not otherwise fit under the coffee outlet.)

Press and hold the button and the Espresso button at the same time until you

hear a beep. and flash in the display. Confirm descaling with flashes in the display and indicates that the device is performing the descaling and cleaning process.

▲WARNUNG WARNING

▶ Be careful as hot water may spurt out of the device / vessel, risk of burning or scalding.

When the first step of the descaling process has been performed, 'and' the

espresso will flash in the display. The device beeps.

Do not leave the device unattended, as the device may switch off if you do not follow these steps promptly: Remove all the remains of the descaling agent from the water tank and thoroughly rinse it. Empty the collecting vessel and place it under the coffee outlet and the steam nozzle again. Fill the water tank once more up to the Max mark. Insert the water tank into the appliance. Caution: the device immediately continues the descaling

and cleaning process and stops flashing. The device automatically switches itself off once the process has been completed. Empty the collecting vessel and thoughly rinse the water tank once more.

The device can then be operated as usual.

HINWEIS Please note

▶ Never interrupt the descaling process.
The guarantee excludes devices which have stopped working or do not work properly due to lack of descaling.

14.7 Emptying the appliance

A device that is not used for a long time, stored or sent to our customer service for repair must be completely emptied.

Press

the coffee button together for approx. 5 seconds. The LED

flashes.

Remove the water tank

The LED now flashes constantly. The device is emptied and then switches itself off. Pull the mains plug. Store the device at a dry location.

If you want to put the device back into operation, then proceed as described under "Before first use".

15 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

▲VORSICHT Attention

Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.

Improperly performed repairs can cause considerable dangers for the user and damages to the device.

15.1 Causes and rectification of faults

Problem	Possible solution
Buttons do not react immediately to pressing them or react badly	The buttons are dirty. Wipe the panel with a damp cloth and then dry it off. Put your finger completely on the key.
The LED es	The water tank is not correctly inserted. Place the water tank correctly. Not enough water in the water tank. Refill water.
The LED es	Not enough beans in the bean container. Top up the beans. The coffee chamber is dirty. Clean the coffee chamber.
The LED up constantly.	Coffee grounds container is full. Empty the container.
The LED es	The coffee grounds container is not correctly inserted. Place the container correctly.
LED constantly illuminated	Brewing unit is not correctly inserted. Place the brewing unit correctly.
The LED usines	Cover cap of the brewing unit is not correctly closed. Close the cover cap correctly.
The device cannot be switched off.	The power cable is not plugged in correctly.
No coffee is dispensed from the outlet or the coffee is flowing from the outlet very slowly. Inner drip container is filled with a lot of water.	The device was not correctly rinsed. Perform the cleaning programme for the outlet.Grinding degree is too fine and the powder clogs the brewing unit. Clean the brewing unit and adjust the grinding degree.
The coffee is too cald. The device requires a longer time than usual to heat up.	Limescale in the appliance. Descale the appliance.
The coffee does not have any crème.	The coffee is not fresh. Replace the coffee beans. The degree of grinding is incorrectly set. Correct the degree of grinding.

HINWEIS

Please note

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the

environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.

Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

18 Technical Data

Device	Fully automatic coffee machine
Name	Café Crema One
Item No.:	1881
Mains data	230V~, 50-60Hz
Power consumption	1350W
External measurements	18,5 cm x 34 cm x 42 cm
Capacity	1,2 L
Net weight	8,3 kg

Exterior view of a Coso Design coffee machine (no visible text or symbols on the device body)

CE

19 Mode d'emploi

19.1 Généralités

Exploded view diagram of an electronic device with numbered components and labeled parts

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or force

22.2 Montage

Warning sign with hazard symbol and magnified views showing incorrect safety warning

⚠️WARNUNG Attention: Danger d’écrasement !

Close-up of a dark circular object with small circular features, surrounded by scattered coffee beans (no text or symbols visible)

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

Line drawing of a portable coffee maker with a glass cup beside it (no text or symbols)

Hand inserting a component into a device casing, showing internal structure and tool path (no text or symbols)

Close-up of a black cylindrical device with a red circle highlighting a central hole, labeled '2' on the right (no other text or symbols)

Close-up of a small metallic screw with a transparent plastic head and a black number '3' on the side (no text or symbols on the screw itself)

Exterior view of a Coso Design coffee machine (no visible text or symbols on the device body)

28 Istruzione d'uso

28.1 In generale

Exploded view diagram of an electronic device with numbered components and labeled parts

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating process flow.

Warning sign with hazard symbols indicating workplace safety risks, showing a hand holding a device.

Close-up of a dark circular object with circular indentations, surrounded by scattered coffee beans (no text or symbols visible)

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

Line drawing of a modern kitchen appliance with a glass cup beside it (no text or symbols)

Diagram showing three-step installation of a device: hand holding case, close-up view with highlighted screw, and disassembled LED component.

Exterior view of a CASO Design coffee machine (no visible text or symbols on the device body)

CE

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

Exploded view diagram of an electronic device with numbered components and labeled parts

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating process flow.

41.2 Montage

Warning sign with hazard symbols indicating workplace safety risks, showing a hand pointing to a device component.

brandt constant: opvangbak is vol, bak legen

Close-up of a dark circular object with circular indentations, surrounded by scattered coffee beans (no text or symbols visible)

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

Line drawing of a portable coffee maker with a glass cup beside it (no text or symbols)

Diagram showing three-step installation of a device: wire repair, close-up view, and final LED component.

Exterior view of a Coso Design coffee machine (no visible text or symbols on the device body)

Exploded view diagram of an electronic device with numbered components and labeled parts

Technical diagram showing assembly steps of a device with numbered components and directional arrows indicating process flow.

50.2 Ensamblaje

Warning sign showing incorrect safety symbols for a device, with yellow warning signs and a hand pointing to it.

⚠️WARNUNG Advertencia:

Close-up of a dark circular object with small dots, surrounded by scattered coffee beans (no text or symbols visible)

Line drawing of a portable coffee maker with a cup beside it (no text or symbols)

Line drawing of a portable coffee maker with a glass cup beside it (no text or symbols)

Hand holding a tool interacting with a device component, no visible text or symbols

Close-up of a black cylindrical device with a circular hole and labeled part '2' (no text or symbols on the device itself)

Close-up of a small transparent screwdriver with a metallic tip, labeled with the number 3 (no text or symbols on the object itself)
