Product type	Filter coffee machine
Brand	CASO
Model	Coffee Taste & Style Duo Thermo
Capacity	1.2 L (10 cups)
Power	800 W
Power supply	220-240 V, 50/60 Hz
Dimensions (W x D x H)	17 x 33 x 27 cm
Net weight	2.34 kg
Material	Plastic, stainless steel (thermos)
Display	LED (red/white) for operating status and timer
Main functions	Delay programming (timer), aroma intensity adjustment (3 levels), anti-drip system, automatic shut-off, keep warm
Coffee type	Ground coffee (filter)
Included accessories	2 thermos bottles, permanent filter, measuring spoon
Care and cleaning	Monthly descaling recommended; permanent filter and filter holder washable with water; rinse thermos bottle with hot water
Safety	Automatic shut-off, anti-drip system, burn protection (hot surfaces), electrical safety
Spare parts and repairability	Original spare parts available; repairs by authorized service
Warranty	24 months (for Germany, Austria, Netherlands)

Frequently Asked Questions - Coffee Taste & Style Duo Thermo CASO

How to set the delayed start time?

To set the delayed start, press the Prog button twice until TIMER lights up. Set the desired time using the H and Min buttons. Then press the On/Off button twice. The white LED will light up and the machine will start automatically at the programmed time.

How to adjust the aroma intensity?

Use the Mode button to choose between three levels: mild (●), medium and strong. A longer blooming time before brewing produces a stronger aroma.

What to do if the coffee passes too slowly?

This is often due to limescale. Descale the appliance regularly as described in the Descaling chapter. Also ensure you use a size 1x4 paper filter or the permanent filter, and do not use too much ground coffee.

How to clean the coffee machine?

Before cleaning, turn off the appliance and unplug it. Allow it to cool down. The permanent filter, filter holder and thermos bottle can be washed with clear water. Wipe the exterior with a damp cloth. Never immerse the appliance in water.

How often should I descale the appliance?

It is recommended to descale the machine once a month, depending on water hardness. Use a mixture of one quarter white vinegar and three quarters water. Run the mixture through, then rinse with 1.2 liters of clear water 1 to 2 times.

Can the thermos bottle be used without the hot plate?

The thermos bottle is designed to be placed on the hot plate during brewing. However, it retains heat even without the plate. The plate keeps it warm, but you can remove the thermos bottle for serving.

What to do if the anti-drip system does not work?

The anti-drip system may be clogged with coffee residue. Clean the valve located under the filter holder by gently pressing it to clear it.

How to use the permanent filter?

Insert the permanent filter into the filter holder. Fill it with ground coffee (appropriate amount). Do not tamp too much. Close the lid. The permanent filter is reusable; rinse it after each use.

What do the red and white LEDs mean?

The red LED indicates the appliance is operating (brewing). The white LED indicates that TIMER mode is activated and brewing will start at the programmed time. If no LED is lit, the appliance is off.

What is the maximum water capacity in the reservoir?

Never fill the water reservoir beyond the upper mark indicated. The maximum capacity is 1.2 liters, which corresponds to about 10 cups of coffee.

USER MANUAL Coffee Taste & Style Duo Thermo CASO

CASO® DESIGN

Original-

Bedienungsanleitung

Exterior view of a COSO Design coffee maker with digital display and metal casing (no visible text or symbols on device body)

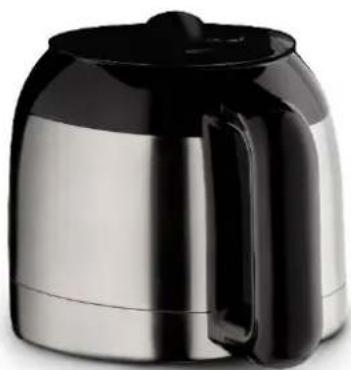

Close-up of a modern stainless steel coffee maker with black lid (no text or symbols visible)

CE

Homepage: www.caso-design.de

10.3 Warning notices....24

10.4 Limitation of liability 25

10.5 Copyright protection 25

11 Safety 25

11.1 Intended use....25

11.2 General Safety information....26

11.3 Sources of danger 28

11.3.1 Danger of burns 28

11.3.2 Risk of injury 28

11.3.3 Dangers due to electrical power 28

12 Commissioning 29

12.1 Safety information 29

12.2 Delivery scope and transport inspection....29

12.3 Unpacking 29

12.4 Disposal of the packaging 30

12.5 Setup location requirements: 30

12.6 Electrical connection....30

12.7 Warning notices....31

12.8 Rating plate 31

13 Operation and Handing 31

13.1 Display 31

13.2 Before using your device for the first time....32

13.3 Setting the clock....32

13.4 Making Coffee 32

13.4.1 Preparations 32

13.4.2 Selection of strength of flavour 32

13.4.3 Quick start....32

13.5 TIMER mode 33

13.6 Cleaning and Maintenance....33

13.7 Safety information 33

13.8 Cleaning....34

13.9 Descaling....34

14 Troubleshooting....34

14.1 Causes and rectification of faults....35

15 Disposal of the Old Device....35

16 Guarantee ....36

17 Technical Data....36

Electric coffee machine

Coffee Taste&Style Thermo

Coffee Taste&Style Duo Thermo

Exterior view of a COSO coffee maker with digital display and control buttons (no text or symbols on main body)

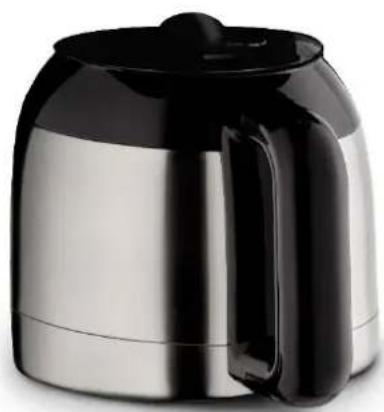

Close-up of a modern stainless steel coffee maker with black lid (no visible text or symbols)

CE

Item No. 1845, 1847

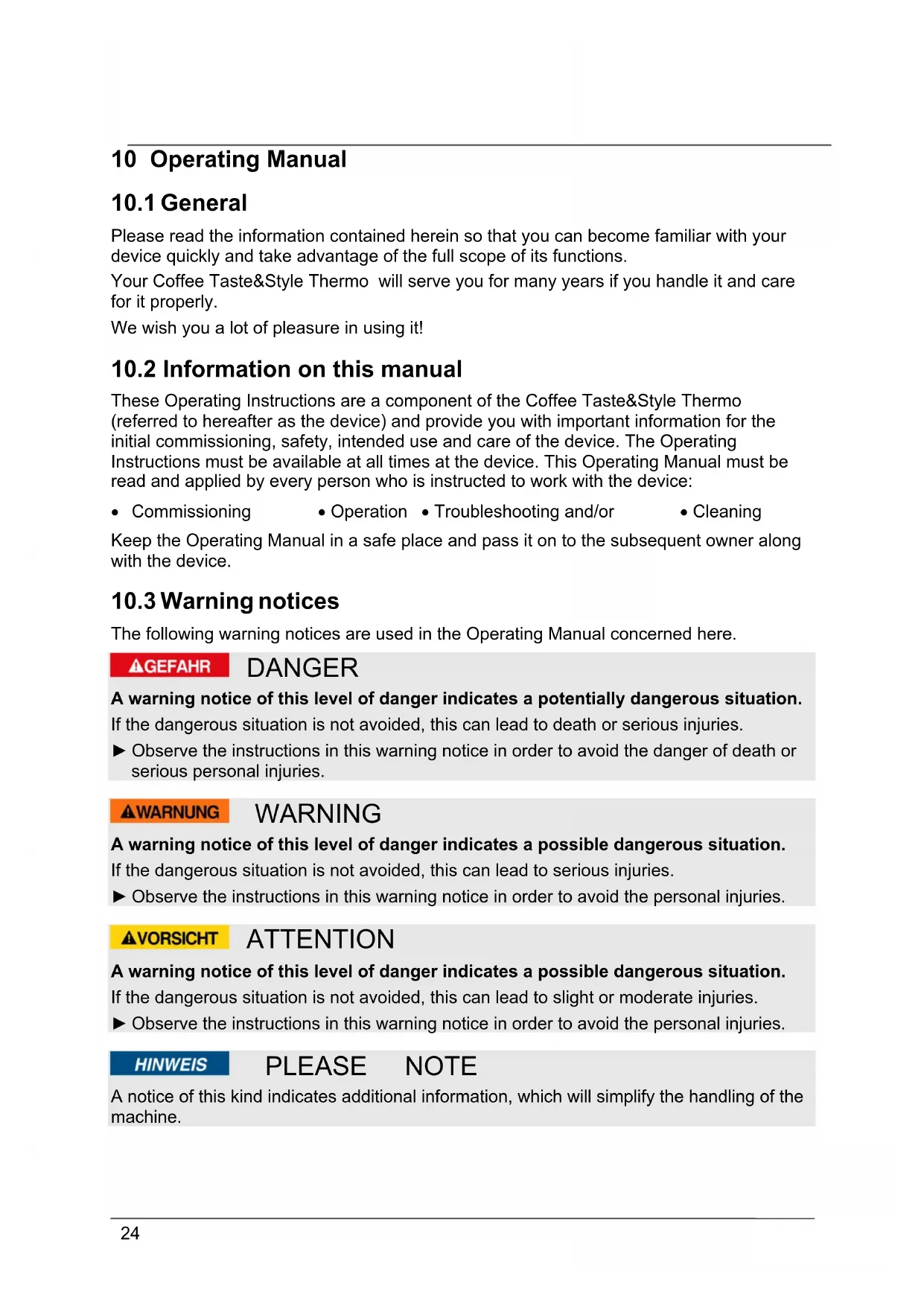

10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Coffee Taste&Style Thermo will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Coffee Taste&Style Thermo (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

- Commissioning

- Operation • Troubleshooting and/or

- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for

cooking/brewing of coffee. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all these instructions before using the device.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Children are not allowed to play with the device. The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not leave the device unsupervised when it is in operation.

HINWEIS

Please note

▶ Do not operate the device if it is empty. This could damage the device.
▶ Never fill the water tank beyond top mark.
▶ Use the device exclusively for cooking coffee. Do not fill any other liquids (as water) or foods in the device.
▶ Do not leave the power cord hanging within children's reach.
▶ The power cord must never be near or in contact with the hot parts of the machine, near a source of heat or over a sharp edge.
▶ For your own safety, only use manufacturer accessories and spare parts suited to your machine.
▶ Do not disconnect the plug from the socket by pulling on the cord.
▶ Do not use the coffeepot on an open flame or on electric cooker plates.
▶ Do not add water in the device if it is still hot.
▶ Always keep the lid closed when the coffee maker is operating.
▶ Never use the coffeepot without the lid.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

11.3 Sources of danger

11.3.1 Danger of burns

⚠️WARNUNG

Warning

The water, heated in this coffee maker, the water tank as well as the warming plate, become very hot.

Please observe the following safety notices in order not to burn or scald yourself or others.

▶ During brewing of coffee the water tank, plate, coffeepot and filterholder with filter will become hot!
▶ Hot steam can escape.
▶ The device may still be hot after use due to residual heat.
▶ Please always test the temperature of the coffee, before drinking.
▶ The lid must always remain closed during brewing of coffee.

11.3.2 Risk of injury

⚠️WARNUNG

Warning

There may be a risk of injury.

▶ Do not use the insulated jug if it is damaged.

11.3.3 Dangers due to electrical power

⚠GEFAHR

DANGER

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

⚠GEFAHR

DANGER

▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not put the machine, power cord or plug in water or any other liquid.
▶ Be careful and avoid water spillage on the plug.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

⚠️WARNUNG

Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the device is delivered with the following components:

1845	• Coffee Taste&Style Thermo, 2x vacuum jug, filter holder with permanent filter, coffee spoon	Instruction manual
1847	• Coffee Taste&Style Thermo, vacuum jug, filter holder with permanent filter, coffee spoon

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Only use this coffee maker on a flat, stable, heat-resistant surface away from water splashes and any heat sources.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• Do not operate the device under delicate furniture as the escaping steam could damage them.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.

- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

12.7 Warning notices

▲VORSICHT

Attention

Danger due to hot surface!

▶ Do not touch the hot surfaces of the device. Danger of burns!
▶ Do not set or lay any items on the device.

12.8 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the unit.

13 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
▶ Operate the device only with placed filterholder.

13.1 Display

12:16 H Min On/Off Prog Mode

H: Setting the hours

Min: Setting the minutes

On/Off: Start/Stop of brewing process, switching to TIMER mode

Press On/Off button once: The device will be switched on and the brewing process is started. The red LED lights up

Press On/Off button twice: The device switches to TIMER mode, the white Led lights up and the device will start brewing process once programmed time is reached.

Press On/Off button three times: Process will be stopped, red and white LED turn off.

Prog: Setting the clock and TIMER

Press Prog button once: Set the clock with H and Min

Press Prog button twice: Set the Timer with H and Min

Mode: Setting of the strength of the flavour of the brewed coffee (mild, medium strong).

13.2 Before using your device for the first time

Operate the device with only 1,2 L itres of water (without paper filter and without coffee ground), as described in “quick start”. Clean the device afterwards.

13.3 Setting the clock

Plug in the device. Press Prog button and CLOCK lights up.

Use the H button to set the hours and the Min button to set the minutes.

The setting is validated automatically.

13.4 Making Coffee

⚠️WARNUNG

Warning

▶ Warning symbol: hot steam.
▶ Caution hot steam can escape at device. Risk of burns.

13.4.1 Preparations

Fill desired quantity of water into the watertank.

Check that filterholder is placed.

Insert the permanent filter into the filterholder or fold the bottom of a paper filter with 1x4 size and insert it into the filter holder. Fill desired amount of ground coffee into the filter.

HINWEIS

Please note

▶ Do not fill to much ground coffee into the filter, otherwise the coffee grounds could overflow.

Close the lid of the device. Place the insulated jug on the warming plate below the drip stop.

Plug in the mains plug.

13.4.2 Selection of strength of flavour

With Mode button you can select desired strength of flavour of the brewed coffee (mild, medium, strong). The flavour depends on the swelling time of the coffee ground. The selected strength of flavour will be saved.

13.4.3

Quick

start

HINWEIS

Please note

▶ Rinse the insulated jug with warm water before use.

Finish the „preparations“.

Press On/Off button, the red LED lights up and the device starts the brewing process with already selected strength of flavour.

At the end of the brewing process, the device switches itself off, then the red LED goes out.

HINWEIS

Please note

▶ The device is stopped when neither the red nor the white LED light up.
The amount of brewed coffee may differ from the amount of water as coffee ground absorbs different amount of water depending on the amount and degree of grinding of the coffee ground
The device is equipped with a drip stop system which enables you to serve coffee before all the water has dripped through. Quickly put the insulated jug back in place to avoid any overflowing.
▶ Do not fill hot water into the watertank.
▶ Never fill the water tank beyond top mark.
▶ Wait a few minutes before making another pot of coffee.

⚠️WARNUNG

Warning

▶ The warming heatsup during brewing process. Danger of burns.
▶ Switch the device off when you have removed the last coffee from the coffee pot.

13.5 TIMER mode

Finish the „preparations“. Press Prog button twice until TMER lights up.

Use the H button to set the hours and the Min button to set the minutes for desired start time of brewing process.

After this press On/Off button twice until white LED lights up, then the TIMER mode is activated. The device will start brewing process automatically when the programmed time for the TIMER is reached. Then the white LED turns off and the red LED lights up.

HINWEIS

Please note

▶ You can cancel the TIMER mode by pressing On/Off buton. The device is stopped when neither the red nor the white LED light up.

13.6 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

13.7 Safety information

▲VORSICHT

Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ The device must be cleaned at regular intervals and limescale should be removed.

▲VORSICHT Attention

▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The water tank, insulated jug and filter holder with filter are hot after their use. There is a danger of burns! Wait until the device has cooled down.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

13.8 Cleaning

Remove the coffee grounds from permanent filter or discard the paper filter with coffee grounds. Thoroughly rinse the permanent filter and filter holder under running water. Rinse the coffee pot. The device can be wiped with a damp cloth.

Dry all parts thoroughly.

⚠️WARNUNG Warning

▶ Do not clean the device when it is hot.
▶ Never put the device in water or under running water.
▶ Be sure to unplug the device before cleaning. To protect against electrical shock do not immerse cord, plug or device in water or liquid.

13.9 Descaling

Depending on the hardness of water you should descale the device once every month.

HINWEIS Please note

▶ If needed descale also the permant filter.

Fill the water tank with one quarter of white vinegar and three quarters of water.

Plug in the mainsplug and press On/Off button. Brew the mixture completey and then pour it away. Repeat the process until no limesale is left.

Then brew 1-2 times 1,2 Liters of water and repeat the process if necessary until there is no noticeable odor of vinegar. Pour away the water.

HINWEIS Please note

▶ Regularly decalcifying of your device will reduce the electricity used and prolong the life of the device.
The guarantee excludes devices which have stopped working or do not work properly due to lack of descaling.

14 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.

▲VORSICHT

▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

14.1 Causes and rectification of faults

Problem	Possible cause	Possible
Coffee brews too slowly (more than 15 minutes) or is not hot enough	Gerät ist verkalkt Descale the device regularly, look at chapter descaling.
There is coffee grounds in the coffee pot	Device needs to be cleaned.The paper filter is too small.Too much coffee ground is used.	Clean the device (esepcially the drip-stop valve).Us the permanent filter or paper filter in size 1x4.Use lee coffee ground.
Coffee has accumulated in the filter and coffee grounds overflowed.	The insulated jug was not placed on the warming plate for too long time during the brewing process, so that the filter could not empty.Too much coffee ground is used.	Unplug the mains plug.Place the insulated jug on the warming plate so that the filter can empty.Clean the device.Use lee coffee ground.
The drip-stop does not work	Residues of coffee at drip-stop	Clean the valve (at the bottom of the filter holder) under running water and press carefully the drip stop several times.
Water leaks from the bottom of the device.	Device is defective. Unplug the mains plug.Do not use the device anymore.Contact the customer service.

HINWEIS

Please note

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

15 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

16 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

17 Technical Data

Device Electric coffee machine
Name Coffee Taste&Style Thermo	Coffee Taste&Style Duo Thermo
Item No.: 1845, 1847
Mains data 220-240V,50/60Hz
Power consumption 800W
External measurements 17 x 33 x 27 cm
Capacity 1,2 L
Net weight 2,34 kg

Exterior view of a COSO coffee maker with digital display and black/gray casing (no visible text or symbols on main body)

Close-up of a modern stainless steel coffee maker with black lid (no visible text or symbols)

CE

Exterior view of a COSO coffee maker with digital display and black/gray casing (no visible text or symbols on main body)

Close-up of a modern stainless steel coffee maker with black lid (no visible text or symbols)

Exterior view of a COSO design coffee maker with digital display and black/gray casing (no text or symbols on main body)

Exterior view of a modern stainless steel coffee maker with black lid (no text or symbols visible)

CE

Artikelnummer 1845, 1847

Exterior view of a COSO coffee maker with digital display and black/gray casing (no visible text or symbols on main body)

Exterior view of a modern stainless steel coffee maker with black lid (no text or symbols visible)

CE

Ref. 1845, 1847
