Product Type	Wine Cellar
Brand	Candy
Model	CWC 150 EU
Capacity	Up to 150 bottles
Dimensions (W x D x H)	Approximately 595 x 580 x 840 mm
Net Weight	Approximately 30 kg
Power Supply	220-240 V ~ 50 Hz
Refrigerant	R600a (isobutane)
Temperature Adjustment	Mechanical, rotary knob
Temperature Range	7.2°C to 18.5°C depending on setting
Shelves Included	6 chrome-plated steel sliding shelves
Wine Rack	1 removable rack (up to 6 bottles)
Door Type	Glass, reversible (left or right)
Interior Lighting	LED
Noise Level	Approx. 40 dB (estimate)
Installation	Minimum 10 cm clearance at back and sides
Maintenance	Clean interior with warm water and baking soda
Defrosting	Manual, do not use sharp objects
Safety	Grounding required, do not use extension cord
Repairability	Intervention by qualified personnel only
Spare Parts	Available on request from customer service

Frequently Asked Questions - CWC 150 EU CANDY

What to do if the wine cellar does not work?

Check that the appliance is plugged in and the circuit breaker has not tripped. If the problem persists, contact an authorized after-sales service.

Why is the temperature not cold enough?

Ensure the temperature setting is correct, the door is properly closed, and the appliance is not overly exposed to a heat source. The spacing around the appliance must be at least 10 cm.

Why does the compressor stop and restart frequently?

This may be due to high ambient temperature, recent addition of a large number of bottles, or too frequent door opening. Also check the seal tightness.

Why does the interior light not turn on?

First check that the light switch is in the ON position. If not, the bulb may have burned out. Consult a professional for replacement.

Why is the wine cellar vibrating?

Ensure the appliance is level by adjusting the front feet. If vibrations persist, check that the floor is stable.

Why is the wine cellar making abnormal noises?

Clicking or gurgling sounds are normal (refrigerant circulation). Contraction/expansion sounds of the walls are also normal. If the noise is excessive, check leveling.

Why doesn't the door close completely?

Check that the appliance is level, the shelves do not block the door, and the gasket is clean. If you have reversed the door, ensure that the installation was done correctly.

How to clean the wine cellar?

Unplug the appliance and empty it. Clean the interior with a solution of warm water and baking soda (2 tablespoons per liter of water). Clean the shelves and exterior with a non-abrasive product.

How to reverse the door opening direction?

Unplug the appliance. Remove the covers and screws from the top hinge, lift the door, then move the bottom hinge to the opposite side. Reinstall the door and top hinge. Caution: if the appliance has an external handle, reversing is not possible.

What is the ideal temperature for each type of wine?

Red wines: 15.5 to 18.5°C (positions 1-2). White/dry wines: 10 to 15°C (positions 2-3). Sparkling wines: 7.2 to 9.5°C (positions 5-6). Rosé wines: 9.5 to 10.5°C (positions 4-5).

USER MANUAL CWC 150 EU CANDY

Please read this instruction booklet carefully before using your Candy Wine cooler

LANGUAGES

Italiano 4

English 19

Francais 32

Espanol. 47

Deutsch 61

Portuguese 75

Nederland 89

EaIyiká 103

Hrvatski 118

Srpski 131

Čežtina 145

Polski 158

Slovenscina 172

Slovinčina 185

Romana 199

Былгарский 213

Magyar 228

pysckn 241

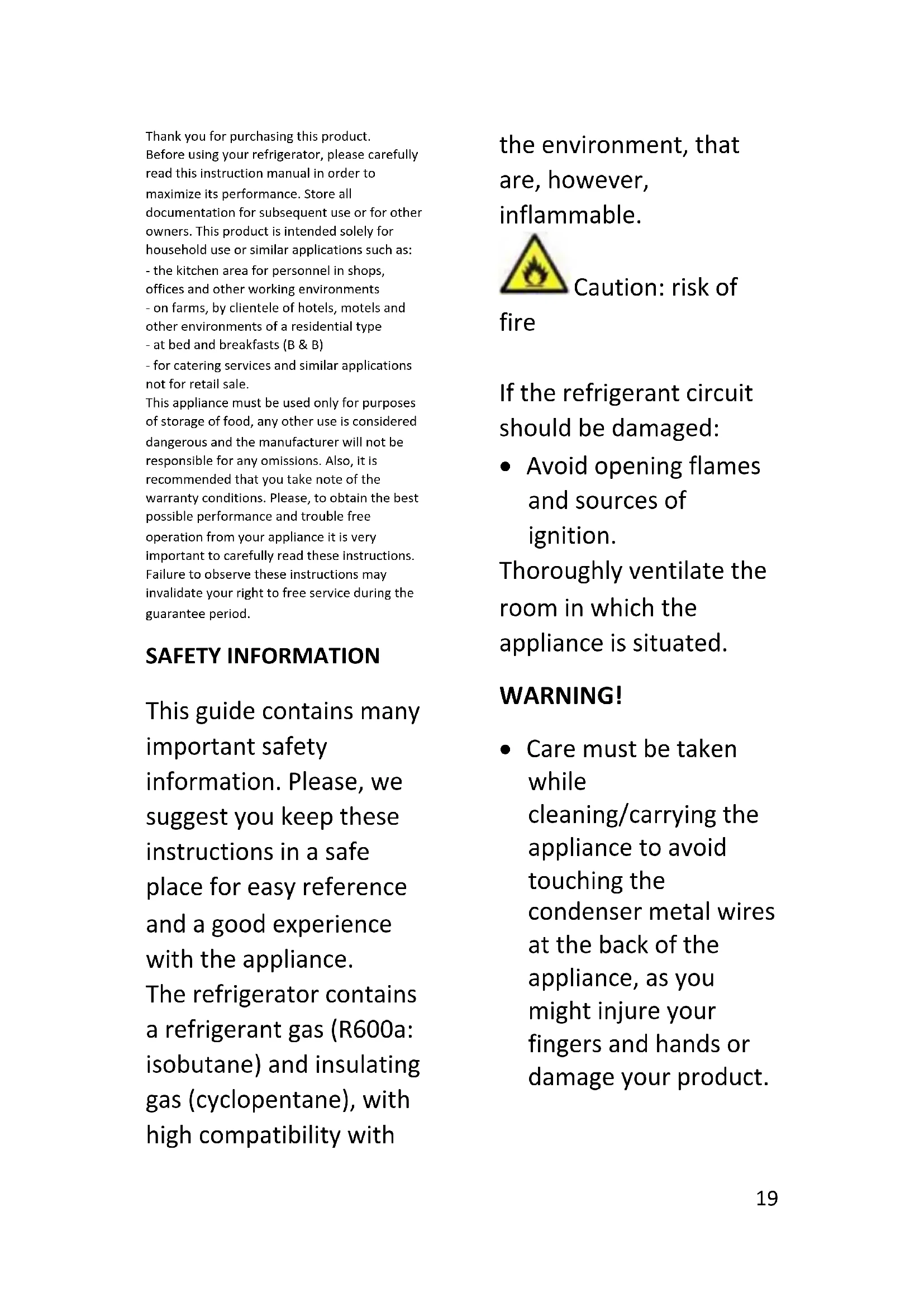

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments

• on farms, by clientele of hotels, motels and other environments of a residential type

• at bed and breakfasts (B & B)

• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is

recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free

operation from your appliance it is very

important to carefully read these instructions.

Failure to observe these instructions may

invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with

the environment, that are, however, inflammable.

Caution: risk of

fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

• This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.
• When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or

tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials.

• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
• This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).
• Do not store medicine or research materials

in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

• Before performing any operation, unplug the power cord from the power socket.
• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.

• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

• Do not place objects and/or containers filled with water on the top of the appliance.
• We do not recommend the use of extension leads and multi-way adapters.

• Do not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in

commercial or nonresidential domestic household premises.

• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.
• The guarantee does not in any way diminish your statutory or legal rights.
• Do not perform repairs on this Wine Coolers. All interventions must be

performed solely by qualified personnel.

SAFETY CHILDREN!

• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

Children should not play with the

appliance. Cleaning and user maintenance should not be made by children without supervision.

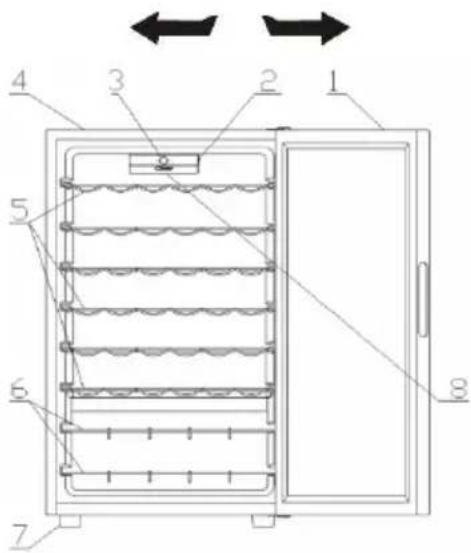

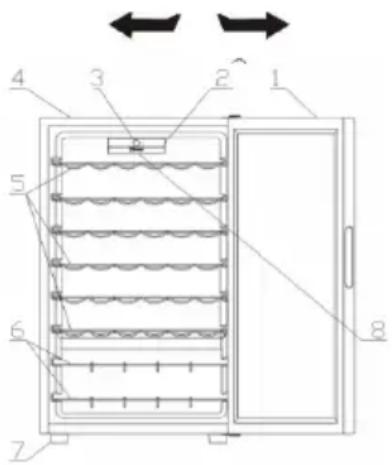

PARTS AND FEATURES

REVERSIBLE DOOR

1.GLASS DOOR

2.LAMP SWITCH

1. USER INTERFACE

4.CABINET

5.CHROME WINE SHELVES

6.CHROME WINE SHELVES

7.FOOT

1. LED

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

• Remove the exterior and interior packing, including protective foam on door panels.
• Check to be sure the following parts are included:

6 slide out shelves
2 wine rack
01usermanual

• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Cooler

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the legs at the front of the appliance.
• Allow 5 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Extreme cold ambient temperatures may also cause the appliance not to perform properly.
• Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator.
• Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized products service center.

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized products service center.

EXTERNAL HANDLE

If the external handle is presented in the product, follow the below steps for assembly.

① Get ready of the product on a flat floor.	② Take out the external handle and 4 screws.
③ Use a magnetic cross screw driver to fix the external handle on the 4 pre-screw holes.	④ Check and make sure all screws are fixed well

Reversing the Door Swing of Your Wine cooler

This wine cooler has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the instruction.

NOTE: Before reversing the door, the power must be shut off.

All parts removed must be saved to do the reinstallation of the door.

① Prepare the product and tools	② Remove the upper hinge cover first
	Hinge cover
③ Remove the screws that hold the upper hinge (right side) and take away the upper hinge	④ Remove the hole covers to the left side.
Screws Upper hinge	Hole cover
⑤ Lift the door and place it on a protective place	⑥ Remove the screws that hold the lower hinge
Door	Lower hinge
⑦ Install the lower hinge onto the left opposite side	⑧ Refit the door to the left hinge and then screw the left upper hinge. After fixing the hinge cover, then complete the reversing process.
Lower hinge

WARNING: If the external handle is presented in the product, the wine cooler has NO capability of either opening the door from the left or right side.

IMPORTANT SAFEGUARDS

Do not store food in wine cooler, as interior temperature may not get cool enough to prevent spoilage. As a natural result of condensation, in summer months or area of high humidity, the glass door may build up moisture on the outside. Just wipe it away.

It is recommended you install the wine cooler in a place where the ambient temperature is between 22 - 25 degree Celsius. If the ambient temperature in above of below the recommended temperature, conditions may cause interior temperature to fluctuate.

If the interior light is left on, the temperature inside the wine cooler will be higher.

Recommended Temperatures for chilling Wine

	Temperature	Position
Red wines:	15.5-18.5 C	1-2
Dry/White Wines	10-15 C	2-3
Sparkling Wines	7.2-9.5 C	5-6
Rose Wines	9.5-10.5 C	4-5

The above temperatures may fluctuate depending on whether or not the interior bulb is on or off of whether the bottles are located on the lower/middle or lower section.

CANDY MECHANICAL

This specification concerns the function of the mechanical control for wine cellars. The image below shows the Candy version of the user interface.

The user interface is formed by:

-1 knob for temperature setting
- 1 side button for the light

Function

Rotating the thermostat knob you can adjust the temperature of the wine cellar to the preset level.

SHELVES

Shelf is chrome plated. To accommodate different size bottles, they can be moved up or down by sliding them out the tracks first.

Shelves are designed to accommodate maximum amount of bottles.

WINE RACK

There is an additional wine rack at bottom section of the unit where you can store up to 6 wine bottles. This rack is removable for cleaning purpose.

There is a 4 to 6 C variance between the top and bottom shelves of the wine chiller. Therefore, if you have set the wine chiller for red wine only and you want to place a mix of white and red wines, you should place the white wine bottles on the bottom shelves and the red wines on the top shelves.

CARE AND MAINTENANCE

Cleaning Your Wine Cooler

• Unplug the wine cooler and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a liter of water.
• Wash the shelves and trays with a mild detergent solution.
• The outside of the wine cooler should be cleaned with mild detergent and warm water.
  It may also be necessary to periodically wipe the bottom part of the storage area, as the

wine cooler is designed to retain humidity, and condensation may collect there.

Maintenance of Your Wine cooler

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

During long absences, remove all the bottles; unplug your wine cooler, clean your wine cooler, and leave the door open slightly to avoid possible formation of condensation, mold, or odors.

Moving Your Wine cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine cooler.
• Turn the levelling screws up to the base to avoid damage.
• Tape the doors shut.
• Be sure the wine cooler stays in the upright position during transportation.

TROUBLESHOOTING

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in. The circuit breaker tripped or blown fuse.
Wine cooler is not cold enough.	Check to be sure the temperature control setting. External environment may require a higher setting. The door is opened too often.

	The door is not closed completely. The door gasket does not seal properly. The wine cooler does not have the correct clearances.
Compressor turns on and off frequently.	The room temperature is hotter than normal. A large amount of contents has been added to the wine cooler. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The wine cooler does not have the correct clearances.
The light does not work.	The home circuit breaker or fuse has tripped. The wine cooler is unplugged. The bulb has burned out. The switch is in the "OFF" position.
Vibrations.	Check to assure that the wine cooler is level.
The wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler. Contraction and expansion of the inside walls may
	cause popping and crackling noises. The wine cooler is not level.
The door will not close properly.	The wine cooler is not level. The doors were reversed and not properly installed. The gasket is dirty. The shelves are out of position.

Technical specifications:

For detailed specifications, please refer to the nameplate at the back of the wine cellar. The specifications are subject to change without prior notice due to products improvement.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

and therefore causing continuous functionalizing of the compressor.

• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

ENERGY SAVING

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature

RECOMMANDATIONS IMPORTANTES

• Limpie los estantes y las bandejas con un detergente suave.
• La parte exterior de la camara de vinos deben limpiarse con agua Templada y un detergente suave.
• Internacionalmente, se qu'a sido aplicado a la law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the law of the

SIGURNOSNE INFORMACije

OIIaCHOCT OT IIOXkap

Ako oxlaIITeJIHaTaBepnra ce IOBpei:

• I36ЯВаITE OTKPIT OГьи ИИЗTOUHин Ha 3aIIaJIbAHe.

MaKcMmaBHO ICNoB3OBA Tb eR0

XapakTePncTnKn. CoxpaHnte BcIO

DOKyMeHTaUH DnI nocJeUoUero

INCNoB3OBAHnI INI DnIaDpyrnx

noIb3OBaTeJe.I3dJIe IpeHa3HaueHo

NCKJIIOUHTeJbHO IJI DAOMaHHeO

HcNoIb3OBaHnA, a TaKxHe dIe CneDyUoJero

aHaIOrnHOr npMmHeHn:

TOCTHnH,MOTeJIeN B DpyrNX NOMEeHnX

ДлпpoжиBaHЯ;

-BroctnHnuaX Tnna «noCTeIb n 3aBtpaK» (B & B);

-ДЯВьe3dHOropectOpaHHoro

06cnykubAHnHn noo6hbyxcyIyr He B

po3HnUHOn TOpROBNe.

3JIeKtpoPn6Op cIeIyET nCNoIb3OBAtB

TolbKOДЯХpaHEnHIpOdyKToB.

PpIMHeHHe B IIO6bIX INHbIX CEJIaX MoKeT

CHTaTbCa ONaChbIM, INPOn3BOdnteJIb He

Hecet OTBETCTBeHHOCTn 3a noo6hble

Hapuhen. PekomeHyetca TaKke 6paTntb

BHHMaHHe Ha yCIOBnra rapaHTn.ДЯ

DOCTNKeHMaKcMmaBHO

Ipon3BOIDNTeJIbHOCTn 6e3OtKa3HOH pa6oTbI

3JIeKToPn6oPa OueHbBaXHo BHNMaTeIbHO

H3yUHTb daHHbIe HNCTpyKcUN. Heco6JIIODeHne

ETNX yka3aHm MOKeT npBecTu K

aHHyInpoBaHnIO npBa Ha 6ecnlaTHoe

rapaHTnHoe o6cnyKbAHne.

TeH He CMOrn 3aKpbITbCByBHyTpN.

JaHHbIeJIeKtpOpnp6Op MoJKeT NcNoJIb3OBaTbcra DeTbMnBBO3paCTe8 Iet n CTapSe, a TaKJKe LInZaMn C OrpaHnueHHbIMN Fn3nuecknMn, CeHCOPHbIMN UyMCTBeHHbIMN cNoCObHoCTaMn, HeIOCTaTOUHbIM ONbITOMn 3HaHnAMyn, PnYcIOBn, YTO OHN HaxOJaTcNpOd COOTBeTCTByUoUsm Na6JIuDeHnEm, nIi npOnHCTpyKtUpOBaHbI O nopRdKe 6e3OpacHoro NOLb3OBaHnA NJIeKtpOpnp6Opom, n OCO3HaHT CBa3aHHbIe C 3TIm ONaCHOCTN.

He pa3pewaTe DeTAm Irgatb C 3JIeKTPoPnp6Opom. DeTAm 3aIpeuaeTcra

BbIIOJHЯTb YNCTKU N OJb3OBATeJIbCKoe 06cLyJXnBaHne 6e3 npncMOtpa.

ETALN N FYHKUIN

NEPEHABEUNBAEMAR DBEPb

1.CTEKJIaHHAДBEPb
2.BbIKJIIOHATEJIbIAMnbl
3. INTEPΦEIC NOIb3OBATEJIA
4. KOPNYC
5.XPOMMPOBAHHbIE BUNHbIE NOJIKI
6.XPOMMPOBAHHbIE BUNHbIE NOJIKI
7.CTOIKA
8.CBETOIOI

HHTPYKUIN NO YCTAHOBKE

Ipeed nCpOJIb3OBaHHeM BHHORO XoJODnJIbHNka

CHNMTe BHeUHIO IN BHyTpEHIOU yNaKOBky, BKNoUa3aUHTHy NeHy Ha DbepHbIX NaHeJx.
- y6eIntecb HnHnCneDyUOux KOMnoHEHTOB:

6 BBiBnHbIX NOLOK
02cteJnJaKaDnBnHa
01pykoBOCTBO NOIb3ObaTeIa

• Ipeep nodkluohnnpbopa K nCTOuHnky NHTaHn, daTe emy NoctoarB BeptnkalbHO B TeueHne npimepHo 2 yacob. 3To yMeHbWnt BO3MOXHocTb NOBLeHn HEnCpabHOCTHn CNTeMbI OXlaJdEHNBO BpeMraTpaHCnOpTnPOBKn.
• PnOtpnte BHTpeHHIO IOBepxHocTb MANKoTKaHbIO C TeIIOB OBOIO.

YcTaHOBKa BHHORO XoJIoNJIbHNKka

• NomeCTnTe np6Op Ha nO, KOtOpbI DOCTaTOHNO IpOyen dNIA TORo, YTo6bl BbIDepKaTb NOHOCTBIO 3aRpyKeHHbI np6Op. YTo6bl BbIPOBHbTb np6Op, OtperynPyte HOxKc CnepeDn.
  -Obecneythe 12,5cm(5dIOHMOB) npoctpaHCTBa MeJdy 3aHNe H6OKOBu qactmnpbopa, yTo oBecepeHT HaJIeKaUHO cIrpKpyLraUHO BO3dyXa DIA OxJaXDeHHa KOMPpeccopa.
  PacnoJoxKe np6op BdaHn OT npMbIX coJIHeuHbIX LyueH N ICTOCHNKOB TeNla (neyb, o6orpeBaTeB, paHaTOp n T.D.). PpMbIe coJIHeuHbIE LyuH MOryt NOBInrTa H aAkPNIOBoE NOKpbITNe, a ICTOChHKn TEJaMa MOrYT yBeJIuHTb NoTpse6JeHne 3JIeKtpo3HeprHn.
• 3KCTpeMaJIbHO xOLOdHbIe TEMnepaTpybl OkpyKaIOSeI cpeBt TaKKe MOrYT npNBecTN K HenpaBnIbHbOH paBoTe npN6opa.
• 136eraIte pa3MeueHnna npnbopa BO BlaXhBIX NOMeueHnX.CnUkOM BlaXhBb BO3DyX npNBcTe K CInuKoM 6bICTpOmy o6pa3OBaHnIO HHeHa nCnapnteIe.
• PódklouchTe np6op K OTdeIbHO npabNlbHO yCTaHOBLeHHo N 3a3eMJIeHHo pO3eTke. Hn npi KaKnx 06cToTBeTBax He OTrpe3aIte N He y6npaTe TpeTNI KOHTAKT 3a3eMJIeHHa OT shHypa NiTaHHa.
  CJIIObIMN BONpocAMn, KacaOuMmncnITaHnI N3a3EmLeHnI, HxKHO6paAaTbcra K cepTnΦuIpOBaHHOMyJANEKTpy INB aBTOpN3OBaHHbIcEPBNCbI ueHTp.

BnMaHHe: HenpaBnlbHoe nCpNoIb3ObaHne 3a3eMLeHHoP03ETKMOxKeT C03dAbTaB pNCK yDapa 3JeKTPnuCeckn M TokOM. EcIn ShHyp NITaHn NOBpeKDeH, O6paTntecb dIra erO 3aMeHbI B ABTOpN3OBAHHbI cepBnCHbI ueHTp.

BHEUSHY RPYKA

Ecnn npn6op nMeet BHeuHIOpykny, BbINOHNTE cNeDyUOue WaN dAcbOpKn.

PekomeHdyemble TemnepaTpybI dIy OXlaKdEHHB BHa

-1pykaДЯpergylnpoBaHnTeMnepaTpybl
-160KOBaKa KHOJa IJr OCBeUeHnI

PpHnCnbl pa6oTbI

IobopoTOMpyKNTepMoCTaTaMOxHOperyuNipOBaTB TemnepaTypy BHHoroXoIOuNbHnKa.

NOLKIN

PonKxPOMNPOBaHHbIe.ДЯ pa3MeueHn8 6Tyblok pa3JIuHOro pa3Mepa INx MoKHO nepemeuTaB BBePx ININ BHN3, BbIDBnra INx C dopoxKe. PONK npEHa3HaYeHb IДЯ pa3MeueHnMaKcImaJIbHOrO KOJIueCTBa 6Tyblok.

CTENIAK DIAI BINA

B HnKHe ceknn npnbopa haoDntcdoNoHHTeNbHbI CTeJIaX DnBA BnHa, BKOtOpOM MOxHO xpaHNTb Do 6 6yTbIIOK.3OTCTeJIaX MOxHO CHMaTb DnOuNCTKn.

CyueCTBye pa3Hnca B 4-6 C MeKdy BepxHei HnXHei NOkamn BNHHORO XoNoIbHnka. PoTOMy,ecn Bbl HAcTPOHNn BuHHbi XoIOuNbHK ToJbKO Ia KpaCHoro BnHa,a XOTHe pa3MeCTntb KaK 6JIbe,Tak N KpaChbIE BnHa,Bbl DOJXHbI NOMeCTNTb 6YtBInKc 6BebIM BnHOM Ha HnXHHne NoIKN, a c KpaChbIM-Ha BepxHne.

YXOD N OBCNJUXKIBAHNE

YnCTKa BHHORO XoIOnIbHnKa

OTKIOHHTe BUNHHbI XOLOIDINbHNK N BbIHbTe 6yTbIKN.
- PpOMoTe BHTpeHHIOuactb TeIIOB BOOIN pAcTBOPM NIIeBOO CObl. PaCTBOp DOJIKeH COCTOB n3 npIMepHO 2 CTOLOBbIX IOnKe NIIeBOO CObl Ha IITP BObl.
- BbIMoHTe NOLKIN NOIIOHObl MRAKIM pactBOPOM MOUeero cpeCTBa.
BHeuHIOU qAcT BnHHOrO XoJIoNJIbHNka CNeDyET OUYIaTb MArKIM MOIOUIM CpeCDTBOM N TEnIOJ BOOn.
Takke MoKet noTppe6oBaTbcn nepnoDnueckn npotnpaB HNKKHO qAcTb 30Hb XpaHeHn, TaKaK BHHbI XOIOINbHnK COxpaHReT BlaXHoCTb, YTO npNoBDNT K HaKOpJIeHnIO KOHDeHCata.

06cIyKbAHne BnHHoro

XOLOAnIbHNKa

C60nntan

BoJbHnHCTBO c6oEB nHTaHn8 6yDyt
NCpabHeBb TteueHne HeckOJIbKnx YacOB
He DOLJHbIOBnIaTb Ha TeMnpaTyB
BHHOM XoJIoNbHnke,ecn Bbl
MNHMn3NpyTe KOJIuYeCTBO OTKpbIBaHni
DBepe. Ecn NtAHne 6yDet OTKnIOyeHO B
TeueHne 60nee dInTeIbHoro nepnoDa
BpeMeH, Bam Heo6XOnMo npedpnHrTa
HaJeKaune Mepbl Ira 3auNTbl BaWero
coepxHmOrO.

Bpema otnycka

Bo BpemdIInTeBbIX OTNcKOB BbHbTe BCE 6yTbIKN;OTKIOUHTe BNHHbXOLODINbHK, ouHCTNE ero HEMHORO OTKPOITe DBepb, 4TO6bH36ExKaTb ObaHn KOnDeHcata, PnleceHn nn 3anaXOB.

IpepeeHne BHHoro XoIoNbHnka

BbIHbTe Bce 6yTbIKn.
HaedekHO 3aKpeHnTe Bce CbO6oHbIe npEaMeTb BHyTpN BuHHoro XOJIOuNbHnKa.
- NOBepHnTe BbipaBHBaHOuIe BNHTbI Do OCHOBAHy, YTO6blN36eKaTb NobpeKdHn.
3aPnTe DBeepu N 3akJeIeTLeHToI.

• Y6eIntecb, yTO BO Bpemr TpaHcnpTnpoBKn BHHbXOJIOJIbHbNK OCTaETCB BePTKakbHOM NIOJOKeHHN.

NONCKI YCTPAHEHNE

HENoIaIOK

BbMOXeTe IerKo peuHb MHOrne npo6Iembl C BnHHbIM XOJOnMbHKOM, cKOHOHMNB npn 3TOM Ha CTOMoCTN BO3MOxHoro Bbl3Oba cnyk6bl. Npnpo6ynte npnbEeHNbte Hnke peKoMeHdaun, YTO6bl y3HaTb, MOxTe nn Bbl peuHb npo6IeMy Do Bbl3Oba cneuaJIIncta NO cepBnCHOMy O6cnyKnBaHHIO.
