USER MANUAL CWC033M CANDY

Warning sign depicting a flame symbol in a triangular warning triangle

EN WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

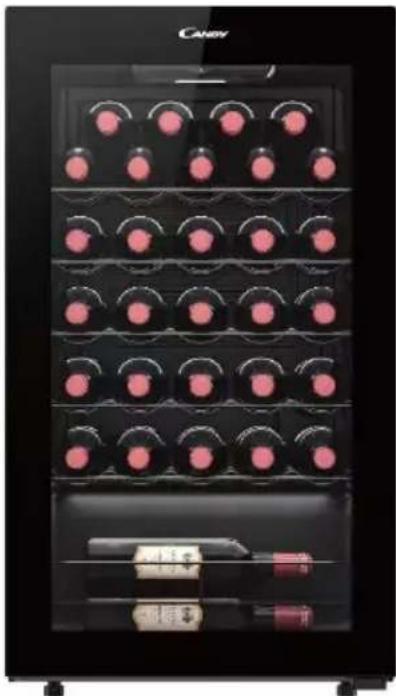

Black refrigerator with pink wine bottles and a small white bottle on the side (no visible text or symbols)

Thank you for purchasing a Candy Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Symbol of a trash bin crossed with no text or labels

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.

By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

EN

Content

1- Safety information....4
2 - Safety tips....7
3- Maintenance 11
4-Accessories....13
5- Product description 14
6-Installation 15
7-Use....19
8- Energy saving tips 24
9 - Equipment 25
10- Care and cleaning....26
11- Troubleshooting 27
12- Technical data 30
13- Customer Service 31

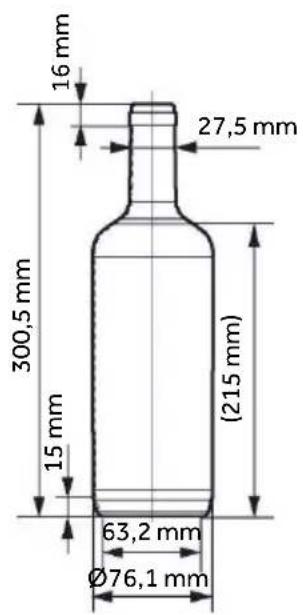

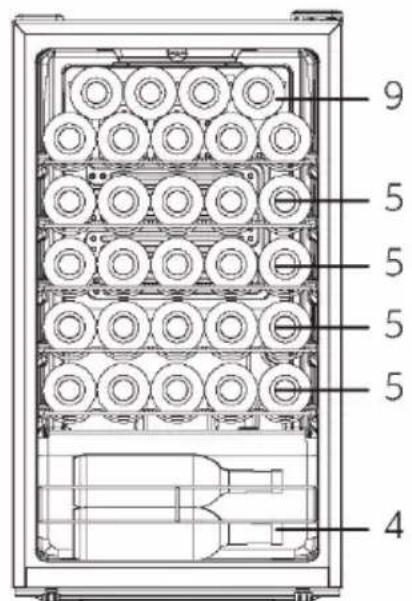

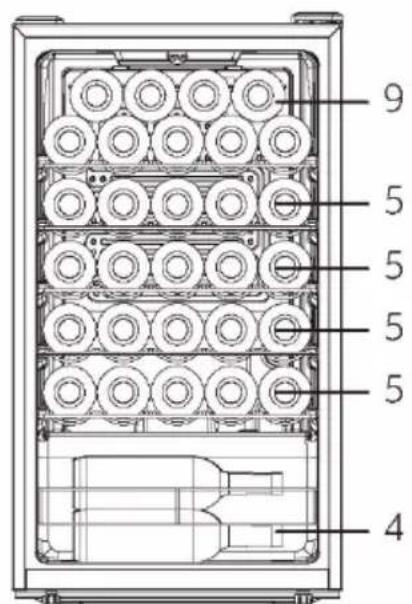

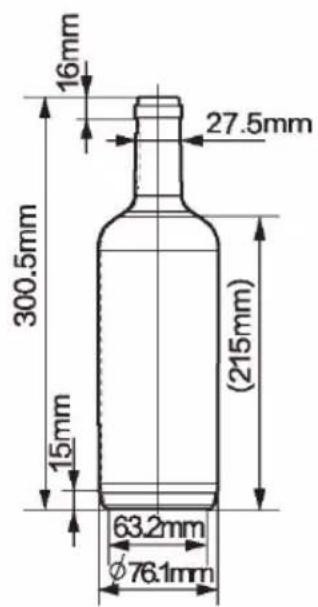

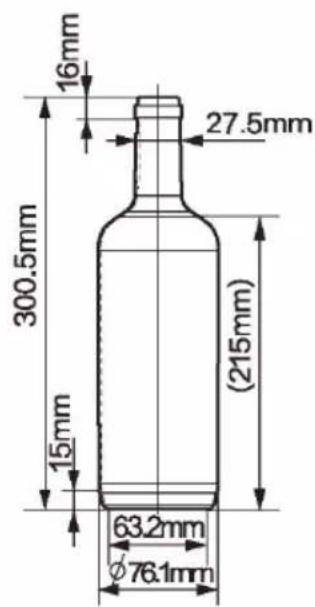

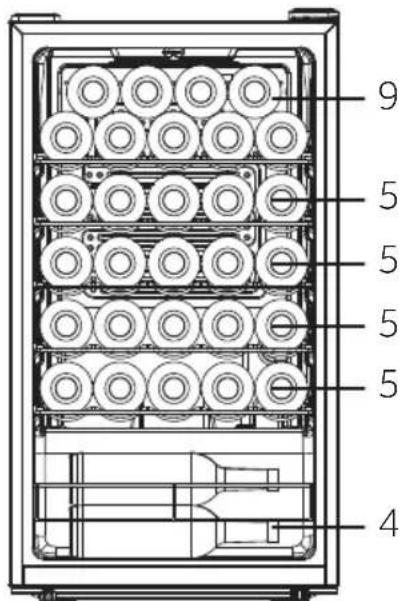

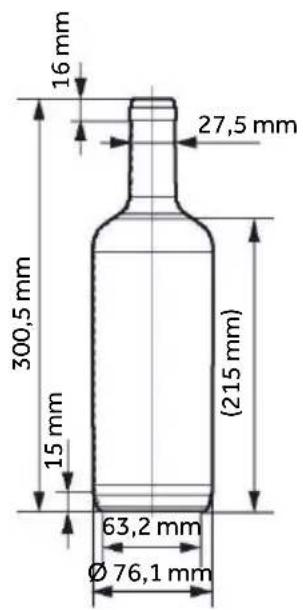

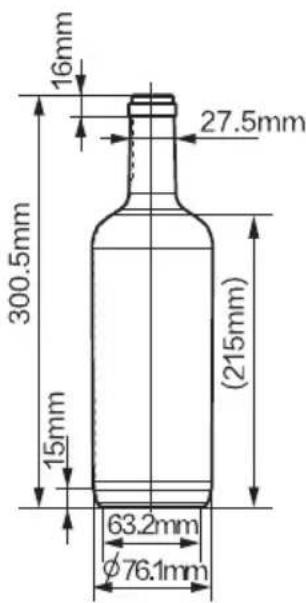

14- Wine bottle stacking....32

This appliance is intended to be used exclusively for the storage of wine. Before switching on the appliance for the first time read the following safety hints:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach and dispose them in an environmentally friendly manner.
▶Wait at least 0.5 hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 50mm above and around the appliance.
▶ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 16°C.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters).
▶ Install and level the appliance in an area suitable for its size and use.
▶Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.

WARNING!

▶WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

▶WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

▶Do not step on the power cable.

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶WARNING: Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children shall not play with the appliance.

▶Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.

▶ Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶Cleaning and user maintenance shall not be made by children with out supervision.

The appliance must be positioned so that the plug is accessible.

If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance.

▶ Wait at least 7 minutes to reconnect the power after the power has been disconnected.

▶Do not lift the appliance by its door handles.

The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.

WARNING!

▶Notice that the appliance is set for operation at the secific ambient range between 16 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles(heavy objects, containers filled with water) on top of the appliance, to avoid personal injury caused by falling or electric shock caused by contact with water.
▶Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch the inside surface of the appliance compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
For proper wine cooling, do not overload the appliance.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶WARNING: Do not use electrical devices inside the appliance, unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service(see warranty card).
▶To prolong the service life of the appliance, avoid turning it off.
▶ Never place the appliance horizontally on the ground. After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.

WARNING!

Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Hold the plug, not the cable, when unplugging the appliance.
Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass door with hot water. Sudden temperature change may cause the glass to break.
▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gass information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

Intended use

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

▶To ensure the safe preservation of wine, please comply with this instruction for use.

The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.

▶ WARNING: Disconnect the appliance from the power supply before cleaning.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.

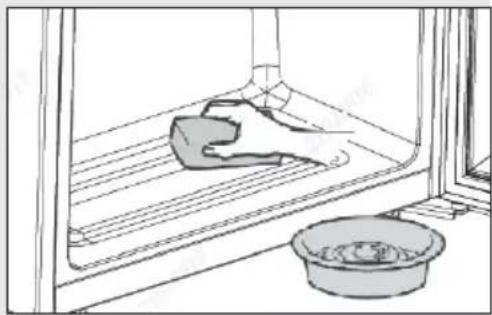

▶ Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.
▶ Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent
▶ Rinse with clean warm water and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
- Allow at least 7 minutes before re-starting the appliance as frequent starting may damage the compressor.

Simple line drawing of a kitchen sink with a bag and a basin (no text or symbols)

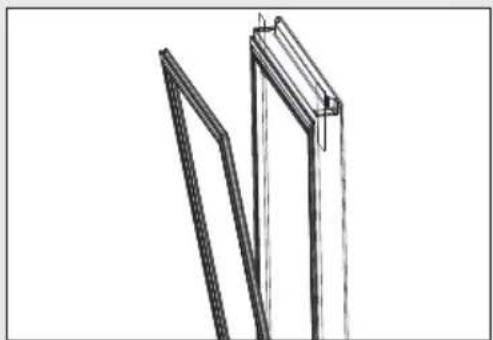

Clean the door gasket:

The door gaskets should be cleaned every 3 months to assure a proper seal. As below: Remove: Grasp the door gasket and pull

it out according to the direction of arrow to remove the whole door gasket in order.

Dip the brush with water or food grade alcohol, clean up the door gasket groove firstly by pulling back and forth the brush. Then wipe door gasket surface with a towel dipped with water or food grade alcohol. Finally, wash the door gasket clean and wipe it dry with a clean towel.

Technical line drawing of two structural beams or panels with vertical supports (no text or symbols)

Installation door gasket after cleaning:

Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove, and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove.

Cleaning the shelves:

▶ All shelves can be taken out for cleaning.
▶ Take out all bottles.
▶ Lift each shelf a little and take it out.
▶ Clean the shelf with a soft towel.
▶Wait until the shelves are dry before putting them back in.

WARNING:

Wait at least 7 minutes to reconnet the power after the power has been disconnected.

Check the accessories and literature in accordance with this list:

Name	User Manual	Service Card	Shelf	Hinge Cover	Energy Wall	Barrier
CWC033M	1	1	5	1	1	1

Product description

EN

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

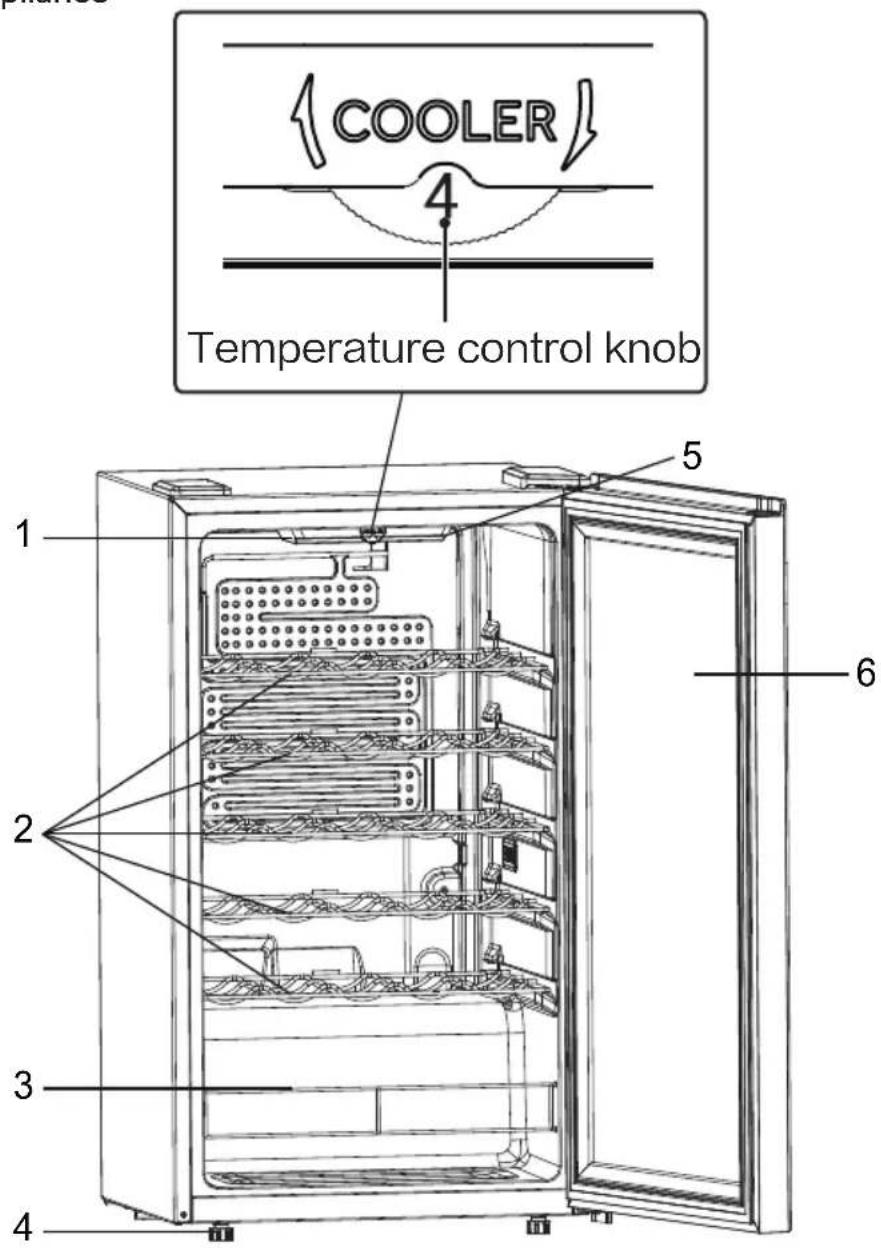

Picture of appliance

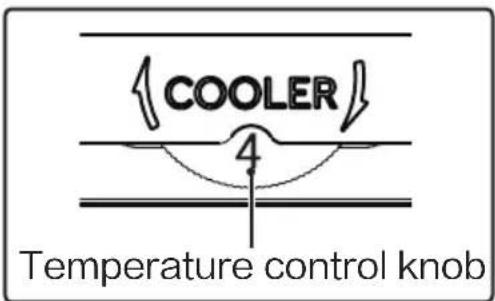

COOLER 4 Temperature control knob 1 2 3 4 5 6

1. Temperature control knob
2. Shelf

3. wire barrier

4. Adjustable feet

5. Lamp switch
6. Glass door

1. Unpacking

▶Take the appliance out of the packaging.
Remove all packaging materials including the foam base and all adhesive tape holding the accessories.

2. Environmental conditions

The room temperature should always be between 16^ C and 38^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

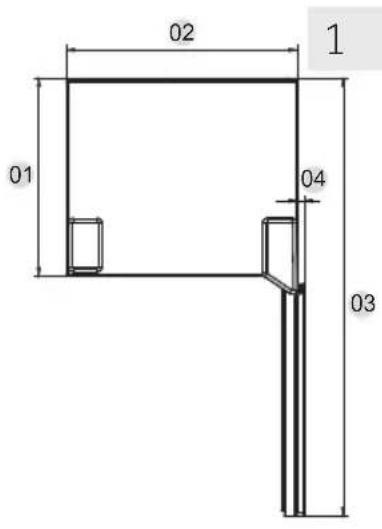

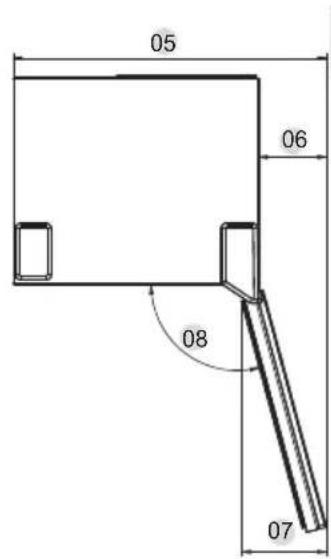

3. Space requirements

Required space to open the door (Fig. 1,2,3,4); For safety and energy reasons, the required ventilation distance of 50 ~mm in all directions must be observed (Fig. 5).

02 1 01 04 03

05 06 08 07

2

3 109 A

Measurement: mm	CWC033M
Depth A 456
Width B	475
Height C	849
Overall Height D	850
01	406
02	475
03	897
04	13
05	608
06	133
07	166
08	115°
09	50

50mm 50mm 50mm C 5

B 4 D

WARNING!

▶ Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. This refrigerating appliance is not intended to be used as a built-in appliance

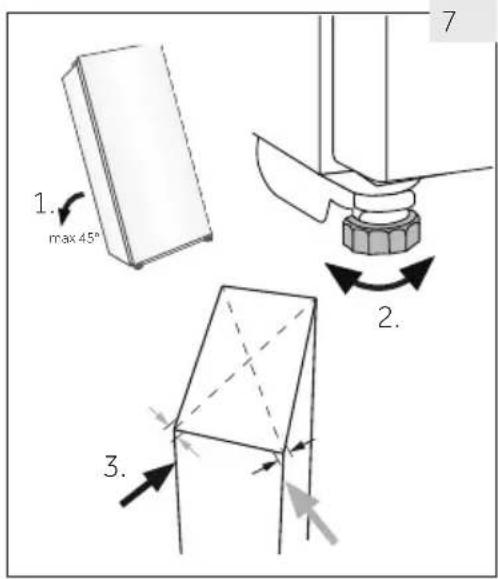

4. Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 7).
2. Set the adjustable front feet to the desired level by turning them.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

1. max 45° 2. 3. 7

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

5. Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:

Rotate the adjustable feet (Fig. 8) to turn them up or down:

▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lower the appliance.

0.5 h 9

6. Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 0.5 hours (Fig. 9) so that the oil runs back into the capsule.

7. Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are fit properly.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

8. Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶ Before any operation, first unplug the appliance from the mains.
▶Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

Installation

EN

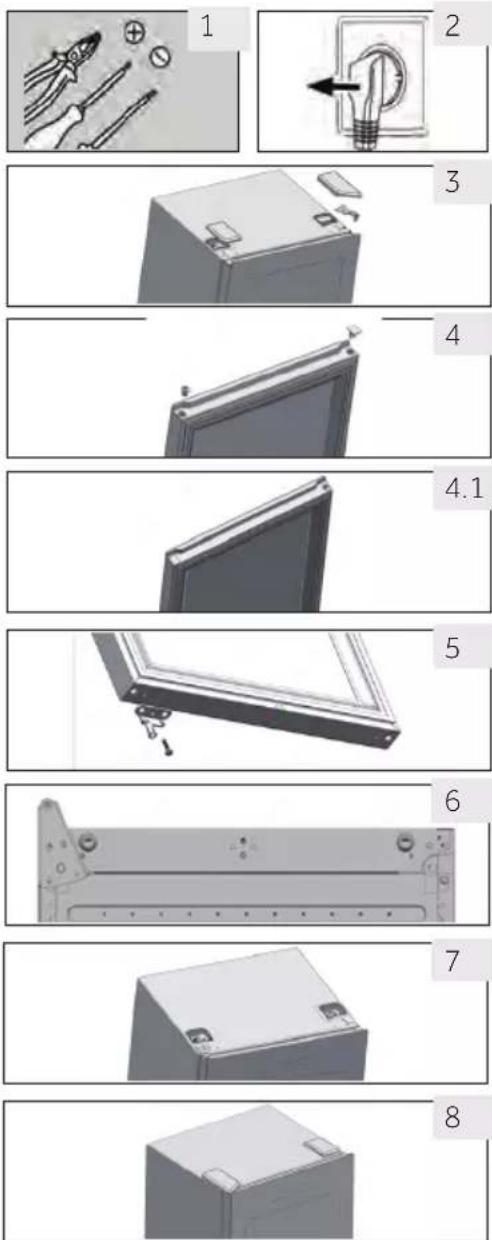

Assembly steps

1. Provide necessary tool.
2. Unplug the appliance.
3. Remove the left and right hinge covers, remove the three screws from the upper hinge and remove the door body.

4. Remove the top shaft sleeve and decorative cover of the door body, and install them interchangeably on the door body.

5. Remove the fixing screws, shaft sleeves, and door stop at the bottom of the door body and install them on the other side of the door body.

6. Remove the lower hinge screw at the bottom of the box and secure the lower hinge screw to the other side of the box.

7. Install the door body onto the lower hinge of the door body and secure the upper hinge with screws.

8. Install the hinge cover and decorative cover, and complete the left and right door replacement.

1. Before first use

Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children's reach and dispose them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it.
▶After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION.
▶Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments.
The temperature is automatically set to "4" gear. If desired, you can change the temperature manually. Please see TEMPERATURE.

2. Lamp switch

This product is equipped with a light switch on the rig

control the lighting on the product.

- The "-" of the light switch represents on, "O"represents disconnection, Please pay attention to the switch status before use.

3. Temperature regulation

COOLER 4 Temperature control knob

• The temperature range of the wine cabinet: 6-15 °C, suitable for storing various types of wine.

• The temperature of the wine cabinet is adjusted through the temperature control knob. '1,2,3,4,5,6,7' represents the specific gear position of the temperature controller and does not represent the specific temperature.

- Normally, 1-2 gears are in high temperature, 3-5 gears are in the middle range, 6-7 gears are low.

• The factory gear of the wine cabinet is "4".

• The temperature inside the wine cabinet changes with the ambient temperature and temperature controller gear.

Notices

- When storing wine, do not touch the rear cooling components to prevent freezing or wetting the wine label.

- If the temperature inside the box is too high, please increase the scale number appropriately; Turn it down on the contrary.

- When the ambient temperature is too high, if the gear adjustment is too low, the wine cabinet may not shut down, resulting in frosting of the evaporator and low temperature inside the box. It is recommended to decrease the gear appropriately.

- When the ambient temperature is too low, the wine cabinet may not work. It is recommended to place the wine cabinet in an environment of 20-30 °C.

• After adjusting the gear, it takes some time to achieve temperature balance inside the box. The length of time depends on the gear position, environmental temperature, frequency of opening doors, and the amount of wine stored in the box.

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Open the appliance door as little and as briefly as possible.
▶ Do not exceed the designed amount of bottles to avoid obstructing the air flow.
- Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires shelves to be positioned in the appliance on factory condition, and wine to be placed without blocking the air outlet of the duct.
▶To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.

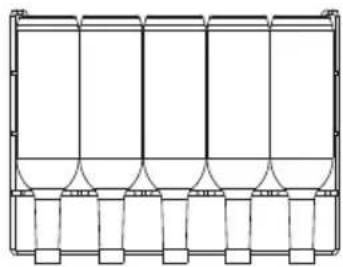

1. Shelf

1. The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.
2. Regualr bottles with diameter of 76mm can be stacked.
3. The quantity can vary from the depicted number or bottles if they are stacked in a different way.

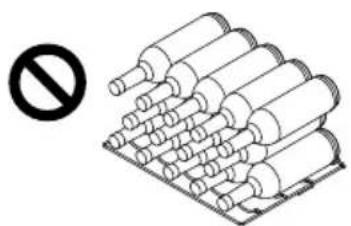

Advice for the layout of your wine cellar

We recommend that the number of wine bottles should not exceed two layers on each shelf, and the bearing capacity of the wine shelves should not exceed 15 kg. Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable. In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

Illustration of cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of cylindrical mechanical components arranged in a row, with a checkmark symbol nearby (no text or labels)

Illustration of cylindrical rollers arranged on a base plate with a checkmark symbol (no text or labels)

1. Defrosting

The defrosting of the wine cellar is done automatically; no manual operation is needed.

2. Replacing the LED lamp

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.

This product contains a light source of energy efficiency class G.

DC 12V, max Power 2W.

3. Non-use for a longer period

Unplug the power cord.

Clean the appliance and door gaskets as described above.

Keep the door open to prevent the creation of bad odours inside.

4. Moving the appliance

1. Remove all bottles and unplug the appliance.
2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.
3. Do not tilt the wine cellar more than 45° to avoid damaging the refrigerating system.

Troubleshooting

EN

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem	Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance runs frequently or runs for a too long period of time.	The outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The door gaskets are dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.The temperature is set too low.	In this case, it is normal for the appliance to run longer.Normally, it takes a while for the appliance to cool down completely.Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door too frequently.Clean the door gasket or replace them by the customer service.Ensure adequate ventilation.The problem will resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty or smells.	The inside of the wine cellar needs cleaning.	Clean the inside of the wine cellar.
It is not cold enough inside the appli-ance.	The temperature is set too high.Bottles have been added recently.A door of the appliance is not tightly closed.The door has been opened frequently or for long time.The door gaskets are dirty, worn, cracked or mismatched.	Reset the temperature.Allow time for recently added bottles to reach desired tem-perature.Close the door.Do not open the door frequently.Clean the doorgasket or replace them by the customer service.
It is too cold inside the appliance.	The temperature is set too low.	Reset the temperature.
Moisture formation on the inside of the refrigerator com-partment.	The climate is warm and damp.A door of the appliance is not tightly closed.The door has been opened frequently or for long time.	Increase the temperature.Close the door.Do not open the door frequently.

Troubleshooting

EN

Problem Possible Cause Possible Solution
Moisture accumulates on the wine cellar's outside surface	The climate is too warm and too dampThe door is not closed tightly.The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that the door is shut tightly and that the gaskets seal properly.
The appliance makes abnormal sounds	The appliance is not located on level ground.The appliance touches some object around it.	Ajust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar water.	This is normal -
The interior lighting or cooling system does not work.	Mains plug is not connected to the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room.Call the local electricity company.Please call the service for changing
The sides of the cooler get warm.	This is normal.	-
The door does not shut properly	The appliance is not level.The door is blocked.	Level the appliance with the leveling feet.Check for blockages like bottles or shelves.

To contact the technical assistance, visit our website:

https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Product fiche according to regulation EU No. 2019/2016

Brand	Candy
Model name / identifier	CWC033M
Category	Wine Cellar
Energy efficiency class	G
Annual energy consumption (kWh/annum)1)	140
Bottle capacity(0.75L bordeaux bottle )	33
Climate class:This appliance is intended to be usedat an ambient temperature between 16 °C and 38 °C.	N ST
Airborne acoustical noise emissions (db(A) re 1pW)	37
Type of appliance	Freestanding
This appliance is intended to be used exclusivelyfor the storage of wine.	Yes
Dimensions (W/D/H in mm)	475/456/850

Explanations:

1) based on standard test results for 24 hours. The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc.
2) The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light.
- extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C';
- temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
- subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
- tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C';

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

Customer Service

EN

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____ Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find our addresses in Europe below:

EuropssesHaier add

Country*	Postal address Country ress		Postal add
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY	France	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY
SpainPortugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
GermanyAustria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
UnitedKingdom	Haier Appliances UK Co. Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

AVAILABILITY OF SPARE PARTS: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

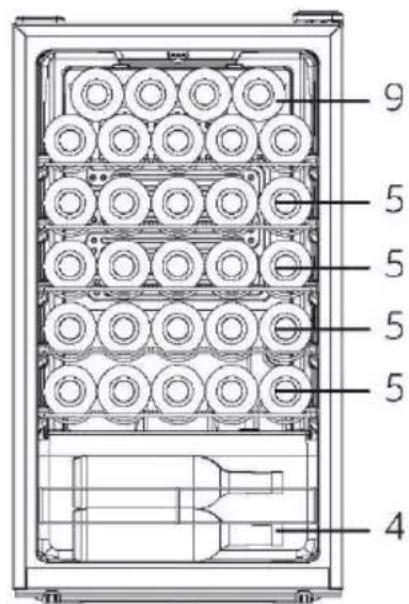

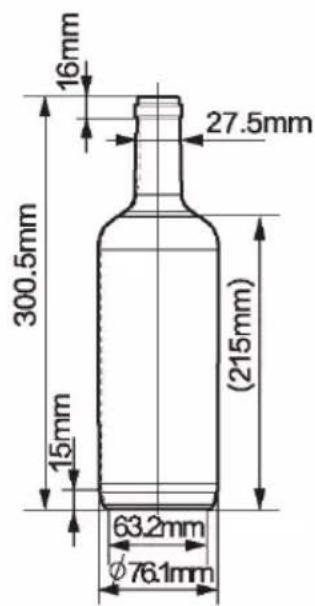

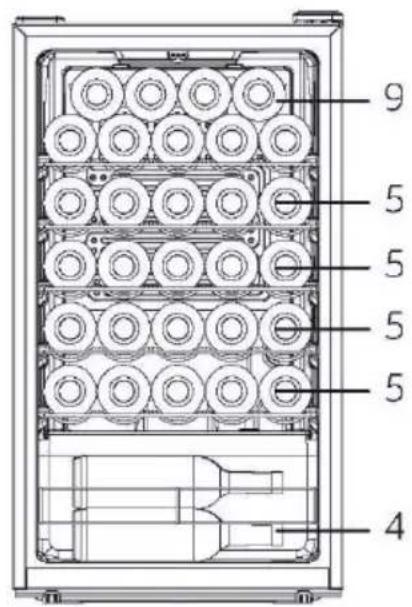

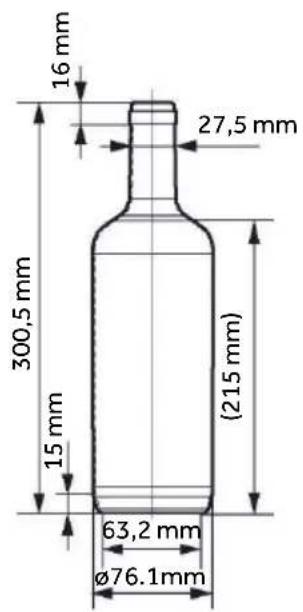

1. The bottle is based on graphic represented bordeaux bottle (0.75 l).
2. Due to the different specifications of the bottle, the actual bottle loading quantity can be different.

Pure technical line drawing of a multi-column mechanical or structural component (no text or symbols)

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm φ76.1mm

9 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray diamond shapes arranged in a cross pattern (no text or symbols)

CWC-033M-EN

Benutzerhandbuch

Black and white photo of a modern refrigerator with multiple wine bottles on the shelves (no visible text or labels)

Symbol of a trash bin crossed with diagonal lines, representing waste or discharge (no text or labels)

Simple line drawing of a bed on a shelf next to a bowl, no text or symbols present

Line drawing of two vertical structural beams or panels, no text or symbols present

50mm 50mm 50mm C 50mm 5

B 4 D

WARNUNG!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Diagram showing two electrical components: a screwdriver with positive charges and a light bulb with a switch, labeled 1 and 2.

3D rendering of a rectangular electronic device with two small components and a label '3' in the corner (no readable text or symbols on the device itself)

Simple 3D diagram of a rectangular frame with a small protrusion and label '4' (no text or symbols on the frame itself)

Close-up of a dark, flat object with a curved top edge, possibly a book or document (no visible text or symbols)

Diagram of a rectangular panel with a small inset showing a small object, no text or symbols present

Technical drawing of a mechanical part with mounting holes and a curved edge (no text or symbols)

3D rendering of a rectangular electronic component with mounting holes (no text or symbols visible)

3D rendered cube with a flat top and two side notches, no text or symbols visible

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76,1 mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-DE

Black and white photo of a modern refrigerator with multiple wine bottles on the shelves (no visible text or labels)

! i i FR e book

Légende

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

AVERTISSEMENT!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76,1 mm

9 5 5 5 5 5 4

(33)
CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-FR

Manuale utente

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with no text or labels

Legenda

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

AVVERTENZA!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø 76,1 mm

9 5 5 5 5 5 4

(33)
CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-IT

Manual de usuario

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Simple line drawing of a kitchen sink with a bed and bowl, no text or symbols present

Technical line drawing of two structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

¡ADVERTENCIA!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76,1 mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-ES

Instrukcja obsługi

Black and white photo of a modern refrigerator with multiple wine bottles on the shelves (no visible text or labels)

Symbol of a trash bin crossed with no text or labels

Legenda

Simple line drawing of a kitchen sink with a bed and a cloth, no text or symbols present

Line drawing of two vertical panels or structural beams, no text or symbols present

50mm 50mm C 50mm 50mm 5

B 4 D

OSTRZEŻENIE!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76,1 mm

9 5 5 5 5 5 4

(33)
CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-PL

Manual do utilizador

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with diagonal lines, representing waste or discharge (no text or labels)

Legenda

Simple line drawing of a bed on a shelf next to a bowl, no text or symbols present

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm C 50mm 50mm 5

B 4 D

AVISO!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76,1 mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-PT

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with no text or labels

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

De deurpakking reinigen:

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

WAARSCHUWING!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø 76,1 mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-NL

Navodila za uporabo

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Hvala za nakup izdelka Candy.

Warning symbols and icons including warning triangle, information icon, flower, and waste bin with crossbones

Legenda

Simple line drawing of a bed on a shelf next to a bowl, no text or symbols present

Očistite tesnilo vrat:

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

OPOZORILO!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure with no text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø76.1mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-SL

Black and white photo of a modern refrigerator with multiple wine bottles on the shelves (no visible text or labels)

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Simple line drawing of a bed on a shelf next to a bowl (no text or symbols)

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm C 50mm 50mm 5

B 4 D

VAROVÁNÍ!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Pure technical line drawing of a multi-column structure without any text, numbers, or symbols

16 mm 27,5 mm 300,5 mm 15 mm (215 mm) 63,2 mm Ø 76,1 mm

9 5 5 5 5 5 4

(33)
CWC033M

Abstract geometric composition with four gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-CS

Black refrigerator with 12 empty wine bottles and a bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with no text or labels

Обезвреждане

Illustration of a hand cleaning a tiled floor next to a basin (no text or symbols)

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 5 5

B 4 D

ПРЕДУПРЕЖДЕНИЕ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

5. Фина настройка на вратата

Diagram showing a stack of cylindrical objects with a prohibition symbol and an arrow indicating downward motion.

Illustration of cylindrical rollers arranged in a row, with a checkmark symbol (no text or labels)

1. Размразяване

Pure technical line drawing of a multi-layered container or tank structure without any text, labels, or symbols

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-EN
CANDY

Εγχειρίδιο χρήσης

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Simple line drawing of a bed on a shelf next to a basin (no text or symbols)

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 5

B 4 D

ΠΡΟΕΙΔΟΠΟΙΗΣΗ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

3D rendered image of a rectangular electronic device with two ports and a label '3' (no text or symbols on the device itself)

Close-up of a metallic frame component with mounting holes (no text or symbols visible)

Illustration of a closed book with visible pages and cover (no text or symbols)

Technical illustration of a rectangular frame with a small inset detail showing a dimension (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Exterior view of a rectangular electronic device with a lid and mounting points (no visible text or symbols)

3D rendered image of a gray rectangular object with a flat top and small protrusions, labeled with the number 8 in the corner (no text or symbols on the object itself)

Diagram showing a stack of cylindrical objects with a prohibition symbol and an arrow indicating downward motion.

Illustration of cylindrical rollers arranged in a row, with a checkmark symbol (no text or labels)

1. Απόψυξη

Pure technical line drawing of a multi-layered container or tank structure without any text, labels, or symbols

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm φ76.1mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray triangular shapes arranged symmetrically (no text or symbols)

CWC-033M-EN
CANDY

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin crossed with no text or labels

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

Technical line drawing of two structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

FIGYELMEZTETÉS!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Pure technical line drawing of a multi-stage container or tank structure without any text, numbers, or symbols

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

9 5 5 5 5 5 4

(33) CWC033M

Abstract geometric composition with four gray triangular shapes arranged symmetrically (no text or symbols)

CWC-033M-HU

Manualul de utilizare

Black refrigerator with wine bottles and a wine bottle on the side (no visible text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a kitchen sink with a cloth and a basin (no text or symbols)

Technical line drawing of two vertical structural beams or panels (no text or symbols)

50mm 50mm 50mm C 50mm 5

B 4 D

AVERTISMENT!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Pure technical line drawing of a multi-layered container or tank structure without any text, labels, or symbols

16mm 27.5mm 300.5mm 15mm (215mm) 63.2mm Ø76.1mm

9 5 5 5 5 5 4

(33)
CWC033M

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

CWC-033M-RO
CANDY
