Product Type	Freestanding Wine Cooler
Model	CCV 150 ARG
Brand	Candy
Capacity	Approximately 18-24 bottles (based on 6 slide-out shelves + wine rack)
Door Type	Glass door, reversible (left or right opening)
Temperature Control	Thermostat knob with settings from OFF to COLD (cooler)
Interior Light	Yes, with switch; bulb max 5W
Shelves	6 chrome-plated slide-out shelves (adjustable positions)
Wine Rack	Removable bottom rack for up to 6 bottles
Levelling Legs	Adjustable front legs
Installation Clearances	5 inches (12.7 cm) space around back and sides for ventilation
Power Requirements	Standard grounded outlet (115V, 60Hz typical; refer to nameplate)
Recommended Ambient Temperature	22-25°C
Temperature Range (Interior)	Adjustable for red (15.5-18.5°C) to white (10-15°C) wines; variance top to bottom ±4-6°C
Noise Level	Normal operation: refrigerant flow sounds (gurgling, rattling) may occur
Cleaning	Unplug, use baking soda solution inside, mild detergent outside; wipe condensation
Power Failure	Keeps temperature for several hours if door kept closed
Defrosting	Automatic (no manual defrost required)
Safety	Grounded plug; do not store flammable materials; keep door off when discarding
Warranty	Not specified in manual; contact Candy support

Frequently Asked Questions - CCV 150 ARG CANDY

How do I set the correct temperature for red and white wines?

Turn the thermostat knob clockwise for colder temperature (white wines, 10-15°C) and anticlockwise for warmer (red wines, 15.5-18.5°C). Note that top shelves are warmer than bottom shelves by 4-6°C.

Can I reverse the door opening direction?

Yes, the door can be reversed. Follow the instructions in the manual: remove upper hinge cover and screws, lift door, transfer lower hinge and left front leg, then reassemble on the opposite side.

Why is my wine cooler not cooling enough?

Possible causes: temperature control set too low, door opened too often, door not closed completely, poor door gasket seal, or insufficient clearance (need 5 inches around back and sides). Also check ambient temperature.

How should I clean the wine cooler?

Unplug the unit and remove bottles. Wash interior with a solution of 2 tablespoons baking soda per liter of water. Clean shelves and trays with mild detergent. Use damp cloth for exterior. Wipe condensation periodically.

What should I do if the interior light does not turn on?

Check if the unit is plugged in, the circuit breaker hasn't tripped, and the light bulb is not burned out. Replace with a bulb of max 5W. Ensure the switch is in the ON position.

Why is my wine cooler making rattling or gurgling noises?

Rattling from refrigerant flow is normal. Gurgling sounds occur at the end of cooling cycles. Popping noises from wall contraction/expansion are normal. Ensure the unit is level to reduce vibrations.

Can I store food in the wine cooler?

No, the wine cooler is designed for wine only. The interior temperature may not be low enough for food, leading to spoilage.

How do I level the wine cooler?

Use the adjustable levelling legs at the front. Turn them clockwise to raise or anticlockwise to lower until the unit is stable and level.

What is the recommended ambient temperature for operation?

An ambient temperature between 22-25°C is recommended. Higher or lower ambient may cause temperature fluctuations inside.

How should I prepare the wine cooler for long storage or vacation?

Remove all bottles, unplug the unit, clean it thoroughly, and leave the door slightly open to prevent mold and odors.

USER MANUAL CCV 150 ARG CANDY

Interior view of a black double-burden refrigerator with multiple wine bottles and a bottle on the side (no visible text or labels)

INSTRUCTION MANUAL INSTRUCTION MAN

Please read this instruction booklet carefully before using your Candy Wine Cooler

Table of Contents

Parts and Features----2

Important Safety Instructions---- 3

Installation Instructions---- 3

Before Using Your Wine Cooler---- 3

Installation of Your Wine Cooler 3

Reversing the Door Swing of Your Wine Cooler---- 4

Operating Your Wine Cooler----5

How To Use The Thermostat 5

Care and Maintenance----6

Change The Light Bulb----6

Cleaning Your Wine Cooler----6

Maintenance Your Wine Cooler 6

Vacation Time----7

Moving Your Wine Cooler----7

Troubleshooting 7

Technical Specifications 8

PARTS AND FEATURES PARTS AND FEATURES

REVERSIBLE DOOR

1. LAMP SWITCH
2. CABINET
3. LEVELLING LEGS
4. WINE RACK
5. GLASS DOOR
6. CHROME SHELVES
7. INTERIOR LAMP
8. THERMOSTAT KNOB

Important Safety Instructions

• Read all instructions before using the appliance.
  • Before you throw away your old wine cooler:
  take off the door, leave the shelves in place, so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire or explosion.

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

- Remove the exterior and interior packing, including protective foam on door panels.

- Check to be sure the following parts are included:

• 6 slide out shelves
  ■ 1 wine rack
• 1 user manual

- Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Cooler

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the legs at the front of the appliance.
• Allow 5 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance not to perform properly.
• Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator.
• Plug the appliance into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized products service center.

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized products service center.

Reversing the Door Swing of Your Wine Cooler

This wine cooler has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.

NOTE:

Before reversing the door, the power must be shut off.

All parts removed must be saved to do the reinstallation of the door.

This wine cellar has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover(6) first
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws(8) that hold the lower hinge(2) and Make sure to Remove the lower hinge(2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate(7) to the right side.
7. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).
8. Insert the bolt-pin(9) to the lower hinge (2).
9. Set the door to its place making sure the door seat at the lower hinge(2).

10. While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws(1) until the top of the door is levelled with the counter top.

11. Install the upper hinge cover(6) on the upper hinge..

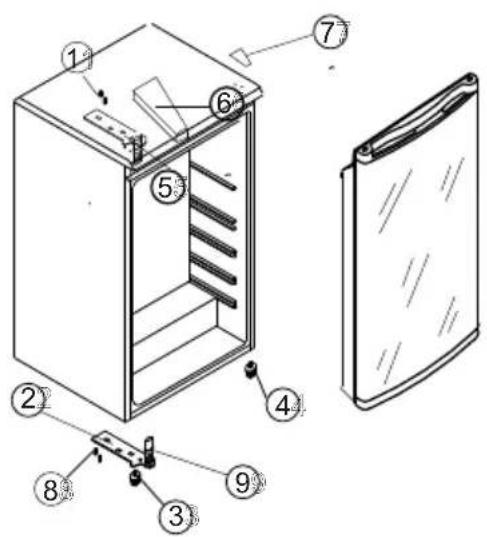

FIGURE 1
Door opening from left side

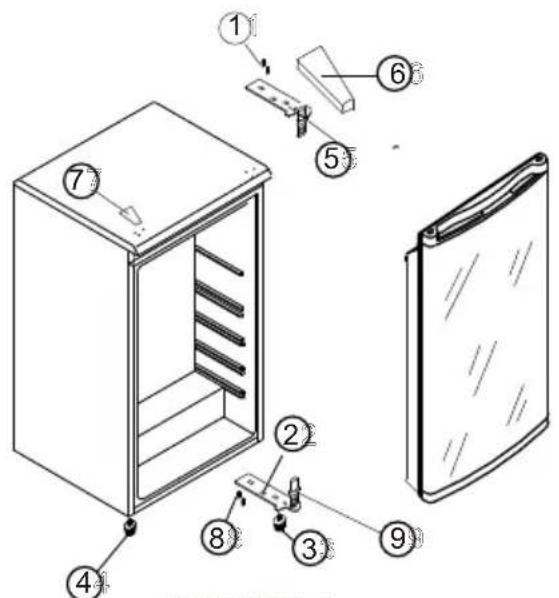

FIGURE 2
Door opening from right side

IMPORTANT SAFEGUARDS

Do not store food in wine cooler, as interior temperature may not get cool enough to prevent spoilage. As a natural result of condensation, in summer months or area of high humidity, the glass door may build up moisture on the outside .Just wipe it away.

It is recommended you install the wine cooler in a place where the ambient temperature is between 22 -25 degree Celsius. If the ambient temperature in above of below the recommended temperature, conditions may cause interior temperature to fluctuate.

If the interior light is left on, the temperature inside the wine cooler will be higher.

Recommended Temperatures for chilling Wine

Red wines: 15.5-18.5°C

Dry/White Wines 10-15°C

Sparkling Wines 7.2-9.5°C

Rose Wines 9.5-10.5 C

The above temperatures may fluctuate depending on whether or not the interior bulb is on or off of whether the bottles are located on the lower/middle or lower section.

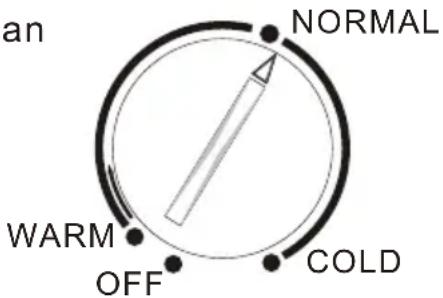

HOW TO USE THE THERMOSTAT

By turning the thermostat knob, you can adjust the temperature of the compartment you desired. Turn it clockwise, the temperature of the compartment will become cooler and cooler. To store red wine you can adjust it anti-clockwise, to store white wine you can adjust it clockwise.

Shelves

Shelf is chrome plated. To accommodate different size bottles, they can be moved up or down by sliding them out the tracks first. Shelves are designed to accommodate maximum amount of bottles.

Wine Rack

There is an additional wine rack at bottom section of the unit where you can store up to 6 wine bottles. This rack is removable for cleaning purpose.

There is a 4 to 6 C variance between the top and bottom shelves of the wine chiller. Therefore, If you have set the wine chiller for red wine only and you want to place a mix of white and red wines, you should place the white wine bottles on the bottom shelves and the red wines on the top shelves.

CARE AND MAINTENANCE

CHANGING THE LIGHT BULB

NOTE:

All parts removed must be saved to do the replacement of the light bulb.

Before removing the light bulb, either unplug the refrigerator or disconnect the electricity leading into the refrigerator at the main power supply. Failure to do so could result in electrical shock or personal injury.

Light bulb should not exceed 5 watts.

Cleaning Your Wine Cooler

• Unplug the wine cooler, and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a liter of water.
• Wash the shelves and trays with a mild detergent solution.
• The outside of the wine cooler should be cleaned with mild detergent and warm water.
• It may also be necessary to periodically wipe the bottom part of the storage area, as the wine cooler is designed to retain humidity, and condensation may collect there.

Maintenance of Your Wine Cooler

- Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

During long absences, remove all the bottles; unplug your wine cooler, clean your wine cooler, and leave the door open slightly to avoid possible formation of condensation, mold, or odors.

Moving Your Wine Cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine cooler.
  • Turn the levelling screws up to the base to avoid damage.
• Tape the doors shut.
• Be sure the wine cooler stays in the upright position during transportation.

Troubleshooting

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.The circuit breaker tripped or blown fuse.
Wine cooler is not cold enough.	Check to be sure the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The wine cooler does not have the correct clearances.
Compressor turns on and off frequently	The room temperature is hotter than normal.A large amount of contents has been added to the wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The wine cooler does not have the correct clearances.
The light does not work.	The home circuit breaker or fuse has tripped.The wine cooler is unplugged.The bulb has burned out.The switch is in the "OFF" position.
Vibrations.	Check to assure that the wine cooler is level.
The wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant,which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The wine cooler is not level.
The door will not close properly.	The wine cooler is not level.The doors were reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Technical specifications:

For detailed specifications, please refer to the nameplate at the back of the wine cellar. The specifications are subject to change without prior notice due to products improvement.
