USER MANUAL RRMA300 SCHEPPACH

RASENMÄHROBOTER RRMA300

DE AT

RASENMAHROBOTER RRMA300

Operating and safety instructions

Translation of the original operating instructions

IT

ROBOT TOSAERBA RRMA300

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

FR

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

Before commissioning, read and observe the operating manual and safety instructions!

Warning! Switch the product off before tilting it or working on it.

Danger due to parts flying off during operation. Keep a safe distance from the product when it is in operation.

Keep your hands and feet away from the rotating blades. Do not sit or stand on the product.

Protect batteries from heat and fire.

Protect batteries from water and moisture.

Product fuse

Protection class II

The product complies with the applicable European directives.

Do not throw primary batteries or rechargeable batteries away with household waste.

"POWER ON/OFF" button (on/off button)

Start button / Select button (up)

Home button (back to charging station) / - Select button (down)

OK button

PIN code setting

Date/Time setting

We have marked points in this operating manual that impact your safety with this symbol.

Table of contents: Page:

1. Introduction 20
2. Description of the product 20
3. Scope of delivery 20
4. Proper use 20
5. Safety instructions 21
6. Technical data 23
7. Unpacking 24
8. Assembly/Before commissioning 24
9. Starting up / adjustments 26
10. Cleaning 29
11. Transport 29
12. Storage/Hibernation 29
13. Maintenance 29
14. Disposal and recycling 30
15. Troubleshooting / fault codes 31
16. Declaration of conformity 98

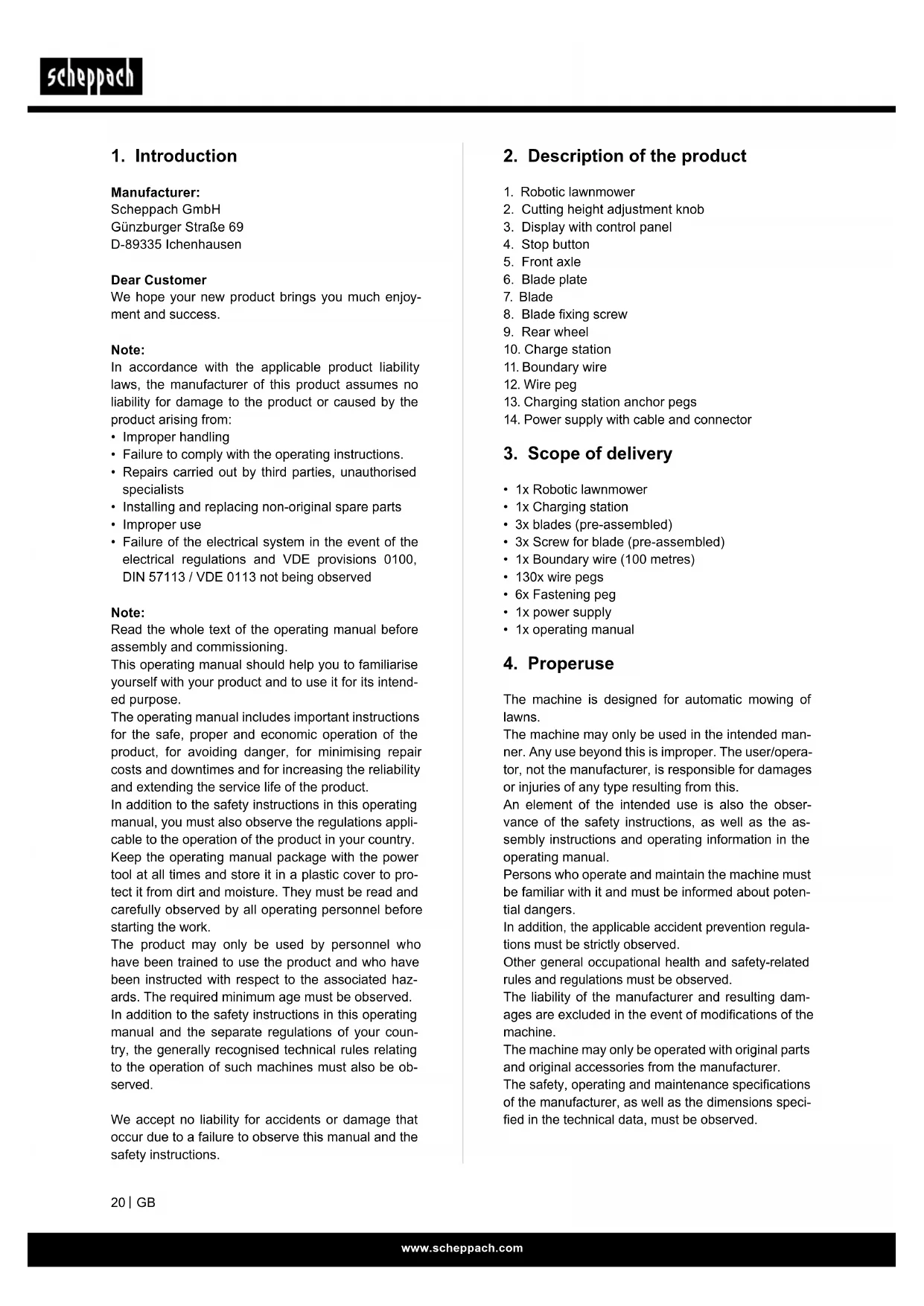

1. Introduction

Manufacturer:

Scheppach GmbH

GünzburgerstraBe 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your product and to use it for its intended purpose.

The operating manual includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country. Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The product may only be used by personnel who have been trained to use the product and who have been instructed with respect to the associated hazards. The required minimum age must be observed. In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Description of the product

1. Robotic lawnmower
2. Cutting height adjustment knob
3. Display with control panel
4. Stop button
5. Front axle
6. Blade plate
7. Blade
8. Blade fixing screw
9. Rear wheel
10. Charge station
11. Boundary wire
12. Wire peg
13. Charging station anchor pegs
14. Power supply with cable and connector

3. Scope of delivery

• 1x Robotic lawnmower
• 1x Charging station
• 3x blades (pre-assembled)
• 3x Screw for blade (pre-assembled)
• 1x Boundary wire (100 metres)
  130x wire pegs
• 6x Fastening peg
• 1x power supply
• 1x operating manual

4. Properuse

The machine is designed for automatic mowing of lawns.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

5. Safety instructions

General safety instructions

• The user is responsible for accidents and hazards that cause damage to other people or their property.
• Children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, or persons unfamiliar with the instructions for operating the machine are not allowed to use the machine. Local regulations may restrict the age of the user.
• Never connect the power supply unit to a socket if the plug or cable is damaged.
• Worn or damaged cables increase the risk of an electric shock.
• Only charge the batteries in the charging station supplied. Incorrect use may result in electric shocks, overheating or leakage of corrosive liquid from the battery. Rinse with water/neutralising agent in the event of electrolyte leakage. In the event of contact with the eyes, please seek immediate medical attention.
• Only use manufacturer's recommended original battery. Product safety can only be guaranteed when original batteries are used. Do not use batteries that are not rechargeable.
• The product must be disconnected from the mains when removing the battery.

Safety instructions - operation

• The product must only be used with the equipment recommended by the manufacturer. Other types of use are not permitted. The manufacturer's instructions regarding operation/maintenance must be strictly adhered to.
• When using the product in public areas, warning signs must be placed around the work area. These signs must bear the following text:

"Warning! Robotic lawnmower! Keep your distance! Children must be supervised!"

• Switch the product off if there is anyone ticular children, or any animals within the working range. It is recommended to program the product to operate during times when there is no activity in the area, e.g. at night. Note that certain animals, e.g. hedgehogs, are nocturnal. They could potentially be injured by the product.
  Children are not allowed in the working area during operation.

Children are forbidden to play with the product, both out of and in use
- Always ensure that the product is switched off when carrying it. Not with arms outstretched but always against the body. Ensure you have a secure footing.
- Do not run while transporting the unit. Walk carefully and always make sure you have a secure footing.
- Always wear sturdy footwear and long trousers when using the product.
- Do not operate the device in bad weather conditions, especially during thunderstorms. There is a danger of lightning strike.
- Use a residual current circuit breaker with a trigger current of 30mA or less. Use of an RCD reduces the risk of electric shock.
- ATTENTION: The extension cable as well as the mains cable must be outside the working area to ensure that it is not damaged.
- The product may only be operated, maintained and repaired by persons who are fully familiar with its characteristics and the safety regulations to be observed during use. Read the operating manual carefully and familiarise yourself with the contents before using the product.
- It is not permitted to change the original design of the product. All changes in this regard are made at the user's own risk.
- Make sure that there are no foreign objects such as stones, branches, tools or toys on the lawn. The blades can be damaged if they collide with foreign objects. Always switch off the product with the POWER ON/OFF button before removing a blockage. Check the product for damage before operating it again.
- If the product starts to vibrate abnormally, always switch it off with the main switch or POWER ON/OFF button and check for damage before operating it again.
- Start the product in accordance with the instructions. When the product is switched on, make sure that your hands and feet are not near the rotating blades. Keep your hands and feet away from the underside of the product.
- Never touch moving dangerous components, such as the blade disc, before they have come to a complete stop.
- Do not lift the product or carry it around when it is switched on.
- Do not let anyone operate the product who does not know how it works and behaves.
- The product must not collide with persons or other living creatures. If a person or other living creature enters the travel path of the product, it must be stopped immediately.
- Do not place any objects on the housing or the charge station of the product.

• Never allow people to sit on the robot. Never lift the robot to inspect the cutting edge or carry it during operation. Do not place hands or feet under the robot during operation.
• The product must not be operated with damaged guards, blade plate or housing. Furthermore, it must not be operated with damaged blades, screws, nuts or cables. Do not connect or touch damaged cables until they have been disconnected from the power supply.
• Do not use the product if the POWER ON/OFF button and the STOP button are not working properly.
• Always switch the product off via the ON/OFF button if it is not in use. The product will only start if the POWER ON/OFF button is switched on and the correct PIN code is entered.
• If the power cord is damaged during use, press the "STOP" button to stop the robot and unplug the mains cable from the socket.
• Scheppach does not guarantee full compatibility between the product and other wireless systems such as remote controls, transmitters, in-ground electric fencing of livestock pastures or similar.
• Metal objects in the ground (e.g. reinforced concrete or anti-mole nets) can cause the mower to stop. The metallic objects may cause interference with the loop signal, which may cause the mower to stop.
• The operating and storage temperature is 5 - 50^ . The temperature range for charging is 5 - 45^ . Excessively high temperatures can cause damage to the product.
• Never use or charge the robot in explosive and/or flammable environments.
• Do not use the robotic lawnmower if a sprinkler is running. In this case, program the robot and the sprinkler so that they do not operate simultaneously. Do not wash the robot with high pressure water jets or immerse it partially or completely in water as it is not waterproof.
• Use only the battery charger and power supply provided by the manufacturer. Improper use may result in electric shocks, overheating or leakage of corrosive liquids from the battery.
• Do not position the power supply unit at a height where it could be submerged. Do not set the power supply down on the ground.
• Do not cover the power supply unit. Condensation can damage the power supply unit and increase the risk of electric shock.
• If liquid leaks, wash the battery with water / neutraliser.

In the event of eye contact, consult a doctor.

When the mower is turned upside down, the mains switch must always be off. The mains switch should be turned off during all work on the mower's bottom frame, e.g. when cleaning or replacing the blades.

Safety instructions - Battery and battery charger

Battery and battery charger

Read the instructions before charging. Make sure your battery charger matches your local AC supply. Make sure that the connection between the battery charger and the battery pack corresponds to the correct models. Longer service life and better performance can be achieved if the battery is charged when the air temperature is between 18^ and 25^ . Do not charge the battery at air temperatures below 5^ or above 40^ . These instructions are important as they can prevent serious damage to the battery.

WARNING:

Lithium-ion batteries may explode or cause fire if disassembled, short-circuited or exposed to water, fire or high temperatures.

Proceed with caution, do not open the battery and do not expose it to electrical/mechanical stress. Avoid storing the batteries in direct sunlight.

• Do not disassemble, open or crush the battery.
• Do not short-circuit the battery. Do not store batteries haphazardly in a box or drawer where they can short-circuit each other or be short-circuited by conductive materials.
• When the battery is not in use, keep it away from other metal objects such as paper clips, coins, keys, nails, screws or other small metal objects that could connect from one terminal to the other. Short-circuiting the battery terminals can cause burns or a fire.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not subject the battery to mechanical shocks.
• Do not allow the liquid to come into contact with the skin or eyes in the event of a battery leak. If contact has been made, wash the affected area with plenty of water and seek medical attention.
• Seek medical attention immediately if a cell of the battery has been swallowed.
• Keep the battery clean and dry.
• The battery performs best when operated at normal room temperature (20^ ± 5^) .
• When disposing of batteries, keep batteries of different electrochemical systems separate from each other.
• Only charge the product with the battery charger specified by the mower. Do not use a battery charger other than the one specifically intended for use with the product. A battery charger suitable for one type of battery may cause a fire hazard when used with another battery.
• Do not use batteries that are not intended for use with the product.

• Keep the battery out of the reach of children.

• Keep the original product description safety for future reference.

• Dispose of the product properly.
• Keep the battery charger clean. Dirt results in a risk of electric shock.
• Check the battery charger, cable and plug before every use. Do not use the battery charger if you detect any damage. Never open the battery charger yourself and only have it repaired by qualified specialists and only with original spare parts. A damaged battery charger, cable and plug increases the risk of an electric shock.
• Always check that the mains voltage concurs with the voltage specified on the type plate of the battery charger.
• Never use the battery charger if the cable, plug or the product itself are damaged due to external influences. Take the battery charger to the nearest specialist workshop.
• Never open the battery charger. Take the battery charger to the nearest specialist workshop.

ATTENTION

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the machine.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Before performing setting or maintenance work, release the start button and pull out the mains plug.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
• Keep your hands away from the working area when the machine is in operation.

6. Technical data

Robotic lawnmower

Voltage 20 V	---
Idle speed n0	3000 rpm
Cutting width 16 cm
Cut height 20-50 mm
Cutting height positions 7
Max. surface 300 m²
Max. incline 25 %
Tightest possible passage 0.8 m

AK2.0-RC-20Li battery

Type Li-ion
Voltage 18V (max 20 V)	---
Capacity 2000 mAh
Power	36 Wh
Charge time	approx. 3 h

NT0.6-RC-20Li power supply

Voltage (input)	100-240 V~
Frequency	50-60 Hz
Power consumption	15 W
Voltage (output)	20 V ---
Charge current	0.6 A

IP protection classes

Robotic lawnmower	IPX5
Charge station	IPX4
Power supply	IP67
Total weight (net)	approx. 5.5 kg

Subject to technical changes!

IMPORTANT:

This battery charger is suitable exclusively for charging the product type BRMR300.

Noise & vibration

Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Device emissions values

Measured sound power level LWA	58 dB
Device emissions values uncertainty KWA	0.89 dB
Guaranteed sound power level LWA	61 dB
Sound pressure noise level at the operator's ear LPA	38.5 dB

The noise emission declaration complies with standard EN ISO 3744

7. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

ATTENTION!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly / Before commissioning

ATTENTION!

Always make sure the product is fully assembled before commissioning!

ATTENTION!

If you intend to use a scarifier within the working area of the robotic mower, the boundary wire (11) must be buried.

ATTENTION!

Do not use a strimmer near the boundary wire (11). Take care when trimming edges near which the boundary wire (11) is located.

8.1 Setting up / correct position of the charging station (10)

ATTENTION

Fix the charging station (10) in place with the help of a hammer (not in scope of delivery) and the anchor pegs (13) only after you have staked out the complete working area.(Fig. 16).

NOTE:

Do not make new holes in the charging station.

NOTE:

Do not stand with your feet on the charging station plate.

ATTENTION

The extension cable as well as the mains cable must be outside the working area to ensure that it is not damaged.

• The charging station (10) can be placed near a shed, a garden shed or the house.
• The charging station (10) must be placed on level ground.

NOTE:

Do not place the charging station (10) on a sloping or uneven surface, otherwise it will bend and the function will be impaired or a defect may occur.
- The charging station (10) must be set up/positioned such that there is at least one metre of space in front of the charging station (10), without obstacles or similar. (Fig. 3)

8.2 Connecting the boundary wire (11) to the charging station (10)

NOTE:

The boundary wire (11) must be laid at least one metre long, straight, without corners and obstacles in front of the charging station (10). This ensures the mower is able to drive into the charging station properly (10) (Fig. 3).

• The boundary wire (11) must be laid at least 30~cm away from boundaries, such as the house wall, ahead of and after the charging station (10). (Fig. 3)
• Strip approx. 10mm of insulation from one end of the boundary wire (11) (Fig. 4).
• Insert the stripped boundary wire (11) into the red "OUT" cable clamp on the back of the charging station (10). Then pass the boundary wire (11) through the slot under the charging station (10) (Fig. 5).
• Then lay the boundary wire (11) as described in point 8.3 "Laying the boundary wire (11)".

NOTE:

The boundary wire (11) must be laid at least 100 cm straight in front of the charging station (10).

After laying the boundary wire (11), trim off the excess wire.
- To connect the second end of the boundary wire (11), strip approx. 10mm of insulation from the end and insert it into the black "IN" cable clamp.

8.3 Laying the boundary wire (11) (Fig. 1/2)

The boundary wire (11) must be laid as a loop around the working area. When the robotic lawnmower (1) approaches, sensors inside the product detect the boundary wire (11). The mower changes direction at a random angle when it reaches the boundary wire (11).

If the mower needs to return to the charging station (10), it searches for / drives to the boundary wire (11) and then turns to the left.

It then travels along the boundary wire (11) back to the charging station (10).

8.3.1 General notes / boundary cable installation

ATTENTION:

To avoid damage to the product there must be an obstacle of min. 15cm height between the boundary wire (11) and water bodies/slopes/embankments and/or public roads.

ATTENTION:

Do not operate the mower on gravel/stones.

NOTE:

Define and make a sketch of the working area before starting to lay the boundary wire (11).

NOTE:

The max. permissible length for the boundary wire (11) is 300m .

• The distance from the boundary wire (11) to the outer edge must be 30cm (Fig. 6).

• A distance of 8cm between the boundary wire (11) is sufficient if all of the following apply (Fig. 7):

• the boundary surface can be driven over (e.g. footpath, driveway or similar).

• the boundary surface is at the same level as the mowing surface.

• there are no protruding or pointed parts on the boundary surface that can come into contact with the mower or blades and damage them.

• there are no plants on the boundary area that should not be mown.

• The boundary wire (11) can be buried, or fastened in place using the wire pegs (12) provided.

• When laying the boundary wire (11), the angle in corners must always be >90^ (see Fig. 8+9).
• The robotic lawnmower (1) finds areas/passages that taper or that have a width of ≥ 0.8m (Fig. 10).
  The minimum width of the mowing area is 0.8m (Fig. 10).
  The maximum possible gradient is 25% (20^)

ATTENTION

To prevent accidents and/or damage to persons or the product, it is prohibited to operate the product on steeper terrain.

You can see how to determine the slope in Fig. 11.

NOTE:

For the demarcation of slopes/embankments, see point 8.3.3.

ATTENTION!

If you intend to use a scarifier within the working area of the robotic mower, the boundary wire (11) must be buried.

8.3.1.1 Burying the boundary wire (11)

• When burying the boundary wire (11), make a narrow groove in the grass turf using a spade or similar. Then place the wire in the groove and cover it with soil.

IMPORTANT:

To ensure trouble-free operation, the boundary wire (11) may be covered with max. 3cm of earth.
- After covering the boundary wire (11) with soil, it is sufficient to compact the loose soil with your body weight.

8.3.1.2 Fasten the boundary wire (11) with the wire pegs (12)

NOTE:

The distance between the wire pegs (12) must not exceed 80~cm (Fig. 12).

• Place the boundary wire (11) on the grass at a distance of 30cm or 8cm from the outer edge (Fig. 6/7).
  Fix the boundary wire (11) at least every 80~cm using a wire peg (12) (Fig. 12).
• Knock the wire pegs (12) into the ground (Fig. 13) with the help of a hammer (not included in the scope of delivery).
• In case of uneven or curved conditions, the distance between the wire pegs (12) must be reduced accordingly.

8.3.2 Laying the boundary wire around obstacles (islands) (Fig. 14)

NOTE:

For large and heavy objects listed below as examples, an "island installation" is not necessarily required:

-Tree
- Raised bed
Large/heavy plant buckets
- Greenhouse
- Garden shed

To protect delicate/small objects from damage, lay the boundary wire (11) as follows:

• Run the boundary wire (11) along the outer edge until you have reached the point with the shortest distance (but at least 0.8m ) between the outer edge and the obstacle.
• Lay the boundary wire (11) like a "supply line" along the shortest path to the obstacle.

• Lay the boundary wire (11) at a distance of 30~cm or 8cm (see point 8.3.1) around the obstacle.

• Lay the cable along the "feed line" back to the outer edge.

ATTENTION!

DO NOT ALLOW The boundary wire (11) to cross. The maximum distance between the boundary wires is 5mm .
- Continue to lay the cable along the outer edge.

8.3.3 Demarcation of slopes >25% (Fig. 15)

• The boundary to slopes >25% must be at least 40 cm, as shown in Fig. 15.
• If you do not maintain this distance, there is a risk that the robotic lawnmower (1) will drive out of the demarcated area.

Thus, no function is possible any more, as the robot no longer has any orientation.

NOTE

When you have completely staked out the working area, connect the boundary wire (11) to the charging station (10) as described in point 8.2.

ATTENTION

Fix the charging station (10) in place with the help of a hammer (not in scope of delivery) and the anchor pegs (13) only after you have staked out the complete working area.

8.4 Connecting the charge station (10) (Fig. 16)

• Connect the 2-pin connector to the charging station (10) as shown in figure 16 and screw it in place.
• Then plug the mains plug into the socket.

ATTENTION

Make sure that the boundary wire (11) is correctly routed and the power supply unit (14) is correctly connected to the charging station (10) before connecting the plug to the mains.

If the charging station (10) is connected to the mains, an LED lights up on the rear part of the charging station (10). (see Fig. 17).

8.4.1 Description of the LED statuses (Fig. 17)

LED status	Meaning Measure
Does not illuminate	No power supply	Make sure that the mains cable is properly connected to the battery charger and that the battery charger is connected to a suitable power supply

Illumi-nates green	The boundary wire is connected correctly. The robot is fully charged.	-
Flashes green	The robot is charging.	-
Flashes red	The boundary wire is damaged or not connected properly.	Check that both ends of the boundary wire are connected and that the cable clamp is reliable. Check that the boundary wire has not been broken.

8.5 Before commissioning

• Set the cutting height to the maximum cutting height (50 mm) using the cutting height adjustment knob (2) as shown in figure 18.
• Place the mower in the working area and start it (as described in point 9).
• Observe the mower for some time.
• If it returns to the charging station (10) without any problems, the installation is complete.

TIP:

Before first use:

Position the mower, directly behind the charging station (10), at a 90^ angle to the boundary wire (11) and give it the command to return to the charging station (10) via the "HOME" button (see point 9).

The mower will now drive back to the charging station (10) along the complete boundary wire (11) (Fig. 2)

This allows you to identify problem areas immediately before first use and correct them if necessary.

The same procedure is recommended for critical places, such as embankments/ditches/beds, etc.

Proceed as described above and start the mower (see point 9) with the "START" button.

In the event of a problem, you can stop the mower by pressing the stop button (4) on the product.

9. Starting up / adjustments

ATTENTION!

To ensure optimum function, a software update must be carried out before first use. (see 13.3 Software update)

NOTE

For a long service life, the robotic lawnmower (1) should only be operated at an outdoor temperature of 5 - 40^ .

ATTENTION!

Always make sure the product is fully assembled before commissioning!

Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnecte from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions.

Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

9.1 Quick start (Fig. 19/20)

After installing the boundary wire (11), you can use the robotic lawnmower (1).

Adjusting the cutting height

• Turn the cutting height adjustment knob (2) clockwise to increase the cutting height seamlessly between 20 - 50mm .
• Turn the cutting height adjustment knob (2) anti-clockwise to decrease the cutting height seamlessly between 20 - 50 mm.

NOTE

The arrow on the cutting height adjustment knob (2) points to numbers outside the knob. Here you can read off the cutting height currently set in 5mm steps.

Halting/stopping the robotic lawnmower:

• To stop the robotic lawnmower, press the stop button (4).
• The robotic lawnmower stops immediately and the blade disc (6) stops.

ATTENTION

The robotic lawnmower is not switched off, it has only been stopped. Always use the "POWER ON/OFF" button to switch the robotic lawnmower off.

Switching the robotic lawnmower on:

• The robotic lawn mower can then be restarted as described below.

NOTE

Before the robotic lawnmower (1) starts mowing, an acoustic signal (four beeps) is heard, then the blade disc (6) starts rotating.

• Press the button ("POWER ON/OFF" button) until the robotic lawnmower (1) switches on.
• For the first use, enter the default PIN code "0000" by pressing "OK" four times when the number "0" flashes. (The PIN code can be changed as described in point 9.2.1).
  After confirming the fourth digit with the "OK button", the robotic lawnmower is ready for use. The word "IdLE" appears on the display.

NOTE

The robotic lawnmower (1) switches off automatically after 30 seconds if no input is made.

ATTENTION

If the PIN code is entered incorrectly 10 times, "LOCK" appears on the display. The device is now locked for 10 minutes before you can enter the PIN code again.

• Press the "START" button and then the "OK" button to start mowing.
• If you press the "HOME" button and then the "OK" button, the robotic lawn mower (1) returns to the charging station (10) with the mowing function switched off.

The robotic lawnmower (1) operates continuously until the battery charge is too low. The robotic lawnmower automatically returns to the charging station (10). The cutter disc is deactivated in this state.

NOTE

After the battery is fully charged, the robotic lawnmower starts again. Alternatively, the robotic lawnmower remains in the charging station (10) in accordance with the set mowing schedule.

(By default, the robot mows from Monday to Friday from 09:00 - 15:00 hrs)

9.2 Settings

NOTE

To make adjustments to the product, the robotic lawnmower (1) must be switched on. Switch on the robotic lawnmower (1) by pressing and holding the button ("POWER ON/OFF" button) until "PIN" appears on the display.

9.2.1 Changing the PIN code (Fig. 21)

• Press and hold the "START" and "HOME" buttons simultaneously for at least 3 seconds.
• The symbol E and "Pin" flash.
• Now enter the old PIN code as follows (factory setting "0000").
  The first digit illuminates ("0---").
• Use the "START" and "HOME" buttons to select the desired digit.
• Confirm the digit with the "OK" button.
  The next digit illuminates (e.g. "10--).
• Proceed as described in paragraph 2-4 above.
• After you have entered the "old" PIN code and confirmed the fourth digit with the "OK" button, "Pin2" appears, now you can enter the new PIN code.
  The first digit flashes ("0--").
• Use the "START" and "HOME" buttons to select the desired digit.
• Confirm the digit with the "OK" button.
  The next digit flashes (e.g. "10--).
• Proceed as described in paragraph 2-4 above.
  After confirming the fourth digit with the "OK" button, the new PIN code is stored. The word "IdLE" appears on the display.

9.2.2 Setting/changing the date/time (Fig. 22)

NOTE

Date and time are necessary settings so that the robotic lawnmower (1) can mow in accordance with the set mowing schedule.

• The date/time setting is done in the order year - date - time.
• Press and hold the "START" button for at least 5 seconds.
• The -symbol and a number (e.g. 2024) flashes on the display.
• Use the "START", "HOME" and "OK" buttons to set the year, similarly to the PIN setting.
• Then the next number illuminates (month.day e.g. 08.25 for 25 August).
• Use the "START", "HOME" and "OK" buttons to set the correct month and day.
  The time is displayed last (e.g. 13:25).
• Set the current time as described above.
• After confirming the fourth digit with the "OK" button, the date and time are stored. The word "ldLE" appears on the display.

9.2.3 Changing the start time (Fig. 23)

The factory-set start time of 09:00 can be changed at any time.

• Press and hold the "START" and "OK" buttons simultaneously for at least 3 seconds.
• The display shows the set start time, e.g. 13:25, with the first digit flashing.
• Use the "START" and "HOME" buttons to select the desired digit and confirm with the "OK" button.
• Proceed as described in paragraph 2-4 above.
  After confirming the fourth digit with the "OK" button, the new start time is stored. The word "ldLE" appears on the display.

9.2.4 Changing the mowing time/day (Fig. 24)

The factory-set mowing time per day of 3 hours can be changed at any time.

• Press and hold the "OK" button for at least 3 seconds.
• The display shows the set mowing time, e.g. 06 H, with the first digit flashing.
• Use the "START" and "HOME" buttons to select the desired digit and confirm with the "OK" button.
  After confirming the second digit with the "OK" button, the new mowing time or the new day is stored. The word "IdLE" appears on the display.

9.3 Mowing edges

The default setting is for the robotic lawnmower (1) to mow the edges every Tuesday and Friday.

This means that the robotic lawnmower (1) travels once along the boundary wire (11) the first time it mows for the day.

ATTENTION

In this mode, the blade disc (6) is active.

9.4 Changing the default rain sensor setting

Press and hold the "HOME" button for 3 seconds, then "Rain" will appear on the display. Press "OK" to access the settings interface. Then "ON" or "OFF" is displayed.

You can change the settings by pressing the "START" and "HOME" buttons and confirm with the "OK" button.

9.5 Activating/deactivating mowing zones

The model is equipped with a multi-range function that allows the robot to operate from two pre-set starting points: at 0% and 50% of the total length of the edges to be mowed.

The starting point 0% is at the beginning of the mowing area, while the starting point at 50% is in the middle of the edges. This function ensures even coverage of the mowing area.

1. Press and hold the Home button for 3 seconds until "Rain" appears on the display.

2. Press the START or HOME button to scroll through the options until "Zone" is displayed.

3. Press OK to activate or deactivate the zone mowing function.

4. This function allows the robot to mow certain zones of the lawn in a targeted manner, which is particularly useful in complex gardens or areas with different usage.

10. Cleaning

ATTENTION

Switch off the product before cleaning with the button.

ATTENTION

Put on protective gloves before cleaning the rotating blade carrier.

We recommend that you clean the product directly after every use.

Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning agents or solvents; they could corrode the plastic parts on the product. Make sure that no water can penetrate into the product interior.

11. Transport

• Press the button ("POWER ON/OFF" button) to switch off the robotic lawnmower (1).
• Wear protective gloves when transporting the robotic lawn mower (1).
• Carry the robotic lawnmower (1) securely with both hands.

To prevent damage, avoid the robotic lawnmower (1) falling to the ground from greater heights.

If this does happen, it must be immediately taken to a specialist workshop for inspection.

Do not continue to use the robotic lawnmower (1) before this has been done.

12. Storage/Hibernation

Your mower will give you pleasure for longer if it is allowed to hibernate.

Although this is not a problem, we recommend that you store your mower in a closed room, e.g. in the garage, during the winter.

Before storing the mower:

• Clean it thoroughly (see point 10)
• Charge the battery fully.
• Switch the product off.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 10 and 20^ .

Store the robotic lawnmower (1) in its original packaging.

Cover the robotic lawnmower (1) to protect it from dust and moisture.

Store the operating manual with the robotic lawnmower (1).

13. Maintenance

ATTENTION

Disconnect the mains plug before carrying out any maintenance work.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Machine data - type plate

13.1 Replacing the blade (7) (Fig. 25)

ATTENTION

Switch the mower off before starting with the work.

NOTE

The blades (7) must be replaced after approx. 8 weeks. Use only original blades from the manufacturer. (Art. no. 7913001601)

ATTENTION

Put on protective gloves before replacing the blade (7).

ATTENTION

All blades (7) must always be changed at the same time. The changing of individual blades (7) is not permitted. If the Phillips screws (8) are damaged or can no longer be tightened, these must also be replaced.

New screws are included with the replacement blades.

• To replace the blades (7), place the robotic lawnmower (1) on a workbench with the underside facing upwards. (We recommend a soft base to avoid damage to the housing).
• Loosen the Phillips screw (8) with the help of a Phillips screwdriver (not included in the scope of delivery).
• Remove the old blade (7).
• Fit the new blade (7) and fasten it with a new screw (8).
• Check that the blade (7) can move. If this is not the case, loosen the screw (8) a little.
• Carry out this operation on all three blades (7).

13.2 Software update (Fig. 26)

The software can be updated as soon as a new version is available. (The latest software version can be found on our homepage www.scheppach.com).

13.2.1 Software update via USB

Look for the latest software version on our homepage.

• Download this to an empty FAT32 formatted disk.
• Insert the data carrier into the USB drive (Fig. 26).
• Switch on the mower by pressing the ⑥ button ("POWER ON/OFF" button).
• The update starts automatically.
• Wait until "USB" appears on the display and then remove the data carrier.

NOTE

The operating manual supplied with your robotic lawnmower (1) is based on the software version at the time of production of the mower.

Some new or changed features and functions may not be included in the operating manual.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Blade (7), screws (8), boundary wire (11), wire pegs (12).

• may not be included in the scope of delivery!

Article number(s) for wear parts:

Pos. 7 Blade

Pos. 8 Screws

Pos. 11 Boundary wire 7913001702

Pos. 12 Wire pegs 7913001701

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

14.Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
  Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed

7913001601 and sold in the countries of the European Union 391300100 and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

• Do not dispose of the battery in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
  Defective or used batteries must be recycled in accordance with Directive 2006/66/EC.
• Hand in the device and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.
• Dispose of batteries according to local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

15. Troubleshooting / fault codes

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

15.1 Fault table

Fault Possible cause Remedy
Mower does not start	Mower or charging station not con- nected to the mains	• Connect the power supply unit to a suitable power source • Call a specialist if necessary
LED light on charging station does not light up
LED light on charging station flashes red	Boundary wire is not connected or cut/broken.	• Connect/repair boundary wire
Mower does not mow properly	Blades are worn • Replace the blade
Mower starts at unusual/ wrong times	Date/time is incorrectly set • Set the correct date and time
Mower gets stuck Unsuitable terrain/obstacle	Adapt the terrain/obstacle to the requirements of the robotic lawnmower • Adjust the laying of the boundary wire accord- ingly

15.2 Fault codes

Error code Meaning Remedy
--- Rain	sensor delay · -
E1	Mower outside the working area	1. Check that the mower is in the working area. 2. Ensure that the charging station is properly connected to the battery charger and charger is connected to a suitable power supply. 3. Make sure that the boundary wires have been clamped correctly and replace them if necessary.
E2	Wheel motor blocked	1. Switch the mower off. Move the mower to an area that is free of obstacles. Press the "START" button and then the "OK" button. 2. If the error message is still displayed, switch off the product. Turn the mower upside down and check what is preventing the wheels from turning. 3. Remove the objects blocking the wheel(s), turn the mower over. 4. Press the "START" button and then the "OK" button.
E3	Cutter disc blocked	1. Switch the mower off. 2. Turn the mower upside down and check what is preventing the blades from turning. 3. Remove the objects and turn the mower over. 4. Place the mower in an area with short grass. 5. Press the "START" button and then the "OK" button.
E4	Obstacle sensor trigger not reset	1. If the error still occurs, contact your specialist dealer.
E5 The mower was lifted	1. Switch the mower off. 2. Move the mower to an area that is free of obstacles. Press the “START” button and then the “OK” button. 3. If the error message is still displayed, switch off the product. Turn the mower upside down and check if there is anything preventing the front axle from moving. 4. Remove all obstacles, turn the mower over and switch it on. Press the “START” button and then the “OK” button.
E6	Roll-over sensor was triggered	1. Position the mower. 2. Press the “START” button and then the “OK” button.
E7	Inclination sensors were triggered	1. Switch the mower off. 2. Move the mower to an area in your lawn with level ground. 3. Switch the mower on. Press the “START” button and then the “OK” button.
E8	Docking/recharging failed	1. Check that there is 1 metre of space before and after the charging station, without obstacles or corners. 2. The charging station must be placed on level ground. 3. Manually place the mower in the charging station for charging. After the mower is fully charged, press the “START” and then the “OK” button.
E9	The robotic lawn-mower is stuck	1. Place the robotic lawnmower in an area that is free of obstacles. 2. If the error still occurs, contact your specialist dealer.
E10	Protection of the battery	1. If the temperature is too high, wait until the temperature has dropped. If the temperature is too low, wait until the temperature is above 5 degrees Celsius. 2. If the error message is still displayed, replace the battery. Re-start the mower. Press START and then OK. 3. If the error still occurs, contact your specialist dealer.
E11 No boundary signal	1. When the mower is in the working area, check the charging station LED indicator. If it lights up red, make sure that the boundary wires are well connected to the terminals on the charging station. If the problem persists, check whether the boundary wires have been cut.
E13	Charging current too high or too low	1. Check docking area. 2. If the error still occurs, contact your specialist dealer.
EE Error	unknown	1. Re-start the mower. 2. If the error still occurs, contact your specialist dealer.
BP	Battery thermal protection	1. Switch the mower off. 2. Move the mower to an area in your lawn with level ground. 3. Check the temperature of the battery. 4. If the temperature is too high, let the battery cool down. 5. If the temperature is too low, wait until the temperature is higher than 5°C. 6. Re-start the mower. 7. If the error still occurs, replace the battery. 8. If the error still occurs, contact your specialist dealer.
LOCK	Robotic lawnmower locked (PIN entered incorrectly too many times)	1. Wait 10 minutes and then enter the PIN again. 2. Do not switch the robotic lawnmower off. 3. If the error still occurs, contact your specialist dealer.

Akumulator nabijecka

Akumulator AK2.0-RC-20Li

Pokyny k lithio-ionovym akumulatorum

EU Declaration of Conformity

with charging station, battery and power supply

Nom d'article :

ROBOT TONDEUSE - RRMA300

Standard references:

EN 50636-2-107:2015+A1:2018+A2:2020+A3:2021; EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:201

9+A15:2021; EN 60335-2-29:2021+A1:2021; EN IEC 55014-2:2021; EN IEC 55014-1:2021;

EN IEC 61000-3-2: 2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; ISO 11094:1991; EN IEC 63000:2018;

EN 62233:2008; EN 50665:2017; EN 62311:2008; EN IEC 62311:2020; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2;

EN 301 489-17 V3.2.4; EN 303 447 V1.1.1; EN 303 447 V1.3.1; EN 300 328 V2.2.2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Stefan Hartinger Ginzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
