Bamba CeramicCare AirGlam Y - Hair Straightener CECOTEC - Free user manual and instructions

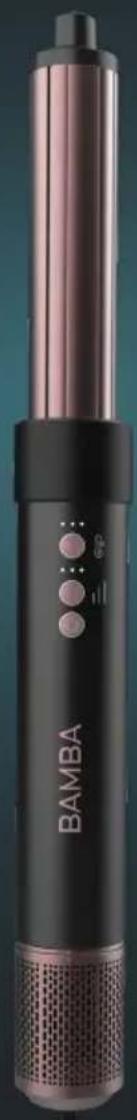

USER MANUAL Bamba CeramicCare AirGlam Y CECOTEC

CERAMICCARE AIRGLAM W

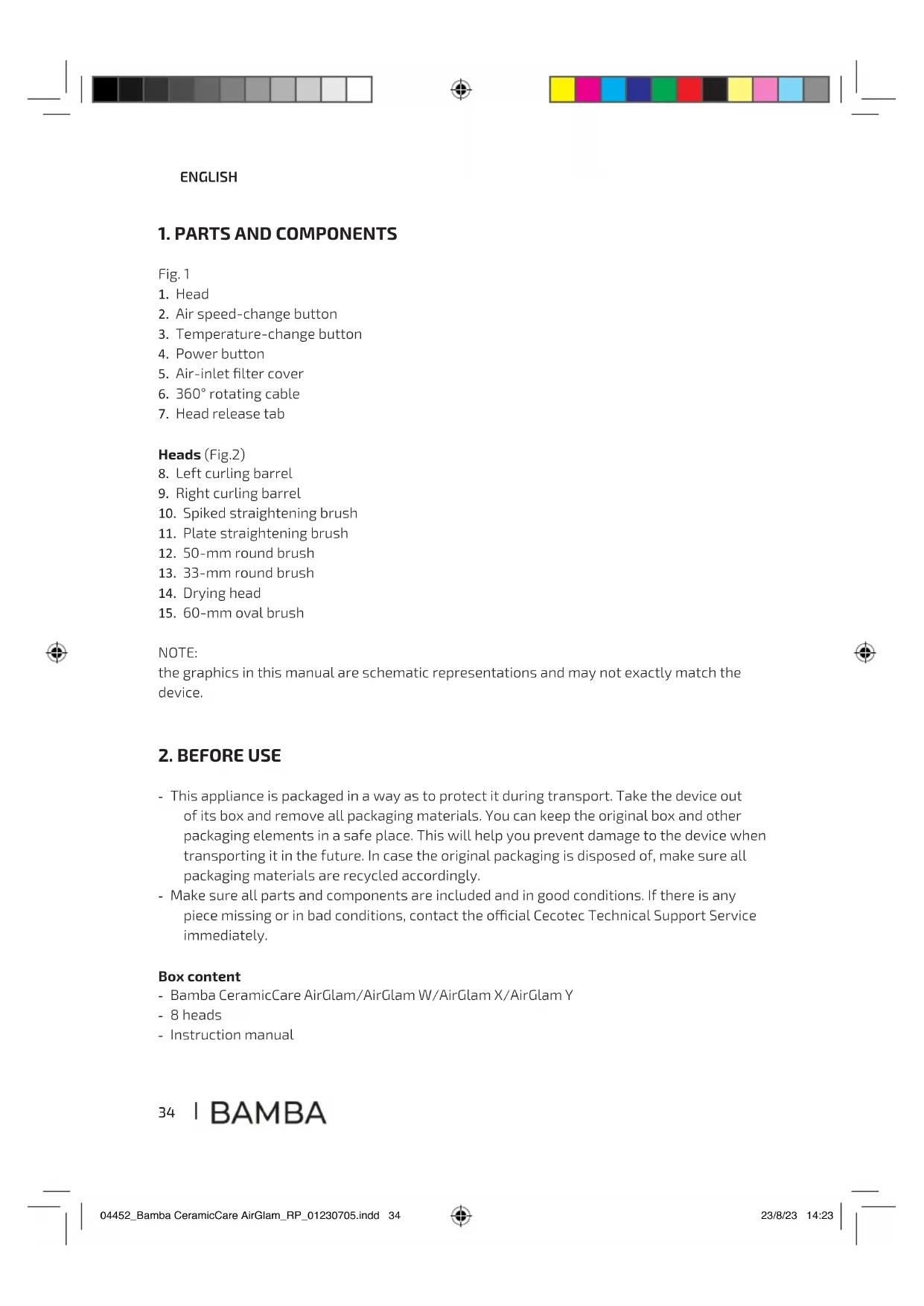

1. Parts and components 34

4. Cleaning and maintenance 36

7. Disposal of old electrical and

electronic appliances 37

8. Technical support and warranty 37

- As additional protection, it is recommended that a Residual Current Device (RCD) having a rated operating fault current not exceeding 30 mA be installed in the electrical circuit supplying the bathroom. We recommend you ask a qualied installer for advice. - This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance must not be carried out by unsupervised children. - This icon means that the device must not be used in a bathtub, shower, or any other water-lled tank. 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 704452_Bamba CeramicCare AirGlam_RP_01230705.indd 7 23/8/23 14:2323/8/23 14:238 - WARNING: do not use the device near bathtubs, showers, sinks, or other water-lled containers. - Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device. - This symbol means: warning, hot surface. - Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the ocial Cecotec Technical Support Service to avoid any danger. - Ensure that the air inlets and outlets are not blocked. - Turn o and unplug the appliance from the power supply immediately after use. - Immediately unplug the appliance from the socket in these cases: - Abnormal operation. - Cleaning. - After use. - Do not insert metal objects through the air inlets to avoid electric shocks. - Do not wind the cable around the device. - Keep your face, neck, and scalp away from the device. - Do not leave the device on any surface while in operation. - Do not use the appliance to comb wigs, natural hair extensions, fake hair, or animal hair. - The air inlet ensures good ventilation of the appliance. Do not cover or obstruct it, as this may cause overheating. - Do not insert objects in the air inlet. 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 804452_Bamba CeramicCare AirGlam_RP_01230705.indd 8 23/8/23 14:2323/8/23 14:239 Bamba CeramicCare AirGlam

5. Air-inlet lter cover

8. Left curling barrel

9. Right curling barrel

10. Spiked straightening brush

NOTE: the graphics in this manual are schematic representations and may not exactly match the device.

- This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service immediately. Box content - Bamba CeramicCare AirGlam/AirGlam W/AirGlam X/AirGlam Y - 8 heads - Instruction manual 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 3404452_Bamba CeramicCare AirGlam_RP_01230705.indd 34 23/8/23 14:2323/8/23 14:23Bamba CeramicCare AirGlam

1. Wash and condition your hair.

2. Dry your hair with a towel and comb it.

3. Ensure that the mains voltage matches the voltage specied on the appliance rating label

and that the plug is earthed. Plug the appliance to a power supply.

4. Align the desired head with the air outlet and turn it to x it to the body of the appliance.

5. Press and hold the on/o button to switch on the appliance: the air speed and

temperature will be set to 1 by default. If you change the settings, the device will save the last setting for later use.

6. Air speed: repeatedly press the air speed change button to adjust the air speed. When

the speed is set to 1, the rst speed LED will light up, from left to right. Press the button again to set the speed to 2: the rst and second LEDs will light up at the same time. Press the button a third time to set the speed to 3: all three LEDs will light up at the same time. Press the button again to return to speed setting 1.

7. Air temperature: repeatedly press the temperature change button to adjust the

temperature. When the temperature is set to 1, the rst temperature LED will light up, from left to right. Press the button again to set the temperature to 2: the rst and second LEDs will light up at the same time. Press the button a third time to set the temperature to 3: all three LEDs will light up at the same time. Press the button again to activate the cold air, the indicator lights will go out. Pressing it again will return to temperature setting

8. Turn o the device by pressing and holding the on/o button and unplug it from the

power outlet when you are nished using it.

9. Automatic cleaning function: with the appliance switched o, press, and hold the

temperature change button for 5 seconds: the dryer will blow air out of the air inlet grille for 20 seconds.

10. To remove the head, slide the release tab down, rotate the head and pull it gently to

remove it. Using the curlers

1. With your hair at least 85% dry, place the curler on the side of the head whose hair you

2. Separate the hair into approximately 2 cm strands.

3. Select a warm or hot temperature setting.

4. Bring the end of the hair strand close to the curler: the latter will attract the hair thanks to

the Coandă eect and curl it.

5. Keep the hair wound on the curler for a few seconds and then release a shot of cold air to

6. Switch o the appliance and unwind the hair from the top. Repeat these steps with the

next strand until all hair on that side of the head is curled. 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 3504452_Bamba CeramicCare AirGlam_RP_01230705.indd 35 23/8/23 14:2323/8/23 14:2336 ENGLISH

7. Replace the curler with the one t for the hair on the opposite side of the head and do the

1. Turn the appliance o and unplug it.

2. Place it on a heat-resistant surface until it cools down.

3. Remove the hair and dust from the appliance and attachments.

4. Make sure there is nothing obstructing the air inlet or outlet.

5. Clean the appliance with a soft cloth and store it in a dry place.

4. CLEANING AND MAINTENANCE

- Unplug the appliance from the power supply and allow it to cool down before cleaning. - Use a soft, damp cloth to clean the surface of the device. - Do not immerse the appliance in water or other liquids. - Do not use abrasive cleaners or scouring pads to clean the device. - Do not twist, bend, pull, or damage the power cable. - Clean the dirt and hairs that may be clogging the device. Cleaning the lter (Fig. 3) - Turn the air-inlet lter cover to unlock it and gently pull it downwards. - Use a soft brush or a cotton swab to clean the air inlet and the lter. - Ret the cover by turning it to lock it in place.

Problem Possible causes It does not work properly Check if the appliance is correctly plugged in. Check if the attachment is correctly tted. Check if the appliance switched o due to overheating. Switch o the appliance, unplug it from the mains, and allow it to cool down properly. Before turning it back on, make sure that nothing is clogging the air inlet. 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 3604452_Bamba CeramicCare AirGlam_RP_01230705.indd 36 23/8/23 14:2323/8/23 14:23Bamba CeramicCare AirGlam

Product reference: 04452/03457/03458/03459 Product: Bamba CeramicCare AirGlam/AirGlam W/AirGlam X/AirGlam Y Power: 1300-1400 W Voltage and frequency: 220-240 V~, 50/60 Hz Technical specications may change without prior notication to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/ batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. It is recommended that repairs be carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the ocial Cecotec Technical Support Service at [phone].

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L. 04452_Bamba CeramicCare AirGlam_RP_01230705.indd 3704452_Bamba CeramicCare AirGlam_RP_01230705.indd 37 23/8/23 14:2323/8/23 14:2338 FRANÇAIS
