CleanFry 3L - Deep fryer CECOTEC - Free user manual and instructions

Product type	Electric oil fryer
Brand	Cecotec
Model	CleanFry 3L
Reference	03032 (CleanFry 3L) / 03033 (CleanFry 3L Black)
Oil capacity	3 liters
Maximum food capacity	800 g of fries
Power	2000 W
Voltage and frequency	220-240 V ~, 50/60 Hz
Recommended oil type	Olive, corn, peanut or vegetable oil
Main functions	Traditional frying, temperature selection, safety thermostat
Temperature control	Rotary selector with indicator light (green: temperature reached, red: on)
Safety thermostat	Yes, automatic shut-off in case of overheating
Basket	Removable basket with folding handle, hanging hook
Anti-impurity filter	Removable, washable OilCleaner to extend oil life
Tank	Enameled tank, removable, dishwasher safe
Body material	Lacquered (probably lacquered steel)
Maintenance and cleaning	Tank and basket dishwasher safe; body clean with damp cloth; do not immerse control panel
Safety	Insulated side handles, automatic shut-off in case of overheating, do not use without oil
Power cord length	Approximately 80 cm (common estimate)
Dimensions (W x D x H)	Approximately 35 x 30 x 30 cm (estimate)
Weight	Approximately 3.5 kg (estimate)
Warranty	2 years from purchase date
Country of manufacture	China (designed in Spain)

Frequently Asked Questions - CleanFry 3L CECOTEC

What is the maximum food capacity I can fry in the CleanFry 3L?

The recommended maximum capacity is 800 g of fries. For other foods, adjust according to the time and temperature table indicated in the manual.

What oil to use with the Cecotec CleanFry 3L fryer?

It is recommended to use olive oil, corn oil, peanut oil or vegetable oil. Avoid margarine, butter and mixing different oils.

Can I wash the tank in the dishwasher?

Yes, the enameled tank is dishwasher safe. However, the control panel and body must not be immersed. Remove the tank as soon as the cycle ends and dry it completely.

How to clean the OilCleaner filter?

Remove the filter from the heating element after complete cooling. Wash it with warm soapy water, dry it and put it back by sliding it in the opposite direction of removal.

What to do if oil overflows or the fryer overheats?

The fryer is equipped with a safety thermostat that automatically turns it off in case of overheating. This can happen if the oil level is insufficient. Always check that the tank contains enough oil (between the Min and Max marks).

How long does it take for the oil to heat up?

The heating time depends on the selected temperature. The green indicator turns off when the temperature is reached. Generally, allow 10 to 15 minutes to reach 190°C.

Can I fry frozen foods?

Yes, but reduce the quantity and dry the foods as much as possible. Refer to the cooking chart in the manual for frozen shrimp (170°C, 3-5 min) or frozen breaded fish (170°C, 10-15 min).

How to store the fryer if I want to keep the oil?

After complete cooling, close the lid tightly and store it in a cool place. The OilCleaner filter helps keep the oil clean. For long-term storage, filter the oil and keep it in an airtight container.

What to do if the fryer does not turn on?

Check that the appliance is properly plugged in and that the temperature selector is turned to a position. If the red light does not come on, try another outlet. If the problem persists, contact the Cecotec after-sales service at [phone].

Does the warranty cover breakdowns due to use with too little oil?

No, the 2-year warranty does not cover damage caused by improper use, such as starting without oil or overfilling. Follow the instructions in the manual to preserve the appliance.

USER MANUAL CleanFry 3L CECOTEC

Safety instructions 7

1. Parts and components 38
   2.Before use 38
2. Operation 38
   4.Cleaning and maintenance 41
3. Technical specifications 42
4. Disposal of old electrical appliances 42
5. Technical support and warranty 42

SOMMAIRE

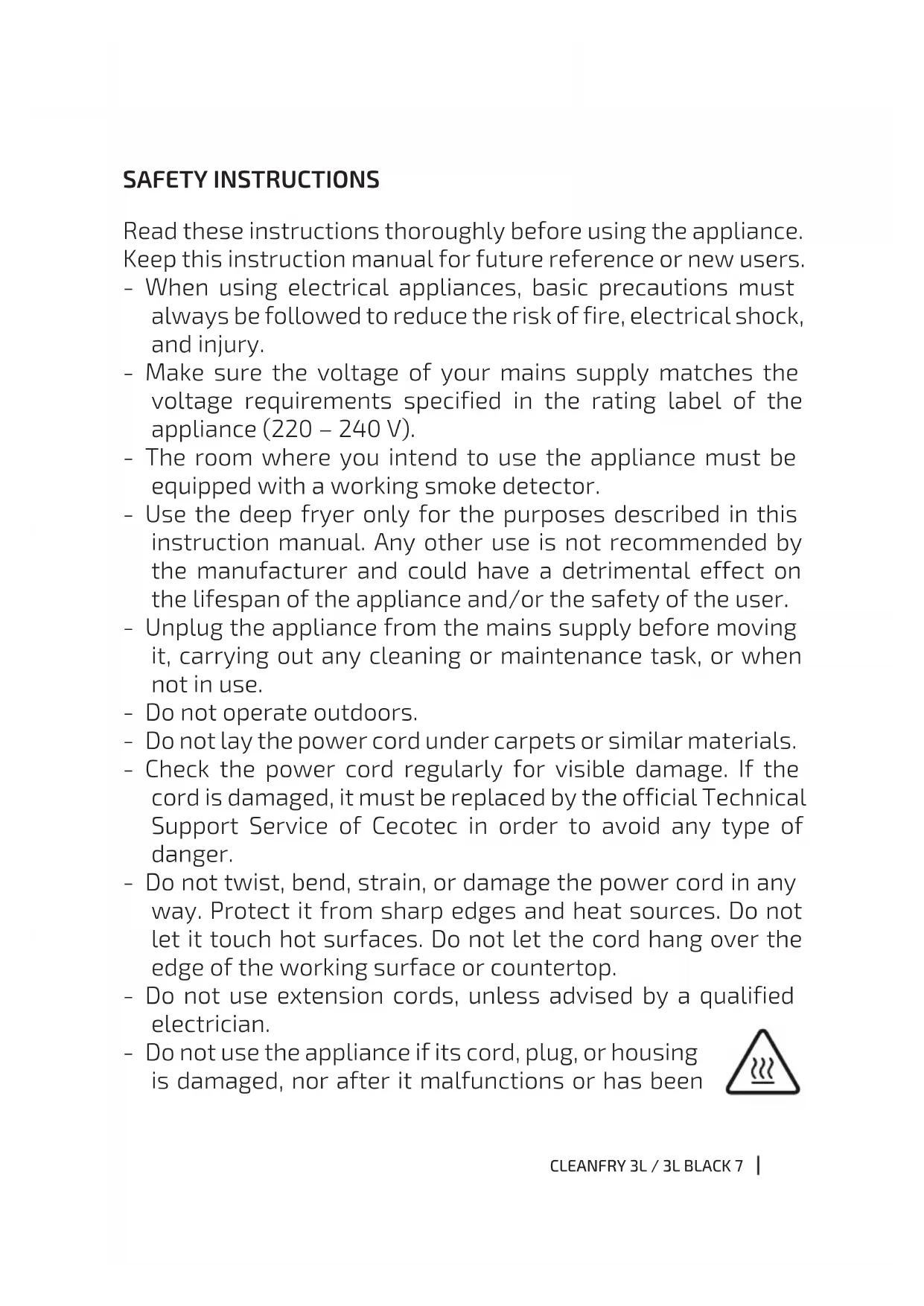

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• When using electrical appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.

• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance (220 - 240 V).

• The room where you intend to use the appliance must be equipped with a working smoke detector.

• Use the deep fryer only for the purposes described in this instruction manual. Any other use is not recommended by the manufacturer and could have a detrimental effect on the lifespan of the appliance and/or the safety of the user.

• Unplug the appliance from the mains supply before moving it, carrying out any cleaning or maintenance task, or when not in use.

• Do not operate outdoors.

• Do not lay the power cord under carpets or similar materials.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

• Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop.

• Do not use extension cords, unless advised by a qualified electrician.

• Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been

dropped or damaged in any way.

• The appliance must not be used in potentially dangerous locations, such as flammable, explosive, chemical-laden, or wet atmospheres, nor near flammable materials.
• Place the fryer on an even, heat-resistant surface. Do not place the device near heat sources, places with high humidity levels, or combustible materials.
• There are no internal serviceable parts. Do not attempt to disassemble the appliance.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings, as it could cause an electrical shock or fire.
• Do not turn the fryer on if there is no oil in the tank.
• It is not advisable to mix different oil types or oils with different qualities.
• The fryer has a safety thermostat that turns the fryer off in case of overheating. This may happen if there is not enough oil in the tank.
• Do not attempt to move the fryer until it has completely cooled down. This can take up to 3 hours. Use the handles at both sides.
• Do not immerse the cord, plug, or any non-removable part of the fryer in water or any other liquid. Do not expose the electrical connections to water.
• Make sure your hands are dry before handling the plug or switching on the appliance.

• Unplug the appliance from the mains supply before cleaning or maintenance task, or when not in use. Allow it to cool down completely before attaching or removing parts, and before cleaning the appliance.

• Do not leave the fryer unattended while connected to the mains supply.

• Do not lean over the fryer while in use.
• Be careful not to touch the surfaces of the fryer as they will become hot when in use.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it. Allow it to completely cool down before cleaning or storing it.
• This appliance is not intended to be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.
• The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Supervise young children to make sure that they do not play with the appliance.

INSTRUCTIONS DE SECURITÉ

1. Lid
2. Handle
3. Control panel
4. Frying basket
5. Hook
6. Heating element with thermostat
7. Lacquered inner pot
8. Main body
9. Handles
10. On/Off light (Red)
11. Temperature light (Green)
12. Temperature knob
13. Safety control button
14. Cord storage
15. OilCleaner filter for impurities

2. BEFORE USE

• Carefully unpack the appliance and remove all packaging materials.
• Check the contents to make sure that all the parts and accessories are present and in good condition.
• Attach the handle of the basket in its place. Note that the handle folds back and locks for storage.
• Wash the lid, basket, filter, and tank by hand with hot soapy water.
• Wipe the control panel with a damp cloth and/or kitchen paper.
• Important: Do not immerse the control panel in water.
• Dry all parts of the fryer thoroughly and place the tank, filter, control panel, basket, and lid back in place. Make sure the tank is in its correct position and aligned correctly, the max/min marks should be placed to the right.

3. OPERATION

1. Remove the lid and take out the frying basket.
2. Pour oil into the tank up to the maximum mark.
3. Recommended types of oil: Olive, corn, groundnut, or vegetable oil. Do not use margarine or butter.

Note

Do not plug the appliance into the mains supply without oil in the tank.

The lid must not be closed while the fryer is being used.

Fig. 2

1. Remove the lid and plug the fryer into the mains supply. Turn the temperature knob to the desired heat setting.
2. When the oil reaches the desired temperature, the green light will turn off (do not add food until the selected temperature has been reached). The green light will light up again when food is placed in the oil, but will turn off when the oil reaches the selected temperature again.
3. Hang the basket on the side of the tank (make sure the handle is locked into place and dry).
4. Place food in the frying basket (food should be as dry as possible).

Fig. 3

1. Carefully lower the frying basket into the hot oil (the oil may spit as it fries the foodstuffs).
2. When the foodstuffs are ready, raise and place the basket in its resting position on the side of the tank.
3. Let it drain the foodstuffs.
4. Turn the temperature knob off and unplug the fryer. Allow it to cool down for at least 2-3 hours before moving or cleaning it.
5. Place the foodstuffs in a dish covered with kitchen paper to remove any excess oil.

Note

It is important not to close the lid while the fryer is being used.

The following frying times and temperatures are intended as a guide and should be adjusted to suit different quantities or thickness after your own taste.

FOOD WEIGHT TEMPERATURE	RATURE TIME
Fresh chips 800 g 190 °C 10-12 min
Frozen chips 800 g 190 °C 10 min
Frozen scampi To cover the basket 170 °C 3-5 min
Fresh battered fish	150 g	190 °C 5-20 min
Frozen battered fish	150 g	170 °C	10-15 min
Small portions of battered chicken	150 g	170 °C 15-20 min

ENGLISH

Large portions of battered chicken	150 g 190 °C 20-30 min
Battered chicken drumsticks	2 or 3 170 °C 15 min
Beef burgers (100 % meat)	250 g 170 °C 2-3 min

Chicken and beef burgers can taint the oil, leaving some taste that you may not want when frying other foodstuffs.

Home battered food

• Take into account that if wet batter is placed in the basket prior to cooking, the food may stick to the metal.

• This method requires extreme care:

• Remove the lid and plug the fryer into the mains supply. Turn the temperature knob to the desired heat setting.

• When the oil reaches the desired temperature, the green light will turn off (do not add food until the selected temperature has been reached).
• The green light will light up again when food is placed in the oil, but will turn off when the oil reaches the selected temperature again.
• Coat the food in wet batter and shake it slightly to remove the excess of batter.
• Carefully lower the frying basket into the hot oil.
• Using tongs, lower the battered foodstuffs slowly into the oil.

Warning

The oil may spit as food is added into it. Once ready, take the foodstuffs out using the frying basket.
- The fryer has a safety thermostat that switches the fryer off in case of overheating. This may happen if there is not enough oil in the tank.
- Do not overload the basket, as it may cause a drop in the temperature of the oil that may leave the food greasy or undercooked.
The fryer will always be ready to use if it is stored with cooled and filtered oil inside, and the lid in place.
- When storing your fryer with oil inside, remove the handle and store it separately.
- Cook your food thoroughly. Remember that food may start to turn golden brown before it has been completely cooked.
- Select your cooking utensils with care. Do not use utensils that may melt.
- Metal utensils become hot and should have insulated handles.
- When using metal utensils, take care not to damage the heating element.
- Your fryer has a maximum capacity for food of 800g . This depends on food type (see the table above for more information).

• Do not fill more than half of the frying basket.
• Avoid draining food too long in the basket, as it may become soft and loose its crispness.
• Change the oil when it becomes brown or milky.
• If there are water droplets on the base of the tank, the oil should be changed.
• Change the oil in your appliance after approximately 15 uses.
• All food items, particularly frozen food and potatoes, contain moisture.
• When lowered into the hot oil, the water in the food turns to steam and escapes.
• Take into account the food to be cooked before selecting the frying temperature.
• As a general guide, pre-cooked food needs a higher cooking temperature than raw food.

4. CLEANING AND MAINTENANCE

• Remove the lid (1), control panel (3), frying basket (4), filter (15) and tank (7).
• Pour out the oil in the tank through fine muslin or absorbent paper placed over a funnel into a suitable container.
• Wash the lid, basket, filter, and tank by hand with hot soapy water.
• The tank is dishwasher safe. Take it out of the dishwasher as soon as possible and dry it thoroughly.
• Wipe the control panel with a damp cloth and/or kitchen paper.
• Do not immerse the control panel in water.
• Make sure the wires connected to the heating element are not damaged while cleaning.
• Dry all parts of your fryer thoroughly and place the tank, control panel, frying basket, and lid back in place. When placing the tank, make sure it is placed correctly, with the max/min marks to the right.
• You may keep oil in the fryer if you make sure that the lid is properly closed.
• Regular cleaning of the oil with the OilCleaner filter.
• Use the OilCleaner filter to clean the oil and the fryer easily. The remainders from the foodstuffs will sink when the oil cools down.
• If you use the filter, you will be able to remove the remainders, keeping the oil clean longer and minimising the appearance of undesired flavours.
• Wait until the oil and the heating element are completely cold before proceeding as follows:
• Unplug the fryer, remove the lid and the frying basket, and clean them separately.
• Remove the heating element raising it carefully to prevent the oil from overflowing.
• Separate the OilCleaner filter from the heating element.
• Clean filter with hot water and soap and dry it.
• Attach the OilCleaner filter to the heating element, sliding it in the opposite direction.
• Put the heating element with the OilCleaner filter in the fryer.

Fig 4.

ENGLISH

5. TECHNICAL SPECIFICATIONS

Model: CleanFry 3L/CleanFry 3L Black

Product reference: 03032/03033

Power: 2000 W

Voltage and frequency: 220 - 240V 50 / 60Hz

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your

obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

1. PIEÇES ET COMPOSANTS

Img.1

Made in China | Designed in Spain

6. RECYKLING SPRZETU AGD

Quart de Poblet, Valencia (Spain)

YV_02210303
