USER MANUAL Cecofry Neon 9000 CECOTEC

Modern air fryer device with transparent casing and black body, no visible text or symbols on the device itself

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente para lugares abrigados o para una utilización puntual. EN: This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use. FR: Cet appareil ne convient pas pour une utilisation en tant que chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE : Dieses Produkt ist nicht für als Hauptheizgerät geeignet. Dieses Produkt ist nur für geschützten Orten oder zur gelegentlichen Verwendung geeignet. IT: Questo apparecchio non è adatto a scopi di riscaldamento primario. Il suo utilizzo è indicato solo in luoghi riparati o per uso occasionale. PT: Este produto não é adequado para ser utilizado como aquecimento primário. Destina-se a uma utilização ocasional e apenas em locaïs abrigados. NL: Dit product is niet geschikt voor primaire verwarming. Dit product is alleen geschikt voor gebruik op beschutte plaatsen of voor occasioneel gebruik. PL: Ten produkt nie nadaje się do pierwotnego ogrzewania. Ten produkt jest wskazany tylko do miejsc osłoniętych lub do okazjonalnego użytku. CZ: Tento produkt není vhodný pro primární vytápění. Tento produkt je vhodný pouze na chráněných místech nebo pro příležitostné použití

Manual de instrucciones Instruction manual Manuel d'instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Handleiding Instrukcja obstugi Návod k použití

Safety instructions 8

1. Parts and components 48

2. Before use 49

3. Operation 49

4. Cleaning and maintenance 52

5. Troubleshooting 52

6. Technical specifications 54

7. Disposal of old electrical and electronic appliances 54

8. Technical support and warranty 54

9. Copyright 55

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

- All safety instructions must be closely followed when using the appliance.

- When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep this appliance and its power cable out of reach of children under the age of 8.

- This symbol means "caution, hot surface". The

temperature of the accessible surfaces may be high when the appliance is in operation.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Position the appliance in such a way to avoid spillage of hot liquids. Be especially careful with the handle.

- Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance.

- We recommend that the room where you intend to use the appliance is equipped with a working extractor fan or is well ventilated.

- Incorrect or improper use can damage the appliance and be dangerous for the user. Use the device only for the purposes described in this manual.

- Unplug the appliance from the mains supply before moving it, carrying out any cleaning or maintenance task, or when not in use.

- Do not use outdoors.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.

- Do not use extension cords, unless advised by a qualified electrician. Using the wrong type of extension cable could cause damage to the appliance or injuries to the user.

- Do not use the appliance if its cable, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.

- The appliance should not be used in potentially dangerous locations, such as flammable, explosive, chemical-laden, or wet atmospheres.

• Place the appliance on an even, heat-resistant surface. Be careful when placing the basket out of the air fryer. Place the handle inwards to prevent spillage of what's inside. Do not place the appliance near heat sources, places with high humidity levels, or combustible materials.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings, as it could cause electrical shock or fire.
• Do not fill the basket with oil to avoid causing a fire hazard.
• Do not touch the interior of the appliance while in operation.
• Always place the ingredients to be cooked inside the basket to prevent them from touching the heating elements.
• Make sure your hands are dry before handling the plug or switching on the appliance.
• Unplug the appliance from the outlet when not in use or when it is being cleaned. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance.
• Do not leave the appliance unsupervised while plugged to the mains.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance operates properly.
• Do not place the appliance against the wall. Leave a safety distance of 10 cm on the back of the appliance and 10 cm on each side. Do not place any object on top of the appliance when in use.
• Hot steam is released through the air outlet openings of the appliance during operation. Keep your hands and face

at a safety distance from the steam and from the air outlet openings. Hot air may come out when removing the basket from inside the appliance.

• Immediately unplug the appliance if you notice black smoke coming out of it. Wait until the smoke disappears to remove the basket from the appliance.
• We recommend the use of gloves when touching the basket and rack.
• Do not try to repair the appliance by yourself.
• Supervise children to prevent them from playing with the appliance.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This device is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Air fryer
• Instruction manual

3. OPERATION

1. Plug the appliance to an earthed wall socket.
2. Remove the basket from the air fryer with extreme care.
3. Place the ingredients on the rack in the basket of the fryer.

Note: do not exceed the MAX indicator line, as this may affect the final frying quality.

1. Put the basket back in the air fryer.

Note: do not touch the basket or the fryer for a short period of time after use, as it will be very hot. Only hold the handle to move the fryer.

1. Set the corresponding temperature and time on the control panel for the ingredients you wish to cook.
2. If the product is started to cook in a cold state, the cooking time should be increased by 3 minutes.

Note: if you prefer, you can preheat the product without adding the ingredients. The preheating time is approximately 3 minutes, and you select the desired temperature manually.

1. Some ingredients need to be turned halfway through the cooking process. To turn the ingredients, hold the handle and remove the basket from the fryer, place it on a flat, heat-resistant surface and stir the ingredients with a wooden or silicone utensil.

Note: never use metal utensils as these can scratch the racket protection.

1. Add water to the water tank without exceeding the MAX indicator line. To add water during the process, press and hold the neon and the water will spray out of the diffuser into the air chamber. Some default programmes come with an automatic water spraying function. This spraying is performed only once when the set time is completed. Check the time table for these times. If you wish to spray before or after automatic

ENGLISH

spraying, you must spray manually. This function is very useful for bakery and pastry recipes, vegetables, and some fish.

1. Check if the ingredients are cooked as desired. If the ingredients still need to be cooked further, place the basket back into the fryer and set the set time for a few more minutes.
2. If you wish to switch the light on or off, press the light icon 🔍. The device will switch the light on at the beginning of every cooking cycle and 3 minutes before the end of cooking.
3. To remove the cooked food, remove the basket and with the help of wooden or silicone tongs remove the food.

Note: be careful when removing the basket as the food is very hot and can generate steam.

Never pour food directly from the basket into the dish as this can be dangerous and residual water and oil may drip into the dish.

Configuration

Time chart

The following table will help you choose the basic settings for the ingredients you want to cook.

Icon Name		Temperature (°C)	Time (min)	Water spraying	Spraying times
	Fries 200 18	NO -
	Bacon 200 12	NO -
	Chicken wings and thighs	200 25 YES			Sprays for 3s after 10 minutes
	Shrimp 180 10	YES			Sprays for 3s after 3 minutes
	Meat 180 15	YES			Sprays for 3s after 8 minutes
	Dessert	150	25 YES		Sprays for 3s after 10 minutes
	VegetablesFish 180 12 YES	150	15	YES	Sprays for 3s after 8 minutesSprays for 3s after 5 minutes
	Chicken nuggets	200 15 NO -
	Keep warm 8	0 15 NO -

Note: remember that these settings are for reference only. Given the different origin, size, shape, and brand, we cannot guarantee the best configuration for your ingredients.

The device has one more programme, marked with the icon DW With this programme you can manually select time and temperature and whether or not you want manual water spraying.

Note: all pre-set programmes are configurable in time and temperature to make the combinations you want most.

Tips

- Smaller ingredients require a shorter preparation time than larger ones.

- When the number of ingredients is large, you only need to increase the cooking time slightly; while when the number of ingredients is smaller, you only need to shorten the cooking time.

- During the cooking process, turning smaller ingredients midway through the process improves the final cooking effect and can help to fry the ingredients evenly.

- Add a little oil to the fresh potatoes to make them crispier.

- Do not cook very oily ingredients.

- For best results it is best to use only the base of the basket, as too many layers of food can adversely affect the results.

Water spraying

- To activate or not the spraying function, select a specific programme that has this function. Then, press the spraying function icon if you want it to spray water automatically following the intervals explained above. If you do not want to spray water automatically, do not press this icon. You can spray water at any time during operation by pressing this icon. The icon that indicates whether operation is active or not is the following.

- During the warning that the tank has run out of water, the indicator icon located near the time and temperature indicators, will flash. The process will stop. Refill the tank with water and press the spraying icon for several seconds to put water back into the pump.

ENGLISH

Then press the Start/Pause/Cancel icon to resume the process. The spraying intervals cannot be modified.

How to cook natural crispy potatoes

• For optimal results, it is recommended to use pre-cooked fries (such as frozen fries).
• If you want to make your own fries, follow these steps:
• Peel the potatoes and cut them into small strips.
• Soak the strips in a bowl for at least 30 minutes, then remove and drain on kitchen paper.
• Pour a tablespoon of oil into the bowl and stir well until all the strips are evenly greased.
• Remove the fries from the bowl with your hands or utensils and leave the excess oil in the bowl. Then pour the potatoes into the frying basket.

4. CLEANING AND MAINTENANCE

- Before cleaning the air fryer, turn off the power.

Note: Remove the air fryer and let it cool down faster.

• The fryer and basket are coated with a non-stick coating. Do not clean with metal cookware or abrasive cleaning materials, as this may break the non-stick coating of the fryer.
• Wash the fryer and basket with hot water and detergent and non-abrasive sponges.
• Clean the inside of the appliance with hot water and a non-abrasive sponge.
• Wipe the heating element with a damp cleaning cloth to remove any food residue.
• After cleaning, allow the product to dry in a cool, dry place.

5. TROUBLESHOOTING

Fault Causes Solutions
Unable to switch on the display	You did not press the power icon hard enough and/or it is dirty.	Press and hold the power icon for 1 second and/or wipe the touch panel.
	Plug not plugged in or power supply exhausted.	Connect the plug or replace it.
	The fryer basket is not correctly positioned.	Place the basket in the fryer to make sure the switch is on.
The fan does not work after switching on the product	Deteriorated internal ventilation wiring.	Contact the Cecotec Customer Service.
	Power icon is not pressed.	After parameter setting, press Start / Pause.
Does not heat up after switching on	Printed circuit board coupling. Contact the Cecotec Customer Service.
	Heating pipe wiring terminal falls off	Contact the Cecotec Customer Service.
	Power icon is not pressed.	After parameter setting, press Start / Pause.
Food does not fry	The selected temperature is too low.	Adjust the temperature according to the recipe.
	Cooking time is too short.	Adjust the time according to the recipe.
	There is too much food in the basket.	Bake the food in batches.
Food is fried unevenly	The food did not turn over during cooking.	Bake the food and turn it up and down.
Food cannot be cooked properly	The basket is too full. Remove part of the ingredients.
	The basket is not placed in the fryer.	Place it.
There is a white smoke in the roasting process	Fatty ingredients are roasting.	There is smoke leakage during the cooking process of the ingredients, which is a normal phenomenon.
	Residues remain in the fryer after the last cooking process.	Wash it and then use it.

ENGLISH

6. TECHNICAL SPECIFICATIONS

Product reference: 04983

Product: Cecofry Neon 5000 air fryer

Power: 1500 W

Voltage: 220-240 V

Frequency: 50-60 Hz

Capacity: 5 L

Water tank capacity: 80 ml.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img.1

5. PROBLEEMOPLOSSING

Product: Airfryer Cecofry Neon 5000

Vermogen: 1500 W

Voltage: 220-240 V

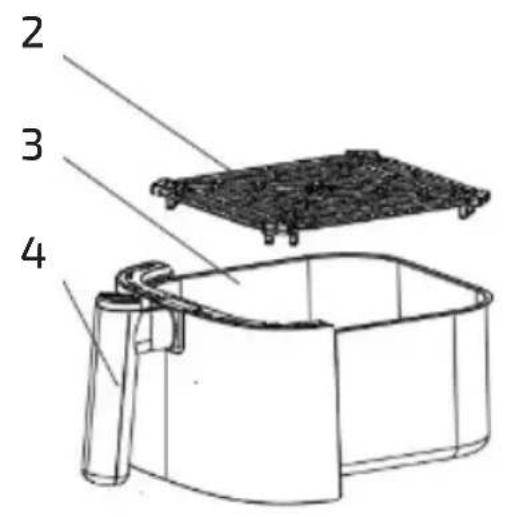

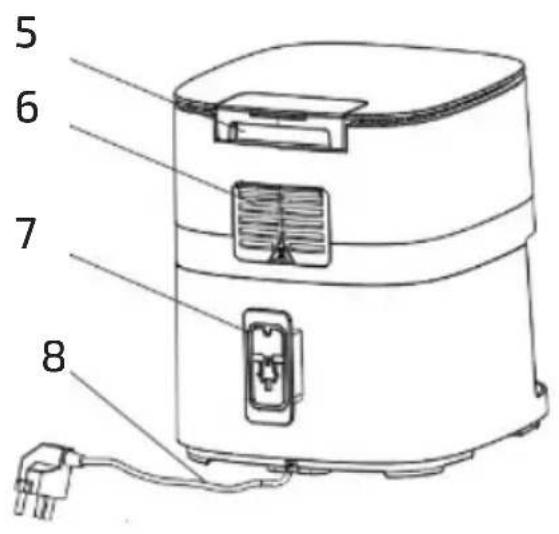

Line drawing of a smart air fryer device with labeled component (no text or symbols)

2 3 4

5 6 7 8

Fig. / Img. / Rys. / Obr. 1

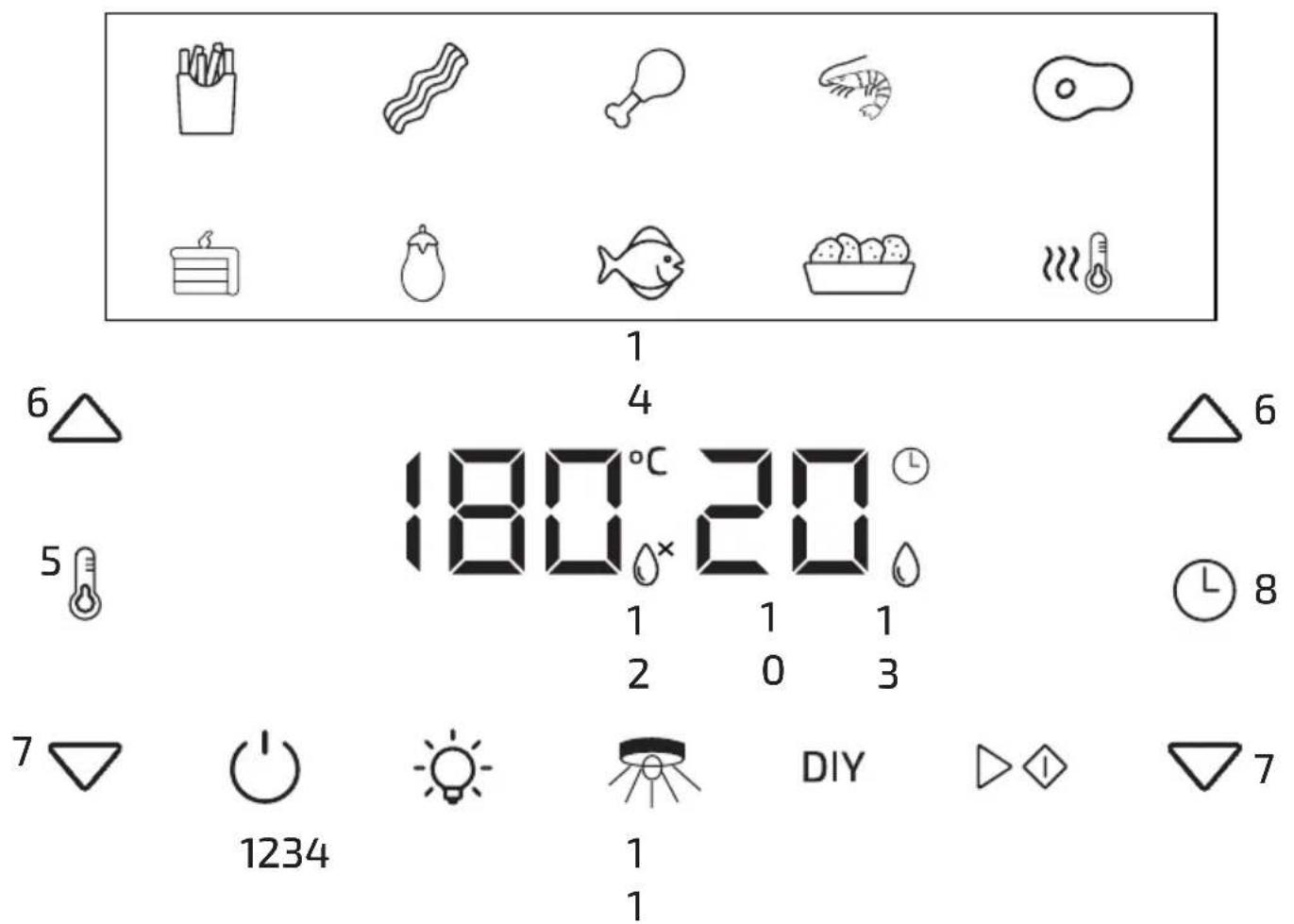

6 4 180°C 20 5 1 1 1 2 0 3 7 1234 1 1 DIY 7 △6 ○8 ▽7
