Product Type	Air Fryer
Brand	Monzana
Model	DBHF002
Rated Voltage	230-240 V ~ 50/60 Hz
Maximum Power	1485 W
Adjustable Temperature Range	80°C to 200°C
Timer	0 to 30 minutes
Basket Capacity (approx.)	2.5 L
Preset Cooking Programs	7 programs (fries, meat, snacks, etc.)
Control Screen	Touch LED with digital display
Non-stick Coating	Yes (basket and drawer)
Safety Class	I (grounded plug)
Auto Shut-off Function	Yes (via timer)
Overheat Protection	Yes
Cleaning of Removable Parts	Dishwasher safe (basket and drawer)
Intended Use	Cooking, defrosting and reheating food (domestic use only)
Approx. Dimensions (L x W x H)	30 x 30 x 35 cm
Approx. Weight	4 kg
Power Cord	Approx. length 0.8 m

Frequently Asked Questions - DBHF002 Monzana

How to clean the air fryer after use?

Unplug and let cool. Clean the basket and drawer with hot water and mild detergent or in the dishwasher. Wipe the exterior with a damp cloth. Never immerse the housing in water.

Can I add oil to the basket?

No, the air fryer works with hot air. You can optionally spray a little oil on food for extra crispiness, but do not pour oil into the basket.

Why is white smoke coming out of the appliance?

This is normal when cooking fatty foods. Fat drips into the drawer and produces smoke when heated. Clean the drawer after each use to avoid residue.

Food does not cook evenly, what to do?

Shake the basket halfway through cooking to stir the food. Do not overload the basket and follow recommended quantities. Some foods need to be turned.

The drawer does not fit properly into the appliance.

Check that the basket is properly engaged in the drawer (click) and that you have not exceeded the maximum fill level.

How to get crispy homemade fries?

Cut potatoes into thin sticks, wash to remove starch, dry well before adding half a spoon of oil. Cook at 200°C for 15-18 minutes, shaking halfway.

Can I cook frozen food directly?

Yes, the air fryer accepts frozen foods (fries, nuggets, etc.). Increase cooking time by 2-3 minutes compared to fresh food.

How to manually adjust temperature and time?

Press the + and - buttons on the touch screen to adjust temperature (in steps of 5°C) and duration. Confirm with the on/off button.

What is the maximum capacity of the basket?

Do not fill above the MAX level. For fries, do not exceed 500 g for optimal results. In general, the basket holds about 800 g of food max.

Are the basket and drawer dishwasher safe?

Yes, the basket and drawer are dishwasher safe. Do not use abrasive products to preserve the non-stick coating.

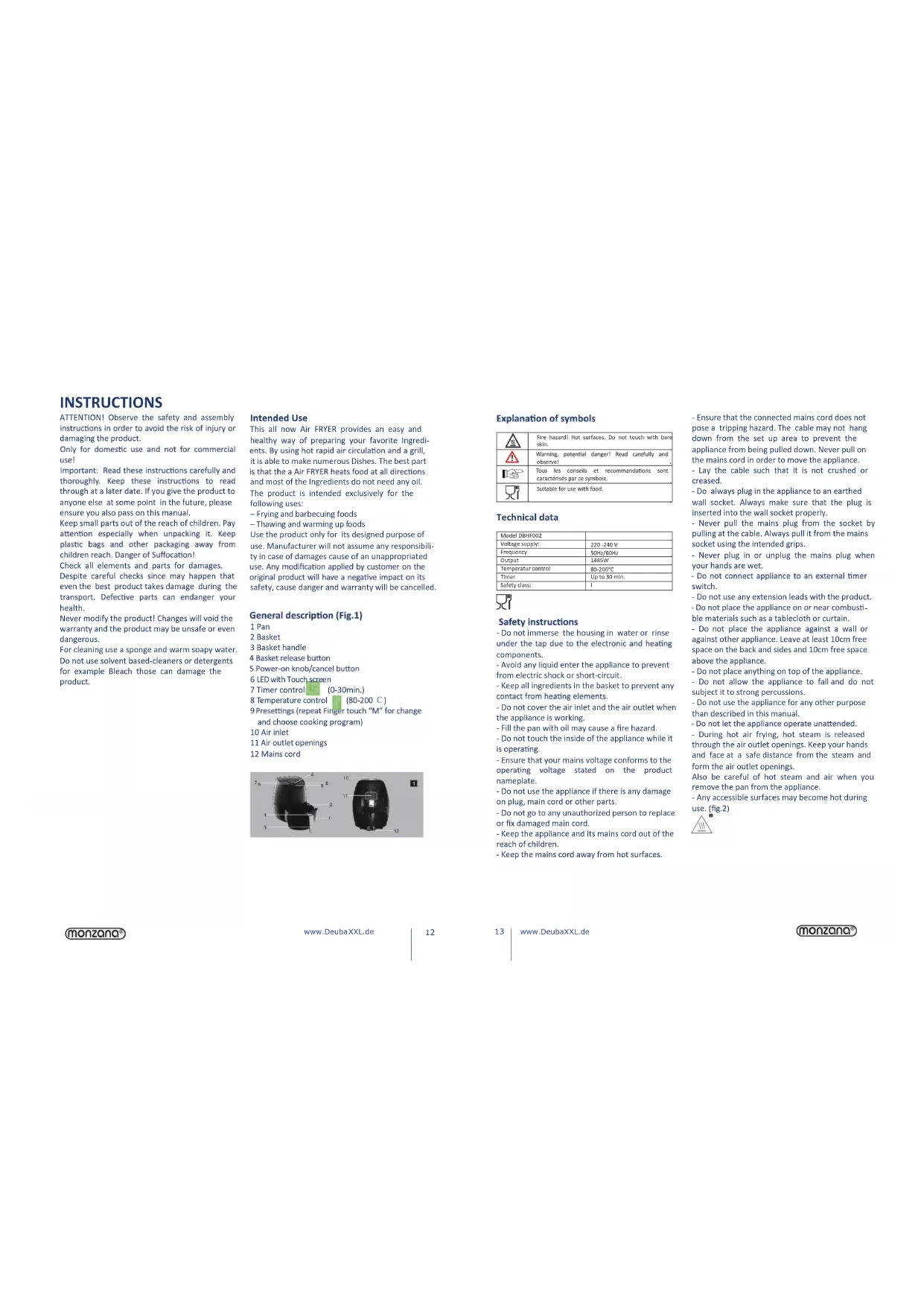

USER MANUAL DBHF002 Monzana

ATTENTION! Observe the safety and assembly instructions in order to avoid the risk of injury or damaging the product.

Only for domestic use and not for commercial use!

Important: Read these instructions carefully and thoroughly. Keep these instructions to read through at a later date. If you give the product to anyone else at some point in the future, please ensure you also pass on this manual.

Keep small parts out of the reach of children. Pay attention especially when unpacking it. Keep plastic bags and other packaging away from children reach. Danger of Suffocation!

Check all elements and parts for damages. Despite careful checks since may happen that even the best product takes damage during the transport. Defective parts can endanger your health.

Never modify the product! Changes will void the warranty and the product may be unsafe or even dangerous.

For cleaning use a sponge and warm soapy water Do not use solvent based-cleaners or detergents for example Bleach those can damage the product.

Intended Use

This all now Air FRYER provides an easy and healthy way of preparing your favorite Ingredients. By using hot rapid air circulation and a grill, it is able to make numerous Dishes. The best part is that the a Air FRYER heats food at all directions and most of the Ingredients do not need any oil. The product is intended exclusively for the following uses:

-Frying and barbecuing foods

• Thawing and warming up foods

Use the product only for its designed purpose of use. Manufacturer will not assume any responsibility in case of damages cause of an unappropriated use. Any modification applied by customer on the original product will have a negative impact on its safety, cause danger and warranty will be cancelled.

General description (Fig.1)

1 Pan

2 Basket

1. Basket handle

4 Basket release button

5 Power-on knob/cancel button

6 LED with Touch screen

7 Timer control (0-30min.)

8 Temperature control (80-200 C)

9 Presettings (repeat Finger touch "M" for change

and choose cooking program

10 Air inlet

11 Air outlet openings

12 Mains cord

Explanation of symbols

	Fire hazard Hot surfaces.Do not touch with bare skin.
	Warning potential danger!Read carefully and overtely
	Tous les consels et recommandations sont carotiristres par ce symbole.
	Suitable for use with food.

Technical data

Model DCHF02

Voltage supply: 220-240V

Frequency 50Hz/60Hz

Output 148W

Temperature control 80-200℃

Timer 03 h 30 min.

Safety class: I

Safety instructions

• Do not immerse the housing in water or rinse under the tap due to the electronic and heating components.

• Avoid any liquid enter the appliance to prevent from electric shock or short-circuit.

• Keep all ingredients in the basket to prevent any contact from heating elements.

• Do not cover the air inlet and the air outlet when the appliance is working.

• Fill the pan with oil may cause a fire hazard.

• Do not touch the inside of the appliance while it is operating.

• Ensure that your mains voltage conforms to the operating voltage stated on the product nameplate.

• Do not use the appliance if there is any damage on plug, main cord or other parts.

• Do not go to any unauthorized person to replace or fix damaged main cord.

• Keep the appliance and its mains cord out of the reach of children.

• Keep the mains cord away from hot surfaces.

• Ensure that the connected mains cord does not pose a tripping hazard. The cable may not hang down from the set up area to prevent the appliance from being pulled down. Never pull on the mains cord in order to move the appliance.

• Lay the cable such that it is not crushed or creased.
• Do always plug in the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.
• Never pull the mains plug from the socket by pulling at the cable. Always pull it from the mains socket using the intended grips.
• Never plug in or unplug the mains plug when your hands are wet.
• Do not connect appliance to an external timer switch.
  Do not use any extension leads with the product. - Do not place the appliance on or near combusti
  ble materials such as a tablecloth or curtain. - Do not place the appliance against a wall or against other appliance. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance.
  Do not place anything on top of the appliance. Do not allow the appliance to fall and do not subject it to strong percusions.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and form the air outlet openings.
  Also be careful of hot steam and air when you remove the pan from the appliance.
• Any accessible surfaces may become hot during use. (fig.2)

• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.

• This appliance may be used by children ages 8 and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and/or knowledge if they are supervised or have been instructed in how to safely use the appliance and have understood the risks associated with operating the appliance. Children may not play with the appliance. Children may not clean or perform user maintenance of the appliance unless they are 8 years of age or older and are supervised.

Caution

• Ensure the appliance is placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It may not be safe to use in environments such as staff kitchens, farms, motels, and other non-residential environments.
• The guarantee is invalid if the appliance is used for professional or semi-professional purposes or it is not used according to instructions.
• Always unplug the appliance while not using.
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

Automatic switch-off

The appliance has a build in timer, it will automatically shut down the appliance when count down to zero.

Electromagnetic fields (EMF)

The appliance complies whit all standards regarding Electro-Magnetic fields (EMF).

Under proper handling, there is no harm for human body based on available scientific Evidence.

Before first use

1. Remove all packaging materials and stickers on labels.
2. Clean the basket and pan with hot water, with some washing liquid and a non-abrasive sponge. These parts are safe to be cleaned in dishwasher.
3. Wipe inside and outside of the appliance whit a cloth. And there is no need to fill the pan whit oil and frying fat as the appliance works on hot air.

Preparing for use

1. Place the appliance on a stable, horizontal and even surface.
   Do not place the appliance on non-heat-resistant surface.
2. Put the basket in the pan. (fig.3)

liquid.

Do not put anything on top of the appliance, the airflow will be disrupted.

Using the appliance

This appliance is able to prepare a huge range of dishes, you may get help from the recipe book.

Hot air frying

1 Connect the mains plug into an earthed wall socket.

2 Carefully pull the pan out of the magic frayer (fig.4)

3 Place the ingredients in the basket. 4 Slide the pan back into the AIR FRAY!

Never use the pan without the basket in it. Caution: Do not touch the pan during a short-time after use, as it gets very hot and hold the pan by the handle.

5 Select proper function and temperature for the ingredients. (fig6).

Notes: 7 functions are provided: CHIP,CHICKEN,STEAK,SHRIMP,MEAT,CAKE,FISH Press the button to select the proper function according to the ingredients. More flexible time setting and temperature were needed, adjustment can be made directly by pressing corresponding knobs. There are two buttons(TIME ^+ &') in the control panel which can adjust time setting-Increase/Decrease 1 minute per a press or increase/decrease rapidly in the unit of 1 minute by long pressing.There are two buttons(TEMP + - ) in the control panel which can adjust temperature setting Increase/Decrease 5 degrees per a press or increase/decrease rapidly in the unit of 5 degrees by long pressing.

6 Select proper function and temperature for the ingredients. 7 functions are provided: CHIP,CHICKEN,STEAK,SHRIMP,MEAT,CAKE,FISH. Press the function button to select the proper function according to the ingredients and then press power on button, the appliance will run

and heating the ingredient. Repeat Finger touch "M" to change and choose the cooking function.

More flexible time setting and temperature were needed, adjustment can be made directly by pressing corresponding buttons. There are two buttons (TIME 't' & 't') in the control panel which can adjust time setting - Increase/Decrease 1 minute per a press or increase/decrease rapidly in the unit of 1 minute by long pressing. There are two buttons (TEMP 't' & 't') in the control panel which can adjust temperature setting - Increase/Decrease 5 degrees per a press or increase/decrease rapidly in the unit of 5 degrees by long pressing.

7 The heating-up icon and blower icon will be blinking during the running of the applicant (fig.7).

To switch on the appliance, turn the timer button to the required preparation time. The timer begins to run.

Caution: During the hot air frying process, the heating-up icon blinks and goes out from time to time. This indicates that the heating element is switched on (temperature reaches the setting) and off (temperature drops below the setting) to maintain the set temperature.

Add 3 minutes to preparation time if the appliance is cold

Preheat the appliance for 3 minutes when it is cold. Press the WARM-UP "+ first, and then press the power on button to start the appliance to warm up gradually. After the warming-up, carefully pull the pan out of the air fryer. (fig.4)

Caution: The appliance will stop heating after the pan is pulled out, the air blower will stop in 5 seconds.

a The power-on light and the heating-up light go on.

b The timer starts counting down the setted preparation time.

c During the hot air frying process, the heating-up light comes on and goes out from time to time. This indicates that the heating element is switched on and off to maintain the settled temperature.

d Excess oil from the ingredients is collected on the bottom of the pan.

8 Some ingredients require shaking halfway during the preparation time (see section 'Settings' in this chapter).By this way, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the magic fryer (fig.8).

Caution: Do not press the button of the handle during shaking. (fig.9)
Tip: You can remove the basket from the pan and shake the basket only to reduce the weight. Do like this, pull the pan out of the appliance, place it on the heat-resistant holder and press the button of the handle (fig.9).

9 When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on the heat-resistant holder.

Note: You can also switch off the appliance manually. Do like this, turn the temperature control knob to 0.

10 Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.

11 To remove small ingredients (e.g. fries), press the basket release button (1) and lift the basket out of the pan [2]. (fig.11)

Don't turn over the pan, otherwise, the oil collected on the bottom of the pan will leak onto the ingredients.

The pan and the ingredients are hot after hot air frying. Depending on the type of the ingredients in the air fryer, steam may escape from the pan.

12 Empty the basket into a bowl or onto a plate. (fig.12)

monzana

www.DeubaXXL.de

16

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs.

13 When a batch of ingredients is ready, the magic fryer is instantly ready for preparing another batch.

Settings

This table below will help you to select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air Technology reheats the air inside the appliance instantly, pull the pan briefly out of the appliance during hot air frying barely disturbs the process.

Tips:

Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.

A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.

• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.

• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you adding the oil.

• Do not prepare extremely greasy ingredients such as sausages in the AIR FRYER.

• Snacks can be prepared in an oven can also be prepared in the AIR FRYER.
• The optimal amount for prepare crispy fries is 500 grams.

• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.

• Place a baking tin or oven dish in AIR FRYER basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or fill-ingredients.

• You can also use the AIR FRYER to reheat ingredients. To reheat ingredients, set the temperature to 150^ for up to 10 minutes.

monzana

	Min-max Amount (min) (℃)
	(g)
Potatoes & fries
Thin frozen fries 300-700	9-16 200	shake
Thick frozen fries	300-700	11-20	200	shake
Homemade fries (8×8mm)	300-800	16-10	200 shake	Add 1/2 tbsp of oil
Home-made potato wedges	300-800	18-22	180 shake	Add 1/2 tbsp of oil
Home-made potato cubes	300-750	12-18	180	shake	Add 1/2 tbsp of oil
Rosti	250	15-18	180	shake
Potato gratin	500	15-18	200	shake
Meat & Poultry
Steak	100-500	8-12	180
Pork chops	100-500	10-14	180
Hamburger	100-500	7-14	180
Sausage roll 100-500	13-15		200
Drumsticks	100-500	18-22	180
Chicken breast	100-500	10-15	180
Snacks
Spring rolls 100-400	8-10	200 shake	Use oven-ready
Frozen chicken nuggets	100-500	6-10 2	00 shake	Use oven-ready
Frozen fish fingers 100-400		6-10	200	Use oven-ready
Frozen bread crumbed cheese snacks	100-400	8-10	180		Use oven-ready
Stuffed vegetables 100-400 10		160
Baking
Cake	300	20-25	160		Use baking tin
Quiche	400 20-22	180			Use baking tin/oven dish
Muffins	300	15-18	200		Use baking tin
Sweet snacks 400 20	160				Use baking tin/oven dish

Making home-made fries

To make home-made fries, follow the steps below.

1. Make he potatoes peel and slice.

2 Wash the potato sticks thoroughly and dry them with kitchen paper.

3 Pour 1/2 tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks are coated with oil.

4 Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the sticks in the basket. Note: Do not tilt the bowl to put all the sticks in the basket in one go to prevent excess oil from ending up on the bottom of the pan.

5 Fry the potato sticks according to the instructions in this chapter.

Cleaning, Maintenance and Storage

• Maintenance and repairs are to be performed exclusively by an expert or at a qualified shop.

• Always turn off the appliance before performing any maintenance or checks.

• Check all parts for signs of wear. If any problems are detected, do not use the product. Always replace all parts with original replacements according to the manufacturer's guidelines.

• If the product is not properly cared for and maintained, it can become unsafe and can also become damaged. This can lead to dangerous situations.

Regular maintenance on the product helps to make the product safe and will also increase its lifespan.

• Clean the appliance after every use and keep it clean to prevent the build-up of germs!

Do not clean the pan, basket and the inside of the appliance by metal kitchen utensils or abrasive cleaning materials, as this may damage the non-stick coating of them.

1. Remove the mains plug from the wall socket and make the appliance cool down. Note: Remove the pan to let the AIR FRYER cool down more quickly.

2. Wipe the outside of the appliance with a moist cloth.

3. Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge.

You can remove any remaining dirt by degreasing liquid.

Note: The pan and basket are dishwasher-proof.

Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes.

1. Clean the inside of the appliance with hot water and non-abrasive sponge.

2. Clean the heating element with a cleaning brush to remove any food residues.

3. After cleaning, store the appliance in a dry, clean place.

Problem Possible Cause Solution
The AIR FRYER does plugged in not work	The appliance is not	Put the mains plug in an earthed wall socket
	You have not set the Turn Timer time to switch on the appliance
The ingredients fried with the AIR FRYER are not done	The amount of ingredients in the basket is too big.	Put smaller batches of ingredients in the basket. Smaller batches are fried move evenly
	The set temperature is too low.	Turn the temperature control knob to the required Temperature setting (see section 'settings' in chapter 'Using the appliance').
The ingredients are fried unevenly in the AIR FRYER	Certain types of ingredients need to be shaken halfway through the preparation time	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section 'Settings' in chapter 'Using the appliance'.
Fried snacks are not crispy when they come out of the AIR FRYER deep fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crisper result.
I cannot slide the pan into the appliance properly	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a Click.
White smoke Comes out from the Appliance.	You are prepaing greasy ingredients.	When you fry greasy ingredients in the AIR fryer, a large amount of oil will leak into the pan. The oil produces while smoke and the pan may heat up More than usual. This does not affect the appliance Or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use.
Fresh fries are fried Unevenly in the AIR FRYER	You did not use the right potato type.	Use fresh potatoes and make sure that they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispiness when they come out of the AIR FRYER	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result
		Auld slightly more oil for a crispier result.

NOTICE D'UTILISATION

Once item end-of-life, please fill in the required materials for a r recycling. o you are not sure how to handle it in a correct way please contact your local disposal or recycling centers for advice.

Mise au rebut:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Made for :
Deuba LTD
Wyatt Way, Thetford, Norfolk, IP24 1HB

Copyright by
