USER MANUAL GHKG1100 Monzana

Line drawing of a rectangular electronic device with mounting feet and a central knob (no text or symbols)

Kontaktgrill / Paninimaker

You have made a good choice by purchasing one of our branded products. In order to enjoy the product for as long as possible and to ensure safe handling, please observe the assembly and operating instructions overleaf. To ensure the desired high quality standard, our articles are subject to regular controls and of course always meet the high requirements of the European Union. Even the best products can have defects, e.g. due to external circumstances. We stand by our quality promise and offer you the best possible service. Should a problem occur, please contact our trained staff for whatever kind of service, complaints and technical support you require.

ATTENTION!

Read the safety and assembly instructions carefully, in order to avoid the risk of injury or damaging the product.

Table of contents

1.0 SYMBOLS....12

2.0 SAFETY INSTRUCTIONS....12

2.1 General safety instructions for use....12

2.2 General safety instructions – electrical system 13

2.7 RESIDUAL RISKS....15

3.0 INTENDED USE....16

4.0 UNPACKING INSTRUCTIONS....17

5.0 Using the appliance for the first time 17

6.0 OPERATION 17

7.0 MAINTENANCE AND CARE INSTRUCTIONS....18

8.0 TROUBLESHOOTING....19

9.0 TECHNICAL DATA 19

10.0 DISPOSAL....19

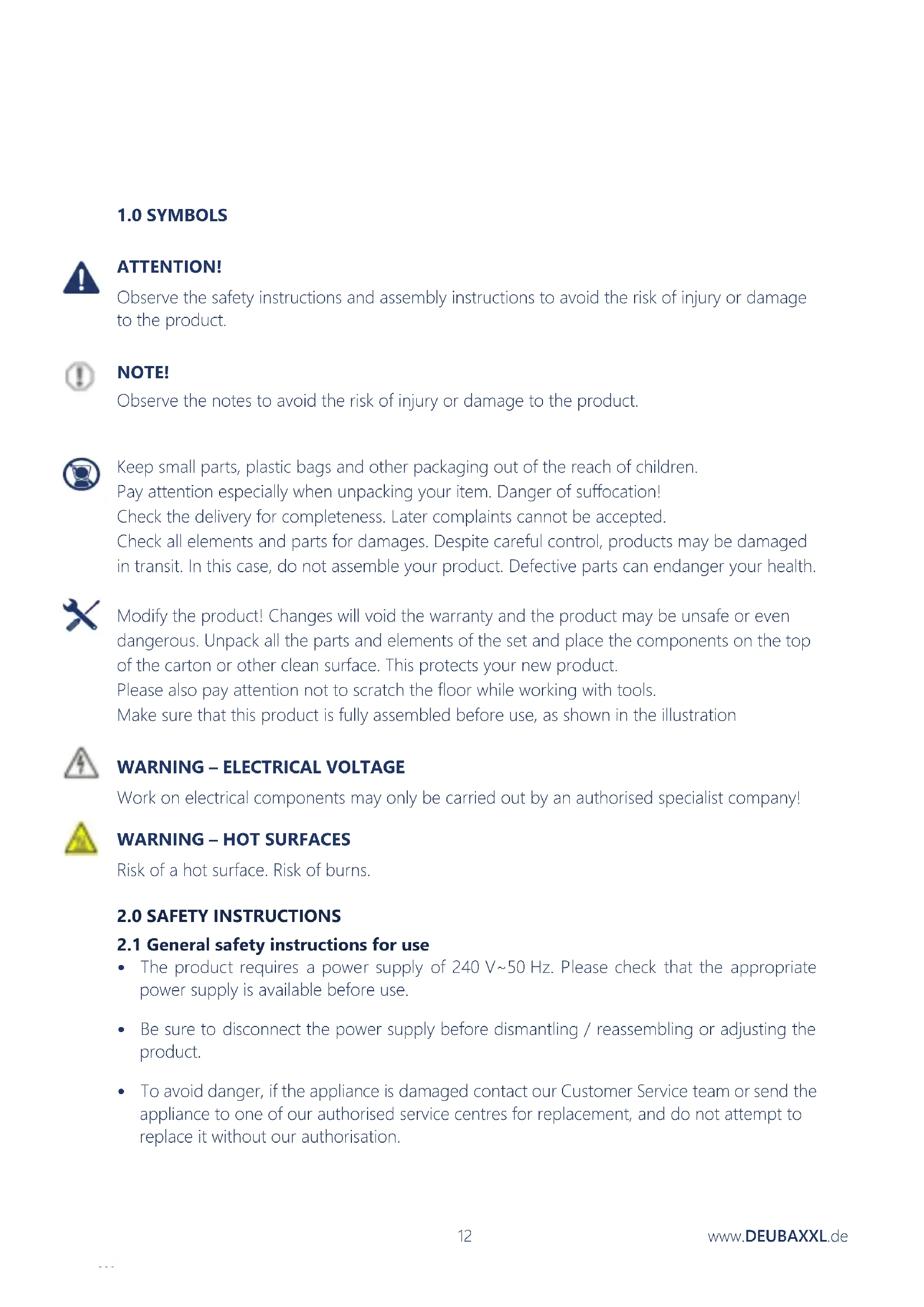

1.0 SYMBOLS

ATTENTION!

Observe the safety instructions and assembly instructions to avoid the risk of injury or damage to the product.

NOTE!

Observe the notes to avoid the risk of injury or damage to the product.

Keep small parts, plastic bags and other packaging out of the reach of children.

Pay attention especially when unpacking your item. Danger of suffocation!

Check the delivery for completeness. Later complaints cannot be accepted.

Check all elements and parts for damages. Despite careful control, products may be damaged in transit. In this case, do not assemble your product. Defective parts can endanger your health.

Modify the product! Changes will void the warranty and the product may be unsafe or even dangerous. Unpack all the parts and elements of the set and place the components on the top of the carton or other clean surface. This protects your new product.

Please also pay attention not to scratch the floor while working with tools.

Make sure that this product is fully assembled before use, as shown in the illustration

WARNING – ELECTRICAL VOLTAGE

Work on electrical components may only be carried out by an authorised specialist company!

WARNING – HOT SURFACES

Risk of a hot surface. Risk of burns.

2.0 SAFETY INSTRUCTIONS

2.1 General safety instructions for use

• The product requires a power supply of 240 V\~50 Hz. Please check that the appropriate power supply is available before use.
• Be sure to disconnect the power supply before dismantling / reassembling or adjusting the product.

• To avoid danger, if the appliance is damaged contact our Customer Service team or send the appliance to one of our authorised service centres for replacement, and do not attempt to replace it without our authorisation.

• Once you're done, do not remove the detachable parts until the appliance is disconnected from the mains.

• All parts that come into contact with food are clean, safe and reliable in accordance with the relevant food hygiene regulations.
  • To avoid the risk of electric shock, do not immerse the appliance in water or other liquids.
• Caution! The housing and grill surfaces become hot during operation. Make absolutely sure that you do not come into contact with the heated parts while and after using the appliance. Only touch the appliance by the handle. Risk of burns!
• Never leave your appliance unattended when in use. Keep children or individuals who require assistance away from the appliance.
• Never use metal objects (e.g. knife, kitchen tongs, metal spatula, etc.) when removing sandwiches, waffles, etc. Always use a flat wooden or heat-resistant plastic spatula! Take care not to scrape off the coating, or small pieces of the coating will get into the food.
• Maintain a safe distance around the appliance to prevent fire, and never move or shift the appliance during operation!

2.2 General Safety Instructions

• ATTENTION! Read all safety instructions and warnings. Failure to comply with the safety notes and instructions may result in electric shock, fire and/or serious injury.
• Before use, check that the voltage of the power source matches the specifications on the unit's nameplate. Avoid unintentional start-up.
• Make sure that no water can penetrate into the device. Never immerse the unit in water or other liquids. Never expose it to rain.
• Do not use the device if the power plug, power cord or any other part of the device is defective or damaged.
• A damaged power cord should only be replaced by an authorized service center or similarly qualified person to prevent hazards. Failure to do so may result in electric shock. Never attempt to repair the unit yourself.
• Do not pull on the cord to remove the power plug from the socket. Instead, hold the power plug in your hand.

• Never insert or remove the power plug with wet hands.

• Make sure that the power cord is not crushed, bent, damaged by sharp edges or subjected to any other mechanical strain. Avoid subjecting the power cord to excessive thermal stress due to excessive heat or cold. Do not modify the power cord. Failure to do so may damage the power cord. A damaged power cord can result in a life-threatening electric shock.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless these persons are supervised by somebody responsible for their safety or have received instructions from them on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
• This product should only be used on firm, level ground.
• If possible, protect your product from rain and weather conditions. During periods of frost and throughout the winter, we recommend storing the products in a dry and protected place.

2.3 Workplace

• Keep the workplace clean and well lit. Cluttered and poorly lit areas can cause accidents.
• Do not use power tools in potentially explosive areas, e.g. in the presence of flammable liquids, gases or dust. Power tools generate sparks that can ignite the dust or exhaust gases.
• Keep children and other persons away while operating a power tool. Distractions can cause loss of control.

2.4 Electrical Safety

• The plugs of power tools must be compatible with the socket. Never change the plug. Do not use adapter plugs with grounded power tools. Original plugs and matching receptacles reduce the risk of electric shock.
• Avoid physical contact with earthed objects such as pipes, radiators, stoves and refrigerators. There is a higher risk of electric shock if your body comes into contact with a grounded object.
• Do not expose power tools to rain or humid environments. The risk of electric shock is increased if water enters a power tool.
• Use the cord only for its intended purpose. Never use the cord to carry, pull or unplug the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using an outdoor-suitable cord reduces the risk of electric shock.

- If it is necessary to operate a power tool in a humid location, use an earth leakage circuit breaker to protect the power supply. Using a RCD reduces the risk of electric shock.

2.5 Personal Safety

• Always stay alert, watch your actions and use common sense when operating a power tool. Do not operate a power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools can cause serious injury.
• Avoid accidental starting. Make sure that the switch is turned off before connecting the plug. Carrying power tools with your finger on the switch or plugging in power tools with the switch on can cause accidents.
• Avoid over-fatigue. Always maintain a secure footing. This makes it easier to control the power tool in unexpected situations.
• Dress appropriately. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose clothing, jewelry or long hair can get caught in moving parts.

2.6 Use And Maintenance Of Electrical Equipment

• The electrical appliance must not be operated with excessive force.
• Do not use the electrical appliance if it cannot be switched on and off with the switch. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing accessories or storing the appliance. Such preventive safety measures reduce the risk of accidentally starting the power tool.
• Servicing electrical appliance. Check the unit for faults or damage to moving parts. If damaged, have the electrical appliance repaired by a qualified technician before use. Many accidents are caused by poorly maintained electrical equipment.
• Use the electrical appliance, accessories, tool attachments, etc. in accordance with these instructions. Using the electrical appliance for other than its intended purpose may lead to dangerous situations.

Have your electrical appliance serviced by qualified personnel, using only genuine spare parts. This will guarantee the safety of the electrical appliance.

2.7 Residual Risks

Warning – electrical voltage

Work on electrical components may only be carried out by an authorised specialist company!

Warning – electrical voltage

Before carrying out any work on the appliance, remove the mains plug from the mains socket! Unplug the power cord from the mains socket by grasping the mains plug.

Warning

Dangers can arise from this appliance if it is used improperly or for an unintended purpose by untrained individuals! Observe the staff qualifications!

Warning

The appliance is not a toy and should not be handled by children.

Warning

Danger of suffocation!

Do not leave the packaging material lying around carelessly. It could become a dangerous toy for children.

Warning – hot surfaces

Risk of a hot surface. Risk of burns.

3.0 INTENDED USE

This appliance is suitable for heating / frying non-liquid foods. Use the product only for the purpose it is intended for. The manufacturer accepts no liability for damage caused by unintended use. Any modification to the product may negatively impact safety, cause hazards and invalidate the warranty.

Only suitable for domestic use; not for commercial use.

4.0 UNPACKING INSTRUCTIONS

Open the box and remove the appliance and accessories.

After unpacking, please check the appliance for damage and to ensure it is complete. Subsequent complaints cannot be accepted.

5.0 USING THE APPLIANCE FOR THE FIRST TIME

Completely unwind the power cord. Heat up the appliance for 4 minutes.

A slight odour will develop when the appliance is heated up for the first time. So ensure that there is sufficient ventilation. This smoke is NOT harmful.

Then leave the appliance to cool down and clean it as described under 'Maintenance and care'.

6.0 OPERATION

• Completely unwind the power cord. Ensure that the plastic drip tray is in place before operating the appliance. Remove and empty the drip tray before putting the appliance away (model: GHKG1800 / GHKG2000 / GHKG2500)
• Plug the mains plug into a socket.
• The indicator lamp lights up when the appliance is connected to the power supply (model: GHKG1800 / GHKG1100). Prepare your food to be grilled / your panini while the appliance is pre-heating.
• Wait until the green indicator lamp goes out. Only then is the appliance pre-heated (model: GHKG2000 / GHKG2500)

ATTENTION: The grill plates get very hot – proceed with caution.

• Depending on the model, the indicator lamp lights up green when the food is ready (or the heating indicator goes out). On the models GHKG2000 and GHKG2500, the green lamp goes out irregularly during operation, indicating the appliance's heating control.
• To achieve the best possible cooking results, pre-heat the contact grill / panini maker for approx. 3 – 4 minutes, with the lid closed and no food.
• Open the lid with an oven mitt or cloth; ensure that it is in an upright position. Now carefully place the food on top using a spatula or tongs, not your fingers.
• Close the lid carefully; the hinge of the lid is designed to automatically adjust to the thickness of the food to be grilled.
• Ensure that the grill plates are approximately parallel to prevent uneven cooking.
• The temperature control allows you to easily determine the degree of browning. (Model: GHKG2000 / GHKG2500)
• Use a spatula or tongs to remove the food from the grill plate, not your fingers.
• Close the appliance if you want to continue grilling to avoid burning yourself and to save energy.

- Let the grilled food cool for a few minutes before eating it

- Unplug the power cord after cooking and allow the contact grill / panini maker to cool down.

7.0 MAINTENANCE AND CARE INSTRUCTIONS

Always switch off the appliance and disconnect the mains plug before carrying out maintenance or inspection work. Leave the appliance to cool down!

Check all the parts for signs of wear. Do not continue to use the product if you find any defects. Only have parts replaced with original spare parts by a specialist in accordance with the manufacturer's specifications. A lack of care and maintenance can damage the appliance. Dangerous situations can arise. To ensure electrical safety, the appliance must not be treated with or even immersed in liquids. Regular maintenance helps to ensure the safety of the product and increases its service life.

Clean the appliance promptly after each use. If residues stick and harden, the appliance is more difficult to clean. Do not use harsh or abrasive cleaners. Wipe the appliance with a damp cloth. Ensure that no liquids enter the appliance.

The models' grill plates should be cleaned with paper towel. NEVER put the appliance in the dishwasher. Rinse the drip tray in warm dishwater or in the top compartment of the dishwasher.

8.0 TROUBLESHOOTING

Problem	Possible cause	Solution
The appliance is not working.	There may be no contact between the plug and the socket.	Plug in the mains plug.
		Change the socket.
		Contact Customer Service.
The appliance is producing an unpleasant odour during operation.	An odour may develop when the appliance is being used for the first time.	Ensure sufficient ventilation. No further action required.

9.0 TECHNICAL DATA

Item	Model	Item	V – Hz	Watts
Contact grill	GHKG1800	107270	220–240 V ~50 Hz	1,500 W
Panini maker	GHKG1100	107271	220–240 V ~50 Hz	750 W
Stainless steel contact grill	GHKG2000	107272	220–240 V ~50 Hz	1,600 W
XL stainless steel contact grill	GHKG2500	107535	220–240 V ~50 Hz	2,200 W

10 DISPOSAL:

At the end of life of your item, please dispose valuable raw materials for a proper recycling. If you are not sure how to handle it in a correct way please contact your local disposal or recycling centers for advice

CORRECT DISPOSAL OF THIS PRODUCT

Never dispose of electronic devices in the household waste! Take defective or discarded devices to recycling centers.

Within the EU, this symbol indicates that this product must not be disposed of with household waste. Discarded devices contain valuable recyclable materials that should be recycled and not be disposed of in an uncontrolled manner that could harm the environment or human health. Therefore, please dispose of old devices via appropriate collection systems or send the device to the place where you purchased it for disposal. The latter will then send the device for recycling.
