Product Type	Canister Vacuum Cleaner
Brand	Monzana
Model	DBMZ005
Power Supply	220-240 V ~ 50/60 Hz
Input Power	900 W
Output Power	700 W
Use	Domestic use only
Filtration System	Plastic Multi-Cyclone Filter
Dust Container	With 1/4 marking for emptying
Cable Rewinder	Automatic, rewind button
Air Control	On the handle
Included Accessories	Floor nozzle, suction tube, flexible hose, connector, handle
Cord Length	Approx. 5 m (estimated)
Noise Level	Moderate (quiet but not completely)
Dimensions (approx.)	30 x 25 x 20 cm (estimated)
Weight (approx.)	3.5 kg (estimated)
Maintenance	Clean filter regularly, do not use harsh detergents
Safety	Do not vacuum ashes, liquids, sharp objects; unplug after use
Warranty	Valid subject to proper use (see manual)

Frequently Asked Questions - DBMZ005 Monzana

How to assemble the Monzana DBMZ005 vacuum cleaner?

Insert the hose connector into the container by turning clockwise to lock. Attach the suction tube to the handle, then the floor nozzle to the tube. To disassemble, turn counterclockwise.

What to do if the vacuum loses suction power?

Check that the container lid is properly locked. Ensure that the dust container is correctly engaged (position 1 then clip to position 2). Clean the filter if it is clogged. Empty the container if the dust reaches the 1/4 mark.

How to clean the vacuum filter?

Remove the plastic filter and clean it with clear water. Do not use harsh detergents. Let it dry completely in the open air before reinstalling. Do not machine wash or dry with an electric heater.

The power cord does not retract completely, what to do?

Keep the rewind button pressed while pulling the cable slightly, then release. Repeat if necessary. If the problem persists, pull and rewind several times until the brake releases.

Can I vacuum water or liquids with this vacuum?

No, this vacuum is designed only for dry dust. Never vacuum water or other liquids, as this could damage the device and cause electric shock.

What types of waste should not be vacuumed?

Do not vacuum hot or cold ashes, wood dust, shavings, lit cigarettes, sharp or heavy objects. These materials can damage the device or cause a fire.

How to empty the dust container?

When the dust reaches the 1/4 mark on the container, empty it. Remove the container as indicated in the manual, empty its contents, then replace it making sure it is properly engaged to maintain sealing.

What do the yellow and red marks on the power cord mean?

The yellow mark indicates the maximum recommended length for use. Never exceed the red mark to avoid damaging the rewinding mechanism.

Can the vacuum be used on carpets?

Yes, you can use the vacuum on hard floors and carpets. The floor nozzle is suitable for both surfaces.

Why does the vacuum produce a slight static charge on carpets?

A slight static charge is normal, especially on carpets. To dissipate it, touch the device with your hand. This phenomenon is comparable to that in a car and is not dangerous.

USER MANUAL DBMZ005 Monzana

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

Artikel-/Modellnummer: 103231,103271,109141/DBMZ005

Simple line drawing of a hand holding a device with a screen and cable, no text or symbols present

2)

Line drawing of a vacuum cleaner connected to a power outlet (no text or symbols)

3)

Illustration of a cigarette emitting smoke, crossed with a black X mark (no text or symbols)

4)

Simple line drawing of a medical procedure with a cross mark (no text or symbols)

5)

Illustration of various tools including screw, pliers, and a cross (no text or symbols)

6)

Line drawing of a vintage vacuum cleaner with a smokestack emitting vapor, no text or symbols present

Diagram of a device with two labeled parts, showing internal components and directional arrows (no text or symbols)

Line drawing of a vacuum cleaner with a rotary knob and handle (no text or symbols)

Line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of three different hand positions: a pen, a tool, and a device (no text or symbols present)

Illustration of a vacuum cleaner connected to a power outlet, with three technical diagrams showing different mounting or cleaning configurations (no text or symbols present)

7. Pflege & Wartung

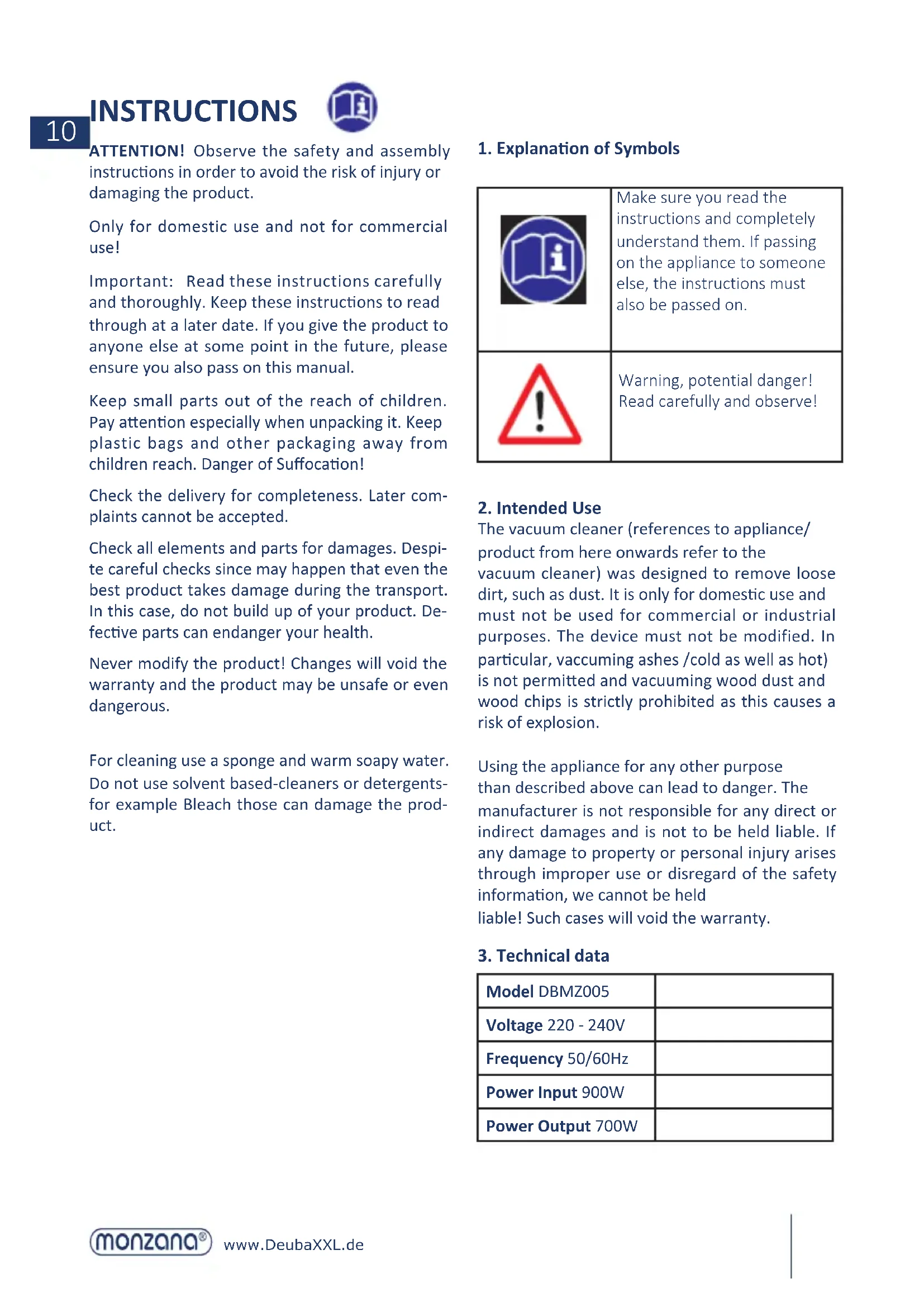

ATTENTION! Observe the safety and assembly instructions in order to avoid the risk of injury or damaging the product.

Only for domestic use and not for commercial use!

Important: Read these instructions carefully and thoroughly. Keep these instructions to read through at a later date. If you give the product to anyone else at some point in the future, please ensure you also pass on this manual.

Keep small parts out of the reach of children. Pay attention especially when unpacking it. Keep plastic bags and other packaging away from children reach. Danger of Suffocation!

Check the delivery for completeness. Later complaints cannot be accepted.

Check all elements and parts for damages. Despite careful checks since may happen that even the best product takes damage during the transport. In this case, do not build up of your product. Defective parts can endanger your health.

Never modify the product! Changes will void the warranty and the product may be unsafe or even dangerous.

For cleaning use a sponge and warm soapy water. Do not use solvent based-cleaners or detergents-for example Bleach those can damage the product.

1. Explanation of Symbols

	Make sure you read the instructions and completely understand them. If passing on the appliance to someone else, the instructions must also be passed on.
	Warning, potential danger! Read carefully and observe!

2. Intended Use

The vacuum cleaner (references to appliance/product from here onwards refer to the vacuum cleaner) was designed to remove loose dirt, such as dust. It is only for domestic use and must not be used for commercial or industrial purposes. The device must not be modified. In particular, vaccuming ashes /cold as well as hot) is not permitted and vacuuming wood dust and wood chips is strictly prohibited as this causes a risk of explosion.

Using the appliance for any other purpose than described above can lead to danger. The manufacturer is not responsible for any direct or indirect damages and is not to be held liable. If any damage to property or personal injury arises through improper use or disregard of the safety information, we cannot be held

liable! Such cases will void the warranty.

3. Technical data

Model DBMZ005
Voltage 220 - 240V
Frequency 50/60Hz
Power Input 900W
Power Output 700W

4. Safety Instructions and Danger Warnings

Note: A little static electricity (especially when used on carpet) is normal. This can be discharged when touching the appliance. This is comparable to the static electricity in a car and is not dangerous.

WARNING: Packaging materials are not children's toys! Children should not play with plastic bags!

There is a risk of suffocation!!

General safety advice for electrical tools

Please read all instructions and warnings

carefully. Failure to comply with instructions and warnings may result in an electric shock, fire and/or serious injury. Please carefully retain the instructions and the warnings. The term "appliance" means an electrically powered device either through mains operation (with power cord) or battery operated (cordless) power.

4.1 Place of Use

Keep the work are clean, tidy and well-lit. Untidy and dark areas are hazardous. The appliance must not be operated in explosive areas such as in the vicinity of flammable liquids, gases or dusts. The appliance can generate sparks,

which may cause the dust or fumes to explode. When working with the appliance, other people, especially children, should always keep a safe distance. Distraction by others can cause you to lose control of the device.

4.2 Electrical Safety

The mains voltage must always correspond with the relevant power supply details on the appliance's nameplate. The plug must match the socket outlet. The plug must be modified in any way.

Do not use adaptor plugs with earthed appliances. Unmodified plugs and matching outlets will reduce risk of electric shock. Ensure that the circuit to which the device is connected has an intact ground fault circuit interrupter. Avoid any physical contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed. Keep the appliance away from rain or external moisture. If water gets into the appliance from outside, there is an increased risk of electric shock. Do not misuse the cable by using it to carry the device, hang it up or pull the plug out from the socket. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. Always use an earth leakage circuit breaker. The use of a residual current circuit breaker prevents the risk of electric shock.

WARNING: Use only three-core extension lead if an earth wire is connected.

4.3 Safety of People

Be alert, pay attention to what you are doing and be careful when working with an electrical appliance. Do not use the appliance if you are tried or if you are under the influence of drugs, alcohol or medication. A moment of inattention while operating the appliance may result in serious injury.

Avoid starting the appliance accidentally. Make sure that the power is odd before connecting it to the power supply. If you have your finger on the switch when carrying the appliance or the device is switched on and connected to the power supply, this can easily lead to accidents.

Avoid bad posture. Ensure a secure footing and keep your balance at all times. This allows you to have better control of the appliance in unexpected situations.

Always wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose or baggy clothing, jewellery or long hair can be asily caught in the moving parts. Make sure that the dust extraction and collection systems are correctly installed, connected, and properly used. The use of such provisions can reduce dust-related hazards. This equipment must not be used by people(including children) with reduced physical, sensory or metal abilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or receive instructions on how the device should be used.

Never open the motor head unit as this carries a risk of injury and voids the warranty. Do not overload the appliance.

Do not allow the device to fall onto the floor or strike against obstacles.

If the power cable becomes damaged, you must have it repaired by a qualified specialist.

Children should be supervised to ensure they do-not play with the appliance. The appliance is not a toy!

4.4 Instructions for use

1)

Simple line drawing of a person using a device to lift a wall-mounted monitor (no text or symbols)

2)

Line drawing of a vacuum cleaner connected to a power outlet (no text or symbols)

3)

Illustration of a cigarette emitting smoke from a fire (no text or symbols)

4)

Simple line drawing of a medical or surgical procedure with a tool and cross mark (no text or symbols)

5)

Illustration of various hand tools including screwdriver, pliers, and pressure cranes (no text or symbols)

6)

Line drawing of a vintage-style electric vacuum cleaner with exhaust smoke, placed on a workbench (no text or symbols)

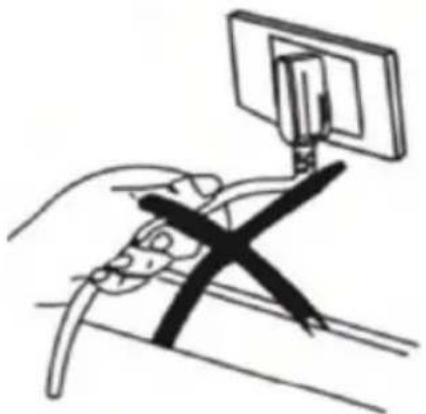

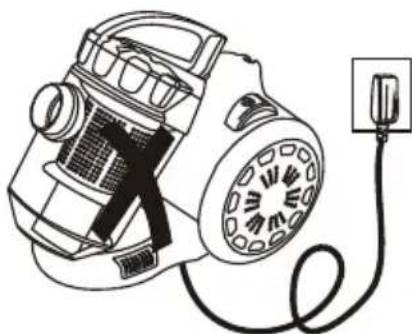

1. Do not pull the plug out of the socket to switch the device off after you have finished using it.

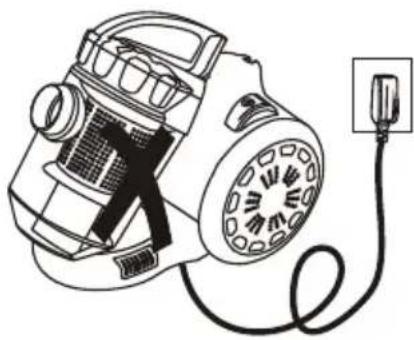

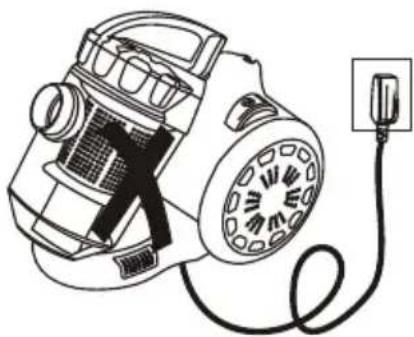

2. The appliance must not run over the power cord when in use.

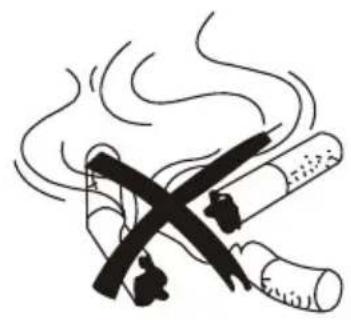

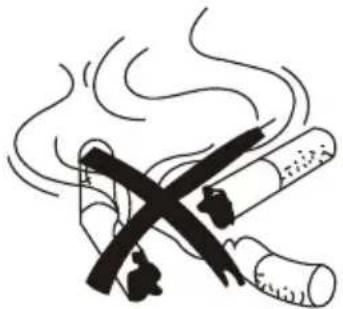

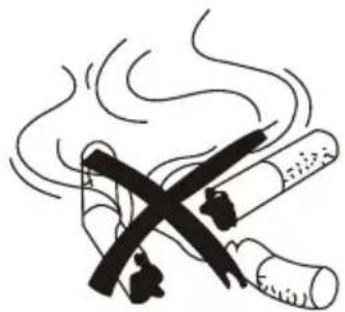

3. Do not vacuum uo lit cigarettes.

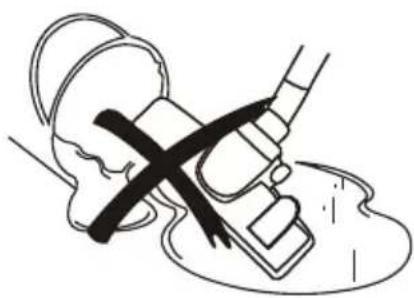

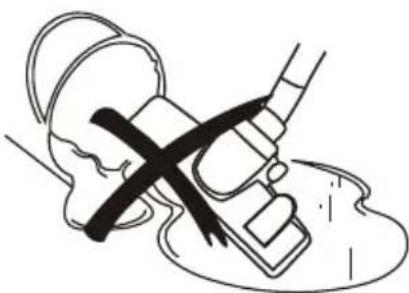

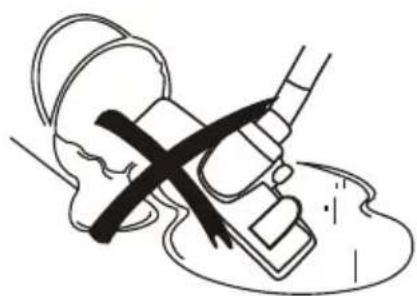

4. Do not vacuum up water or other fluids
5. Do not vacuum up any sharp or heavy objects.

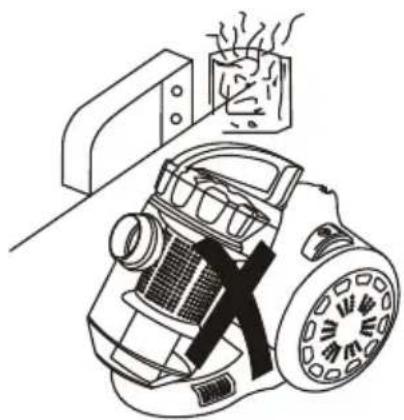

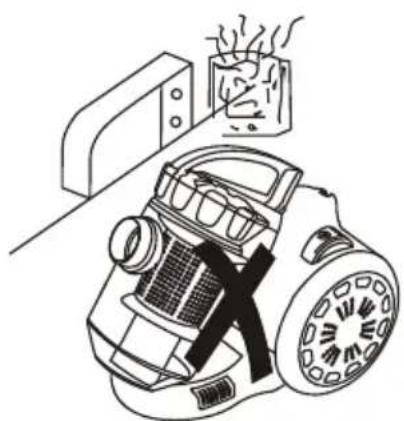

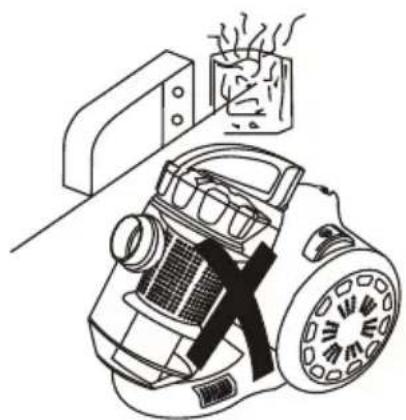

6. Do not leave or store the product close to sources of heat.

4.5 Specifications

1. This vacuum cleaner is low noise but not slient model, there will be still have noise in operating process.

2. This vacuum cleaner have no speed control function in order to make performance always in maximum.

3. This vacuum cleaner equipped with cord rewind function, please pull out the cable softly for longer life using and after using, please hold the plug and press cord button for rewinding to avoid body hurt by plug.
   4 This vacuum cleaner only cleaning small dust, can not suck coin, nail or metal object. Can not suck dust which was stuck hardly on the floor.

4. This vacuum cleaner is high efficiency, when cleaning, the floor brush might be sucked on floor and can not push forward, please pull backward to make cleaning easy.
5. This vacuum cleaner must be cleaned often on order to keep maximum cleaning performance.

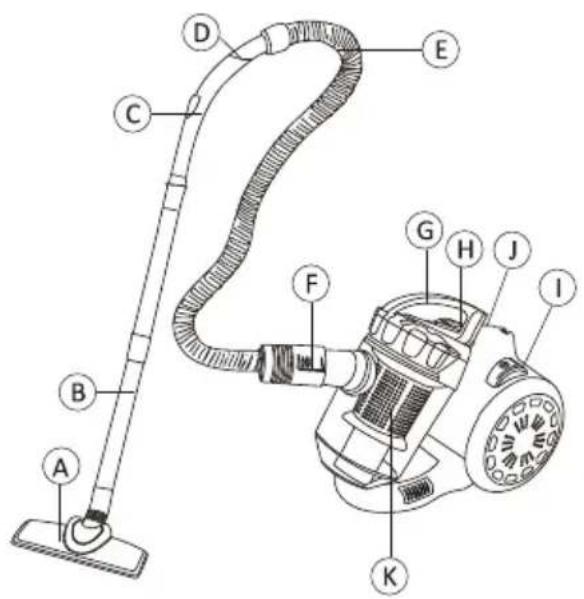

5. Scope of Delivery (depending on the model not all accessories included)

Nr DBMZ005

A Floor nozzle

B Vacuum pipe

C Auxiliary Air Regulator

D Pipe Bend

E Hose

F Hose Connection

G Handle

H On/Off Button

I Cable Winding Button

J Dust Tank Clip

K Multi Cyclone Plastic filter

DBMZ005

(2)

Line drawing of a vacuum cleaner with a rotary button and handle (no text or symbols)

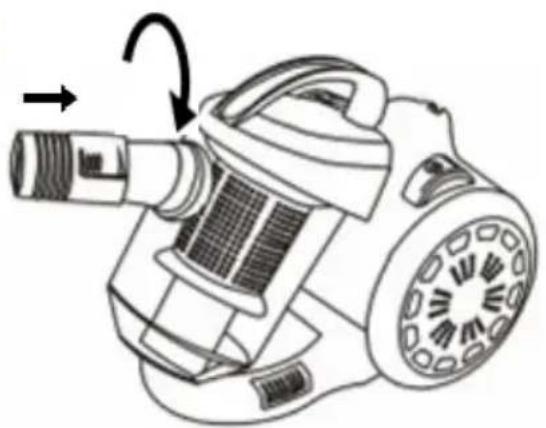

(2) Insert the hose connector in container and turn in clockwise to lock on it.

6. Commissioning

6.1 Preparation

(1)

Diagram of a car interior showing a cylindrical component and two smaller parts with arrows pointing to them (no text or symbols present)

(3)

Line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

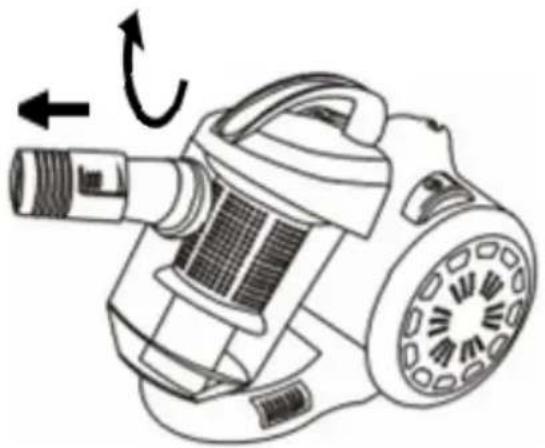

(3) After use, turn the hose counterclockwise and pull it out.

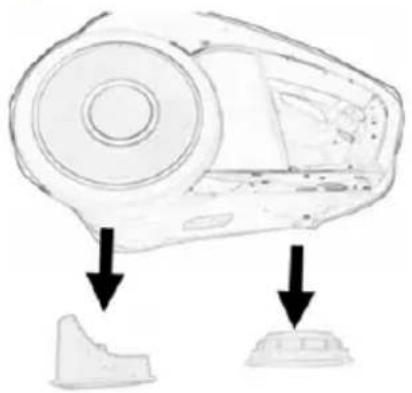

(1) When Receiving the new product, take away 2 plastic parts, they are machine protector only but not the part of machine

(4)

Illustration of three different hand tools or tools, including a pen and a handheld device, with no visible text or symbols.

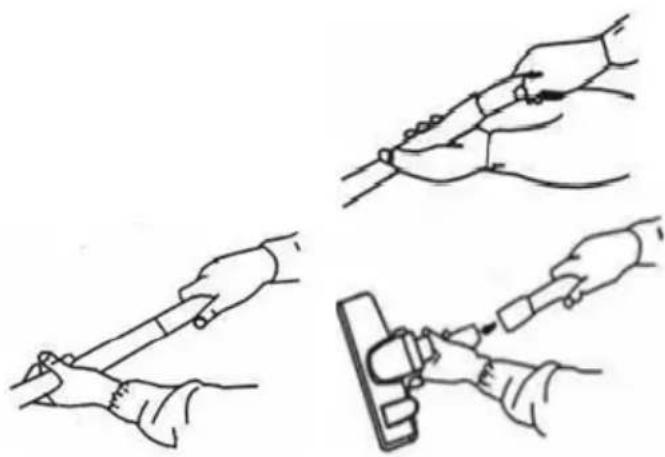

(4) Put the suction hose with the handpiece, suction pipe and floor nozzle together.

6.2 Use

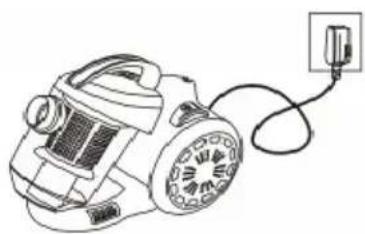

Unwind the power cord to the correct length and insert the plug into the socket. Then press the button to start the machine. The vacuum cleaner will begin to operate. The suction level control is located on the handle.

When you unwind the cable, make sure it only goes as far as the yellow marker. Never pull it out as far as the red marker.

Line drawing of a vacuum cleaner connected to a power outlet (no text or symbols)

Simple line drawing of a cleaning or repair device on a grid background, no text or symbols present.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

You can use the attachment for the floor as well as for carpet.

Attention!6.3 Detaching the tank

If the tank has reached the Y. full mark wi dust and dirt must be emptied. The air filter should also be cleaned. Remove this dust tank as shown in the following pictures. When reinserting alway on the correct setting of the tank. Otherwise the air escapes and the necessazy negative pressure can no longer be constructed to vacuuming

Hand holding a camera lens and a circular label (A), no text or symbols present

B

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

16

7. Care and Maintenance

The plastic filter should be washed frequently, especially if it is dirty or full of dust.

Do not clean the housing of the vaccum cleaner with a benzine cleaner or oily fluids. Use a soft, damp cloth with a little detergent.

Warning: Do not was the filter in a washing machine. Do not dry the filter with electric heat. Only assemble the filter again if it has been dried using natural air.

Always turn off the appliance before performing any maintenance or checks.

Check all parts for signs of wear. If any problems are detected, do not use the product. Always replace all parts with original replacements according to the manufacturer's guidelines. If the product is not properly cared for and maintained, it can become unsafe and can also become damaged. This can lead to dangerous situations. Regular maintenance on the product helps to make the product safe and will also increase its lifespan.

8. Problemfixing

PROBLEM Problem Reasons Possible Solution
Low Suction when received new product.	1. The bottom cover of dust container was not fully locked.	Please check and if it is not fully locked, please closed it to be locked. Please press down part of this button in order to fully locked and closed this cover.
	2. The dust cup didn't fix on the position and cause the rubber seal didn't fully touched or misplacement.	Fix the bottom container on machine showing on position 1 and then clip the container showing on position 2.
	3. Air flow control on handle bend was opening.	Close the airflow control button
Low Suction after Using few minutes	1. The big object such as polybag, cloth blocked in floor brush or hose.	Power off the machine and check if something block in brush or in hose.
Low Suction after Using for some period.	1. The dust is full in container	Please take out dust container, remove the dust in container.
	2. The filter is blocked. 1.	Clean the dust container as following step:2. Clean the wind outlet HEPA Filter at the rear:HEPA Filter

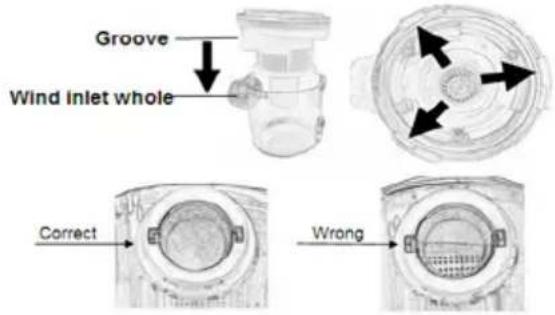

	3. The filter was fixed back wrongly.	When put back the plastic filter, keep note to aim the groove parts on plastic filter at wind inlet hole on container, the top of three cilps must be fit at dust container groove.
Cord can not pull back The	brake wheel inside of rewinder was stucked.	Press the cord button down and keep it while while pull the cable out a little bit, then the cable can be pulled back.
Cord rewinding automatically	The Brake didn't return when in the process of cable pulling out.	Press cord button more times and or pull out the cable more times until the problem gone.

18

ORIENTATION

Simple line drawing of a person using a device to lift a wall-mounted screen (no text or symbols)

2)

Line drawing of a vacuum cleaner connected to a power outlet (no text or symbols)

3)

Illustration of two cigarette smokers with a crossed-out cigarette on their back, emitting smoke (no text or symbols)

4)

Illustration of a medical procedure with a surgical tool and surgical cap (no text or symbols)

5)

Illustration of various hand tools including a screw, pliers, and a hammer (no text or symbols present)

6)

Line drawing of a vacuum cleaner with steam rising from its chimney (no text or symbols)

Technical line drawing of a mechanical component with two downward arrows indicating features (no text or symbols present)

Line drawing of a vacuum cleaner with a circular housing and mechanical components (no text or symbols)

Line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Illustration of three different manual techniques for using a tool, no text or symbols present

Line drawings of a vacuum cleaner and its three technical diagrams showing their internal components (no text or symbols present)

Hand holding a camera lens and a mounted device (no visible text or symbols)

Diagram of a hand holding a tool inside a mechanical component, no visible text or symbols

7. Nettoyage & Maintient

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
