USER MANUAL EH503AC Vonroc

ELECTRIC PTC FAN HEATER EH503AC / EH504AC

Simple icon of a heating device with steam rising from its top, no text or symbols present.

EN Original Instructions

This product is only suitable for well insulated spaces or occasional use.

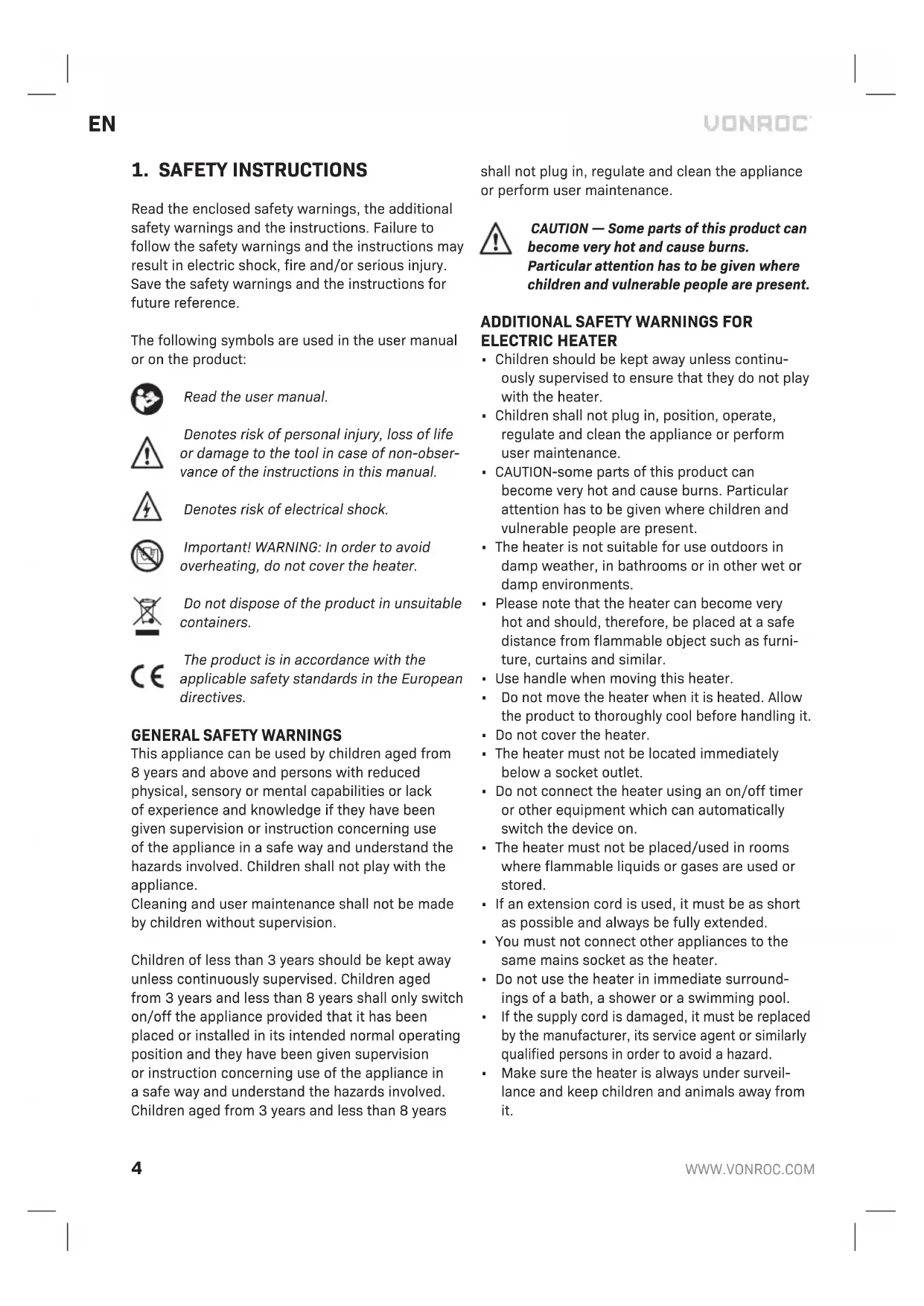

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electrical shock.

Important! WARNING: In order to avoid overheating, do not cover the heater.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL SAFETY WARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns.

Particular attention has to be given where children and vulnerable people are present.

ADDITIONAL SAFETY WARNINGS FOR ELECTRIC HEATER

- Children should be kept away unless continuously supervised to ensure that they do not play with the heater.

- Children shall not plug in, position, operate, regulate and clean the appliance or perform user maintenance.

- CAUTION-some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The heater is not suitable for use outdoors in damp weather, in bathrooms or in other wet or damp environments.

- Please note that the heater can become very hot and should, therefore, be placed at a safe distance from flammable object such as furniture, curtains and similar.

- Use handle when moving this heater.

- Do not move the heater when it is heated. Allow the product to thoroughly cool before handling it.

- Do not cover the heater.

- The heater must not be located immediately below a socket outlet.

- Do not connect the heater using an on/off timer or other equipment which can automatically switch the device on.

- The heater must not be placed/used in rooms where flammable liquids or gases are used or stored.

- If an extension cord is used, it must be as short as possible and always be fully extended.

- You must not connect other appliances to the same mains socket as the heater.

- Do not use the heater in immediate surroundings of a bath, a shower or a swimming pool.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Make sure the heater is always under surveillance and keep children and animals away from it.

• Do not place/use the heater on moving vehicles or some where easy to be tripped over.
• When the heater is not used for a long time, unplug the heater form its means. Pull the plug straight out, never remove the plug by pulling the cord.
• Keep the heater far from curtain or places where the air inlet van easily be blocked.
• The power coupler is waterproof when not in use. In order to prevent possible electric shock or leakage current, never use the heater with wet hand or operate the heater when there is water on the power cord.
• Do not dispose of electrical appliances as un-sorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliance are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Warning! Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Warning! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Connecting to the power supply

Check that the power supply and plug used in accordance with your machine. Have a look at the rating plate on the machine. Any changes should always be carried out by a qualified electrician.

Warning! This machine must be earthed. If not properly earthed this machine can cause an electrical shock. Be sure that the power supply outlet is earthed. If there is any doubt, have it checked by a qualified electrician.

Warning! Avoid contact with the terminals on the plug when installing (removing) the plug to (from) the power supply outlet. Contact will cause a severe electrical shock.

Replacing cables or plugs

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 2.5 mm ^4 . When using a cable reel always unwind the reel completely.

2. PRODUCT INFORMATION

Intended use

Electric PTC fan heater for warehouses and workshops only. Do not use the product for any other purpose. The heater can be used in enclosed rooms in a free standing position for room heating. The heater may only be used completely mounted and standing vertically on a stable surface. It incorporates a thermostat and a self-resetting thermal cut-out to control the heating element and therefore the temperature.

TECHNICAL SPECIFICATIONS

Model No. EH503AC EH504AC
Power supply 380-400V 3~50 Hz
Power rating 5000W 9000W
Protection class Class I
IP degree IP20
Settings	50W (only fan)3300W / 5000W	80W (only fan)6000W / 9000W
Self-resetting Thermostat	75°C 70°C
Heating capacity 48m ^2 80m ^2
Length of cord 1.6m
Weight 4.4 kg 7.1 kg

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

1. Handle
2. Heating element
3. Air inlet
4. Air outlet
5. Power indicator
6. Function knob
7. Off
8. Fan
9. Low heating mode
10. High heating mode
11. Thermostatknob
12. Tilt adjustment knob
    13.Powercable

3. OPERATING

Check the device for damage before use and only use in good working condition.

When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of stainless steel and was coated with protection oil by production. The smoke is caused by the left oil when heated.

Placing the electric heater (Fig. A)

• Place the heater upright on a firm and a level surface.
• Keep a minimum distance of 1 m between the front of the housing and walls, combustible materials (furniture, curtains, etc.) and 30 cm from all other housing surface areas. Keep away from wet environments.
• After long storage always make sure the heating element (2) is clean and free from dust.

Warning! Make sure to place the heater in a safe spot, so you cannot easily trip over the machine and cable. Make sure to place the heater where it cannot fall down / of.

Starting the electric heater (Fig. A, B)

• Turn the adjustment knobs (12) counterclockwise to loosen.
• Tilt the heater to the desired position.
• Turn the adjustment knobs (12) clockwise to tighten securely.
• Plug in the cable (13) to the mains.
• Set the thermostat knob (11) to the Max.
• The heater will switch on when the function knob (6) is set to one of the function settings.
• The power indicator light (5) will turn on.
• Once the room reaches the required temperature, turn the thermostat knob (11) back slowly until you hear back until you hear a click and the power indicator light (5) turns off.
• The heater now starts and stops automatically and therefore keeps the room temperature constant. This means once the temperature decreased, the heating element and fan will start again.

Function settings (Fig. B)

Different functions are possible by turning the function knob (6).

• Power off (7)
• Fan only (8)
• Low heating mode (9)
• High heating mode (10)

Tip-over switch

This heater has a digital tip-over protection. This protection ensures when the heater is not placed upright on a firm and level surface or when the heater tip over, the system will automatically shut the heater off. If this occurs, put the heater on a firm and level surface and start the heater again.

Automatic Overheat Safety Control

This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off.

Stopping the electric heater (Fig. A, B)

Let the machine cool down before turning off by using the ventilation function.

• Turn the thermostat knob (11) to lowest position and turn the function knob to fan position (8).

• Let the fan cool down the appliance for a few minutes.

• Turn the function knob (6) to off position (7).

• Pull the plug out of the mains.

Storing the electric heater

• Always let the heater cool down completely before storing the machine.
• Never wrap the cable around the heater.

Warning! Never store the machine in a wet or dusty environment.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Cleaning

Let the machine cool down completely before cleaning.

• Clean the heater with a dry towel or vacuum cleaner.
• In order to protect the enclosure, don't splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.
• When you store the heater, let it cool down first and, keep it dry.

Trouble shooting

In case the electric heater does not work well, we give you subjoined some possible causes and their solutions.

Problem Possible cause Solution
The heater does not operate, even when it is plugged in and the switch, thermostat are switched on.	The plug is loose, bad connection	Pull out the plug, check the connection of the plug and socket. Then connect again.
	No power in socket outlet	Insert the plug in a proper socket
	Tip-over protection	Put the heater on a firm and level surface.
	Overheat protection	Unplug the heater and wait at least 30 minutes to cool down before restarting the heater.

Problem Possible cause Solution
The heating element glowing	The input voltage is too high or too low	Use power supply according to the rating on the label
	The air inlet (3) grill is blocked	Keep the heater far way from articles like curtain, plastic bag, paper and other things which can cover the inlet or can be easily cover on the air inlet
The appliance didn't heat up, only ventilator worked	The switch was not put at heating setting	Turn the switch to heat setting
	The thermostat operated	Turn the thermostat and listen if there is open/close voice. If there is no click and the thermostat is not damaged, the heater will automatic switch on when the appliance cooled down
	The self-retting cut-out operated	Turn the heater off and inspect the blockage of inlet or outlet. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater.
Abnormal noise	The appliance is not stands upright	Put the heater on a level surface

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

EN

VONROC

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Model identifier(s): EH503AC
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom 5.0 kW				manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin 3.3 kW			manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 5.0 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output No
At nominal heat output	elmax 0 kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0 kW		single stage heat output and no room temperature control	No
In standby mode	eISB	0 kW		Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	VONROC • Lingenstraat 6 • 8028 PM • Zwolle • The Netherlands
Model identifier(s): EH504AC
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output Pnom 9.0 kW				manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin 6.0 kW			manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c 9.0 kW			electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output No
At nominal heat output	elmax 0 kW			Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0 kW		single stage heat output and no room temperature control	No
In standby mode	eISB	0 kW		Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	VONROC • Lingenstraat 6 • 8028 PM • Zwolle • The Netherlands

2. PRODUKTINFORMATIONEN

Verwendungszweck

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

2. PRODUCTINFORMATIE

Bedoeld gebruik

2. INFORMATIONS SUR LE PRODUIT

Utilisation prévue

2. PRODUKTINFORMATION

Avsedd användning

2. PRODUKTINFORMATION

Tilsigtet brug

DECLARATION OF CONFORMITY

EH503AC / EH504AC - ELECTRIC PTC FAN HEATER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstemming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.

(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(HU) Kizárólagos felelősségünk tudatában kijelentjük, hogy a termék megfelel az Európai Parlamentnek és a Tanácsnak az egyes veszélyes anyagok elektromos és elektronikus berendezésekben való alkalmazásának korlátozásáról szóló 2011/65/EU irányelvének (június 8.), valamint a következő szabványoknak és jogszabályoknak:
(CS) Prohlašujeme na svou výhradní odpovědnost, že tento výrobek splňuje požadavky směrnice 2011/65/EU Evropské rady a parlamentu ze dne 8. června, která se týká omezení používání určitých nebezpečných látek v elektrických a elektronických zařízeních, a splňuje také všechny požadavky následujících norem a předpisů:

EN 60335-1, EN 60335-2-30, EN 62233, 2014/35/EU, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-08-2022 H.G.FRosberg CEO

VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

VONROC®

BUILD YOUR FUTURE

©2022 VONROC

WWW.VONROC.COM

2208-22
