USER MANUAL FGL 625 XS NP FRANKE

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation of the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the

exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• Theairmustnotbedischargedinto a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complyingwithcurrentregulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.
- Use only screws and small parts supplied with the hood.
WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
- Do not flambé under the range hood; risk of fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol × on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Range hoods and other cooking fume extractors may adversely

affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than those for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

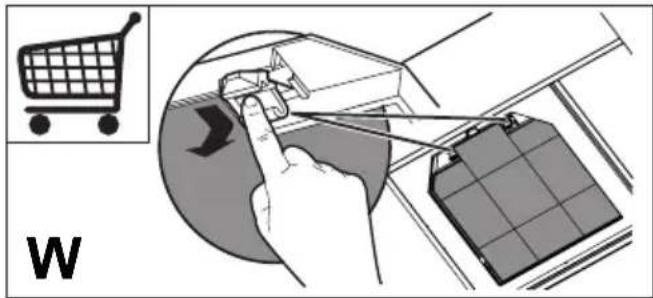

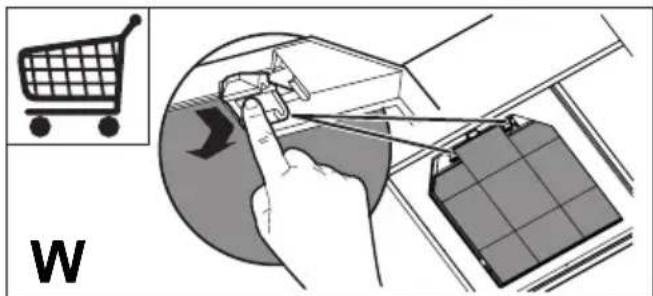

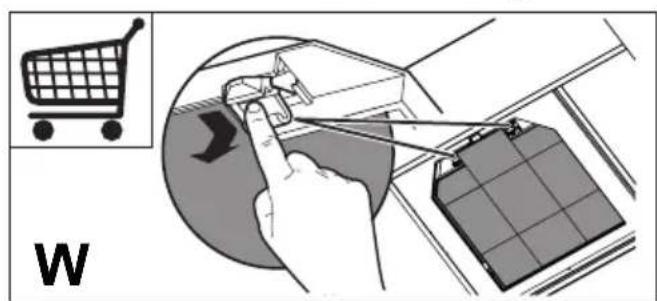

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

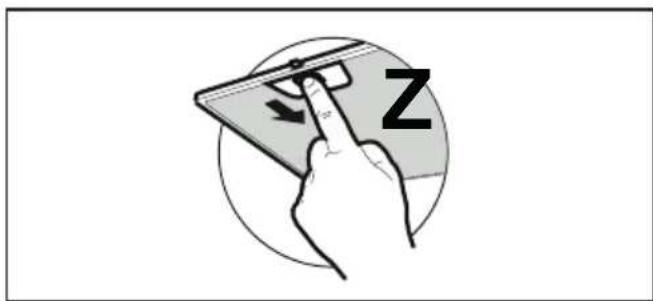

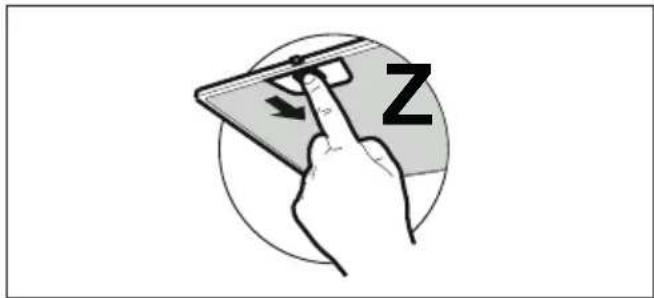

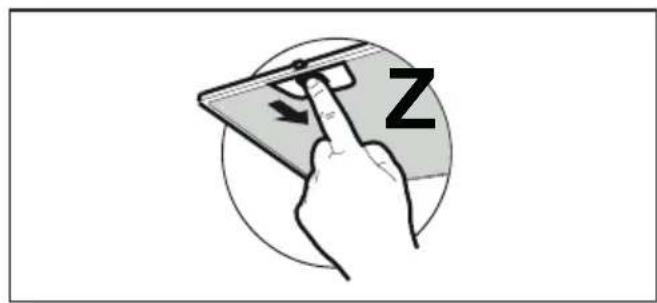

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

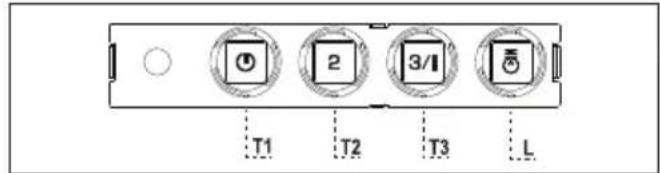

○	2	3/1
T1	T2	T3	L

Button	Functions Led
T1 Speed	Turns the Motor on at Speed one.	On
	Turns the Motor off. -
T2 Speed	Turns the Motor on at Speed two.	On
T3 Speed	When pressed briefly, turns the Motor on at Speed three.	Fixed
	Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	Flashing
L Light	Turns the Lighting System on and off.	-

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

• For replacement contact technical support ("To purchase contact technical support").

PpeKdE Yem PnCTyNTb K yCTaHOBKe KyxOHNo BblTJKKN, CHIMTE C Hee 3a- uTHyIO PJIeHky.

I P E D U N P E X K D E H N E: nC- I O J b 3 O B a H N E B N T O B nI I 3 a X M H b I X y C T P O I C T B, He COOT B E T C T B Y I O U S X y K a 3 a H N I Y M d a H N b I X nH C T P Y K C N I, M O J K E T I P N B E C T N K B O 3 H N K H O B e H N I O O p a c h b i x c n T y a c u n I K 3 J I E K T P R U Y E C K N M y d a p a m.

He pekomehdyetcnpaMO cmoTpeTb Ha Iamnoky yepe3 ONTueckne npnbopbl (6nHOKlb, yBelenuHTelbHoe CTeKNo n npou.).
He roTOBbTe 6JIoDa Флam6e NOd BbITJxKoI: ONaCHOCTb BO3HnKHOBeHnЯ NOXapa.
- Ппбором могут полььоваться DeTи CTapшe 8 Лети Лица C орразнчehнblIM NCSXnueckmN,ФИЗчecknM INCEHCOPHBIMCNoCo6HocTЯMn, aТakke He ImeIoUne DoCTaTOUHO ONbIa N 3HaHn,HOTOBKIOJnpICMOTpOM OTBeTCTBENHbIX JINI IN Pn YcNoBnN, UTO OHN O6yHeHbI 6e3OpaHOn 3KcPnyatauIN Pn6opa N3HaIOT O CBa3aHHbIX C erO HeIppaBNbHbIM NcNoJIb3OBAHnEM ONaCHOCtAx.CJeDInTe, UTObI DeTN He nIpaIIcN C np6bOpom. OunchkY n yxoJ 3a пборom HeДОЛЖНы BblONJIHЯТb DeTn, pa3Be TOJIbKO IOd PnCMOTpOM B3pOcJIbIX.
CneiTe, uTo6bI dEtBmN He nIrpann c npnbopom.
3anpeaetcnoIb30BaTbc8

Pn6opom JIzam (a TaKxe DeTAM) C OrpaHnueHHbIMN IcNXnueCKnMn, Qn3nueCKnMn IN CeHCOPHBIMn CnOCO6HOCTaMn, a TaKx, He NMeIOUm DOCTaTOUHO ONbITA n 3HaHn; B IpOTNBOM Clyuae OHN DoJXHbI 6bITb COOTBETCTByoUIm M o6pa30M O6yHehI n HaxoINtbcra NOD Ha6JIOpDeHnem.

DocTyHbIe qactn npnbopa MOryT CnIbHo HArpeBaTbcB B IpOceCSe PpNroTOBJeHnA NIsu.

OuHuaTe n/Inn 3aMeHnTe fNbTpbl NcTeueHn yKa-3aHHoro nepnoDa BpeMeHn (OnaCHocTb BO3HNKHOBeHn noXapa).Cm. pa3deJ, noC8aUeHHbI yXoDy n OUnCTKe np6opa.
BnomeueHndoJxHa 6bItb npedycmOTpeHa COOTBeTCTByIOUa BENTINJIAu, KOrda BbITJXKa NcNOJb3YeTcOdHOBpeMeHHo C np6Opamn, pa60TaUoIIMn Ha ra3y nnDpyrom TOnJIVe (3TO npabNIO He pacnpocTpahJeTcHn pIn6Opbl, BbInyckaIoUne BO3dyx TOJbKO B NOMeueHne).
CnMBoJ Ha n3dJIiH nnHa ynaKOBKe yka3bIBAeT, YTO np6Op HeJIb3a Bbl6paCbI-BaTb, KaK ObUHbI 6bITOBMycOp. Pnp6Op, NOJExKaunyHnUToXeHNU, HeO6xOJMoCdaTb B CpeZnaJIbHbI c6OpHbI NynKT dJa IOBTOpHO

NcNoIb3OBaHnA 3JIeKTpUceCKNX N 3JIeKTPoHHbIX KOMnHOENTOB. POnb3OBaTeNb, IpaBnIbHO cdaIOUsn Ipr6Op Ha nepepa6OTky, NOMoAet PpeDOrBpaTntb NoteHuaJIbHbIe HeRaTINBHeIe NocJeIcTBnIy DnIg OkpykaIOUSeI CpeDbI n DnIg 3dOpOBbI JIODeI, BO3NkAIOUe B Clyuae HeppaBnIbHorOero yHnUToXeHnIy. 3a BoJee NODpO6HoN INΦOpMaUneI O BTOPNUHOM NcNoIb3OBaHnI pr6Opa o6paAsaItecB B RopOdCKoI COBeT, B MeCTHyIO cnyx6y IO nepepa6OTke OTxo-DoB nII B MaTa3HN, rKe np6Op 6bl npno6peTeH.

2. 3KcπIyatalu

BcacbBaIOUaBbITgKa npedHa3NaYeHa TOnbKO InI pImeHnB 6bIty dJa ydaJIeHnN3 KxHn 3anaxOB OT FOTOBKn.
- HNKoRda He NOJb3yITeCb BbITaXKoB B INbIX cIeJx, OTNnHbIX OT Tex,ДЯ KOTOpbIX OHa npEdHa3HaueHa.
- HNKOrda He octaBnIe BbICOKoe nIamr IOd BbITJxKoI, HaxOJaIeIcR B pa6Ote.
- Perynpye cnny nnaMeHn taKIM o6pa30M, yTO6bl OHO OCTaBaIocb NOd dHOM eMKoCTn dIra rOTOBKN He BblpbIbaIocb 3a erO npedeJIb.
- Pn rOToBKe BO φpntHOpHnue NOCToH-Ho CneIte 3a ee pa6ToH: CnIbHo Ha-rgPeToe MacNo MoKet BOCnJaMeHHTbcr.

3. OЧИСТКA И ОБСЛУЖИBAHINE

-Фильт haakTNBnPoBAHOMyIe HeIb3aMbITb I BOCCTaHaBnBaTb,ero CneIeYetMeHrTb npIMepHO pa3 B 4 Meca pa60tbl NN Yaue B Cnyuae OyeHb INTeHCNBHO NCNoB3OBaHna np6opa (W).

• KInpoBbIe 0nIbTpbl Heo6xOdIMo OuH ⅢaTb pa3 B 2 MecaIa pa6Otbl IIN YauE B CJIyuae OueH INTEHCNBHO NCIOJb3OBAHNA pN6Opa; XInpoBbIe 0nIbTpbl MOXHO MblB NOCyDOMOEuHOM MaUNHe (Z).

OuHuaTe BbITgKBy BnaXHOI TpIKNo, CMOueHHoB HEnTpaIbHOM XnDkOM MOIOUeM BeIecTBe.

4. YCTPOICTBA UYPABJENH

4. OPGAHN YNPABJIHHRA
