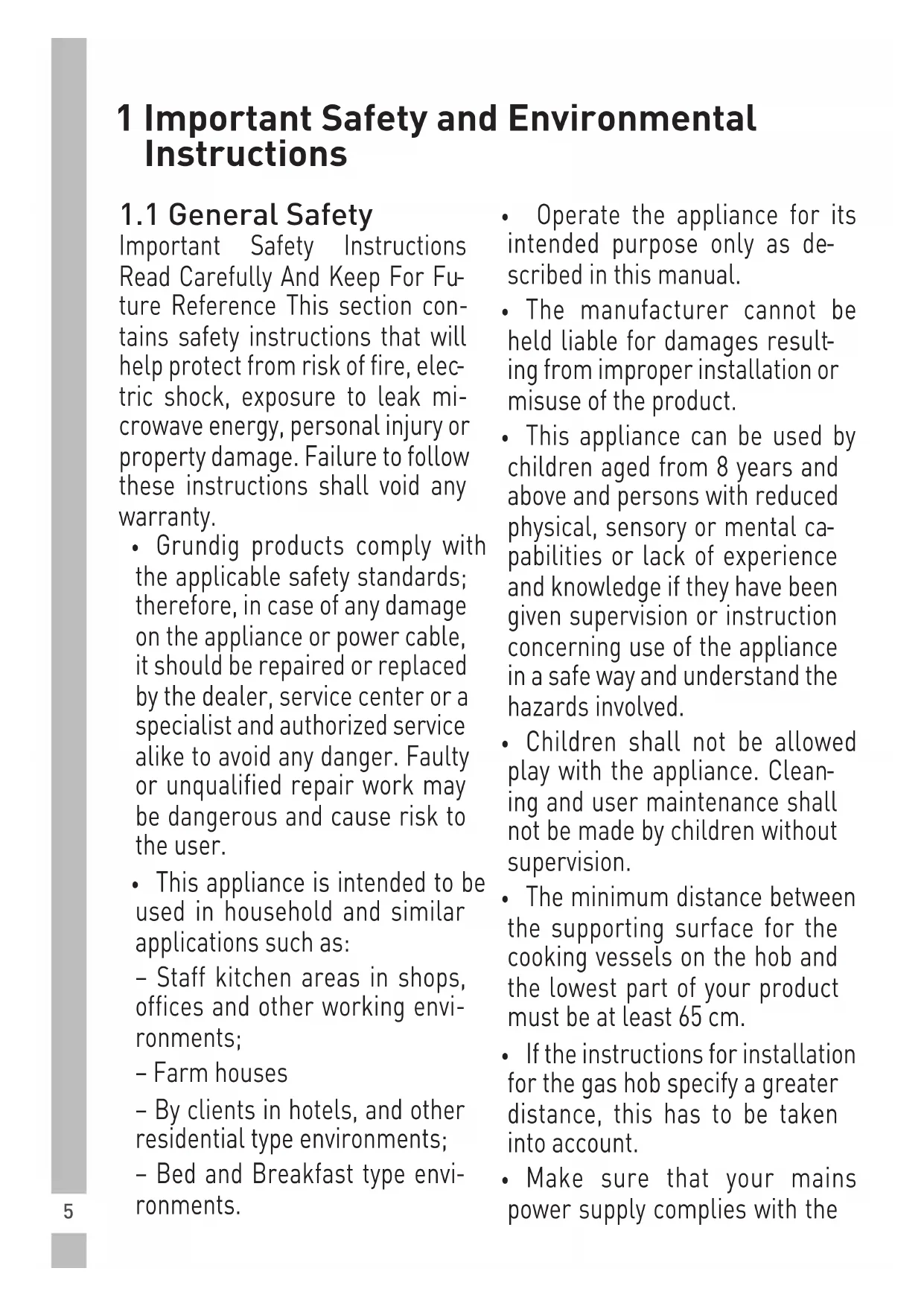

1 Important Safety and Environmental Instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Grundig products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses
• By clients in hotels, and other residential type environments;

• Bed and Breakfast type environments.

• Operate the appliance for its intended purpose only as described in this manual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.
• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.
  • Make sure that your mains power supply complies with the

1 Important Safety and Environmental Instructions

information supplied on the rat- ing plate of the appliance.

• Never use the appliance if the power cable or the appliance itself is damaged.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

- Place the appliance in a way so that the plug is always accessible.

- Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

- Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

- Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, highheat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.
• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.
• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.
• Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months.
• Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.
• Do not use non-fire-resistant filtering materials instead of the current filter.
• Only use the original parts or parts recommended by the manufacturer.
• Do not operate the product without the filter and do not remove the filters while the product is running.
• In the event of be started any flame, de-energize your product and cooking appliances.
  • In the event of be started any

1 Important Safety and Environmental Instructions

flame, cover the flame and never use water to extinguish.

• Unplug the appliance before each cleaning and when the appliance is not in use.
• The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.
• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.
• When connecting the flue, use pipes with a diameter of 120 or 150 ~mm . Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

- The product outlet must not be connected to air channels that include other smoke.

• The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).
• Objects placed on the product may fall. Do not place any objects on the product.
• Do not flambe under the your product.

WARNING: Before installing the Hood, remove the protective films.

- Never leave high naked flames under the hood when it is in operation

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1 Important Safety and Environmental Instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role

in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General Appearance

2.1 Machine Overview

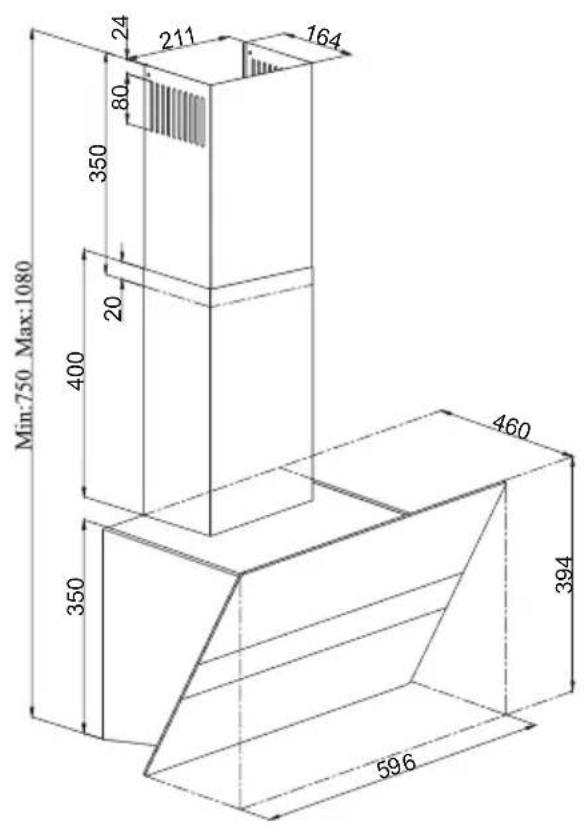

Min:750 Max:1080 24 211 164 350 80 20 400 350 460 394 596

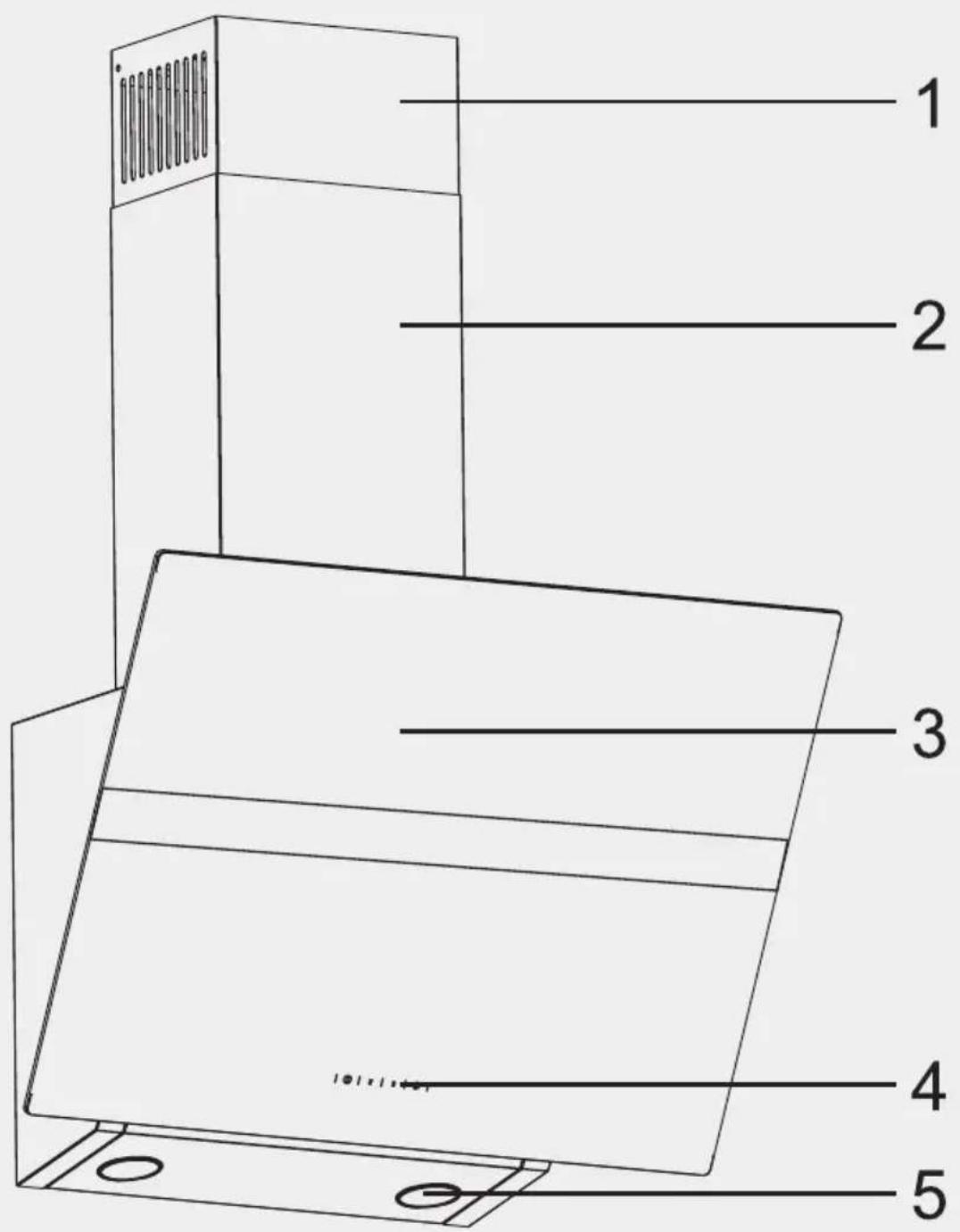

1. Inner Flue
2. Outer Flue
3. Oil Filters (Behind Glass Cover)
4. Control Panel
5. Cooker Lighting

2.2 Technical Data

Model GDS 2460 B GDS 5460 B
Supply voltage 220-240V ~ 50 Hz
Lamp Power (W) 2 x 3 W
Motor Power (W) 210 W:
Flow rate ( m^3/h ) - 3. Level 6	32 632
Insulation Class of Motor Class F
Insulation Class Class I

3 Using the Appliance

3.1 Controlling the Appliance

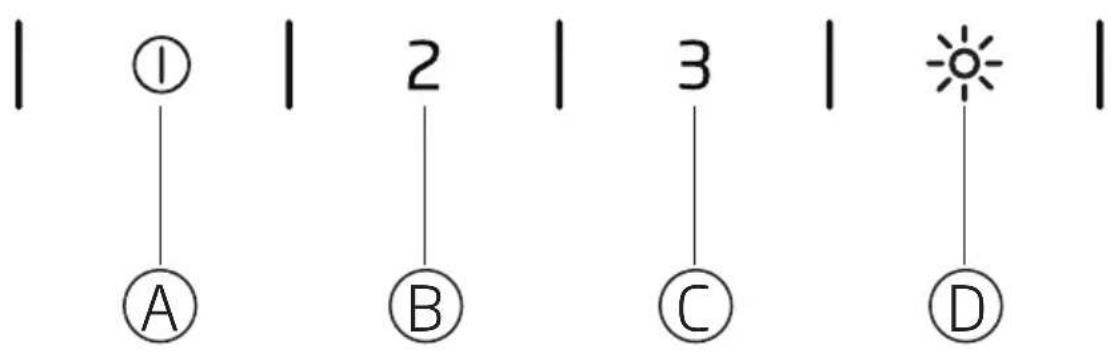

(A) 1st Stage Button Operates the appliance on 1st speed. When you press this button again to turn off the appliance, the screen and speed stage turn off.

(B) 2nd Stage Button Operates the appliance on 2nd speed. When you press this button again to turn off the appliance, the screen and speed stage turn off.

(C) 3rd Stage Button Operates the appliance on 3rd speed. When you press this button again to turn off the appliance, the screen and speed stage turn off.

(D) Lamp On / Off You can illuminate the cooking area by pressing this button. To turn the lights off, you can press the button again.

3.2 Energy Efficient Use

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.
• Use low speeds (1-2) under normal conditions, and high speeds (3) in intense odour and vapour.
  • * The lamps on the hood are placed for illuminating the cooking area.

Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient lighting.

3.3 Operating Instructions

• Your appliance contains a motor that has various speeds.
• For better performance, we recommend using low speeds

under normal conditions and high speeds in cases of strong odours and intense vapour.

• You can start your appliance by pressing on the desired speed setting button. (A, B, C)
• You can illuminate the cooking area by pressing the lamp.
• To turn the lights off, you can press the button again.

3.4 Automatic Stop

Your appliance has Automatic Stop feature, enabling it to ventilate for a bit more and remove the unwanted odours and vapour inside the environment and turn off automatically after the cooking is done. To enable Automatic Stop feature, press the any speed stage button (A, B, C) on the control panel for longer than 2 seconds; the 15-minute timer function shall be activated. When the automatic stop feature is active, pressing the same speed button shall disable the automatic stop function and the appliance's motor shall

3 Using the Appliance

stop. This feature is disables when you switch between different speed stages. If you want the appliance to stop automatically, you need to enable the automatic stop feature again.

3.5 Replacement of Lamp

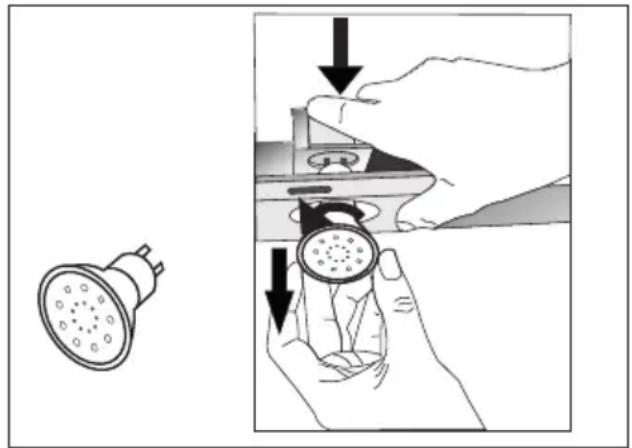

Illustration showing a showerhead being adjusted to a circular component, with arrows indicating the process (no text or symbols present)

(Figure 2)

Make the electrical connections of the appliance. Your appliance uses 3W spot LED lamp. For replacing the lamps, push downwards on the holder from its behind, turn it counter-clockwise, and take it out downwards. Apply the above operation in reverse to install new lamps (Figure 2).

BULB
Bulb Power (W) 3
Holder / Socket GZ 10
Bulb Voltage (V) 220 240
Size (mm) 53 x 50
ILCOS Code DR/F3-220	-240-GZ10-50-53

3.6 Connected to a Flue

• Vapour is extracted through the flue

duct, which is fastened to the connection head on the hood.

- The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10^ ) so that the air can exit the room easily.

3.7 Using Without Flue

• Air is filtered through the charcoal filter and recirculated in the room. Charcoal filter is used when it

is impossible to use a flue in the house.

• In flueless use, remove the flaps inside the flue adapter.
• Remove the oil filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. tighten it by turning right or left.

- Replace aluminium oil filter.

4 Cleaning and Maintenance

Before cleaning and maintenance, unplug the product or turn off the switch.

4.1 Cleaning of Aluminium Oil Filters

This filter retains the oil particles in the air. Aluminium oil filters may change colour as they are washed; this is normal and does not require replacing your filters.

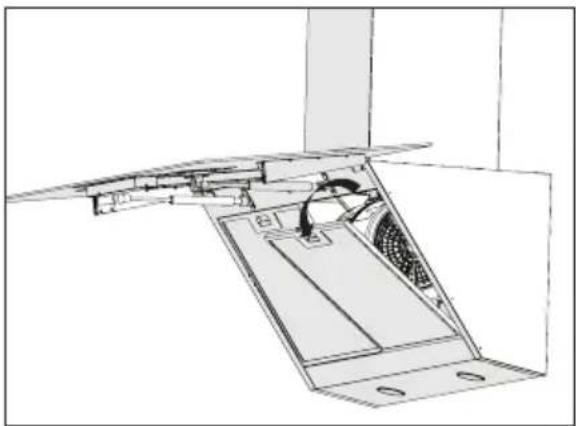

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figure 3)

• Push the aluminium oil filter lock forward.
• Then pull it slightly down and pull out (Figure 3). Otherwise, you can bend the filter. Wash and rinse aluminium oil filters with liquid detergent and replace aluminium oilt filters to their sockets by inversely carrying out the steps above.

You can also wash the aluminium oil filters in the washing machine.

CAUTION

In normal use, clean your aluminium oil filter once in a month.

4.2 Change of Carbon Filters

Odour removing filters contain charcoal (Active carbon). Aluminium oil filters must be installed in the product, regardless of whether or not carbon filters are used.

Diagram of a mechanical assembly with a rotating component and a curved arrow indicating motion (no text or symbols)

(Figure 4)

• Remove aluminium oil filters (Figure 3).

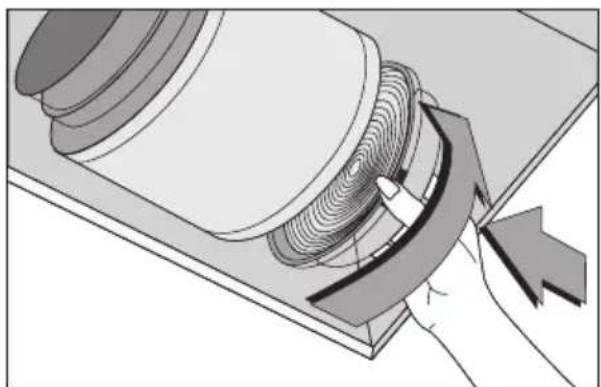

  • To remove the charcoal filter, remove the charcoal filter from its housing by rotating it counterclockwise from the tab (Figure 4).
  • Install the new charcoal filter.
• Attach the aluminium oil filters.

CAUTION

Charcoal filter must never be washed.

CAUTION

Change carbon filters once every 3 months.

CAUTION

You can obtain the charcoal filter from Authorized service dealers.

5 Installation Of Appliance

WARNING!

Before starting the installation, read the safety information on User Manual.

WARNING!

Not installing with screws and stabilizers in accordance with these instructions may result in electric shock.

To install the hood, please contact the nearest Authorized Service.

It is the customer's responsibility to prepare the product location and electrical installation.

5.1 Position of the Appliance

65 cm !

(Figure 5)

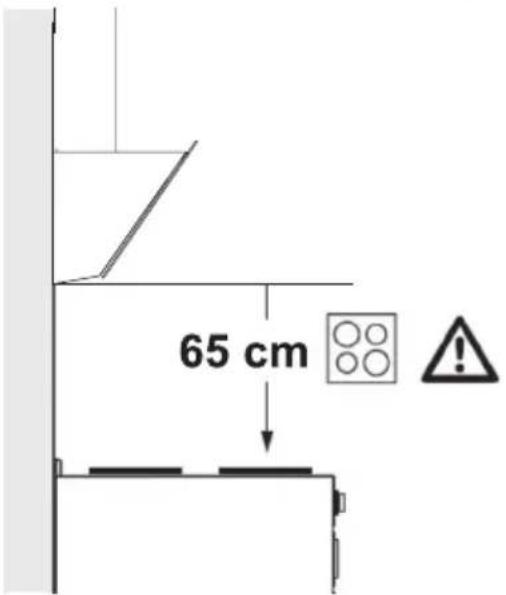

- Distance between the cooke and the cooker hood must be considered prior to assembly. This distance should be 65 cm (Figure 5).

• Distance must be measured from the surface of grate for gas cookers,
• from surface of glass for electric cookers.

5.1 Installation

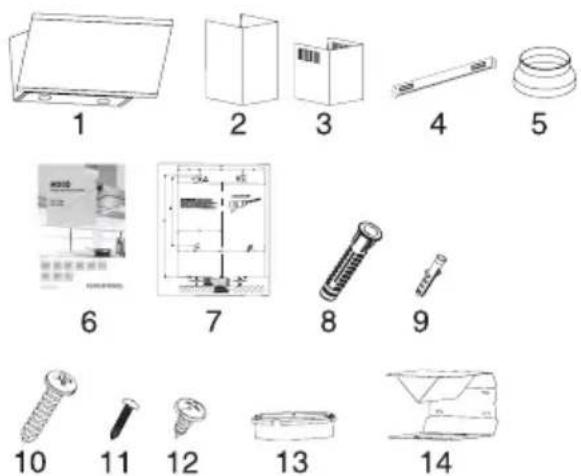

Accessories

1. Hood
2. Outer Flue
3. Inner Flue
4. Flue Connection Plate
5. ∅150/120mm Plastic Flue Adapter
6. User Manual
7. Assembly Pattern
8. ∅8 mm Plastic Dowel
9. ∅6 mm Plastic Dowel
10. 4,8 x 50 Screws
11. 3,9 x 22 Screws
12. 3,5 x 9.5 Screws
13. Plastic Flue Adapter
14. Air Baffle

The information necessary to make the location suitable for the appliance installation is given below.

5.2 Wall Mounting

• Wall must be flat, straight and have the sufficient bearing capacity.
- Depth of drilling holes must comply with the length of bolts.

5 Installation Of Appliance

- The bolts and dowels provided a piece 4.8x50 suspension screw are suitable for brick walls. For with a clearance of 5 mm between other construction material (e.g. the screw head and the wall (Figure drywall, plate, porous concrete), 6/b).

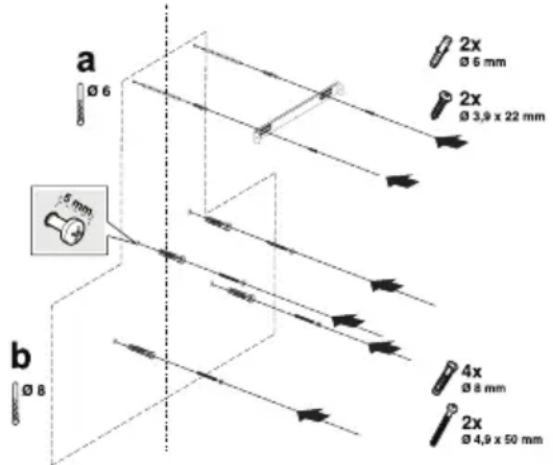

a Ø 6 5 mm b Ø 8 2x Ø 6 mm 2x Ø 3,9 x 22 mm 4x Ø 8 mm 2x Ø 4,9 x 50 mm

(Figure 6)

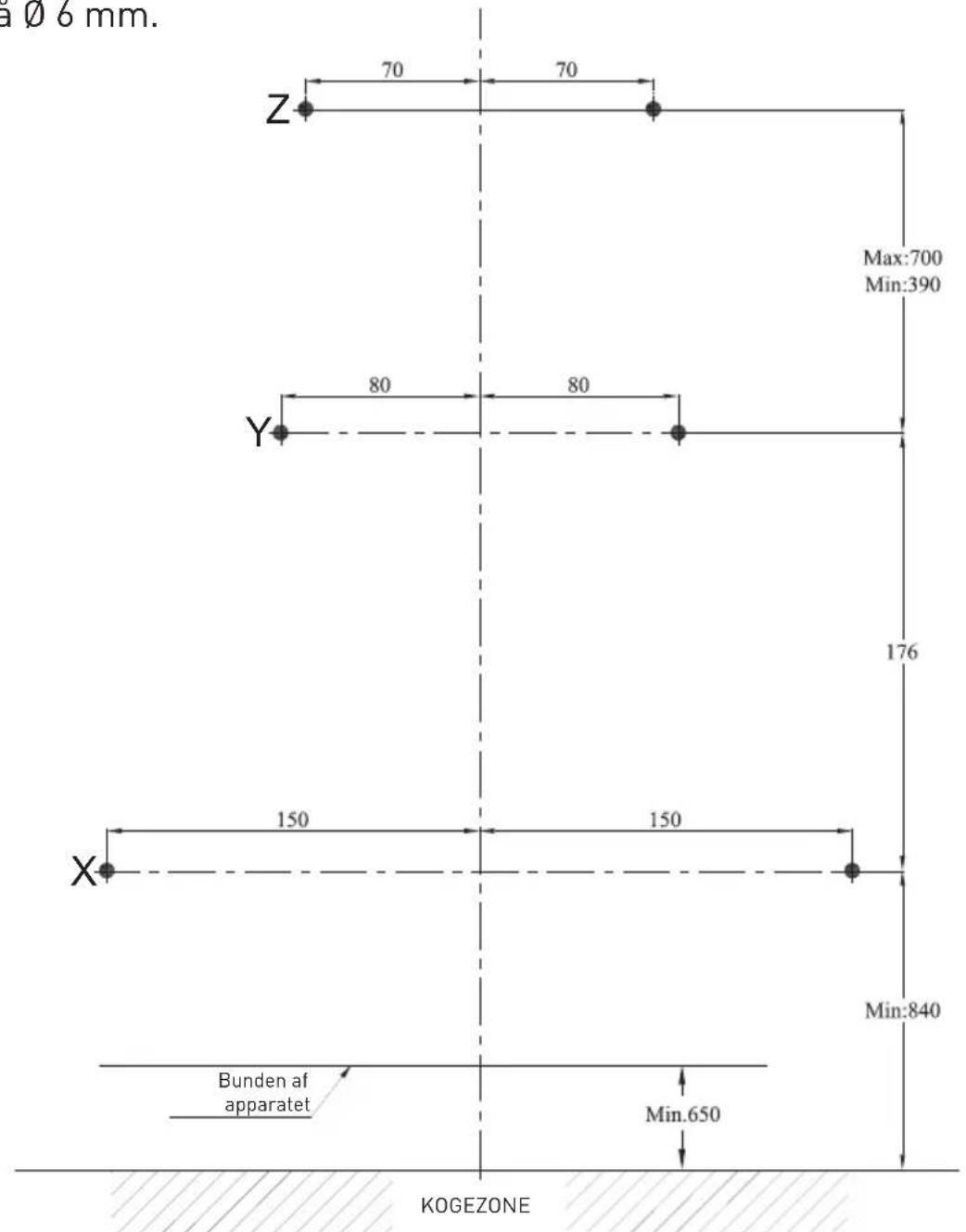

Draw a mid location line from the ceiling perpendicular to the lower edge of the hood ().

Paste the installing template provided within the accessories on the surface where the hood is to be mounted. In doing this operation, observe the mounting height of the hood (Page 14).

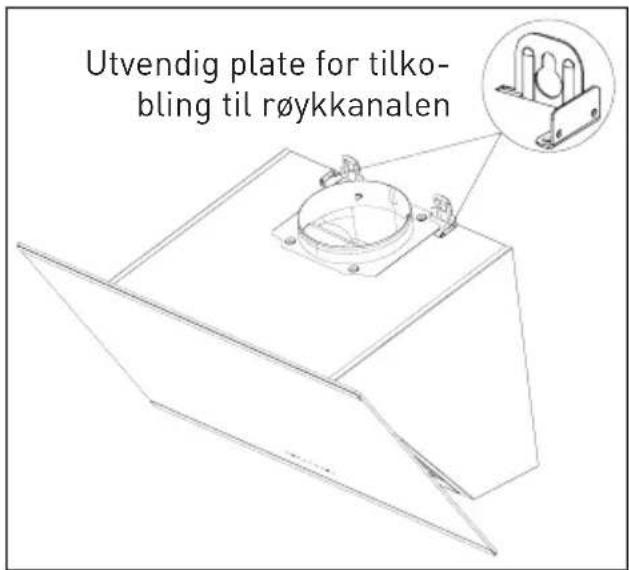

There is a tab in the middle of the flue connection plate. Place the middle point of this tab on the line that is drawn perpendicular to the wall. In doing this operation, adjust the hood according to the maximum height (Page 10/ Figure 1). Mark the holes where the flue connection plate will be mounted with the help of a pen (Figure 6/a). Drill the marked points with ∅6mm drill and insert 2 plastic dowels in the drilled holes (Figure 6/a). Fix the flue connection plate to the wall with 3,9x22 screws (Figure 6/a).

To assemble the hood body, you can use the A, B, C, D ∅8 mm drill on the assembly template, and insert 4.8x50mm plastic dowels at these points. (Figure 6/b).

1 2 A

(Figure 7)

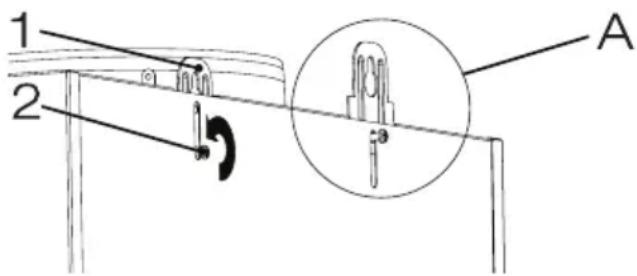

1. Hanger Plate
2. Hanging Plate Connection Screw

In order to install your hood to the wall, loosen the screws on the hanger plates mounted on the motor cabin and pull them up, and then fasten again (Figure 7/A).

Turn on the suction glass of the hood and remove the aluminum oil filter (Page 13 / Figure 3).

CAUTION

Before drilling, ensure that there are no power, gas or water pipes in the close proximity of the drilling locations.

5 Installation Of Appliance

2x Ø 4,9 x 50 mm

(Figure 8)

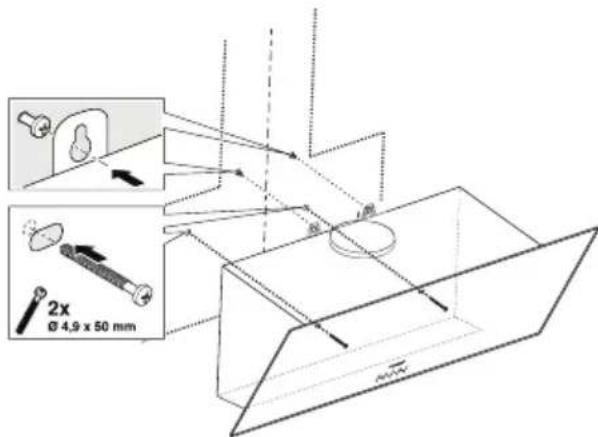

Hold the cooker hood by its body and place it on the suspension screws on the wall and tighten the screws (Figure 8).

Fix the cooker hood with 4.8x50 screws through the mounting hole on the interior of the appliance (Figure 8).

5.3 Connecting to Flue

If you are going to use the ∅ 120/150 mm plastic flue adapter, connect one end of the pipe to this adapter, if you are not going to use it, to the direct output on the product. Connect the other end of the pipe to your flue. Check that these two connections are tight enough so they will not come out when the appliance runs on full power. Ensure that the flaps inside the flue work when tightened with clamp. Connect the flue connection duct outside the adapter. If the connection duct is fitted inside the adapter, the covers that prevent air return shall remain closed and air won't be sucked in. The length of the pipe connection as well as the number of elbows must be as minimum as possible.

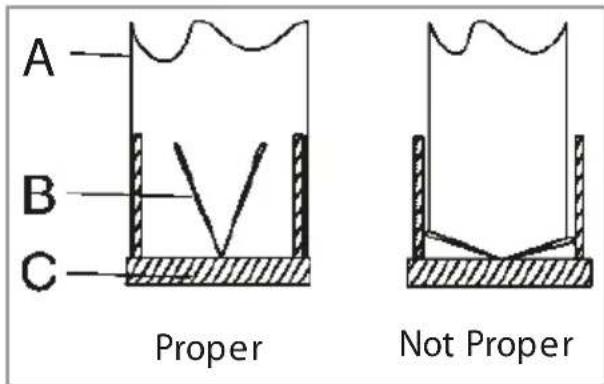

A : Flue exit pipe
B : Non return flaps
C: Plastic Flue

The covers are closed then the appliance is not operating and prevent possible outside odour and dust from entering inside.

A B C Proper Not Proper

1 2 3 4

(Figure 9)

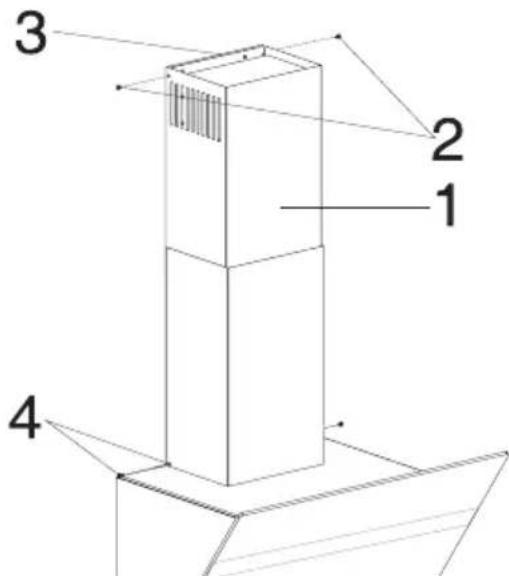

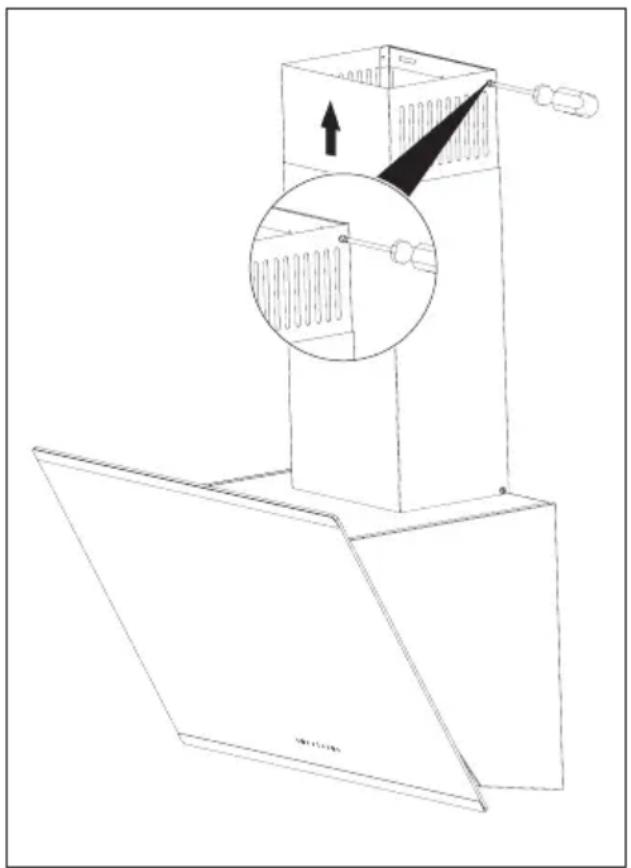

1- Inner Flue
2- Inner Flue Connection Screws
3- Flue Connection Plate
4- Outer Flue Connection Screws

5.4 Mounting the Flue

Make the electrical connection of your product before starting flue installation. Insert the flue plates Around the body. Screw the outer flue to the outer flue fastening plates which are on the motor cabin. (Figure 9). Extend the inner flue to the flue fastening plate fixed to the wall from its upper outer edge, and screw.

5 Installation Of Appliance

5.5 Installation of Air Baffle

While using with the carbon filter, air baffle is provided with your appliance with the aim of re-releasing the air which is cleaned with carbon filter from the perforated located on the flue. Assemble the air baffle as follows.

Ø6mm A B D F C E 6x Ø6mm 2x Ø 3,9 x 22 mm

(Figure 10)

There is a tab in the middle of the flue connection plate. Place the middle point of this tab on the line that is drawn perpendicular to the wall. Align horizontally and mark the holes where the connection plate will be mounted via a pen (Figure 10/A, B).

Drill the marked points with ∅6mm drill and insert 2 plastic dowels in the drilled holes (Figure 10 / A, B). Fix the flue connection plate to the wall with 3.9x22 screws (Figure 10/A, B).

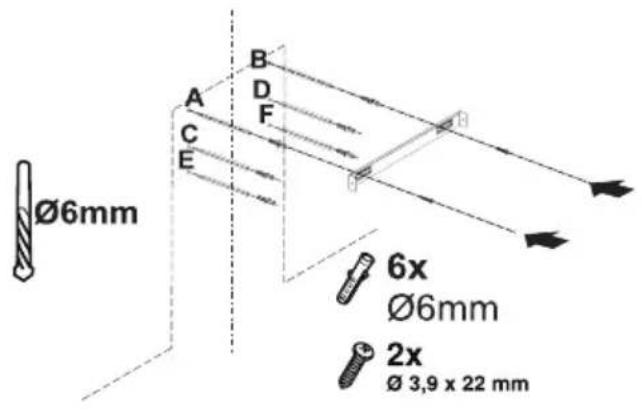

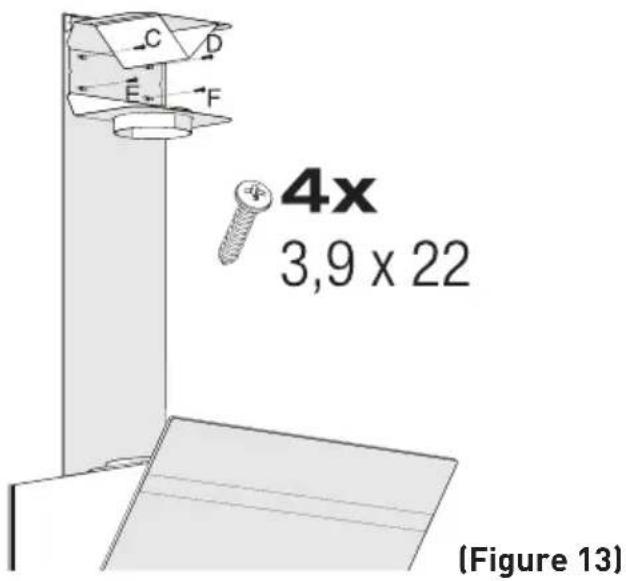

For air baffle assembly, install point C, D, E, F with ∅6mm drill and ∅6mm plastic dowels (Figure 9).

Assemble cooker hood's body (Page 16 / Figure 8).

Technical diagram showing mechanical assembly with labeled parts and a magnified inset view of a component detail.

(Figure 11)

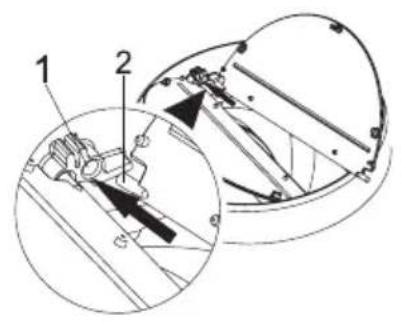

1- Flap Pin Socket

2- Flap Pin

Attach the flue flaps to the plastic flue adapter in the package content as follows.

Insert the plastic pin (Figure 11 / area no. 2) on the pin socket on the motor exhaust (Figure 11 / area no.1). Then bend the flap lightly to insert the other pin on the flap and insert the other pin to its socket (Figure 11).

1 2

(Figure 12)

1 - Air Baffle

2- Plastic Flue

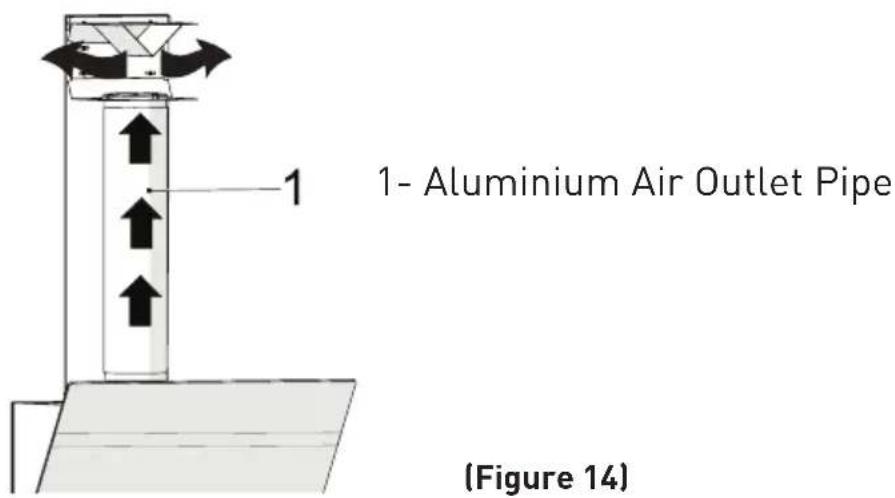

Attach the plastic flue adapter, which is included in the package, in the direction of the air baffle. Lock the flue adapter by turning it in the direction of the arrow (Figure 12).

5 Installation Of Appliance

C D E F 4x 3,9 x 22 (Figure 13)

Assemble the air baffle group with 3.9 x 22 screws from point C, D, E, F that you have already prepared (Figure 13).

1- Aluminium Air Outlet Pipe (Figure 14)

Make the air outlet pipe assembly (Figure 14).

Since twists and bends in the aluminium pipe will lead to reduction in the air suction power, avoid using twists and bends as much as possible.

Install plate flues of the cooker hood (Page 16 / Figure 9)

Illustration showing a hand holding a circular component with arrows indicating process steps (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura 3)

Diagram of a mechanical device with rotating coil and directional arrow, no text or symbols present

(Figura 4)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

(Figura 11)

Illustration showing a hand holding a showerhead with a magnified view of the device (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura 3)

Diagram of a mechanical assembly with a hand holding a curved component, showing internal layered structure (no text or symbols)

(Figura 4)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

(Figura 11)

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Simple line drawing of a cylindrical object with concentric rings (no text or symbols)

1 x Kunststoffabzugadapter (∅ 120/150 mm)

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

(Abbildung 6)

Technical line drawing of a mechanical device with an inset showing a magnified view of internal components (no text or symbols)

(Abbildung 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Abbildung 10)

Hinweis:

Diagram of a mechanical assembly with a rotating component and a curved arrow indicating motion (no text or symbols)

(Abbildung 11)

Diagram showing a showerhead with labeled parts and a close-up of its internal component being inserted, with arrows indicating the process.

Line drawing of a rectangular metal bracket with two recessed slots (no text or symbols)

Plaque de suspension

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

Line drawing of a 3D box assembly with a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

(Figure 7)

A B C Approach No. of correct

(Figure 8)

Technical line drawing of a mechanical assembly with mounting brackets and a curved component (no text or symbols)

(Figure 10)

Remarque :

Diagram of a mechanical component being inserted into a housing, labeled (Figure 11), with no visible text or symbols on the diagram itself.

Illustration showing a showerhead being held by hands, with no text or symbols present.

Remarque :

- I bed and breakfast-lignende miljøer.

Technical line drawing of a rectangular mechanical part with two side slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Ø 8 mm Ø 6 mm Murplug 8 mm Murplug 6 mm Ø 8 mm Z Z Y X Y X Ø 8 mm

(Figur 4)

Line drawing of a box and tray with a magnified inset showing a small circular detail (no text or symbols)

(Figur 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Figur 7)

5.1 Aluminiumsfilter

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figur 10)

Bemærk:

Diagram of a mechanical assembly with a rotating component and a handle, no visible text or symbols

(Figur 11)

Illustration showing a showerhead being adjusted for a hand holding a circular component, with arrows indicating the process (no text or symbols present)

Bemærk:

Technical line drawing of a rectangular metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

1 x røykkanaladapter i plast, diameter 120/150 mm

(Bilde 3a)

Line drawing of a 3D box setup with a magnified inset showing internal structure (no text or symbols)

(Bilde 6)

3 Montere apparatet

Trekk ut den innvendige røykkanalen, og skru den fast på tilkoblingsplaten for røykkanalen som du har festet på veggen (Bilde 7).

Technical line drawing of a mechanical device with an inset showing a circular component and directional arrow (no text or symbols)

(Bilde 7)

3.8 Bruk med kanaltilkobling

(A): Tast for nivå 1
(B): Tast for nivå 2
(C): Tast for nivå 3
(D): Tast for lys på/av

5.1 Aluminiumsfilter

Technical line drawing of a mechanical assembly with no visible text or symbols

(Bilde 10)

Merk:

Technical illustration of a mechanical assembly with a hand holding a curved component (no text or symbols visible)

(Bilde 11)

Luktfiltrene inneholder kull (aktivt karbon).

Illustration showing a showerhead being adjusted for a hand holding a circular component, with arrows indicating the process (no text or symbols present)

Merk:

Technical line drawing of a rectangular metal bracket with two recessed slots (no text or symbols)

1 x anslutningsplat- ta rökkanal

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

1 x ∅120/150 mm plastadapter rök-kanal

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

(Figur 6)

Technical line drawing of a mechanical device with an inset showing a magnified view of internal components (no text or symbols)

(Figur 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figur 10)

Obs:

Diagram of a mechanical assembly with a rotating component and a curved arrow indicating motion (no text or symbols)

(Figur 11)

Illustration showing a hand holding a showerhead with a magnified view of the device's internal components (no text or symbols present)

Obs:

Technical line drawing of a rectangular mechanical part with two recessed slots (no text or symbols)

1 x hormiliitoslevy

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

1 x ∅120/150 mm muovinen hormisovitin

Technical line drawing of a mechanical assembly with a box, bracket, and mounting base (no text or symbols)

(Kuva 6)

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

(Kuva 7)

(A): 1. tasopainike
(B): 2. tasopainike
(C): 3. tasopainike
(D): Valo päälle / pois -painike

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

(Kuva 10)

Huomaa:

Diagram of a mechanical assembly with a rotating component and a clamping mechanism (no text or symbols)

(Kuva 11)

Illustration showing a showerhead being adjusted for a circular component, with arrows indicating the process (no text or symbols present)

Huomaa:

Technical line drawing of a rectangular mechanical component with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

1 x adaptor evacuare din plastic ∅120/150 mm

Technical line drawing of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

(Figura 6)

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

(Figura 7)

3.8 Utilizarea cu racord de evacuare

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura 10)

Notă:

Diagram of a mechanical or electrical component with a hand holding a curved arrow, no visible text or symbols

(Figura 11)

Diagram showing a showerhead being adjusted to a circular component, with arrows indicating the process and magnified view.

Notă:

Technical line drawing of a rectangular mechanical component with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

Line drawing of a 3D box setup with a magnified inset showing internal structure (no text or symbols)

3 Монтаж на уреда

Technical line drawing of a mechanical assembly with mounting brackets and a curved arrow indicating rotation (no text or symbols)

(Фигура 10)

Забележка:

Diagram of a mechanical assembly with a rotating component and directional arrows indicating motion (no text or symbols)

(Фигура 11)

Illustration showing a showerhead being adjusted for a hand holding a circular component, with arrows indicating the process (no text or symbols present)

Simple line drawing of a rectangular metal bracket with two side slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical structure (no text or symbols)

Technical line drawing of a mechanical assembly with a box, bracket, and base plate (no text or symbols)

(Rysunek 6)

3 Montaż okapu

Technical line drawing of a mechanical device with an inset magnified view showing internal components (no text or symbols)

(Rysunek 7)

Simple line drawing of a container with a wavy top and side supports (no text or symbols)

Nieprawidłowo

(Rysunek 8)

4 Obstuga okapu

(Rysunek 9)

Technical line drawing of a mechanical assembly with mounting brackets and a curved arrow indicating motion (no text or symbols)

(Rysunek 10)

Uwaga:

Diagram of a mechanical or electrical component with a hand holding a curved arrow, no visible text or symbols

(Rysunek 11)

Illustration showing a showerhead being held by hands, with no text or symbols present.

Uwaga:
