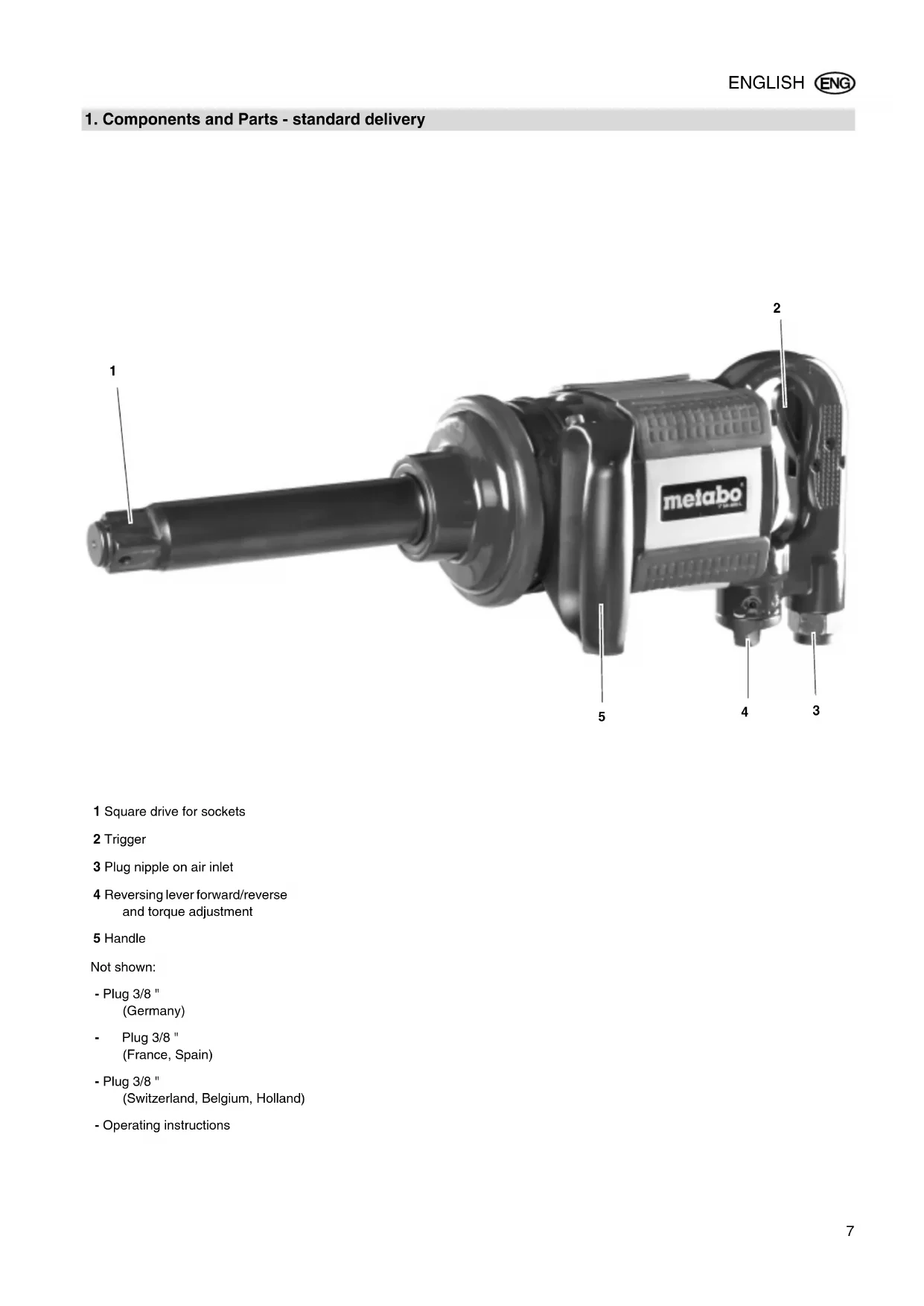

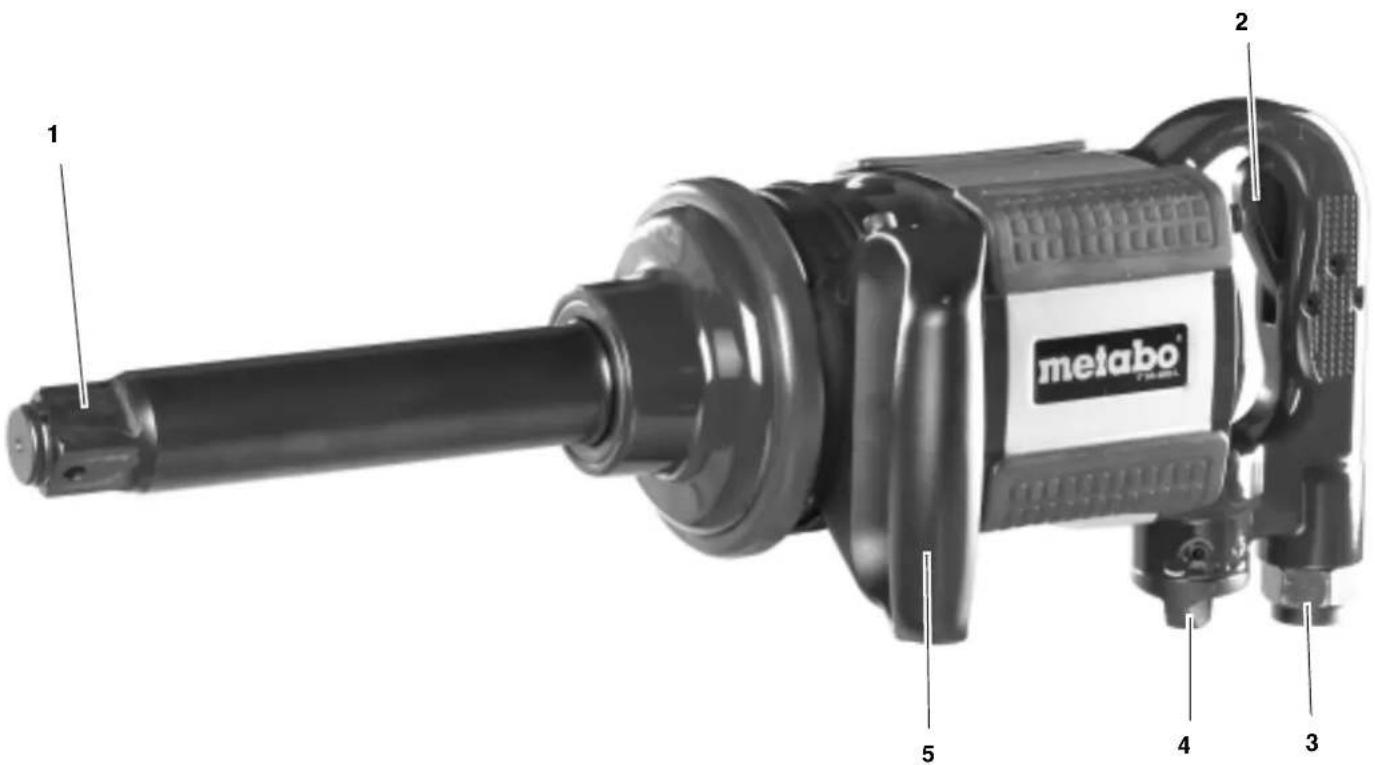

1. Components and Parts - standard delivery

1 Square drive for sockets
2 Trigger
3 Plug nipple on air inlet
4 Reversing lever forward/reverse and torque adjustment
5 Handle

Not shown:

• Plug 3/8" (Germany)
  Plug 3/8" (France, Spain)
• Plug 3/8" (Switzerland, Belgium, Holland)
  -Operating instructions

Table of Contents

1. Components and Parts - standard delivery

2. Please read first! 8

3. Safety 8
   3.1 Specified Conditions of Use.....8
   3.2 General safety instructions..8
   3.3 Symbols Used 8
4. Operation 9
   4.1 Before initial operation.. 9
   4.2 Using the Tool 9
5. Care and maintenance..9
6. Available Accessories 9
7. Repairs.. 9
8. Environmental protection....9
9. Technical specifications....10

2. Please read first!

These instructions are written in a way to let you work with the tool quickly and safely. Here is how to use the instructions:

• Read these instructions fully before operating the tool. Pay special attention to the safety information.
  If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the tool!
  These instructions are intended for individuals having a basic technical knowledge in the handling of tools like the one described herein. If you have no experience whatsoever with such tool, we strongly recommend to seek the advise of experienced individuals.
• Keep all documents supplied with this tool for future reference. Also, retain proof of purchase in case of a warranty claim.
• This tool must not be sold or lent to someone else without being accompanied by these operating instructions and all other documents supplied with the tool.

The manufacturer is not liable for any damage arising from neglect of these operating instructions.

Information in these instructions is denoted as under:

Caution!

Danger!

Risk of personal injury or environmental damage.

Risk of material damage.

Note:

Additional information.

Numbers in illustrations (1, 2, 3, ...)

indicate component parts;
are consecutively numbered;

• Instructions to be carried out in a certain sequence are numbered.
• Instructions which can be carried out in any order are indicated by a bullet point () .
• Listings are indicated by a dash (-).

3. Safety

3.1 Specified Conditions of Use

This tool is used for running, driving and removing nuts and bolts.

This tool shall only be powered by an air compressor. The max. permissible working pressure stated in the Technical Specifications must not be exceeded. This tool must not be operated with gases that are explosive, combustible or detrimental to health.

Any other use is not as specified. Use not as specified, modification of the tool or use of parts not approved by the manufacturer can cause unforeseeable damage!

3.2 General safety instructions

• When using this air tool follow the safety instructions given below, to exclude the risk of personal injury or material damage.
• Please also observe the special safety instructions in the respective chapters.
• Observe the statutory accident insurance institution regulations and regulations for the prevention of accidents pertaining to the operation of air compressors and air tools, where applicable.
• This air tool shall only be used by persons having read and understood these instructions, and who are aware of the dangers associated with the use of such tool. Persons under the age of 18 shall use this air tool only in the course of their vocational training, under supervision of an instructor.

General hazards!

• Keep your work area tidy - a messy work area invites accidents.

• Be alert. Do not operate this tool while under the influence of drugs, alcohol or medication.

• Keep children and bystanders away from the work area.

• Store air tools out of the reach of children.
  Always use a quick coupler to connect this air tool to a compressor.
• Do not touch any rotating parts.

• Disconnect this tool from air supply before

• changing sockets,
  servicingor
  whentool is left unattended.

Hazard generated by insuffi-personal protection gear!

• Wear personal protection gear:

ear protection
- protective spectacle.

Hazard generated by machine!

• Do not attempt to repair the tool yourself! Only trained specialists are permitted to service or repair compressors, pressure vessels and air tools.

Caution!

Protect the tool, air inlet, drive square, and operating elements in particular, from dust and dirt.

Danger by vibration!

• Vibrations are transmitted to the entire body, particularly to arms and hands. Very heavy vibrations may cause nerve and vascular disorder.

Caution!

• Protect the tool, air inlet and operating elements in particular, from dust and dirt.
  Make sure that the max. permissible working pressure stated in the Technical Specifications is not exceeded. The working pressure must be adjusted by a pressure regulator.
• Do not overload tool - use it only within the performance range it was designed for (see Technical Specifications).
• Let tool run idle for a short time only.

3.3 Symbols Used

Danger!

Neglect of the following warnings may cause serious injury or material damage.

Read instructions.

Wear hearing protection.

Wear safety goggles.

4. Operation

4.1 Before initial operation

Install the plug nipple.

4.2 Using the Tool

Caution!

To ensure a long service life of this tool, it needs to be supplied with sufficient quantities of pneumatic oil. This can be achieved by:

• a service unit with oiler at the compressor.
• a lubricator, installed directly on the air tool or in the air line.

• adding approx. 3-5 drops of pneumatic oil by hand every 15 minutes of use (constant operation) to the air inlet.

• Put socket on the drive.

• Set direction of rotation with the reversing knob:

• Reversing knob to the right: right-handed rotation/driving

• Reversing knobto the left: left-handed rotation/unscrewing

• Setting the torque at the reversing knob:

Reversing knob fully to the right = maximum driving torque.
Reversing knob fully to the left = maximum unscrewing torque.
Reversing knob gradually outward = torque increases.
Reversing gradually to the centre = torque decreases.

1. Set the working pressure at the compressor (refer to the technical specifications for max. permissible working pressure).
2. Connect quick coupler to the air supply.
3. Pull trigger to start.

5. Care and maintenance

Danger!

Always disconnect from air supply before servicing.

Repair and maintenance work other than described in this section must be carried out by qualified specialists only.

• Check all screwed connections for tightness, tighten if necessary.
• When the tool is not lubricated by a service unit or line oiler, manually add 3 - 5 drops of pneumatic oil for every 15 minutes of operation (continuous operation) into the air inlet.
• Do not store tool unprotected outdoors or in humid environment.

6. Available Accessories

• Pneumatic oil 0.5 litre Special lubricant for air tools, service units and line oilers. Stock-no. 090 100 8540
• Line oiler R3/8" female For fitting directly to air tools. Oil level can always be checked through sight glass. Stock-no. 090 105 4592

7. Repairs

Danger!

Repairs to air tools must be carried out by qualified specialist ONLY!

Air tools in need of repair can be send to the service centre in your country. See Spare Parts List for address.

Please attach a description of the fault to the power tool.

8. Environmental protection

The tool's packaging can be 100% recycled.

Worn out machines and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.

These instructions are printed on paper produced with elemental chlorine free bleaching process.

1. Technical specifications

Model SR 4900 L
Air consumption l/min 630
Max. permissible working pressure bar 6.2
Speed min	-1 4500
Square drive " 1
Maximum bolt size M32
Impact mechanism Twin impact hammer mechanism
Maximum torque (forward) Nm 2200
Maximum torque (reverse) Nm 2200
Minimum hose size (inner) mm 13
Vibration (effective value of weighted acceleration)	m/s2	9.09
Uncertainty K	m/s2	3.64
EN ISO 15744:2008 (ISO 15744:2002)
Sound power level LWA	dB (A)	122.4
Sound pressure level LPA	dB (A)	111.4
Uncertainty K	dB (A)	4
Dimensions:
length x width x height	mm	500 x 190 x 180
Weight w/o packaging	kg	10.6
with packaging	kg	12.5
