Product type	High-pressure cleaner
Brand	Kärcher
Model	K5 Premium Smart Control Home
Category	Private domestic use
Typical operating weight	15.8 kg
Dimensions (L × W × H)	414 × 306 × 588 mm
Power supply	230 V, 50 Hz, 2.1 kW
Protection	IPX5, class I
Working pressure	12.5 MPa (max 14.5 MPa)
Water flow	7.5 l/min (max 8.3 l/min)
Detergent flow	0.3 l/min
Max. supply temperature	40 °C
Max. suction height	0.5 m
Connectivity	Bluetooth® via KÄRCHER Home & Garden app
Smart Control system	Pressure and dosage adjustment via gun
3-in-1 multi-jet lance	Flat jet, detergent jet, and rotating nozzle
Auto-Stop function	Pump stops when trigger is released
Motor thermal protection	Yes
Detergent capacity	Plug 'n' Clean bottle (included)
Accessory storage	Compartment with net, hose holder, hose reel
High-pressure hose length	Not specified (integrated reel)
Guaranteed sound power level	93 dB(A)
Hand-arm vibration	1.2 m/s² (uncertainty 0.6)
Warranty	According to retailer's conditions

Frequently Asked Questions - K5 Premium Smart Control Home Kärcher

How do I pair the gun with the device?

Plug in the device, then simultaneously press the '+' and '-' buttons on the gun for at least 3 seconds. If the Bluetooth® connection is successful, the pressure levels and radio symbols appear on the LCD screen.

How do I use detergent?

Remove the cap of the Plug 'n' Clean bottle and push it head down into the connection. Turn the lance to the 'MIX' position and adjust the concentration with the +/- buttons. After use, rinse the device for 30 seconds at detergent level 1.

What to do if the device does not start?

Check that the plug is connected and the switch is set to I/ON. If the motor does not start, wait 1 hour (thermal protection) or check the 10 A fuse. If the problem persists, contact customer service.

How do I clean the water filter?

Unscrew the coupling of the water supply connection, remove the strainer with flat pliers, clean it under running water, and replace it. Check that it is not damaged.

How do I replace the batteries in the gun?

Press the closure button, open the compartment, remove the old batteries, insert two new AAA batteries respecting polarity, then close.

What is the maximum pressure?

The maximum permissible pressure is 14.5 MPa. The working pressure is 12.5 MPa. Use the +/- buttons to adjust the pressure according to the surface.

Can I draw water from a tank?

Yes, with the KÄRCHER suction hose (ref. 2.643-100). Fill the hose with water, screw it onto the connection, and plunge it into the tank. The maximum suction height is 0.5 m.

How to store the device in winter?

Drain the water: disconnect the hose, turn the device to I/ON for max. 1 minute to expel water. Store it in a frost-free room with accessories.

What to do in case of water leak?

A small leak is technical. If it is significant, turn off the device, unplug it, and contact authorized customer service.

How do I activate Boost mode?

Boost mode is activated via the KÄRCHER Home & Garden app or by holding down the '+' button. It provides maximum pressure for stubborn dirt.

USER MANUAL K5 Premium Smart Control Home Kärcher

Two KARCHER industrial vacuum cleaner units with black and silver branding, shown from front and side views (no visible text or symbols on the devices themselves)

Deutsch 7

English 14

Français 21

Italiano 28

Nederlands 35

Español 42

Português 49

Dansk 57

Norsk 63

Svenska 70

Suomi 77

Ελληνικά 83

Türkçe 91

Русский 98

Magyar 106

Čeština 113

Slovenščina 119

Polski 126

Românește 134

Slovenčina 141

Hrvatski 148

Srpski 155

Български 161

Eesti 170

Latviešu 176

Lietuviškai 183

A
K 5 Premium Smart Control

Labeled diagram of a power tool with numbered parts for identification and assembly reference.

B
K 5 Smart Control

Labeled diagram of a KONDAK air purifier with numbered parts and component annotations

C 4 3 2 BOOST 5 6 1 2 7

D ① ② ③ ④

E a a b

F a b c

G a b

H a a KERCHER KERCHER b

Diagram illustrating a mechanical assembly process with labeled steps a and b, showing tool positioning and checkmark indicators.

Close-up of a car's helmet showing mesh texture and structural details (no text or symbols)

Close-up of a car tire with attached hoses and a close-up inset showing internal components (no text or symbols)

KORCHER a b

M BOOST 3 2 1

N KERCHER "click"

KURCHER a b c

P b a

Q BOOST 3 2 1

Mechanical component diagram showing a pump nozzle inserted into a container with an inset close-up of its internal structure (no text or symbols visible)

S a b c

Exterior view of a Karcher electric vehicle charging plug with black arrow indicating force (no text or symbols on device)

Mechanical assembly diagram showing a tool interacting with a mechanical component, with water droplets and a faucet symbol (no text or labels)

V

W b KERCHER a

Simple diagram with a battery icon and a horizontal line, no text or symbols present

Diagram of a server rack with battery, wireless signals, and four parallel circuit breakers (no text or labels)

Z

Inhalt

Download on the App Store

Warenzeichen

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contents

General notes.... 14

KÄRCHER Home & Garden app.... 14

Environmental protection.... 14

Intended use.... 14

Accessories and spare parts 14

Scope of delivery.... 14

Description of the device 14

Safety devices 15

Symbols on the device 15

Assembly.... 15

Initial Start-Up.... 16

Initial startup 16

Operation.... 17

Transport 18

Storage.... 18

Care and service 18

Troubleshooting guide 19

Warranty 19

Technical data 20

EU Declaration of Conformity.... 20

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

KÄRCHER Home & Garden app

The device can be controlled by direct operation on the high-pressure gun or via a mobile device equipped with Bluetooth ^® wireless technology. The KÄRCHER Home & Garden app is required for this.

The app also contains:

● Installation and initial startup information
● Information about the areas of application
- Tips & Tricks
● FAQ with detailed troubleshooting
- Connection to the KÄRCHER Service Centre

The app can be downloaded here:

GET IT ON Google Play Download on the App Store

Trademarks

- Bluetooth®wordmarks and logos are registered trademarks of Bluetooth SIG, Inc. Any use of these trademarks by Alfred Kärcher SE & Co. KG is under license.

• Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.
• Apple ^® and App store ^® are trademarks or registered trademarks of Apple Inc.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.

Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.

Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

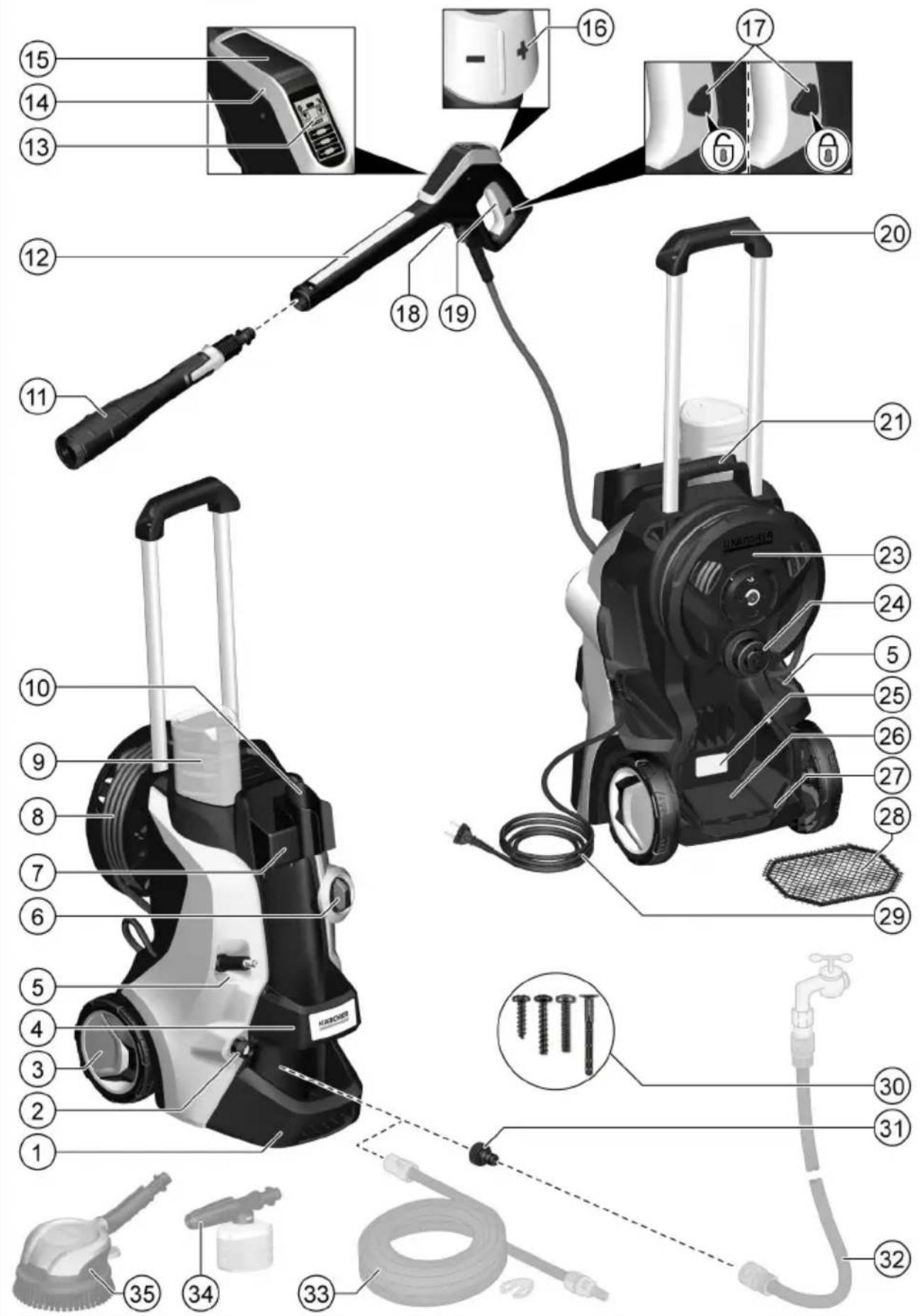

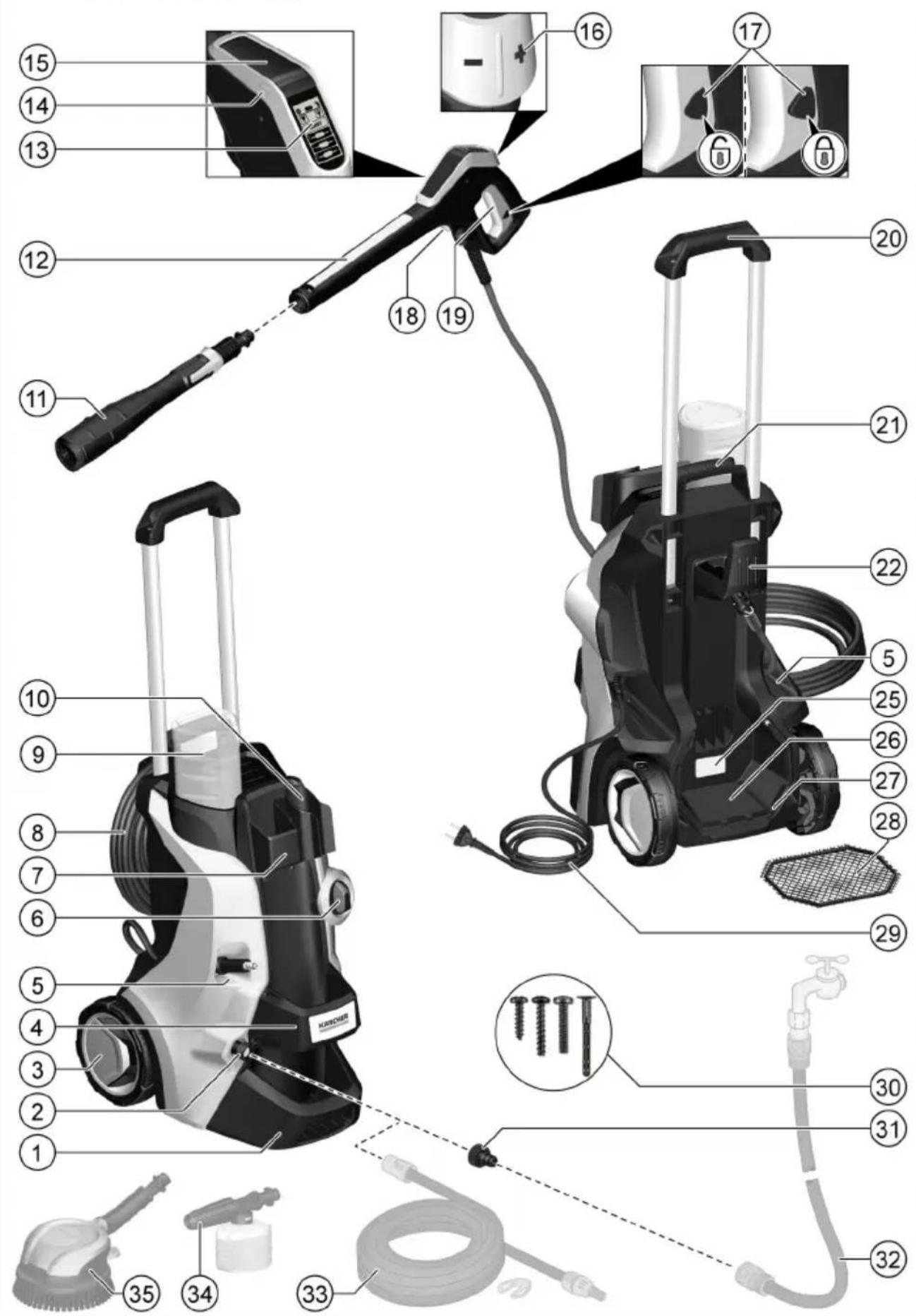

Illustration A

Illustration B

① Stand with carrying handle
② Water connection with integrated sieve
③ Transport wheel
④ Visor
⑤ Hose guide

⑥Trigger "0/OFF" / "I/ON"
⑦ Storage for spray lance
⑧ High-pressure hose
⑨*Plug 'n' Clean detergent bottle
⑩ Storage / parking position for high-pressure gun
⑪3-in-1 multi-jet spray lance with 3 spray types (see also chapter Smart Control System)
⑫ Smart Control high-pressure gun
⑬ LCD display (see also chapter LCD display)
⑭ Battery compartment lock
⑮ Battery compartment
⑯“+/-” buttons for pressure control
⑰ High-pressure gun lock
⑱ Button for separating the high-pressure hose from the high-pressure gun
19 High-pressure gun lever
⑳ Transport handle, telescoping
②1 Carrying handle
②2 Hose holder
②3 High pressure hose reel
⑳Crank handle for hose reel
⑲Type plate
②6 Accessory compartment
27 Hook for net attachment
28 Accessory compartment net
⑲Mains connection with mains plug
30 Supplied screws and dowels
③1 Water connection coupling
③2**Garden hose with commonly available coupling – Fabric reinforced
– Diameter of at least 1/2 inch (13 mm)
- Length at least 7.5 m
③3**KÄRCHER suction hose for water supply from open containers (order no. 2.643-100.0)
③4*Foam nozzle with detergent container The detergent is sucked out of the container to produce a strong detergent foam.
③5*Rotating washing brush (e.g. for washing cars)
* optional, ** additionally required

LCD display

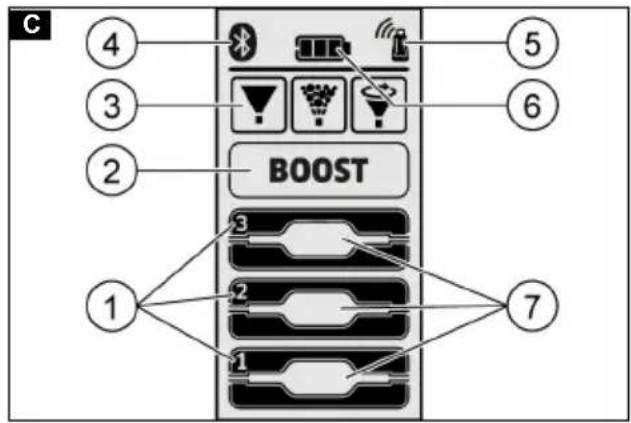

Illustration C

① Area of application (1-SOFT / 2-MEDIUM / 3-HARD with 2 pressure levels each)

② BOOST function indicator

③ Spray type recommendation (flat stream/detergent/dirt grinder)

④ Display Bluetooth ^® connection

⑤ Signal strength status (four levels)

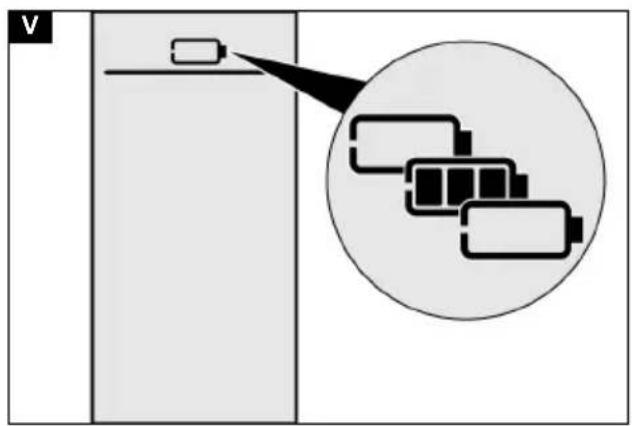

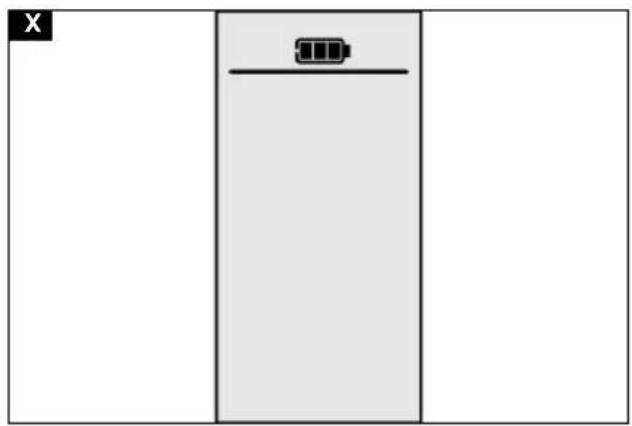

⑥ Battery status (empty, almost empty, medium, full)

⑦ Detergent level (1 / 2 / 3)

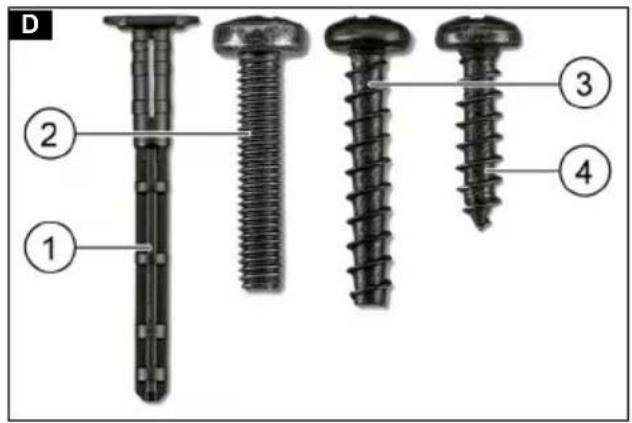

Supplied screws and dowels

Illustration D

① Stand dowels (2 pieces)
② Screw M 4x20 (2 pieces)
③ Screw M 4x22 (2 pieces)
④ Screw M 4x16 (8 pieces)

Safety devices

CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection. Never modify or bypass safety devices.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

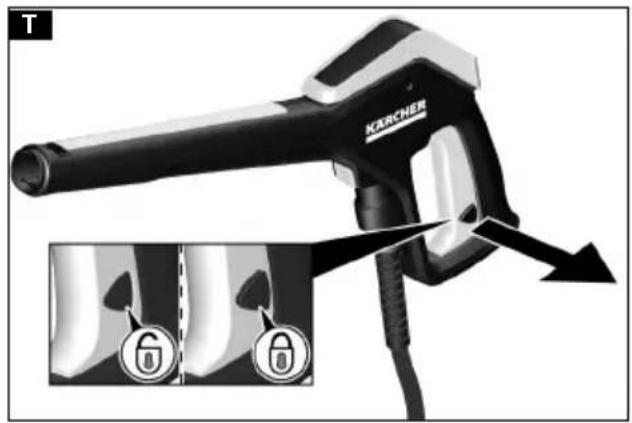

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Assembly

For the illustrations, refer to the graphics page.

Place the screws provided and matching screwdriver at the ready.

Fit the supplied loose parts onto the device before starting up the device.

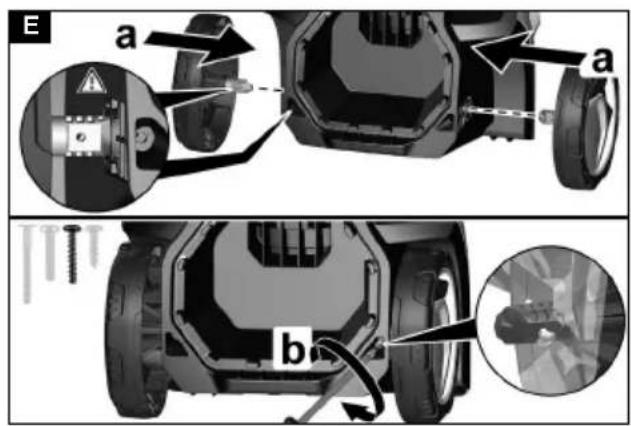

Fitting the wheels

1. Insert the wheels.

Note

Pay attention to the alignment of the hole.

Illustration E

1. Secure the wheels with 1 screw each.

Mounting the stand

1. Insert the stand.
2. Insert the 2 dowels into the holes as far as they will go.
3. Secure the base with 2 screws.

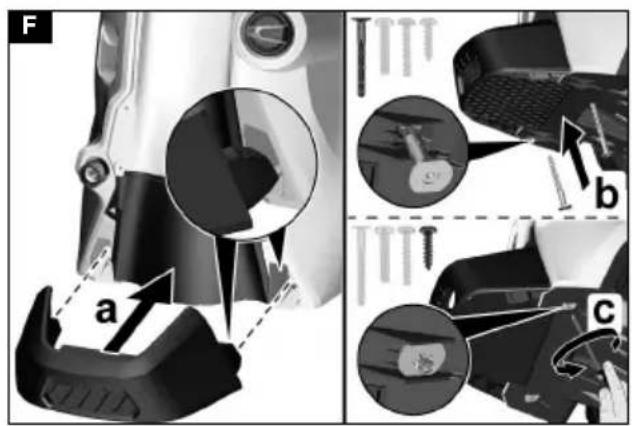

Illustration F

Installing the spray lance storage

1. Hang the spray lance storage in position.

2. Secure the storage with 2 screws.

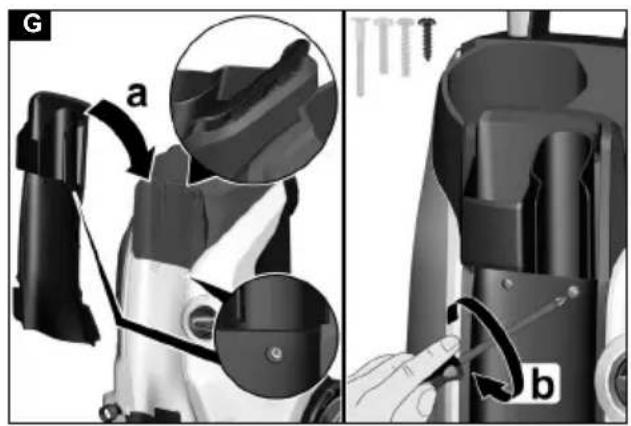

Illustration G

1. Secure the cover with 4 screws.

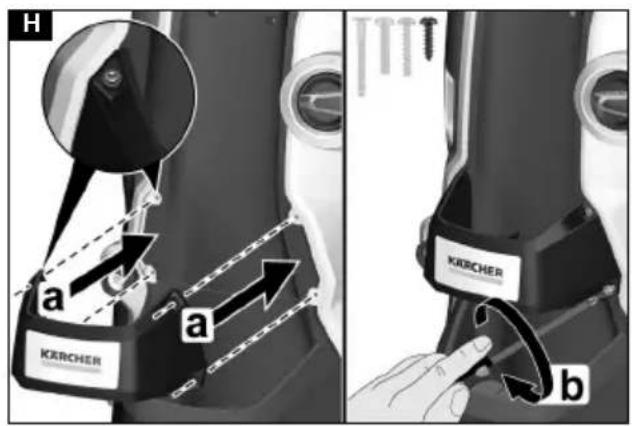

Illustration H

Mounting the transport handle

1. Attach the transport handle.

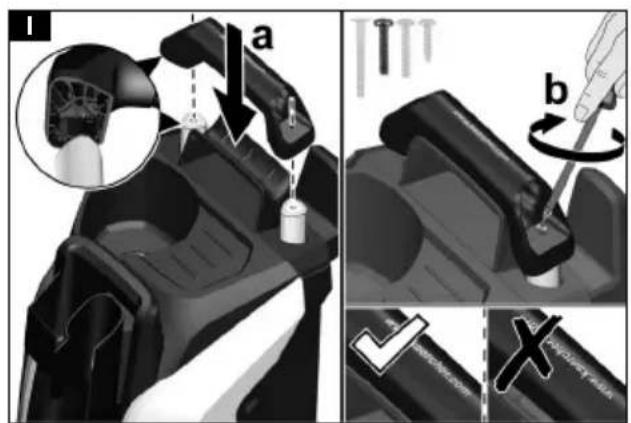

Illustration I

1. Secure the transport handle with 2 screws.

Mounting the accessory net

1. Hang the accessory net on the hooks.

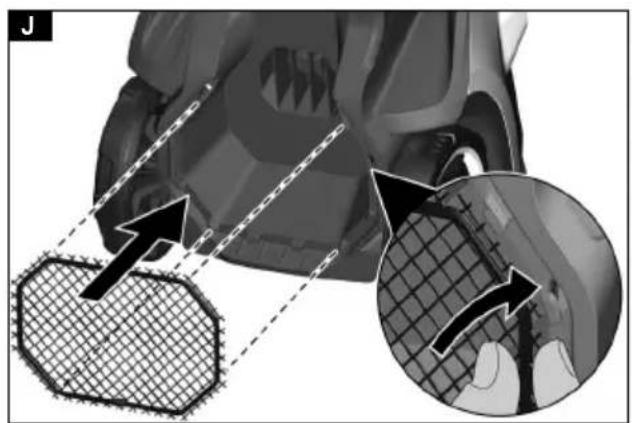

Illustration J

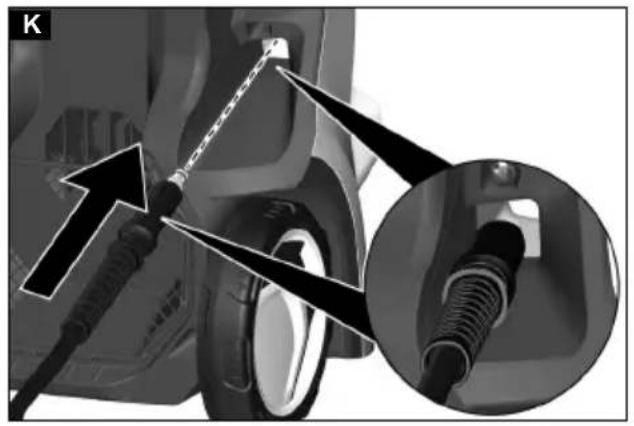

Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose guide from the rear.

Illustration K

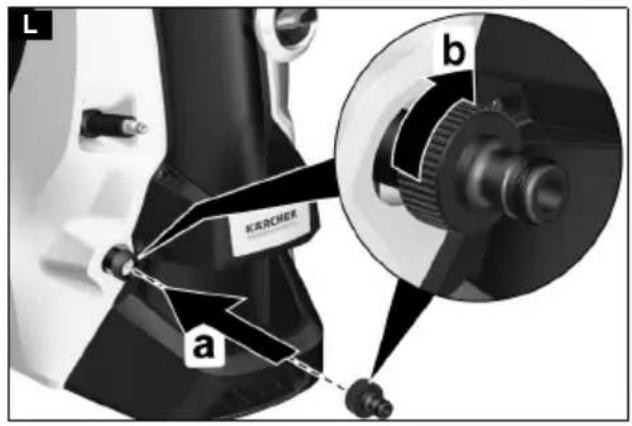

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device.

Illustration L

Initial Start-Up

Note

If you do not want to control the device by mobile device via a Bluetooth ^® connection, you only have to follow the steps in the section "Connecting the high-pressure gun".

Download the app and register your device

1. Download the KÄRCHER Home & Garden app (see chapter KÄRCHER Home & Garden app).

2. Start the KÄRCHER Home & Garden app.

3. Log in to the KÄRCHER Home & Garden app. If necessary, create an account for this.

4. Scan the enclosed QR code.

The high-pressure cleaner is registered.

Note

If you do not have the enclosed QR code at hand, you can also register the device with the part number and serial number. Both numbers are given on the type plate.

1. Follow the instructions of the KÄRCHER Home & Garden app.

Note

Be sure to do this before connecting the high-pressure gun Bluetooth ^® Activate on your mobile device.

Connecting the high-pressure gun

Note

You can find a detailed description of the connection at https://www.kaercher.com/FCR.

1. Plug the mains plug for the high-pressure cleaner into a socket.

The device switches to coupling mode for 60 s. During this time it is possible to couple the high-pressure gun.

1. Press the "+" key and the "-" key on the high-pressure gun simultaneously for at least 3 s.

If the coupling is successful, the pressure levels, as well as the radio and the Bluetooth ^® symbol, will be shown on the display.

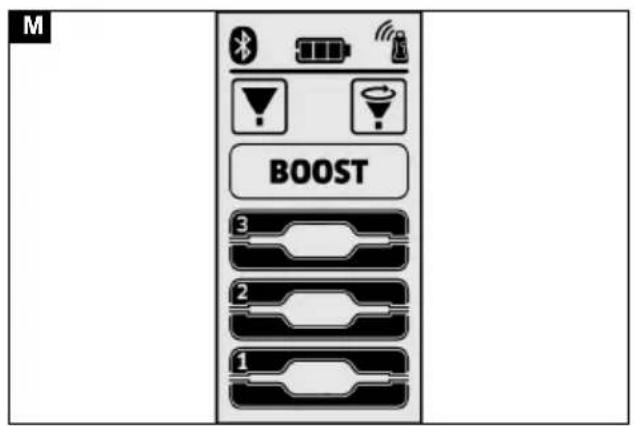

Illustration M

The Bluetooth ^® connection between the mobile device and the high-pressure cleaner is established automatically.

Note

If necessary, you can also establish the Bluetooth® connection at a later time by pressing the "-" key for 10 s.

1. If the coupling attempt failed:

a Pull the mains plug for the high-pressure cleaner out of the socket.

b Wait 20 s.

c Couple the high-pressure gun again.

Initial startup

1. Place the device on a flat and level surface.
2. For devices with a hose reel: Completely unwind the high-pressure hose from the hose reel.
3. For devices without a hose reel: Unwind the high-pressure hose completely and eliminate any loops and twists.
4. Pull the high-pressure hose all the way forwards through the hose guide.

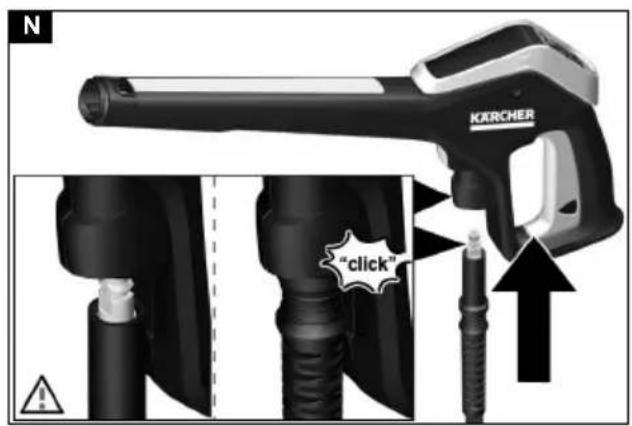

5. Insert the high-pressure hose into the high-pressure gun until it audibly latches into place.

Note

Take care to ensure the correct alignment of the nipple. Illustration N

1. Check for a secure connection by pulling on the high-pressure hose.
2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection coupling.
2. Connect the garden hose to the water line.
3. Open the water tap fully.

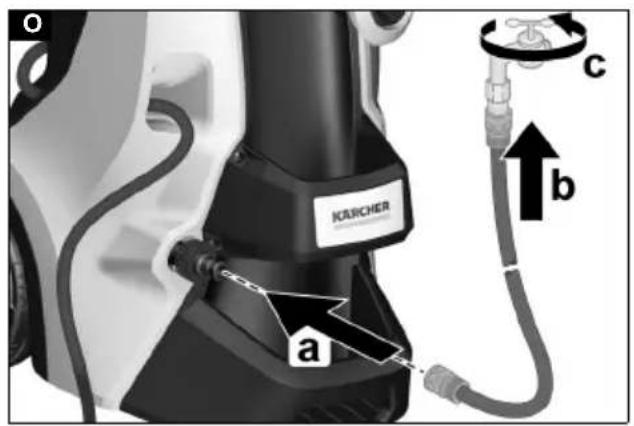

Illustration O

Sucking water from open containers

When used with the KÄRCHER suction hose with check valve (special accessory, order number 2.643-100) this high-pressure cleaner is suitable for sucking up surface water, e.g. from rain barrels or ponds (for the maximum suction height see chapter Technical data).

The water connection coupling is not required for vacuuming operation.

1. Fill the suction hose with water.
2. Screw the suction hose onto the device water connection and hang it in a water source (e.g. water butt).

Vent the device

1. Switch the device on "I/ON".
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.
4. Allow the device for run a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.
5. Release the lever of the high-pressure gun.
6. Lock the lever of the high-pressure gun.

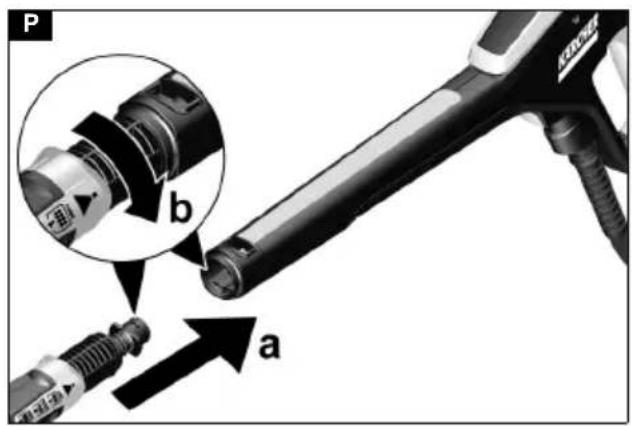

Operation

ATTENTION

Pump running dry

Damage to the device

If pressure does not build up in the device after 2 minutes then switch the device off and proceed according to the instructions in chapter Troubleshooting guide.

Smart Control System

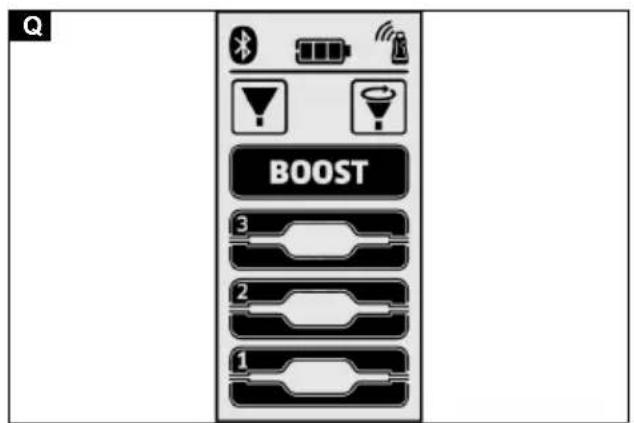

The "+/-" buttons on the high-pressure gun can be used to select the pressure and detergent dosing levels. The spray type can be changed by turning the 3-in-1 multi jet spray lance.

Note

The sensitivity of materials can vary greatly depending on age and condition. The recommendations are therefore not binding.

Flat jet nozzle

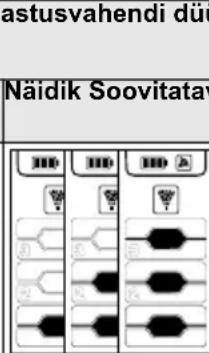

Pressure level	Display Recommended for e.g.
		Stone terraces, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
		Cars / motorcycles, brick surfaces, plastered walls, plastic furniture
		Wooden surfaces, bicycle, sandstone surfaces, rattan furniture

D Pressur evel

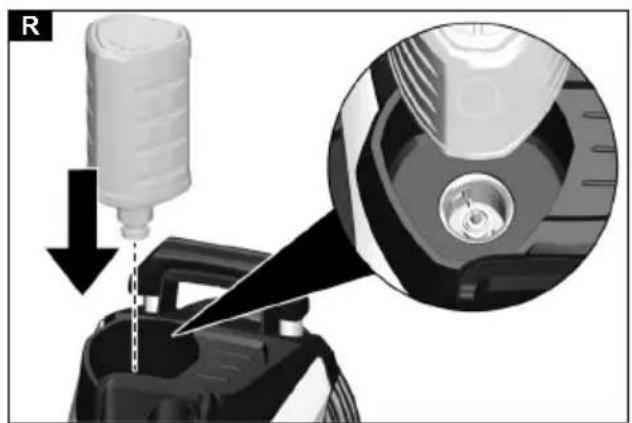

1. Turn the 3-in-1 Multi Jet spray lance to the "MIX" cleaning nozzle until the "MIX" LCD on the pressure indicator of the high-pressure gun lights up. The detergent solution is mixed with the water jet during operation.

2. Using the “+/-” buttons of the high-pressure gun, set the desired detergent concentration.

3. You can optionally use the foam nozzle.

a Fill the detergent solution into the detergent tank. Adhere to the dosage specifications on the detergent container.
b Connect the foam nozzle to the detergent container.
c Insert the foam nozzle into the high-pressure gun and turn by 90° to fasten it.

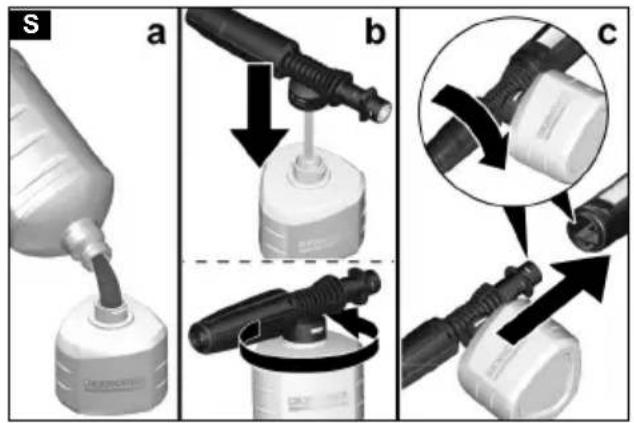

Illustration S

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap before transporting the device lying down.
2. Store the detergent bottle in the holder with the lid facing up.
3. Operate the device for about 30 seconds at detergent level 1 to rinse it clean.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.
2. Lock the lever of the high-pressure gun. Illustration T
3. Place the high-pressure gun with the spray lance in the parking position.
4. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

CAUTION

Pressure in the system

Injuries from high-pressure water escaping uncontrollably

Only disconnect the high-pressure hose from the high-pressure gun or the device when the system is fully depressurised.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds. The pressure remaining in the system is discharged
4. Release the lever of the high-pressure gun.
5. Lock the lever of the high-pressure gun.
6. Disconnect the device from the water supply.
7. Switch off the device "0/OFF".
8. Pull the mains plug out of the socket.

Transport

CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Carrying the device

1. Lift and carry the device by the carrying handles.

Pulling the device

1. Pull the transport handle out until it audibly latches into place.
2. Pull the device via the transport handle.

Transporting the device in a vehicle

1. Before transporting lying down, pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap.

2. Secure the device against slipping and tipping over.

Storage

CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.

ATTENTION

Damage to the high-pressure hose

Damage to the high-pressure hose through incorrect direction of rotation Observe the correct direction of rotation of the hose reel when winding on the hose.

1. For devices with a hose reel: Use the crank handle to turn the hose reel anticlockwise and coil up the high-pressure hose.

2. For devices without a hose reel: Store the high-pressure hose on the device.

3. Store the mains connection cable and accessories on the device.

Observe the additional instructions before storing the device for a longer period of time, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following requirements must be satisfied:

● The device is disconnected from the water supply.
- The high-pressure gun is disconnected from the high-pressure hose.

1. Switch the device on "I/ON".

2. Wait for a maximum of 1 minute until no more water escapes from the high-pressure hose.

3. Switch off the device.

4. Store the device in a frost-protected room, together with all accessories.

Care and service

⚠️ DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Damaged sieve in the water connection

Damage to the device through contaminated water Check the sieve for damage before inserting it in the water connection.

If necessary, clean the sieve in the water connection.

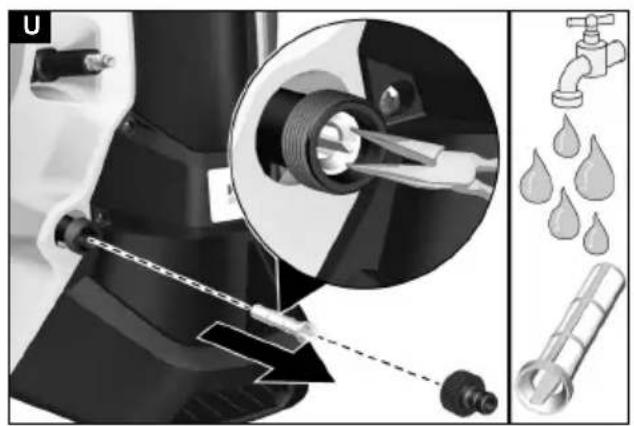

1. Remove the water connection coupling.
2. Pull the sieve out using flat pliers.
3. Clean the sieve under running water.

Illustration U

1. Insert the sieve into the water connection.

Replacing the batteries of the high-pressure gun

Two non-rechargeable or rechargeable AAA batteries are required.

The batteries are exhausted if nothing or a flashing battery symbol is visible in the display of the high-pressure gun.

Illustration V

1. Press the locking slide.

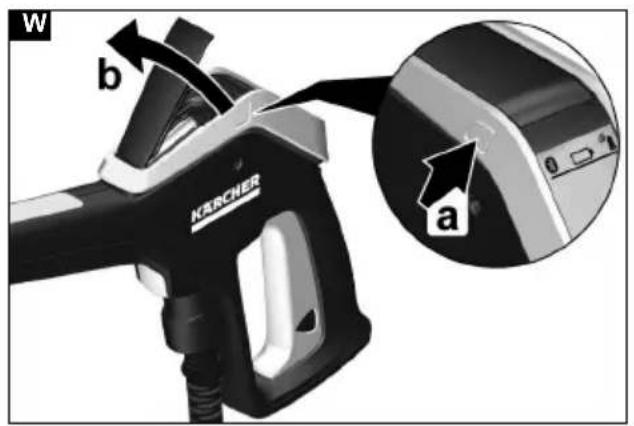

Illustration W

1. Open the battery compartment.
2. Remove the battery.
3. Insert new batteries, while paying attention to the correct alignment of the poles.
4. Close the battery compartment.
5. Dispose of the used batteries in accordance with statutory provisions.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

⚠️ DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.
4. If the motor is overloaded and the motor circuit breaker has triggered:

a Switch off the device "0/OFF".

b Allow the device to cool down for 1 hour.

c Switch the device on "I/ON" and resume operation.

Have the device checked by Customer Service if this fault occurs repeatedly.

The device does not start up, the motor buzzes

Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Device does not reach required pressure

The water supply is too low

1. Open the water tap fully.
2. Check the water inlet for an adequate flow rate.
   The sieve in the water connection is dirty.
3. Pull the sieve in the water connection out using flat pliers.
4. Clean the sieve under running water.

Air is in the device.

1. Vent the device:

a Switch on the device without a connected spray lance for a maximum of 2 minutes.
b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
c Connect the spray lance.
d Observe the maximum suction height during suction operation (see chapter Technical data).

Strong pressure fluctuations

1. Clean the high-pressure nozzle:

a Use a needle to remove dirt from the nozzle drill.
b Rinse the high-pressure nozzle from the front with water.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Turn the 3-in-1 Multi Jet spray lance to detergent nozzle "MIX".
2. Check that the Plug 'n' Clean detergent bottle is sitting correctly with the opening facing down in the detergent connection.

No pressure indicator on the high-pressure gun Illustration X

1. Re-establish the connection to the high-pressure cleaner, see chapter Initial Start-Up.

Error messages

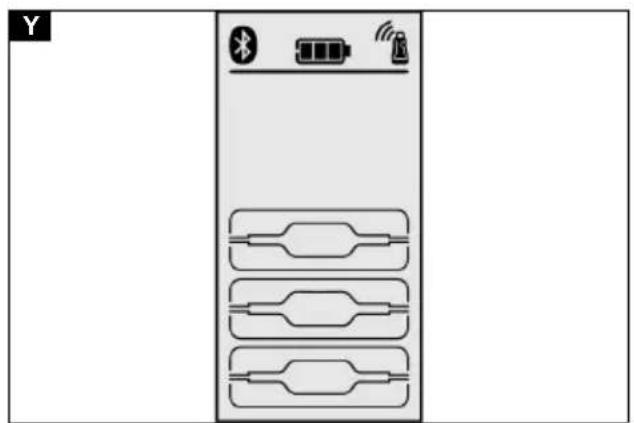

Illustration Y

1. Switch off the device "0/OFF".
2. Pull the mains plug out of the socket.
3. After 20 seconds, insert the mains plug back into the socket.
4. Switch the device on "I/ON". Have the device checked by Customer Service if this fault occurs repeatedly.

Emergency operation

If the pressure regulation on the high-pressure gun is defective, the high-pressure cleaner works at maximum level.

1. Deactivating emergency operation:

a Switch off the device "0/OFF".
b Pull the mains plug out of the socket.
c After 20 seconds, insert the mains plug back into the socket.
d Switch the device on "I/ON".

Have the device checked by Customer Service if this fault occurs repeatedly.

The high-pressure gun is not working properly Illustration Z

An internal error has occurred in the electronics of the high-pressure gun.

1. Press the locking slide.

Illustration W

1. Open the battery compartment.
2. Remove the battery.
3. Insert the batteries, paying attention to the correct alignment of the poles.
4. Close the battery compartment.

Have the high-pressure gun checked by Customer Service if this fault occurs repeatedly.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty

period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address)

Technical data

	K 5 Premium Smart Control		Smart Control
Electrical connection
Voltage	V		230
Phase	~		1
Frequency	Hz		50
Power rating kW 2,1 2,1
Degree of protection IPX5 IPX5
Protection class		I	I
Power protection (slow-blowing)	A	10	10
Water connection
Feed pressure (max.) MPa	1,2	1,2
Input temperature (max.)	°C	40 40
Input amount (min.) l/min	10 10
Suction height (max.) m	0,5	0,5
Device performance data
Operating pressure	MPa	12,5	12,5
Max. permissible pressure	MPa	14,5	14,5
Water flow rate	l/min	7,5 7,5
Maximum flow rate l/min	8,3 8,3
Detergent flow rate	l/min	0,3 0,3
High-pressure gun recoil force	N	17	17
Dimensions and weights
Typical operating weight	kg	15,8	15,7
Length	mm	414 402
Width	mm	306 306
Height	mm	588 588
Radio module SRD
Frequency MHz 868,7-			868,7-
		869,2	869,2
Transmitting power ERP	mW	0,53	0,53
Bluetooth radio module
Frequency GHz 2,45	2,45
Transmitting power ERP	mW	6,3 6,3
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value	m/s^2	1,2 1,2
Uncertainty K	m/s^2	0,6 0,6
Sound pressure level L_pA	dB(A)	77 77
Uncertainty K_pA	dB(A)	3 3
Sound power level L_WA + K uncertainty _WA	dB(A)	93 93

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.324-xxx

Currently applicable EU Directives

2000/14/EC

2014/53/EU ^230

2006/42/EC (+2009/127/EC)

2011/65/EU 50

Harmonised standards used

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.1.1

Conformity evaluation procedure used

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 90

Guaranteed: 93

The signatories act on behalf of and with the authority of the company management.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Documentation supervisor: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contenu

Download on the App Store

Marque déposée

2006/42/CE (+2009/127/CE)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Download on the
App Store

Marchi

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Inhoud

De watertoevoer is te klein

K 5

Premium SmartSmart Control

Zendvermogen ERP mW 0,53 0,53

Draadloze module Bluetooth

Frequentie GHz 2,45 2,45

Zendvermogen ERP mW 6,3 6,3

Berekende waarden conform EN 60335-2-79

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

2006/42/CE (+2009/127/CE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Índice

GET IT ON Google Play Download on the App Store

Marca registada

2006/42/CE (+2009/127/CE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 01/08/2020

Indhold

Download on the App Store

Varemærke

2006/42/EF (+2009/127/EF)

2011/65/EU

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Indhold

Generelle merknader 63

KÄRCHER Home & Garden-app 63

Miljøvern.... 64

Forskriftsmessig bruk 64

⑥ Apparatbryter "0/OFF" / "I/ON"

2006/42/EF (+2009/127/EF)

2011/65/EU

Anvendte harmoniserte standarder

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.1.1

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 90

Garantert: 93

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2020/08/01

Innehåll

Allmän information....70

KÄRCHER Home & Garden-app.... 70

Miljöskydd....70

Download on the
App Store

Varumärke

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2020-08-01

Sisältö

GET IT ON Google Play Download on the App Store

Tavaramerkit

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Dokumentointivastaava: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2020/08/01

Περιεχόμενα

Download on the App Store

Εμπορικό σήμα

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2020/08/01

İçindekiler

Genel uyarılar 91

2006/42/AT (+2009/127/AT)

2011/65/AT 50

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Содержание

Download on the App Store

Товарный знак

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Obsah

Download on the App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Zmocněnec pro dokumentaci: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

Winnenden, 2020/08/01

Kazalo

Splošna navodila.... 119

Aplikacija KÄRCHER Home & Garden 119

Zaščita okolja 120

Namenska uporaba.... 120

Pribor in nadomestni deli.... 120

Obseg dobave.... 120

Opis naprave.... 120

Varnostne naprave 121

Simboli na napravi.... 121

Montaža 121

Prvi zagon 121

Zagon 122

Obratovanje.... 122

Transport.... 124

Skladiščenje 124

2006/42/ES (+2009/127/ES)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 1. 8. 2020

Spis treści

Download on the
App Store

Znak towarowy

Diagram showing three identical electrical or circuit components with labeled terminals and internal connections

2006/42/WE (+2009/127/WE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

GET IT ON Google Play Download on the App Store

Marcă comercială

Directive UE relevante

2000/14/UE

2014/53/UE

2006/42/UE (+2009/127/UE)

2011/65/UE

Norme armonizate aplicate

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.1.1

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Obsah

Všeobecné upozornenia.... 141

KÄRCHER Home & Garden App.... 141

Download on the App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EÚ

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.08.2020

Sadržaj

Opće napomene 148

Aplikacija KÄRCHER Home & Garden...... 148

Zaštita okoliša 148

Download on the App Store

Zaštitni znak

- Bluetooth®naziv marke i logotipi registrirani su zaštitni znakovi tvrtke Bluetooth SIG, Inc. Bilo koja upotreba tih znakova od strane tvrtke Alfred Kärcher SE & Co. KG vrši se na temelju licence.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 1.8.2020.

Sadržaj

Opšte napomene	155
KÄRCHER Home & Garden aplikacija	155
Zaštita životne sredine	155
Namenska upotreba	155
Pribor i rezervni delovi	155
Obim isporuke	155
Opis uređaja	155
Sigurnosni uređaji	156
Simboli na uređaju	156
Montaža	156
Prvo puštanje u rad	157
Puštanje u pogon	157
Rad	157
Transport	159
Skladištenje	159
Nega i održavanje	159
Pomoć u slučaju smetnje	160
Garancija	160
Tehnički podaci	161
EU izjava o usklađenosti	161

Opšte napomene

Pre prve upotrebe, pročitajte originalna uputstva za upotrebu i priložene bezbednosne instrukcije. Postupajte u

skladu sa tim.

Sačuvajte obe knjižice za buduću upotrebu ili sledeće vlasnike.

KÄRCHER Home & Garden aplikacija

GET IT ON Google Play Download on the App Store

Robna marka

• Bluetooth ^® reč i logotipi su registrovani zaštitni znaci kompanije Bluetooth SIG, Inc. Svaka upotreba ovih marki od strane kompanije Alfred Kärcher SE & Co. KG se vrši pod licencom.
• Google Play™ i Android™ su marke ili registrovani zaštitni znaci kompanije Google Inc.
• Apple ^® i App Store ^® su marke ili registrovani zaštitni znaci kompanije Apple Inc.

2006/42/EZ (+2009/127/EZ)

2011/65/EU

230

Primenjene harmonizovane norme

EN 50581

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 300 220-2 V3.1.1

EN 300 328 V2.1.1

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2020/08/01

Съдържание

Общи указания 161

Приложение KÄRCHER Home & Garden ..... 162

Download on the App Store

Търговска марка

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2020/08/01

Sisukord

Üldised juhised 170

KÄRCHER Home & Garden App.... 170

Keskkonnakaitse 170

Download on the App Store

Kaubamärk

Diagram showing two identical electrical panel layouts with labeled components and connections

Toode: Körgsurvepesur

Tüüp: 1.324-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2020/08/01

Saturs

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

GET IT ON Google Play Download on the App Store

Prekės ženklas

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Black and white stylized hand icon with thumbs up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

QR code image with a central logo, likely linking to a digital resource or website.
