USER MANUAL K5 Premium Smart Control Home Kärcher

dB(A) 93 93 K 5 Premium Smart Control Smart Control Chairman of the Board of Management Director Regulatory Affairs & Certification H. Jenner S. Reiser14 English Contents General notes Read these original operating instruc- tions and the enclosed safety instruc- tions before using the device for the first time. Proceed accordingly. Keep both books for future reference or for future own- ers. KÄRCHER Home & Garden app The device can be controlled by direct operation on the high-pressure gun or via a mobile device equipped with Bluetooth

wireless technology. The KÄRCHER Home & Garden app is required for this. The app also contains: Installation and initial startup information Information about the areas of application Tips & Tricks FAQ with detailed troubleshooting Connection to the KÄRCHER Service Centre The app can be downloaded here: Trademarks Bluetooth

wordmarks and logos are registered trademarks of Bluetooth SIG, Inc. Any use of these trademarks by Alfred Kärcher SE & Co. KG is under license. Google Play™ and Android™ are trademarks or registered trademarks of Google Inc. Apple

• are trademarks or registered trademarks of Apple Inc. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic appliances contain valu- able, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the envi- ronment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish. Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator. Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil. Extraction of water from public waterways is not permitted in some countries. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Intended use Use the high-pressure cleaner in private households only. The high-pressure cleaner is intended for cleaning ma- chines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet. Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer. Description of the device The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging). For the illustrations, refer to the graphics page Illustration A Illustration B 1 Stand with carrying handle 2 Water connection with integrated sieve 3 Transport wheel 4 Visor 5 Hose guide General notes p. 14
• KÄRCHER Home & Garden app p. 14
• Environmental protection p. 14
• Intended use p. 14
• Accessories and spare parts p. 14
• Scope of delivery p. 14
• Description of the device p. 14
• Safety devices p. 15
• Symbols on the device p. 15
• Assembly p. 15
• Initial Start-Up p. 16
• Initial startup p. 16
• Operation p. 17
• Transport p. 18
• Storage p. 18
• Care and service p. 18
• Troubleshooting guide p. 19
• Warranty p. 19
• Technical data p. 20
• EU Declaration of Conformity English 15 6 Trigger "0/OFF" / "I/ON" 7 Storage for spray lance 8 High-pressure hose 9 *Plug 'n' Clean detergent bottle 10 Storage / parking position for high-pressure gun 11 3-in-1 multi-jet spray lance with 3 spray types (see also chapter Smart Control System) 12 Smart Control high-pressure gun 13 LCD display (see also chapter LCD display) 14 Battery compartment lock 15 Battery compartment 16 “+/-” buttons for pressure control 17 High-pressure gun lock 18 Button for separating the high-pressure hose from the high-pressure gun 19 High-pressure gun lever 20 Transport handle, telescoping 21 Carrying handle 22 Hose holder 23 High pressure hose reel 24 Crank handle for hose reel 25 Type plate 26 Accessory compartment 27 Hook for net attachment 28 Accessory compartment net 29 Mains connection with mains plug 30 Supplied screws and dowels 31 Water connection coupling 32 **Garden hose with commonly available coupling – Fabric reinforced – Diameter of at least 1/2 inch (13 mm) – Length at least 7.5 m 33 **KÄRCHER suction hose for water supply from open containers (order no. 2.643-100.0) 34 *Foam nozzle with detergent container The detergent is sucked out of the container to pro- duce a strong detergent foam. 35 *Rotating washing brush (e.g. for washing cars) p. 20

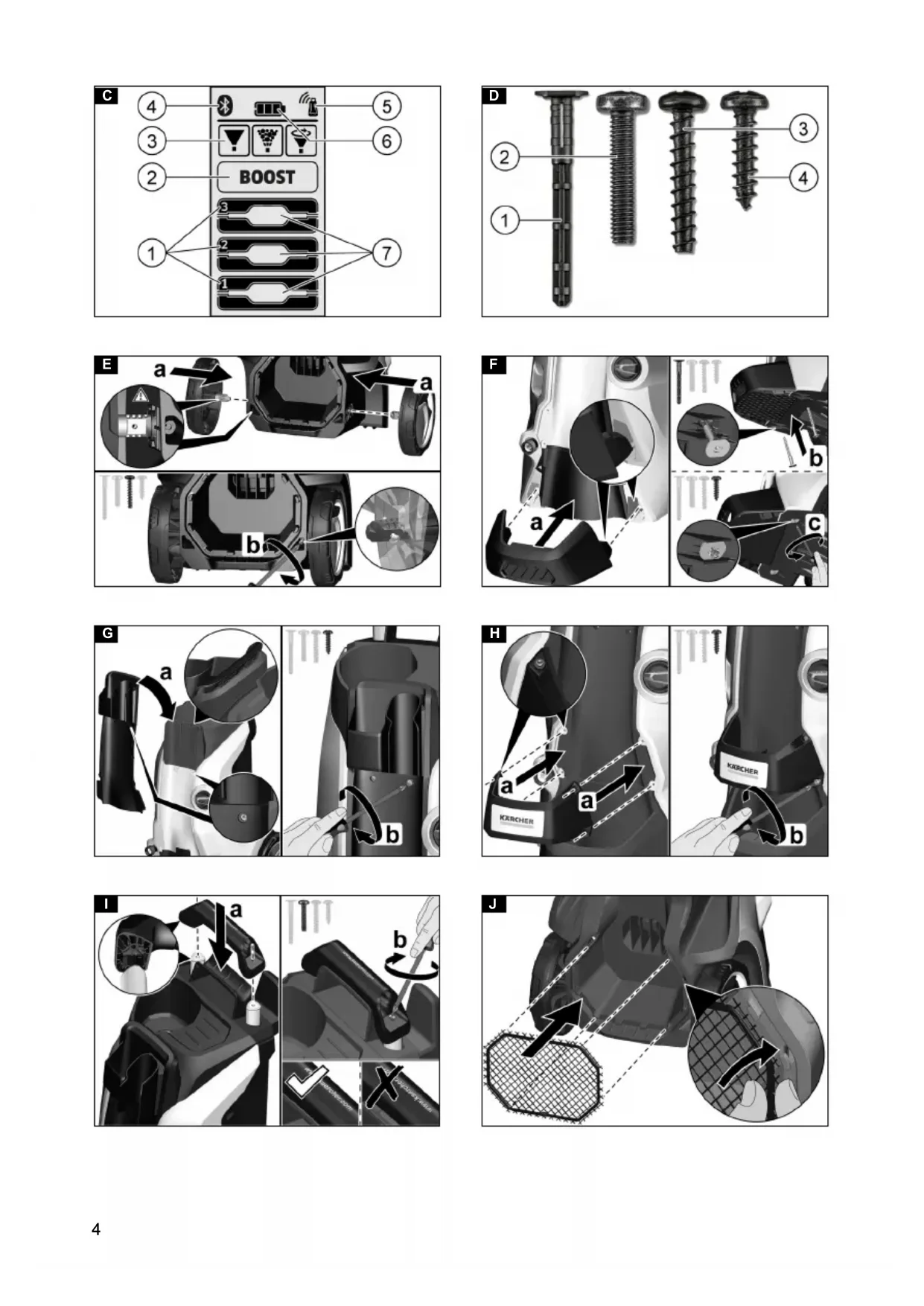

• optional, ** additionally required LCD display Illustration C 1 Area of application (1-SOFT / 2-MEDIUM / 3-HARD with 2 pressure levels each) 2 BOOST function indicator 3 Spray type recommendation (flat stream/detergent/ dirt grinder) 4 Display Bluetooth

connection 5 Signal strength status (four levels) 6 Battery status (empty, almost empty, medium, full) 7 Detergent level (1 / 2 / 3) Supplied screws and dowels Illustration D 1 Stand dowels (2 pieces) 2 Screw M 4x20 (2 pieces) 3 Screw M 4x22 (2 pieces) 4 Screw M 4x16 (8 pieces) Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. Power switch The power switch prevents unintentional operation of the device. High-pressure gun lock The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally. Auto-stop function If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pres- sure jet stops. The pump switches on again when the le- ver is pressed. Motor circuit breaker The motor circuit breaker shuts off the device if power consumption it too high. Symbols on the device Assembly For the illustrations, refer to the graphics page. Place the screws provided and matching screwdriver at the ready. Fit the supplied loose parts onto the device before start- ing up the device. Fitting the wheels

1. Insert the wheels.

Note Pay attention to the alignment of the hole. Illustration E

2. Secure the wheels with 1 screw each.

2. Insert the 2 dowels into the holes as far as they will

3. Secure the base with 2 screws.

Installing the spray lance storage

1. Hang the spray lance storage in position.

2. Secure the storage with 2 screws.

3. Secure the cover with 4 screws.

Illustration H Do not aim the high-pressure jet may at per- sons, animals, live electrical equipment or the device itself. Protect the device against frost. The device may not be connected to the public drinking water network.16 English Mounting the transport handle

1. Attach the transport handle.

2. Secure the transport handle with 2 screws.

Mounting the accessory net

1. Hang the accessory net on the hooks.

Illustration J Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose

guide from the rear. Illustration K Installing the water connection coupling

1. Screw the water connection coupling onto the water

connection on the device. Illustration L Initial Start-Up Note If you do not want to control the device by mobile device via a Bluetooth

connection, you only have to follow the steps in the section "Connecting the high-pressure gun". Download the app and register your device

1. Download the KÄRCHER Home & Garden app (see

3. Log in to the KÄRCHER Home & Garden app. If

necessary, create an account for this.

4. Scan the enclosed QR code.

The high-pressure cleaner is registered. Note If you do not have the enclosed QR code at hand, you can also register the device with the part number and se- rial number. Both numbers are given on the type plate.

5. Follow the instructions of the KÄRCHER Home &

Garden app. Note Be sure to do this before connecting the high-pressure gun Bluetooth

Activate on your mobile device. Connecting the high-pressure gun Note You can find a detailed description of the connection at https://www.kaercher.com/FCR.

6. Plug the mains plug for the high-pressure cleaner in-

to a socket. The device switches to coupling mode for 60 s. Dur- ing this time it is possible to couple the high-pres- sure gun.

7. Press the "+" key and the "-" key on the high-pres-

sure gun simultaneously for at least 3 s. If the coupling is successful, the pressure levels, as well as the radio and the Bluetooth

connection between the mobile de- vice and the high-pressure cleaner is established automatically. Note If necessary, you can also establish the Bluetooth

con- nection at a later time by pressing the "-" key for 10 s.

8. If the coupling attempt failed:

a Pull the mains plug for the high-pressure cleaner out of the socket. b Wait 20 s. c Couple the high-pressure gun again. Initial startup

1. Place the device on a flat and level surface.

2. For devices with a hose reel:

Completely unwind the high-pressure hose from the hose reel.

3. For devices without a hose reel:

Unwind the high- pressure hose completely and eliminate any loops and twists.

4. Pull the high-pressure hose all the way forwards

through the hose guide.

5. Insert the high-pressure hose into the high-pressure

gun until it audibly latches into place. Note Take care to ensure the correct alignment of the nipple. Illustration N

6. Check for a secure connection by pulling on the

7. Plug the mains plug into a mains socket.

Water supply For the connection values, see the type plate or chapter Technical data. Observe the water distribution company regulations. ATTENTION Damage through contaminated water Contamination in the water can damage the pump and the accessories. KÄRCHER recommends using the KÄRCHER water fil- ter for protection(special accessory, order number 4.730-059). Connection to the water line ATTENTION Hose coupling with Aquastop on the water connec- tion of the device Damage to the pump Never use a hose coupling with Aquastop on the water connection of the device. You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection

2. Connect the garden hose to the water line.

3. Open the water tap fully.

Illustration O Sucking water from open containers When used with the KÄRCHER suction hose with check valve (special accessory, order number 2.643-100) this high-pressure cleaner is suitable for sucking up surface water, e.g. from rain barrels or ponds (for the maximum suction height see chapter Technical data). The water connection coupling is not required for vacu- uming operation.

1. Fill the suction hose with water.

2. Screw the suction hose onto the device water con-

nection and hang it in a water source (e.g. water butt). Vent the device

1. Switch the device on "I/ON".

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun.

The device switches on.

4. Allow the device for run a maximum of 2 minutes un-

til the water escaping from the high-pressure gun is free of air bubbles.

5. Release the lever of the high-pressure gun.

6. Lock the lever of the high-pressure gun.English 17

Operation ATTENTION Pump running dry Damage to the device If pressure does not build up in the device after 2 min- utes then switch the device off and proceed according to the instructions in chapter Troubleshooting guide. Smart Control System The "+/-" buttons on the high-pressure gun can be used to select the pressure and detergent dosing levels. The spray type can be changed by turning the 3-in-1 multi jet spray lance. Note The sensitivity of materials can vary greatly depending on age and condition. The recommendations are there- fore not binding. High-pressure operation ATTENTION Damage to painted or sensitive surfaces Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used. Maintain a minimum spray distance of 30 cm when cleaning painted surfaces. Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt grinder.

1. Insert the 3-in-1 Multi Jet spray lance and turn by

90° to fasten it. Be aware of the orientation! Illustration P ATTENTION Spray type change when the lever of the high-pres- sure gun is pressed Damage to the spray lance Let go of the lever of the high-pressure gun before changing the spray type.

2. Select the spray type. Do this by turning the 3-in-1

Multi Jet spray lance until the required spray display is visible above.

3. Switch the device on ("I/ON").

4. Unlock the lever of the high-pressure gun.

5. Press the lever of the high-pressure gun.

The device switches on. Activating the BOOST function For cleaning stubborn dirt, the BOOST function can be activated for 30 seconds regardless of the pressure lev- el set. This increases the water pressure.

1. Hold down the “+” button on the high-pressure gun

until BOOST is highlighted on the LCD display. Illustration Q After the BOOST function has expired, the device works with the previously set pressure level. As soon as the display stops flashing, the BOOST func- tion is available again. Operation with a washing brush ATTENTION Paint damage Damage to surfaces through a dirty brush Ensure that the washing brush is free from dirt or other particles before using it. Note The device operates at low pressure when using wash- ing brushes. This means that detergent can be mixed with the water.

1. Insert the washing brush into the high-pressure gun

and turn by 90° to fasten it. Operation with detergent DANGER Failure to adhere to the safety data sheet Incorrect handling of the detergent can seriously dam- age your health Observe the safety data sheet of the detergent manu- facturer, in particular the instructions on personal pro- tective equipment. Note A Plug ‘n’ Clean detergent bottle is required for operat- ing with detergent. KÄRCHER detergent can be pur- chased ready to use in a Plug ‘n’ Clean detergent bottle.

1. Remove the cover from the Plug ‘n’ Clean detergent

2. Plug the detergent bottle into the Plug ‘n’ Clean de-

tergent connection with the opening facing down. Illustration R Flat jet nozzle Pressure level Display Recommended for e.g. Stone terraces, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.) Cars / motorcycles, brick surfaces, plastered walls, plastic furniture Wooden surfaces, bicy- cle, sandstone surfaces, rattan furniture Dirt grinder Pressure level Display Recommended for e.g. For particularly stubborn dirt on stone terraces, asphalt, metal surfaces, garden utensils (wheel- barrow, spade, etc.) Detergent nozzle Pressure level Display Recommended for e.g. Operation with deter- gent. Dosing the deter- gent concentration as needed18 English

3. Turn the 3-in-1 Multi Jet spray lance to the "MIX"

cleaning nozzle until the "MIX" LCD on the pressure indicator of the high-pressure gun lights up. The detergent solution is mixed with the water jet during operation.

4. Using the “+/-” buttons of the high-pressure gun, set

the desired detergent concentration.

5. You can optionally use the foam nozzle.

a Fill the detergent solution into the detergent tank. Adhere to the dosage specifications on the deter- gent container. b Connect the foam nozzle to the detergent con- tainer. c Insert the foam nozzle into the high-pressure gun and turn by 90° to fasten it. Illustration S Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and

let it work for a while (do not let it dry).

2. Rinse off the loosened dirt with the high-pressure

jet. After operation with detergent

1. Pull the Plug ‘n’ Clean detergent bottle out of the

mount and close it with the cap before transporting the device lying down.

2. Store the detergent bottle in the holder with the lid

3. Operate the device for about 30 seconds at deter-

gent level 1 to rinse it clean. Interrupting operation

1. Release the lever of the high-pressure gun.

The device switches off when the lever is released. The high pressure in the system is retained.

2. Lock the lever of the high-pressure gun.

3. Place the high-pressure gun with the spray lance in

the parking position.

4. Switch the device off "0/OFF" during work breaks

longer than 5 minutes. Ending operation 몇 CAUTION Pressure in the system Injuries from high-pressure water escaping uncontrolla- bly Only disconnect the high-pressure hose from the high- pressure gun or the device when the system is fully de- pressurised.

1. Release the lever of the high-pressure gun.

2. Close the water tap.

3. Press the lever of the high-pressure gun for 30 sec-

onds. The pressure remaining in the system is discharged.

4. Release the lever of the high-pressure gun.

5. Lock the lever of the high-pressure gun.

6. Disconnect the device from the water supply.

7. Switch off the device "0/OFF".

8. Pull the mains plug out of the socket.

Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transporta- tion. Carrying the device

1. Lift and carry the device by the carrying handles.

1. Pull the transport handle out until it audibly latches

2. Pull the device via the transport handle.

Transporting the device in a vehicle

1. Before transporting lying down, pull the Plug ‘n’

Clean detergent bottle out of the mount and close it with the cap.

2. Secure the device against slipping and tipping over.

Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. Storing the device

1. Place the device on a level surface.

2. Disconnect the spray lance from the high-pressure

3. Press the separation button on the high-pressure

gun and disconnect the high-pressure hose from the high-pressure gun. ATTENTION Damage to the high-pressure hose Damage to the high-pressure hose through incorrect di- rection of rotation Observe the correct direction of rotation of the hose reel when winding on the hose.

4. For devices with a hose reel:

Use the crank handle to turn the hose reel anticlockwise and coil up the high-pressure hose.

5. For devices without a hose reel:

Store the high-pres- sure hose on the device.

6. Store the mains connection cable and accessories

on the device. Observe the additional instructions before storing the device for a longer period of time, see chapter Care and service. Frost protection ATTENTION Danger of frost Incompletely emptied devices can be destroyed by frost. Completely empty the device and accessories. Protect the device from frost. The following requirements must be satisfied: The device is disconnected from the water supply. The high-pressure gun is disconnected from the high-pressure hose.

1. Switch the device on "I/ON".

2. Wait for a maximum of 1 minute until no more water

escapes from the high-pressure hose.

3. Switch off the device.

4. Store the device in a frost-protected room, together

with all accessories. Care and service DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the mains plug. The device is maintenance-free, i.e. you do not need to perform any maintenance work.English 19 Clean the sieve in the water connection ATTENTION Damaged sieve in the water connection Damage to the device through contaminated water Check the sieve for damage before inserting it in the wa- ter connection. If necessary, clean the sieve in the water connection.

1. Remove the water connection coupling.

2. Pull the sieve out using flat pliers.

3. Clean the sieve under running water.

4. Insert the sieve into the water connection.

Replacing the batteries of the high-pressure gun Two non-rechargeable or rechargeable AAA batteries are required. The batteries are exhausted if nothing or a flashing bat- tery symbol is visible in the display of the high-pressure gun. Illustration V

2. Open the battery compartment.

3. Remove the battery.

4. Insert new batteries, while paying attention to the

correct alignment of the poles.

5. Close the battery compartment.

6. Dispose of the used batteries in accordance with

statutory provisions. Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. DANGER Danger of electric shock Injuries due to touching live parts Switch off the device. Remove the mains plug. Device not running

1. Press the lever of the high-pressure gun.

The device switches on.

2. Check that the voltage specified on the type plate

corresponds to the voltage of the power source.

3. Check the mains connection cable for damage.

4. If the motor is overloaded and the motor circuit

breaker has triggered: a Switch off the device "0/OFF". b Allow the device to cool down for 1 hour. c Switch the device on "I/ON" and resume opera- tion. Have the device checked by Customer Service if this fault occurs repeatedly. The device does not start up, the motor buzzes Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-

pressure gun and then switch on the device "I/ON". Device does not reach required pressure The water supply is too low

1. Open the water tap fully.

2. Check the water inlet for an adequate flow rate.

The sieve in the water connection is dirty.

1. Pull the sieve in the water connection out using flat

2. Clean the sieve under running water.

Air is in the device.

a Switch on the device without a connected spray lance for a maximum of 2 minutes. b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles. c Connect the spray lance. d Observe the maximum suction height during suc- tion operation (see chapter Technical data). Strong pressure fluctuations

1. Clean the high-pressure nozzle:

a Use a needle to remove dirt from the nozzle drill. b Rinse the high-pressure nozzle from the front with water.

1. The device leaks a small amount for technical rea-

sons. If the leak is severe, request authorised Cus- tomer Service. Detergent is not sucked in

1. Turn the 3-in-1 Multi Jet spray lance to detergent

2. Check that the Plug ‘n’ Clean detergent bottle is sit-

ting correctly with the opening facing down in the de- tergent connection. No pressure indicator on the high-pressure gun Illustration X

1. Re-establish the connection to the high-pressure

cleaner, see chapter Initial Start-Up. Error messages Illustration Y

1. Switch off the device "0/OFF".

2. Pull the mains plug out of the socket.

3. After 20 seconds, insert the mains plug back into the

4. Switch the device on "I/ON".

Have the device checked by Customer Service if this fault occurs repeatedly. Emergency operation If the pressure regulation on the high-pressure gun is defec- tive, the high-pressure cleaner works at maximum level.

1. Deactivating emergency operation:

a Switch off the device "0/OFF". b Pull the mains plug out of the socket. c After 20 seconds, insert the mains plug back into the socket. d Switch the device on "I/ON". Have the device checked by Customer Service if this fault occurs repeatedly. The high-pressure gun is not working properly Illustration Z An internal error has occurred in the electronics of the high-pressure gun.

2. Open the battery compartment.

3. Remove the battery.

4. Insert the batteries, paying attention to the correct

alignment of the poles.

5. Close the battery compartment.

Have the high-pressure gun checked by Customer Service if this fault occurs repeatedly. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty20 Français period free of cost, provided that a material or manufac- turing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Technical data Subject to technical modifications. EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: High-pressure cleaner Type: 1.324-xxx Currently applicable EU Directives 2000/14/EC 2014/53/EU 2006/42/EC (+2009/127/EC) 2011/65/EU Harmonised standards used EN 50581 EN 60335-1 EN 60335-2-79 EN 62233: 2008 EN 300 220-2 V3.1.1 EN 300 328 V2.1.1 Conformity evaluation procedure used 2000/14/EC: Appendix V Sound power level dB(A) Measured: 90 Guaranteed: 93 The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2020/08/01 Contenu K 5 Premium Smart Control Smart Control Electrical connection Voltage V 230 230 Phase ~ 1 1 Frequency Hz 50 50 Power rating kW 2,1 2,1 Degree of protection IPX5 IPX5 Protection class I I Power protection (slow- blowing) A10 10 Water connection Feed pressure (max.) MPa 1,2 1,2 Input temperature (max.) °C 40 40 Input amount (min.) l/min 10 10 Suction height (max.) m 0,5 0,5 Device performance data Operating pressure MPa 12,5 12,5 Max. permissible pressure MPa 14,5 14,5 Water flow rate l/min 7,5 7,5 Maximum flow rate l/min 8,3 8,3 Detergent flow rate l/min 0,3 0,3 High-pressure gun recoil force N17 17 Dimensions and weights Typical operating weight kg 15,8 15,7 Length mm 414 402 Width mm 306 306 Height mm 588 588 Radio module SRD Frequency MHz 868,7- 869,2 868,7- 869,2 Transmitting power ERP mW 0,53 0,53 Bluetooth radio module Frequency GHz 2,45 2,45 Transmitting power ERP mW 6,3 6,3 Determined values in acc. with EN 60335-2-79 Hand-arm vibration value m/s
