Product type	Hood
Brand	Zanussi
Model	ZFCX26R
Category	Hood
Installation	Suction or filtration mode
Number of motor speeds	3
Lighting type	LED bulb 4 W, base E14, Ø37 mm (CANDLE type)
Grease filter	Washable every 2 months (hand or dishwasher, neutral detergent)
Charcoal filter	Non-washable, replace every 4 months
Minimum distance from cooking surface	65 cm
Power supply	220-240 V
Child safety	Usage prohibited for children under 8 without supervision
Exterior cleaning	Soft cloth and neutral detergent, no steam cleaner
Power cable	Do not use an extension or adapter
Grounding	Mandatory if symbol on rating plate
Replacement parts	Use original parts, contact authorized center
Repairability	Call an authorized service center
Lighting control	Button A (light switch)

Frequently Asked Questions - ZFCX26R ZANUSSI

How to install the ZFCX26R hood in suction version?

Installation must be carried out by a qualified professional. Follow the supplied installation instructions. For suction version, connect the exhaust pipe to the outside. Ensure the minimum distance between the cooking surface and the hood is 65 cm.

How to clean the grease filters?

Grease filters must be cleaned at least every 2 months. You can wash them by hand with a neutral detergent or in the dishwasher. Any discoloration does not affect their efficiency.

When to replace the charcoal filter?

The activated charcoal filter is not washable and must be replaced every 4 months of use, or more often with frequent use.

What type of bulb to use for lighting?

Use a LED bulb of type CANDLE, power 4 W, base E14, diameter 37 mm, voltage 220-240 V.

Can the hood be used by children?

This appliance can be used by children aged at least 8 years under supervision. Children under 8 years must not use the appliance without constant supervision.

What is the minimum distance between the hood and the cooking surface?

The minimum distance between the cooking surface and the lower part of the hood is 65 cm, unless otherwise indicated in the installation instructions of the hob.

What to do if the hood does not turn on?

First check that the hood is properly plugged in and that the power supply is working. If the problem persists, contact an authorized service center. Do not attempt to repair yourself.

How to maintain the exterior of the hood?

Clean the exterior with a soft cloth and a neutral detergent. Do not use a steam cleaner, sprayed water, abrasive products, or metal scrapers.

Can the hood be used without a charcoal filter?

Yes, if it is installed in suction version with external evacuation, the charcoal filter is not necessary. In filtration version (recirculation), the charcoal filter is essential to filter odors.

Where to find replacement parts for the ZFCX26R hood?

Use only original replacement parts. Contact a Zanussi authorized service center to obtain parts and repairs.

USER MANUAL ZFCX26R ZANUSSI

User Manual

GETTING STARTED? EASY.

ZHC 62462XA

ZHC 72462XA

ZHC 92462XA

ZFCX 16 X

ZFCX 17 X

ZFCX 19 X

ZFCX 26 R

ZFCT 16X

ZANUSSI

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly to prevent the deterioration of the surface material.
• Clean the appliance with a soft cloth regularly.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

Only a qualified person must install this appliance. - Do not install or use a damaged appliance. - Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. - Before installing the appliance remove all the packaging, the labelling and the protective film. - Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (□) is not printed on the rating plate, the appliance must be earthed. Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools. Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING! Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purposes.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance, contact an Authorised Service Centre.
• Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

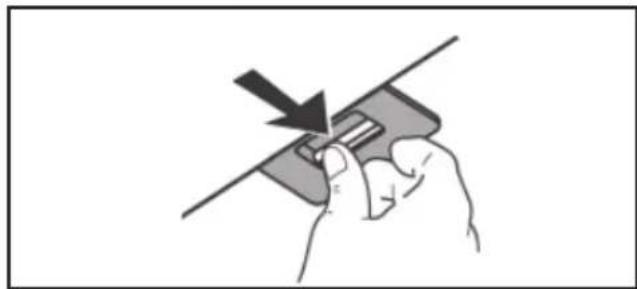

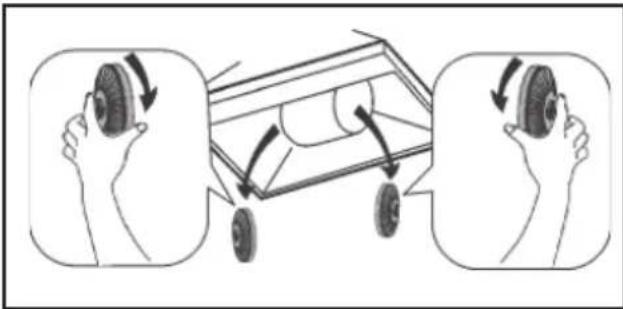

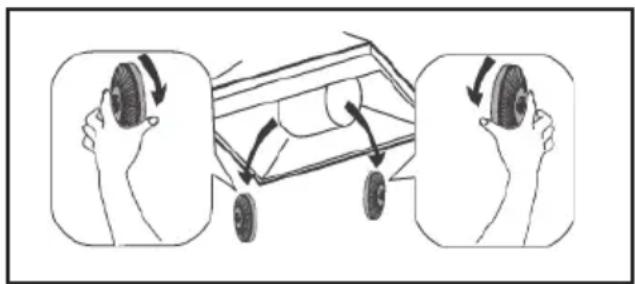

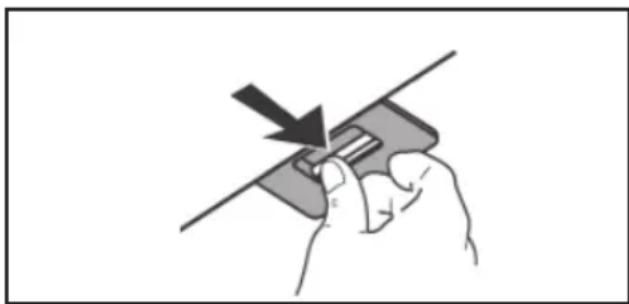

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.

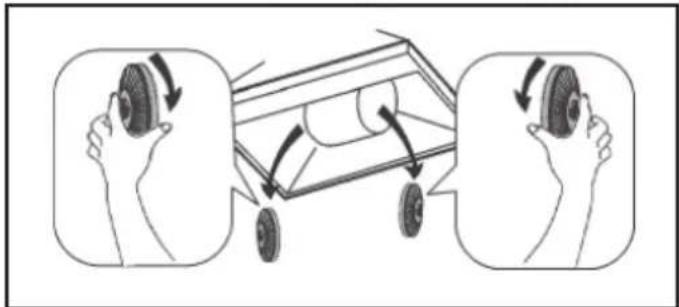

Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

4. CONTROLS

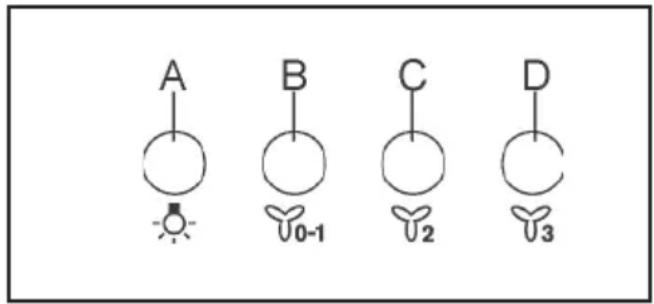

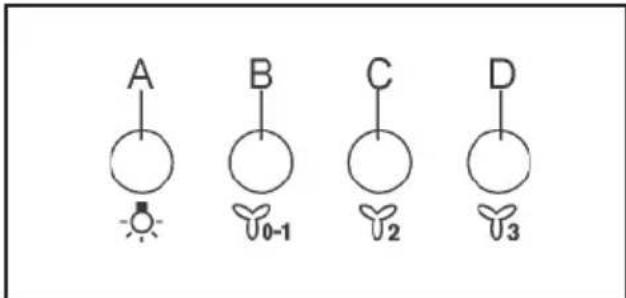

Key A: light switch.

Key B: first speed motor ON/OFF switch.

Key C: second speed switch.

Key D: third speed switch.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION?

The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed. For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifies the air and recycles the clean air back into the room.

6. LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs, ensure they are cooled down.

Replace it with lamps of the same type

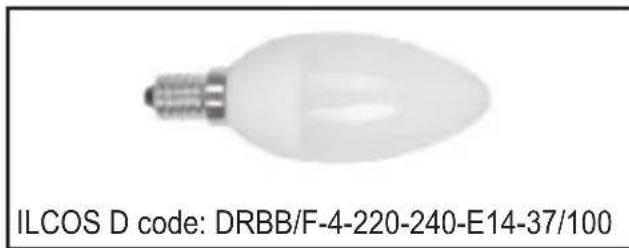

(CANDLE LED 4W, 220-240V, E14, Ø37mm)

ILCOSD code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol.

Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

1.1 Safety of children and persons with limited capabilities

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised. Children below 3 years shall be kept away from the appliance unless continuously supervised.
• Do not allow children to use the appliance as a toy.
• Keep the packaging away from children and dispose of it in an appropriate manner.
• Children and pets must not have access to the operating appliance.
• Children must not perform cleaning or user maintenance of the appliance without supervision.

1.2 General safety rules

Clean the filters with a brush.

Clean the connections using, at least, every 2 months, to avoid the risk of fire.

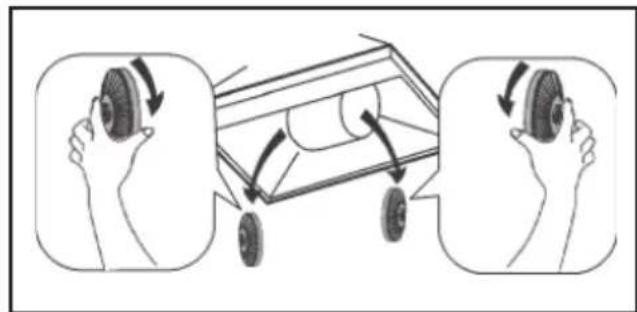

Wash the filters with a mild detergent inside or in a dishwasher. In case of using a dishwasher, slight discoloration of the filters is possible, which does not affect their functionality.

The charcoal filter does not fit for washing, cannot be cleaned, and must be replaced approximately every 4 months of use or more often in case of intensive use.

4. CONTROL ORGANS

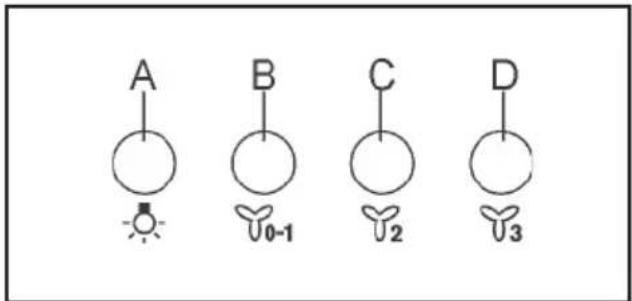

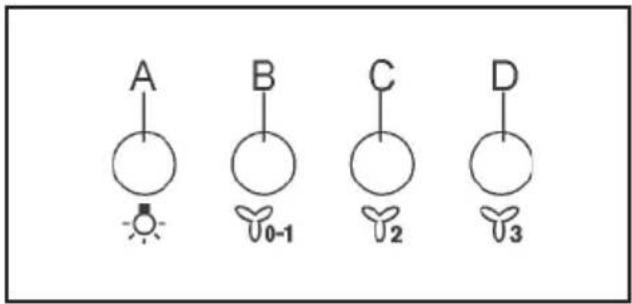

Button A: light switch.

Button B: ON/OFF switch for motor speed I.

Button C: speed switch II.

Button D: speed switch III.

5. INSTALLATION METHODS

FILTERING OR EXTRACTING?

You can choose between a filtering or extracting hood. It is necessary to choose the type of hood from the very beginning for installation. For maximum performance, we recommend installing an extracting type of hood (if possible).

EXTRACTING TYPE

The hood sucks in air and expels it outside through an exhaust pipe.

FILTERING TYPE

The lamp returns to air after air removal.

6. LUBRICATION

Disconnect the exhaust fan from the power source.

Warning! Before touching the lamps, make sure they have cooled down. Replace with lamps of the same type (CANDLE LED 4W, 220-240V, E14, 37mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. DISPOSAL

Materials bearing the symbol must be recycled.

To recycle packaging materials, place them in the appropriate containers for waste.

Waste from electrical and electronic equipment must be recycled to protect the environment and human health.

Devices with the symbol must not be disposed of with household waste.

The product should be sent to a local recycling center or contact local authorities.

The production date of this product is indicated in the serial number (Serial Number), where the first digit of the number corresponds to the last digit of the year of production, the second

and third digits correspond to the week number.

For example, serial number 71012345

means that the product was manufactured in the tenth week of 2017.

Manufactured by the manufacturer

Organization: LLC "Electrolux Rus",

Kozhevnichesky proezd 1, 115114, Moscow; Tel.: [phone].

5. INSTALLATION METHODS

The lamp can be either a recyclable version or a disposable one. It is necessary to check which version is installed. For maximum productivity, we recommend installing the disposable version of the lamp (if possible).

Disposable version

The lamp cleans the air and outputs clean air through the inlet channels.

Recyclable version

The lamp cleans the air and reintroduces the already cleaned air back into the room.

6. LIGHTING DEVICE

Disconnect the lamp from the power supply.

Devices with a sign should not be used with household waste.

The product must be sent to a local recycling facility or returned to the local authority

(CANDLE LED 4W,220-240V,E14,037mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL PROTECTION

5. INSTALLATION METHODS

DUCTED OR FILTER VERSION?

The hood can be in filter or ducted version. It is necessary to decide which version will be installed. Due to better efficiency, we recommend installing the hood in the ducted version (if possible).

Ducted version

The hood purifies the air and expels it outside through a duct.

Filter version

The hood purifies the air and then recirculates it back into the room.

6. LIGHTING

The hood must be disconnected from the electrical power supply.

Warning! Before touching the bulb, make sure it is cool.

To replace the lamp, use the same type (CANDLE LED 4W, 220-240V, E14, Ø37mm).

7. ENVIRONMENTAL PROTECTION

Materials marked with the symbol must be recycled.

To dispose of packaging materials for recycling, place them in the appropriate containers for waste. Electrical and electronic appliances must be recycled to help protect the environment and human health. Equipment marked with

Do not dispose of with household waste.

The project manager at the local waste treatment facility will contact the local authorities.

The device is intended for use in household waste. The device must not be disposed of with unsorted municipal waste. For disposal, please contact the local waste collection point or local authorities.

1.1 Safety of children and vulnerable persons

• This device can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children aged 3 to 8 can load and unload the device, provided they are supervised. Children under 3 must be kept away from the device unless continuously supervised.
• Children must not play with the device.
• Cleaning and user maintenance must not be performed by children without supervision.
• Children and pets must not sit on the device.
• Do not allow children to operate or service the device without supervision.

1.2 General safety instructions

The device is intended for use in household and similar applications. Before performing any maintenance, disconnect the device from the power supply. CAUTION: The device can be hot during operation. Keep children and pets away from the device while it is in use; if they are not supervised, they may be at risk.

Keep children and pets away from the device.

The device must be installed in accordance with the installation instructions. - If the installation is carried out with the use of additional accessories, the device must be installed at a distance of at least 65 cm from the side surfaces of the device to the side surfaces of the additional accessories. If the additional accessories are installed with the device, they must be removed. - The device must be prepared for connection to the mains in accordance with the instructions. - To prevent the ingress of any other types of gases, including open flames, into the device, the installation must be carried out in such a way that the device is protected from the backflow of gases. - When installing the device, do not place it near other devices that emit heat, such as ovens, radiators, water heaters, etc. The device must be installed at a distance of at least 0.04 m from other devices. - The device must be connected to the mains through a properly installed socket. To disconnect the device from the mains, contact our service center or an electrician. If the device is connected to the mains directly, it must be equipped with a device that allows disconnection from the mains in case of emergency. The disconnection must be carried out in accordance with the safety regulations. The device must be connected to the mains with a cable that is suitable for the load. Do not bend the device's cable. Do not use the device if the cable or plug is damaged. - The device must be cleaned regularly to ensure proper operation. Wipe the device with a soft cloth. To clean the device, use only mild detergents and water.

Do not use abrasive cleaners, solvents, or sharp objects to clean the device. Only use mild cleaning agents.

• To prevent the risk of electric shock, clean the device regularly (at least every 2 months) and remove dust from the device. Do not use water or liquid cleaners to clean the inside of the device.

2. INSTALLATION INSTRUCTIONS

2.1 Installation

CAUTION! Risk of electric shock, short circuit, or fire.

The device must be installed only by a qualified technician. Do not install or use the device if it is damaged. Keep the installation instructions that come with the device. Be careful when handling the device and ensure it is stable during installation. - Do not install the device near flammable materials. Before installation, remove all packaging materials, protective films, and flammable components. If the device is installed in a cabinet, ensure that the cabinet is suitable for the purpose.

2.2 Electrical Connection

CAUTION! Risk of electric shock and short circuit.

• Do not use the device for purposes other than its intended use. Follow the safety parameters during operation. If the device is not working properly on the technical side, it must be handed over for repair.
• The device must be used only for its intended purpose. Do not exceed the operating time.

Do not use the device near flammable materials or explosive substances. - If the socket is empty, do not connect the device to it. Do not pull the device by the cord. Do not touch the plug with wet hands. To protect against electric shock and fire, install protective devices. Do not operate the device without supervision. During operation, the device may become hot. Do not touch the device immediately after operation. After operation, allow the device to cool down before touching it.

2.3 Connection

CAUTION! The device has a heating element.

The device is intended only for smoking tobacco. Do not use it for any other purpose. Do not modify the device technically. Do not use the device with wet hands or in a damp environment. Do not use the device together with flammable or hazardous materials. When cleaning and maintaining, use a dry cloth or brush. Do not use abrasive cleaners. Do not use the device near flammable liquids or gases. Do not use the device with accessories not intended for it, such as covers, caps, or other parts.

2.4 Maintenance

Contact the service center for maintenance of the device. Only use original spare parts.

2.5 Disposal

CAUTION! The device contains a battery or a heating element.

The device must be disposed of in accordance with local regulations. Do not dispose of the device with household waste. Remove the battery from the device and dispose of it separately.

3. TECHNICAL MAINTENANCE

To avoid any damage, do not expose the device to temperatures below 2°C.

Do not use the device in high or low temperatures. High temperatures can damage the device and affect its performance.

Do not use the device with wet hands and do not immerse it in water. After use, clean the device with a dry cloth and store it in a cool, dry place.

4. BACKUP ELEMENTS

A. First: Red wire.

B. Second: Connect the blue wire to the first terminal. C. Third: Connect the second terminal. D. Fourth: Connect the third terminal.

5. FILTER SYSTEM

IS THE FILTER NEEDED?

The filter may be needed. You should install the filter according to the instructions. For best performance, we recommend installing the filter (if possible).

Filter

The filter is installed using the mounting bracket.

Filter

The filter is installed and replaced as needed.

End D: Third brush on the motor.

5. INSTALLATION METHODS

5. INSTALLATION METHODS

FILTERED VERSIONS OR DUCTED?

The aspirator can be in filtered or ducted version. You must decide which version will be installed.

For best performance, we recommend installing the hood in the ducted version (if possible).

Ducted version

5. INSTALLATION METHODS

DUCTED OR FILTER VERSION?

The hood can be in the filter or ducted version. It is necessary to decide which version will be installed. Given the better efficiency, we recommend installing the hood in the ducted version (if possible).

Ducted version

The hood purifies the air and expels it outside through the duct.

Filter version

The hood purifies the air and recirculates it back into the room.

6. LAMP

(LED CANDLE W4, V240-220, 14E, mm37)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

4.2

+

1.2

a 1

2.2

y

aBwB aBbSll 1

.

yaleaiee eae gall cialgall jn 51

y 1

，y（）j（）

J 1

logan

C

.

yaiill 1xil, jgail 0i y gao

.

j. jai jai y

yessall 1jLl laoall jayas

1
