USER MANUAL IAN 300075 AURIOL

HG03879D HG03879D5 GB/IE/NI List of pictograms used ....................................... Page 6 Introduction .................................................. Page 6 Intended use................................................ Page 7 Description of parts ........................................... Page 7 Technical data ................................................ Page 7 Scope of delivery ............................................. Page 8 Before first use ............................................... Page 8 Changing the battery......................................... Page 8 Setting the time............................................... Page 8 Timing (HG03879D)........................................... Page 9 Water resistance ............................................. Page 9 Adjusting the watch strap (HG03879B) ........................ Page 9 Adjusting the watch strap (HG03879D) ....................... Page 10 Removing segments .......................................... Page 10 How to exchange the pin inside the slider (Fig. F, G, H) . . . . . . . . . . . . . . Page 11 Cleaning and care ............................................ Page 11 Disposal...................................................... Page 11 Warranty .................................................... Page 136 GB/IE/NI List of pictograms used Direct current Suitable for rain, washing hands, splashes Suitable for showering, washing up, bathing Suitable for swimming, snorkelling Suitable for wind surfing, scuba diving WATCH Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.7 GB/IE/NI Intended use The product is intended for consumer use only and must not be used in commercial areas. Description of parts

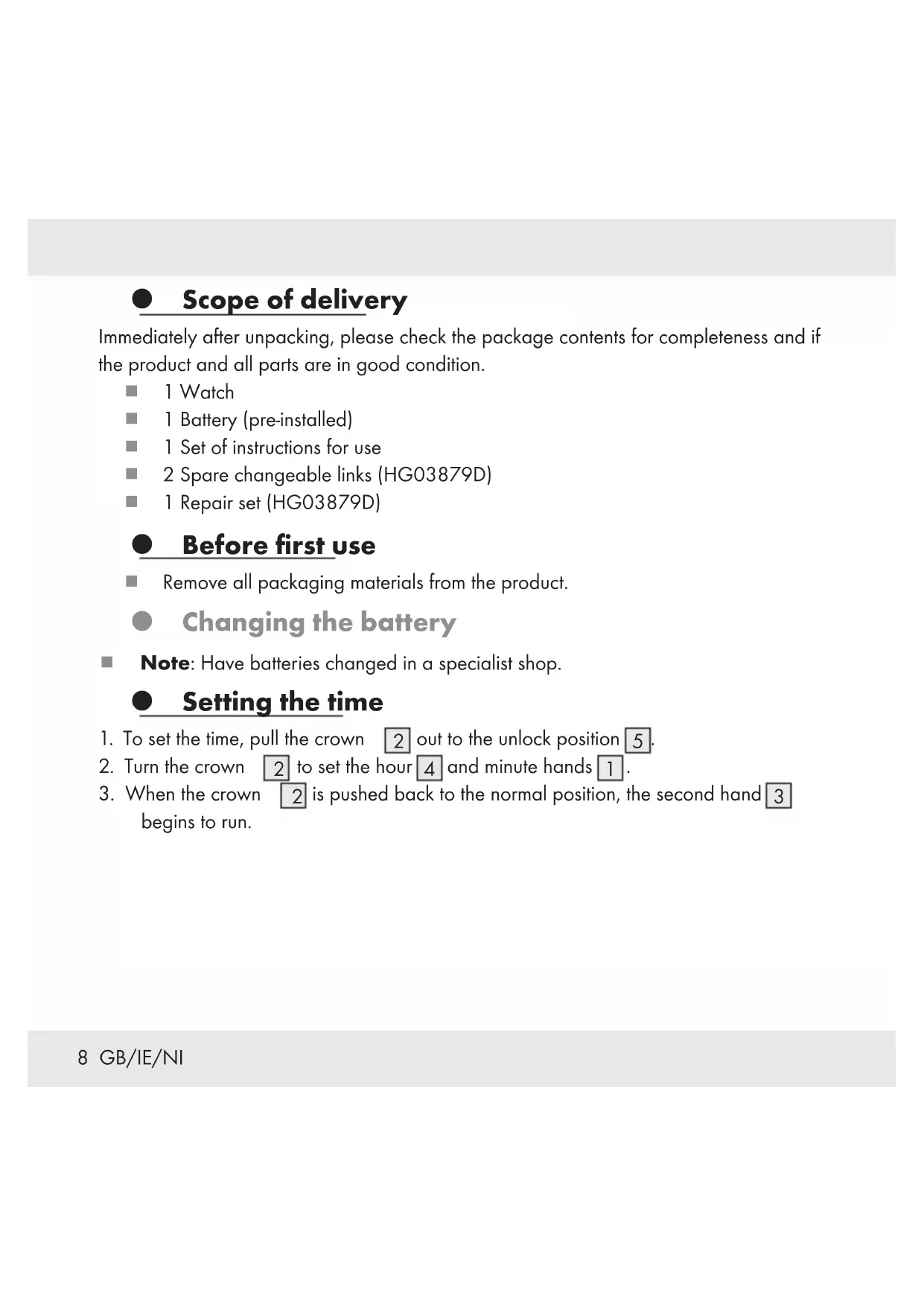

Bottom cover (HG03879D) Technical data Battery: 1 x 1.5 V Button cell (type SR626SW) Model number: HG03879A: Rose gold, gray strap HG03879B: Yellow gold, yellow gold mesh band HG03879C: Gun metal, Black silicon strap HG03879D: Shiny silver, metal band8 GB/IE/NI Scope of delivery Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition. 1 Watch 1 Battery (pre-installed) 1 Set of instructions for use 2 Spare changeable links (HG03879D) 1 Repair set (HG03879D) Before first use Remove all packaging materials from the product. Changing the battery Note: Have batteries changed in a specialist shop. Setting the time

1. To set the time, pull the crown

out to the unlock position

is pushed back to the normal position, the second hand

begins to run.9 GB/IE/NI Timing (HG03879D) The bezel

is used to indicate a period of time (e.g. jogging time). The amount of time elapsed can be read easily from the bezel

in anti-clockwise direction to mark the start of timing. Water resistance Figure C shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use. Adjusting the watch strap (HG03879B) See Fig. D: To adjust the circumference of the strap, use a small flat-head screwdriver (not included) to open the locking plate

in the direction of the arrow. After adjusting the right length, locate the slider

with the indent at the bottom matching the strap indent at the back. Then press down the locking plate

.10 GB/IE/NI Adjusting the watch strap (HG03879D) See Fig. E: Adjust the watch strap by removing segments

(2 spare changeable links are included). To this purpose you should use the repair set

supplied. Removing segments Note: The segments which can be removed are marked with an arrow (see Fig. E). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set

. Use a pair of tweezers (not included) if necessary in order to remove the pins. Place the watch with the dial facing downwards in the repair set

Remove the pins of the segment that you wish to remove (as described above) and take out the segment

Note: If you would like to take out more than one consecutive segment

, it is sufficient to remove the two outer pins. Connect the watch strap together again by joining the loose segments

with a pin. Press this pin against the direction of the arrow into the adjacent segments

.11 GB/IE/NI How to exchange the pin inside the slider (Fig. F, G, H) Take out the slider

, open the bottom cover

inside (Fig. G). You will need the pliers (not included) to carefully remove the old pin from the slider (Fig. H). Insert the spare pin

carefully into the rotating slider
