USER MANUAL HG05230A AURIOL

Operation and safety notes

FR BE

MONTRE SLIMLINE

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

List of pictograms used . Page 15
Introduction. Page 15

Intended use. Page 15

Description of parts.. 16
Technical data.. 16
Scope of delivery.. Page 16
Before first use. Page 16

Changing the battery. Page 16

Setting the time. Page 17
Water resistance . Page 17

Adjusting the watch strap (HG05230D). Page 17
Shortening the watch strap (HG05230E) . Page 18
Cleaning and care . Page 18
Disposal. Page 18
Warranty . Page 20

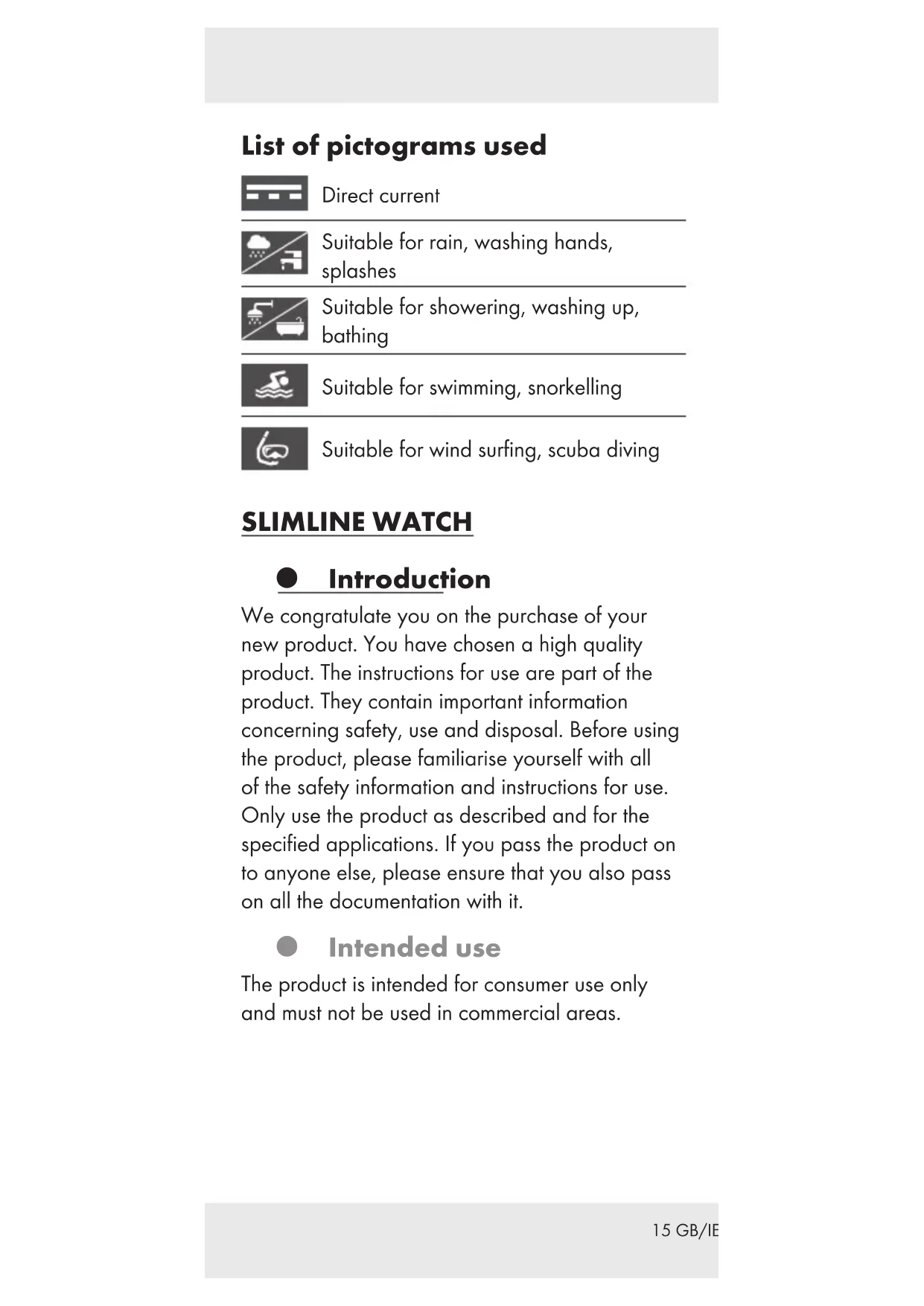

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

SLIMLINE WATCH

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

Description of parts

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 Unlock position
6 Slider (HG05230D)
7 Locking plate (HG05230D)
8 Fastener (HG05230E)

Technical data

Battery: 1 × 1.5V =

Button cell (type SR626SW)

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Battery (pre-installed)
1 Set of instructions for use
1 Spare link (HG05230E)

Before first use

Remove all packaging materials from the product.

- Changing the battery

Note: Have batteries changed in a specialist shop.

Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position, the second hand 3 begins to run.

Water resistance

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

Adjusting the watch strap (HG05230D)

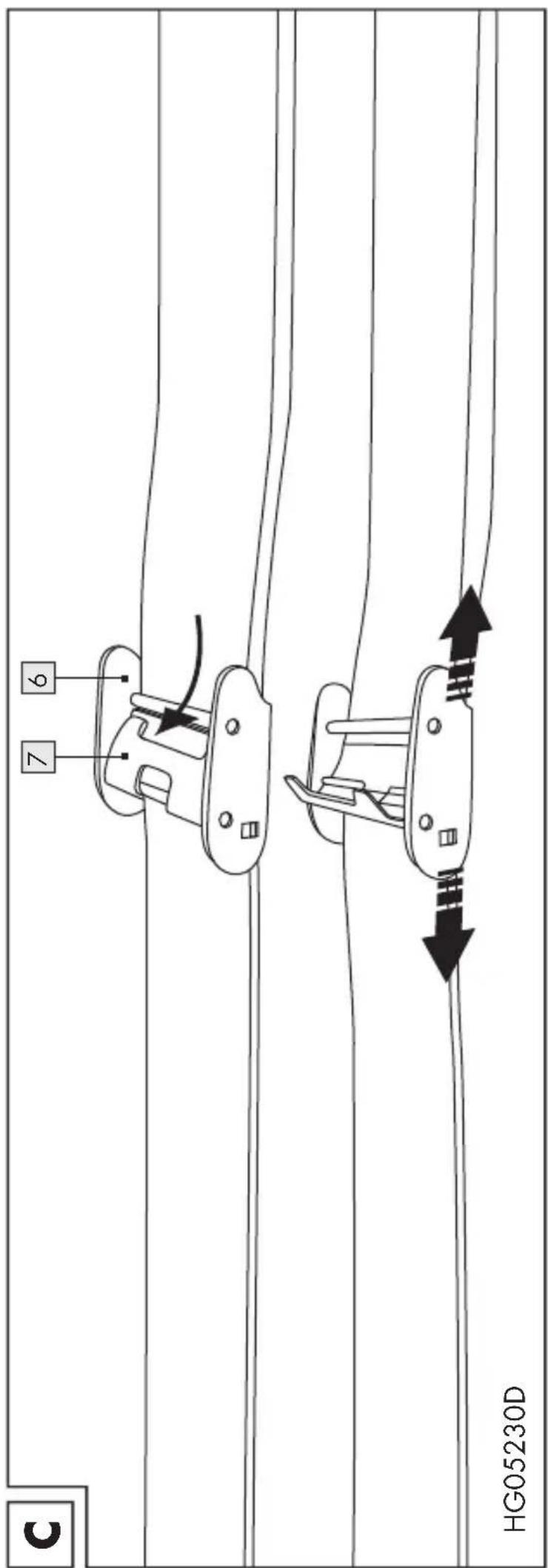

See Fig. C:

To adjust the circumference of the strap, use a small flat-head screwdriver (not included) to open the locking plate 7 of the slider 6 in the direction of the arrow.

After adjusting the right length, locate the slider 6 with the indent at the bottom matching the strap indent at the back. Then press down the locking plate 7

Shortening the watch strap (HG05230E)

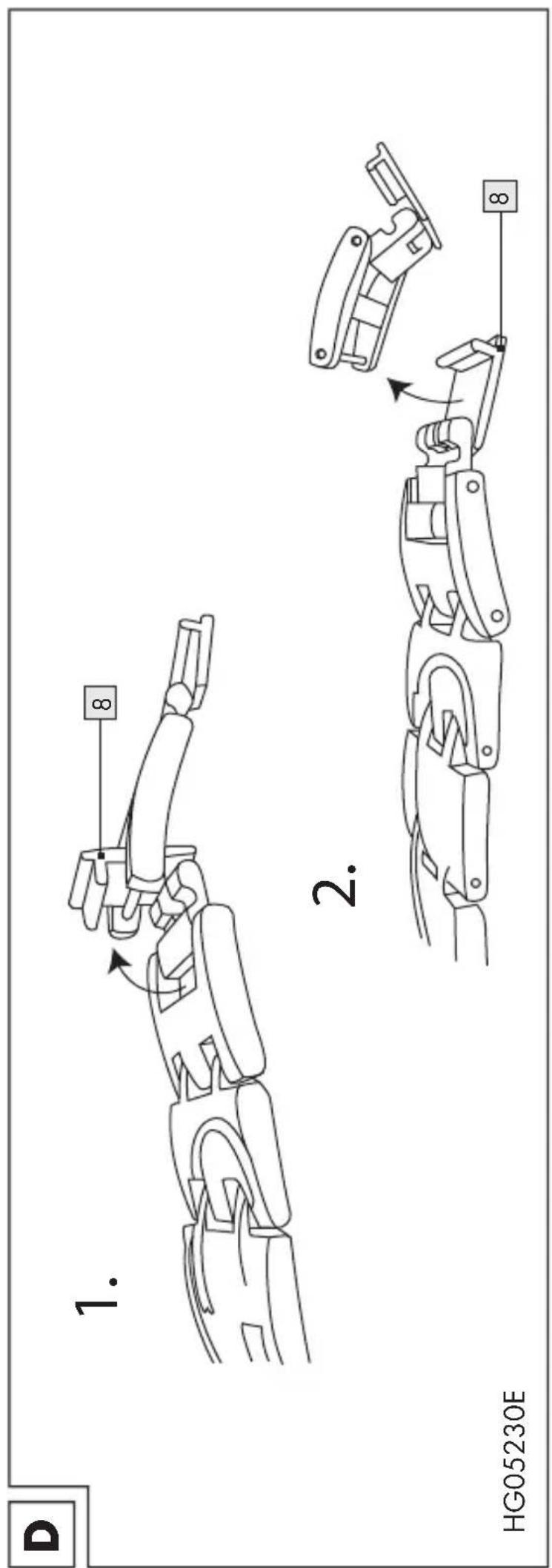

See Fig. D:

To shorten the watch strap, 2 removable segments are included. Open the fastener of the watch strap and the fastener of the removable segment. Remove 1 or 2 segments and re-close the fastener of the watch strap.

Cleaning and care

Clean the product on the outside only with a soft, wet and clean cloth.
Rinse the product under the running water if necessary. Dry thoroughly after rinse.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Pile bouton (type SR626SW)

Model No.: HG05230A-E

Version: 07/2019

IAN 322185_1901
