IAN 289124 - Watch AURIOL - Free user manual and instructions

Product Type	Watch and Jewellery Set
Model Numbers	HG06525A, HG06525B, HG06525C, HG06525D, HG06525E
Water Resistance	3 bar (HG06525A) or 5 bar (others) according to DIN 8310
Battery	Replaceable by specialist shop
Display	Analog with hour, minute, second hands
Time Setting	Pull crown to first position, turn to set hour and minute hands
Strap Adjustment	Removable segments; included repair set with pin pusher
Spare Parts	2 spare segments, spare pin inside slider
Cleaning	Soft, dry cloth only
Warranty	3 years from date of purchase
Service Contact (UK)	Tel: [phone], Email: [e-mail]
Disposal	Recyclable packaging; battery disposal per Directive 2006/66/EC
Safety Notes	Watertightness not permanent; annual check recommended

Frequently Asked Questions - IAN 289124 AURIOL

How do I set the time on my Auriol watch?

Pull the crown out to the first position. Turn the crown to set the hour and minute hands. Push the crown back to start the second hand.

What is the water resistance of this watch?

The water resistance depends on the model: HG06525A is 3 bar (splash resistant), while HG06525B/C/D/E are 5 bar (suitable for swimming). Refer to Figure B in the manual for specific uses.

How do I change the battery?

Battery replacement should be done by a specialist shop to maintain water resistance and avoid damage.

Can I shorten the watch strap myself?

Yes, the strap can be shortened by removing segments marked with arrows. Use the included repair set to push out the pins. If removing multiple consecutive segments, only remove the two outer pins.

What spare parts are included?

The package includes two spare segments and a spare pin inside the slider. The repair set contains a tool to push pins.

How do I clean the watch?

Clean the outside only with a soft, dry cloth. Avoid using chemicals or abrasives.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase. To claim, contact the service department at 08000569216 or [e-mail], providing the receipt and item number. Return the defective product with proof of purchase.

How do I dispose of the watch or batteries?

Do not dispose in household waste. Batteries must be recycled per Directive 2006/66/EC. The packaging is recyclable. Contact local authorities for collection points.

Is the water resistance permanent?

No, watertightness diminishes with daily use. It should be checked annually, especially before exposure to special conditions. Opening the watch voids warranty.

Where can I get support or service?

For UK: call 08000569216 or email [e-mail]. Have the till receipt and item number (e.g., IAN 123456_7890) ready.

USER MANUAL IAN 289124 AURIOL

WATCH AND JEWELLERY SET

GB

WATCH AND JEWELLERY SET

Operation and Safety Notes

SE

SET MED ARMBANDSUR OCH SMYCKEN

GB Operation and safety notes Page 5

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

C
HG06525A/D

D

HG06525A/D

Technical line drawing of a mechanical gear assembly with rotational motion arrow (no text or symbols)

E
HG06525A/D

F

HG06525A/D

Introduction Page 6

Preparations for use Page 6

Changing the battery.... Page 6

Display.... Page 7

Setting the time.... Page 7

Watertightness Page 8

Shortening the watch strap

Model No. HG06525A/D Page 8

Removing Segments (Fig. C) Page 9

How to exchange the pin inside

the slider (Fig. D, E, F) Page 10

Cleaning and maintenance Page 10

Disposal.... Page 10

Warranty and service.... Page 12

Warranty Page 12

Warranty claim procedure.... Page 13

Service Page 14

WATCH AND JEWELLERY SET

●Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

●Preparations for use

●Changing the battery

Note: Have batteries changed in a specialist shop.

●Display

1 Minute hand

2 Crown

3 Second hand

4 Hour hand

5 1st position

6 Segment

7 Repair set

8 Slider

9 Spare pin

10 Bottom cover

- Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

●Watertightness

This watch is watertight to 3 bar (HG06525A) and 5 bar (HG06525B/C/D/E) in accordance with DIN 8310. Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

●Shortening the watch strap Model No. HG06525A/D

Note: The watch strap can be shortened by removing segments 6 (2 spare units are included). To this purpose you should use the repair set 7 supplied.

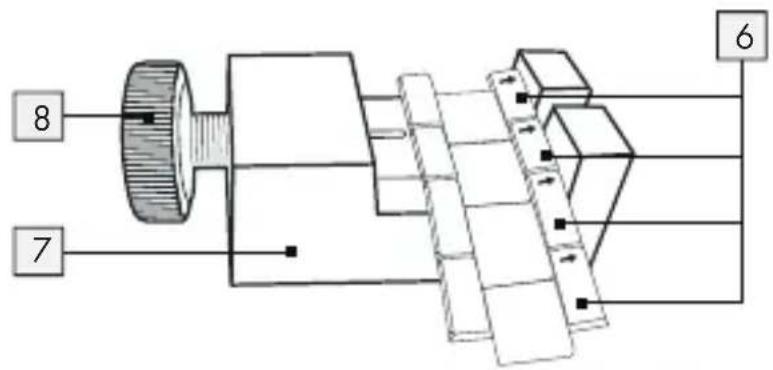

●Removing Segments (Fig. C)

Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 7. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 7.
■ Remove the pins of the segment that you wish to remove (as described above) and take out the segment 6.

Note: If you would like to take out more than one consecutive segment 6, it is sufficient to remove the two outer pins.

■ Connect the watch strap together again by joining the loose segments 6 with a pin. Press this pin against the direction of the arrow into the adjacent segments 6.

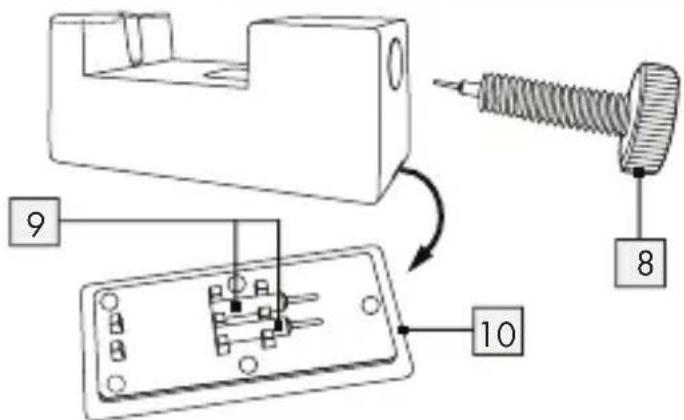

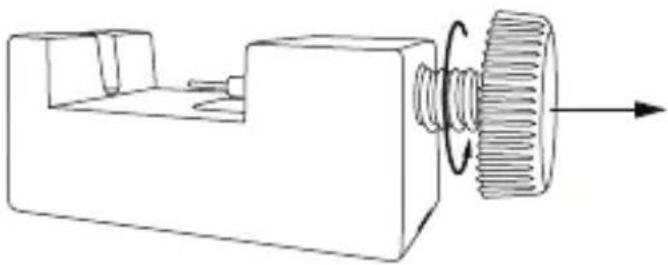

● How to exchange the pin inside the slider (Fig. D, E, F)

Take out the slide open the bottom cover 10 with the spare pin 9 inside.

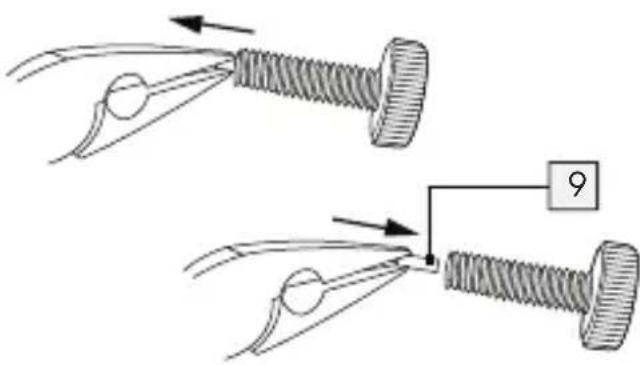

- You will need pliers to carefully remove the old pin from the slider.
- Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

●Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

●Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

CE

Inledning.... Sida 16

Three black-and-white icons representing recycling, trash bin, and waste sorting (no text or symbols)

Model No.: HG06525A-E

Version: 07/2020
