USER MANUAL HG06525A AURIOL

ARMBANDUHR-SCHMUCKSET/ WATCH AND JEWELLERY SET/ PARURE MONTRE ET BRACELET

DE AT CH

ARMBANDUHR-SCHMUCKSET

WATCH AND JEWELLERY SET

Operation and Safety Notes

FR BE

PARURE MONTRE ET BRACELET

GB/IEOperation and Safety NotesPage 17

Preparations for use 18

Changing the battery. Page 18

Display. 19

Technical Data. Page 20

Scope of delivery. 20

Setting the time. 21

Watertightness Page 21

Shortening the watch strap

Model No. HG08172B Page 22

Removing Segments (Fig. C) 22

How to exchange the pin inside

the slider (Fig. D, E, F) 23

Shortening the watch strap (HG08172C) (Fig. G). . . Page 23

Cleaning and maintenance. 23

Disposal. 24

Warranty and service.. 25

Warranty . Page 25

Warranty claim procedure.. . Page 27

Service . 28

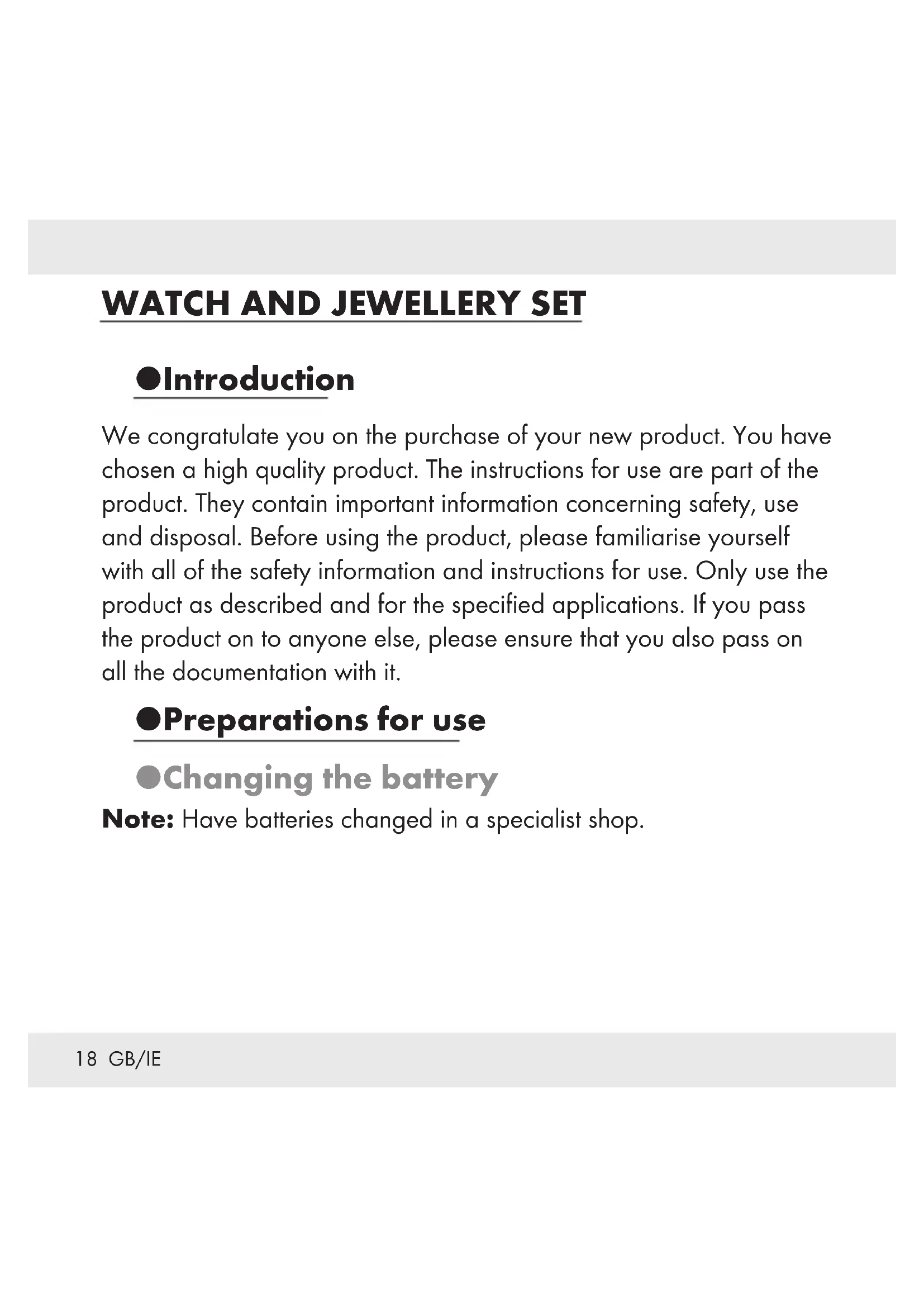

WATCH AND JEWELLERY SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Preparations for use

- Changing the battery

Note: Have batteries changed in a specialist shop.

Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 1st position
Segment (for model HG08172B, C)

7 Repair set (for model HG08172B)
8 Slider (for model HG08172B)
9 Spare pin (for model HG08172B)
Bottom cover (for model HG08172B)
11 Fastener (for Model HG08172C only)

-Technical Data

Battery: 1 × 1.5 ~V = Button cell (Type SR626SW)

Model number:

HG08172A: Gold, Grey strap

HG08172B: Silver, Silver band

HG08172C: Gold, Gold band

HG08172D: Rose gold, Black strap

HG08172E: Silver, Silver strap

Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch
1 Battery (pre-installed)
1 Set of instructions for use
2 Spare changeable links (HG08172B/C)
1 Repair set (HG08172B)

Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Watertightness

This watch is watertight to 3 bar (HG08172D) and 5 bar (HG08172A/B/C/E) in accordance with DIN 8310. Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

- Shortening the watch strap Model No. HG08172B

Note: The watch strap can be shortened by removing segments 6 (2 spare units are included). To this purpose you should use the repair set 7 supplied.

Removing Segments (Fig. C)

Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 7. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 7.
Remove the pins of the segment that you wish to remove (as described above) and take out the segment 6.

Note: If you would like to take out more than one consecutive segment 6, it is sufficient to remove the two outer pins.

Connect the watch strap together again by joining the loose segments 6 with a pin. Press this pin against the direction of the arrow into the adjacent segments 6 .

• How to exchange the pin inside the slider (Fig. D, E, F)

Take out the slide open the bottom cover 10 with the spare pin 9 inside.
You will need pliers to carefully remove the old pin from the slider.
Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.
- Shortening the watch strap (HG08172C) (Fig. G)

To shorten the watch strap, 2 removable segments are included.
Open the fastener the watch strap and fastener [1] of the removable segment.
Remove 1 or segments and re-close the foTene of the watch strap.

Cleaning and maintenance

Clean the product on the outside only with a soft, dry cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
