USER MANUAL MSZAP25VGK MITSUBISHI

SPLIT-TYPE AIR CONDITIONERS

INDOOR UNIT

MSZ-AP25VG MSZ-AP35VG MSZ-AP42VG MSZ-AP50VG

3D rendering of a white rectangular air conditioner unit with no visible text or symbols

CE

English is original.

- To use this unit correctly and safely, be sure to read these operating instructions before use.

BEDIENUNGSANLEITUNG

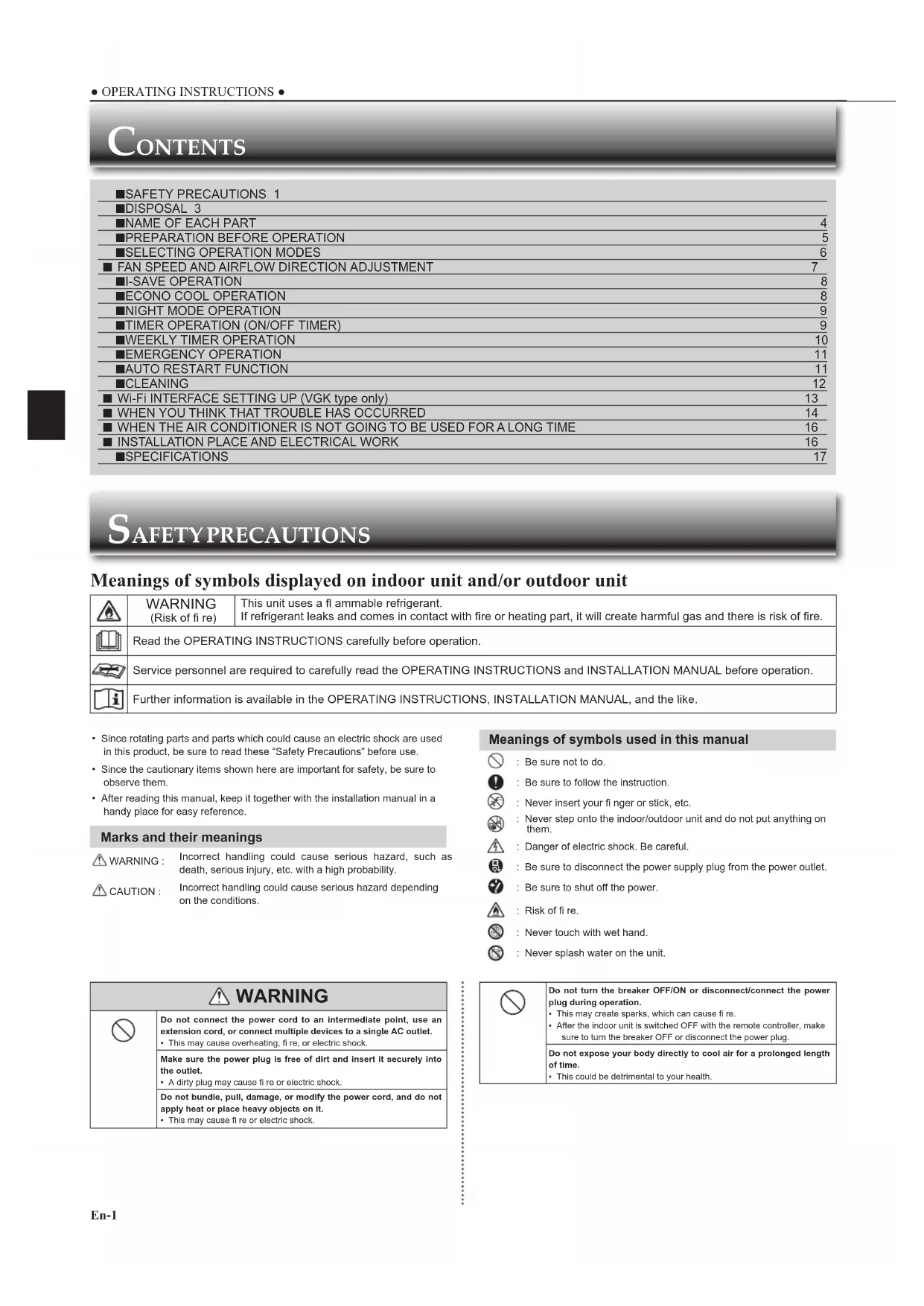

■ FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT 7

Meanings of symbols displayed on indoor unit and/or outdoor unit

	WARNING(Risk of fi re)	This unit uses a fl ammable refrigerant.If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
	Read the OPERATING INSTRUCTIONS carefully before operation.
	Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
	Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure to read these "Safety Precautions" before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
  • After reading this manual, keep it together with the installation manual in a handy place for easy reference.

Marks and their meanings

WARNING: Incorrect handling could cause serious hazard, such as death, serious injury, etc. with a high probability.

CAUTION : Incorrect handling could cause serious hazard depending on the conditions.

Meanings of symbols used in this manual

: Be sure not to do.

: Be sure to follow the instruction.

: Never insert your finger or stick, etc.

: Never step onto the indoor/outdoor unit and do not put anything on them.

: Danger of electric shock. Be careful.

: Be sure to disconnect the power supply plug from the power outlet.

: Be sure to shut off the power.

: Risk of fi re.

: Never touch with wet hand.

: Never splash water on the unit.

WARNING

Do not connect the power cord to an intermediate point, use an extension cord, or connect multiple devices to a single AC outlet.

• This may cause overheating, fi re, or electric shock.

Make sure the power plug is free of dirt and insert it securely into the outlet.

• A dirty plug may cause fi re or electric shock.

Do not bundle, pull, damage, or modify the power cord, and do not apply heat or place heavy objects on it.

• This may cause fi re or electric shock.

Do not turn the breaker OFF/ON or disconnect/connect the power plug during operation.

This may create sparks, which can cause fire.

After the indoor unit is switched OFF with the remote controller, make sure to turn the breaker OFF or disconnect the power plug.

Do not expose your body directly to cool air for a prolonged length of time.

This could be detrimental to your health.

SAFETY PRECAUTIONS

	The unit should not be installed, relocated, disassembled, altered, or repaired by the user.An improperly handled air conditioner may cause fi re, electric shock, injury, or water leakage, etc. Consult your dealer.If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
	When installing, relocating, or servicing the unit, make sure that no substance other than the specifi ed refrigerant (R32) enters the refrigerant circuit.Any presence of foreign substance such as air can cause abnormal pressure rise and may result in explosion or injury.The use of any refrigerant other than that specifi ed for the system will cause mechanical failure, system malfunction, or unit breakdown. In the worst case, this could lead to a serious impediment to securing product safety.
	This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
	Children should be supervised to ensure that they do not play with the appliance.
	Do not insert your fi nger, a stick, or other objects into the air inlet or outlet.This may cause injury, since the fan inside rotates at high speeds during operation.
	In case of an abnormal condition (such as a burning smell), stop the air conditioner and disconnect the power plug or turn the breaker OFF.A continued operation in the abnormal state may cause a malfunction, fi re, or electric shock. In this case, consult your dealer.
	When the air conditioner does not cool or heat, there is a possibility of refrigerant leakage. If any refrigerant leakage is found, stop operations and ventilate the room well and consult your dealer Immediately. If a repair involves recharging the unit with refrigerant, ask the service technician for details.The refrigerant used in the air conditioner is not harmful. Normally, it does not leak. However, if refrigerant leaks and comes in contact with fi re or heating part of such a fan heater, kerosene heater, or cooking stove, it will create harmful gas and there is risk of fi re.
	The user should never attempt to wash the inside of the indoor unit.Should the Inside of the unit require cleaning, contact your dealer.Unsuitable detergent may cause damage to plastic material inside the unit, which may result in water leakage. Should detergent come in contact with electrical parts or the motor, it will result in a malfunction, smoke, or fi re.The appliance shall be stored in a room without continuously operating ignition sources (for example: open fl ames, an operating gas appliance or an operating electric heater).Be aware that refrigerants may not contain an odour.Do not use means to accelerate the defrosting process or to clean the appliance, other than those recommended by the manufacturer.Do not pierce or burn.
	The indoor unit must be installed in rooms which exceed the fl oor space specifi ed. Please consult your dealer.AP50: 1.7 m2
	This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
CAUTION
	Do not touch the air inlet or the aluminum fi ns of the indoor/outdoor unit.This may cause injury.
	Do not use insecticides or fi ammable sprays on the unit.This may cause a fi re or deformation of the unit.
	Do not expose pets or houseplants to direct airfl ow.This may cause injury to the pets or plants.
	Do not place other electric appliances or furniture under the indoor/outdoor unit.Water may drip down from the unit, which may cause damage or malfunction.
	Do not leave the unit on a damaged installation stand.The unit may fall and cause injury.
	Do not step on an unstable bench to operate or clean the unit.This may cause injury if you fall down.
	Do not pull the power cord.This may cause a portion of the core wire to break, which may cause overheating or fi re.
	Do not charge or disassemble the batteries, and do not throw them into a fi re.This may cause the batteries to leak, or cause a fi re or explosion.

[WZ70]	Do not operate the unit for more than 4 hours at high humidity (80% RH or more) and/or with windows or outside door left open.· This may cause the water condensation in the air conditioner, which may drip down, wetting or damaging the furniture.· The water condensation in the air conditioner may contribute to growth of fungi, such as mold.
	Do not use the unit for special purposes, such as storing food, raising animals, growing plants, or preserving precision devices or art objects.· This may cause deterioration of quality, or harm to animals and plants.
	Do not expose combustion appliances to direct airflow.· This may cause incomplete combustion.
	Never put batteries in your mouth for any reason to avoid accidental ingestion.· Battery ingestion may cause choking and/or poisoning.
[OK44]	Before cleaning the unit, switch it OFF and disconnect the power plug or turn the breaker OFF.· This may cause injury, since the fan inside rotates at high speeds during operation.
	When the unit will be unused for a long time, disconnect the power plug or turn the breaker OFF.· The unit may accumulate dirt, which may cause overheating or fire.
	Replace all batteries of the remote controller with new ones of the same type.· Using an old battery together with a new one may cause overheating, leakage, or explosion.
	If the battery fluid comes in contact with your skin or clothes, wash them thoroughly with clean water.· If the battery fluid comes in contact with your eyes, wash them thoroughly with clean water and immediately seek medical attention.
	Ensure that the area is well-ventilated when the unit is operated together with a combustion appliance.· Inadequate ventilation may cause oxygen starvation.
	Turn the breaker OFF when you hear thunder and there is a possibility of a lightning strike.· The unit may be damaged if lightning strikes.
	After the air conditioner is used for several seasons, perform inspection and maintenance in addition to normal cleaning.· Dirt or dust in the unit may create an unpleasant odor, contribute to growth of fungi, such as mold, or clog the drain passage, and cause water to leak from the indoor unit. Consult your dealer for inspection and maintenance, which require specialized knowledge and skills.
	Do not operate switches with wet hands.· This may cause electric shock.
	Do not clean the air conditioner with water or place an object that contains water, such as a flower vase, on it.· This may cause fire or electric shock.
	Do not step on or place any object on the outdoor unit.· This may cause injury if you or the object falls down.

IMPORTANT

Dirty fi liters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air fi liters every 2 weeks.

Before starting the operation, ensure that the horizontal vanes are in the closed position. If operation starts when the horizontal vanes are in the open position, they may not return to the correct position.

SAFETY PRECAUTIONS

For installation

WARNING
[5080]	Consult your dealer for installing the air conditioner.· It should not be installed by the user since installation requires specialized knowledge and skills. An improperly installed air conditioner may cause water leakage, fl re, or electric shock.
	Provide a dedicated power supply for the air conditioner.· A non-dedicated power supply may cause overheating or fl re.
	Do not install the unit where fl ammable gas could leak.· If gas leaks and accumulates around the outdoor unit, it may cause an explosion.
	Earth the unit correctly.· Do not connect the earth wire to a gas pipe, water pipe, lightning rod, or a telephone earth wire. Improper earthing may cause electric shock.
CAUTION
[726Z]	Install an earth leakage breaker depending on the installation location of the air conditioner (such as highly humid areas).· If an earth leakage breaker is not installed, it may cause electric shock.
	Ensure that the drain water is properly drained.· If the drain passage is Improper, water may drlp down from the indoor/outdoor unit, wetting and damaging the furniture.
In case of an abnormal conditionImmediately stop operating the air conditioner and consult your dealer.

WARNING

CAUTION

In case of an abnormal condition

Immediately stop operating the air conditioner and consult your dealer.

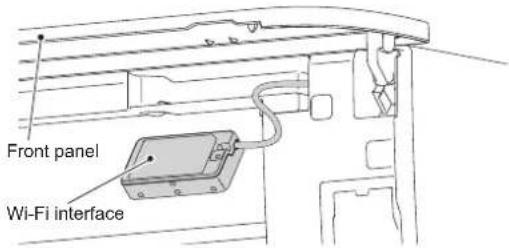

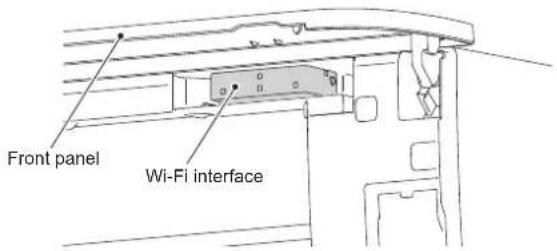

For Wi-Fi interface

WARNING(Improper handling may have serious consequences, including serious injury or death.)
	This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
	Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
	Do not use the Wi-Fi interface nearby the medical electrical equipment or people who have a medical device such as a cardiac pacemaker or an implantable cardioverter-defl brillator.It can cause an accident due to malfunctions of the medical equipment or device.
	Do not install the Wi-Fi interface nearby the automatic control devices such as automatic doors or fi re alarms.It can cause accidents due to malfunctions.
	Do not touch the Wi-Fi interface with wet hands.It can cause damage to the device, electric shock, or fi re.
	Do not splash water on the Wi-Fi interface or use it in a bathroom.It can cause damage to the device, electric shock, or fi re.
	When the Wi-Fi interface is dropped, or the holder or cable is damaged, disconnect the power supply plug or turn the breaker OFF.It may cause fi re or electric shock. In this case, consult your dealer.
CAUTION(Improper handling may have consequences, including injury or damage to building.)
	Do not step on unstable stepstool to set up or clean the Wi-Fi interface.It may cause injury if you fall down.
	Do not use the Wi-Fi interface nearby other wireless devices, microwaves, cordless phones, or facsimiles.It can cause malfunctions.

DISPOSAL

Fig. 1

To dispose of this product, consult your dealer.

Note:

This symbol mark is for EU countries only. This symbol mark is according to the directive 2012/19/EU Article 14 Information for users and Annex IX, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol (Fig. 1), this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%) In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators. Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre. Please, help us to conserve the environment we live in!

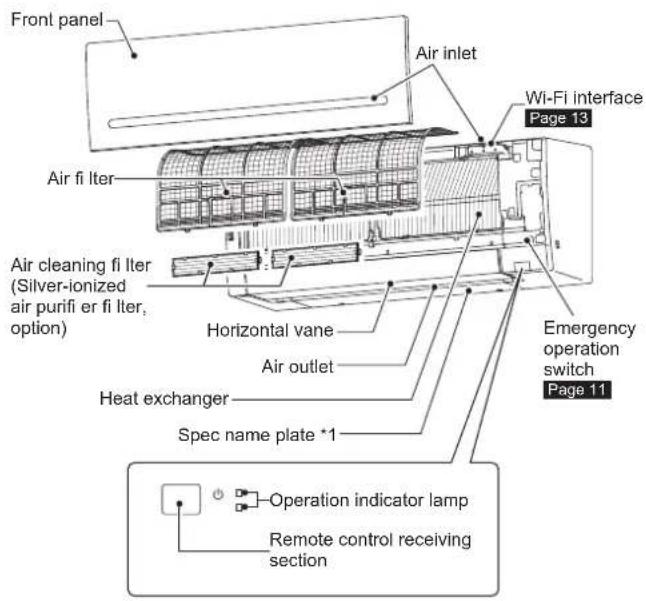

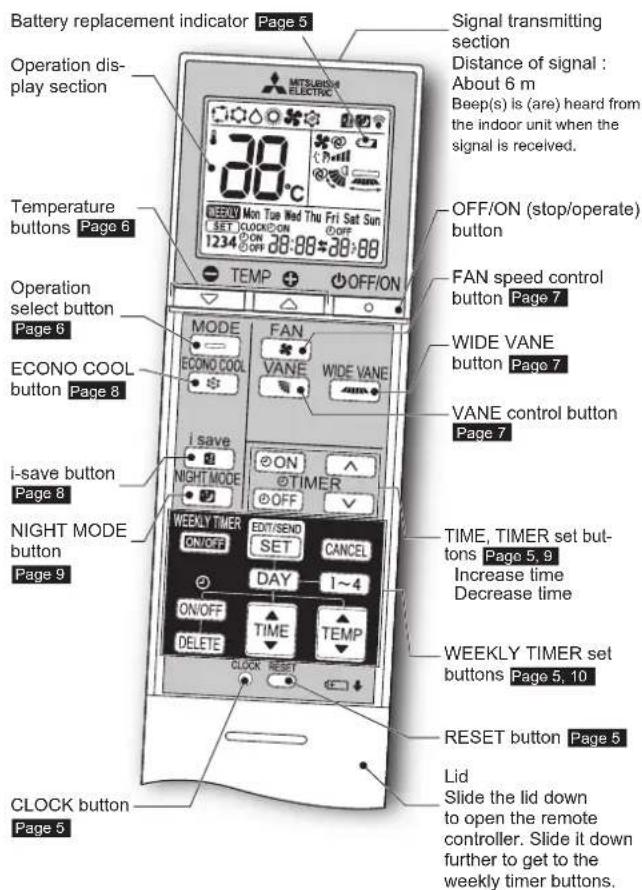

NAME OF EACH PART

Indoor unit Remote controller

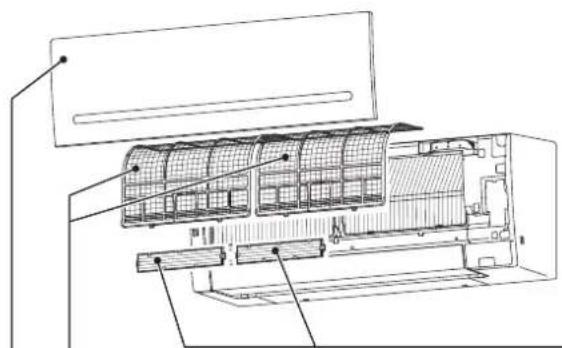

Front panel Air inlet Wi-Fi interface Page 13 Air fi lter Air cleaning fi lter (Silver-ionized air purifi er fi lter, option) Horizontal vane Air outlet Heat exchanger Spec name plate *1 Emergency operation switch Page 11 Operation indicator lamp Remote control receiving section

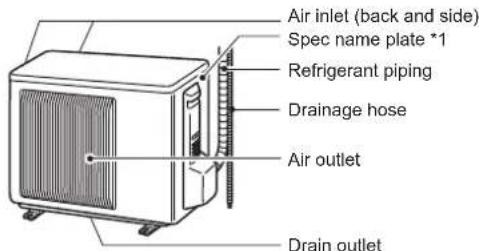

Outdoor unit

Air inlet (back and side) Spec name plate *1 Refrigerant piping Drainage hose Air outlet Drain outlet

Outdoor units may be different in appearance.
*1 The manufacturing year and month are indicated on the spec name plate.

Battery replacement indicator Page 5 Operation display section 38°C ECON Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON 1234 ON OFF 28:88=28:88 TEMP OFF/ON Temperature buttons Page 6 Operation select button Page 6 ECONO COOL button Page 8 i-save button Page 8 NIGHT MODE button Page 9 CLOCK button Page 5 Signal transmitting section Distance of signal : About 6 m Beep(s) is (are) heard from the indoor unit when the signal is received. OFF/ON (stop/operate) button FAN speed control button Page 7 WIDE VANE button Page 7 VANE control button Page 7 TIME, TIMER set buttons Page 5, 9 Increase time Decrease time WEEKLY TIMER set buttons Page 5, 10 RESET button Page 5 Lid Slide the lid down to open the remote controller. Slide it down further to get to the weekly timer buttons.

Remote controller

When the remote controller is not used, place it near this unit.

Only use the remote controller provided with the unit.

Do not use other remote controllers.

If 2 or more indoor units are installed in proximity to one another, an indoor unit that is not intended to be operated may respond to the remote controller.

Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.

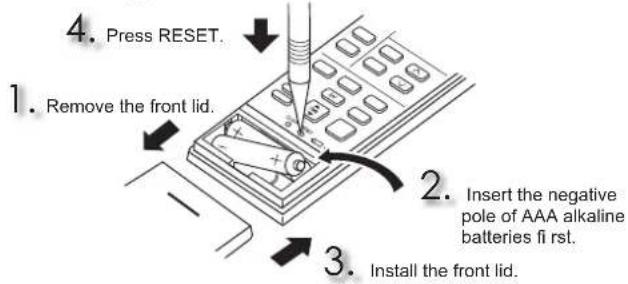

Installing the remote controller batteries

4. Press RESET. 1. Remove the front lid. 2. Insert the negative pole of AAA alkaline batteries fi rst. 3. Install the front lid.

Note:

• Make sure the polarity of the batteries is correct.
- Do not use manganese batteries and leaking batteries. The remote controller could malfunction.
- Do not use rechargeable batteries.
- The battery replacement indicator lights up when the battery is running low. In about 7 days after the indicator starts lights up, the remote controller stops working.
- Replace all batteries with new ones of the same type.
- Batteries can be used for approximately 1 year. However, batteries with expired shelf lives last shorter.
- Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate correctly.

Setting current time

1. Press CLOCK. Mon CLOCK 0:00 2. Press the DAY button to set the day. 3. Press either the TIME button or the TIMER buttons to set the time. 4. Press CLOCK again. Mon CLOCK 13:00 Each press increases/decreas- es the time by 1 minute (10 minutes when pressed longer).

Note:

- Press CLOCK gently using a thin instrument.

Note:

How to set remote controller exclusively for a particular indoor unit

A maximum of 4 indoor units with wireless remote controllers can be used in a room.

To operate the indoor units individually with each remote controller, assign a number to each remote controller according to the number of the indoor unit. This setting can be set only when all the following conditions are met:

• The remote controller is powered OFF.

(1) Hold down 1\~4 button on the remote controller for 2 seconds to enter the pairing mode.
(2) Press 1\~4 button again and assign a number to each remote controller. Each press of 1\~4 button advances the number in the following order: 1 → 2 → 3 → 4.

(3) Press SET button to complete the pairing setting.

After you turn the breaker ON, the remote controller that first sends a signal to an indoor unit will be regarded as the remote controller for the indoor unit. Once they are set, the indoor unit will only receive the signal from the assigned remote controller afterwards.

1 Press OFF/ON to start the operation.

2 Press MODE to select operation mode. Each press changes mode in the following order:

3 Press or to set the temperature. Each press raises or lowers the temperature by 1°C.

OFF/ON Press to stop the operation.

AUTO mode (Auto change over)

The unit selects the operation mode according to the difference between the room temperature and the set temperature. During AUTO mode, the unit changes mode (COOL↔HEAT) when the room temperature is about 2°C away from the set temperature for more than 15 minutes.

Note:

Auto Mode is not recommended if this indoor unit is connected to a MXZ type outdoor unit. When several indoor units are operated simultaneously, the unit may not be able to switch operation mode between COOL and HEAT. In this case, the indoor unit becomes standby mode (Refer to table of Operation indicator lamp).

COOL mode

Enjoy cool air at your desired temperature.

Note:

Do not operate COOL mode at very low outside temperatures (less than -10^ ). Water condensed in the unit may drip and wet or damage furniture, etc.

DRY mode

Dehumidify your room. The room may be cooled slightly. Temperature cannot be set during DRY mode.

HEAT mode

Enjoy warm air at your desired temperature.

FAN mode

Circulate the air in your room.

Note:

After COOL/DRY mode operation, it is recommended to operate in the FAN mode to dry inside the indoor unit.

Note:

Multi system operation

Two or more indoor units can be operated by one outdoor unit. When several indoor units are operated simultaneously, cooling/dry/fan and heating operations cannot be done at the same time. When COOL/DRY/FAN is selected with one unit and HEAT with another or vice versa, the unit selected last goes into standby mode.

Operation indicator lamp

The operation indicator lamp shows the operation state of the unit.

Indication Operation state Room temperature
	The unit is operating to reach the set temperature	About 2°C or more away from set temperature
	The room temperature is approaching the set temperature	About 1 to 2°C from set temperature
	Standby mode (only during multi system operation)	—

Lit Blinking

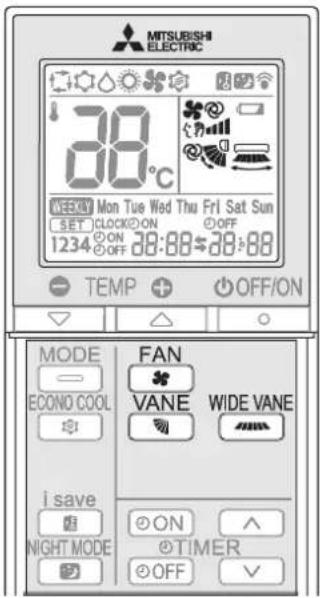

FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON 1234 ON 28:00-28:00 TEMP OFF/ON MODE FAN ECONO COOL VANE WIDE VANE i save ON NIGHT MODE ON TIMER OFF

Fan speed

Press to select fan speed. Each press changes fan speed in the following order:

• Two short beeps are heard from the indoor unit when set to AUTO.
• Use higher fan speed to cool/heat the room quicker. It is recommended to lower the fan speed once the room is cool/warm.
• Use lower fan speed for quiet operation.

Note:

Multi system operation

When several indoor units are operated simultaneously by one outdoor unit for heating operation, the temperature of the airflow may be low. In this case, it is recommended to set the fan speed to AUTO.

Up-down Airflow direction

VANE

Press to select airflow direction. Each press changes airflow direction in the following order:

(AUTO) ......The vane is set to the most effi cient airfl ow direction. COOL/DRY/FAN: horizontal position. HEAT: position (4).
(Manual)......For efficient air conditioning, select the upper position for COOL/DRY, and the lower position for HEAT. If the lower position is selected during COOL/DRY, the vane automatically moves to the upward position after 0.5 to 1 hour to prevent any condensation from dripping.
(Swing) ......The vane moves up and down intermittently.

• Two short beeps are heard from the indoor unit when set to AUTO.
• Always use the remote controller when changing the direction of airflow. Moving the horizontal vanes with your hands causes them to malfunction.
• When the breaker is turned on, the horizontal vanes' position will be
  reset in about a minute, then the operation will start. The same is true in the emergency cooling operation.
• When the horizontal vanes seem to be in an abnormal position, see page 14.

Left-right Airflow direction

WIDE VANE

Press 📄 to select airflow direction. Each press changes airflow direction in the following order:
    note right of F (SWING)

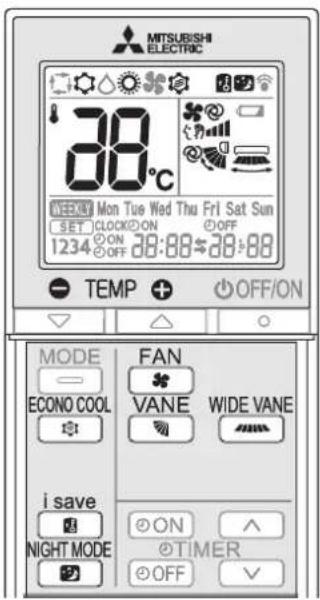

I-SAVE OPERATION

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:00 28:00 TEMP OFF/ON MODE FAN ECONO COOL VANE WIDE VANE i save ON NIGHT MODE ON TIMER OFF

A simplifi ed set back function enables to recall the preferred (preset) setting with a single push of the button. Press the button again and you can go back to the previous setting in an instance.

1

Press i save during COOL, ECONO COOL, or HEAT mode to select i-save mode.

2

Set the temperature, fan speed, and airflow direction.

• The same setting is selected from the next time by simply pressing i save
• Two settings can be saved. (One for COOL/ECONO COOL, one for HEAT)
• Select the appropriate temperature, fan speed, and airflow direction according to your room.

-

Press i save again to cancel i-save operation.

- i-save operation also is cancelled when the MODE button is pressed.

Note:

Example of use:

1. Low energy mode
   Set the temperature 2^ C to 3^ C warmer in COOL and cooler in HEAT mode. This setting is suitable for unoccupied room, and while you are sleeping.
2. Saving frequently used settings
   Save your preferred setting for COOL/ECONO COOL and HEAT. This enables you to select your preferred setting with a single push of the button.

Swing airfl ow (change of airfl ow) makes you feel cooler than stationary airfl ow.

The set temperature and the airflow direction are automatically changed by the microprocessor. It is possible to perform cooling operation with keeping comfort. As a result energy can be saved.

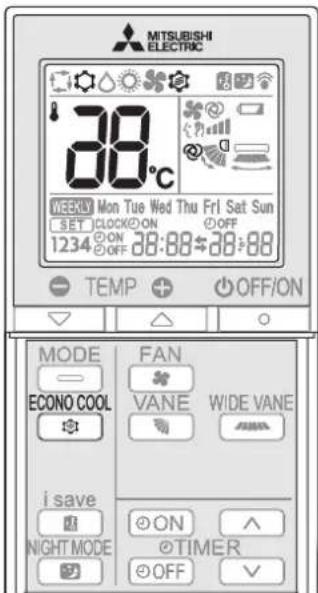

Press during COOL mode ECONO COOL operation.

The unit performs swing operation vertically in various cycles according to the temperature airflow.

Press again to cancel ECONO COOL operation.

- ECONO COOL operation is also cancelled when the VANE button is pressed.

NIGHT mode changes the brightness of the operation indicator, disables the beep sound and limits the noise level of the outdoor unit.

NIGHT MODE

Press during operation to activate NIGHT mode.

• The operation indicator lamp dims.
- The beep sound will be disabled except that emitted when the operation is started or stopped.
- Noise level of the outdoor unit will be lower than that mentioned in SPECIFICATIONS.

NIGHT MODE

Press again to cancel NIGHT mode.

Note:

• The cooling/heating capacity may drop.
- Noise level of the outdoor unit may not change after start-up of the unit, during the protection operation, or depending on other operating conditions.
• The fan speed of the indoor unit will not change.
• The operation indicator lamp will be hard to be seen in a bright room.
- Noise level of the outdoor unit will not decrease during Multi system operation.

Press ON during operation to set the timer.

ON (ON timer): The unit turns ON at the set time.

OFF (OFF timer): The unit turns OFF at the set time.

* ON blinkoff
* Make sure that the current time and day are set correctly. Page 5

2

Press (Increase) and (Decrease) to set the time of timer.

Each press increases or decreases the set time by 10 minutes.

- Set the timer while ON or OR linking.

3

Press ON or OFF again to cancel timer.

Note:

• ON and OFF timers can be set together. *mark indicates the order of timer operations.
• If power failure occurs while ON/OFF timer is set, see page 11 "Auto restart function".

• A maximum of 4 ON or OFF timers can be set for individual days of the week.
• A maximum of 28 ON or OFF timers can be set for a week.

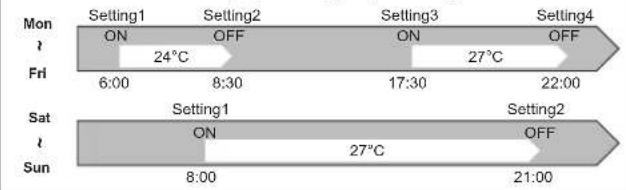

E.g.: Runs at 24°C from waking up to leaving home, and runs at 27°C from getting home to going to bed on weekdays. Runs at 27°C from waking up late to going bed early on weekends.

Mon 24°C ON Setting1 Setting2 ON Setting3 Setting4 OFF ON 27°C Fri 6:00 8:30 17:30 22:00 Sat ON Setting1 Setting2 ON 27°C OFF Sat 8:00 21:00 Sun

Note:

The simple ON/OFF timer setting is available while the weekly timer is on. In this case, the ON/OFF timer has priority over the weekly timer; the weekly timer operation will start again after the simple ON/OFF timer is complete.

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tues Wed Thu Fri Sat Sun SET CLOCK ON 1234 ON OFF 28:8828:88 TEMP OFF/ON WEEKLY TIMER ON/OFF EDIT/SEND SET CANCEL DAY 1~4 ON/OFF TIME DELETE TEMP CLOCK RESET

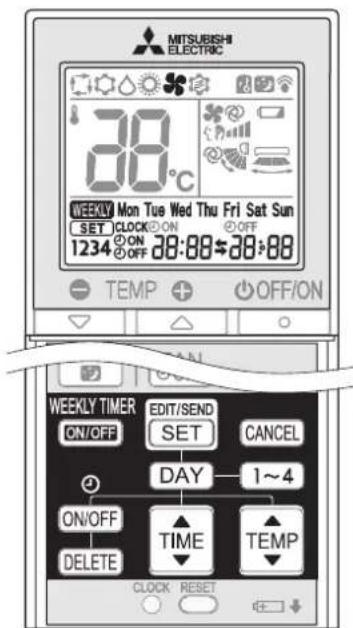

Setting the weekly timer

* Make sure that the current time and day are set correctly.

1 Press to enter the weekly timer setting mode. WEEKLY Mon SET 1 - - - - - °C * SET blinks.

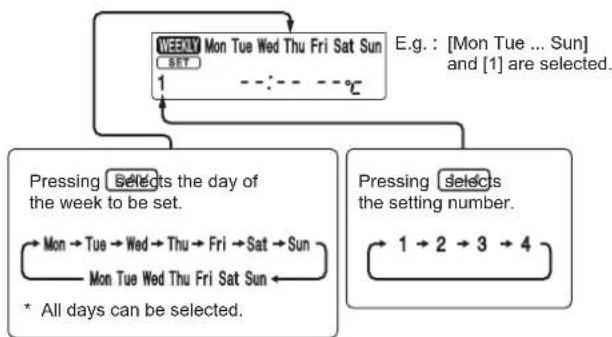

2 Press DAY and 1\~4 to select setting day and number.

3

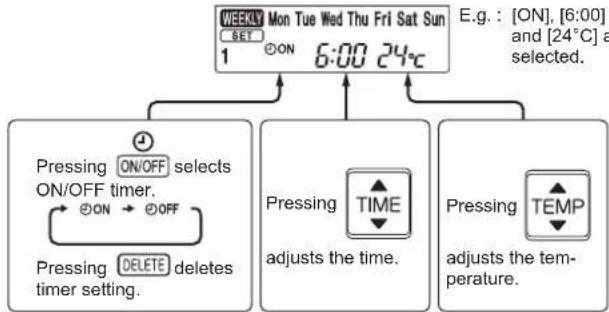

Press ON/OFF and time to set ON/OFF, time, and temperature.

* Hold down the button to change the time quickly.

-

Press and to continue setting the timer for other days and/or numbers.

4

Press TO complete and transmit the weekly timer setting. Mon * SET which was

* SET which was blinking goes out, and the current time will be displayed.

Note:

• Press to transmit the setting information of weekly timer to the indoor unit. Point the remote controller toward the indoor unit for 3 seconds.
• When setting the timer for more than one day of the week or one number,

- Press SET to enter the weekly timer setting mode, and press and hold DELETE for 5 seconds to erase all weekly timer settings. Point the remote controller toward the indoor unit.

5

Press WEEKLY TIMER ON. ( light 15K)

* When the weekly timer is ON, the day of the week whose timer setting is complete, will light.

-

Press again to turn the weekly timer OFF. ( goes out.)

Note:

The saved settings will not be cleared when the weekly timer is turned OFF.

Checking weekly timer setting

1

Press EDIT/SEND to enter the weekly timer setting mode. * Chinks.

2

Press OKY to view the setting of the particular day or number.

-

Press to exit the weekly timer setting.

Note:

When all days of the week are selected to view the settings and a different setting is included among them, ·s·s·s·s·s·s·s will be displayed.

EMERGENCY OPERATION

When the remote controller cannot be used...

Emergency operation can be activated by pressing the emergency operation switch (E.O.SW) on the indoor unit.

Each time the E.O.SW is pressed, the operation changes in the following order:

Operation indicator lamp

Set temperature : 24°C Fan speed : Medium Horizontal vane : Auto

Note:

• The first 30 minutes of operation is test run. Temperature control does not work, and fan speed is set to High.
• In the emergency heating operation, the fan speed gradually rises to blow out warm air.
• In the emergency cooling operation, the horizontal vanes' position will be reset in about a minute, then the operation will start.

AUTO RESTART FUNCTION

If a power failure occurs or the main power is turned off during operation, "Auto restart function" automatically starts operation in the same mode as the one set with the remote controller just before the shutoff of the main power. When timer is set, timer setting is cancelled and the unit starts operation when power is resumed.

If you do not want to use this function, please consult the service representative because the setting of the unit needs to be changed.

CLEANING

Instructions:

• Switch off the power supply or turn off the breaker before cleaning.
• Be careful not to touch the metal parts with your hands.
• Do not use benzine, thinner, polishing powder, or insecticide.
  • Use only diluted mild detergents.

• Do not use a scrubbing brush, a hard sponge, or the like.

• Do not soak or rinse the horizontal vane.

• Do not use water hotter than 50^ C .
• Do not expose parts to direct sunlight, heat, or fire to dry.
• Do not apply excessive force on the fan as it may cause cracks or breakage.

Technical line drawing of an air conditioner unit with internal components and ventilation slots (no text or labels)

Air fi lter (Air purifying fi lter)

• Clean every 2 weeks
• Remove dirt by a vacuum cleaner, or rinse with water.
  • After washing with water, dry it well in shade.

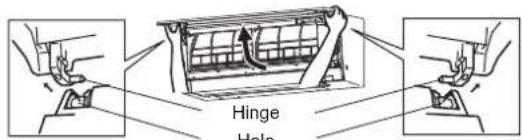

Front panel

Hinge Hole

1. Lift the front panel until a "click" is heard.
2. Hold the hinges and pull to remove as shown in the illustration above.
3. Wipe with a soft dry cloth or rinse it with water.
4. Do not soak it in water for more than two hours.
   • Dry it well in shade before installing it.
5. Install the front panel by following the removal procedure in reverse. Close the front panel securely and press the positions indicated by the arrows.

-Air cleaning fi lter (Silver-ionized air purifi er fi lter, option)

Every 3 months:

• Remove dirt by a vacuum cleaner.
  When dirt cannot be removed by vacuum cleaning:
• Soak the filter and its frame in lukewarm water before rinsing it.
• After washing, dry it well in shade. Install all tabs of the air filter.

Every year:

- Replace it with a new air cleaning filter for best performance.

• Parts Number MAC-2370FT-E

Pull to remove from the air filter

Important

• Clean the filters regularly for best performance and to reduce power consumption.
• Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold. It is therefore recommended to clean air filters every 2 weeks.

This information is based on REGULATION (EU) No 528/2012

MODEL NAME	Treated Article(Parts name)	Active Substances(CAS No.)	Property	Instruction for Use(Safe handling information)
MSZ-AP25/35/42/50VG FILTER		Silver sodium hydrogen zirconium phosphate(265647-11-8)2-octyl-2H-isothiazol-3-one (OIT)(26530-20-1)	Antibacterial Antimold	Use this product in line with the instruction manual indications and for the intended purpose only.Do not put into mouth. Keep away from children.
MAC-2370FT-E FILTER		Silver zinc zeolite(130328-20-0)	Antibacterial	Use this product in line with the instruction manual indications and for the intended purpose only.Do not put into mouth. Keep away from children.

Wi-Fi INTERFACE SETTING UP (VGK type only)

This Wi-Fi interface, communicates the status information and controls the commands from the MELCloud by connecting to the indoor unit.

Front panel Wi-Fi interface

Front panel Wi-Fi interface

Wi-Fi interface introduction

No. Item Description
1 MODE switch It selects modes.
2 RESET switch It resets the system and ALL settings.
3 ERR LED (Orange) It shows the network error state.
4 NET LED (Green) It shows the network state.
5 MODE LED (Orange) It shows the Access point mode state.
6 UNIT LED (Green) It shows the indoor unit state.

3 4 5 6 2 1 PBI NFT NICE VDD VDD MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILK MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILk MILl

(1) MODE switch

- The MODE switch is used for selecting modes in configurations.

(2) RESET switch

• Hold down the RESET switch for 2 seconds to reboot the system.
• Hold down the RESET switch for 14 seconds to initialize the Wi-Fi interface to the factory default.

When the Wi-Fi interface is reset to the factory default, ALL the configuration information will be lost. Take great care in implementing this operation.

1 Open the front panel and remove the Wi-Fi interface.

2 Set up a connection between the Wi-Fi interface and the Router. Refer to the SETUP MANUAL and SETUP QUICK REFERENCE GUIDE provided with the unit.

For SETUP MANUAL, please go to the website below. http://www.melcloud.com/Support

3 Put the Wi-Fi interface back and close the front panel after the setup is completed.

4 For MELCloud User Manual, please go to the website below. http://www.melcloud.com/Support

Note:

• Ensure that the Router supports the WPA2-AES encryption setting before starting the Wi-Fi interface setup.
• The End user should read and accept the terms and conditions of the Wi-Fi service before using this Wi-Fi interface.
• To complete connection of this Wi-Fi interface to the Wi-Fi service, the Router may be required.
• This Wi-Fi interface will not commence transmission of any operational data from the system until the End user registers and accepts the terms and conditions of the Wi-Fi service.
• This Wi-Fi interface should not be installed and connected to any Mitsubishi Electric system which is to provide application critical cooling or heating.
• Please write down the information regarding the Wi-Fi interface setting on the last page of this manual, when you set up this Wi-Fi interface.
• At the time of relocation or disposal, reset the Wi-Fi interface to the factory default.

Mitsubishi Electric's Wi-Fi interface is designed for communication to Mitsubishi Electric's MELCloud Wi-Fi service.

Third party Wi-Fi interfaces cannot be connected to MELCloud. Mitsubishi Electric is not responsible for any (i) underperformance of a system or any product;

(ii) system or product fault; or (iii) loss or damage to any system or product; which is caused by or arises from connection to and/or use of any third party Wi-Fi interface or any third party Wi-Fi service with Mitsubishi Electric equipment.

For the latest information regarding MELCloud from Mitsubishi Electric Corporation, please visit www.melcloud.com.

Even if these items are checked, when the unit does not recover from the trouble, stop using the air conditioner and consult your dealer.

Symptom Explanation & Check points
Indoor Unit
The unit cannot be operated. • Is the breaker turned on?• Is the power supply plug connected?• Is the ON timer set? Page 9
The horizontal vane does not move.	Are the horizontal vane and the vertical vane installed correctly?• Is the fan guard deformed?When the breaker is turned on, the horizontal vanes' position will be reset in about a minute. After the reset has completed, the normal horizontal vanes' operation resumes. The same is true in the emergency cooling operation.
The unit cannot be operated for about 3 minutes when restarted.	This protects the unit according to instructions from the microprocessor. Please wait.
Mist is discharged from the air outlet of the indoor unit.	The cool air from the unit rapidly cools moisture in the air inside the room, and it turns into mist.
The swing operation of the HORIZ- ZONTAL VANE is suspended for a while, then restarted.	This is for the swing operation of the HORIZON- TAL VANE to be performed normally.
When SWING is selected in COOL/DRY/FAN mode, the lower horizontal vane does not move.	It is normal that the lower horizontal vane does not move when SWING is selected in COOL/ DRY/FAN mode.
The airfl ow direction changes during operation.The direction of the horizontal vane cannot be adjusted with the remote controller.	When the unit is operated in COOL or DR mode, if the operation continues with air blow- ing down for 0.5 to 1 hour, the direction of the airfl ow is automatically set to upward position to prevent water from condensing and dripping.In the heating operation, if the airfl ow tem perature is too low or when defrosting is being done, the horizontal vane is automatically set to horizontal position.
The operation stops for about 10 minutes in the heating operation.	Outdoor unit is in defrost.Since this is completed in max. 10 minutes please wait. (When the outside temperature is too low and humidity is too high, frost is formed.)
The unit starts operation by itself when the main power is turned on, but hasn't received sign from the remote controller.	These models are equipped with an auto restart function. When the main power is turned off without stopping the unit with the remote controller and is turned on again, the unit starts operation automatically in the same mode as the one set with the remote control- ler just before the shutoff of the main power.Refer to "Auto restart function". Page 11
The two horizontal vanes touch each other. The horizontal vanes are in an abnormal posi- tion. The horizontal vanes do not return to the correct "close position".	Perform one of the following:Turn off and on the breaker. Make sure the hori- zonal vanes move to the correct "close position"Start and stop the emergency cooling operation and make sure the horizontal vanes move to the correct "close position".
In COOL/DRY mode, when the room temperature reaches near the set temperature, the outdoor unit stops, then the indoor unit operates at low speed.	When the room temperature deviates from the set temperature, the indoor fan starts running according to the settings on the remote control- ler.
The indoor unit discolors over time.	Although plastic turns yellow due to the infl uence of some factors such as ultraviolet light and temperature, this has no effect on the product functions.
The operation indicator lamp is dim. The unit does not beep.	Is the NIGHT mode set? Page 9
Multi system
The indoor unit which is not operating becomes warm and a sound, similar to water fl owing, is heard from the unit.	A small amount of refrigerant continues to fl ow into the indoor unit even though it is not operat- ing.
When heating operation is selected, operation does not start right away.	When operation is started during defrosting of outdoor unit is done, it takes a few minutes (max. 10 minutes) to blow out warm air.
Outdoor Unit
The fan of the outdoor unit does not rotate even though the com- pressor is running. Even if the fan starts to rotate, it stops soon.	When the outside temperature is low during cooling operation, the fan operates intermittently to maintain suffi cient cooling capacity.
Water leaks from the outdoor unit.	During COOL and DRY operations, pipe or pipe connecting sections are cooled and this causes water to condense.In the heating operation, water condensed on the heat exchanger drips down.In the heating operation, the defrosting operation makes ice forming on the outdoor unit melt and drip down.
White smoke is discharged from the outdoor unit.	In the heating operation, vapor generated by the defrosting operation looks like white smoke.

Symptom Explanation & Check points
Remote controller
The display on the remote controller does not appear or it is dim. The indoor unit does not respond to the remote control signal.	Are the batteries exhausted?Page 5Is the polarity (+, -) of the batteries correctPage 5Are any buttons on the remote controller of other electric appliances being pressed?
Does not cool or heat
The room cannot be cooled or heated suffi ciently.	Is the temperature setting appropriate?Page 6Is the fan setting appropriate? Please change fan speed to High or Super High.Page 7Are the fi Iters clean?Page 12Is the fan or heat exchanger of the indoor un clean?Page 12Are there any obstacles blocking the air inlet or outlet of the indoor or outdoor unit?Is a window or door open?It may take a certain time to reach the setting temperature or may not reach that depending on the size of the room, the ambient temperature, and the like.Is the NIGHT mode set?Page 9
The room cannot be cooled suffi ciently.	When a ventilation fan or a gas cooker is used in a room, the cooling load increases, resulting in an insuffi cient cooling effect.When the outside temperature is high, the cooling effect may not be suffi cient.
The room cannot be heated suffi ciently.	When the outside temperature is low, the heating effect may not be suffi cient.
Air does not blow out soon in the heating operation.	Please wait as the unit is preparing to blow out warm air.
Airfl ow
The air from the indoor unit smells strange.	Are the fi Iters clean?Page 12Is the fan or heat exchanger of the indoor unit clean?Page 12The unit may suck in an odor adhering to the wall, carpet, furniture, cloth, etc. and blow it out with the air.
Sound
Cracking sound is heard. • This	sound is generated by the expansion/contraction of the front panel, etc. due to change in temperature.
"Burbling" sound is heard. • This	sound is heard when the outside air is absorbed from the drain hose by turning on the range hood or the ventilation fan, making water fl owing in the drain hose to spout out.This sound is also heard when the outside air blows into the drain hose in case the outside wind is strong.
Mechanical sound is heard from the indoor unit.	This is the switching sound in turning on/off the fan or the compressor.
The sound of water fl owing is heard.	This is the sound of refrigerant or condensed water fl owing in the unit.
Hissing sound is sometimes heard.	This is the sound when the flow of refrigerant inside the unit is changed.
Timer
Weekly timer does not operate according to settings.	Is the ON/OFF timer set?Page 9Transmit the setting information of the weekly timer to the indoor unit again. When the information is successfully received, a long beep will sound from the indoor unit. If information fails to be received, 3 short beeps will be heard. Ensure information is successfully received.Page 10When a power failure occurs and the main power turns off, the indoor unit built-in clock will be incorrect. As a result, the weekly timer may not work normally.Be sure to place the remote controller where the signal can be received by the indoor unit.Page 5
The unit starts/stops the operation by itself.	Is the weekly timer set?Page 10
Wi-Fi interface
When error occurs during connection setup or operation.	Refer to the SETUP MANUAL.For SETUP MANUAL, please go to the website below.http://www.melcloud.com/Support

WHEN YOU THINK THAT TROUBLE HAS OCCURRED

In the following cases, stop using the air conditioner and consult your dealer.

• When water leaks or drips from the indoor unit.
• When the operation indicator lamp blinks.
• When the breaker trips frequently.
  • The remote control signal is not received in a room where an electronic ON/OFF type fluorescent lamp (inverter-type fluorescent lamp, etc.) is used.
  • Operation of the air conditioner interferes with radio or TV reception. An amplifier may be required for the affected device.
• When an abnormal sound is heard.
• When any refrigerant leakage is found.

WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME

1

Operate by COOL mode with the highest temperature set or FAN mode for 3 to 4 hours. Page 6

• This dries the inside of the unit.
- Moisture in the air conditioner contributes to favorable conditions for growth of fungi, such as mold.

2

Press OFF/ON to stop the operation.

3

Turn off the breaker and/or disconnect the power supply plug.

4

Remove all batteries from the remote controller.

When using the air conditioner again:

1

Clean the air fi Iter. Page 12

2

Check that the air inlet and outlet of the indoor and outdoor units are not blocked.

3

Check that the earth is connected correctly.

4

Refer to the "PREPARATION BEFORE OPERATION", and follow the instructions. Page 5

INSTALLATION PLACE AND ELECTRICAL WORK

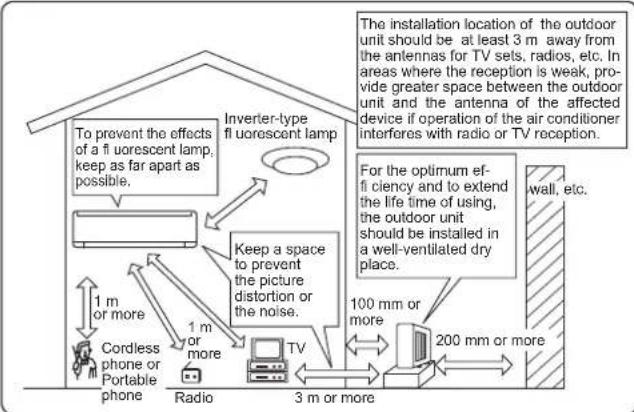

Installation place

Avoid installing the air conditioner in the following places.

• Where there is much machine oil.
- Salty places such as the seaside.
• Where sulfide gas is generated such as hot spring, sewage, waste water.
- Where oil is splashed or where the area is filled with oily smoke (such as cooking areas and factories, in which the properties of plastic could be changed and damaged).
• Where there is high-frequency or wireless equipment.
• Where the air from the outdoor unit air outlet is blocked.
- Where the operation sound or air from the outdoor unit bothers the house next door.
- The mounting height of indoor unit 1.8 m to 2.3 m is recommended. If it is impossible, please consult your dealer.
- Do not operate the air conditioner during interior construction and finishing work, or while waxing the floor. Before operating the air conditioner, ventilate the room well after such work is performed. Otherwise, it may cause volatile elements to adhere inside the air conditioner, resulting in water leakage or scattering of dew.
- Do not use the Wi-Fi interface nearby the medical electrical equipment or people who have a medical device such as a cardiac pacemaker or an implantable cardioverter-defi brillator.

It can cause an accident due to malfunctions of the medical equipment or device.
- This equipment should be installed and operated with a minimum distance of 20 cm between the device and the user or bystanders.
- Do not use the Wi-Fi interface nearby other wireless devices, microwaves, cordless phones, or facsimiles.

It can cause malfunctions.

Electrical work

• Provide an exclusive circuit for the power supply of the air conditioner.
• Be sure to observe the breaker capacity.

If you have any questions, consult your dealer.

SPECIFICATIONS

Model	Indoor		MSZ-AP25VG(K)		MSZ-AP35VG(K)		MSZ-AP42VG(K)		MSZ-AP50VG(K)
	Outdoor		MUZ-AP25VG(H)		MUZ-AP35VG(H)		MUZ-AP42VG(H)		MUZ-AP50VG(H)
Function			Cooling	Heating	Cooling	Heating	Cooling	Heating	Cooling	Heating
Power supply			~/N, 230 V, 50 Hz
Capacity		kW	2.5	3.2	3.5	4.0	4.2	5.4	5.0	5.8
Input		kW	0.60	0.78	0.99	1.03	1.30	1.49	1.55	1.60
Weight	Indoor	kg	10.5
	Outdoor	kg	31		31		35		40
Refrigerant filling capacity (R32)		kg	0.55		0.55		0.70		1.00
IP code	Indoor		IP 20
	Outdoor		IP 24
Permissible excessive operating pressure	LP ps	MPa	2.77
	HP ps	MPa	4.17
Noise level	Indoor (Super High/High/Med./Low/Silent)	dB(A)	42/36/30/24/19	45/39/34/24/19	42/36/30/24/19	45/38/31/24/19	42/38/34/29/21	45/40/35/29/21	44/40/36/33/28	48/43/38/33/28
	Outdoor	dB(A)	47	48	49	50	50	51	52	52

Guaranteed operating range

		Indoor	Outdoor
			MUZ-AP25/35/42/50VG	MUZ-AP25/35/42/50VGH
Cooling	Upper limit	32°C DB23°C WB	46°C DB—	46°C DB—
	Lower limit	21°C DB15°C WB	-10°C DB—	-10°C DB—
Heating	Upper limit	27°C DB—	24°C DB18°C WB	24°C DB18°C WB
	Lower limit	20°C DB—	-15°C DB-16°C WB	-20°C DB-21°C WB

Note:

Rating condition

Cooling — Indoor: 27°C DB, 19°C WB

Outdoor: 35°C DB

Heating — Indoor: 20°C DB

Outdoor: 7°C DB, 6°C WB

DB: Dry Bulb

WB: Wet Bulb

Wi-Fi interface

Model MAC-566IFB-E
Input Voltage DC12.7 V (from indoor unit)
Power consumption MAX 2 W
Size H×W×D (mm) 79×44×18.5
Weight (g) 60 (including cable)
Transmitter power level (MAX) 17.5 dBm @IEEE 802.11b
RF channel 1ch ~ 13ch (2412~2472 MHz)
Radio protocol IEEE 802.11b/g/n (20)
Encryption AES
Authentication	WPA2-PSK
Software Version	XX.00

For Declaration of Conformity, please go to the website below.

http://www.melcloud.com/Support

INHALT

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 38:00:00:00 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal components and ventilation duct (no text or labels)

Scharnier Loch

http://www.melcloud.com/Support

3

http://www.melcloud.com/Support

TABLE DES MATIERES

■CONSIGNES DE SECURITE 1

■MISE AU REBUT 3
■NOMENCLATURE 4
■PREPARATIF D'UTILISATION 5
■SELECTION DES MODES DE FONCTIONNEMENT 6
REGLAGE DE LA VITESSE DU VENTILATEUR ET DE LA DIRECTION DU FLUX D'AIR 7
■FONCTIONNEMENT I-SAVE 8
■FONCTIONNEMENT EN MODE ECONO COOL 8
■FONCTIONNEMENT EN MODE NOCTURNE 9

■ FONCTIONNEMENT DE LA MINUTERIE (MARCHE/ARRÊT) 9

■ MODE DE FONCTIONNEMENT MINUTERIE HEBDOMADAIRE (WEEKLY TIMER) 10

■FONCTIONNEMENT D'URGENCE 11
■FONCTION DE REDÉMARRAGE AUTOMATIQUE 11
■NETTOYAGE 12

■ CONFIGURATION DE L'INTERFACE Wi-Fi (type VGK uniquement) 13

■EN PRESENCE D'UNE PANNE POTENTIELLE 14

■ SI LE CLIMATISEUR DOIT RESTER LONGTEMPS INUTILISE 16
■ LIEU D'INSTALLATION ET TRAVAUX ELECTRIQUES 16
■FICHE TECHNIQUE 17

CONSIGNES DE SECURITE

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON OFF 38:00:00:00:00 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

FONCTIONNEMENT D'URGENCE

Technical line drawing of an air conditioner unit with internal components and ventilation slots (no text or labels)

3 4 5 6 2 1 RRC RST NCCE VDD FREE* VDDE RRC 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 RRC 1888-4899 RST 1888-4899 NCCE 1888-4899 VDD 1888-4899 FREE* VDDE

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

EN PRESENCE D'UNE PANNE POTENTIELLE

http://www.melcloud.com/Support

INHOUDSOPGAVE

■VEILIGHEIDSVOORSCHRIFTEN 1

■WEGGOOIEN 3

■NAAM VAN ELK ONDERDEEL 4

■UIT TE VOEREN HANDELINGEN VOOR INGEBRUIKNAME 5

■WERKINGSSTANDEN SELECTEREN 6

MITSUBISHI ELECTRIC 30°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:88 28:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME DELETE TEMP CLOCK RESET

De weektimer instellen

Opmerking:

Technical line drawing of an air conditioner unit with internal components (no text or labels)

Scharnier Opening

(2) RESET-schakelaar

http://www.melcloud.com/Support

ÍNDICE

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:00:28:00 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or labels)

Gozne Orifi cio

(1) Interruptor MODE (Modo)

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON OFF 38:00:00:00 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

http://www.melcloud.com/Support

ΠΕΡΙΕΧΟΜΕΝΑ

■ΜΕΤΡΑ ΑΣΦΑΛΕΙΑΣ 1

■АПОРРИΨН 3

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON OFF 38:00:00:00 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMPLE DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal components and ventilation slots (no text or labels)

3 4 5 6 2 1 PFE RFE MFE VFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFE WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC WFC

http://www.melcloud.com/Support

3

http://www.melcloud.com/Support

Σημείωση:

m = 311

http://www.melcloud.com/Support

ÍNDICE

■PRECAUÇÕES DE SEGURANÇA 1

■ELIMINAÇÃO 3

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON OFF 88:8888:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Definir o temporizador semanal

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

http://www.melcloud.com/Support

INDHOLDSFORTEGNELSE

■SIKKERHEDSFORSKRIFTER 1

■BORTSKAFFELSE 3

■DELENES BETEGNELSE 4

■KLARG∅RING F∅R ANVENDELSEN 5

■VALG AF DRIFTSTILSTANDE 6

■JUSTERING AF VENTILATORHASTIGHED OG LUFTSTRÖMMENS RETNING 7

■I-SAVE-DRIFT 8

■∅KONOMIAFK∅LINGSDRIFT (ECONO COOL) 8

■NIGHT MODE (NATTILSTAND) 9

■TIMERDRIFT (ON/OFF-TIMER) 9

■DRIFT MED UGETIMER (WEEKLY TIMER) 10

■N∅DDRIFT 11

■AUTOMATISK GENSTARTSFUNKTION 11

■RENG∅RING 12

■TILSLUTNING AF Wi-Fi-INTERFACET (kun VGK-typen) 13

■HVIS DER ER TEGN PÅ, AT DER ER OPSTÄET PROBLEMER 14

■ HVIS KLIMAANLÆGGET IKKE SKAL ANVENDES I LÆNGERE TID 16

■ INSTALLATIONSSTED OG ELEKTRISK ARBEJDE 16

■SPECIFICATIONER 17

SIKKERHEDSFORSKRIFTER

m = 311

Tryk på i save igen for at annullere i-save-drift.

- i-save-drift annulleres også, när der trykkes på knappen MODE (tilstand).

Bemaerk:

∅KONOMIAFK∅LINGSDRIFT (ECONO COOL)

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:88 28:88 TEMP OFF/ON MODE FAN ECONO COOL VANE WIDE VANE i save ON NIGHT MODE ON TIMER OFF

MITSUBISHI ELECTRIC 38°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:88 28:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND ON/OFF SET CANCEL DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

Frontpanel Wi-Fi-interface

Frontpanel Wi-Fi-interface

3 4 5 6 2 1 UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT

(1) Kontakten MODE (TILSTAND)

http://www.melcloud.com/Support

INNEHÅLL

■SÄKERHETSFÖRESKRIFTER 1

KASSERING 3

■DELARNAS NAMN 4

■FÖRBEREDELSER FÖRE ANVÄNDNING 5

■VAL AV DRIFTLÄGEN 6

■FLÄKTHASTIGHET OCH JUSTERING AV LUFTFLÖDETS RIKTNING 7

■I-SAVE-DRIFT 8

■EKONOMIKYLFUNKTIONENS (ECONO COOL) 8

■DRIFTLÄGE NIGHT MODE 9

■ENVÄNDA TIMERN 9

■ANVÄNDA VECKOTIMERN 10

■NÖDDRIFT 11

■AUTOMATISK OMSTARTNINGSFUNKTION 11

■RENGÖRING 12

INSTALLATION AV Wi-Fi-GRÄNSSNITT (endast typen VGK) 13

NÄR DU TROR ATT DET HAR UPPSTÄTT PROBLEMV 14

NÄR LUFTKONDITIONERINGEN INTE SKA ANVÄNDAS UNDER LÄNGRE TID 16

■INSTALLATIONSPLATS OCH ELARBETE 16

■SPECIFICATIONER 17

SÄKERHETSFÖRESKRIFTER

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tues Wed Thu Fri Sat Sun SET CLOCK ON 1234 ON OFF 28:8888:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

Luftfilter (Luftreningsfilter)

3 4 5 6 2 1 BR VCL VOL LED VOUT LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

(1) MODE (LÄGES)-växel

NÄR DU TROR ATT DET HAR UPPSTÅTT PROBLEMV

NÄR DU TROR ATT DET HAR UPPSTÅTT PROBLEMV

INSTALLATIONSPLATS OCH ELARBETE

Installationsplats

http://www.melcloud.com/Support

İÇİNDEKİLER

MITSUBISHI ELECTRIC 88°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:88+28:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

Hava fi ltresi (Hava arıtma filtresi)

Soğutma — İç: 27°C DB, 19°C WB

Diş: 35°C DB

http://www.melcloud.com/Support

Mitsubishi Electric Corporation (Head Office)

Tokyo Building, 2-7-3, Marunouchi, Chiyoda-ku, Tokyo 100-8310, Japan

Tel: [phone]

www.mitsubishielectric.com

Съдържание

MITSUBISHI ELECTRIC 30°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:88 28:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal components and ventilation grilles (no text or labels)

■WYBÓR TRYBU PRACY 6

REGULACJA OBROTÓW WENTYLATORA I KIERUNKU NAWIEWU 7

■TRYB I-SAVE 8

■TRYB ECONO COOL 8

* Symbol Elate pulsafe.

MITSUBISHI ELECTRIC 30°C WEEKLY Mon Tue Wed Thu Fri Sat Sun SET CLOCK ON OFF 1234 ON 28:8828:88 TEMP OFF/ON WEEKLY TIMER EDIT/SEND CANCEL ON/OFF SET DAY 1~4 ON/OFF TIME TEMP DELETE CLOCK RESET

Technical line drawing of an air conditioner unit with internal panel structure (no text or symbols)

3 4 5 6 2 1 LED VREF LED VREF LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

http://www.melcloud.com/Support

Wi-Fi interface setting information

Indoor unit model name
Indoor unit serial number
Outdoor unit model name
Outdoor unit serial number
Wi-Fi interface MAC address (MAC)
Wi-Fi interface serial number (ID)
Wi-Fi interface PIN (PIN)
Wi-Fi interface SSID (SSID)
Wi-Fi interface KEY (KEY)
System commissioning date
Wi-Fi interface installation date

Installer contact details

Name
Telephone number

MEMO

Name of Importer:

Mitsubishi Electric Europe B.V.

Capronilaan 46, 1119 NS, Schiphol Rijk, The Netherlands

French Branch

25, Boulevard des Bouvets, 92741 Nanterre Cedex, France

German Branch

Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany

Belgian Branch

Autobaan 2, 8210 Loppem, Belgium

Irish Branch

Westgate Business Park, Ballymount, Dublin 24, Ireland

Italian Branch

Travellers Lane, Hatfield, Herts., AL10 8XB, England, U.K.

Polish Branch

Krakowska 50, PL-32-083 Balice, Poland

MITSUBISHI ELECTRIC TURKEY ELEKTRİK ÜRÜNLERİ A.Ş

MSZ-AP50VG/MUZ-AP50VG, MSZ-AP50VG/MUZ-AP50VGH

Note: Its serial number is on the nameplate of the product. Hinweis: Die Seriennummer befindet sich auf dem Kennschild des Produkts. Remarque : Le numéro de série de l'appareil se trouve sur la plaque du produit. Opmerking: het serienummer staat op het naamplaatje van het product. Nota: El número de serie se encuentra en la placa que contiene el nombre del producto. Nota: il numero di serie si trova sulla targhetta del prodotto. Σημείωση: Ο σεριακός του αριθμός βρίοκεται στην πινακίδα ονόματος του προϊόντος. Nota: o número de série encontra-se na placa que contém o nome do produto.

Bemaerk: Serienummeret står på produktets fabriksskilt. Obs: Serienumret finns på produktens namnplåt. Not: Seri numarası ürünün isim plakasında yer alir. Забележка: Серийняят му номер е на табелката на продукта. Merk: Serienummeret befinner seg på navneplaten til produktet. Huomautus: Sarjanumero on merkitty laitteen arvokilpeen. Примечание: серийный номер указан на паспортное табличке изделия. Uwaga: Numer seryjny znajduje się na tabliczce znamionowej produktu.

Directives Richtlinien Directives Richtlijnen Directivas Direttive

Oðnylες Directivas Direktiver Direktiv Direktifler

Директиви Direktiver Direktiivit Директивы Dyrektywy

2014/35/EU: Low Voltage Directive

2006/42/EC: Machinery Directive

2014/30/EU: Electromagnetic Compatibility Directive

2009/125/EC: Energy-related Products Directive and Regulation (EU) No 206/2012

2011/65/EU: RoHS

Issued: 1 October, 2017 Akira HIDAKA

THAILAND Manager, Quality Assurance Department

EC DECLARATION OF CONFORMITY EG-KONFORMITÄTSERKLÄRUNG DÉCLARATION DE CONFORMITÉ CE EG-CONFORMITEITSVERKLARING DECLARACIÓN DE CONFORMIDAD CE

DICHIARAZIONE DI CONFORMITÀ CE ΔΗΛΩΣΗ ΠΙΣΤΟΤΗΤΑΣ ΕΚ DECLARAÇÃO DE CONFORMIDADE CE EU-OVERENSSTEMMELSESERKLÆRING EG-DEKLARATION OM ÖVERENSSTÄMMELSE

EC UYGUNLUK BEYANI EC ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ CE-ERKLÆRING OM SAMSVAR EY-VAATIMUSTENMUKAISUUSVA- KUUTUS

MITSUBISHI ELECTRIC, MSZ-AP25VGK/MUZ-AP25VG, MSZ-AP25VGK/MUZ-AP25VGH MSZ-AP35VGK/MUZ-AP35VG, MSZ-AP35VGK/MUZ-AP35VGH MSZ-AP42VGK/MUZ-AP42VG, MSZ-AP42VGK/MUZ-AP42VGH MSZ-AP50VGK/MUZ-AP50VG, MSZ-AP50VGK/MUZ-AP50VGH

Note: Its serial number is on the nameplate of the product. Hinweis: Die Seriennummer befindet sich auf dem Kennschild des Produkts. Remarque : Le numéro de série de l'appareil se trouve sur la plaque du produit. Opmerking: het serienummer staat op het naamplaatje van het product. Nota: El número de serie se encuentra en la placa que contiene el nombre del producto. Nota: il numero di serie si trova sulla targhetta del prodotto. Σημείωση: Ο σεριακός του αριθμός βρίσκεται στην πινακίδα ονόματος του προϊόντος. Nota: o número de série encontra-se na placa que contém o nome do produto.

Bemaerk: Serienummeret står på produktets fabriksskilt. Obs: Serienumret finns på produktens namplåt. Not: Seri numarası ürünün isim plakasında yer alir. Забележка: Серийният му номер е на табелката на продукта. Merk: Serienummeret befinner seg på navneplaten til produktet. Huomautus: Sarjanumero on merkitty laitteen arvokilpeen. Примечание: серийный номер указан на паспортное табличке изделия. Uwaga: Numer serjyny znajduje się na tabliczce znamionowej produktu.

Directives Richtlinien Directives Richtlijnen Directivas Direttive

Oðnylες Directivas Direktiver Direktiv Direktifler

Директиви Direktiver Direktiivit Директивы Dyrektywy

2014/53/EU: Radio Equipment Directive
2006/42/EC: Machinery Directive
2009/125/EC: Energy-related Products Directive and Regulation (EU) No 206/2012
2011/65/EU: RoHS

Issued: 1 October, 2017 Akira HIDAKA

THAILAND Manager, Quality Assurance Department

MITSUBISHI ELECTRIC CORPORATION
