Device Type	Portable Electric Convector
Maximum Power	2,000 W
Power Levels	3 levels: 800 W / 1,200 W / 2,000 W
Power Supply	220-240 V ~ 50 Hz
Thermostat	Yes, adjustable
Tip-over Safety	Automatic shut-off in case of overturning
Carrying Handles	Yes, integrated
Cable Length	120 cm
Weight	3.4 kg
Color	White
Brand	Concept
Reference	KS3020
EAN Code	8595631006146

Frequently Asked Questions - KS3020 Concept

What do the 3 power levels of the KS3020 correspond to?

The three levels are 800 W (gentle heating), 1,200 W (comfort), and 2,000 W (maximum power). Choose the level that suits the room size to manage your electrical consumption.

How does the Concept KS3020 thermostat work?

The thermostat allows you to set the desired ambient temperature. Once this temperature is reached, the device switches off automatically, then turns back on as soon as the temperature falls below the chosen threshold, ensuring constant comfort while limiting energy consumption.

My heater turned off by itself - is this normal?

Yes, if the device has tipped over or been knocked over, the tip-over safety shuts off the power automatically. Set it back upright on a stable flat surface to turn it back on. If it shuts off without falling over, it's likely the thermostat reaching the target temperature.

Can I leave the KS3020 on while I sleep?

The thermostat and tip-over safety allow for nighttime use. It's advisable to choose a moderate power level (800 or 1,200 W) and ensure that the device is placed on a stable surface, away from any fabric or curtains.

What area can the KS3020 heat efficiently?

As a general rule, estimate about 100 W per m² for a well-insulated room. In 2,000 W mode, the KS3020 can heat a room of about 15 to 20 m². For a smaller area, the 800 W or 1,200 W levels are sufficient and more economical.

Is the 120 cm cable sufficient for my setup?

The 120 cm power cable is suitable if the device is placed near a wall socket. If you need to use an extension cord, choose an approved model with an appropriate gauge (minimum 2.5 mm²) and never coil it during operation.

Can the Concept KS3020 be used in a bathroom?

No. This heater is not designed for damp rooms. It should only be used in dry and properly ventilated spaces, away from any water source.

The heater makes clicking noises when heating - is it dangerous?

No, these slight crackling sounds are normal. They result from the thermal expansion of plastic and metal elements during heating. This phenomenon is harmless and tends to decrease after several uses.

How do I clean my Concept KS3020 heater?

Always turn off and unplug the device before any maintenance. Wipe the exterior with a slightly damp cloth. Do not use abrasive detergents or solvents. The grilles can be dusted with a low-power vacuum cleaner or a soft brush.

How do I transport the KS3020 from one room to another?

The device has integrated carrying handles. Always wait for it to be turned off and cooled down before moving it. Its weight of 3.4 kg makes it easily portable from one room to another.

USER MANUAL KS3020 Concept

Two concept air purifiers with heat sinks and ventilation grilles, displayed against a neutral gray background (no text or symbols visible on the devices themselves)

KS3020 / KS3030

CZ

The image contains no text or characters.

The image contains no text or characters. It is a blank gray rectangle with no visible content, figures, or markings.

HU

/ DE

RENS

K PL

The image contains no text or characters. It is a blank gray square with a thin border. Therefore, there is no OCR result to return.

IT E

The image contains no text or characters.

RO

concept

CZ

Poděkování

POPIS VÝROBKU – KS3030

MONTÁŽ

Technical line drawing of a device with connectors and a central component (no text or symbols)

NÁVOD K OBSLUZE - KS3020

POPIS VÝROBKU – KS3030

MONTÁŽ

Technical line drawing of a device housing with connectors and a small screen (no text or symbols)

NÁVOD NA OBSLUHU - KS3020

OPIS PRODUKTU - KS3030

MONTAZ

Technical line drawing of a device with connectors and a central panel (no text or symbols)

INSTRUKCJA OBSŁUGI - KS3020

A TERMĚK LEÍRÅSA - KS3030

ÖSSZESZERELÉS

Technical line drawing of a device housing with connectors and a central panel (no text or symbols)

KS3020 - HASZNÁLATI ÚTMUTATÓ

IERİCES APRAKSTS - KS3030

MONTĀŽA

lerici nedrikst darbinät bez pareizi uzstäditiem balstiem.

Technical line drawing of a device housing with connectors and a central panel (no text or symbols)

LIETOŠANAS INSTRUKCIJA - KS3020

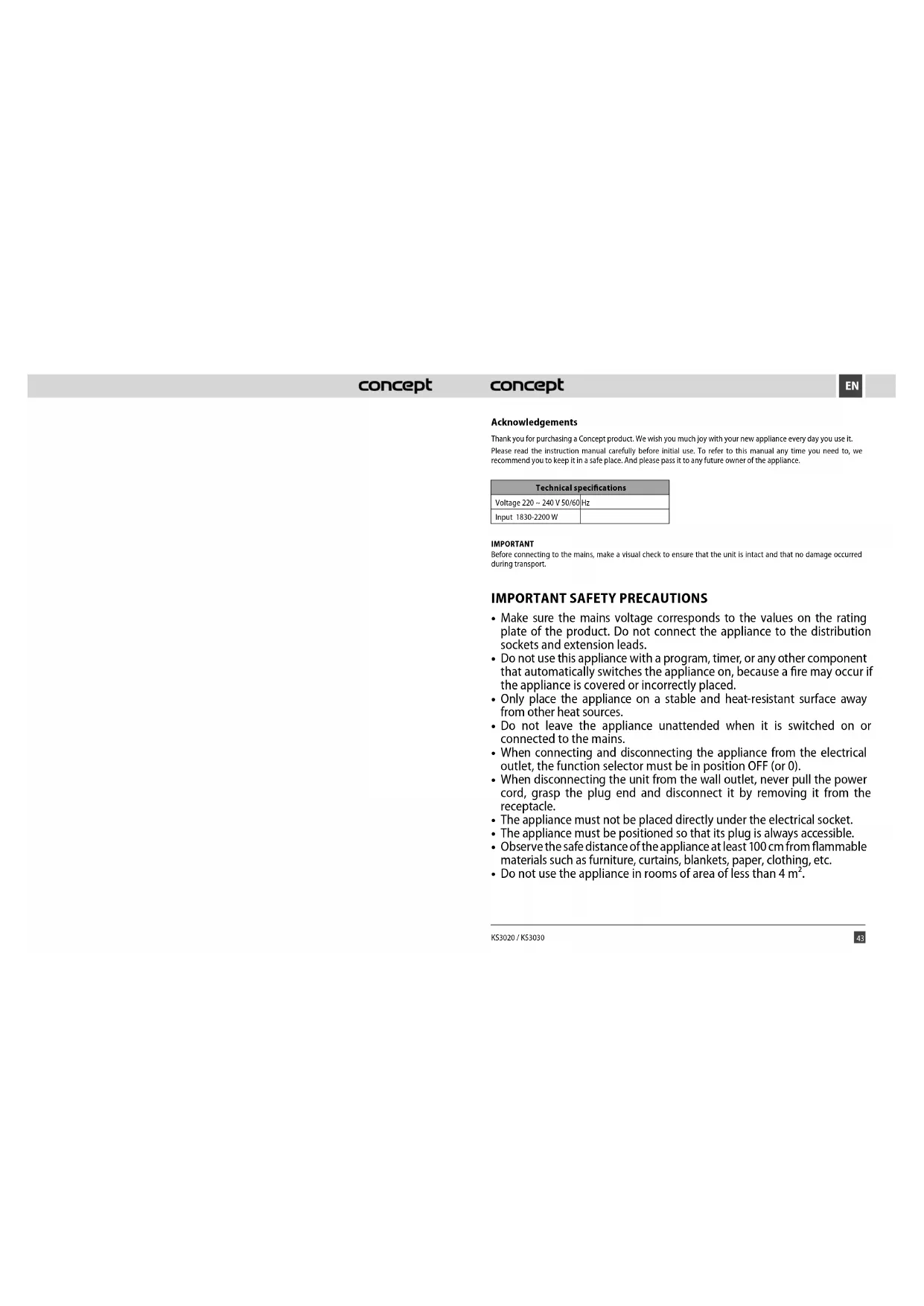

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Voltage 220 – 240 V 50/60	Hz
Input 1830-2200 W

IMPORTANT

Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Make sure the mains voltage corresponds to the values on the rating plate of the product. Do not connect the appliance to the distribution sockets and extension leads.
• Do not use this appliance with a program, timer, or any other component that automatically switches the appliance on, because a fire may occur if the appliance is covered or incorrectly placed.
• Only place the appliance on a stable and heat-resistant surface away from other heat sources.
• Do not leave the appliance unattended when it is switched on or connected to the mains.
• When connecting and disconnecting the appliance from the electrical outlet, the function selector must be in position OFF (or 0).
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• The appliance must not be placed directly under the electrical socket.
• The appliance must be positioned so that its plug is always accessible.
• Observe the safe distance of the appliance at least 100 cm from flammable materials such as furniture, curtains, blankets, paper, clothing, etc.
• Do not use the appliance in rooms of area of less than 4m^2

EN

concept

concept

EN

• Leave the air inlet and outlet grids free (at least 100 cm in front of and 50 cm behind the appliance). Caution! The outlet grid reaches a temperature above 80 °C during operation. Do not touch it, there is a risk of burns.
• Do not carry the appliance when it is switched on or if it is hot.
• Do not touch the hot surface. Use handles and buttons.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Care should be taken when using the appliance near children.
• Do not use the appliance as a toy.
• Do not cover the appliance, there is a risk of overheating. Do not use it to dry the laundry.
• Do not put anything on the appliance or place anything in front of it.
• Do not use the appliance in any other way than as described in this manual.
• The appliance must be always used only in the upright position.
• Do not use the appliance near shower, bathtub, sink or pool.
• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.).
• Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down.
• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause short circuit, damage to the appliance or cause fire.
• Do not use coarse and chemically aggressive substances to clean the appliance.
• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not touch the appliance with wet hands.

• Do not immerse the power cord, plug or appliance in water or any other liquid.
  • The appliance must not be used in vehicles.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
  • Children aged under 3 years of age must be prevented from accessing the appliance unless they are permanently supervised.
• WARNING: Some parts of this product can be very hot and cause burns. Take special care in the presence of vulnerable persons or children.
• Children from the age of 3 and under 8 may switch the appliance on or off only if the appliance is in its place or installed in its normal operating position and they are supervised or instructed how to use the appliance safely and they understand the risks that are associated with it. Children from the age of 3 and under 8 may not connect, regulate or clean the appliance, or perform maintenance by the user.
• This product is only suitable for well-insulated rooms or occasional use.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

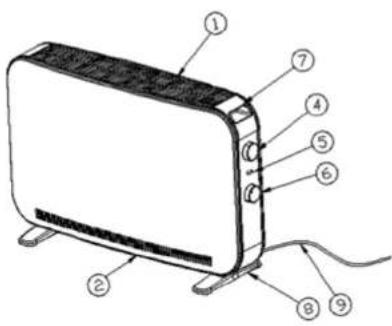

PRODUCT DESCRIPTION - KS3020

1. Air outlet grid
2. Air inlet grid
4. Thermostat controller
5. Thermostat switch indicator
6. Power switch
7. Carrying handle
8. Appliance feet
9. Power cord

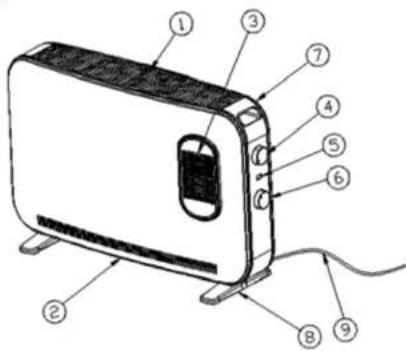

PRODUCT DESCRIPTION - KS3030

1. Air outlet grid
2. Air inlet grid
3. Front air outlet grid
4. Thermostat controller
5. Thermostat switch indicator
6. Power switch
7. Carrying handle
8. Appliance feet
9. Power cord

ASSEMBLY

The appliance must not be operated without properly installed feet.

Place the feet on the convector body and fasten them with the screws provided.

Technical line drawing of a device with connectors and a central panel (no text or symbols)

USER'S MANUAL - KS3020

• Place the appliance on a stable surface or floor to prevent it from tipping over.
  • Unfold the power cord completely.
• Connect the appliance plug to the mains.
• Use the switch (6) to select the desired power 1 – 800 W, 2 – 1200 W or 3 – 2000 W (you will hear a click when you turn the thermostat on/off).
• With the thermostat button (4) you can set the desired room temperature. When the heating function is set to 800, 1200 or 2000 W, the appliance will switch on and off alternately to maintain the selected temperature.

Note: For more accurate temperature settings, follow these steps:

Set the thermostat to maximum temperature. When you reach the desired room temperature, turn the thermostat button slowly to the left to lower the temperature until the appliance stops heating (you will hear a click indicating that the thermostat is off).

- Switch the appliance off and disconnect it from the mains after use.

USER'S MANUAL - KS3030

• Place the appliance on a stable surface or floor to prevent it from tipping over.
  • Unfold the power cord completely.
• Connect the appliance plug to the mains.
• Use the switch (6) to select the desired power 1 – 1200 W, 2 – 2000 W or 3-turbo – 2000 W (you will hear a click when you turn the thermostat on/off). To achieve the desired room temperature faster, select the 3-turbo mode – 2000 W, at which the front air outlet grid (3) is activated.
• With the thermostat button (4) you can set the desired room temperature. When the heating function is set to 1200, 2000 or 2000 W (turbo), the appliance will switch on and off alternately to maintain the selected temperature.

Note: For more accurate temperature settings, follow these steps:

Set the thermostat to maximum temperature. When you reach the desired room temperature, turn the thermostat button slowly to the left to lower the temperature until the appliance stops heating (you will hear a click indicating that the thermostat is off).

- Switch the appliance off and disconnect it from the mains after use.

46

EN

concept

concept

EN

CLEANING AND MAINTENANCE

Before cleaning the appliance always unplug the power cord from the electrical outlet!

Make sure the appliance has cooled before handling it.

To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance!

Clean and inspect the inlet and outlet grids of the appliance frequently to ensure good operation of the appliance and to prevent overheating.

The dust in the appliance can be blown or vacuumed.

Never clean the appliance under running water, do not rinse it or immerse it in water!

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.

- Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

TABLE OF LOCAL ELECTRIC HEATER DATA P
Model identification no.: KS3020, KS3030
Parameter	Symbol	Value	Unit	Parameter	Unit
Rated heat output Temperature entering methods, only for electric storage heaters (select one)
Rated heat output	Pnom	1,83-2,2	kW	Manual regulation of accumulated heat with integrated thermostat	[no]
Minimum heating capacity (indicated)	Pmin	0,85 kW	Manual regulation of accumulated heat according to room temperature and / or outdoor temperature		[no]
Maximum continuous heating power	Pmax	2,2	kW	Electronic regulation of accumulated heat according to room temperature and / or outdoor temperature	[no]
Additional electricity consumption			Heat output with fan		[no]
At rated heating output	elmax 0	kW	Type of heat output / room temperature control (select one)
With minimum heat output	elmin	0	kW	Single mode heat output without room temperature control	[no]
In standby mode	cISB	0	kW	Two or more modes set manually, without room temperature control	[no]
				With room temperature control by mechanical thermostat (yes)
				With electronic room temperature control	[no]
				Electronic temperature room control with daily timer	[no]
				Electronic temperature room control with weekly timer	[no]
				More control options (multiple choices)
				Room temperature control with person presence detection	[no]
				Room temperature control with open window detection	[no]
				With remote control	[no]
				With adaptive on/off mode	[no]
				With reduced operating hours	[no]
				With infrared sensor	[no]
Contact:	Jindrich Valenta - Concept Vysokomytska 1800 565 01 Chocen, CZECH REPUBLIC
Note:The measured seasonal energy efficiency of heating of local electric heaters (ηs) shall not be lower than the declared value at the nominal heating capacity of the unit.
Seasonal energy efficiency of all local heaters except commercial, ηs (%)					44,7

concept concept

DE

Danksagung

DE

concept

concept

DE

MONTAGE

Technical line drawing of a device housing with connectors and a small component (no text or symbols)

DESCRIPTION DU PRODUIT - KS3030

MONTAGE

Technical line drawing of a device with connectors and a central component (no text or symbols)

MODE D'EMPLOI - KS3020

Technical line drawing of a device with connectors and a central panel (no text or symbols)

MANUALE D'USO - KS3020

MONTAJE

Technical line drawing of a device with connectors and a central component (no text or symbols)

MANUAL DE USO - KS3020

DESCRIEREA PRODUSULUI - KS3030

MONTAJ

Technical line drawing of a device with connectors and a central panel (no text or symbols)

MANUAL DE UTILIZARE - KS3020

CONCEPT POLSKA sp. z o.o.

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
  • to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta - Concept

Vysokomýtská 1800, 565 01 Choceň

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DEGARANTIEBEDINGUNGEN

Garantie

FR CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

esbr Kft.

2481 Velence, Nyar u. 2/A Tel.: [phone], email: [e-mail]

Verners VT Ltd.

Piedrujas iela 5a, Riga, Latvia Tel. + 371 67021021, fakss + 371 67021000 e-pasts: [e-mail], www.verners.lv

Horvat elektronika d.o.o.

Dravska 8, HR-40305 Pušćine [e-mail] Hotline: [phone]
