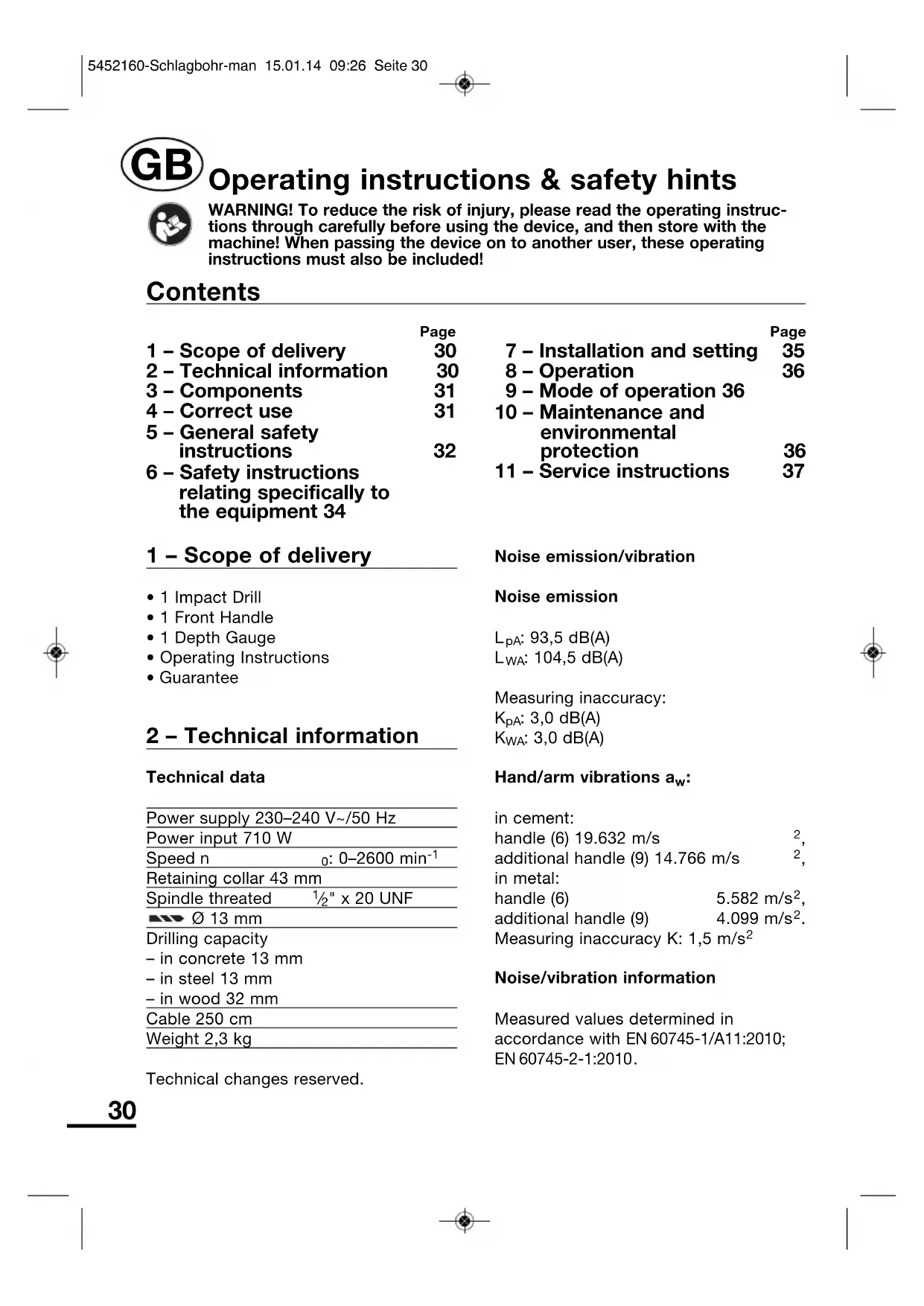

Operating instructions & safety hints

WARNING! To reduce the risk of injury, please read the operating instructions through carefully before using the device, and then store with the machine! When passing the device on to another user, these operating instructions must also be included!

Contents

	Page		Page
1 - Scope of delivery	30	7 - Installation and setting	35
2 - Technical information	30	8 - Operation	36
3 - Components	31	9 - Mode of operation 36
4 - Correct use	31	10 - Maintenance and environmental
5 - General safety instructions	32	protection	36
6 - Safety instructions relating specifically to the equipment 34		11 - Service instructions	37

1 - Scope of delivery

1 Impact Drill
1 Front Handle
1 Depth Gauge
- Operating Instructions
Guarantee

2 - Technical information

Technical data

Power supply 230-240 V\~/50 Hz
Power input 710 W
Speed n 0: 0-2600 min-1
Retaining collar 43~mm
Spindle threatened 1 / 2'' x 20 UNF
013mm
Drilling capacity
-in concrete 13mm
-in steel 13mm
-in wood 32mm
Cable 250 cm
Weight 2,3 kg

Technical changes reserved.

Noise emission/vibration

Noise emission

LpA: 93,5 dB(A)

LWA: 104,5 dB(A)

Measuring inaccuracy:

additional handle (9) 14.766 m/s

in metal:

handle (6) 5.582m / s^2

additional handle (9) 4.099m / s^2

Measuring inaccuracy K: 1,5 m/s²

Noise/vibration information

Measured values determined in accordance with EN 60745-1/A11:2010; EN 60745-2-1:2010.

The specified vibration emission value was measured in accordance with a standardised test procedure and can be used in order to compare one electrical tool with another.

The specified vibration emission value can also be used for preliminary evaluation of the disturbance.

CAUTION! The vibration emission value may fluctuate from the specified value during use of the electrical tool. These fluctuations will depend on the way in which the tool is used.

Try to keep the vibration loads as low as possible. Examples of measures that may be taken to reduce the vibration load include wearing gloves when using the tool and limiting the length of the working period. All parts of the operating cycle must be taken into account for this purpose (for example, also including times in which the power tool is switched off and times in which it is switched on, but is running without load).

3 - Components

1 Impact Drilling Switch
2 Reversing Switch
3 Lock-On Switch For Extented Use
4 C a b l e
5 Trigger with Electronic Speed Control and Preselection of Speed
6 Front Handle
7 Drill Chuck
8 Depth Gauge
9 Additional Handle

4 - Correct use

Drilling in wood and metal, impact drilling in concrete. Do not use machines, tools and accessories for additional applications (see manufacturer's instructions) for works other than those for which they are designed for. All other applications are expressly ruled out.

The machine is intended only for use in the household.

This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device.

WARNING! The warranty is voided by any improper use or use not in accordance with manufacturer's instructions. Any necessary repair must be performed by qualified personal.

Improper use of the product

All applications carried out with the device that are not listed in the "Proper use" chapter will be considered improper use.

Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool.

Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use.

The permitted revolutions of the tool insert must be at least as high as the highest value specified on the electrical tool. Accessories that turn faster than is permitted may break and fly off.

There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use.

If other components or non-original components are used with the machine, the manufacturer guarantee is voided.

Remaining risks:

The operating instructions for this electrical tool contains comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Only operate electrical tools always with necessary care.

Remaining risks may be, for example:

• Touching rotating parts or tools.
• Injury caused by flying tools or tool parts.
• Risk of fire with insufficient ventilation of the motor.
• Adverse effects on the hearing caused by working without ear defenders.

The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks.

WARNING! During operation, this power tool generates an electro-magnetic field. This field may, under certain circumstances, influence active or passive medical implants. In order to reduce the risk of serious or deadly injuries, we recommend persons with such a medical implant to consult their doctor and the manufacturer of the medical implant before using the power tool.

5 - General safety instructions for handling power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

1 Work area

a Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 Electrical Safety

a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock.

3 Personal safety

a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations.
h If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of these devices can reduce dust related hazards.

4 Power tool use and care

a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g Use the power tool, accessories and tool bits etc. in accordance

with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Service

a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b To avoid hazards, damaged power leads must be replaced by the manufacturer or his customer service representative.

6 - Safety instructions relating specifically to the equipment

Always protect eyes and ears.

• Before drilling into walls make sure that you are not breaking into an electricity, gas or water supply line. Use a detector.

Always unplug drill before changing drill or bit.

• The chuck key should always be stored in the key holder.

• To avoid injuries, securely attach the workpiece (e.g. with vice or clamp).

• When drilling or driving screws: Do not allow the motor to stall under the load.

• Wear ear defenders when using an impact drill. The effects of noise may lead to loss of hearing.

• Only use the additional handles supplied with the unit. Loss of control of the unit may lead to injuries.

• Hold the tool by the insulated handle surfaces when carrying out tasks during which it is possible that the tool will come across hidden power cables or its own cable. Contact with a power-carrying cable can also put metal parts of the unit under power and cause an electric shock.

Safety marking

The symbols on the housing mean the following:

Nr.5452160 Bj.2014

Type No. and year of manufacture

MSB 710E

Type designation

230V\~ 50Hz/710W

Motor

n:

ldling speed

Do not dispose of with domestic waste!

Important! Observe operating instructions!

Always protect eyes and ears.

Wear a light breathing protection mask

"Tested Safety" voluntary quality mark

Housing is double insulated

CE Mark (conformity to European safety standards)

Manufacturer's address

7 - Installation and setting

Inserting bit/tool

WARNING! Pull out power plug!

The drill has a quick-action chuck for changing tool manually without a key.

Grasp the drill by the rear chuck ring.
Turn the front ring to the left to open the chuck. Insert the bit and fix in position by turning the front ring to the right (Fig. 2).

Selecting speed

WARNING! Pull out power plug.

The speed selector allows you to adjust the number of

revolutions of the tool to the type of material being drilled.

• Turn the speed selector on the On-Off switch (5) in the (-) direction. The maximum number of r.p.m. is reduced.
• Turn the speed selector in the (+) direction: The number of r.p.m. is increased up to the maximum speed.

With the On-Off sliding switch the number of r.p.m. can be varied continuously within the selected maximum speed.

Percussion device/right or left-hand rotation

Setting as illustrated with motor off.

Impact Drilling

Drilling

IMPORTANT! Do not change drilling direction when the drill is in rotation; wait until the drill has come to stop. The chucks of reversible drills are always fixed by a screw with a left hand thread. This screw must be loosen before the drill chuck can be removed and is accessible through the front of the chuck. To loosen a screw with a left hand thread, turn in a clockwise direction.

8 - Operation

Switching on/off

Insert the plug in a 230-240 V~ socket.

IMPORTANT! Always switch the motor on before contacting the serial.

Switching on

Press the On-Off switch (5) carefully. The machine starts. The number of revs per minute varies according to the pressure on the switch.

Switching off

Release the On-Off switch and wait until the machine stops.

Switching on continuous mode

Press the On-Off switch and hold. Press the locking button (3). Release the On-Off switch. The machine runs at the speed selected.

Switching off continuous mode

Press the On-Off switch. The locking button unlocks. Release the On-Off switch and wait until the machine stops.

9 - Mode of operation

Drilling in wood and metal

Never use the impact feature when drilling in wood or metal. The impact drilling switch must be positioned on "Drilling". The reversing switch must be set to "Forward". The speed is controlled by pressing the trigger. Preselection of speed (5).

Drilling in concrete

Turn impact drilling switch on the position "Impact Drilling". Set reversing switch to "Forward". Start with a slow speed.

10 - Maintenance and environmental protection

Care

Clean the housing only with a damp cloth - do not use any solvents! Dry thoroughly afterwards.

CAUTION! Electrical and battery operated units that no longer work old not be disposed of in the dehold waste! They are to be

collected separately, in accordance with the 2012/19 EU

directive for the disposal of electrical and electronic waste, and sent for proper and environ mentally-friendly recycling.

Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned.

11 - Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.
• MeisterCRAFT devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• MeisterCRAFT devices are subject to stringent quality control. If however a functional fault should occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account.

PLEASE NOTE! Opening of the device invalidates the guarantee claim.

IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Wekzeuge GmbH, Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.
  Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price.
