Brand	DJI
Model	P4 Multispectral
Category	Drone
Product type	Professional multispectral drone

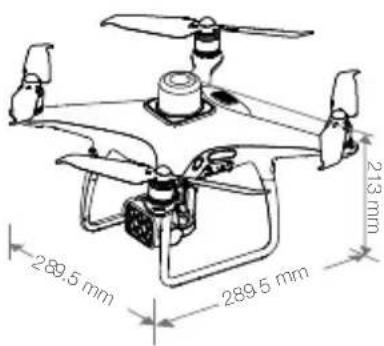

Dimensions (L x W x H)	289.5 x 289.6 x 213 mm
Takeoff weight	1487 g
Battery power	LiPo 4S, 5870 mAh, 15.2 V, 89.2 Wh
Charger power	AC power adapter, 17.4 V, 160 W
Max flight time	Approximately 27 minutes
Max service ceiling	6000 m (19685 ft)
Max ascent speed	6 m/s (automatic), 5 m/s (manual)
Max descent speed	3 m/s
Key features	Multispectral imaging (6 cameras), integrated RTK, multi-directional obstacle detection, OcuSync transmission up to 7 km, GS Pro app
Camera	6 CMOS 1/2.9" sensors, 2.08 MP, global shutter, B, G, R, RE, NIR filters, plus RGB
Gimbal	3-axis stabilized, tilt -90° to +30°
Positioning	Multi-frequency GNSS (GPS, GLONASS, BeiDou, Galileo) + RTK, centimeter accuracy
Obstacle detection	Front, rear, downward, infrared (range 0.7 - 30 m)
Remote controller	OcuSync, max range 7 km (FCC), LiPo 6000 mAh battery, 6 h battery life
Supported memory cards	microSD (Class 10 or UHS-I), max capacity 128 GB
Maintenance and cleaning	Clean the lenses with a soft, dry cloth, protect from moisture and dust
Safety	Do not start the motors near people, cut the motors in case of emergency (CSC), use in an open outdoor area
Spare parts and repairability	Contact DJI after-sales service or an authorized dealer
General information	User manual available as PDF on the DJI website, operating temperature 0 to 40 °C

Frequently Asked Questions - P4 Multispectral DJI

What are the cameras of the P4 Multispectral?

The drone is equipped with six cameras with 1/2.9-inch CMOS sensors: one RGB camera for visible light imaging and five monochrome cameras for the spectral bands Blue (450 nm), Green (560 nm), Red (650 nm), Red edge (730 nm), and Near-infrared (840 nm). All cameras have a resolution of 2.08 MP and a global shutter.

How does the integrated RTK work?

The DJI D-RTK integrated provides centimeter-level positioning using GPS, GLONASS, BeiDou, and Galileo signals. It can be used with the Network RTK service, a DJI D-RTK 2 mobile station (optional), or in PPK mode (post-processed). Position data is recorded in the EXIF data of each image.

What is the maximum flight time of the P4 Multispectral?

The maximum flight time is approximately 27 minutes under optimal conditions. The intelligent flight battery has a capacity of 5870 mAh and an energy of 89.2 Wh. It is recommended to have spare batteries for long missions.

How to activate the drone with the GS Pro app?

Download the latest version of GS Pro from the App Store on an iPad. On first use, connect the drone and remote controller, then launch the app. Follow the activation instructions. Ensure the iPad has an Internet connection.

What is the range of the remote controller?

The remote controller uses OcuSync technology. The maximum range is 7 km (FCC/NCC) in an open area without interference. For CE/MIC/KCC/SRRC standards, the range is 5 km. Actual range depends on the environment and antenna position.

How to prepare the drone for takeoff?

1. Mount the propellers (black rings on motors with black mark, silver on others). 2. Remove the gimbal clamp. 3. Turn on the drone battery and remote controller. 4. Launch GS Pro. 5. Wait for the status indicators to blink slowly in green (RTK or GNSS positioning acquired). Then gently push the left joystick up to take off.

What to do if the RTK signal is weak?

If the RTK signal is weak, the drone can use standard GNSS for positioning. It is recommended to use PPK (Post-Processed Kinematic) mode for increased accuracy. You can also move to an area with better reception or use a D-RTK 2 station.

What types of SD cards are supported?

The drone accepts microSD cards with a minimum write speed of 15 MB/s. Cards must be Class 10 or UHS-I. Maximum capacity is 128 GB. File system can be FAT32 (≤ 32 GB) or exFAT (> 32 GB).

How to generate multispectral maps?

After completing a flight mission with the GS Pro app, captured images are exported. Use compatible photogrammetry software (such as DJI Terra or others) to process the data and generate multispectral maps such as NDVI, vegetation indices, etc.

What are the important safety instructions?

Do not start the motors in a confined space or near people. Keep both hands on the remote controller during flight. In case of emergency, you can cut the motors in mid-flight using the CSC (Combination Stick Command). Always watch the drone and comply with local regulations.

USER MANUAL P4 Multispectral DJI

Line drawing of a quadcopter drone with propellers and control panel (no text or symbols)

Contents

EN Quick Start Guide 2
CHS 快速入门指南 8
CHT 快速入門指南 14
JP クイックスタートガイド 20
KR 뭁 스타트 가이드 26
DE Kurzanleitung 32
ES Guía de inicio rápido 38
FR Guide de démarrage rapide 44
IT Guida di avvio rapido 50
NL Snelstartgids 56
PT Guia de início rápido 62
PT-BR Guia de Início Rápido 68
RU Краткое руководство пользователя 74

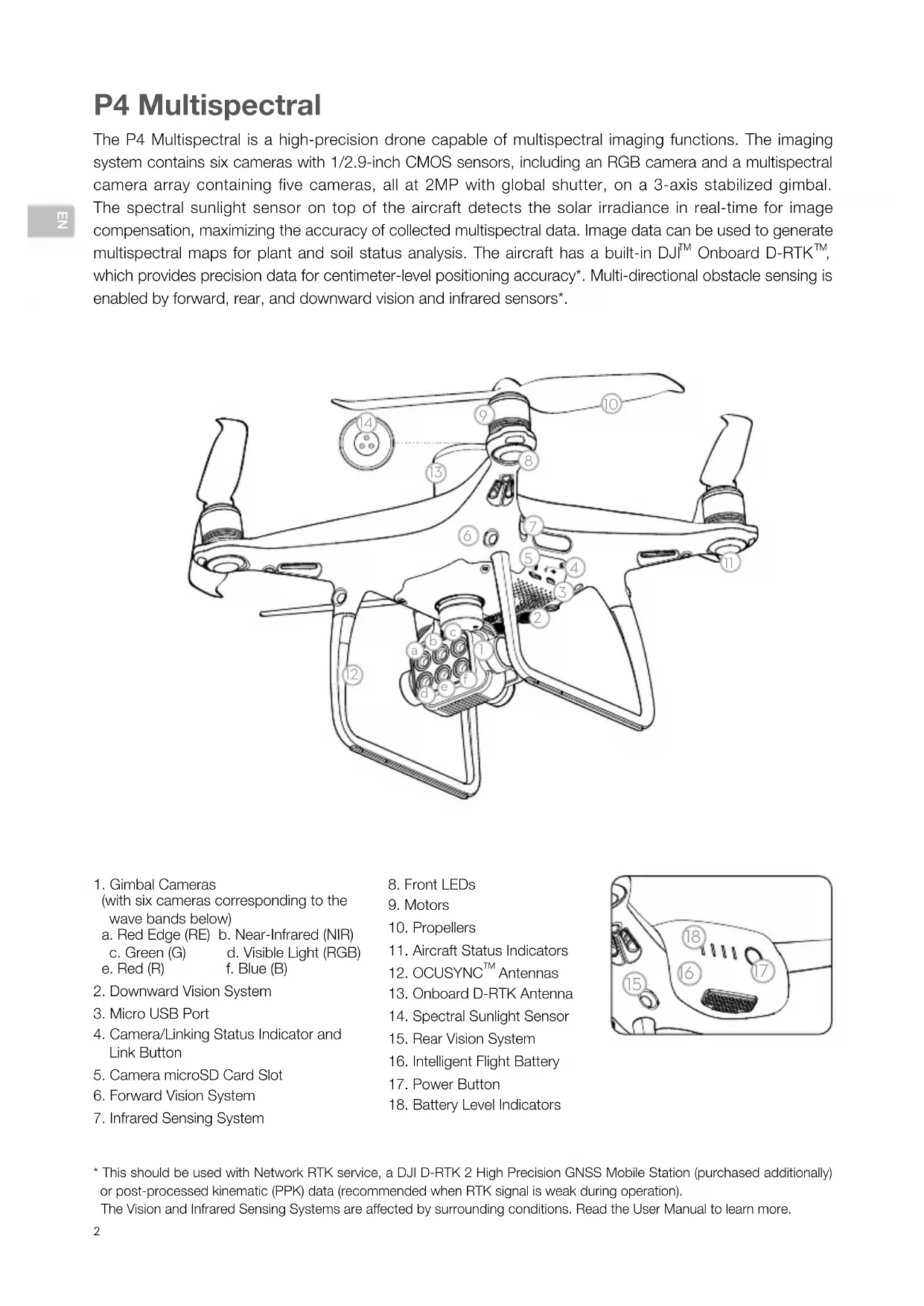

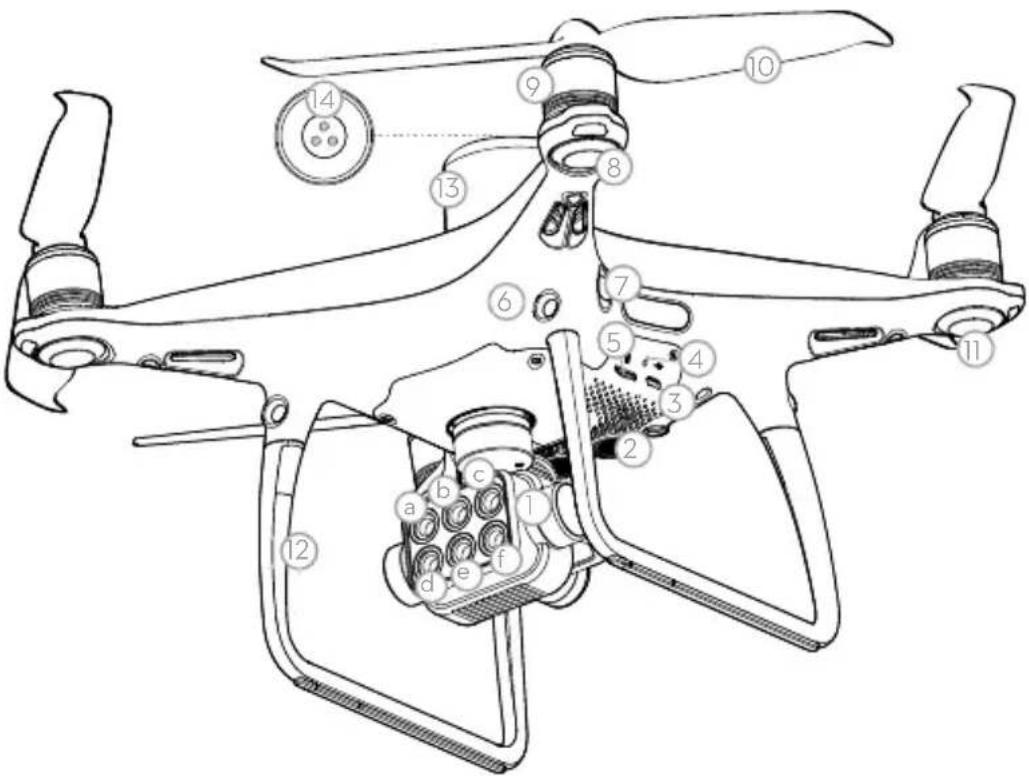

P4 Multispectral

The P4 Multispectral is a high-precision drone capable of multispectral imaging functions. The imaging system contains six cameras with 1/2.9-inch CMOS sensors, including an RGB camera and a multispectral camera array containing five cameras, all at 2MP with global shutter, on a 3-axis stabilized gimbal. The spectral sunlight sensor on top of the aircraft detects the solar irradiance in real-time for image compensation, maximizing the accuracy of collected multispectral data. Image data can be used to generate multispectral maps for plant and soil status analysis. The aircraft has a built-in DJI ^™ Onboard D-RTK ^™ , which provides precision data for centimeter-level positioning accuracy*. Multi-directional obstacle sensing is enabled by forward, rear, and downward vision and infrared sensors*.

1. Gimbal Cameras
   (with six cameras corresponding to the wave bands below)
   a. Red Edge (RE) b. Near-Infrared (NIR)
   c. Green (G) d. Visible Light (RGB)
   e. Red (R) f. Blue (B)
2. Downward Vision System
3. Micro USB Port
4. Camera/Linking Status Indicator and Link Button
5. Camera microSD Card Slot
6. Forward Vision System

7. Infrared Sensing System

8. Front LEDs

9. Motors
10. Propellers
11. Aircraft Status Indicators
12. OCUSYNC ^TM Antennas
13. Onboard D-RTK Antenna
14. Spectral Sunlight Sensor

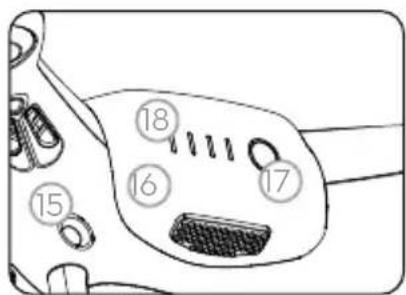

15. Rear Vision System
16. Intelligent Flight Battery
17. Power Button
18. Battery Level Indicators

* This should be used with Network RTK service, a DJI D-RTK 2 High Precision GNSS Mobile Station (purchased additionally) or post-processed kinematic (PPK) data (recommended when RTK signal is weak during operation).
The Vision and Infrared Sensing Systems are affected by surrounding conditions. Read the User Manual to learn more.

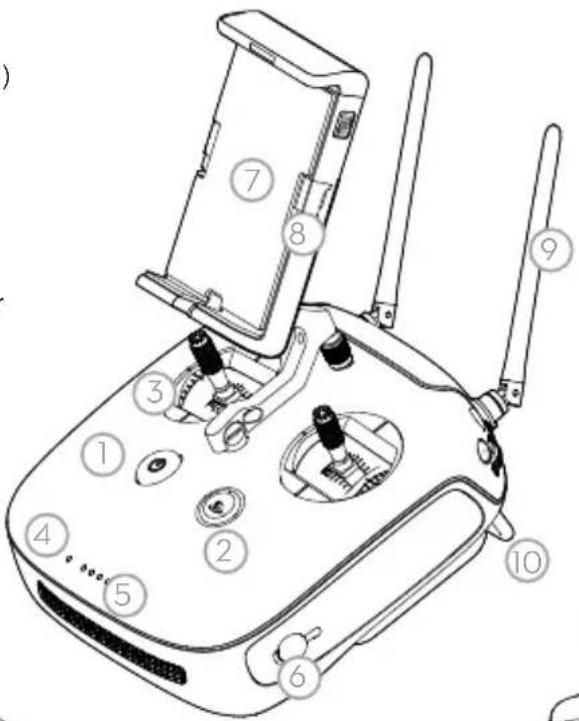

Remote Controller

The remote controller features DJI's long-range transmission technology OcuSync that is capable of controlling the aircraft and the gimbal cameras at a maximum transmission range of 4.3 mi (7 km)*. Connect an iPad to the remote controller via the USB port to use the DJI GS Pro app to plan and perform missions. Export the captured images for analysis and create multispectral maps. The remote controller has a rechargeable LiPo battery with a maximum battery life of approximately 6 hours*.

1. Power Button
2. Return to Home (RTH) Button
3. Control Sticks
4. Status LED
5. Battery Level LEDs
6. Power Port
7. Mobile Device Holder
8. Small Device Positioning Tabs (for mobile phones)
9. Antennas
10. Handle Bar

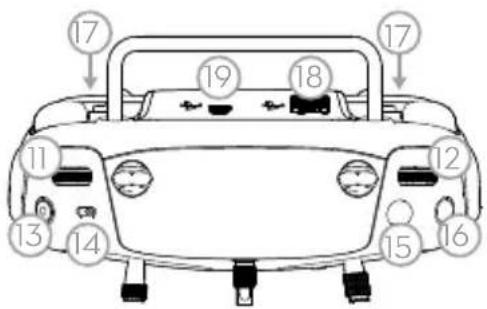

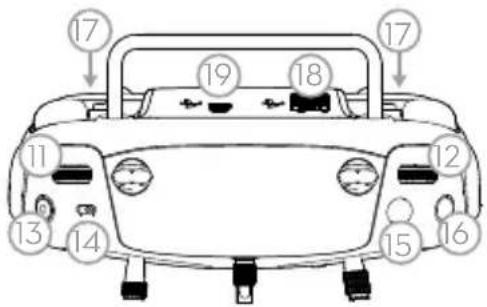

1. Gimbal Dial
2. Reserved Dial
3. Video Recording Button
4. Flight Mode Switch
5. Shutter Button*
6. Reserved Blank Button
7. C1 and C2 Buttons (customizable)
8. USB Port (for mobile device connection)
9. Micro USB Port

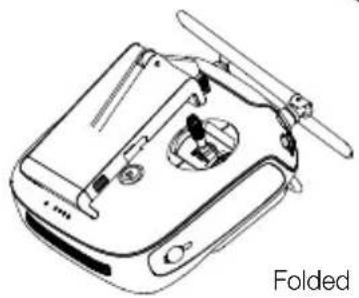

Line drawing of a folded electronic device with no visible text or symbols

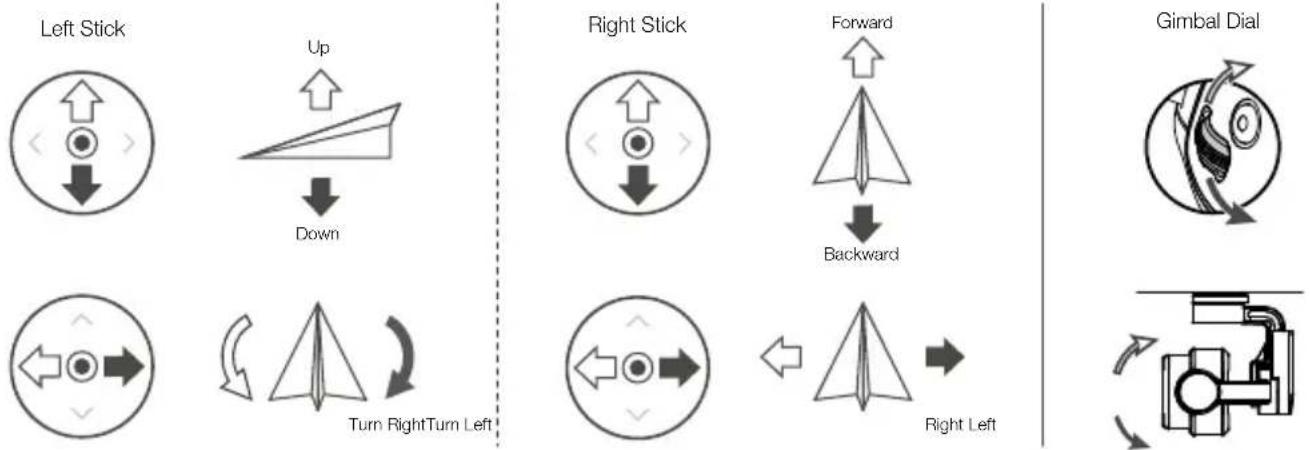

The figure below shows the function that each control stick movement performs, using Mode 2 as an example. The left stick controls the aircraft's altitude and heading, while the right stick controls its forward, backward, left and right movements. The gimbal dial controls the camera's tilt.

* The remote controller is able to reach its maximum transmission distance (FCC/NCC) in a wide open area with no Electro-Magnetic Interference, and at an altitude of about 400 ft (120 m).
The maximum runtime is tested under laboratory environment, only for your reference.
Pictures will only be taken when the shutter button is fully pressed.

Using the P4 Multispectral

1. Downloading the DJI GS Pro App

πZ

The latest version of DJI GS Pro is required when using with the P4 Multispectral. Search for DJI GS Pro* in App Store or scan the QR code to download the app on your iPad.

DJI GS Pro

When using your P4 Multispectral for the first time, activate it using DJI GS Pro. Ensure that your iPad has access to the internet.

* Visit the official DJI website for more information about DJI GS Pro. https://www.dji.com/ground-station-pro

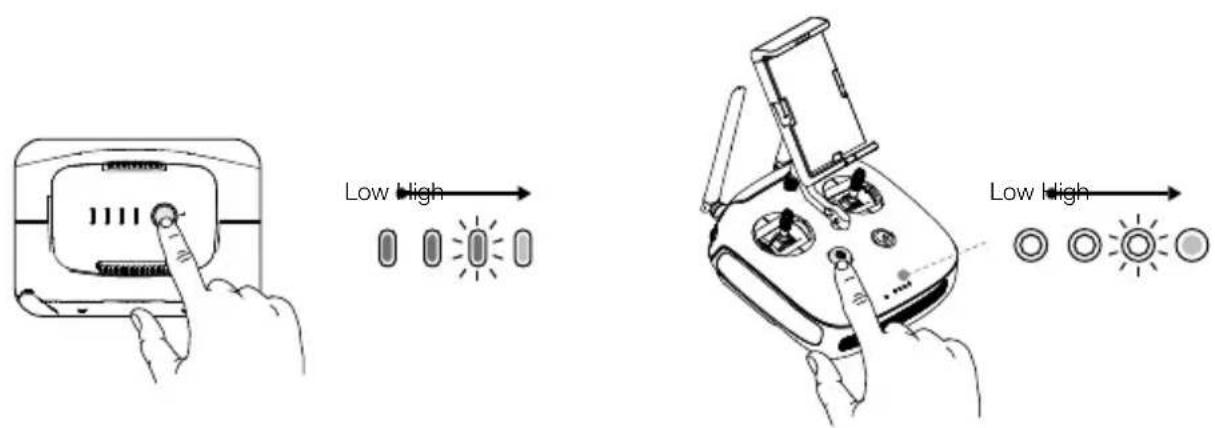

2. Checking Battery Levels

Press once to check the battery level. Press once, then again and hold to turn on/off.

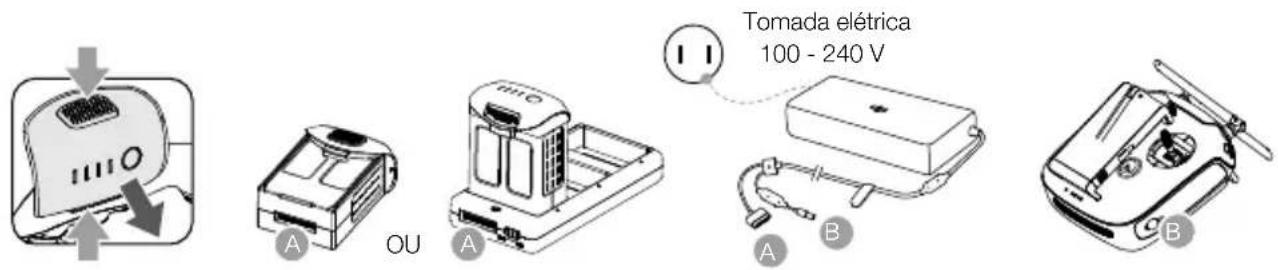

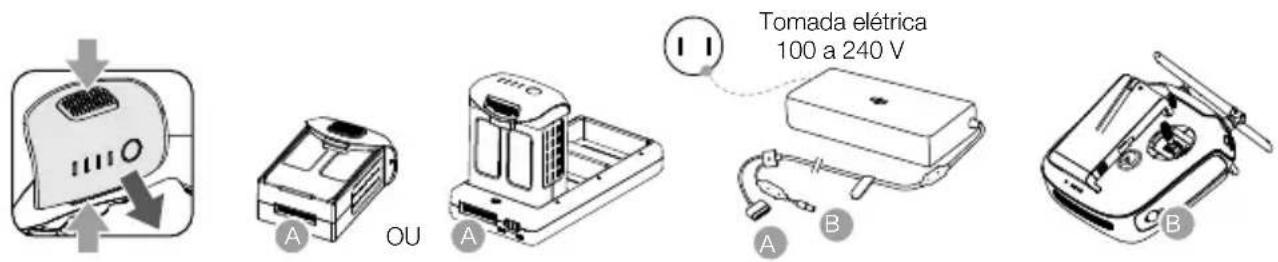

3. Charging the Batteries

• Fully charge the batteries before using for the first time.
- Ensure to connect the Intelligent Flight Batteries to the charging hub as shown in the figure above.
- Ensure that the Mode Switch of the Intelligent Flight Battery charging hub is set to the Charging Mode position.

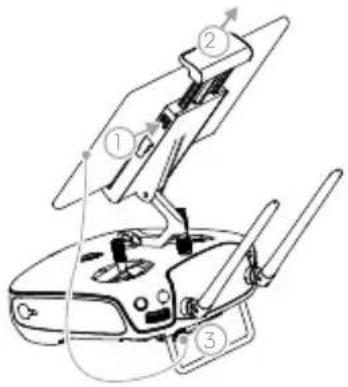

4. Preparing the Remote Controller

Strong Weak

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

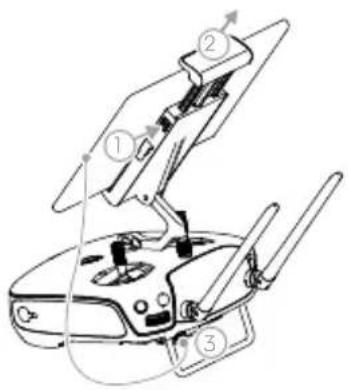

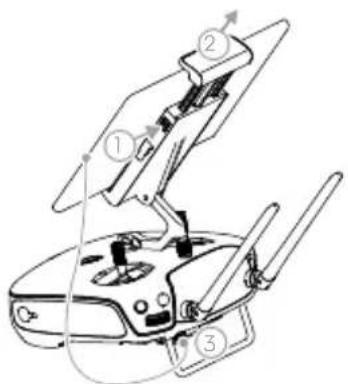

Unfolding the Remote Controller

Diagram showing two aircraft with diverging lines, no text or symbols present

Optimal Transmission Zone

Try to keep the aircraft inside the optimal transmission zone. If the signal is weak, adjust the antennas or fly the aircraft closer.

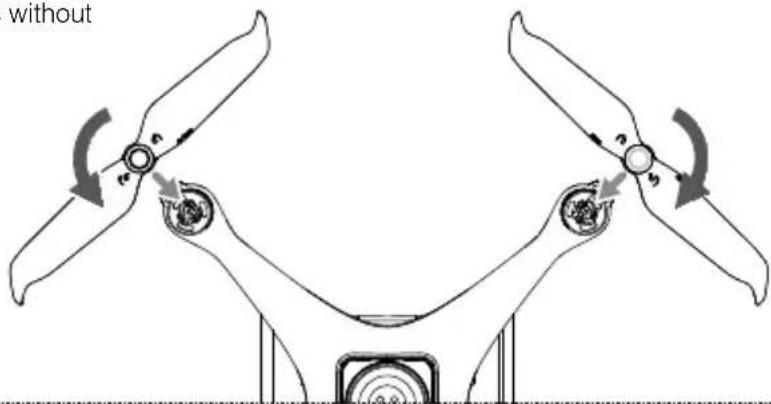

5. Preparing for Takeoff

Black propeller rings go on motors with black dots.

Silver propeller rings go on motors without black dots.

Press the propeller down onto the mounting plate and rotate in the lock direction until secure.

- Check that the propellers are secure before each flight.

Diagram of a mechanical device with a central component and downward arrow, no visible text or symbols

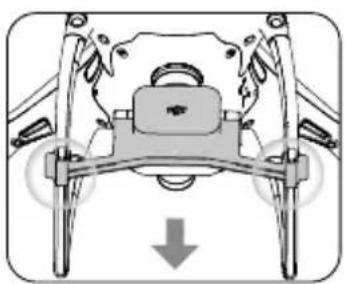

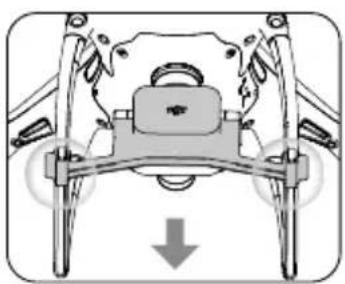

Remove the gimbal clamp from the camera.

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

Power on the remote controller and the aircraft.

Launch the app.

6. Flight

For a safe take-off, make sure that the Aircraft Status Indicators blink green slowly (using RTK* or GNSS for positioning).

Takeoff Landing

OR

Left stick (in Mode 2) up slowly to take off

Left stick down slowly until you touch the ground
Hold for three seconds to stop the motors

• Spinning propellers can be dangerous. Stay away from spinning propellers and motors. DO NOT start the motors in confined spaces or when there are people nearby.
  • Always keep your hands on the remote controller when the motors are spinning.
• Stopping motors mid-flight: Perform the CSC to stop the motors. This function can be enabled in DJI GS Pro. Only stop motors mid-flight in emergency situations when doing so can reduce the risk of damage or injury.

* RTK positioning is recommended. Go to Mission View in DJI GS Pro, tap the icon 📄 or RTK on top of the screen to go to the RTK settings menu, and then select D-RTK 2 or Network RTK Account as the RTK data source. Enable the aircraft RTK at the bottom of the menu. Otherwise, the aircraft cannot use the RTK data.

7. Starting Operations

The following example includes instructions for 3D Map Area missions using DJI GS Pro.

Create a 3D Map Area mission.

Configure mission parameters.

Tap camera preview to enter Camera View to configure camera settings*.

Perform the mission.

pictures.

Generate a map.Export the

* When multispectral camera has been selected in Camera View, this mission will not include RGB photos.

Specifications

- Aircraft

Takeoff Weight 1487 g

Diagonal Distance (Propellers Excluded) 350 mm

Max Service Ceiling Above Sea Level 19685 ft (6000 m)

Max Ascent Speed 6 m/s (automatic flight); 5 m/s (manual control)

Max Descent Speed 3 m/s

Max Speed 31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)

Max Flight Time Approx. 27 minutes

Operating Temperature 0° to 40°C (32° to 104°F)

Operating Frequency

2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (Other countries/regions) ^[1]

Transmission Power (EIRP)

2.4 GHz: < 20 dBm (CE / MIC / KCC)

5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Hover Accuracy Range

RTK enabled and functioning properly:

Vertical: ±0.1 m; Horizontal: ±0.1 m

RTK disabled:

Vertical: ±0.1 m (with vision positioning); ±0.5 m (with GNSS positioning)

Horizontal: ±0.3 m (with vision positioning); ±1.5 m (with GNSS positioning)

Image Position Compensation

The relative positions of the centers of the six cameras' CMOS and the phase center of the onboard D-RTK antenna have been calibrated and are recorded in the EXIF data of each image.

• GNSS

Single-Frequency High-Sensitivity GNSS GPS + BeiDou + Galileo ^[2] (Asia); GPS + GLONASS + Galileo ^[2] (other regions)

Multi-Frequency Multi-System High-Precision RTK GNSS

Frequency Used

GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo ^[2] : E1/E5

First-Fixed Time: < 50 s

Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS).

1 ppm indicates error with a 1 mm increase over 1 km of movement.

Velocity Accuracy: 0.03 m/s

- Mapping Functions

Ground Sample Distance (GSD)

(H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m)

Rate of Data Collection Max operating area of approx. 0.63 km

^2 for a single flight at an altitude of 180 m, i.e., GSD is

approx. 9.52 cm/pixel, with a forward overlap rate of 80% and a side overlap ratio of 60%, during a flight that drains the battery from 100% to 30%.

• Gimbal

Controllable Range Pitch: -90° to +30°

- Vision System

Velocity Range ≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting

Altitude Range 0 - 33 ft (0 - 10 m)

Operating Range 0 - 33 ft (0 - 10 m)

Obstacle Sensory Range 2 - 98 ft (0.7 - 30 m)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

- Camera

Sensors

Six 1/2.9" CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging.

Each Sensor: Effective pixels 2.08 MP (2.12 MP in total)

Filters

Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm;

Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm

Lenses FOV (Field of View): 62.7°

Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞ Aperture: f/2.2

RGB Sensor ISO Range 200 - 800

Monochrome Sensor Gain 1 - 8x

Electronic Global Shutter

1/100 - 1/20000 s (visible light imaging); 1/100 - 1/10000 s (multispectral imaging)

Max Image Size 1600×1300 (4:3.25)

Photo Format

JPEG (visible light imaging) + TIFF (multispectral imaging)

Supported File Systems FAT32 (≤ 32 GB); exFAT (> 32 GB)

Supported SD Cards microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-I rating required

Operating Temperature 0° to 40°C (32° to 104°F)

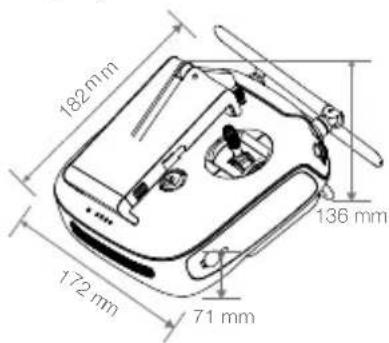

- Remote Controller

Operating Frequency

2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)

5.725 GHz to 5.850 GHz (Other countries/regions) ^[11]

Transmission Power (EIRP)

2.4 GHz: < 20 dBm (CE / MIC / KCC)

5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Max Transmission Distance

FCC / NCC: 4.3 mi (7 km); CE / MIC / KCC / SRRC: 3.1 mi (5 km)

(Unobstructed, free of interference)

Built-in Battery 6000 mAh LiPo 2S

Operating Current / Voltage

1.2 A @ 7.4 V

Mobile Device Holder

Tablets and smartphones

Operating Temperature 0° to 40° C (32° to 104° F)

• Intelligent Flight Battery (PH4-5870mAh-15.2V)

Capacity 5870 mAh

Voltage 15.2 V

Battery Type LiPo 4S

Energy 89.2 Wh

Net Weight 468 g

Operating Temperature -10° to 40°C (14° to 104°F)

Charging Temperature 5° to 40°C (41° to 104°F)

Max Charging Power 160 W

• Intelligent Flight Battery Charging Hub (P4CH)

Voltage 17.5 V

Operating Temperature 5° to 40° C (41° to 104° F)

• AC Power Adapter (PH4C160)

Voltage 17.4 V

Rated Power 160 W

※ This Quick Start Guide is subject to change without prior notice.

Download the latest version from

https://www.dji.com/p4-multispectral

[1] To comply with local laws and regulations, this frequency is not available in some countries or regions.

[2] Support for Galileo is coming soon.

认识 P4 MULTISPECTRAL

DJI GS Pro

Internet

Line drawing of a drone with propeller and control panel (no text or symbols)

展开

Diagram showing two drones with directional arrows, no text or symbols present

最佳通信范围

Mechanical assembly diagram showing a motor or linkage mechanism with a downward arrow indicating motion (no text or symbols present)

Line drawing of a kitchen appliance with a power button and a microwave oven (no text or symbols)

6. 飞行

DJI GS Pro

Technical line drawing of a flywheel with control panel and propeller (no text or symbols)

展開

Diagram showing two drones with incident and outgoing arrows, no text or symbols present

最佳通訊範圍

Diagram of a mechanical device with a central component and downward arrow indicating motion (no text or symbols)

移除雲台鎖扣

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

開啟遙控器、航拍機電源

執行
DJI GS Pro

6. 飛行

NCC / FCC: 7 km; SRRC / CE / MIC / KCC: 5 km (無干擾、無遮擋)

運作電流/電壓

1.2 A @ 7.4 V

行動裝置支架 適用於平板電腦或手機

操作温度

0℃至40℃

1. ジンバルカメラ

Line drawing of a drone's internal components (no text or symbols)

折りたたんだ状態

DJI GS Pro

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

送信機を展開する

Diagram showing two drones with incident and reflected angles, no text or symbols present

最適な伝送範囲

Mechanical assembly diagram showing a motor with wheels and a gear mechanism, no text or symbols present

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

送信機と機体の電源を入れます。

アプリを起動します。

6. 飛行

Line drawing of a drone with control panel and sensor components (no text or symbols)

접은 상태

DJI GS Pro

Line drawing of a drone with propeller and control panel (no text or symbols)

조종기 펴기

Diagram showing two aircraft with diverging lines, no text or symbols present

최적 전송 구역

Mechanical assembly diagram showing a motor with wheels and a central gear (no text or symbols)

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

1. Gimbal-Kameras

DJI GS Pro

Two identical diagrams showing wireless signal icons with X and Y symbols, no text or labels present.

Stark Schwach

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

Diagram showing two drones with incident and reflected angles, no text or symbols present

Diagram of a mechanical device with a central component and downward arrow, no visible text or symbols

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

5,8 GHz: < 26 dBm (FCC/SRRC/NCC)

Schwebegenauigkeit

• Intelligent Flight Battery (PH4-5870mAh-15.2V)

Kapazität 5.870 mAh

Spannung 15,2 V

Akkutyp LiPo 4S

Energie 89,2 Wh

Nettogewicht 468 g

Line drawing of a drone's internal components, possibly a helicopter or control system, with no visible text or symbols.

DJI GS Pro

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

Despliegue del control remoto

Diagram showing two aircraft with diverging lines, no text or symbols present

Diagram of a mechanical device with a central component and downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

FCC/NCC: 7 km; CE/MIC/KCC/SRRC: 5 km

GS Pro

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

Diagram showing two aircraft with diverging lines, no text or symbols present

Zone de transmission optimale

Mechanical assembly diagram showing a motor or linkage mechanism with no visible text or symbols

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

Vitesse max. 50 km/h (31 mph) (Mode P) ; 58 km/h (36 mph) (Mode A)

5.8 GHz : < 26 dBm (FCC/SRRC/NCC)

5,8 GHz : < 26 dBm (FCC/SRRC/NCC)

Distance de transmission max.

DJI GS Pro

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

Apertura del radiocomando

Diagram showing two aircraft with diverging lines, no text or symbols present

Diagram of a mechanical device with a central component and downward arrow, no visible text or symbols

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

5.8 GHz: < 26 dBm (FCC/SRRC/NCC)

5.8 GHz: < 26 dBm (FCC/SRRC/NCC)

1. Gimbalcamera's

DJI GS Pro

Line drawing of a drone with propeller and control panel (no text or symbols)

Diagram showing two drones with incident and reflected angles, no text or symbols present

Optimaal zendgebied

Diagram of a mechanical device with a central component and downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

Schakel de afstandsbediening en de drone in.

Start de app.

6. Vliegen

• Intelligent Flight Battery (PH4-5870mAh-15.2V)

Capaciteit 5870 mAh

Spanning 15,2 V

Batterijtype LiPo 4S

Vermogen 89,2 Wh

Nettogewicht 468 g

• Intelligent Flight Battery Charging Hub (P4CH)

DJI GS Pro

3. Carregar as baterias

Line drawing of a futuristic aircraft with propellers and control panels (no text or symbols)

Desembrulhar o telecomando

Diagram showing two aircraft with diverging lines, no text or symbols present

Diagram of a mechanical device with a central component and downward arrow, no visible text or symbols

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

Ligue o telecomando e a aeronave.

Inicie a aplicação.

6. Voo

5,8 Ghz: < 26 Dbm (FCC/SRRC/NCC)

DJI GS Pro

3. Carregando as baterias

Line drawing of a drone with propeller and control panel (no text or symbols)

Desdobrando o controle remoto

Diagram showing two aircraft with diverging lines, no text or symbols present

Diagram of a mechanical device with two blades and internal components, showing rotational motion arrows (no text or symbols)

Diagram of a mechanical device with a central component and downward arrow, no visible text or symbols

Line drawing of a kitchen appliance with a power button and a toaster (no text or symbols)

Ligue o controle remoto e a aeronave.

Abra o aplicativo.

6. Voo

Crie mapas.Exporte as

Especificações

•Aeronave

5,8 GHz: <26 dBm (FCC/SRRC/NCC)

DJI GS Pro

Line drawing of a helicopter with propellers and control panel (no text or symbols)

Раскройте пульт

Diagram showing two aircraft with diverging lines, no text or symbols present

Diagram of a mechanical device with a central component and downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen appliance with a power button and a front-mounted oven (no text or symbols)

DJI is a trademark of DJI.

Copyright © 2020 DJI All Rights Reserved.

DJI 是大疆创新的商标

For online support, please scan this code with Facebook Messenger

微信扫一扫关注大疆农业服务公众号
