USER MANUAL PFS 710 D3 PARKSIDE
Translation of the original instructions
FR BE
SCIE SABRE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB /IE Translation of the original instructions Page 1
Introduction....2
Intended use....2
Features 2
Package contents 2
Technical data 2
General power tool safety warnings....3
-
Work area safety....3
-
Electrical safety 3
-
Personal safety....4
-
Power tool use and care 4
-
Service....5
Appliance-specific safety instructions for sabre saws....5
Original accessories/auxiliary equipment 5
Information on saw blades....5
Before use....6
Fitting/changing the saw blade....6
Turning the appliance handle....6
Adjusting the footplate 6
Stroke rate selection....6
Use....6
Switching on and off 6
Guiding the sabre blade safely 7
Practical advice on sawing....7
Maintenance and cleaning....7
Kompernass Handels GmbH warranty 8
Service....9
Importer 9
Disposal....9
Translation of the original Conformity Declaration....10

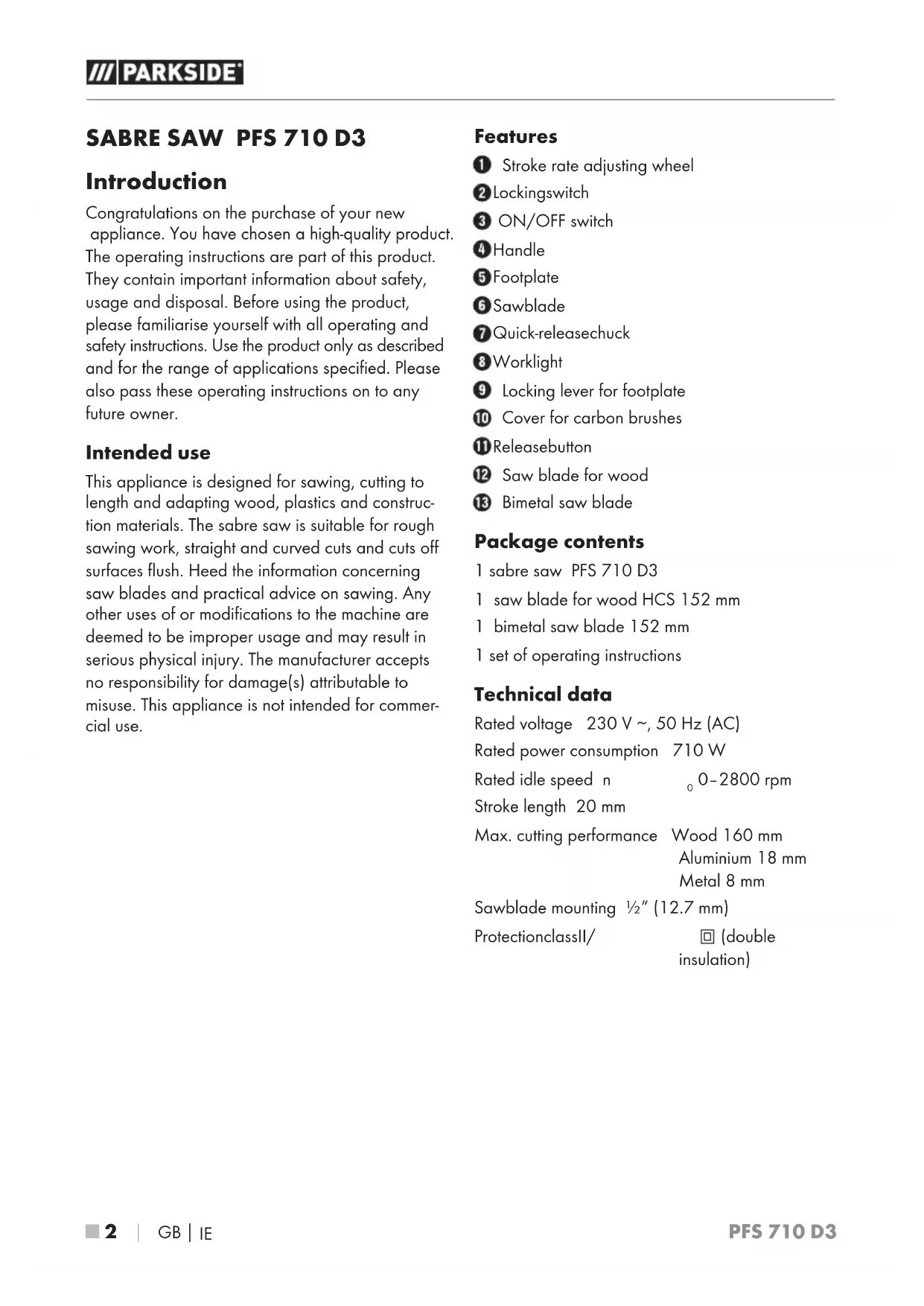

SABRE SAW PFS 710 D3
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is designed for sawing, cutting to length and adapting wood, plastics and construction materials. The sabre saw is suitable for rough sawing work, straight and curved cuts and cuts off surfaces flush. Heed the information concerning saw blades and practical advice on sawing. Any other uses of or modifications to the machine are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.
Features
① Stroke rate adjusting wheel
② Lockingswitch
③ ON/OFF switch
4 Handle
5 Footplate
6 Sawblade
7 Quick-releasechuck
8 Worklight
9 Locking lever for footplate
10 Cover for carbon brushes
11 Releasebutton
12 Saw blade for wood
13 Bimetal saw blade
Package contents
1 sabre saw PFS 710 D3
1 saw blade for wood HCS 152 mm
1 bimetal saw blade 152 mm
1 set of operating instructions
Technical data
Rated voltage 230 V \~, 50 Hz (AC)
Rated power consumption 710 W
Rated idle speed n 0-2800 rpm
Stroke length 20 mm
Max. cutting performance Wood 160 mm
Aluminium 18 mm
Metal 8 mm
Sawblade mounting 12 " (12.7 mm)
ProtectionclassII/ □ (double insulation)
Noise emission value
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:
Sound pressure level L _PA = 88 dB (A)
Uncertainty K = 5 dB
Sound power level L _WA = 99 dB (A)
Uncertainty K = 5 dB
Wear hearing protection!
Vibration values (vector total of three directions) determined in accordance with EN 62841:
Total vibration value
Cutting boards a _h,B = 9.8 m/s ^2
Uncertainty K = 1.5 m/s ^2
Cutting wooden beams a _h.WB=12.1 m/s^2
Uncertainty K = 1.5 m/s ^2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
▶ Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions for sabre saws
To avoid the risk of injury or fire as well as health risks:
■ Hold the power tool by the insulated handles if carrying out work during which the power tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.
- Fix and secure the workpiece to a sturdy work surface using clamps or other methods. If you hold the workpiece in your hands or against your body only, it will remain unstable. This can result in a loss of control.
■ Wear a dust mask!
Original accessories/auxiliary equipment
■ Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
Information on saw blades
You can use any saw blade provided it is fitted with a suitable mount - 1/2" (12.7 mm) universal shaft. Saw blades optimised for your sabre saw are available from retail stores in different lengths for various purposes.
NOTE
▶ TPI = teeth per inch = the number of teeth per 2.54 cm
Wood saw blade 12
Dimensions: 152 mm, 6 TPI Ideal for: sawing construction wood, chipboard, panels and plywood, and also plunge cuts.
Bimetal saw blade 13
Dimensions: 152 mm, 24 TPI Ideal for: for sawing sheet metal, profiles and pipes – flexible and break-resistant.
Before use

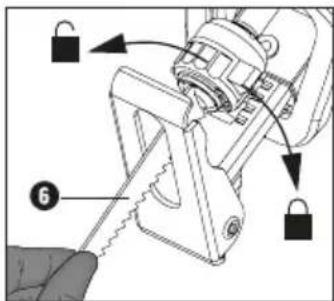

Fitting/changing the saw blade
WARNING!
▶ Always remove the plug from the power socket before working on the appliance. Otherwise, there is a risk of injury.
♦ Turn the quick-release chuck ^7 as far as the stop and hold it in this position.
◆ Push the required saw blade 6 into the quick-release chuck 7 is far as the stop.
CAUTION!
▶ The teeth of the saw blade ^6 must point downwards!
Turning the appliance handle
RISK OF INJURY!
▶ Always remove the plug from the power socket before working on the appliance. The handle ④ can be turned by 90° to the right or left. This allows the ON/OFF switch ③ to be moved to the most suitable position depending on the working conditions.
◆ Press the release button⑪ and turn the handle④ to the right or left.
Allow the handle to engage.
Adjusting the footplate
RISK OF INJURY!
▶ Always remove the plug from the power socket before working on the appliance.
Adjust the footplate 5 according to the cutting depth.
To do so, undo the locking level and move the footplate 5 to the corresponding position.
◆ Lock this position by closing the locking level.
Stroke rate selection
The stroke rate can also be changed during operation.
Use
Switching on and off
During operation, you can choose between instantaneous and continuous operation.
Switching to instantaneous operation
◆ Press the ON/OFF switch 3. The work light 8 lights up when the ON/OFF switch 3s pushed in slightly or fully and illuminates the working area in low light conditions.
Switching off instantaneous operation
◆ Release the ON/OFF switch ^3 .
Switching to continuous operation
◆ Press the ON/OFF switch ③ and lock it in this position with the locking switch ②
Switching off continuous operation
◆ Press the ON/OFF switch 3 and release it again.
Guiding the sabre blade safely
To adapt to the workpiece and for safe placement, the footplate can be swivelled. It must always be in contact with the workpiece when the appliance is running.
Practical advice on sawing
◆ Check the material to be worked to make sure that all foreign objects have been removed, e.g. nails, screws, etc..
◆ Ensure that the ventilation slits are not covered.
◆ Switch the appliance on before moving it towards the material to be worked.
◆ Switch the appliance off immediately if the saw blade jams.
Open up the sawn gap using a suitable tool and pull out the sabre saw.
■ Use the appropriate saw blade and stroke rate for the material to be worked.
■ Saw blades optimised for your sabre saw are available from retail stores in different lengths for various purposes.
■ Saw the material at a constant speed.
Sawing flush to edges
Using flexible saw blades with a suitable corresponding length, you can saw off protruding workpieces such as pipes flush to the wall.
Proceed as follows:
- Place the saw blade directly against the wall.
- Bend it by applying lateral pressure to the sabre saw so that the footplate 5 makes contact with the wall.
- Switch the appliance on as described and saw off the work piece by applying constant pressure.
Plunge sawing
CAUTION! RISK OF KICKBACK!
▶ Plunge cuts may only be made in soft materials (wood or similar).
Proceed as follows:
- Place the sabre saw with the lower edge of the footplate 5 onto the workpiece. Switch the appliance on.
- Tilt the sabre saw forwards and plunge the saw blade into the workpiece.
- Position the sabre saw vertically and continue sawing along the cutting line.
Maintenance and cleaning
WARNING! RISK OF INJURY! Always switch the appliance off before carrying out any work on it.
■ Always remove the power plug from the power socket before cleaning the appliance.
■ Replace the saw blade as soon as its teeth are blunt and proper sawing is therefore no longer possible.
- Keep the appliance and ventilation slits clean at all times. If the ventilation slits are blocked, there is a risk of overheating and/or the appliance being damaged.
■ Always clean the appliance after completion of work.
■ Never permit liquids to enter inside the appliance. Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
■ If necessary, clean the saw blade mount with a brush or compressed air.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (IAN) 383460_2107 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 383460_2107.
WARNING!
▶ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
▶ If the mains cable is damaged, it must be replaced with a special cable that is available from the manufacturer or its customer service.
NOTE
▶ Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.
Service
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 383460_2107
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21 · 44867 BOCHUM
GERMANY · www.kompernass.com
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Do not dispose of power tools in your normal domestic waste!
In accordance with European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment and its integration into national law, used power tools must be disposed of separately and recycled in an environmentally friendly manner. Take the appliance to a nearby collection facility.
Your local community or municipal authorities can provide information on how to dispose of the appliance.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material
components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, document officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards
EN 62841-1:2015
EN 62841-2-11:2016
EN 55014-1:2017/A11:2020
EN 61000-3-2:2014
EN IEC 61000-3-2:2019
EN 61000-3-3:2013
EN 61000-3-3:2013/A1:2019
EN 55014-2:1997/A1:2001/A2:2008
EN 55014-2:2015
EN IEC 63000:2018
Type designation of machine: Sabre saw PFS 710 D3
Year of manufacture: 10–2021
Serial number: IAN 383460_2107
Bochum, 29/09/2021
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Inhaltsverzeichnis
Einleitung....12
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Entsorgung
Informations relatives aux lames 27
Informations relatives aux lames
BURGSTRASSE 21
44867 BOCHUM
Allemagne
www.kompernass.com
Mise au rebut
Directive relative aux machines
(2006/42/CE)
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Afvoeren
Semi Uguzlu
PILA OCASKA PFS 710 D3
Úvod
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Likvidace
Semi Uguzlu
- manažer kvality -
Wymiary: 152 mm, 6 TPI
Wymiary: 152 mm, 24 TPI
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Utylizacja
ELEKTRICKÁ PÍLA PFS 710 D3
Úvod
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Likvidácia
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Desecho
BAJONETSAV PFS 710 D3
Indledning
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Bortskaffelse
Semi Uguzlu
- Kvalitetschef -
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Smaltimento
J. J. J. J. J.CE
Semi Uguzlu
BURGSTRASSE 21
44867 BOCHUM
NEMČIJA
www.kompernass.com
Pooblaščeni serviser
SI
ServisSlovenija
Tel.: 01 888 9273
E-Mail: kompernass@lidl.si
IAN 383460_2107
Garancijski list
Semi Uguzlu
- vodja kakovosti -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 10 / 2021 · Ident.-No.: PFS710D3-092021-1
