USER MANUAL WS06IPB THOMSON

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE EN- EN 1 - Getting Started

• Remove the appliance from the box.

• Remove any packaging from the product.

• Place the packaging inside the box and either or dispose of safely. Safety and Notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Warning

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Minimum distances 10 cm around the apparatus for sufcient ventilations.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• No naked ame sources such as lighted candles should be placed on the apparatus

• Attention should be drawn to environmental aspects of battery disposal.

• The use of apparatus in moderate climates.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the Point where they exit from the apparatus.

10. Only use attachments/accessories specied by the manufacturer.

11. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer or sold with

the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Getting Started 1 Safety and Notice 1 Care for your product 2 Care of the environment 2 What’s in the box 3 Description of Parts 3 Setting started 4 Charging the internal battery 4 USB charging port 4 Wireless charging 4 Pairing the Device: 5 Aux Function: 5 Receiving/rejecting Calls: 5 Power 6 Remarks: 7

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Apparatus shall not be exposed to dripping or splashing.

15. Do not place any sources of danger on the apparatus (e.g. liquid lled objects, lighted candles).

16. Where the MAINS plug (or AC/DC adaptor) or an appliance coupler is used as the disconnect

device, the disconnect device shall remain readily operable.

17. Make sure there is enough free space around the product for ventilation.

18. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as

sunshine, re or the like.

19. The rating label is placed on the bottom side of apparatus.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.

2. Do not play music at excessive volume levels as damage to hearing and or the equipment may

3. Do not use this unit in wet or damp conditions.

4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with

a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners. Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health. The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.- EN 3 - What’s in the box

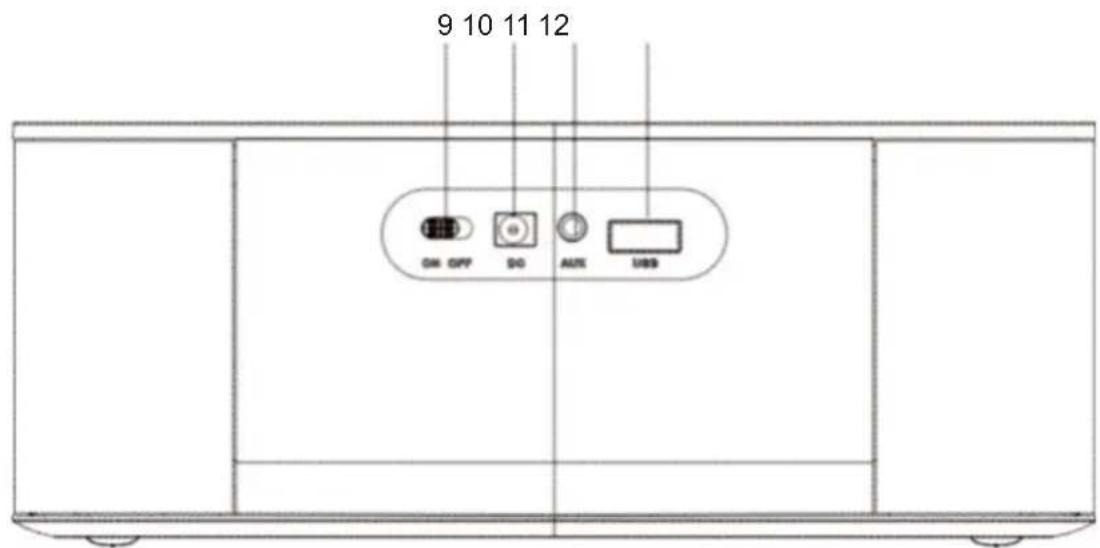

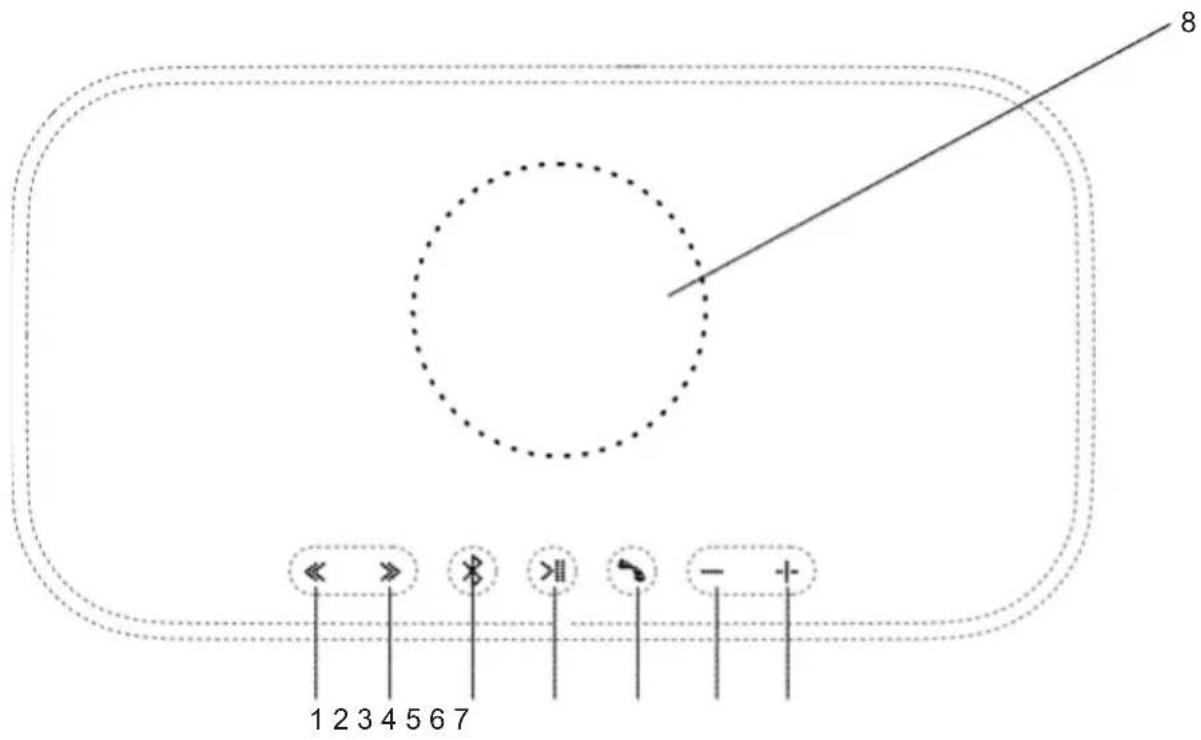

• USB charging cable Description of Parts

5. Phone answer/Redial

8. Wireless charging area

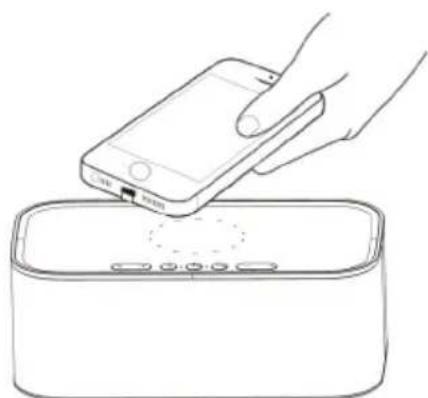

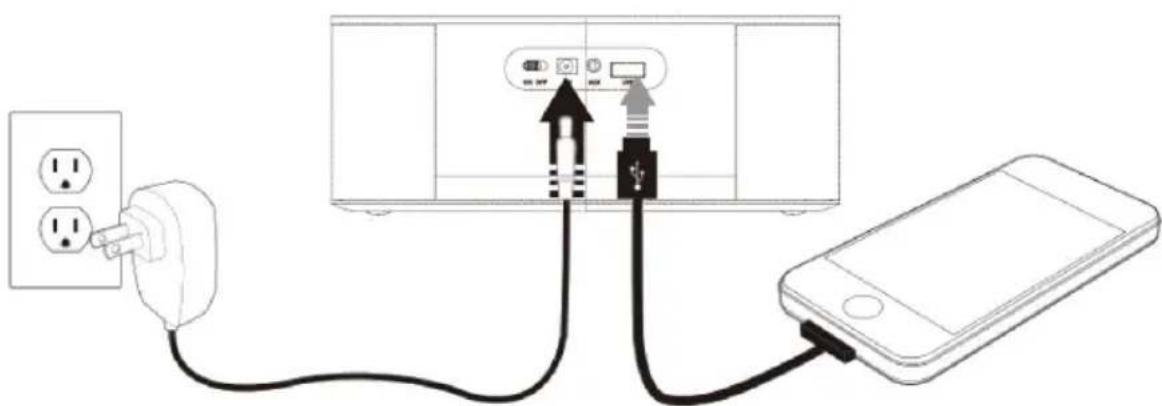

Setting started Plug the power adapter into the back of the product, and the other end into a standard electrical outlet. Charging the internal battery The internal battery will automatically start charging once the AC adaptor is attached. The left side LED (next to the Bluetooth button) will change to red to indicate that power is connected). The battery will take 2.5 hours to fully charge and will provide 4-5 hours playback time. This will be signicantly reduced if you also charge your phone from the internal battery. USB charging port To charge your telephone, plug your USB cable into the back of the device and plug into in the telephone. Wireless charging Compatible with wireless charging enabled smart phones. Other smart phones need to use wireless charging adapters to work. *Note: When the phone is being charged your phone’s charging indicator will show as normal. The right side LED will turn green when wireless charging is in progress. *Note: For maximum charging efciency, the phone must be aligned with the center of the charging area. *Note: Phones that are capable of wireless charging may need to be placed slightly off center. The built-in wireless receiver may not be centered inside the phone. This varies by brand/model.- EN 5 - Pairing the Device:

1. Place the speaker near the Bluetooth-enabled device and switch the speaker on.

2. Press and hold the Bluetooth button to put the speaker into pairing mode if it is not already in

search mode. The LED next to the Bluetooth logo will start ashing.

3. Go to the Bluetooth settings on your device.

4. Select the Bluetooth name “WS06IPB ”. If your device asks for a passcode enter ‘0000’

5. The Bluetooth LED remains fully lit when pairing is complete and a sound prompt conrms it is

6. The speaker will automatically pair to the last device it was paired to when it powers on again. If no

known device is found, it will enter pairing mode again. Aux Function: For other compatible music player devices, or MP3 players, please use the auxiliary audio line cable (included) to connect from your external device’s “LINE OUT” jack to the “AUX-IN” jack of this speaker. The speaker will beep when a cable is attached and the left side LED will slowly ash. Receiving/rejecting Calls: While in wireless mode, press the Call button to accept an incoming call. Press the Call button again to end the call. You can also recall the last used number by pressing this button. You only can reject a call from your device and not from the speaker. Please check below for the full LED light status indications. Note that if the speaker is only operating on battery, the Blue \ Red LED will only display the blue colour. Working status Bluetooth LED Indicator (Blue/Red) Wireless charging LED Indicator (Green/Red) Power on Blue\ Red LED quickly Flashing Red LED constant Bluetooth pairing mode Blue \ Red LED quickly Flashing No Change Bluetooth connected successfully Blue LED constant No Change Play music Blue \ Red LED slow Flashing No change Pause Blue LED constant No change Make call via Bluetooth Blue LED constant No change AUX In Mode Blue \ Red LED light ash No change USB charging for other device No change according to the current state No change Use AC adaptor to charge speaker Red LED constant ,Blue LED No change according to the current state No change Speaker full charged Red LED off No change Put the Phone on wireless charging area No change according to the current state Green LED constant Phone full charging No change according to the current state Red LED constant- EN 6 - Power CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.

• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.

• Before connecting the AC power cord, ensure you have completed all other connections. Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable. Auto standby When playing media from a connected device, the Tower automatically switches to standby if:

• No button is pressed for 10 minutes,

• No audio from a connected device for 10 minutes. Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

• Use batteries of the same type. Never use different types of batteries together.

• Do not throw the battery into the re, or exposed to sunshine or the like.

• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor. Note the following information: Only use the power supplies listed below. Product Specication: Frequency range: 150HZ– 18KHZ AC Adaptor: 100-240 V, 50/60 Hz, 0.5 A Power Output: DC5 V 1.5A Battery Capacity: 7.4V -2200mAh Remark: The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to avoid connection getting disturbed.- EN 7 - Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette

• Don’t discard the electrical and electronic appliances in the regular waste disposal. a) Take them to a collection point. b) Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• If there is an incoming call while WS06IPB is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)

• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

• Hereby, Bigben Interactive SA, declares that the WS06IPB device complies with the essential requirements of the directive 1995/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

• The NFC™ Mark is a trademark of NFC Forum, Inc. in the United States and in other countries.

• THOMSON is a trademark of TECHNICOLOR SA or its afliates used under license to Bigben Interactive.
